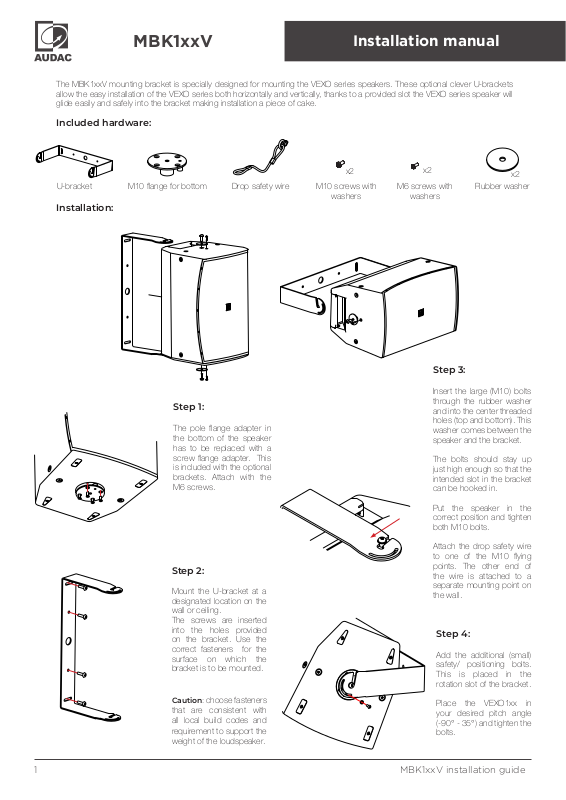

MBK1xxV
The MBK1xxV mounting bracket is specially designed for mounting the VEXO series speakers. These optional clever U-brackets
allow the easy installation of the VEXO series both horizontally and vertically, thanks to a provided slot the VEXO series speaker will
glide easily and safely into the bracket making installation a piece of cake.
Installation manual
Included hardware:
U-bracket

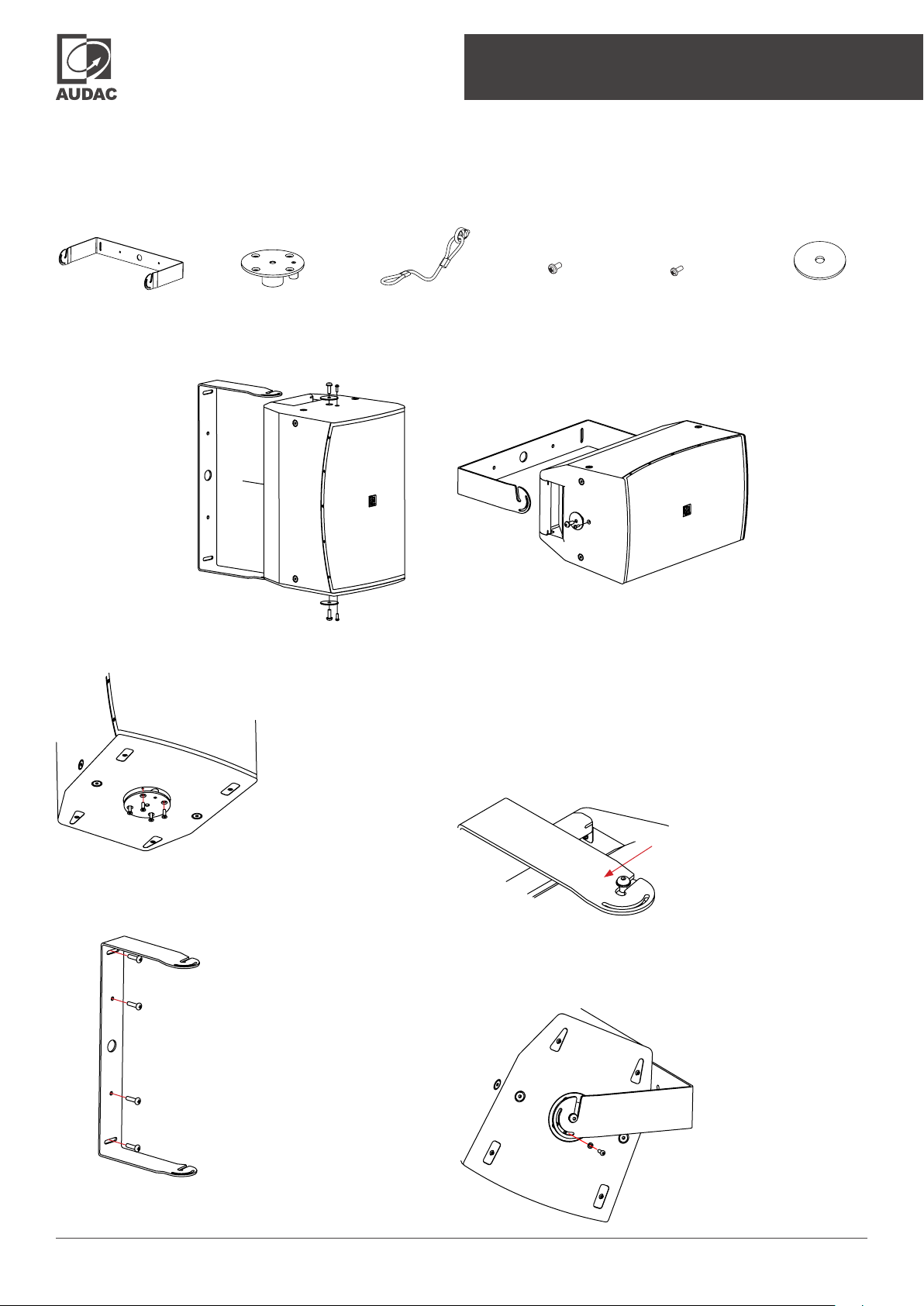

Installation:
M10 ange for bottom
Step 1:
The pole ange adapter in
the bottom of the speaker
has to be replaced with a
screw ange adapter. This
is included with the optional
brackets. Attach with the
M6 screws.
Drop safety wire
x2
M10 screws with
washers
x2
M6 screws with
washers
Step 3:
Insert the large (M10) bolts
through the rubber washer
and into the center threaded
holes (top and bottom). This
washer comes between the
speaker and the bracket.
The bolts should stay up
just high enough so that the
intended slot in the bracket
can be hooked in.
x2
Rubber washer
Step 2:
Mount the U-bracket at a
designated location on the
wall or ceiling.
The screws are inserted
into the holes provided
on the bracket. Use the
correct fasteners for the
surface on which the
bracket is to be mounted.
Caution: choose fasteners
that are consistent with
all local build codes and
requirement to support the
weight of the loudspeaker.
Put the speaker in the
correct position and tighten
both M10 bolts.
Attach the drop safety wire
to one of the M10 ying
points. The other end of
the wire is attached to a
separate mounting point on
the wall.
Step 4:
Add the additional (small)
safety/ positioning bolts.
This is placed in the
rotation slot of the bracket.
Place the VEXO1xx in
your desired pitch angle
(-90° - 35°) and tighten the
bolts.
MBK1xxV installation guide1
Page 2

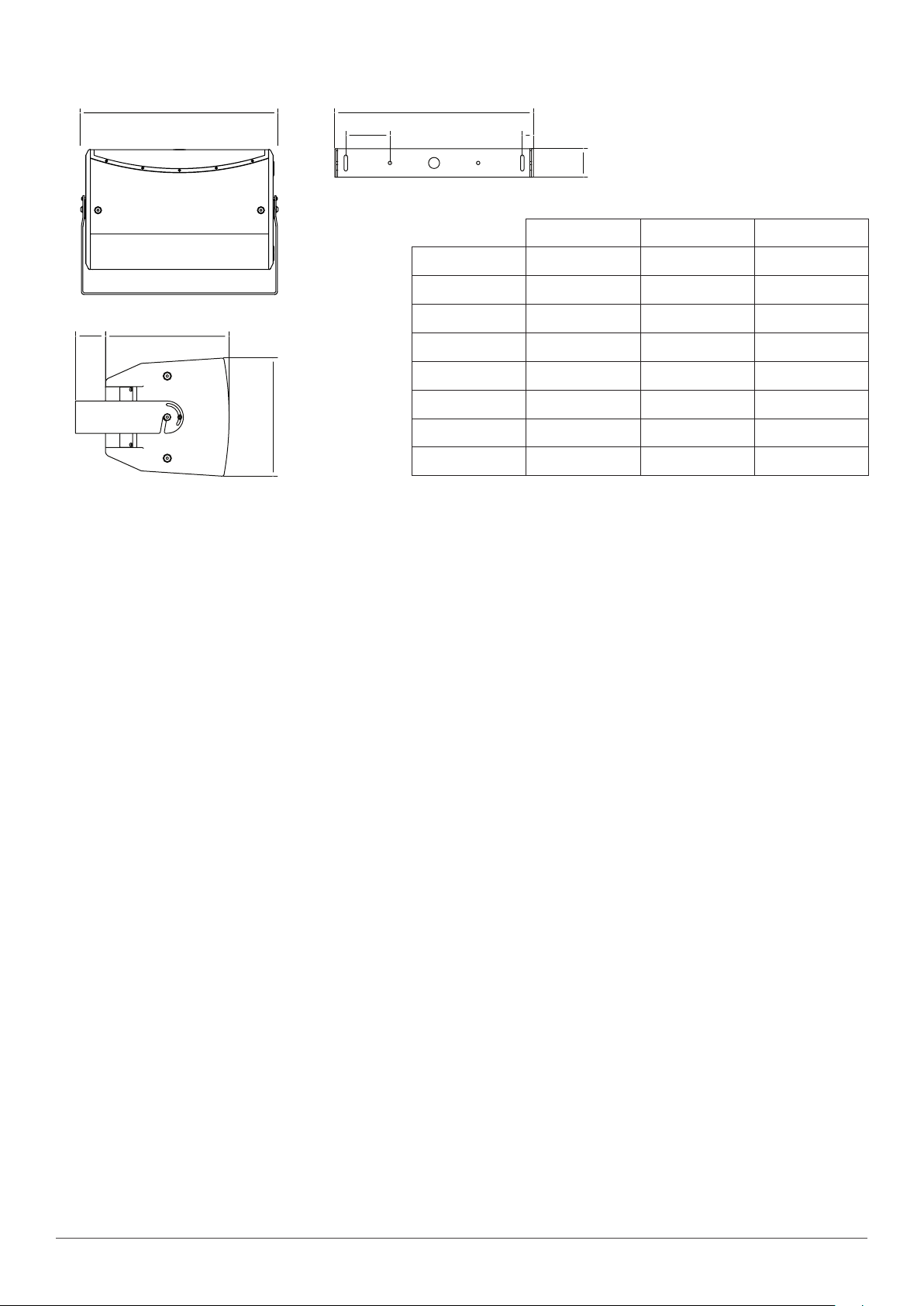

Dimensions:
A
AA
B
C
PRECAUTIONS
E
F
G
H
MBK110V MBK112V MBK115V
A
B
C
D
E
D
F
G
H
566 mm 636 mm 716 mm
83.5 mm 81mm 75 mm
345 mm 390 mm 450 mm
330 mm 370 mm 428 mm
566 mm 636 mm 716 mm
125 mm 140 mm 160 mm
30 mm 35 mm 35 mm
90 mm 90 mm 100 mm
•
KEEP THESE INSTRUCTI ON S FOR FUTU RE REF ER ENCE. NEVER
THROW THEM AWAY
• ALWAYS HANDLE THIS UNIT WITH CARE
• CLEAN ONLY WITH DRY CLOTH
• HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS
•
NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY
DRIPPING OR SPLASHING LIQUID.
•
DO NOT PLACE THIS UNIT IN ENVIRONMENTS WITH A HIGH
LEVEL OF DUST, HEAT, MOISTURE OR VIBRATION
•
DO NOT USE HYDROCARBON BASED SOLVEN TS, LUBRICANTS
OR CLEANING AGENTS OF ANY TYPE ON OR AROUND
THE DEVICE AND MOUNTING HARDWARE DURING THE
INSTALLATION. THE USE OF THESE PRODUCTS ON OR
AROUND THE MOUNTING ANCHORS AND SCREWS CAN
LE AD TO DEGRADATION OF THE PLASTIC MATERIA L, POSSIBLY
RESULTING IN CRACKING AND PREMATURE FAILURE OF THE
PRO D U C T.
•
THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT
USE IT OUTDOORS
•
ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE
MANUFACTURER.
•
ONLY INSTALL THE SPEAKER IN LOCATIONS THAT CAN
STRUCTURALLY SUPPORT THE WEIGHT OF THE SPEAKER.
IGNORING THIS CAN BRING THE SPEAKER DOWN.
•
DO NOT USE ANY OTHER METHOD THAN SPECIFIED TO
MOUNT THE SPEAKER. IF EXTREME FORCE IS APPLIED TO THE
SPEAKER, IT COULD FALL DOWN
•
ATTACH A SAFE T Y WIR E TO THE SPE AKER WHEN IT IS MOUN TED
HIGH UP. ONLY USE IN DUSTRY-ACCEPTED RIGGING TOOLS AND
METHODS
•
CAREFULLY CHECK THE UNIT’S CONDITION AFTER UNPACKING.
• IF THERE IS ANY DAMAGE TO THE CARTON BOX OR THE UNIT
ITSELF, INFORM YOUR VENDOR IMMEDIATELY.
•
ALWAYS FOLLOW THE LOCAL REGULATIONS AND
REQUIREMENTS REGARDING INSTALLATION, SUSPENSION
AND CONNECTION OF THIS LOUDSPEAKER. EVEN WHEN
OTHERWISE SPECIFIED IN THIS DOCUMENT.
•
IT’S THE INSTALLERS RESPONSIBILITY TO ENSURE
INSTALLATION OF THE LOUDSPEAKERS AND MOUNTING
SYSTEMS IS PERFORMED IN ACCORDANCE WITH ALL
APPLICABLE CODES
•
UNSAFE MOUNTING OR OVERHEAD SUSPENSION ON ANY
HE AV Y LOAD CAN RESULT IN SERIOUS INJU RY OR DE ATH, AND
PRO PERT Y DAMAGE. IT’S THE INSTALLERS RESPONSIBI LIT Y TO
EVALUATE THE RELIABILITY OF ANY MOUNTING METHOD USED
FOR THEIR APPLICATIONS
•
THE INSTALLATION OF THIS LOUDSPEAKER SHALL BE DONE
BY QUALIFIED PERSONNEL ONLY.
•
DO NOT MAKE UNAUTHORIZED ALTERATIONS TO THE
PRO D U C T.
•
The MBK110V mounting bracket is for the use with VE XO110(A)
onl y.
•
The MBK112V mounting bracket is for the use with VE XO112(A)
onl y.
•
The MBK115V mounting bracket is for the use with VEXO115(A)
only
.
CAUTION - SERVICING
This product contains no user serviceable parts. Refer all
servicing to qualied service personnel. Do not perform any
servicing (unless you are qualied to do so).
EC DECLARATION OF CONFORMITY
This product conforms to all the essential requirements and
further relevant specications described in following directives:
2011/65/EU (RoHS2) and 1907/2006 (REACH)
