MBK102
ITEM
1
2 2
3 4
4 4
5 2
6 4
7 2
8 1
9 2
10 1
11 1

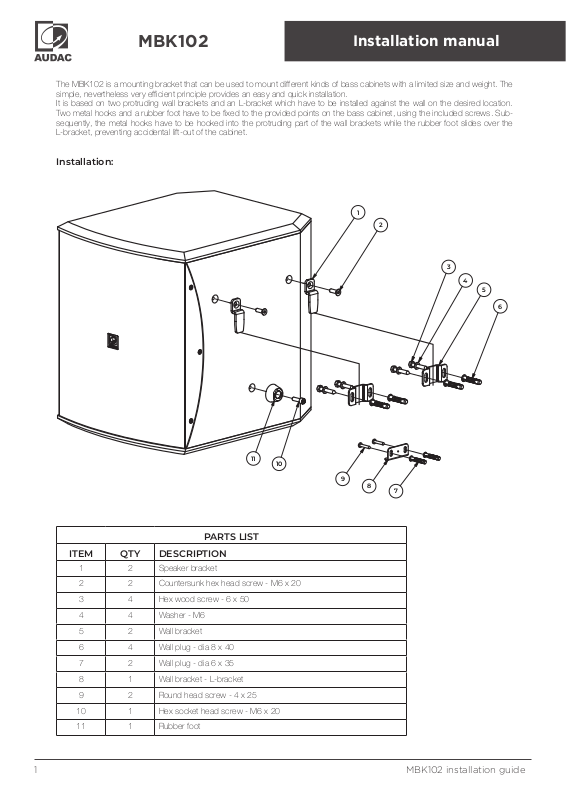

Installation manual
The MBK102 is a mounting bracket that can be used to mount different kinds of bass cabinets with a limited size and weight. The
simple, nevertheless very efcient principle provides an easy and quick installation.

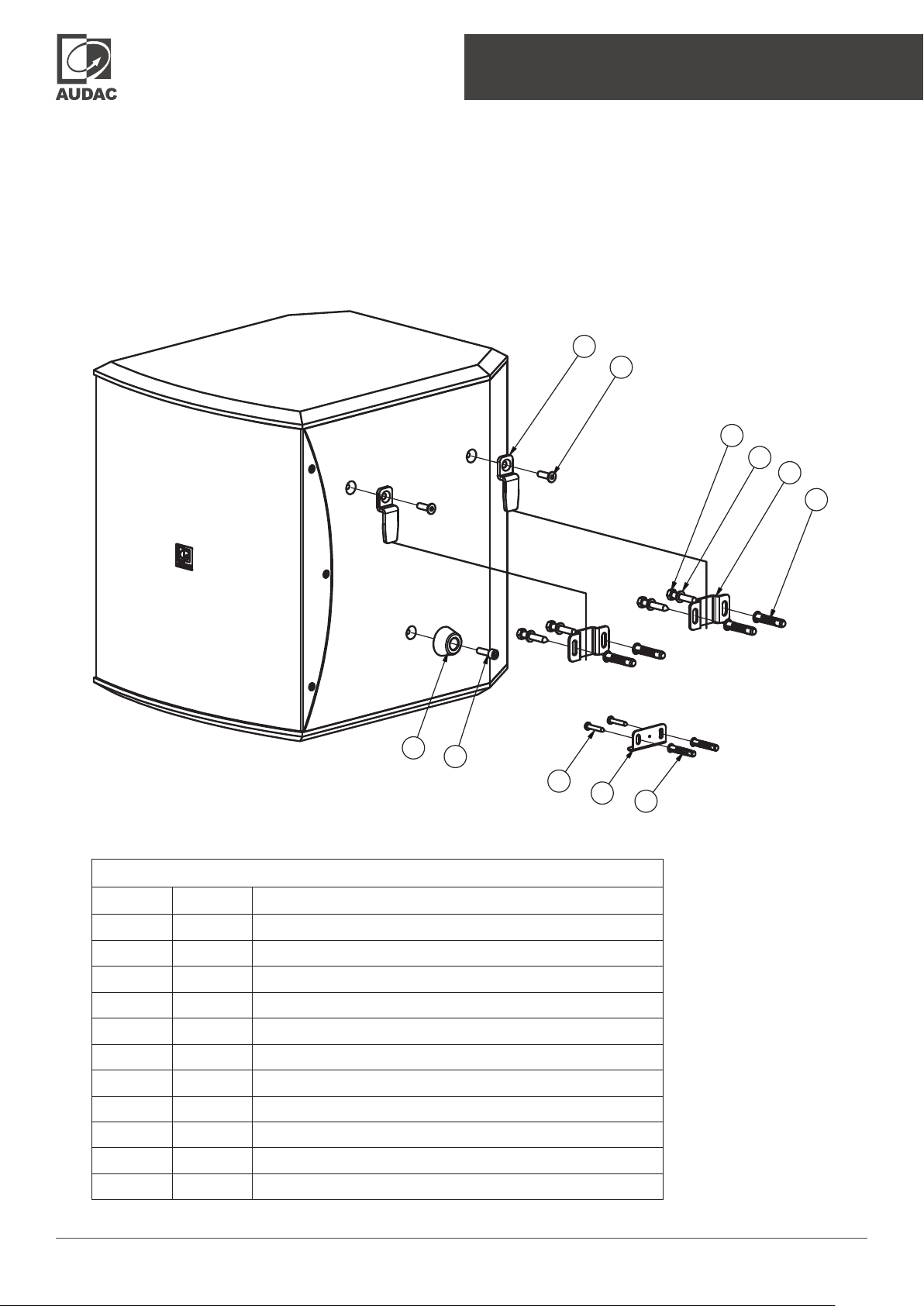

It is based on two protruding wall brackets and an L-bracket which have to be installed against the wall on the desired location.
Two metal hooks and a rubber foot have to be xed to the provided points on the bass cabinet, using the included screws. Subsequently, the metal hooks have to be hooked into the protruding part of the wall brackets while the rubber foot slides over the
L-bracket, preventing accidental lift-out of the cabinet.
Installation:
1
2
3
4
5
6
11
PARTS LIST
ITEM QTY DESCRIPTION
1 2 Speaker bracket
2 2 Countersunk hex head screw - M6 x 20
3 4 Hex wood screw - 6 x 50
4 4 Washer - M6
5 2 Wall bracket
6 4 Wall plug - dia 8 x 40
7 2 Wall plug - dia 6 x 35
8 1 Wall bracket - L-bracket
9 2 Round head screw - 4 x 25
10 1 Hex socket head screw - M6 x 20
11 1 Rubber foot
10
9
8
7
MBK102 installation guide1
Page 2

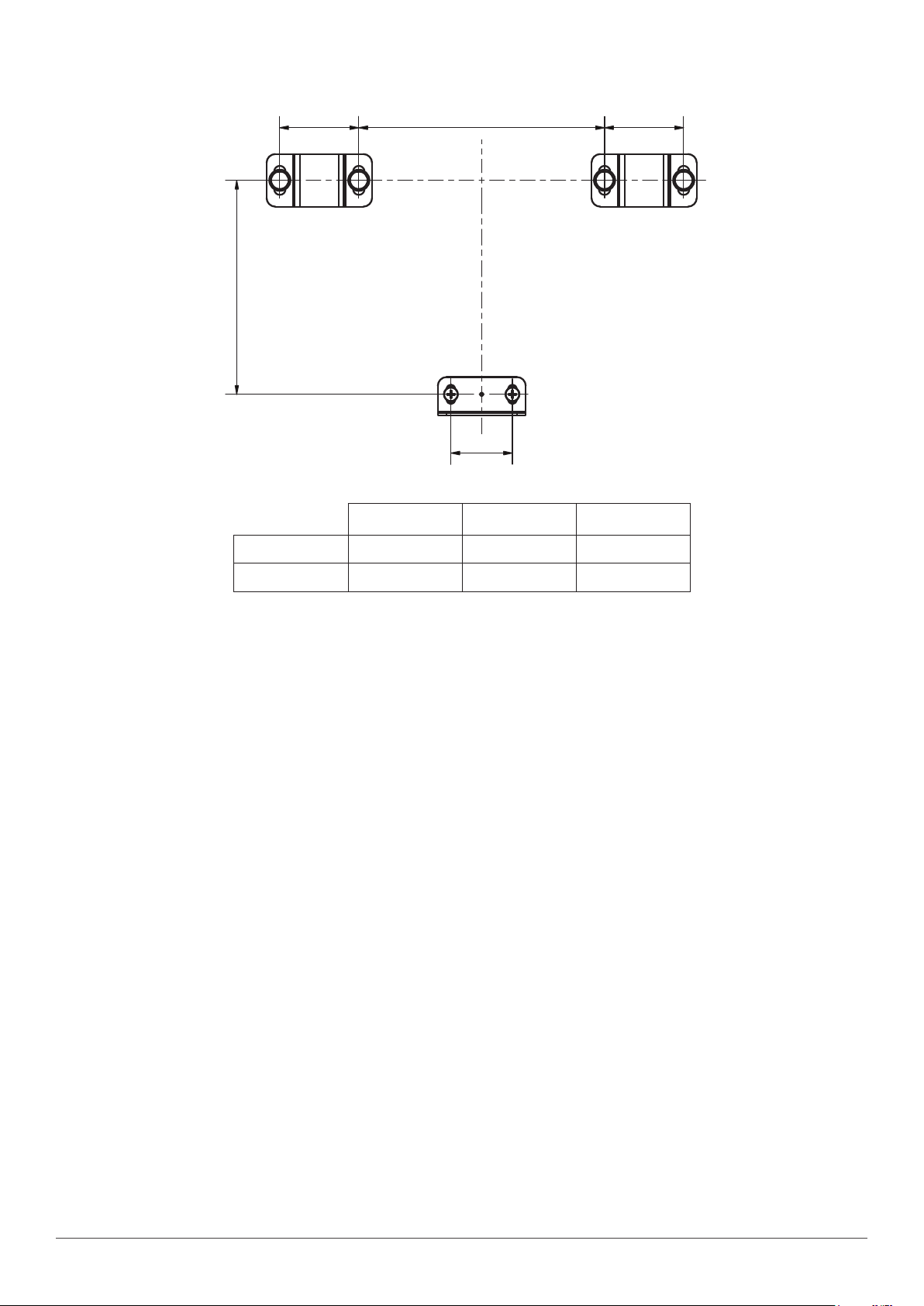

Mounting dimensions:
45
B
BASO10
A
35
BASO12 BASO15
45
A
B
122 mm 225 mm 275 mm
PRECAUTIONS
•
KEEP THESE INSTR UCTIONS FOR FUTURE REFERENC E. NEV ER
THROW THEM AWAY
• ALWAYS HANDLE THIS UNIT WITH CARE
• CLEAN ONLY WITH DRY CLOTH
• HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS
•
NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY
DRIPPING OR SPLASHING LIQUID.
•
DO NOT PLACE THIS UNIT IN ENVIRONMENTS WITH A HIGH
LEVEL OF DUST, HEAT, MOISTURE OR VIBRATION
•
DO NOT USE HYDROCARBON BASED SOLVENTS, LUBR ICANTS
OR CLEANING AGENTS OF ANY TYPE ON OR AROUND
THE DEVICE AND MOUNTING HARDWARE DURING THE
INSTALLATION. THE USE OF THESE PRODUCTS ON OR
AROUND THE MOUNTING ANCHORS AND SCREWS CAN
LE AD TO DEGRADATION OF TH E PL ASTIC MATERIAL, POSSIBLY
RESULTING IN CRACKING AND PREMATURE FAILURE OF THE
PRO D U C T.
•
THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT
USE IT OUTDOORS
•
ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE
MANUFACTURER.
•
ONLY INSTALL THE SPEAKER IN LOCATIONS THAT CAN
STRUCTURALLY SUPPORT THE WEIGHT OF THE SPE AKER.
IGNORING THIS CAN BRING THE SPEAKER DOWN.
•
DO NOT USE ANY OTHER METHOD THAN SPECIFIED TO
MOUNT THE SPEAKER. IF EXTREME FORCE IS APPLIED TO THE
SPEAKER, IT COULD FALL DOWN
•
ATTACH A SAFE T Y WIR E TO TH E SPE AKER WHEN IT IS MOU NTED
HIGH UP. ONLY USE INDUSTRY-ACCEPTED RIGGING TOOLS AND
METHODS
•
CAREFULLY CHECK THE UNIT’S CONDITION AFTER UNPACKING.
• IF THERE IS ANY DAMAGE TO THE CARTON BOX OR THE UNIT
ITSELF, INFORM YOUR VENDOR IMMEDIATELY.
•
ALWAYS FOLLOW THE LOCAL REGULATIONS AND
REQUIREMENTS REGARDING INSTALLATION, SUSPENSION
AND CONNECTION OF THIS LOUDSPEAKER. EVEN WHEN
OTHERWISE SPECIFIED IN THIS DOCUMENT.
•
IT’S THE INSTALLERS RESPONSIBILITY TO ENSURE
INSTALLATION OF THE LOUDSPEAKERS AND MOUNTING
SYSTEMS IS PERFORMED IN ACCORDANCE WITH ALL
APPLICABLE CODES
•
UNSAFE MOUNTING OR OVERHEAD SUSPENSION ON ANY
HE AVY LOAD CAN RESU LT IN SERI OUS INJURY OR DEATH, AND
PRO PERT Y DAMAGE. IT’S THE INSTALL ERS RES PO NSIB IL ITY TO
EVALUATE THE RELIABILITY OF ANY MOUNTING METHOD USED
FOR THEIR APPLICATIONS
•
THE INSTALLATION OF THIS LOUDSPEAKER SHALL BE DONE
BY QUALIFIED PERSONNEL ONLY.
•
DO NOT MAKE UNAUTHORIZED ALTERATIONS TO THE
PRO D U C T.
CAUTION - SERVICING
This product contains no user serviceable parts. Refer all
servicing to qualied service personnel. Do not perform any
servicing (unless you are qualied to do so).
EC DECLARATION OF CONFORMITY
This product conforms to all the essential requirements and
further relevant specications described in following directives:
2011/65/EU (RoHS2) and 1907/2006 (REACH)
MBK102 installation guide2
