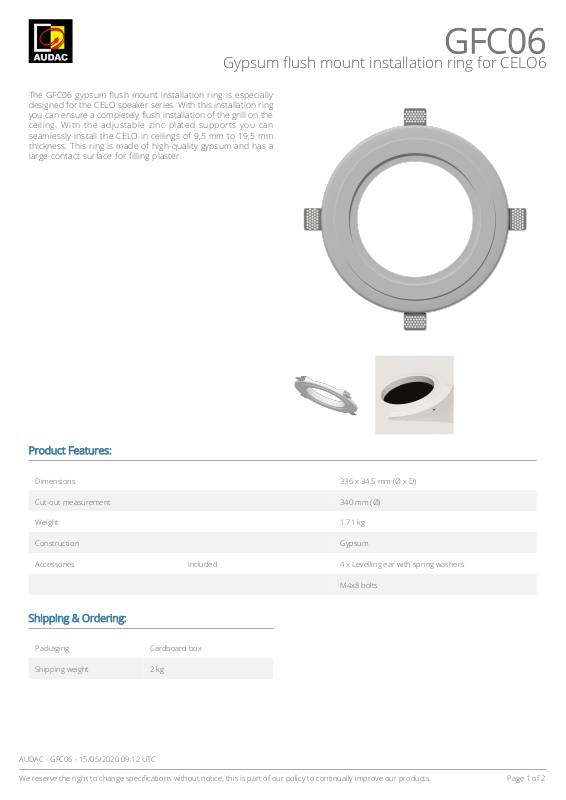

Gypsum flush mount installation ring for CELO6
2
The GFC06 gypsum flush mount installation ring is especially
designed for the CELO speaker series. With this installation ring
you can ensure a completely flush installation of the grill on the
ceiling. With the adjustable zinc plated supports you can
seamlessly install the CELO in ceilings of 9,5 mm to 19,5 mm
thickness. This ring is made of high-quality gypsum and has a
large contact surface for filling plaster.
GFC06
Product Features:
Dimensions 336 x 34.5 mm (Ø x D)
Cut-out measurement 340 mm (Ø)
Weight 1.71 kg
Construction Gypsum
Accessories Included 4 x Levelling ear with spring washers
M4x8 bolts
Shipping & Ordering:
Packaging Cardboard box
Shipping weight 2 kg
AUDAC - GFC06 - 15/05/2020 09:12 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
Technical drawings:
Ø336
Ø206
396,5 34,5
9,5
Product description:
Weight: Outer dimensions: Unit height:
(w x h x d)
GFC06
1,71 kg 396,5 x 396,5 x 34,5 N/A
GYPSUM FLUSH MOUNT INSTALLATION RING
FOR CELO6 INNER Ø206MM & OUTER Ø336MM
2
AUDAC - GFC06 - 15/05/2020 09:12 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
