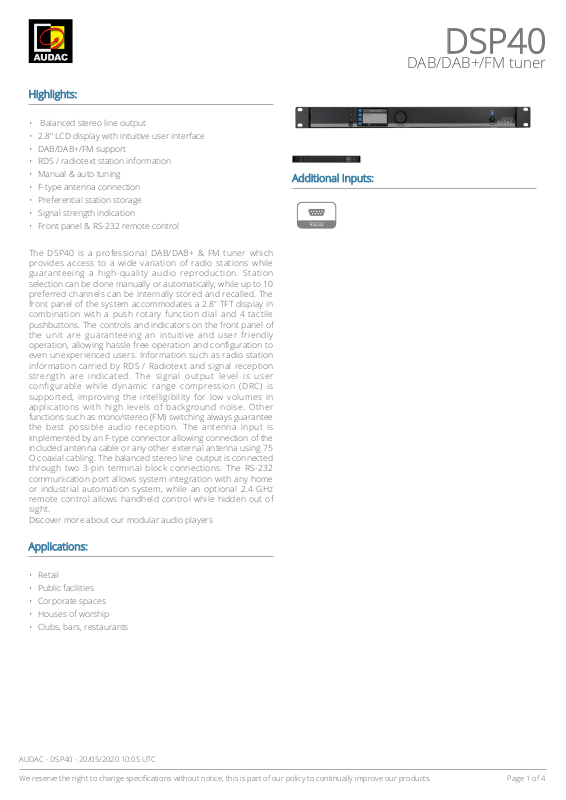

Highlights:
4
Balanced stereo line output•
2.8" LCD display with intuitive user interface•
DAB/DAB+/FM support•
RDS / radiotext station information•
Manual & auto tuning•
F-type antenna connection•
Preferential station storage•
Signal strength indication•
Front panel & RS-232 remote control•
The DSP40 is a professional DAB/DAB+ & FM tuner which
provides access to a wide variation of radio stations while
guaranteeing a high-quality audio reproduction. Station
selection can be done manually or automatically, while up to 10
preferred channels can be internally stored and recalled. The
front panel of the system accommodates a 2.8” TFT display in
combination with a push rotary function dial and 4 tactile
pushbuttons. The controls and indicators on the front panel of
the unit are guaranteeing an intuitive and user friendly
operation, allowing hassle free operation and configuration to
even unexperienced users. Information such as radio station
information carried by RDS / Radiotext and signal reception
strength are indicated. The signal output level is user
configurable while dynamic range compression (DRC) is
supported, improving the intelligibility for low volumes in
applications with high levels of background noise. Other
functions such as mono/stereo (FM) switching always guarantee
the best possible audio reception. The antenna input is
implemented by an F-type connector allowing connection of the
included antenna cable or any other external antenna using 75
O coaxial cabling. The balanced stereo line output is connected
through two 3-pin terminal block connections. The RS-232
communication port allows system integration with any home
or industrial automation system, while an optional 2.4 GHz
remote control allows handheld control while hidden out of
sight.
Discover more about our modular audio players
DSP40
DAB/DAB+/FM tuner
Additional Inputs:
Applications:
Retail•
Public facilities•
Corporate spaces•
Houses of worship•
Clubs, bars, restaurants•
AUDAC - DSP40 - 20/05/2020 10:05 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
System specifications:
4
Control Front panel
RS-232
Inputs F-type antenna connection (75 Ω)
FM Tuning Range (-10 dB) 87.5 ~ 108 MHz
Sensitivity (1W/1m) -108 dBm
Signal / Noise 52 dB
THD+N (@ 1 kHz) 0.22%
Frequency Response (± 3 dB) 30 Hz - 12.5 kHz
Crosstalk (@ 1 kHz) 26 dB
DAB Tuning Range (-10 dB) Band-3 171 ~ 240 MHz
L-Band 1452 ~ 1492 MHz
Sensitivity (1W/1m) -99 dBm
Signal / Noise 81 dB
THD+N (@ 1 kHz) 0.026%
Frequency Response (± 3 dB) 42 Hz - 20 kHz
Crosstalk (@ 1 kHz) 53 dB
Outputs Type Balanced stereo line outputs (3-pin Euro
Level +8 dB ~ -32 dB
Power Consumption 0.7 W
Terminal Block (Pitch - 3.81 mm))
Product Features:
Dimensions 482 x 44 x 330 mm (W x H x D)
Weight 3.150 kg
Mounting 19”
Unit height 1 HE
Construction Steel
Colours Black
Accessories Included Antenna cable
Optional ASK40S 4-way antenna splitter kit
2.4 GHz remote control
AUDAC - DSP40 - 20/05/2020 10:05 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 2 of
Page 3
Shipping & Ordering:
4
Packaging Cardboard box
Shipping weight & volume 4.750 kg - 0.028 Cbm
Architects’ and Engineers’ Specifications:
The audio source shall be a professional DAB, DAB+ and FM tuner capable for a reception to a wide variation of radio stations with
high-quality audio. The FM reception shall be tuneable within a range from 87.5 MHz up to 108 MHz, while the DAB/DAB+ band shall
be tuneable within a range of 171 up to 240 MHz (Band-3) and 1452 up to 1492 MHz (L-Band). The selection / tuning for the radio
stations shall be possible using both manual or automatic search functionalities. An internal memory shall allow storage up to 10
preferred audio channels which are easy to be recalled. The front panel shall contain an AC power switch accompanied with a blue
power indicator LED. A Graphical 2.8” TFT display combination with a push rotary function dial and 4 tactile push buttons shall be
implemented, guaranteeing an intuitive and user friendly experience with clear overview of the systems functions and current
operation modes. Additionally carried radio station information (RDS / Radiotext) and signal reception strength shall be displayed.
The signal output level shall be user (software) configurable within a range of +8 dB and -32 dB while and Dynamic Range
Compression (DRC) shall be available for DAB/DAB+, improving the intelligibility for low volumes in applications with high levels of
background noise. An RS-232 command port accompanied with an ‘UPDATE’ USB slot shall be implemented on the rear side of the
unit. The RS-232 connection allows control from any home or industrial automation system, while the USB slot allows simple system
updates or compatibility with optionally available RF remote control units. The antenna input connection shall be implemented using
an F-type (75 Ω) antenna connection, while the audio output is a balanced stereo line output connected through two 3-pin terminal
block connectors. The audio source shall operate on a 110~240 V AC / 50~ 60 Hz mains network and shall be equipped with a
removable power cord having a standard shuko (CEE 7/7) AC plug. The connector on the audio source chassis shall be a fused IEC
C14 type. The chassis shall be a single rackspace steel constructed 19’’ housing. Depth from mounting surface to rear supports shall
be 330 mm and the weight shall not exceed 3.15 Kg.
AUDAC - DSP40 - 20/05/2020 10:05 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 3 of
Page 4

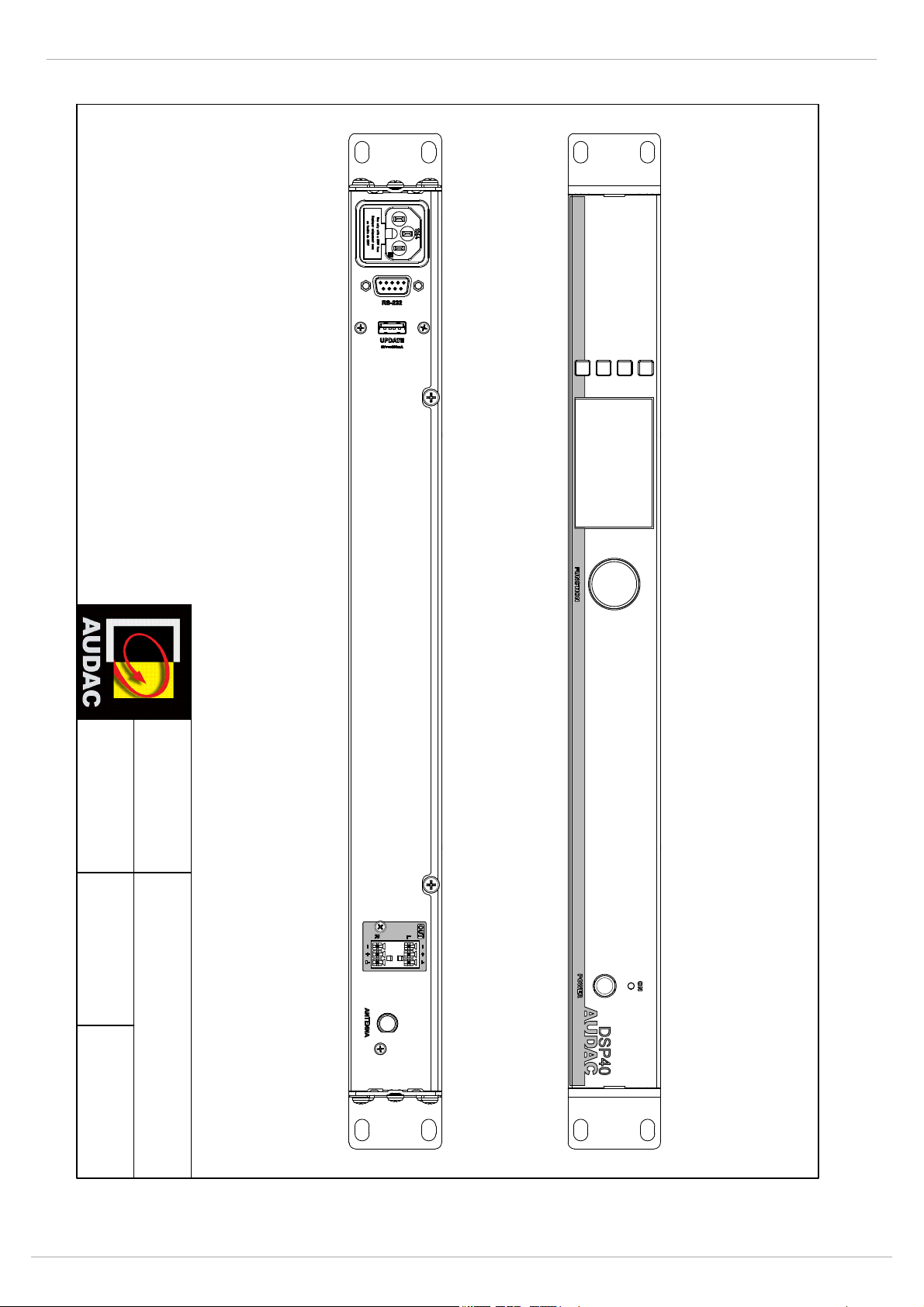

Technical drawings:
Product description:
Weight: Outer dimensions: Unit height:
(w x h x d)
DSP40
3,15 kg 483 x 44 x 330 1 HE
PROFESSIONAL DAB/DAB+/FM TUNER
4
