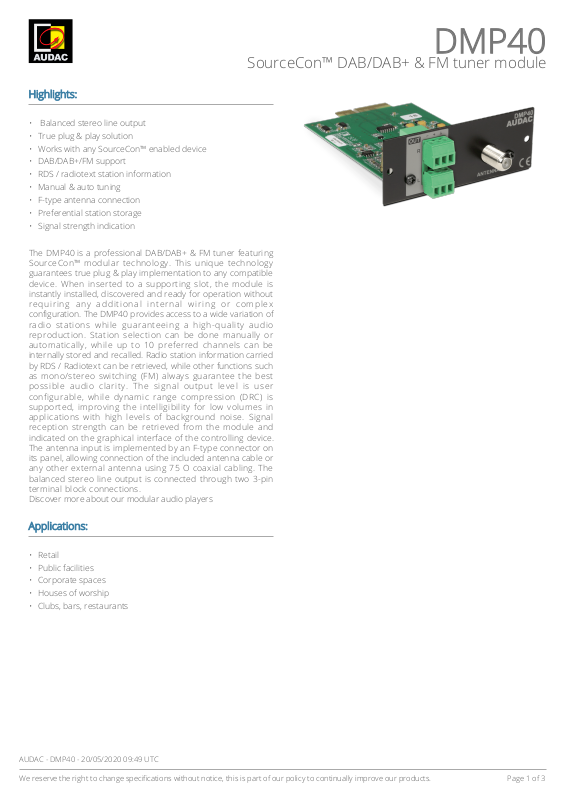

SourceCon™ DAB/DAB+ & FM tuner module
3
Highlights:
Balanced stereo line output•
True plug & play solution•
Works with any SourceCon™ enabled device•
DAB/DAB+/FM support•
RDS / radiotext station information•
Manual & auto tuning•
F-type antenna connection•
Preferential station storage•
Signal strength indication•

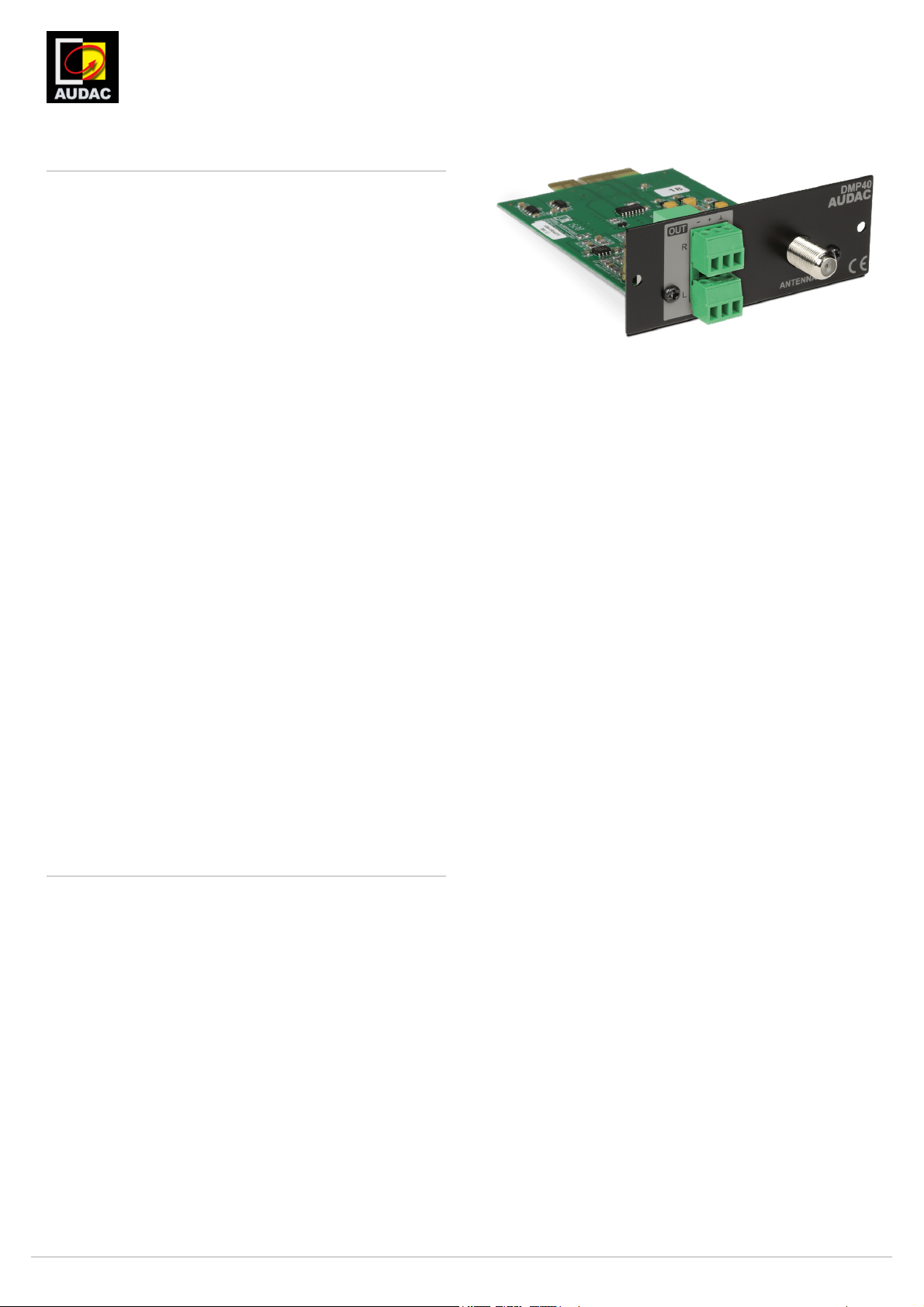

The DMP40 is a professional DAB/DAB+ & FM tuner featuring
SourceCon™ modular technology. This unique technology
guarantees true plug & play implementation to any compatible
device. When inserted to a supporting slot, the module is
instantly installed, discovered and ready for operation without
requiring any additional internal wiring or complex
configuration. The DMP40 provides access to a wide variation of
radio stations while guaranteeing a high-quality audio
reproduction. Station selection can be done manually or
automatically, while up to 10 preferred channels can be
internally stored and recalled. Radio station information carried
by RDS / Radiotext can be retrieved, while other functions such
as mono/stereo switching (FM) always guarantee the best
possible audio clarity. The signal output level is user
configurable, while dynamic range compression (DRC) is
supported, improving the intelligibility for low volumes in
applications with high levels of background noise. Signal
reception strength can be retrieved from the module and
indicated on the graphical interface of the controlling device.
The antenna input is implemented by an F-type connector on
its panel, allowing connection of the included antenna cable or
any other external antenna using 75 O coaxial cabling. The
balanced stereo line output is connected through two 3-pin
terminal block connections.
Discover more about our modular audio players
DMP40
Applications:
Retail•
Public facilities•
Corporate spaces•
Houses of worship•
Clubs, bars, restaurants•
AUDAC - DMP40 - 20/05/2020 09:49 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
System specifications:
3
Connection SourceCon™ interface card slot
Inputs F-type antenna connection (75 Ω)
FM Tuning Range (-10 dB) 87.5 ~ 108 MHz
Sensitivity (1W/1m) -108 dBm
Signal / Noise 52 dB
THD+N (@ 1 kHz) 0.22%
Frequency Response (± 3 dB) 30 Hz - 12.5 kHz
Crosstalk (@ 1 kHz) 26 dB
DAB Tuning Range (-10 dB) Band-3 171 ~ 240 MHz
L-Band 1452 ~ 1492 MHz
Sensitivity (1W/1m) -99 dBm
Signal / Noise 81 dB
THD+N (@ 1 kHz) 0.026%
Frequency Response (± 3 dB) 42 Hz - 20 kHz
Crosstalk (@ 1 kHz) 53 dB
Outputs Type Balanced stereo line outputs (3-pin Euro
Level +8 dB ~ -32 dB
Power Consumption 1.5 W
Terminal Block (Pitch - 3.81 mm))
Product Features:
Dimensions 87 x 34.5 x 114 mm (W x H x D)
Weight 0.074 kg
Mounting SourceCon™ interface card slot
Accessories Included Antenna cable
Optional ASK40S 4-way antenna splitter kit
Shipping & Ordering:
Packaging Cardboard box
Shipping weight & volume 0.285 kg - 0.028 Cbm
Compatible with XMP44 modular audio system
AUDAC - DMP40 - 20/05/2020 09:49 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 2 of
Page 3
Architects’ and Engineers’ Specifications:
3
The audio source module shall be a DAB, DAB+ and FM tuner module featuring SourceCon™ modular technology, allowing flexible
and plug & play integration to any compatible modular system. The radio tuner shall be capable for a reception to a wide variation of
radio stations with high-quality audio. The FM reception shall be tuneable within a range from 87.5 MHz up to 108 MHz, while the
DAB/DAB+ band shall be tuneable within a range of 171 up to 240 MHz (Band-3) and 1452 up to 1492 MHz (L-Band). The selection /
tuning for the radio stations shall be possible using both manual or automatic search functionalities. An internal memory shall allow
storage up to 10 preferred audio channels which are easy to be recalled. Additionally carried radio station information (RDS /
Radiotext) and signal reception strength shall be available from the module, allowing it to be retrieved and displayed through the
modular system installed to. The signal output level shall be user (software) configurable within a range of +8 dB and - 32 dB and
Dynamic Range Compression (DRC) shall be available for DAB/DAB+, improving the intelligibility for low volumes in applications with
high levels of background noise. The antenna input connection shall be implemented using an F-type (75 Ω) antenna connection on
its panel, while the audio output is a balanced stereo line output connected through two 3-pin terminal block connectors. The DAB,
DAB+ and FM tuner shall be implementable in a total system control application which is compatible with Android and iOS
devices, allowing combining its controls together with other audio&video equipment from one single dashboard.
