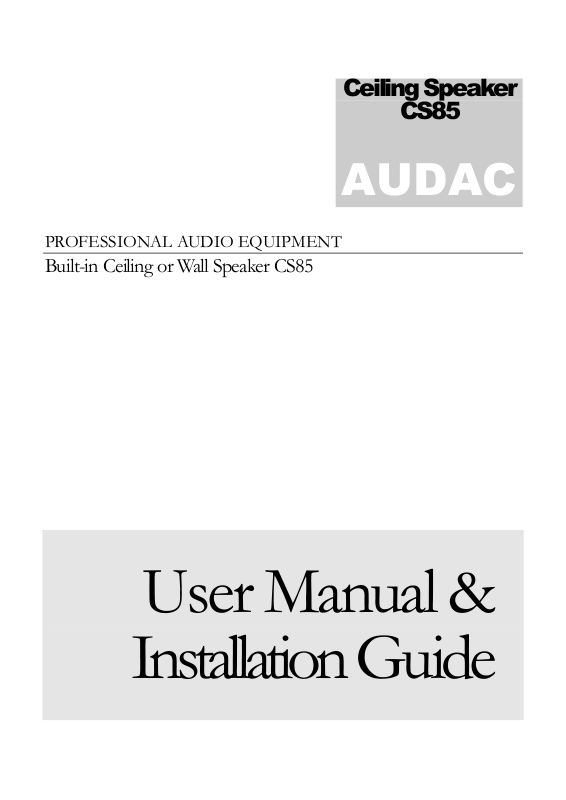

Page 1
PROFESSIONAL AUDIO EQUIPMENT
Ceiling
Speaker
AUDAC
Built-in Ceiling or Wall Speaker CS85
CS85
User Manual &
Installation Guide
Page 2
A U D A C P RO FE SS I O N A L A U D I O E Q U I PM E N T
User Manual & Installation Guide
AUDAC
http://www.audac.be
Before connecting or installing this product, first read these instructions carefully
1111
Page 3
Warning
• Use only the correct amplifier output voltage and impedance, exceeding these limits could
cause fire or other failures.
• Avoid explosions: do not use the speaker around gasoline, thinner or other combustibles.
• Only install the speaker in locations that can structurally support the weight of the speaker.
Not doing this may result in the speaker falling down.
• Do not use any other method than specified to mount the speaker. If extreme force is applied
to the speaker, it could fall down.
• Attach a safety wire to the speaker when the speaker is mounted high above the ground.
Failure in doing so could cause the speaker to fall down for any reason.
• Avoid mounting the speaker in locations exposed to constant vibrations. The mounting points
can be damaged by excessive vibrations, potentially causing the speaker to fall down.
Caution
• Avoid electric shocks: switch off the amplifier power when connecting the speaker.
• Avoid installing the speaker in locations exposed to solvents, acids, smoke and heaters, as
excessive exposure to these factors could result in speaker failure, fire or electric shock.
• Do not operate the speaker for an extended period of time at distorted sound. This could
cause (irreparable) damage to the speaker.
• Do not stand or sit on, nor hang down from the speaker, as this may cause failure of the
speaker.
2222
Page 4
Installation
• Make a hole with a diameter of 240mm. This is very easy when you use the carton that is
inside of the box .
• Take the grille from the speaker and put the speaker in the hole.
• Tighten the screws of the speaker so that the speaker will be clasped on the ceiling or wall.
• Inside of the box, you can find gums. Put these gums on the sides of the grille. Then put the
grille on the speaker. The gums on the sides of the grille will prevent the grille from falling
down.
Connections
Impedance
• Plug the speaker cable into the socket at the back of the speaker. Make sure to match the
impedance. Always plug one cable into the common socket and the other cable into the
socket of the desired power tapping.
Cable
• Be sure that you use the following polarities for your speaker cable when using several
speakers in the same location.
Red : Negative or common
Black : Positive
• The total rated input of all connected speakers may not exceed the amplifiers output.
3333
Page 5
Specifications
Nominal Power 40 Watt
SPL (1W/1m) 94 dB
SPL (40W/1m) 101.8 dB
Impedance 8 Ohm
Line transformer impedance 1600 Ohm/6W
3300 Ohm/3W
6600 Ohm/1.5W
Frequency Response 40-20000 Hz
Dimensions (Diameter x Depth) 275x90 mm
Cut-out Diameter 240 mm
Weight 1.4 Kg
Mounting 4 Screws with clamp
Color White RAL9010
4444
