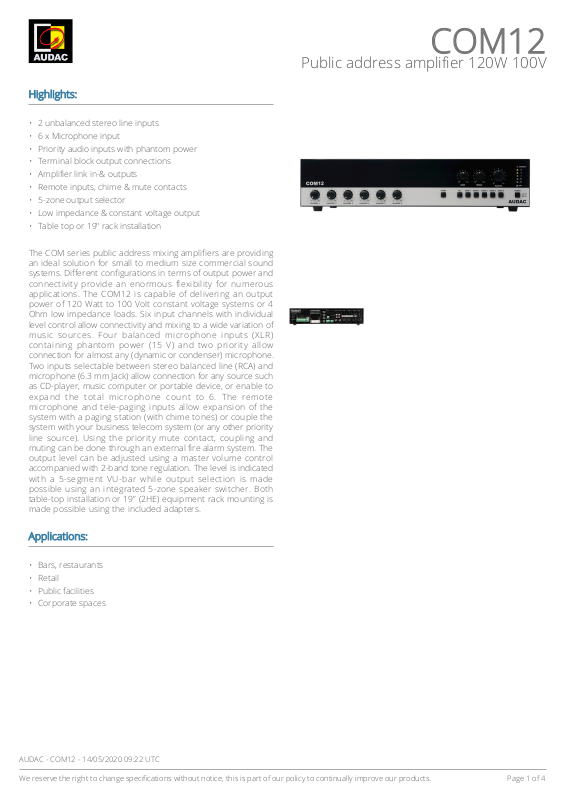

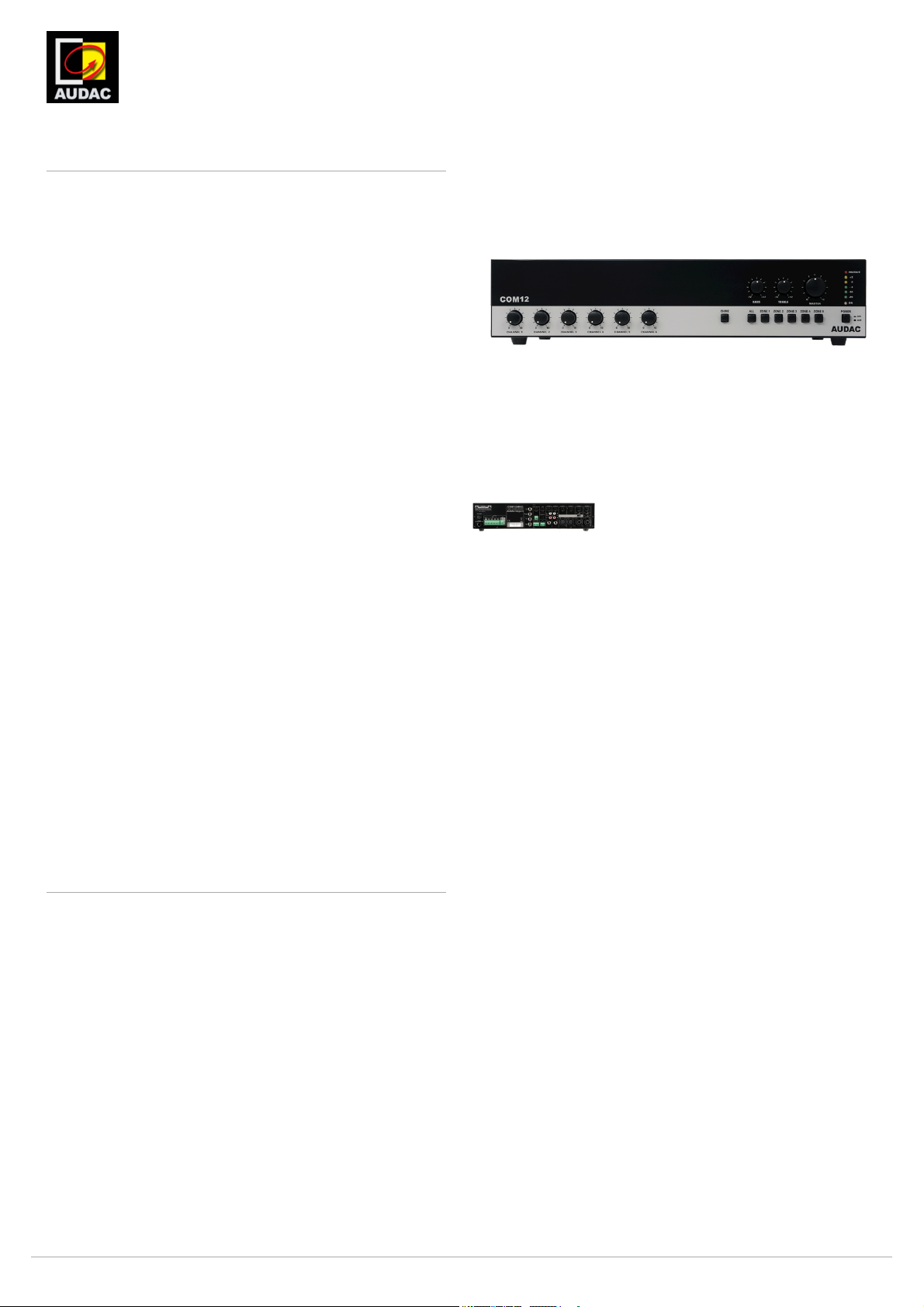

Highlights:
4
2 unbalanced stereo line inputs•
6 x Microphone input•
Priority audio inputs with phantom power•
Terminal block output connections•
Amplifier link in-& outputs•
Remote inputs, chime & mute contacts•
5-zone output selector•
Low impedance & constant voltage output•
Table top or 19" rack installation•
The COM series public address mixing amplifiers are providing
an ideal solution for small to medium size commercial sound
systems. Different configurations in terms of output power and
connectivity provide an enormous flexibility for numerous
applications. The COM12 is capable of delivering an output
power of 120 Watt to 100 Volt constant voltage systems or 4
Ohm low impedance loads. Six input channels with individual
level control allow connectivity and mixing to a wide variation of
music sources. Four balanced microphone inputs (XLR)
containing phantom power (15 V) and two priority allow
connection for almost any (dynamic or condenser) microphone.
Two inputs selectable between stereo balanced line (RCA) and
microphone (6.3 mm Jack) allow connection for any source such
as CD-player, music computer or portable device, or enable to
expand the total microphone count to 6. The remote
microphone and tele-paging inputs allow expansion of the
system with a paging station (with chime tones) or couple the
system with your business telecom system (or any other priority
line source). Using the priority mute contact, coupling and
muting can be done through an external fire alarm system. The
output level can be adjusted using a master volume control
accompanied with 2-band tone regulation. The level is indicated
with a 5-segment VU-bar while output selection is made
possible using an integrated 5-zone speaker switcher. Both
table-top installation or 19” (2HE) equipment rack mounting is
made possible using the included adapters.
COM12
Public address amplifier 120W 100V
Applications:
Bars, restaurants•
Retail•
Public facilities•
Corporate spaces•
AUDAC - COM12 - 14/05/2020 09:22 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
System specifications:
4
RMS Power 120 W
Frequency Response (± 3 dB) 20 Hz - 20 kHz
Signal / Noise > 90 dB
THD+N (@ 1 kHz) < 0.5%
Crosstalk (@ 1 kHz) > 70 dB
Technology Class A/B
Power Supply Transformer
Source 230 ~ 240 V AC / 50 ~ 60 Hz
Common mode rejection ratio 70 dB
Inputs Balanced Microphone 1 - 4 Type 4 x Balanced Mic./Line (-6 dB / -50 dB)
Connector 2 x XLR/Jack Combo & 2 x XLR
Other 4 x 15 V DC Phantom & 2 x Priority
Balanced Microphone 5 Type 1 x Balanced Mic./Line (-6 dB / -50 dB)
Connector 6.3 mm Jack
Unbalanced Stereo Type 1 x Stereo Unbalanced Line (+14 dB / -30 dB)
Connector RCA
Other Remote mic (Priority mic + chime)
Tele-paging (Priority line)
Priority mute contact
Outputs Connector 2-pin Euro Terminal Block (Pitch - 5.08 mm)
10-pin Euro Terminal Block (Pitch - 5.08 mm)
Voltage / Impedance 100 V / 4 Ω
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Convection cooled
Operating temperature 0° ~ 40° @ 95% Humidity
AUDAC - COM12 - 14/05/2020 09:22 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 2 of
Page 3
Product Features:
4
Dimensions 420 x 88 x 320 mm (W x H x D)
Weight 9.700 kg
Mounting 19” / 2 HE or tabletop
Construction Steel
Colours Black
Accessories Included 19” Rackmount adapter
Variants:
COM12MK2-UK - UK plug•
Shipping & Ordering:
Packaging Cardboard box
COM12MK2 - Mk2 version•
Shipping weight & volume 11.000 kg - 0.042 Cbm
Architects’ and Engineers’ Specifications:
The amplifier shall be a public address mixing amplifier capable of delivering an output power of 120 Watt to both 100 Volt constant
voltage and 4 Ohm low impedance systems. The construction shall be made using Class-AB amplifier technology with an 100 V
output transformer. It shall contain integrated circuitry to protect against short-circuits or mismatched loads and over-heating.
Additionally, the load shall be protected against DC faults and a clip limiter shall automatically reduce the input gain at onset of
distortion. The front panel shall contain an AC power switch accompanied by a blue power indicator LED and 5 segment LED VU bar
indicating the operation and output level of the amplifier. The output level is adjustable using a master volume control and shall be
accompanied with 2-band tone regulation. Six input channels with individual level controls shall be provided, offering great input
flexibility and source compatibility. Four balanced microphone inputs with balanced XLR connectors and phantom power allow the
connection for almost any type of microphone, while two can be switched to priority. Two additional inputs are selectable between
stereo line or microphone level. The gain for the microphone inputs allows adjustment within a range of -6 dB to -50 dB, while the
line inputs can be regulated over +14 to -30 dB. Other connections and functions such as remote microphone, tele-paging,
announcement chime shall be implemented too. Output selection shall be possible using a 5-zone speaker switcher on the front,
while connections are performed on the back using a 10-pin terminal block connector for constant voltage integration and 2-pin for
low impedance connections. The amplifier shall operate on a 230~240 V AC / 50~60 Hz mains network and shall be equipped with a
fixed power cord having a standard shuko (CEE 7/7) AC plug with fused power inlet. The chassis shall be steel constructed table-top
housing with included rackmount adapters for 19” equipment rack installation (2HE). Depth from front panel / mounting surface to
rear panel shall be 320 mm and the weight shall not exceed 9.7 Kg.
AUDAC - COM12 - 14/05/2020 09:22 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 3 of
Page 4
Technical drawings:
Product description:
Weight: Outer dimensions: Unit height:
(w x h x d)
COM12
9,7 kg 420 x 88 x 320 2 HE
PUBLIC ADDRESS AMPLIFIER 120W 100V
4
AUDAC - COM12 - 14/05/2020 09:22 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 4 of
