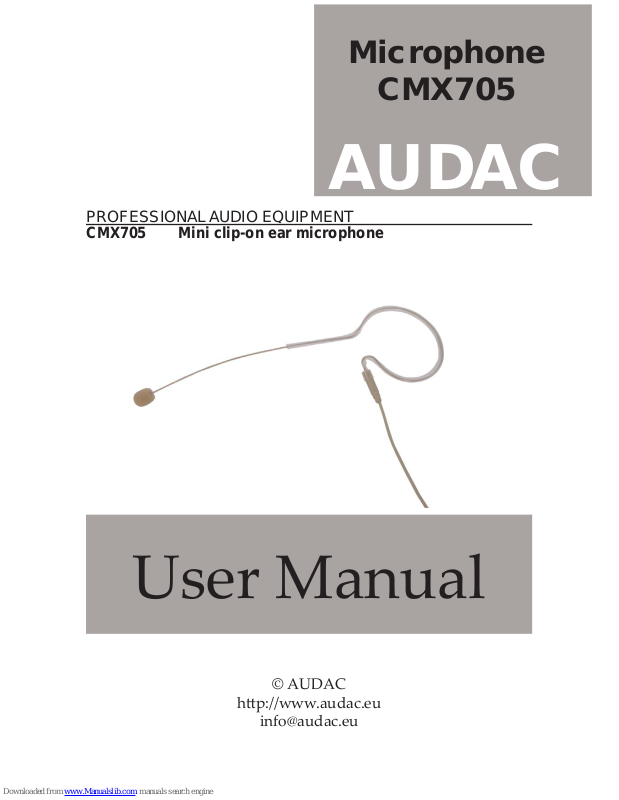

Page 1
SSIO
NAL AUDIO EQUIPMEN
T
Microphone
CMX705
CMX705 Mini clip-on ear microphone
Page 2
General
Features
General rules for use
1. Place the microphone on the speakers le or right ear.
2. Aim the microphone toward the corner of the speakers mouth.
3. Connect the microphone to the appropriate wireless headset.
4. Always use the supplied foam windscreen to control breath noise.
The CMX705 is an omni-directional clip-on ear microphone designed for vocal
and speech applications.
The unique tiny size and super light weight provides a comfortable and optimum fi t for any occasion.
It is available in Black and Skin Color. The skin color ensures a perfect blend of
the microphone for discreet appliances.
It comes with 4 diff erent replaceable connectors making it suitable for use
with beltpacks of various major manufacturers.
• High quality back electret condenser capsule
• Flat frequency response and superior EMI suppression
• Omni-directional polar pa ern
• Can be used on the le or the right ear
• Easy fi t foam windscreen
Connectors
Connectors (changeable):
AKG type 3-pin mini XLR
Shure type 4-pin mini XLR
Special thread type 3.5mm plug
Sennheiser type 3.5mm stereo plug
Page 3
Specifi cations
Model: CMX705
Element: Back Electret Condenser
Polar Pa ern: Omni-Directional
Frequency Response: 20Hz - 20kHz
Sensitivity: -46dB ± 3dB
Output Impedance: 1800 Ohm ± 30%
Max. Input SPL: 135dB
Power Supply: 1.5 - 12 V DC
Cable: Ø 1.5mm x 1.2m
Dimension: Ø 5mm
Colors: Black (B)
Skin (S)
Accessory: Windscreen
Figure 1: Polar pattern
Figure 2: Frequency response
Page 4
Eligible to bear CE marking. Conforms to European EMC Directive
89/336/EEC. Meets applicable tests and performance criteria in European standard EN 55103 (1996) parts 1 and 2, for residential (E1) and
light industrial (E2) environments.
