Page 1
Highlights:
3
High quality back electret condenser capsule with cardioid
•
pickup pattern
Flexing gooseneck structure for highly accurate positioning•
Slim & elegant pipe-neck design•
Product information:
The CMX215 is a pipe-neck condenser microphone fitted on a
slim gooseneck with an XLR base. It is particularly designed for
speech reinforcement systems in a wide variety of applications,
such as conference rooms, houses of worship, auditoria, ... or
any other kind of speech announcement systems. The backelectret condenser capsule with unidirectional (cardioid)
characteristics reduces sound pickup from the sides and rear,
improving speech intelligibility and eliminating unwanted noise
and feedback. The high Max. input SPL guarantees a highquality sound reproduction, even when exposed to vigorous
sound. The slim pipe-neck design allows a discrete blending in
any possible interior or background, while the flexing
gooseneck part allows directional placement. The microphone
comes available in three versions with a length of 30, 45 and 55
cm, offering a solution for any application-specific placement.
The shorter version is perfect for placement on tables or desks,
while the longer version finds its specific application on altars,
lecterns, ... The included windscreen reduces unwanted and
popping sounds.
CMX215
Pipe-neck condenser microphone
Applications:
Education•
Corporate•
Houses of worship•
System specifications:
Microphone Type Back electret condenser
Polar Pattern Cardioid (unidirectional)
Frequency Response (± 3 dB) 50 Hz - 18 kHz
Sensitivity (1W/1m) -45 dB ± 3 dB / Pa (@ 1 kHz)
Impedance ± 30% 200 Ω
Signal / Noise 75 dB
Sound Pressure (Max. W/1m) 130 dB
Power Supply 10 ~ 52 V DC Phantom Power
Outputs Connector 3-pin XLR
AUDAC - CMX215 - 22/08/2025 07:11 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
Product Features:
3
Dimensions 19 x 388 mm (Ø x L) (CMX215/30)
19 x 538 mm (Ø x L) (CMX215/45)
19 x 638 mm (Ø x L) (CMX215/55)
Weight 0.070 kg
Colours Black
Accessories Included Windscreen (MWS200/B)
Optional APM base
CMA350 microphone shock mount
Variants:
CMX215/30 - 30 cm version•
CMX215/45 - 45 cm version•
CMX215/55 - 55 cm version•
Shipping & Ordering:
Packaging Cardboard box
AUDAC - CMX215 - 22/08/2025 07:11 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 2 of
Page 3
Acoustical data graphs:

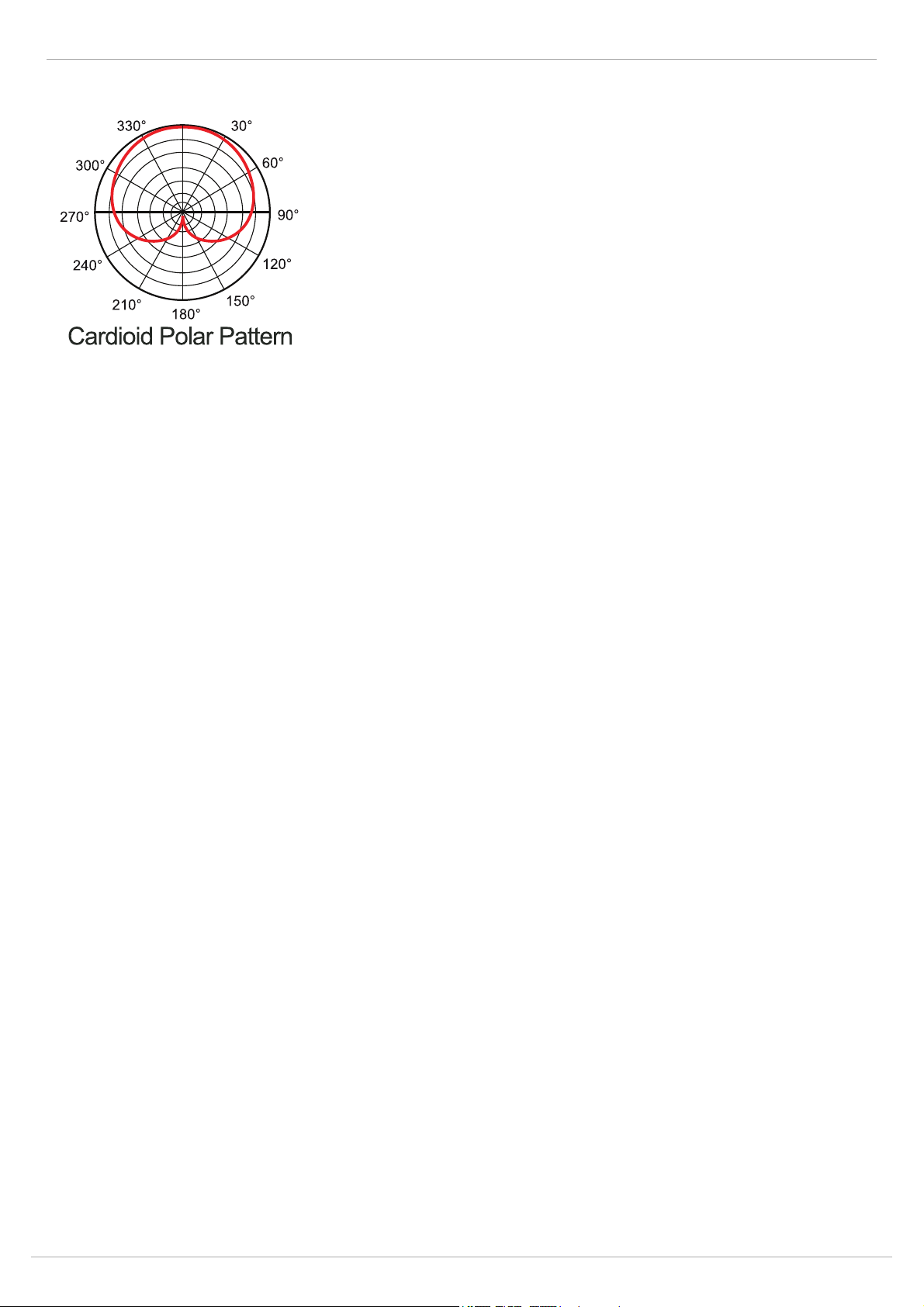

Polar pattern:
3
AUDAC - CMX215 - 22/08/2025 07:11 UTC
