The CMA162 is a cluster mounting set, allowing assembly for 2
1
pcs of ATEO6 speakers to any ceiling. This solution is designed
for applications in large open indoor spaces where a uniform
sound dispersion in all directions is required. Some typical
application examples are sports facilities, gym's, large
warehouses, hallways, and many more.
The CMA162 is constructed of solid steel and comes fully
assembled, including pole and ceiling mount. The distance to
the ceiling measures 360 mm and the pole allows cable
integration, so a clean and elegant solution is offered.
The tilted mounting plates in combination with the
Clevermount™ bracket structure allows optimal directional
placement in any application.
The CMA series also come in a 4 speaker model (CMA164),
allowing mounting of speakers in all 4 directions and are
available in both Black (/B) or White (/W) colours, to match the
speakers colour and blend in with the environment.
The CMA162 comes delivered excluding the loudspeakers.

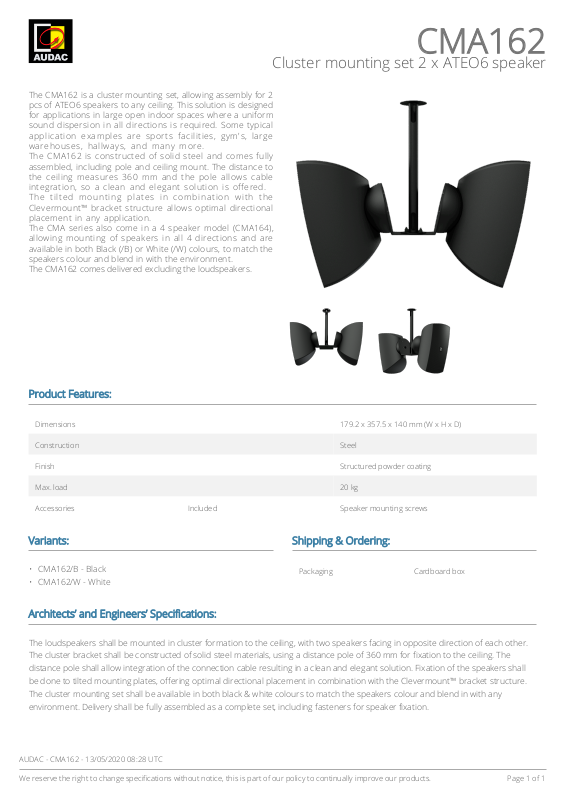

CMA162
Cluster mounting set 2 x ATEO6 speaker
Product Features:
Dimensions 179.2 x 357.5 x 140 mm (W x H x D)
Construction Steel
Finish Structured powder coating
Max. load 20 kg
Accessories Included Speaker mounting screws
Variants:
CMA162/B - Black•
CMA162/W - White•
Shipping & Ordering:
Packaging Cardboard box
Architects’ and Engineers’ Specifications:
The loudspeakers shall be mounted in cluster formation to the ceiling, with two speakers facing in opposite direction of each other.
The cluster bracket shall be constructed of solid steel materials, using a distance pole of 360 mm for fixation to the ceiling. The
distance pole shall allow integration of the connection cable resulting in a clean and elegant solution. Fixation of the speakers shall
be done to tilted mounting plates, offering optimal directional placement in combination with the Clevermount™ bracket structure.
The cluster mounting set shall be available in both black & white colours to match the speakers colour and blend in with any
environment. Delivery shall be fully assembled as a complete set, including fasteners for speaker fixation.
AUDAC - CMA162 - 13/05/2020 08:28 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
