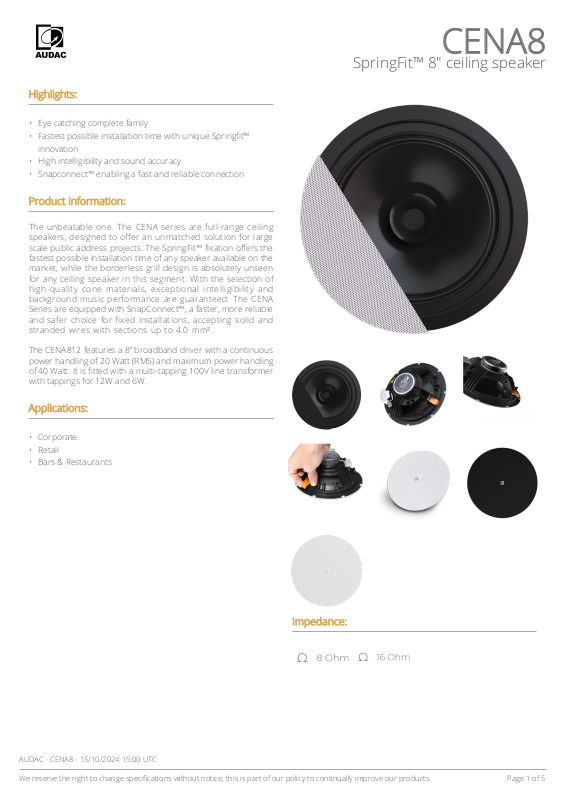

Highlights:
5
Eye catching complete family•
Fastest possible installation time with unique Springfit™
•
innovation
High intelligibility and sound accuracy•
Snapconnect™ enabling a fast and reliable connection•
Product information:

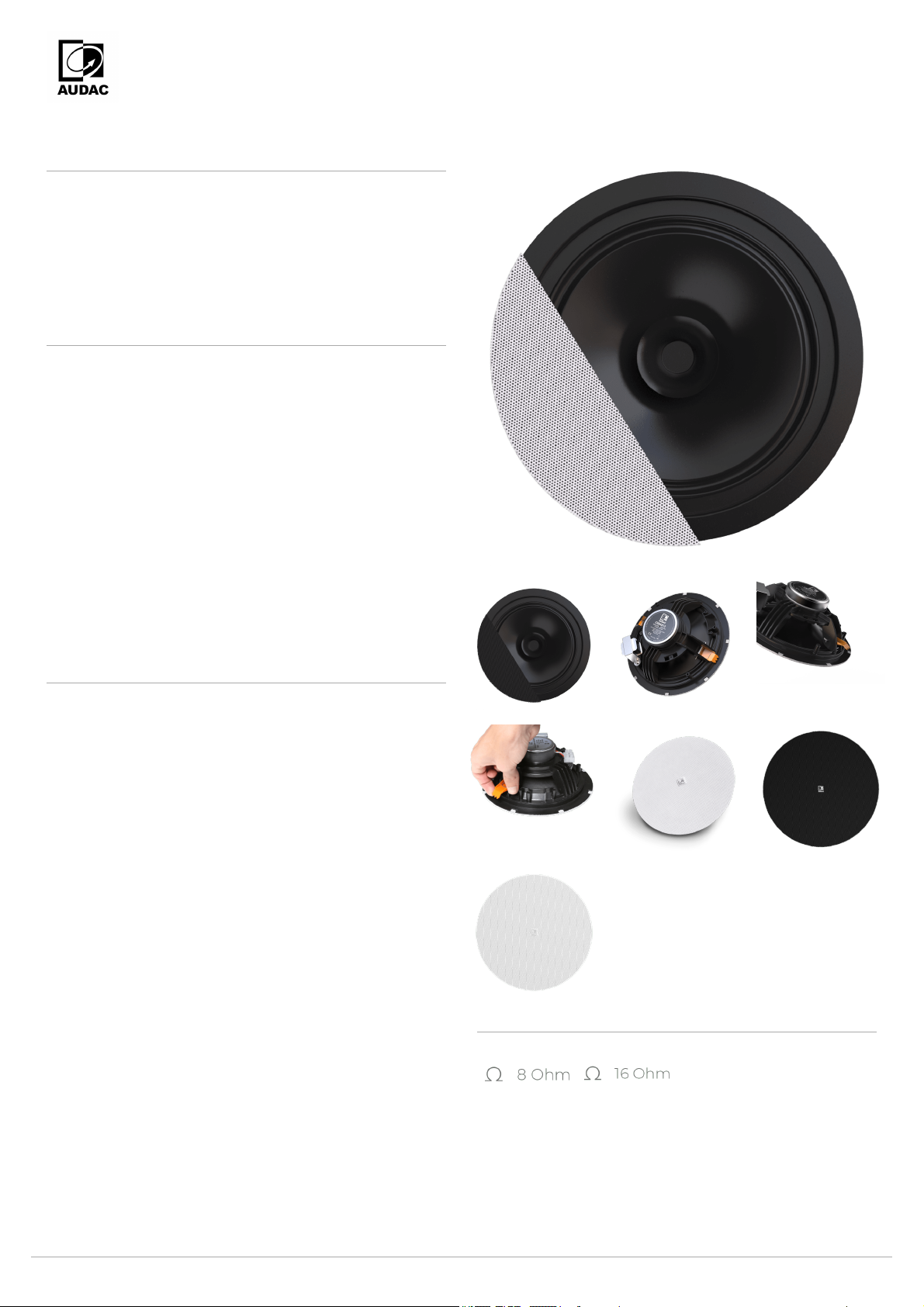

The unbeatable one. The CENA series are full-range ceiling
speakers, designed to offer an unmatched solution for large
scale public address projects. The SpringFit™ fixation offers the
fastest possible installation time of any speaker available on the
market, while the borderless grill design is absolutely unseen
for any ceiling speaker in this segment. With the selection of
high-quality cone materials, exceptional intelligibility and
background music performance are guaranteed. The CENA
Series are equipped with SnapConnect™, a faster, more reliable
and safer choice for fixed installations, accepting solid and
stranded wires with sections up to 4.0 mm².
CENA8
SpringFit™ 8" ceiling speaker
The CENA812 features a 8” broadband driver with a continuous
power handling of 20 Watt (RMS) and maximum power handling
of 40 Watt. It is fitted with a multi-tapping 100V line transformer
with tappings for 12W and 6W.
Applications:
Corporate•
Retail•
Bars & Restaurants•
Impedance:
AUDAC - CENA8 - 15/10/2024 15:00 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
Voltage:
5
System specifications:
Peak power handling 80 W
Program power handling 40 W
RMS/AES power handling 20 W
Sensitivity (1W/1m) 99 dB
Speaker type Broadband
Impedance 8 Ω (CENA812)
16 Ω (CENA820D)
Connection Screw terminal
SnapConnect™
Drivers Dual cone
8”
Sound Pressure (Max. W/1m) @ 100 V 112 dB
Frequency Response (± 3 dB) 100 Hz - 15 kHz
Range (-10 dB) 60 Hz - 18 kHz
Line Transformer Tappings 1 12 W / 833 Ω
2 6 W / 1667 Ω
Dispersion Conical 130°
AUDAC - CENA8 - 15/10/2024 15:00 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 2 of
Page 3
Product Features:
5
Cut-out measurement 207 mm (Ø)
Dimensions 232 x 81 mm (Ø x D)
Construction ABS
Front finish borderless finely perforated steel grill
Built-in depth 77 mm
Mounting SpringFit™ mounting system
Colours White (RAL9003) (CENA812/W)
Black (RAL9005) (CENA812/B)
Operating temperature -15 °C ~ 55 °C
Weight 1.06 kg
Variants:
CENA820DI/W - White version - 16Ω (RAL9016)•
Shipping & Ordering:
Packaging Cardboard box
CENA812I/W - White version - 100V (RAL9016)•
CENA812/B - Black version - 100V•
CENA820D/W - White version - 16Ω•
Architects’ and Engineers’ Specifications:
The ceiling mount loudspeaker shall be a full-range type equipped with an 8” broadband driver and fitted with a line transformer
allowing it to be used on 100 Volt distributed line systems. It shall have an RMS power handling of 20 Watt with a maximum power
handling of 40 Watt and the frequency response (±3 dB) shall range from 100 Hz to 15 kHz. The sensitivity shall be 99 dB when
measuring with an input signal of 1 Watt at a distance of 1 meter, while the maximum continuous sound pressure level shall be 112
dB. The loudspeaker shall be fitted with a multitapping line transformer with tappings for 12 Watt and 6 Watt. Fast and safe
connection of the system shall be possible usingSnapConnect™. The speakers frame shall be constructed in high quality ABS material
and the front shall be finished through a borderless and finely perforated steel grill. It shall come available in both white (RAL9003)
and black (RAL9005) colours and custom painting shall make it blend-in with any environment. Mounting of the speaker into the
ceiling shall be possible using a SpringFit™ installation system. The speaker shall have a diameter of 232 mm, a depth of 81 mm and
the weight shall not exceed 1.06 kg. The speaker shall fit in a mounting hole with a cutout diameter of 207 mm and a build-in depth
of 78 mm.
AUDAC - CENA8 - 15/10/2024 15:00 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 3 of
Page 4

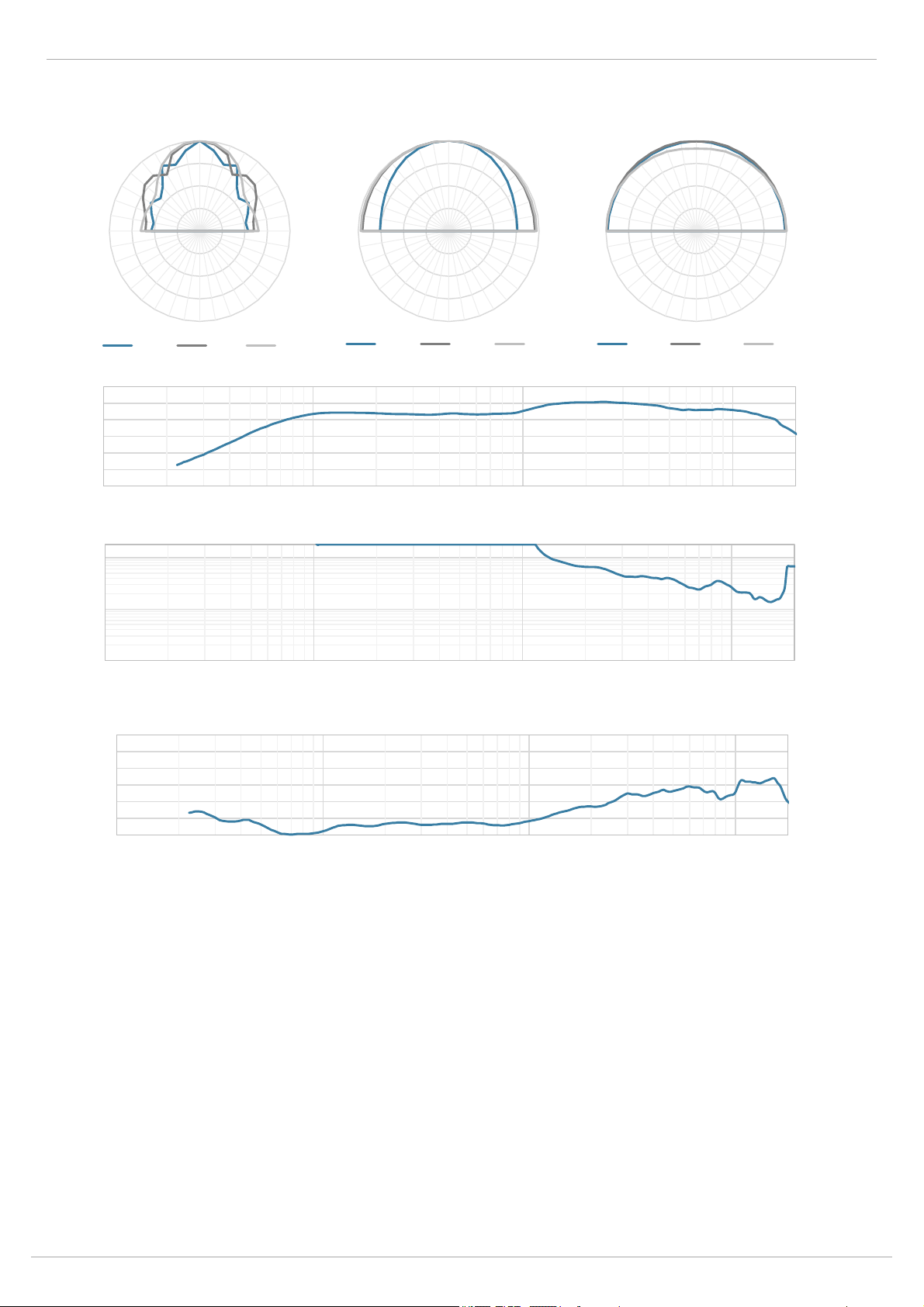

Acoustical data graphs:
Polars:
Sensitivity:
Beamwidth (-3dB):
Directivity index:
-40
-30
-20
-10
0
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
250 Hz 125 Hz 63 Hz
-40
-30
-20
-10
0
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
2000 Hz 1000 Hz 500 Hz
-40
-30
-20
-10
0
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
16 kHz 8 kHz 4 kHz
1
10
100
10 100 1000 10000
Angle (Degrees)
Frequency (Hz)
180
40
50
60
70
80
90
100
10 100 1000 10000
Level (dB- SPL/1W @ 1m)
Frequency (Hz)
0
5
10
15
20
25
30
10 100 1000 10000
Directivity Index (dB)
Frequenty (Hz)
5
AUDAC - CENA8 - 15/10/2024 15:00 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 4 of
Page 5

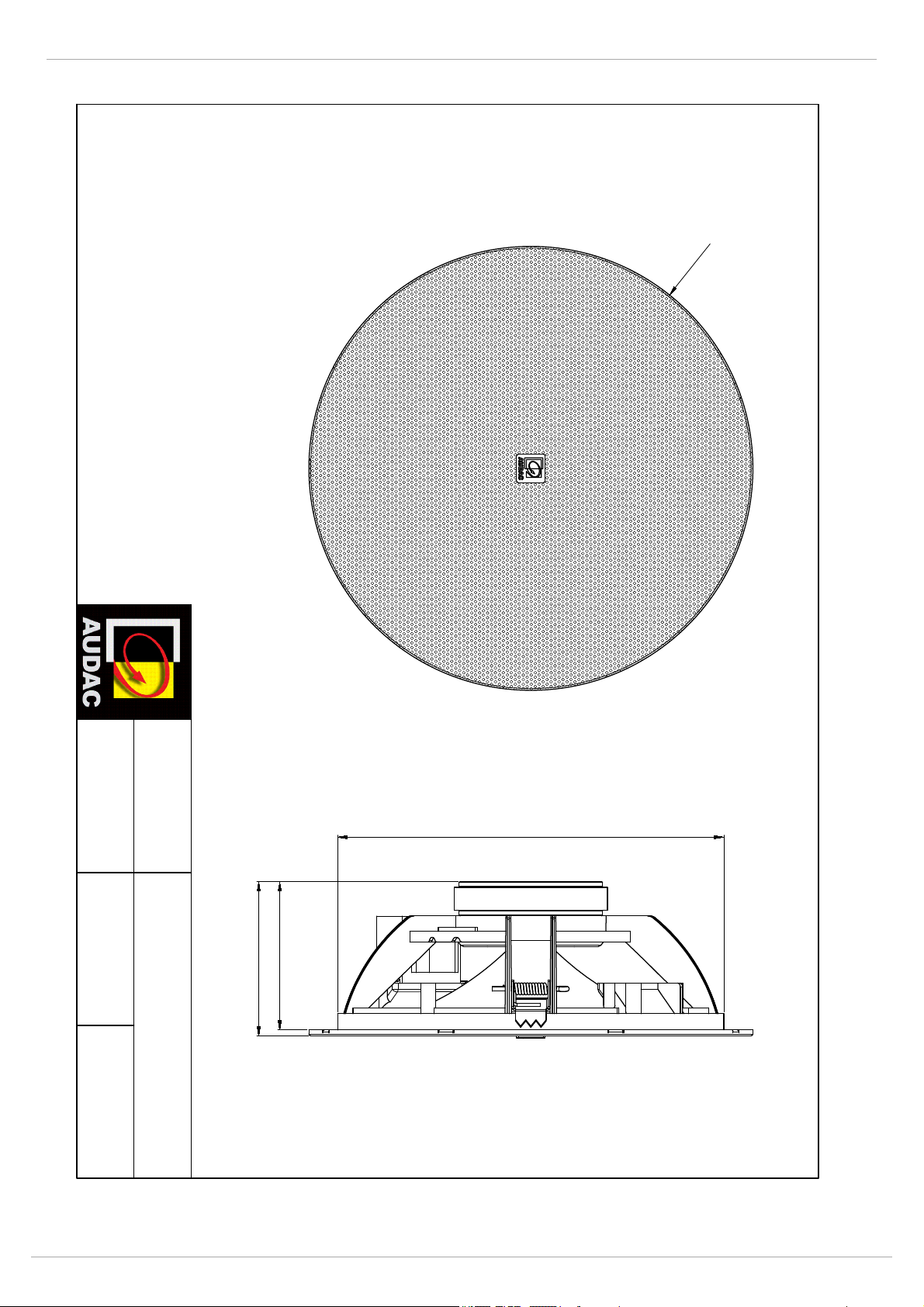

Technical drawings:
Ø232,2
202
77,6
80,7
