Highlights:
5
Eye catching complete family•
Fastest possible installation time with unique Springfit™
•
innovation
High intelligibility and sound accuracy•
Snapconnect™ enabling a fast and reliable connection•
Product information:
The unbeatable one. The CENA series are full-range ceiling
speakers, designed to offer an unmatched solution for large
scale public address projects. The SpringFit™ fixation offers the
fastest possible installation time of any speaker available on the
market, while the borderless grill design is absolutely unseen
for any ceiling speaker in this segment. With the selection of
high-quality cone materials, exceptional intelligibility and
background music performance are guaranteed. The CENA
Series are equipped with SnapConnect™, a faster, more reliable
and safer choice for fixed installations, accepting solid and
stranded wires with sections up to 4.0 mm².

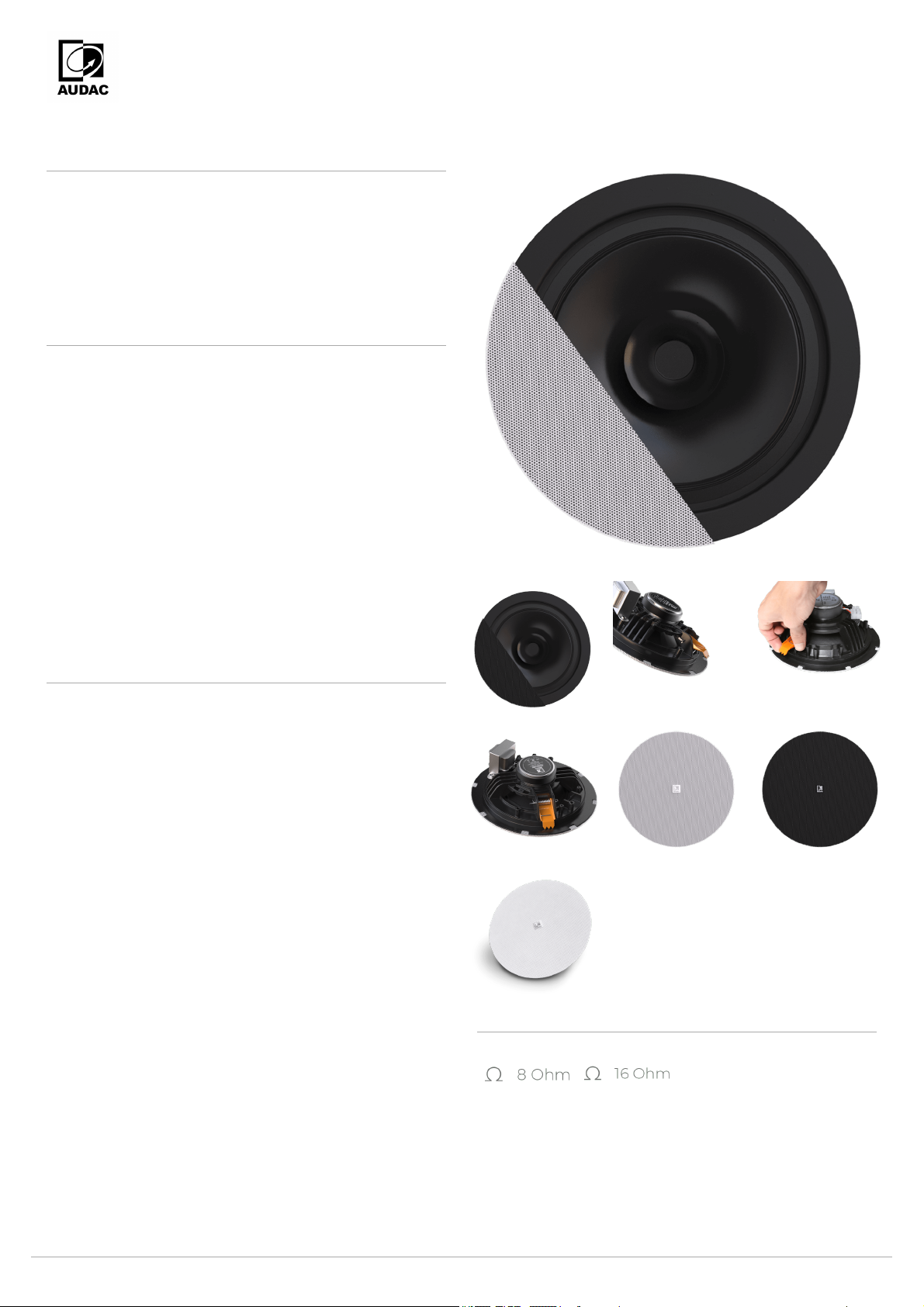

CENA5
SpringFit™ 5" ceiling speaker
The CENA506 features a 5” broadband driver with a continuous
power handling of 10 Watt (RMS) and maximum power handling
of 20 Watt. They are fitted by multi-tapping 100V line
transformers with tappings for 6W and 3W.
Applications:
Corporate•
Retail•
Bars & Restaurants•
Impedance:
AUDAC - CENA5 - 15/10/2024 14:41 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
Voltage:
5
System specifications:
Peak power handling 40 W
Program power handling 20 W
RMS/AES power handling 10 W
Sound Pressure (Max. W/1m) @ 100 V 103 dB
Sensitivity (1W/1m) 93 dB
Speaker type Broadband
Connection SnapConnect™
Impedance 8 Ω (CENA506)
16 Ω (CENA510D)
Frequency Response (± 3 dB) 100 Hz - 15 kHz
Range (-10 dB) 80 Hz - 18 kHz
Line Transformer Tappings 1 6 W / 1667 Ω
2 3 W / 3333 Ω
Dispersion Conical 155°
Connection Screw terminal
Drivers 5” Full Range
Product Features:
Cut-out measurement 150 mm (Ø)
Dimensions 180 x 60 mm (Ø x D)
Construction ABS
Front finish borderless finely perforated steel grill
Built-in depth 57 mm
Mounting SpringFit™ mounting system
Colours White (RAL9003) (CENA506/W)
Black (RAL9005) (CENA506/B)
Operating temperature -15 °C ~ 55 °C
Weight 0.66 kg
AUDAC - CENA5 - 15/10/2024 14:41 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 2 of
Page 3
Variants:
5
Shipping & Ordering:
CENA506/W - White version - 100V•
CENA506/B - Black version - 100V•
CENA510D/W - White version - 16Ω•
CENA506I/W - White version - 100V (RAL9016)•
CENA510DI/W - White version - 16Ω (RAL9016)•
Packaging Cardboard box
Architects’ and Engineers’ Specifications:
The ceiling mount loudspeaker shall be a full-range type equipped with a 5” driver and fitted with a line transformer allowing it to be
used on 100 Volt distributed line systems. It shall have an RMS power handling of 10 Watt with a maximum power handling of 20
Watt and the frequency response (±3 dB) shall range from 100 Hz to 15 kHz. The sensitivity shall be 93 dB when measuring with an
input signal of 1 Watt at a distance of 1 meter, while the maximum continuous sound pressure level shall be 103 dB. The nominal
dispersion shall be a 155° conical coverage pattern at -6dB (average 100 Hz - 10 kHz). The loudspeaker shall fitted with a multitapping line transformer with tappings for 6 Watt and 3 Watt. Fast and safe connection of the system shall be possible using
SnapConnect™. The speakers frame shall be constructed in high quality ABS material and the front shall be finished through a
borderless and finely perforated steel grill. It shall come available in both white (RAL9003) and black (RAL9005) colours and custom
painting shall make it blend-in with any environment. Mounting of the speaker into the ceiling shall be possible using a SpringFit™
installation system. The speaker shall have a diameter of 180 mm, a depth of 60 mm and the weight shall not exceed 0.66 kg. The
speaker shall fit in a mounting hole with a cutout diameter of 150 mm and a build-in depth of 57 mm.
AUDAC - CENA5 - 15/10/2024 14:41 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 3 of
Page 4

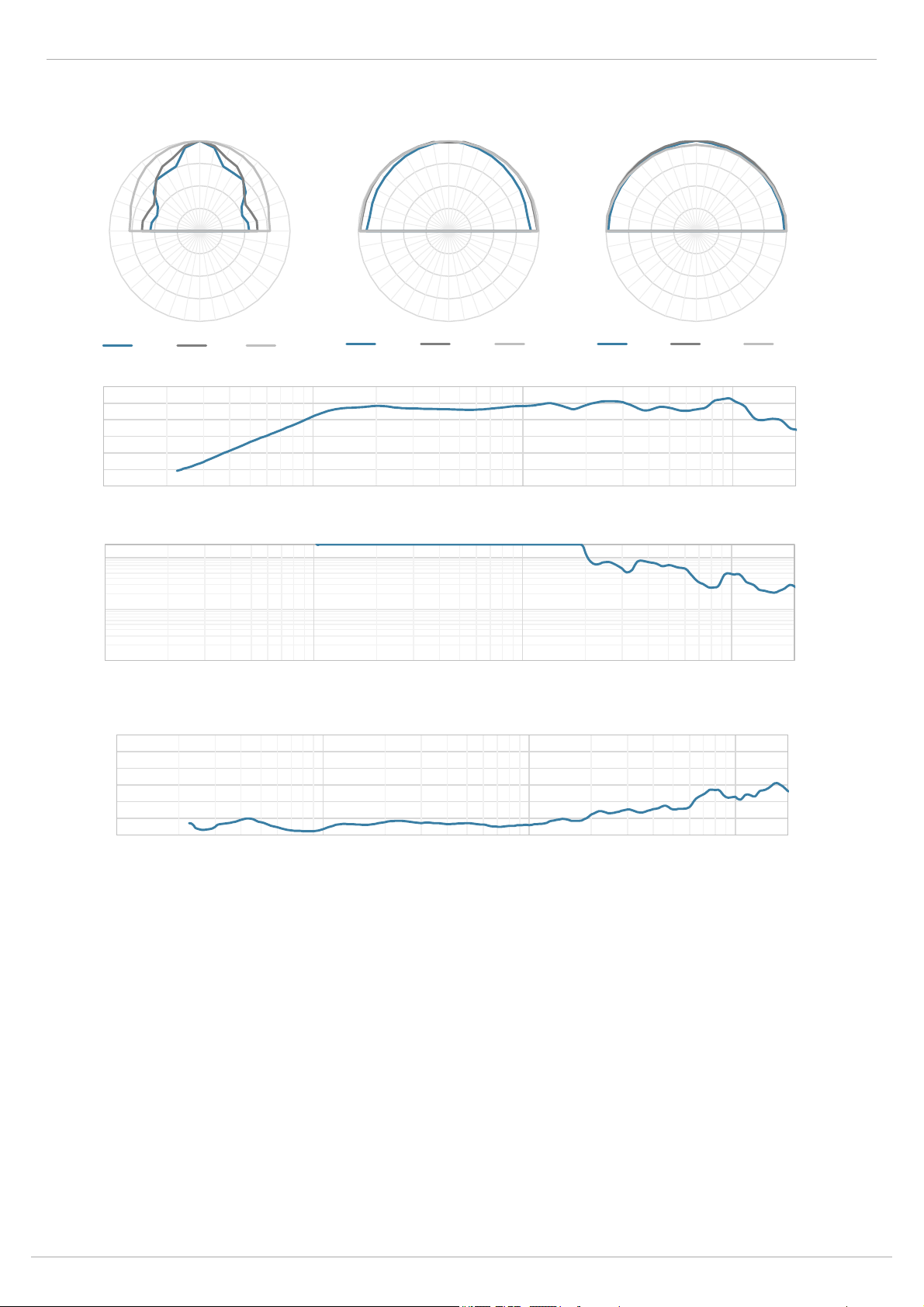

Acoustical data graphs:
Polars:
Sensitivity:
Beamwidth (-3dB):
Directivity index:
-40
-30
-20
-10
0
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
250 Hz 125 Hz 63 Hz
-40
-30
-20
-10
0
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
2000 Hz 1000 Hz 500 Hz
-40
-30
-20
-10
0
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
16 kHz 8 kHz 4 kHz
1
10
100
10 100 1000 10000
Angle (Degrees)
Frequency (Hz)
180
40
50
60
70
80
90
100
10 100 1000 10000
Level (dB- SPL/1W @ 1m)
Frequency (Hz)
0
5
10
15
20
25
30
10 100 1000 10000
Directivity Index (dB)
Frequenty (Hz)
5
AUDAC - CENA5 - 15/10/2024 14:41 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 4 of
Page 5

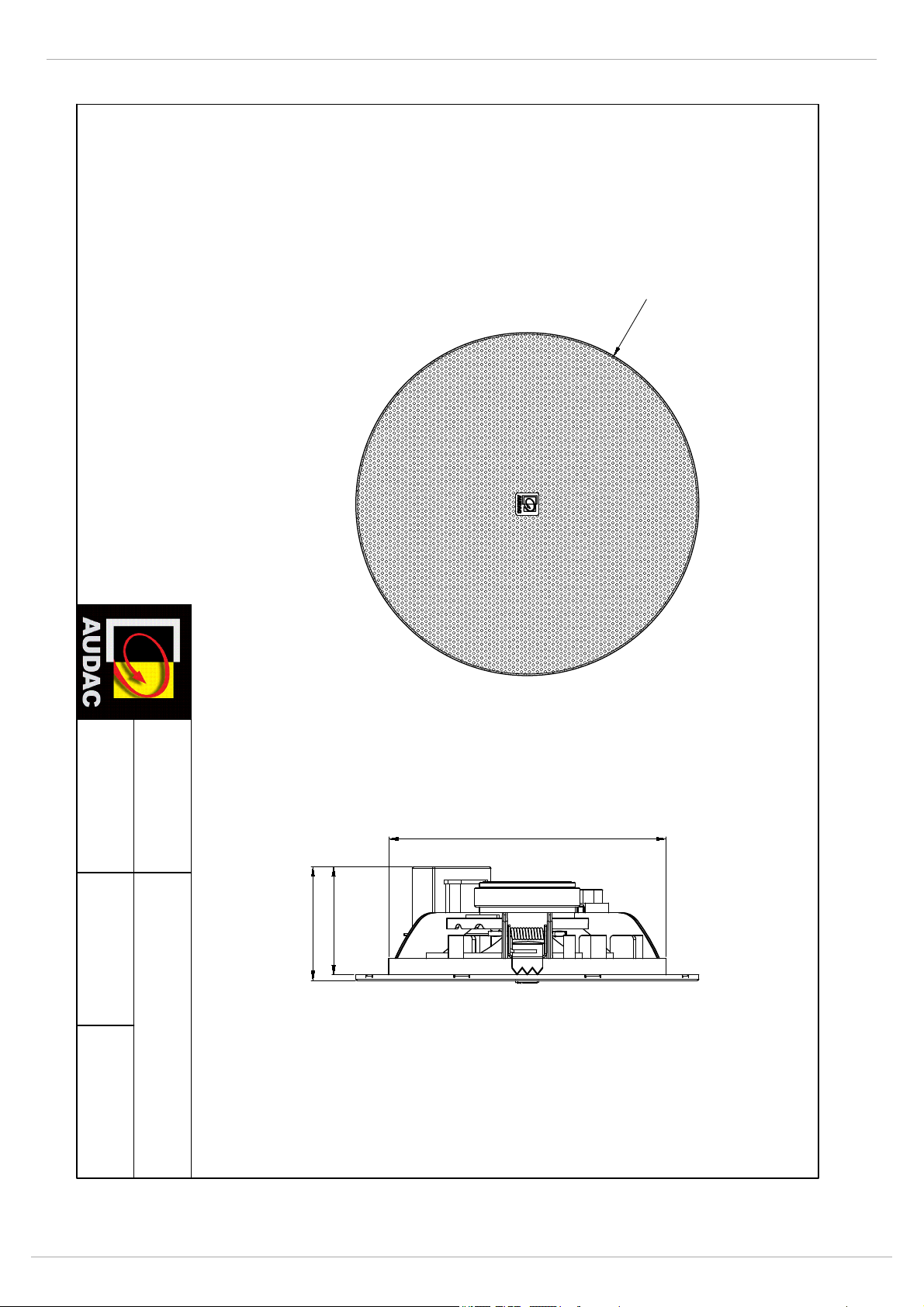

Technical drawings:
56,5
145
59,6
Ø179,4
Product description:
Weight: Outer dimensions: Unit height:
(w x h x d)
CENA506
TBA Ø179,4 x 59,6 N/A
SPRINGFIT 5" CEILING SPEAKER 6W/100V
5
