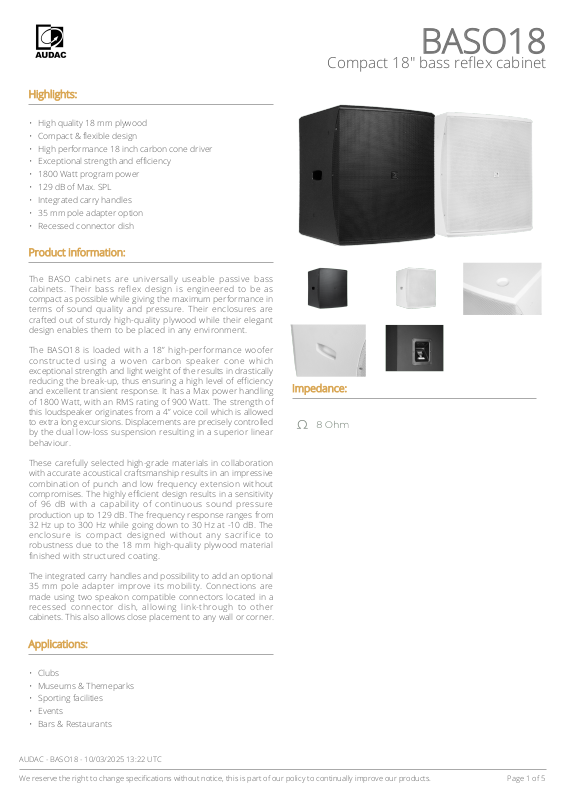

Page 1
Highlights:
5
High quality 18 mm plywood•
Compact & flexible design•
High performance 18 inch carbon cone driver•
Exceptional strength and efficiency•
1800 Watt program power•
129 dB of Max. SPL•
Integrated carry handles•
35 mm pole adapter option•
Recessed connector dish•
Product information:
The BASO cabinets are universally useable passive bass
cabinets. Their bass reflex design is engineered to be as
compact as possible while giving the maximum performance in
terms of sound quality and pressure. Their enclosures are
crafted out of sturdy high-quality plywood while their elegant
design enables them to be placed in any environment.
BASO18
Compact 18" bass reflex cabinet
The BASO18 is loaded with a 18” high-performance woofer
constructed using a woven carbon speaker cone which
exceptional strength and light weight of the results in drastically
reducing the break-up, thus ensuring a high level of efficiency
and excellent transient response. It has a Max power handling
of 1800 Watt, with an RMS rating of 900 Watt. The strength of
this loudspeaker originates from a 4” voice coil which is allowed
to extra long excursions. Displacements are precisely controlled
by the dual low-loss suspension resulting in a superior linear
behaviour.
These carefully selected high-grade materials in collaboration
with accurate acoustical craftsmanship results in an impressive
combination of punch and low frequency extension without
compromises. The highly efficient design results in a sensitivity
of 96 dB with a capability of continuous sound pressure
production up to 129 dB. The frequency response ranges from
32 Hz up to 300 Hz while going down to 30 Hz at -10 dB. The
enclosure is compact designed without any sacrifice to
robustness due to the 18 mm high-quality plywood material
finished with structured coating.
The integrated carry handles and possibility to add an optional
35 mm pole adapter improve its mobility. Connections are
made using two speakon compatible connectors located in a
recessed connector dish, allowing link-through to other
cabinets. This also allows close placement to any wall or corner.
Impedance:
Applications:
Clubs•
Museums & Themeparks•
Sporting facilities•
Events•
Bars & Restaurants•
AUDAC - BASO18 - 10/03/2025 13:22 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
System specifications:
5
Speaker type 18” Bass reflex cabinet
Peak power handling 3600 W
Program power handling 1800 W
RMS/AES power handling 900 W
Impedance 8 Ω
Sensitivity (1W/1m) 96 dB
Sound Pressure (Max. W/1m) 125 dB
Frequency Response (± 3 dB) 32 Hz - 300 Hz
Range (-10 dB) 30 Hz - 1 kHz
Bass reflex tuning frequency 38 Hz
Connection 2 x heavy-duty SpeakON NLT4MPBAG (linkthrough)
Drivers 18” carbon cone with dual suspension (low-loss) and 4”
high excursion voice coil
Product Features:
Dimensions 520 x 619 x 615 mm (W x H x D)
Weight 41.1 kg
Operating temperature -20 °C ~ 60 °C
Construction 18 mm plywood with structured coating
Mounting & handling Rigging points 3 x M10
Stand fitting Optional 35 mm pole adapter
Carry handles Integrated carry handle on both sides
Colours White (RAL9003) (BASO18/W)
Black (RAL9004) (BASO18/B)
Front finish Steel grill (18 gauge)
Accessories Optional CHB196 35 mm pole adapter
Variants:
BASO18/B - Black•
Shipping & Ordering:
Packaging Cardboard box
BASO18/W - White•
Shipping weight & volume 41 kg - 0.23 Cbm
AUDAC - BASO18 - 10/03/2025 13:22 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 2 of
Page 3
Architects’ and Engineers’ Specifications:
5
The subwoofer shall incorporate a 18” transducer with 4” voice coil and powerful ferrite type magnet which is loaded into a bass
reflex front loaded enclosure. A dual low-loss suspension shall be used, precisely controlling voice coil replacements and resulting in
a superior linear behaviour. The enclosure shall have a compact rectangular shape with curved front finishing and an elegant
powdercoated steel grill which is lined with an acoustically transparent backing. The rear must have a trapezoidal shape while top
and bottom corners are bevelled.
The construction shall be made using 18 mm thick plywood finished with a structured coating which comes available in both black
(RAL9004) & white (RAL9003) colour. Input connectors shall be parallel wired using speakon compatible connectors fitted in a
re¬cessed connector dish allowing close placement to any wall or corner. Two integrated carry handles and an (optional) 35 mm pole
adapter shall be provided, improving the mobility of the system.
It shall have an RMS power handling of 900 Watt, a maximum power handling of 1800 Watt and an impedance of 8 Ohm. The
frequency response (-10 dB) shall range from 30 Hz to 1 kHz with a bass reflex tuning frequency of 38 Hz. The sensitivity shall be 96
dB when measuring with an input signal of 1 Watt at a distance of 1 meter, while the maximum continuous sound pressure level
shall reach 129 dB.
The system’s enclosure shall be 619 mm high, 520 mm wide and 615 mm deep and the weight shall not exceed 41.1 Kg
AUDAC - BASO18 - 10/03/2025 13:22 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 3 of
Page 4
Acoustical data graphs:
Horizontal Polars:
Vertical Polars:
Sensitivity:
-30
-20
-10
0
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
125 Hz 63 Hz 31,5 Hz
-30
-20
-10
0
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
1000 Hz 500 Hz 250 Hz
-30
-20
-10
0
90°
60°
30°
0°
-30°
-60°
-90°
-120°
-150°
(-) 180°
150°
120°
1000Hz 500Hz 250Hz
-30
-20
-10
0
90°
60°
30°
0°
-30°
-60°
-90°
-120°
-150°
(-) 180°
150°
120°
125Hz 63Hz 31,5Hz
50
60
70
80
90
100
110
10 100 1000 10000
Level (dB- SPL/1W @ 1m)
Frequency (Hz)
5
AUDAC - BASO18 - 10/03/2025 13:22 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 4 of
Page 5
Technical drawings:
520 615
619
Product description:
Weight: Outer dimensions: Unit height:
(w x h x d)
BASO18
41,1 kg 520 x 619 x 615 N/A
COMPACT 18" BASS REFLEX BASS CABINET
- 900W RMS / 8 OHM - CARBON CONE
5
AUDAC - BASO18 - 10/03/2025 13:22 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 5 of
