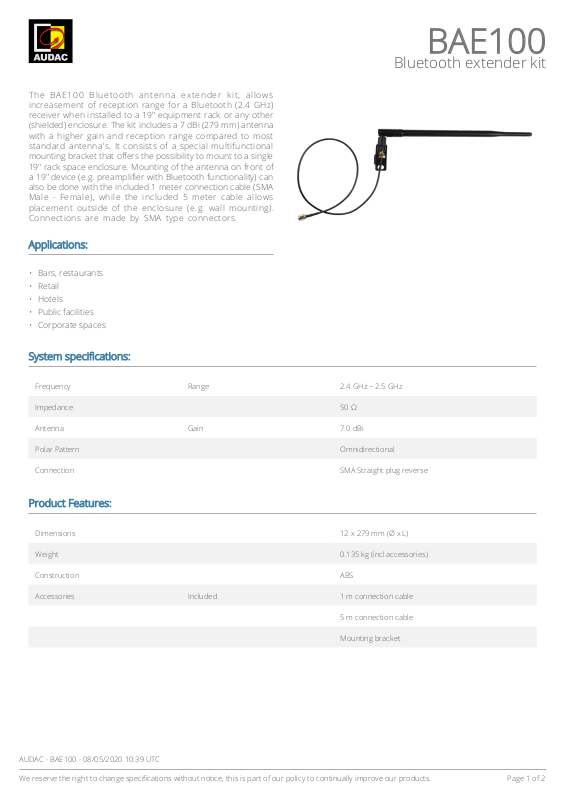

The BAE100 Bluetooth antenna extender kit, allows
2
increasement of reception range for a Bluetooth (2.4 GHz)
receiver when installed to a 19" equipment rack or any other
(shielded) enclosure. The kit includes a 7 dBi (279 mm) antenna
with a higher gain and reception range compared to most
standard antenna's. It consists of a special multifunctional
mounting bracket that offers the possibility to mount to a single
19" rack space enclosure. Mounting of the antenna on front of
a 19" device (e.g. preamplifier with Bluetooth functionality) can
also be done with the included 1 meter connection cable (SMA
Male - Female), while the included 5 meter cable allows
placement outside of the enclosure (e.g. wall mounting).
Connections are made by SMA type connectors.
Applications:
Bars, restaurants•
Retail•
Hotels•
Public facilities•
Corporate spaces•
BAE100
Bluetooth extender kit
System specifications:
Frequency Range 2.4 GHz ~ 2.5 GHz
Impedance 50 Ω
Antenna Gain 7.0 dBi
Polar Pattern Omnidirectional
Connection SMA Straight plug reverse
Product Features:
Dimensions 12 x 279 mm (Ø x L)
Weight 0.135 kg (incl accessories)
Construction ABS
Accessories Included 1 m connection cable
5 m connection cable
Mounting bracket
AUDAC - BAE100 - 08/05/2020 10:39 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
Shipping & Ordering:
2
Packaging Plastic Bag
Shipping weight & volume 0.14 kg - 0.001 Cbm
Compatible with BMP40 Bluetooth module
PRE116
PRE126
