Page 1
Highlights:
2
Vertical and horizontal mounting•
2" full range aluminum driver•
Stunning designed and elegant looking ABS enclosure•
Patented ClickMount™ mounting system•
A combination of your trusted ATEO2 speaker and a specially
designed surface ceiling mount with ClickMount™ technology*.
The ATEO is a series of extraordinary loudspeakers especially
designed for fixed install in indoor applications, ranging from
modern residential applications to the most demanding
designer applications in environments such as retail stores,
pubs, restaurants or even clubs.
The ATEO2 is the ultra-compact model of this series which
smoothly integrates into any interior like no other loudspeaker.
The sound originates from a 2” aluminum cone driver which
provides a full-range, warm and detailed sound, with an
improved response in the low frequencies due to the ported
design. This way, smooth sound reproduction with clear and
crisp sound is guaranteed.

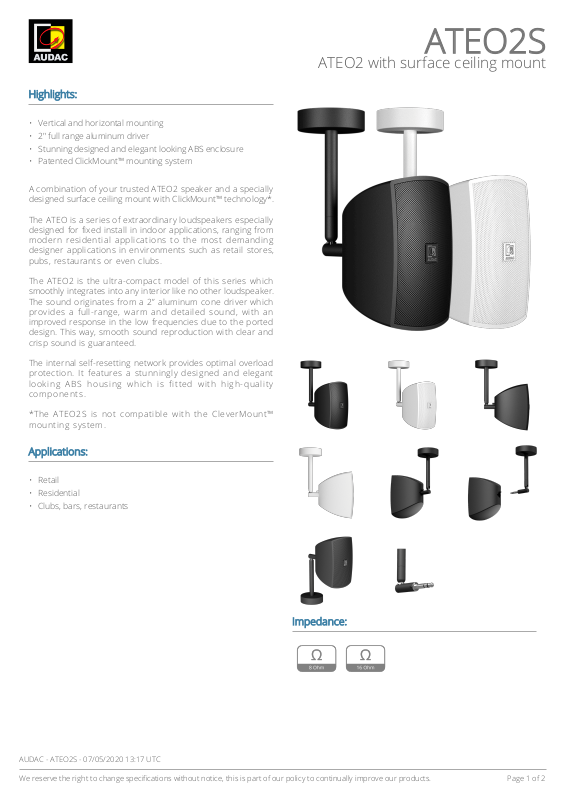

ATEO2S
ATEO2 with surface ceiling mount
The internal self-resetting network provides optimal overload
protection. It features a stunningly designed and elegant
looking ABS housing which is fitted with high-quality
components.
*The ATEO2S is not compatible with the CleverMount™
mounting system.
Applications:
Retail•
Residential•
Clubs, bars, restaurants•
Impedance:
AUDAC - ATEO2S - 07/05/2020 13:17 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
System specifications:
2
Speaker type Full range
Max. Power 20 W
RMS Power 10 W
Impedance 8 Ω (ATEO2)
16 Ω (ATEO2D)
Incline angle Left 25°
Right 25°
Bottom 25°
Top 15°
Sensitivity (1W/1m) 83 dB
Sound Pressure (Max. W/1m) 93 dB
Frequency Response (± 3 dB) 120 Hz - 20 kHz
Range (-10 dB) 100 Hz - 20 kHz
Dispersion Horizontal 145°
Vertical 170°
Drivers 2” Aluminium full range
Product Features:
Dimensions 80 x 136 x 115 mm (W x H x D)
Weight 0.390 kg
Operating temperature -20 °C ~ 60 °C
Construction ABS
Front finish Steel grill
Colours Black
White
AUDAC - ATEO2S - 07/05/2020 13:17 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 2 of
