AUCOM

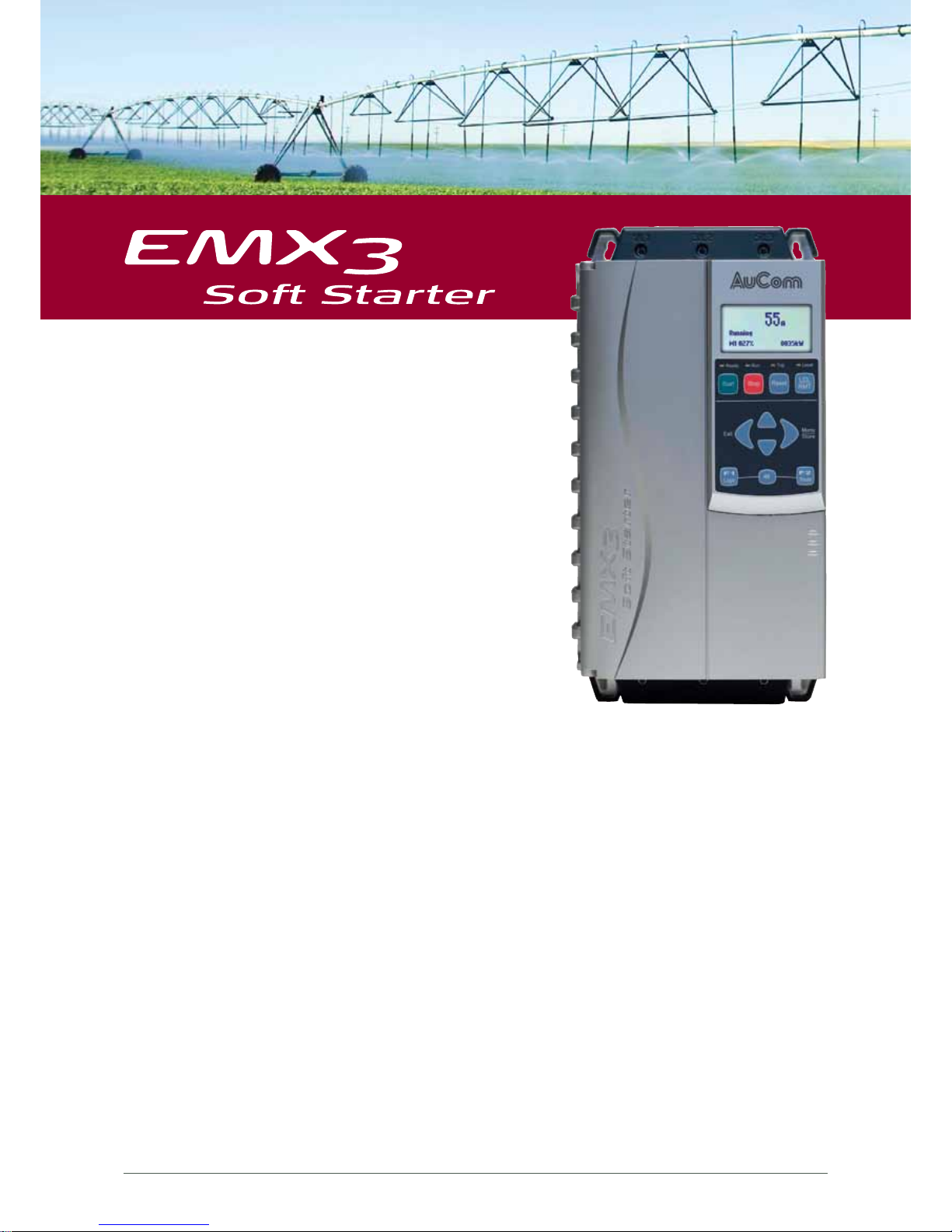

THE EMX3 IS THE LATEST DEVELOPMENT
IN SOFT STARTERS PROVIDING A
COMPLETE MOTOR STARTING AND
MANAGEMENT SYSTEM.
WITH AN IMPRESSIVE RANGE OF
FEATURES IN A SINGLE USER FRIENDLY
PACKAGE, NEVER BEFORE HAS MOTOR
CONTROL BEEN SO SIMPLE.
MORE CONTROL
Not only does the EMX3 soft starter
feature Constant Current and Current
Ramp, but the EMX3 is the world’s first
soft star ter to control acceleration. We
call it Adaptive Acceleration control.
According to your application require-
ments you can now select between early,
constant or late acceleration /decelera-
tion. This level of choice is only available
from AuCom.
More control means smar ter star ts and
smoother stops that reduce downtime
and eliminate water hammer problems.
EASY TO USE
The EMX3 is easy to use during installation,
commissioning, operation and even trouble
shooting.
Quick setup gets your machinery running
in nex t to no time, informative screens
advise your operator on the performance
of your motor and real language trip
messages pinpoint exactly where any
issues lie.
Options for control wiring from the
top, bot tom or left side provide greater
flexibility, plus unique wiring looms and
cable retainer s make for a faster, tidier
install. You’ll soon experience how easy
the EMX3 is to use.
FEATURE SET
The EMX3 is a smar t, dependable and
easy to use soft starter. New design
features make the EMX3 the perfect
solution for quick set-up or more
customised control, including:
• Large LCD screen with multi-language
feedback
• Remote mountable keypad station
• Intuitive programming
• Advanced start and stop control
functions
• A complete range of motor protection
features
• Extensive performance monitoring and
event logging
Page 3
3
VISIT W WW.AUCOM.COM FOR MORE IN FORMATION

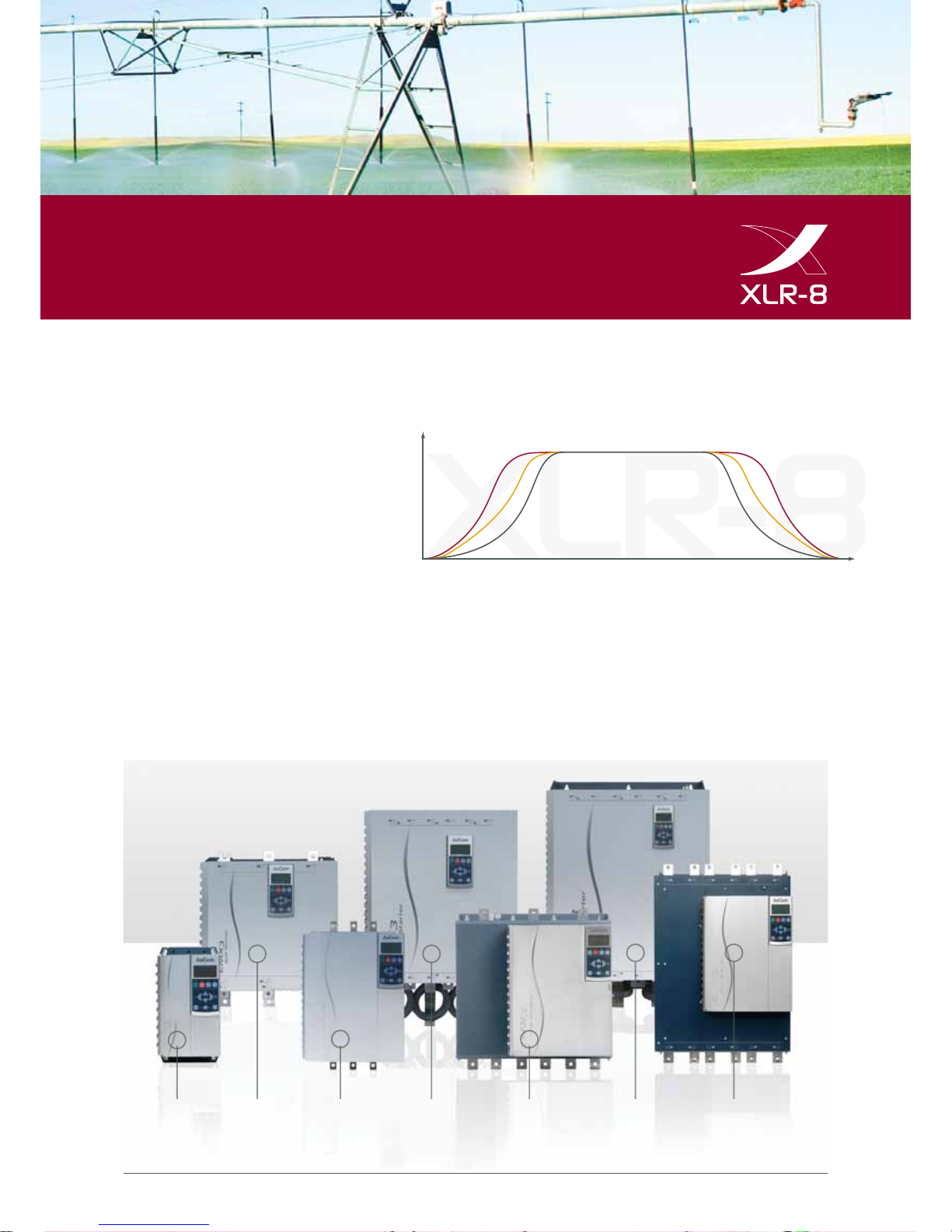

Speed
Time
Early Acceleration
Late Acceleration
Constant Acceleration
Early Deceleration
Late Deceleration
Constant Deceleration
XLR- 8: ADAPTIVE
ACCELERATION CONTROL
AuCom’s new EMX3 soft starter
introduces a new generation in soft start
technology: XLR-8 Adaptive Acceleration
Control. XLR-8 gives you an unprecedented
level of control over your motor’s
acceleration and deceleration profiles.
Using XLR-8, the soft starter learns your
motor’s performance during star t and
stop, then adjusts control to optimise
performance. Simply select the profile
that best matches your load type and
the soft starter automatically ensures the
smoothest possible acceleration for your
load.
Contact your local distributor to see an
EMX3 demonstration today.
XLR-8: ADAPTIVE ACCELERATION CONTROL
THE EMX3 SIMPLIFIES THE INSTALLATION AND
OPERATION OF MOTOR STARTING SYSTEMS TO
REDUCE INSTALLATION COST AND TIME.
ADAPTIVE ACCELERATION PROFILE OPTIONS
Adapti ve acceleration offers three start and stop profiles according to your needs.
The EM X3 comes in a range of sizes to sui t the dema nds of your application. See rati ng and sizes for details.
EMX 3-0 023B ˜ 0105B EMX 3-0145B ˜ 0220BEMX 3-0255C EMX 3-0360C ˜ 0930C EMX 3-1200C ˜ 1600C EMX 3-500 B ˜ 1000BEMX 3-0255B ˜ 425B
Page 4
4
AUCOM
MOTOR T EMPERATU RE CUR RENT MOTOR P OWER
LAS T START INF ORMATION DATE AND TIME PERF ORMANC E GRAPH
SCR CO NDUCTI ON USER -PROGR AMMAB LE SCREE N TRI P MESSAGE S
METERING AND
MONITORING
The EMX3 delivers an ex tensive range
of information to replace an additional
powermeter (Amps, kW, kVA, pf ).
PROGRAM MULTIPLE UNITS
When programming multiple units,
simply plug the keypad into different
starters for immediate download of
your data. No fuss, no trouble – a
smoother star t in ever y sense.

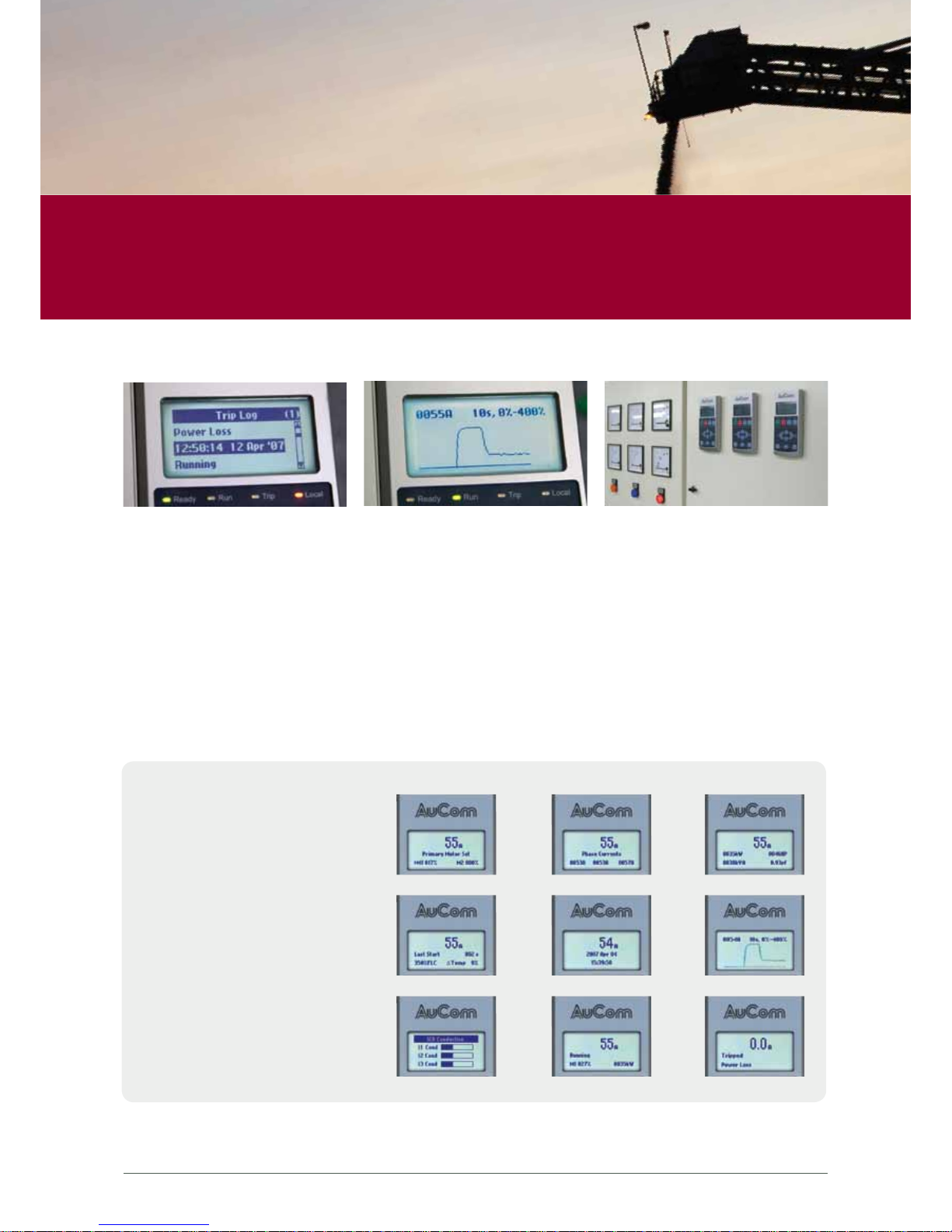

EASY TO UNDERSTAND DISPLAY
REAL L ANGUAGE IN REAL TIME
AuCom wants to make your job easy, so
the EMX3 gives real-language feedback
messages, so you don’t have to look up
codes to know what’s happening. With
real-time metering displays and a 99-
place event log recording time-stamped
details of operation and performance, it
has never been easier to track how your
motor is behaving.
GRAPHICAL DISPL AY
In many cases we’ve done away with
language altogether, using real-time graphs
of motor operating performance and
current to quickly and clearly illustrate
exactly how your motor is per forming.
REMOTE DISPLAY MOUNTING
The keypad is easily mounted on the
exterior of your enclosure, using an
optional keypad mounting kit. When
mounting multiple soft starters in a
single enclosure, this allows centralised
control from a single location, with all the
relevant information. Mount a number
of displays next to each other for quick
diagnosis of problems. (IP65 when
mounted).
Page 5
5
VISIT W WW.AUCOM.COM FOR MORE IN FORMATION
SMARTER STARTING
The EMX3 puts you in control of motor
starting. Depending on your application
requirements you can select the best soft
start control method.
For applications requiring precise control
of motor star t current the EMX3 offers
a choice of Constant Current or Current
Ramp star t modes. For superior control
over acceleration or deceleration choose
XLR-8 Adaptive Acceleration Control.
SMOOTHER STOPPING
XLR-8 also provides precise control over
soft stopping and is ideal for applications
requiring a smoother sof t stop. XLR-8 is
ideal for low inertia loads such as pumps
and conveyors, and can substantially reduce
or eliminate the effects of water hammer.
BRAKING
For high inertia loads, the EMX3
incorporates AuCom’s latest braking
algorithm, letting you take precise
control over the motor’s stopping time.
Shor ter stopping times help improve
your production efficiency by reducing
downtime between operating cycles.
ADVANCED OPERATION
To meet the unique requirements of your
application, the EMX3 offers a range of
advanced features. The EMX3 meets the
needs of specific applications including:
•Pumping(e.g.highheadapplications)
• Compressors(optimisingloadcontrol)
• Bandsaws(easybladealignment)
• Irrigators(built-intimer).
SIMULATIONS
Need to test the installation before
connecting a motor? The EMX3
simulation func tions let you test the soft
starter’s operation, external control
circuits and associated equipment
without connecting the soft starter to
line voltage or a motor. The EMX3 has
three simulation modes :
• Run simulation: simulates a motor
starting, running and stopping to
ensure correct installation.
• Protection simulation: simulates
activation of each protection
mechanism to confirm correct
protec tion response.
• Signalling simulation: simulates
output signalling.
EASY TO INSTALL, EASY TO OPERATE
EASIER INSTALLATION
If space is at a premium in your motor
control centre, the EMX3’s compact size
will save you space and trouble. Internal
bypass contactors, built-in monitoring and
indicators, and extensive on-board input
and output functionality reduce the need
for space and cost of external equipment,
as well as simplif ying installation.

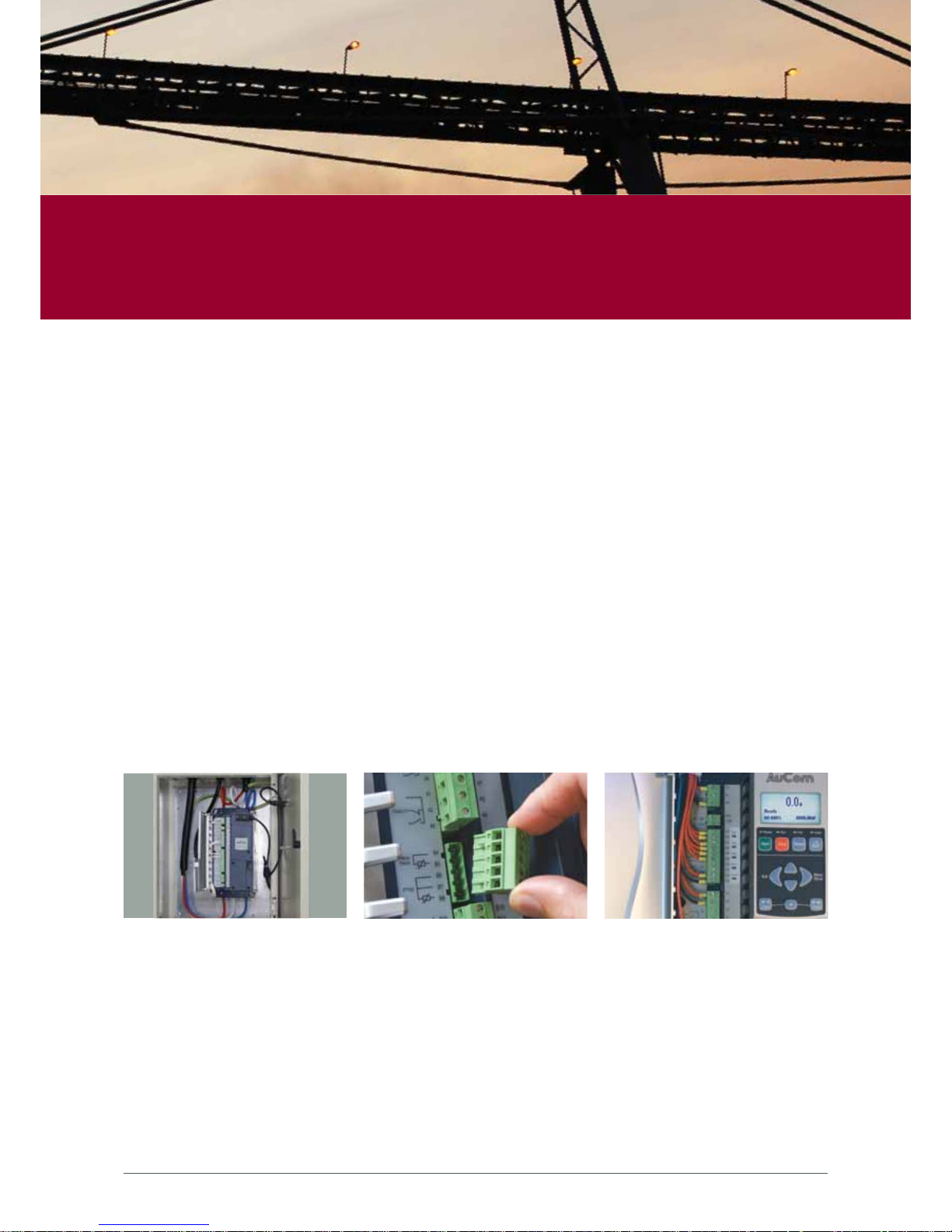

REMOVABLE CONNECTORS &
UNIQUE WIRING LOOM
Installation is easy with plug-in control
terminal block s. Simply unplug each
block, complete the wiring and re-insert
the block.
Using the EMX3’s unique and flexible
cable ways, cables can be efficiently
organised for wiring from either the top,
left or from below.
FASTER COMMISSIONING
The EMX3 has been designed for ease of
use, and the user-friendly menu is no
exception. After a tidy installation, a
quick setup guide helps you configure
the star ter for common applications by
suggesting a typical setting, which you
can then fine tune to suit your needs, all
accessible from the easy to use keypad.
Page 6
6
AUCOM
STARTING FUNCTIONS
• XLR-8 adaptive acceleration
• Constant current star t mode
• Current ramp start mode
• Kickstart
STOPPING FUNCTIONS
• XLR-8 adaptive deceleration
• T VR sof t stop
• Brake mode
• Coast to stop
KEYPAD
• Remote mounting option
• Status LEDs
• Easy to read screen
• Real language feedback
• Multi-language options
• Shortcut buttons
PROTECTION
• Fully customisable protection
• Motor thermal model
• Motor thermistor input
• Phase sequence
• Undercurrent
• Instantaneous overcurrent
• Auxilar y trip input
• Heatsink over temperature
• Excess star t time
• Supply frequency
• Shorted SCR
• Power circuit
• Motor connection
• RS485 failure
• Motor overload
• Current imbalance
• Ground fault (optional)
ADDITIONAL FEATURES
• Starter communication timeout
• Networ k communication trip
• Auto detection of inline or inside
delta power connection
• Programmable auto star t/stop
• 24 VDC auxiliary power supply
• PT100 (RTD) input
• Real time clock with battery backup
• Powerthrough - enables the choice
of continuous operation despite a
power assembly failure. This allows
production to continue while longterm remedial action can be taken.
• Forward and reverse jog function
• I /O expansion card (optional)

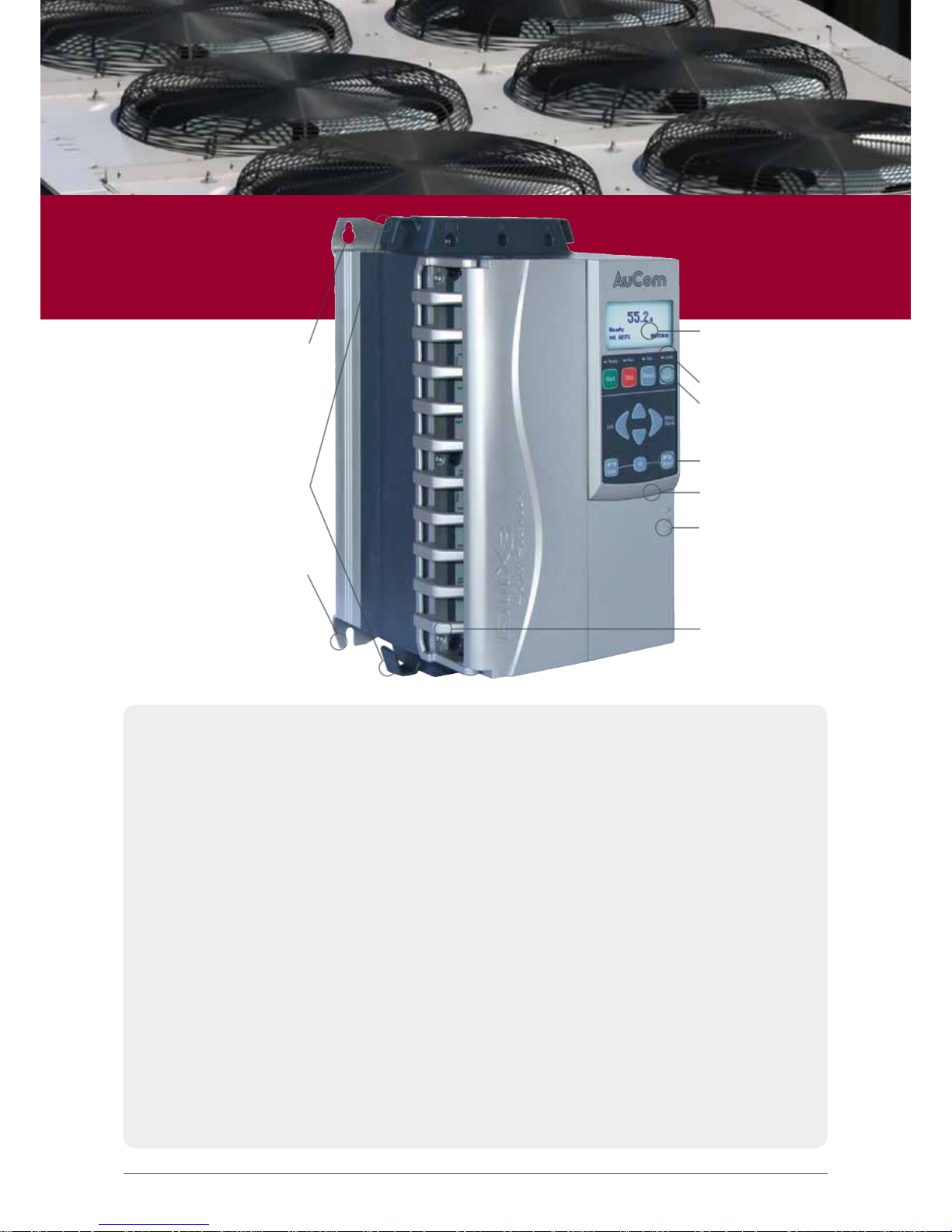

UNIQUE WIR ING LOOM
SEPAR ATES WIRES FOR
EASY I NSTALL A ND ALLOW S
ACCESS F ROM TOP, LEF T
OR BOTTOM FOR MOR E
FLEXIBILITY
SMAL L FOOTPR INT
AND DE PTH SAVE S
SPACE
LAR GE VIEWA BLE SCREEN
WITH REAL L ANGU AGE
TEX T, NO MORE T RIP CODES!
SHORTCU T BUTTO NS
FOR QUI CK ACCESS TO
COMMON TASKS
EASY ACCESS DO OR HIDE S
CABLES FROM O PER ATOR,
BUT AL LOWS EASY ACCESS
FOR INS TALLER S
MOUNT ING HOLES
FOR EASY MOUNTING
AND RE MOVAL
TOP AND B OTTOM
CABLE RETAI NERS
FOR TID IER WI RING
FEATURES
IP65 RE MOVABLE KEY PAD
FOR MOU NTING ON
CABINET E XTER IOR
STATUS LEDS FO R
IMMEDIATE FEEDBACK
START, STOP, RES ET,
LOCAL/R EMOTE
PUSH BU TTONS
Page 7
7
VISIT W WW.AUCOM.COM FOR MORE IN FORMATION
04477.D
7
6
5
4
3
2
1
32
31
6/T3
2/T1
13
14
P24
COM
4/T2
24
23
34
B10
B11
41
42
44
B5
B4
C31
C32
C41
C42
C53
C54
C24
C64
C63
B7 Comp
B8 -
B6 +
A2
A1
A3
5/L3
3/L2
C23
E
1/L1
C BB A
B7 Comp
B8 -
B6 +
B7 Comp
B8 -
B6 +

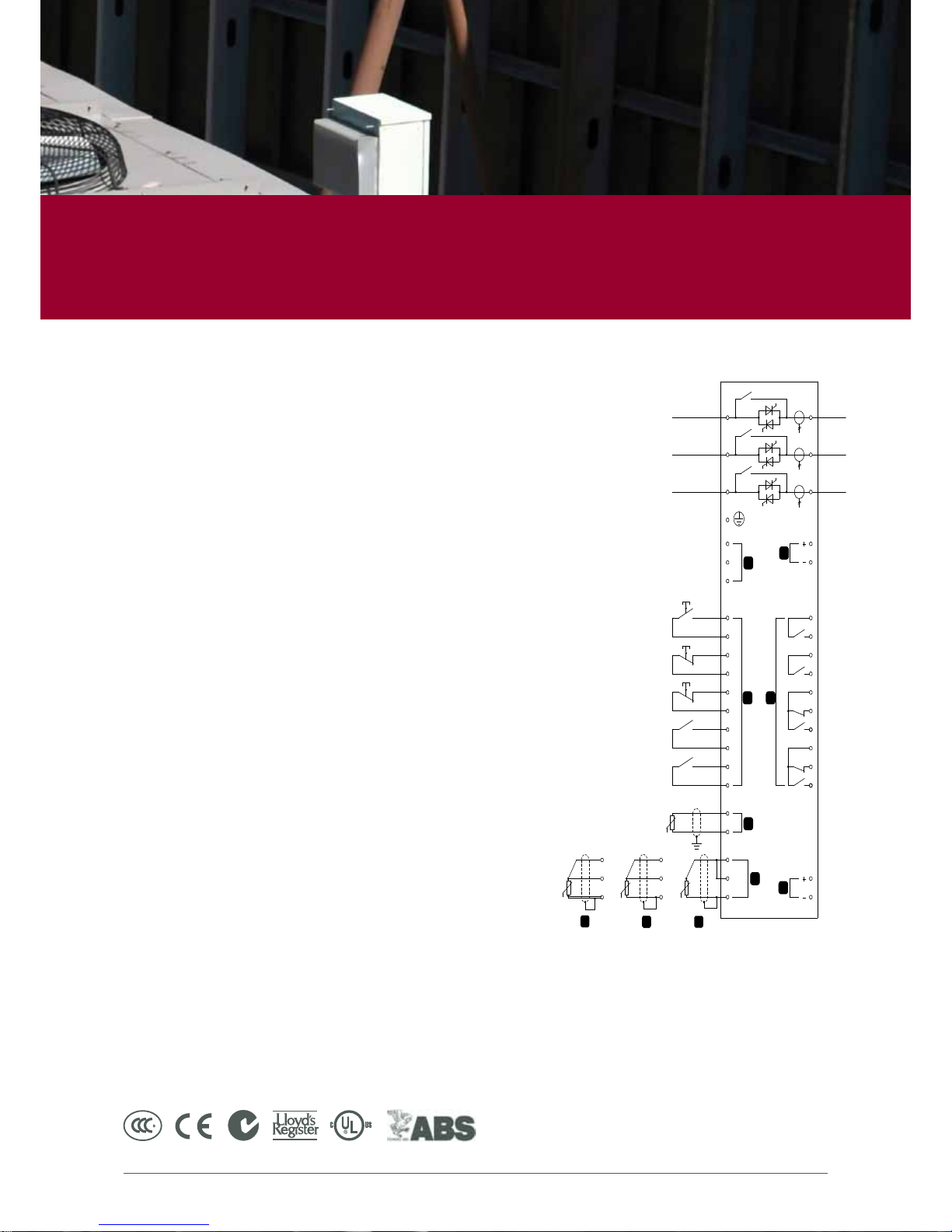

1: Control voltage (model dependent)
2: Remote control inputs
3: Motor thermistor
4A: RTD/PT100 input (2-wire)
4B: RTD/PT10 0 input (3-wire)
4C: RTD/PT100 input (4-wire)
5: 24 VDC output
6: Relay outputs
7: Analog output
The internal bypass feature is included only on unit s with the suf fix ‘B’.

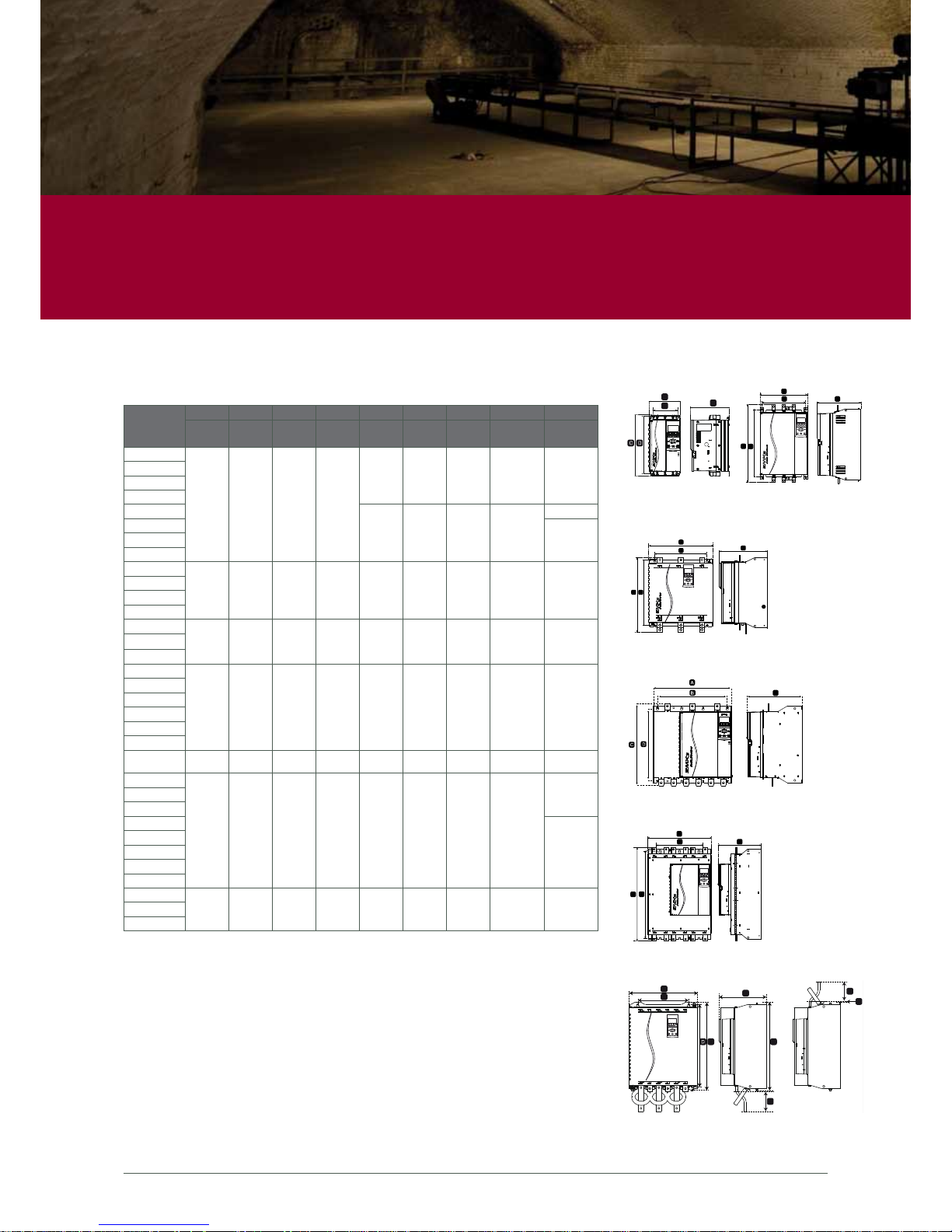

General
Current Range ......................................................................... 23 A ~ 1600 A (nominal)
Motor connection ............................................................................ In-line or inside delta
Bypass ................................................................................. Integrated internal or external
Supply
Mains Voltage (L1, L2, L3)
EMX3-xxxx-V4 ....................................................................... 200 ~ 440 VAC (± 10%)
EMX3-xxxx-V7 ....................................................................... 380 ~ 600 VAC (± 10%)
EMX3-xxxx-V7 .. 380 ~ 690 VAC
(± 10%) (earthed star supply system only)
Control Voltage (A1, A2, A3) ........................... 110 ~ 210 VAC (+ 10% / -15%)
........................................................................................ or 220 ~ 440 VAC (+ 10 % / -15%)
................................................................................................................... 24 VAC/VDC (± 20%)
Mains Frequency ............................................................................................. 45 Hz to 66 Hz
Inputs
Inputs .................................................................................. Active 24 VDC, 8 mA approx.
Star t (C23, C24) ............................................................................................ Normally open
Stop (C31, C32) ........................................................................................... Normally closed
Reset (C41, C42) ..................................................................... Normally open or closed
Programmable Inputs
Input A (C53, C54) .............................................................. Normally open or closed
Input B (C63, C64) .............................................................. Normally open or closed
Motor Thermistor (B4, B5)
PT100 RTD (B6, B7, B8)
Outputs
Relay outputs ............................................................................ 10 A at 250 VAC resistive
.................................................................................................... 5 A at 250 VAC, AC15 pf 0.3
Run Relay (23, 24) ....................................................................................... Normally Open
Programmable Outputs
Relay A (13, 14) ............................................................................................ Normally Open
Relay B (31, 32, 34) ............................................................................................ Changeover
Relay C (41, 42, 44) ........................................................................................... Changeover
Analog Output (B10, B11) ......................................................... 0-20 mA or 4-20 mA
24 VDC Output (P24, COM) ............................................................................... 200 mA
Environmental
Protec tion
EMX3-0023B ~ EMX3-0105B ............................................................. IP20 & NEMA1
EMX3-0145B ~ EMX3-1600C ..................................................................................... IP00
Operating temperature (with der ating) .......................................... -10 °C ~ 60 °C
Storage temper ature ................................................................................ - 10 °C ~ 60 °C
Humidity............................................................................... 5% to 95% Relative Humidity
SPECIFICATIONS
*CERTIFICATION AVAIL ABL E ON REQU EST
*
Page 8
AUCOM
8
DIMENSIONS
COMPACT DESIGN
The design of the EMX3 allows for multiple units to be mounted side by side, or in a bank
of starters due to the flexibility in cabling options. Internally bypassed starters further
reduce the overall size of your sof t star ter.
DIMENSIONS AND WEIGHTS
E
C
D
A
B
A
B
E
04181.C
E
C
D
A
B
E
C D
B
A
A
B
E
C D
G1B
G2B
G3C G4B
G4C - G5C
A
B
E
A
B
F
G
C C
E
H
E
C
D
A
B
E
C D
B
A
G1B
G2B
A
B
E
E
E
C
D
A
B
E
C D
B
A
A
B
E
C D
G1B
G2B
G3C
A
B
E
A
B
F
C C
E
G3B
E
EMX 3-0 023B ~ 0105B EMX 3-0145B ~ 0220B
EMX 3-0500B ~ 1000B
EMX 3-0360C ~ 1600C
Model
A B C D E F G H Weight
mm
(inches)mm(inches)mm(inches)mm(inches)mm(inches)mm(inches)mm(inches)mm(inches)kg(lbs)
EMX3 -0 023B
156
(6.2)
124.0
(4.9)
295
(11.6)
278
(10.9)
192
(7.6)
n/a n/a n/a
3.2
(7.1)
EMX3 -0 043B
EMX3 -0 050B
EMX3 -0 053B
EMX3 -0 076B
223
(8.8)
n/a n/a n/a
3.5 (7.2)
EMX3 -0 097B
4.8
(10.6)
EMX3 -0100 B
EMX3 -0105B
EMX3 -0145B
282
(11.1)
250
(9.8)
438
(17.2)
380
(15)
250
(9.8)
n/a n/a n/a
16
(35.3)
EMX3 -0170B
EMX3 -0200B
EMX3 -02 20B
EMX3 -0255B
424
(16.7)
376
(14.8)
440
(17.3)
392
(15.4)
298
(11.7 )
n/a n/a n/a
26
(57.3)
EMX3 -0350B
EMX3 -0425B
EMX3 -0500B
430
(16.9)
268 / 320
(10.6 /
12.6)
620
(24.4)
600
(23.6)
296
(11.7 )
n/a n/a n/a
60.0
(132.3)
EMX3 -0580B
EMX3 -070 0B
EMX3 -0820B
EMX3 -0920B
EMX3 -1000 B
EMX3 -0255C 390
(15.4)
320
(12.6)
417
(16.4)
400
(15.8)
284
(11.2)
n/a n/a n/a
25
(55.1)
EMX3 -0360C
430
(16.9)
320
(12.6)
545
(21.5)
522
(20.6)
302
(11.9)
105
(4.1)
105
(4.1)
6
(0.2)
50.5
(111.33)
EMX3 -0380C
EMX3 -0430C
EMX3 -0620C
53.5
(118)
EMX3 -0650C
EMX3 -0690C
EMX3 -079 0C
EMX3 -0930C
EMX3 -1200C
574
(22.6)
500
(19.7)
750
(29.5)
727
(28.6)
361
(14.2)
133
(5.2)
129
(5.1)
5
(0.2)
140
(308 .7)
EMX3 -1410C
EMX3 -1600C
E
C
D
A
B
G2B
E
EMX 3-0255B ~ 425B
EMX 3-0255C
Page 9
VISIT W WW.AUCOM.COM FOR MORE IN FORMATION
9
RATINGS
CURRENT RATINGS (IN-LINE CONNECTION)
AC-53a 3.0-10 : 50-6
Star ts per hour
On-l oad dut y cycle (%)
Star t cur rent (multiple of FLC)
Star t tim e (second s)
AuCom ratings are detailed using the
AC53 utilisation code specified by
IEC60947-4-2.
All ratings ar e at 40 ºC and <1000 metres. To calculate
inside -delta rat ings, multiply by 1.5
B = Internally bypassed, C - Non-bypassed
Model
Light Medium Heavy Severe
AC53b 3.0-10:350 AC53b 3. 5-15:345 AC53b 4.0-20:340 AC53b 4.5- 30:330
EMX3 -0 023B 23 A 20 A 17 A 15 A
EMX3 -0 043B 43 A 40 A 34 A 29 A
EMX3 -0 050B 50 A 44 A 37 A 30 A
EMX3 -0 053B 53 A 53 A 46 A 37 A
AC53b 3.0-10:590 AC53b 3.5 -15:585 AC53b 4.0-20:58 0 AC53b 4. 5-30:570
EMX3 -0 076B 76 A 64 A 55 A 47 A
EMX3 -0 097B 97 A 82 A 69 A 58 A
EMX3 -0100B 100 A 88 A 74 A 61 A
EMX3 -0105B 105 A 105 A 95 A 78 A
EMX3 -0145B 145 A 123 A 106 A 90 A
EMX3 -0170B 170 A 145 A 121 A 97 A
EMX3 -0200B 200 A 189 A 160 A 134 A
EMX3 -0220B 220 A 210 A 178 A 148 A
EMX3 -0255B 255 A 231 A 201 A 176 A
EMX3 -0350B 350 A 350 A 350 A 306 A
EMX3 -0 425B 425 A 411 A 355 A 305 A
EMX3 -0500B 500 A 445 A 383 A 326 A
EMX3 -0580B 580 A 492 A 425 A 364 A
EMX3 -070 0B 700 A 592 A 512 A 438 A
EMX3 -0 820B 820 A 705 A 606 A 516 A
EMX3 -0920B 920 A 804 A 684 A 571 A
EMX3 -1000B 1000 A 936 A 796 A 664 A
AC53a 3.0-10:50- 6 AC53a 3.5-15:50-6 AC53a 4.0-20:50- 6 AC53a 4.5-30:50- 6
EMX3 -0255C 255 A 222 A 195 A 171 A
EMX3 -0360C 360 A 351 A 303 A 259 A
EMX3 -0380C 380 A 380 A 348 A 292 A
EMX3 -0 430C 430 A 413 A 355 A 301 A
EMX3 -0620C 620 A 614 A 515 A 419 A
EMX3 -0650C 650 A 629 A 532 A 437 A
EMX3 -0790C 790 A 790 A 694 A 567 A
EMX3 -0930C 930 A 930 A 800 A 644 A
EMX3 -1200C 1200 A 1200 A 1135 A 983 A
EMX3 -1410C 1410 A 1355 A 1187 A 1023 A
EMX3 -1600C 1600 A 1600 A 1433 A 1227 A
AC-53b 3.0-10: 345
Off time (seco nds)
Star t cur rent (multiple of FLC)
Star t tim e (second s)
NON-BYPASSED BYPASSED
Page 10
10
AUCOM

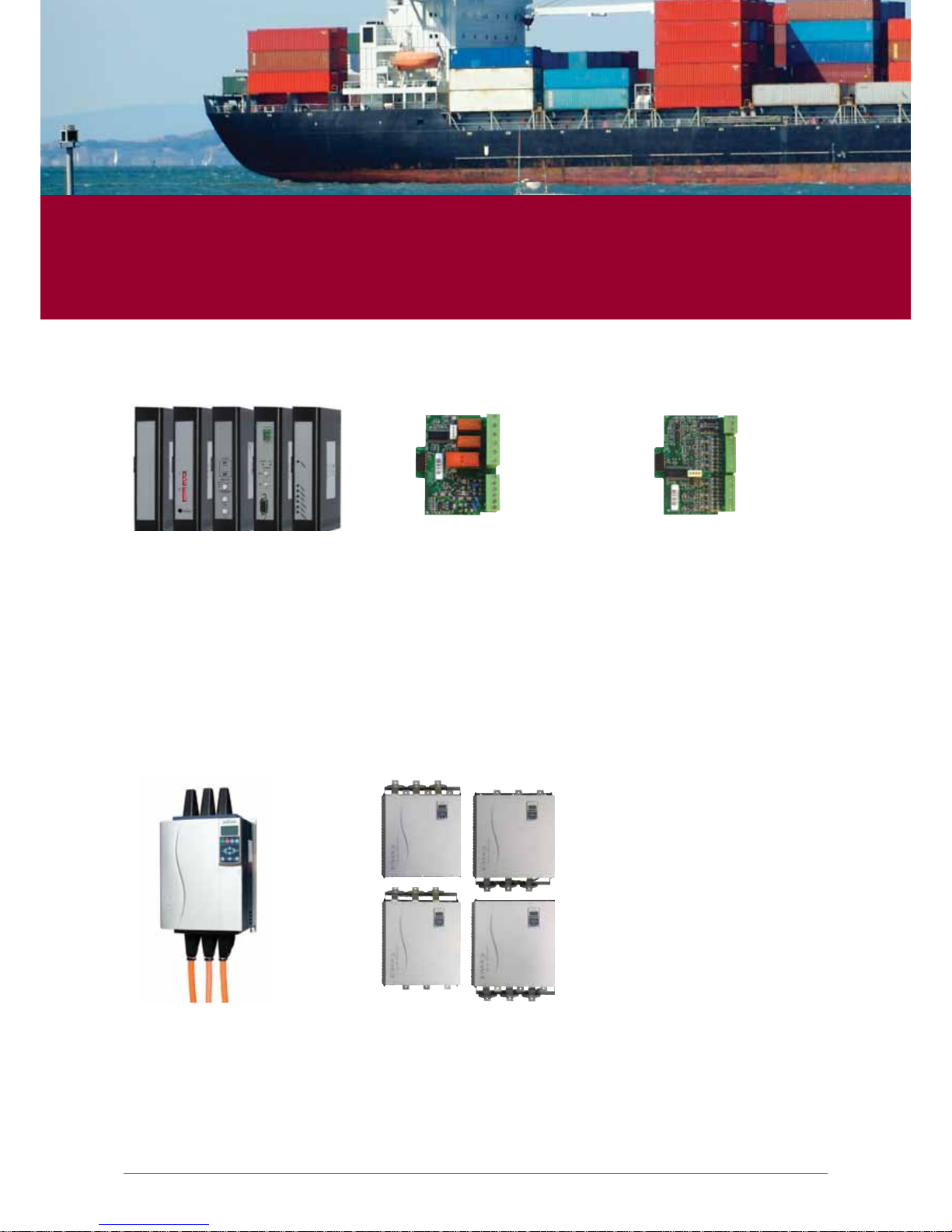

COMMUNICATION MODULES
The EMX3 suppor ts USB and network
communication using Ethernet, Profibus,
DeviceNet and Modbus RTU protocols,
via an easy-to-install communication
inter face module.
PC SOFTWARE
Using AuCom’s custom designed
WinMaster software you can control,
monitor and program your EMX3 from
your desk top computer.
INPUT/ OUTPUT CARD
These hardware expansion cards suit
users who require additional inputs and
outputs or advanced functions. Each
EMX3 can suppor t one expansion card.
The input/output expansion card adds:
• 2 x inputs
• 3 x relay outputs
• 1 x analog input
• 1 x analog output
RTD AND GROUND FAULT
The RTD and ground fault protection
card provides the following additional
inputs:
• 6 x PT100 RTD inputs
• 1 x ground fault input
To use ground fault protection a 1000 :1
5 VA current transfor mer is also
required.
FINGER GUARDS
This option ensures personnel safety
by preventing accidental contact with
live terminals The finger guard kit fits
the EMX3-0145B to EMX3-01000B and
provides IP20 protection when used with
22 mm plus size cables.
ADJUSTABLE BUS BAR
CONFIGURATION
The bus bars on models EMX3-0360C
~ EMX3-1600C can be adjusted for top
or bottom input and output as required.
This flexibility allows you optimisation of
your switchboard layout.
ACCESSORIES/OTHER FEATURES
Page 11
11
VISIT W WW.AUCOM.COM FOR MORE IN FORMATION
AuCom manufacturing plant in Chr istchurch, New Zealand .
ABOUT AUCOM
SMART THINKING
We’ve been making soft starters since
1981 and we’re still going strong. We’re
always talking to customers in order to
improve technolog y to meet their needs.
So our products have an international
reputation for being the market leaders
in soft start.
THE HIGHEST INTERNATIONAL
STANDARDS
AuCom is accredited to ISO9001:2000,
with all products designed and tested
to international standards such as IEC
60947-4-2, UL 508, CCC and CISPR-11.
All our products are thoroughly tested in
certified facilities and in the field before
release, and every soft star ter is tested
before despatch.
IT’S PERSONAL
No two people are the same, just as no
two businesses are alike. We’re proud
that we treat each and ever y client as
someone quite individual with their
own set of business challenges. We have
solutions for simple applications, and
fully featured advanced star ters for more
complex requirements.
EXPERT PARTNERS
AuCom chooses par tners that are
commit ted to sof t star t and motor
control, and regarded as experts in their
local market. We work closely with our
partners to ensure customers receive
only the best advice.
HISTORY
AuCom introduced the first complete
range of soft star ters and since then,
we have concentrated on fulfilling the
promise that we lead the world in soft
start technology and developing new
products to keep improving motor
performance.
We are proud of our attention to detail,
flexibility and engineering skill, and are
globally recognised as the world’s leading
specialist in sof t starters.
Page 12
© 2011 AuCom Electronics Ltd. As AuCom is continuously improving its products it reserves the right to modif y or change the specification of its products at any time
without notice. The text, diagrams, images and any other literary or artist ic works appearing in this brochure are protected by copyright. Users may copy some of the
material for their personal reference but may not copy or use material for any other purpose without the prior consent of AuCom Electronics Ltd. AuCom endeavour s
to ensure tha t the information contained in this brochure including images is correct but does not accept any liabili ty for error, omission or dif ferences with the
finished product.
For more information contact your local distributor. A complete list of distributors is available at www.aucom.com:

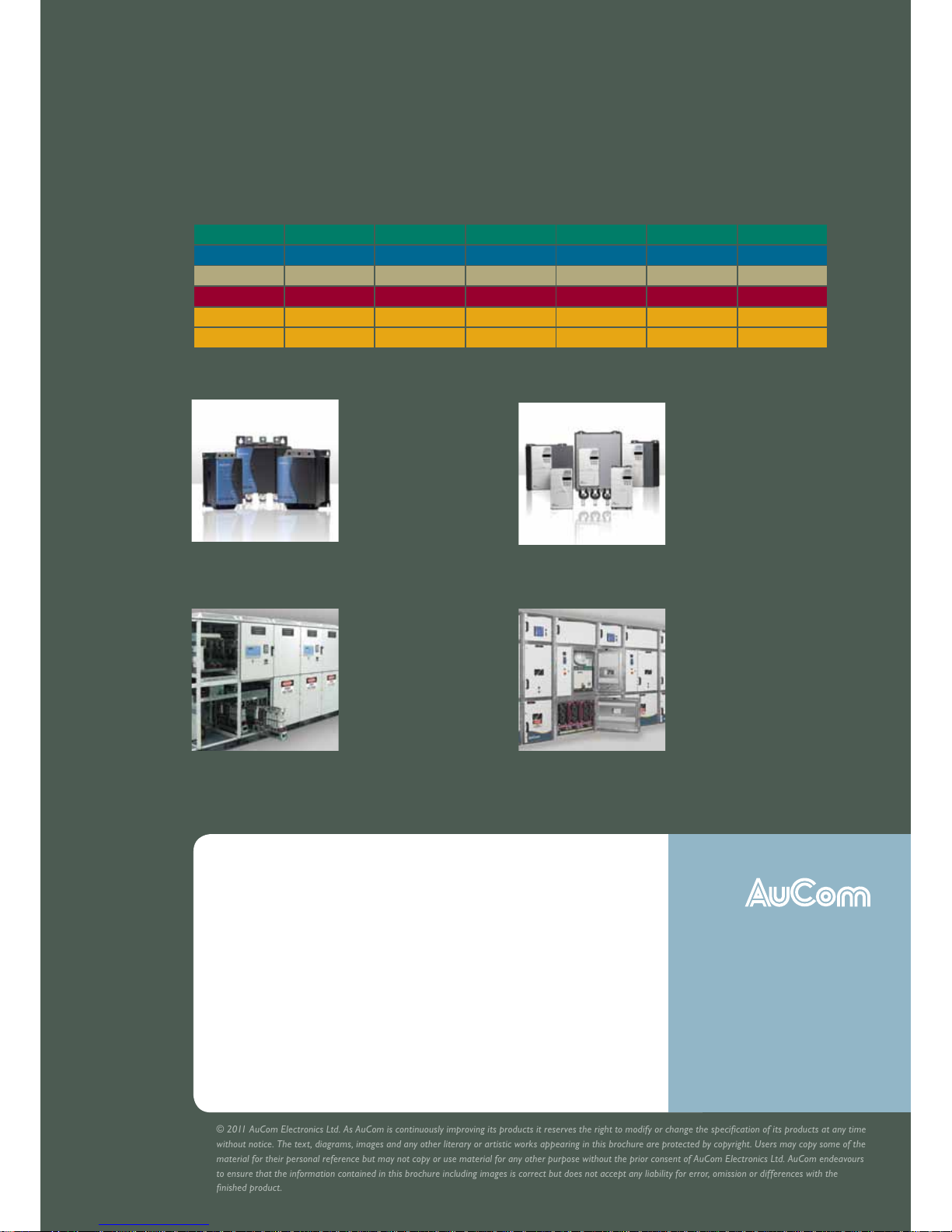

OTHER AUCOM PRODUCTS
AuCom Electronics Ltd
123 Wrights Road
PO Box 80208
Chris tchurch 8440
New Zealand
T +64 3 338 8280
F +64 3 338 8104
E salessuppor [email protected]
W www.aucom.com
710-0 4990 -00 F
A compact soft star ter
providing constant current
soft star t control
plus essential motor
protec tion.
Also available is the
CSX series of soft start
controllers.
CSXI COMPACT SOFT STARTER
A comprehensive motor
management system
providing selectable
soft star t and soft stop
control, advanced motor/
load protection systems
and extensive control &
inter face features.
IMS2 DIGITAL SOFT STARTER
An advanced motor
management system for
medium voltage motors.
MVS soft starters provide
a full range of soft start
control, motor/load
protec tion and other
features.
MVS MEDIUM VOLTAGE SOFT STARTER
* Higher rating s available on request.
AuCom offers a complete range of soft starters, with a solution for your soft starting requirement. Whether you need
a simple product for starting only, or a comprehensive solution for your motor control and protection needs, you can
trus t AuCom to offer a product to match.
Soft
Start
Motor
Protection
Advanced
Interface
Internal
Bypass
Power
Range
Voltage
Range
CSX • • ≤ 200 A ≤ 575 VAC
CSXi • • • ≤ 200 A ≤ 575 VAC
IMS2 • • • ≤ 2361 A ≤ 690 VAC
EMX3 • • • • ≤ 2400 A ≤ 690 VAC
MVS • • • • ≤ 600A * ≤ 13.8 kV
MVX • • • • ≤ 800A * ≤ 15 kV
The MVX is among the
smallest medium voltage
soft star ter in its class.
To ensure that your staf f
and plant are safe from
arc faults, MVX is the only
choice.
MVX MEDIUM VOLTAGE SOFT STARTER
Loading...
