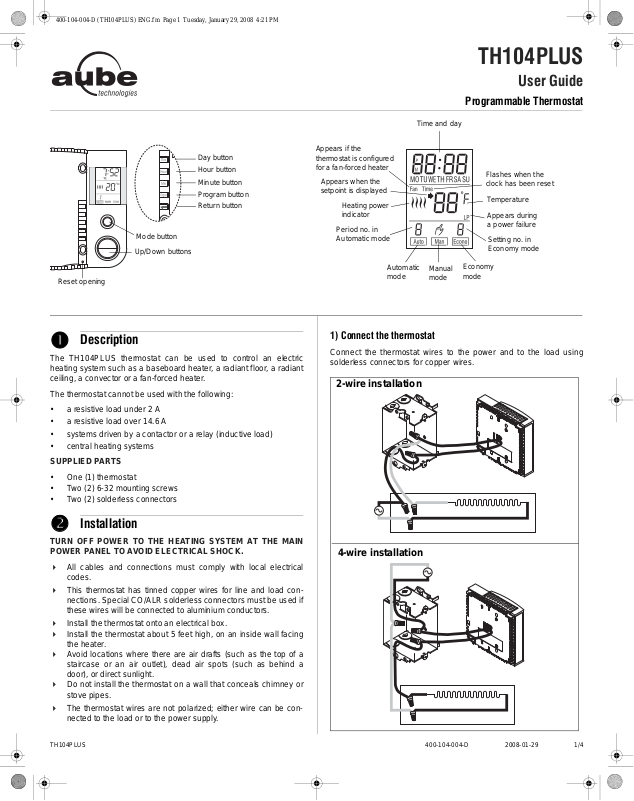

Time and day
TH104PLUS
User Guide
Programmable Thermostat
Day button
Hour button
Minute button
Program button
Return button
Mode button
Up/Down buttons
Reset opening
n
The TH104PLUS thermostat can be used to control an electric
heating system such as a baseboard heater, a radiant floor, a radiant
ceiling, a convector or a fan-forced heater.
The thermostat cannot be used with the following:
• a resistive load under 2 A
• a resistive load over 14.6 A
• systems driven by a contactor or a relay (inductive load)
• central heating systems
Description
Appears if the
thermostat is configured
for a fan-forced heater
Appears when the
setpoint is displayed
Heating power
indicator
Period no. in
Automatic mode
1.
1) Connect the thermostat
Connect the thermostat wires to the power and to the load using
solderless connectors for copper wires.
2-wire installation
Automatic
mode
Manual
mode
Flashes when the
clock has been reset
Temperature
Appears during
a power failure
Setting no. in
Economy mode
Economy
mode
SUPPLIED PARTS
• One (1) thermostat
• Two (2) 6-32 mounting screws
• Two (2) solderless connectors
o
TURN OFF POWER TO THE HEATING SYSTEM AT THE MAIN
POWER PANEL TO AVOID ELECTRICAL SHOCK.
All cables and connections must comply with local electrical
This thermostat has tinned copper wires for line and load con-
Install the thermostat onto an electrical box.
Install the thermostat about 5 feet high, on an inside wall facing
Avoid locations where there are air drafts (such as the top of a
Do not install the thermostat on a wall that conceals chimney or
The thermostat wires are not polarized; either wire can be con-
Installation
codes.
nections. Special CO/ALR solderless connectors must be used if
these wires will be connected to aluminium conductors.
the heater.
staircase or an air outlet), dead air spots (such as behind a
door), or direct sunlight.
stove pipes.
nected to the load or to the power supply.
2.
4-wire installation
TH104PLUS 400-104-004-D 2008-01-29 1/4
2) Mount the thermostat
Time display
Push the excess wires back
inside the electrical box.
Secure the thermostat to the
electrical box using the provided
screws.
Insert the screws through either
the right or left pair of mounting
holes on the thermostat.
3) Complete the installation
NOTE: If there is a protective film or sticker on the thermostat’s
screen, peel it off.
Apply power to the heating system. Verify the inst allation by checking
that the heater can be turned On and Off by raising and lowering the
setpoint using the Up and Down buttons.
WARNING: Keep the thermostat's air vents clean and free from
obstructions.
p
The thermostat normally displays the room (measured) temperature.
• To view the set temperature (setpoint), press the Up or Down
• To change the setpoint, press the Up or Down button until the
• The screen is backlit for 10 seconds when any button is pressed.
q
The factory settings are inside the shaded cells of the following table.
WARNING: The clock loses its setting whenever you change the
thermostat’s configuration.
Temperature Display and Setting
button once.
desired setpoint is displayed.
Configuration
Temperature display °C °F
Time display
Temperature control
24 h 12 h
Proportional
(15-second cycles)
Conventional
(± 0.5°C deadband)
Temp era tur e di spl ay
To change the temperature display between °C and °F:
n Open the thermostat’s door.
o Press and hold the Day button.
p Insert a pointed object (e.g., paperclip) in the reset opening.
Remove it when the thermostat’s screen becomes blank.
q Wait one second and release the Day button.
To switch between the 12-hour format and the 24-hour format:
n Open the thermostat’s door.
o Press and hold the Hour button.
p Insert a pointed object (e.g., paperclip) in the reset opening.
Remove it when the thermostat’s screen becomes blank.
q Wait one second and release the Hour button.
Control type
Use proportional control (default setting) in most cases as it pro-
vides better temperature control.
Use conventional control if you have a fan-forced heater.
Fan is displayed when conventional control is selected. To switch
between the two types of control:
n Open the thermostat’s door.
o Press and hold the Min button.
p Insert a pointed object (e.g., paperclip) in the reset opening.
Remove it when the thermostat’s screen becomes blank.
3.
q Wait one second and release the Min button.
r
The clock must be set when Time flashes on the
screen.
Clock and Day Setting
5.
n Open the thermostat’s door.
o Press the Day button to set the day.
4.
p Use the Hour and Min buttons to set the clock.
q Press the button to exit.
6.
s
The thermostat has three modes of operation:
Automatic mode
To use the Automatic mode, press the Mode button
until Auto is selected (outlined) on the screen. The current period number will appear.
In this mode, the thermostat automatically adjust its
temperature setpoint according to the period of the day
(wake up, leave for work, return home and sleep).
You can program up to 4 periods in a day. You can set 2 different
programs: one for the weekdays (Monday to Friday) and another one
for the weekend (Saturday and Sunday).
Modes of Operation
TH104PLUS 400-104-004-D 2008-01-29 2/4

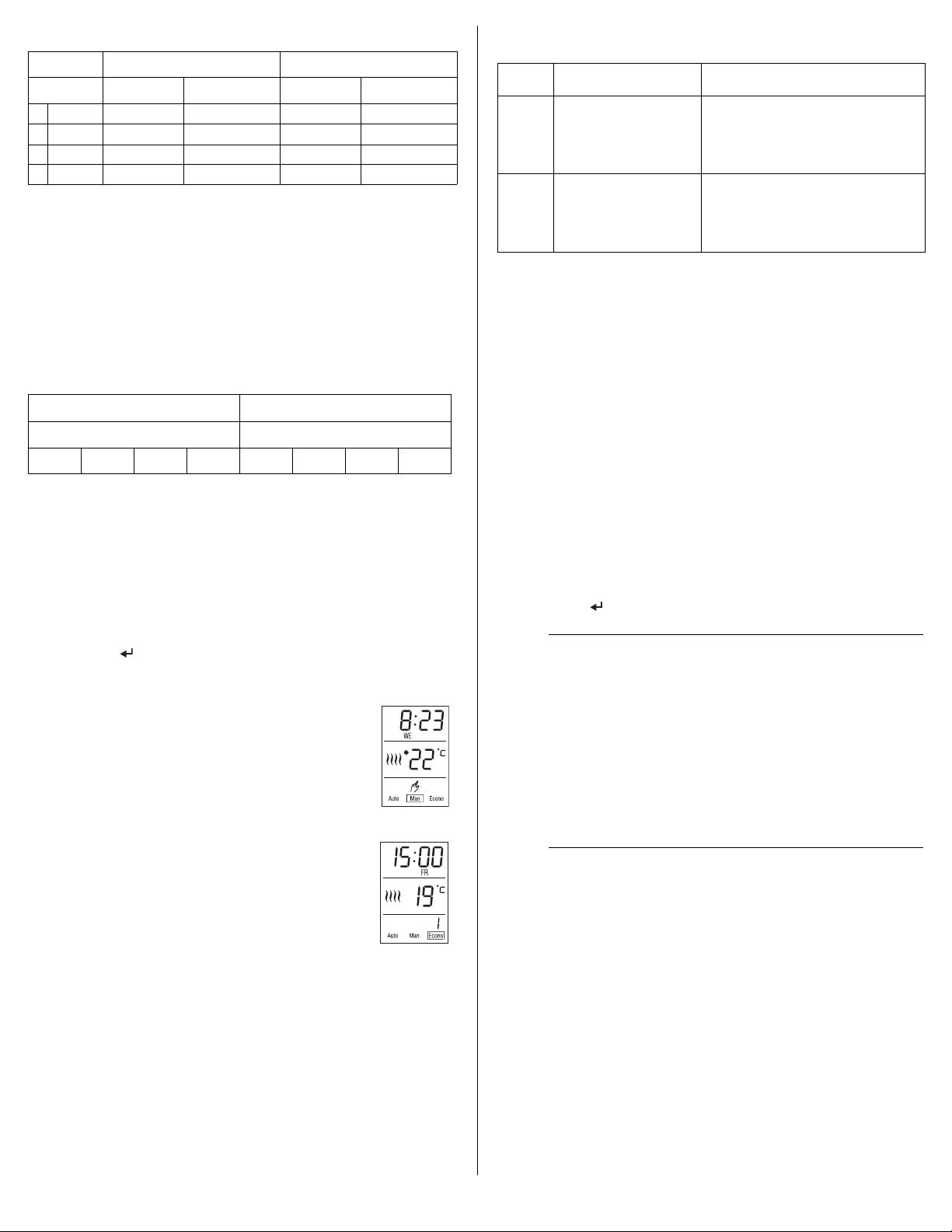

The thermostat is preprogrammed with the following schedule:
The economy mode has two periods which should be set as follows:
Period Monday to Friday Saturday & Sunday
Start Time Temperature Start Time Temperature
1 Wake 6:00 21°C (70°F) 6:00 21°C (70°F)
2 Leave 8:00 16°C (62°F) -- -3 Return 18:00 21°C (70°F) -- -4 Sleep 22:00 16°C (62°F) 22:00 16°C (62°F)
To temporarily override the current setpoint, set the desired temperature using the Up or Down button. The new setpoint will be used until
the beginning of the next period.
T o modify the schedule:
n Press the Mode button until Auto is selected.
o Press Pgm.
Each time you press the Pgm button, the thermostat displays one of
the periods of the schedule in the following order (from left to right):
Weekdays Weekend
MO TU WE TH FR SA SU
12341234
p Set the start time for the displayed period using the Hour and
Min buttons.
NOTE: To deactivate the period, press the Mode button. Instead
of displaying the start time of the period, the thermostat will display --:--. During operation, the thermostat will skip over that
period.
q Set the temperature for the period using the Up or Down button.
r Repeat steps 2 to 4 for remaining periods.
s Press the button to return the thermostat to normal operation.
Manual mode
To use this mode, press the Mode button until Man is
selected (outlined) on the screen. Set the desired temperature using the Up or Down button.
In this mode, any modification to the temperature
setpoint must be done manually.
Economy mode
To use the economy mode, press the Mode button until
Econo is selected (outlined) on the screen. This mode
is ideal for weekend residences as it can be used as
follows: The temperature is kept at an economy level
during most of your absence and is raised to a comfortable level by your usual arrival time. If you do not show
up, the temperature returns to the economy level until
next weekend.
Period Temperature Setting Start Time Setting
Set the day and time that you
Set to a comfortable
1
level.
Set to an economy
2
level.
The economy mode should be used as follows:
Place the thermostat in economy mode during your absence.
When you arrive, place the thermostat in automatic mode or in
manual mode before the temperature drops back to the
economy level.
When you leave, switch the thermostat back to economy mode.
To program the two periods of the econo my mode:
want the temperature to start
rising so that a comfortable level
is attained by the time you arrive.
Set the day and time that you
want the temperature to start
dropping to an economy level if
you do not show up.
n Press the Mode button until Econo is selected.
o Press the Pgm button. The first period is displayed.
p Set the start day for the displayed period using the Day button.
q Set the start time using the Hour and Min buttons.
r Set the temperature for the period using the Up or Down button.
s Press the Pgm button to select the next program (2).
t Repeat steps 2 to 4 to set the day, time and temperature.
u Press the button to return the thermostat to normal operation.
t
WARNING: When the thermostat is reset, all parameters (clock, configuration and schedules) return to their default settings.
Thermostat Reset
n Open the thermostat’s door.
o Press and hold the Pgm button.
p Insert a pointed object (e.g., paperclip) in the reset opening.
Remove it when the thermostat’s screen becomes blank.
q Wait one second and release the Pgm button.
u
During a power outage, the thermostat display remains lit for approximately the next 15 minutes during which the LP (low power) indicator appears. The settings are stored in memory. However, if the
power failure exceeds 5 hours, only the thermostat’s clock must be
re-adjusted. When power returns, the thermostat returns to the mode
of operation preceding the power outage.
Power Outage
7.
8.
TH104PLUS 400-104-004-D 2008-01-29 3/4
v
w
Supply: 240 VAC, 60 Hz
Power consumption (off): 860 mW
Minimum load:500 W / 2 A (resistive only)
Maximum load: 3500 W / 14.6 A (resistive only)
Display range: 0°C to 70°C (32°F to 99°F)
Setpoint range: 5°C to 27°C (40°F to 80°F)
Resolution: 1°C (1°F)
Storage temperature: -20°C to 50°C (-4°F to 120°F)
Dimensions: 120 x 115 x 26 mm (4.8 x 4.5 x 1 inches)
Approval: CSA / UL
Troubleshooting
PROBLEM SOLUTIONS
Thermostat’s housing is
hot.
Wrong temperature is
displayed.
Wrong time is displayed.
Temperature does not
change according to the
programmed schedule.
LP reappears on the
screen and disappears
after a few minutes.
Display looks faded
when heating is activated.
This is normal. When the thermostat is
running at full capacity, it s housing can
reach 40 °C (104 °F).
Correct if any the following conditions
applies:
• The thermostat is exposed to an
air draft.
• The sticker on the thermostat’s
screen has not been removed.
• The thermostat is located near or
above a heat source such as a
light dimmer.
The thermostat was without power for
more than 5 hours.
• Ensure the thermostat is in Automatic mode.
• Check the clock and the schedule.
If the thermostat is configured for
12-hour format, ensure that PM
appears on the screen when afternoon times are displayed.
The thermal protection device on the
heater has temporarily opened. This
can happen if the heater is obstructed
by furniture or curtain and has overheated, or if the heater’s thermal protection device is too sensitive.
The load of the heating system is probably less than the required minimum.
This thermostat cannot be used for
loads below that rating.
Specifications
9.
;
Aube warrants this product, excluding battery, to be free from defects
in the workmanship or materials, under normal use and service, for a
period of three (3) years from the date of pu rchase b y the con sumer.
If at any time during the warranty period the product is determined to
be defective or malfunctions, Aube shall repair or replace it (at Aube's
option).
If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to the
(ii) contact Aube. Aube will make the determination whether the
This warranty does not cover removal or reinstallation costs. This
warranty shall not apply if it is shown by Aube that the defect or
malfunction was caused by damage which occurred while the
product was in the possession of a consumer.
Aube's sole responsibility shall be to repair or replace the product
within the terms stated above. AUBE SHALL NOT BE LIABLE FOR
ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING,
DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY
WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE
OF THIS PRODUCT. Some provinces and states do not allow the
exclusion or limitation of incidental or consequential damages, so this
limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY AUBE
MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED
WARRANTIES, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, IS HEREBY LIMITED TO THE THREE-YEAR
DURATION OF THIS WARRANTY. Some provinces and states do
not allow limitations on how long an implied warranty lasts, so the
above limitation may not apply to you.
This warranty gives you specific legal rights, and you may have other
rights which vary by province, state or region.
If you have any questions about the product installation or operation,
contact us at the address shown below:
10.
705 Montrichard
Saint-Jean-sur-Richelieu, Quebec
J2X 5K8
Canada
Tel: (450) 358-460 0
Toll-free: 1-800-831-AUBE
Fax: (450) 358-4650
Email: aube.service@honeywell.com
Warranty
place from which you purchased it, or
product should be returned, or whether a replacement product
can be sent to you.
Customer Assistance
For more information on our products, visit us at:
www.aubetech.com
11.
12.
As an ENERGY STAR® partner, Aube Technologies has
determined that this product meets the E
guidelines for energy efficiency.
TH104PLUS 400-104-004-D 2008-01-29 4/4
NERGY STAR
Loading...
