UCrypt

Q2Q

Patent Pending

UCrypt® QAM to QAM

Quick Start Guide

Page 2

Although every effort has been taken to ensure the accuracy of this document it may be necessary, without notice, to make amendments or correct omissions.

Specications subject to change without notice.

* Any use of the UCrypt product, directly or indirectly, for the decryption and unauthorized reproduction of content that constitutes or may constitute copyright infringement or otherwise infringes on the proprietary rights of any third party is expressly prohibited. No user of UCrypt shall use UCrypt for any purpose or in any manner which, directly or indirectly, violates the law, violates the proprietary rights of any other party, or aids in any unlawful act or undertaking including, without limitation, laws governing data privacy, international data transmission, and export of technology or data. Any multiple systems operator or other similar party (“MSO”) will use the UCrypt product in strict compliance with all applicable laws and in compliance with any agreement in effect between the MSO and a content provider.

In no event shall ATX Networks Corp. or any of its afliates be liable to an MSO, any end user of the UCrypt product, or any other third party, for any claims arising out of or related to any use or misuse

of the UCrypt product in contravention of this disclaimer. It is the express obligation of an MSO to convey this disclaimer to any other end user of the UCrypt product.

MDU Solutions®, UCrypt®, DigiVu® and VersAtive®Pro are registered trademarks of ATX in the United States and/or other countries. Products or features contained herein may be covered by one or more U.S. or foreign patents. Other non-ATX product and company names in this manual are the property of their respective companies.

Page 3

TABLE OF CONTENTS

1. SAFETY ............................................................. 1-1

2. QUICK START GUIDE – READ ME FIRST .................................. 2-1

2.1 Install and Power Up .............................................. 2-1

2.2 Plug in the CableCARD™ Modules ................................... 2-1

2.3 Connect the Cables ............................................... 2-1

2.4 Start the Management Interface ...................................... 2-1

2.5 Change Network Settings ........................................... 2-1

2.6 Pair the CableCARD™ with its Host ................................... 2-2

2.7 Optionally Import an Existing Conguration File .......................... 2-2

2.8 Select Programs for Decryption ...................................... 2-2

2.9 Review or Change CableCARD™ Conguration ......................... 2-2

2.10 Congure Output QAM Carriers ...................................... 2-2

2.11 Assign Programs to Output QAM Carriers .............................. 2-2

3. IMPORTANT CONFIGURATION INFORMATION ............................. 3-1

3.1 Support for Two Simultaneous Congurations ........................... 3-1

4. INSTALLATION SUMMARY .............................................. 4-1

4.1 Mounting ........................................................ 4-1

4.2 Equipment Safety Grounding ........................................ 4-1

4.3 Ambient Environment .............................................. 4-1

4.4 Power Requirements .............................................. 4-1

5. CABLING CONNECTION ................................................ 5-1

6. POWERING UP ........................................................ 6-1

7. MANAGEMENT INTERFACE ............................................. 7-1

7.1 Connect to the Management Interface ................................. 7-1

7.2 Congure the Management Computer Network Port ...................... 7-1

7.3 Log in to the Management Interface ................................... 7-2

8. ACTIVATING CableCARD™ MODULES .................................... 8-1

8.1 CableCARD™ Module Authorization Best Practice ....................... 8-2

9. CHANNEL VIEW TAB - CONFIGURATION .................................. 9-1

10. CableCARD™ VIEW TAB - CONFIGURATION .............................. 10-1

11. OUTPUT QAM VIEW TAB - CONFIGURATION .............................. 11-1

12. OUTPUT MPTS VIEW TAB - CONFIGURATION ............................. 12-1

13. SYSTEM TAB - CONFIGURATION ....................................... 13-1

13.1 Default User Names and Passwords ................................. 13-1

14. CONFIGURATION TAB - CONFIGURATION ................................ 14-1

15. SERVICE & SUPPORT ................................................. 15-1

15.1 Contact ATX Networks ............................................ 15-1

15.2 Warranty Information ............................................. 15-1

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide iii

Page 4

This page intentionally left blank

iv MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 5

SAFETY

1. Safety

WARNING! FAILURE TO FOLLOW THE SAFETY PRECAUTIONS LISTED BELOW MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY. PLEASE READ AND COMPLY WITH THE FOLLOWING:

SAFETY GROUND: The connection to earth of the supplementary grounding conductor shall be in compliance with the

appropriate rules for terminating bonding jumpers in Part V of Article 250 of the National Electrical Code, ANSI/NFPA 70, and

Section 10 of Part I of the Canadian Electrical Code, Part I, CSA C22.1.

WATER AND MOISTURE: Care should be taken to prevent entry of splashed or dripping water, other liquids, and physical

objects through enclosure openings.

DAMAGE: Do not operate the device if damage to any components is suspected.

POWER SOURCES: Only connect the unit to a power supply of the type and capacity specied in the operating instructions

or as marked on the device.

NOTE: a) For 115 VAC operation, use the power cord supplied for operation from a 115 VAC source. b) For 230 VAC operation, use the power cord supplied for operation from a 230 VAC source.

CHAPTER 1:

SAFETY

GROUNDING OR POLARIZATION: Electrical grounding and polarization means must not be defeated.

POWER CORD PROTECTION: Care must be taken during installation to route or arrange the power supply cord to prevent

and avoid the possibility of damage to the cord by external objects. Pay particular attention to the exit point from the device

and plug.

POWER SUPPLY CORD ROUTING: The power supply cord shall not be attached to the building surface, nor run through

walls, ceilings, oors and similar openings in the building structure.

SERVICE: Do not attempt to service the device beyond procedures provided the operating instructions. All other servicing

should be referred to qualied service personnel.

MODIFICATIONS: Modications should not be made to the device or any of its components for applications other than those specied in the operating instructions.

SAFETY CODES AND REGULATIONS: The device should be installed and operated in compliance with all applicable local safety by-laws, codes and regulations.

BATTERY REMOVAL AND REPLACEMENT: Disconnect power (AC or DC) from the equipment before battery removal and replacement. This is accomplished by unplugging the power cord from the power outlet. Replace the battery with Sony part No. CR2032 or exact replacement only.

CAUTION: Use of a different battery type may present a risk of re or explosion.

BATTERY DISPOSAL: Recycle or dispose of batteries in accordance with the battery manufacturer’s instructions and local/

national disposal and recycling regulations. Please call 1-800-8-BATTERY or go to the website at www.call2recycle.org for

information on recycling or disposing of your used battery.

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 1-1

Page 6

CHAPTER 1:

SAFETY

This page intentionally left blank

1-2 MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 7

QUICK START GUIDE – READ ME FIRST

2. Quick Start Guide – READ ME FIRST

For detailed information on conguration, go to the ATX website (atxnetworks.com) in the Resources & Support section, User Documents sub-section to download the Installation & Operation Manual.

This Quick Start Guide will take you through the steps required to get your UCrypt up and running if you have not done this

before. Follow the steps below:

2.1 Install and Power Up

You may be doing this rst setup in your lab so detailed installation details are not provided here. See the Installation and Operation Manual for installation details. You can get it from the ATX website (atxnetworks.com) in the Resource & Support section, User Documents sub-section. You will rst need to get a user name and password from your ATX Networks support or sales representative and the contact numbers are on this same web page.

Refer to “Quick Start Guide – READ ME FIRST” on page 2-1 for a brief overview of mounting and powering information.

NOTE: If the unit is to be mounted in a rack, it is essential to attach the rear mounting ears to mounting rails to provide support or alternately install the equipment on a well supported shelf.

CHAPTER 2:

QUICK START GUIDE – READ ME FIRST

2.2 Plug in the CableCARD™ Modules

The CableCARD host slots are on the rear panel of the UCrypt device for some versions or behind the front fan panel in the Version 2 model. CableCARD modules are hot swappable so they may be inserted or removed at any time. Depending on the

ordered conguration, your UCrypt device may have 1 to 10 active CableCARD slots. CableCARD modules may be inserted

in any order.

NOTE: Great care should be taken with the CableCARD modules to not forcibly insert them - the card should slide in and seat easily. Forcing the card into the slot is likely to result in bent pins in the PCMCIA host interface which will prevent proper operation of the UCrypt device.

Refer to “Quick Start Guide – READ ME FIRST” on page 2-1 for instructions for activating CableCARD modules.

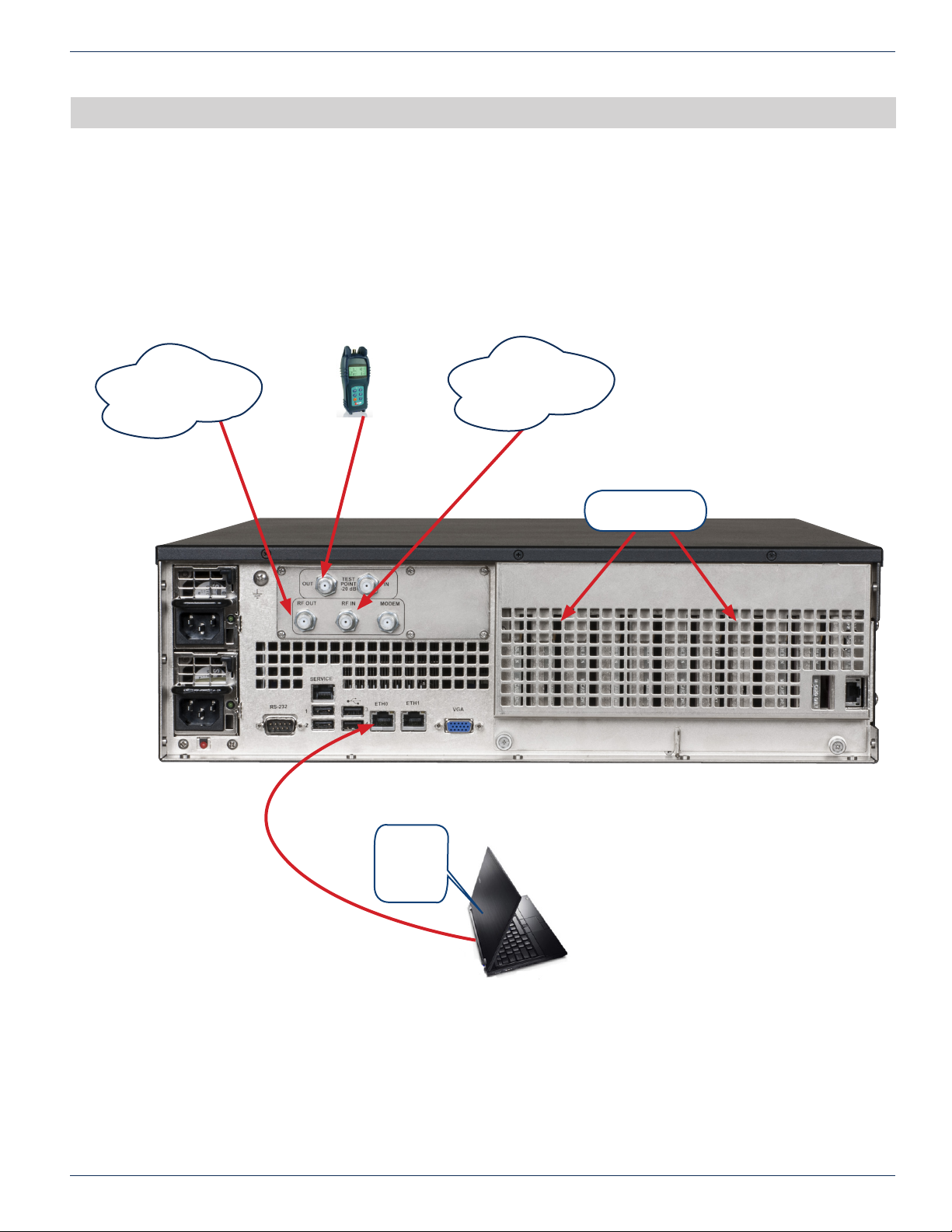

2.3 Connect the Cables

A PC with web browser and Ethernet network port will be required to congure the UCrypt device. Establish a network

connection with the supplied crossover network cable.

Connect QAM digital input signals to the input F tting at a level of +5 to +10 dBmV per digital carrier.

Refer to “Quick Start Guide – READ ME FIRST” on page 2-1 for more details about cabling.

2.4 Start the Management Interface

The software for conguring the UCrypt Management Interface is provided by a built in secure web server which presents conguration pages. You will connect with the secure web server at https://192.168.0.23 which is the default address, and log

in to access the Interface.

The UCrypt device will take about 90 seconds to boot up after applying power before you can begin conguration.

Refer to “Quick Start Guide – READ ME FIRST” on page 2-1 for basic setup instructions to connect to the Management Interface

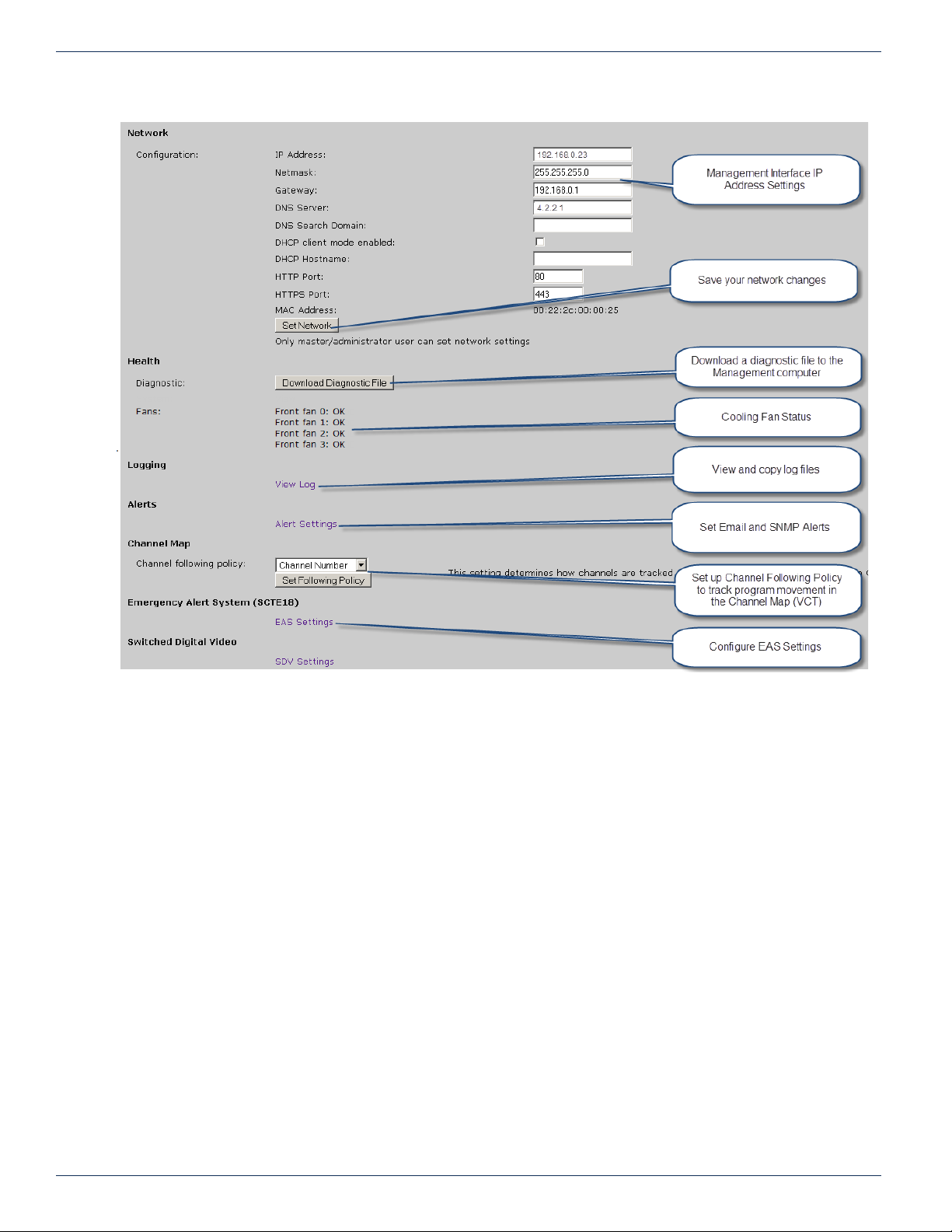

2.5 Change Network Settings

If it is necessary to change the network IP address to access this unit remotely on a network, that is done on the System

conguration tab

Refer to “Quick Start Guide – READ ME FIRST” on page 2-1 to change the IP addresses.

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 2-1

Page 8

CHAPTER 2:

QUICK START GUIDE – READ ME FIRST

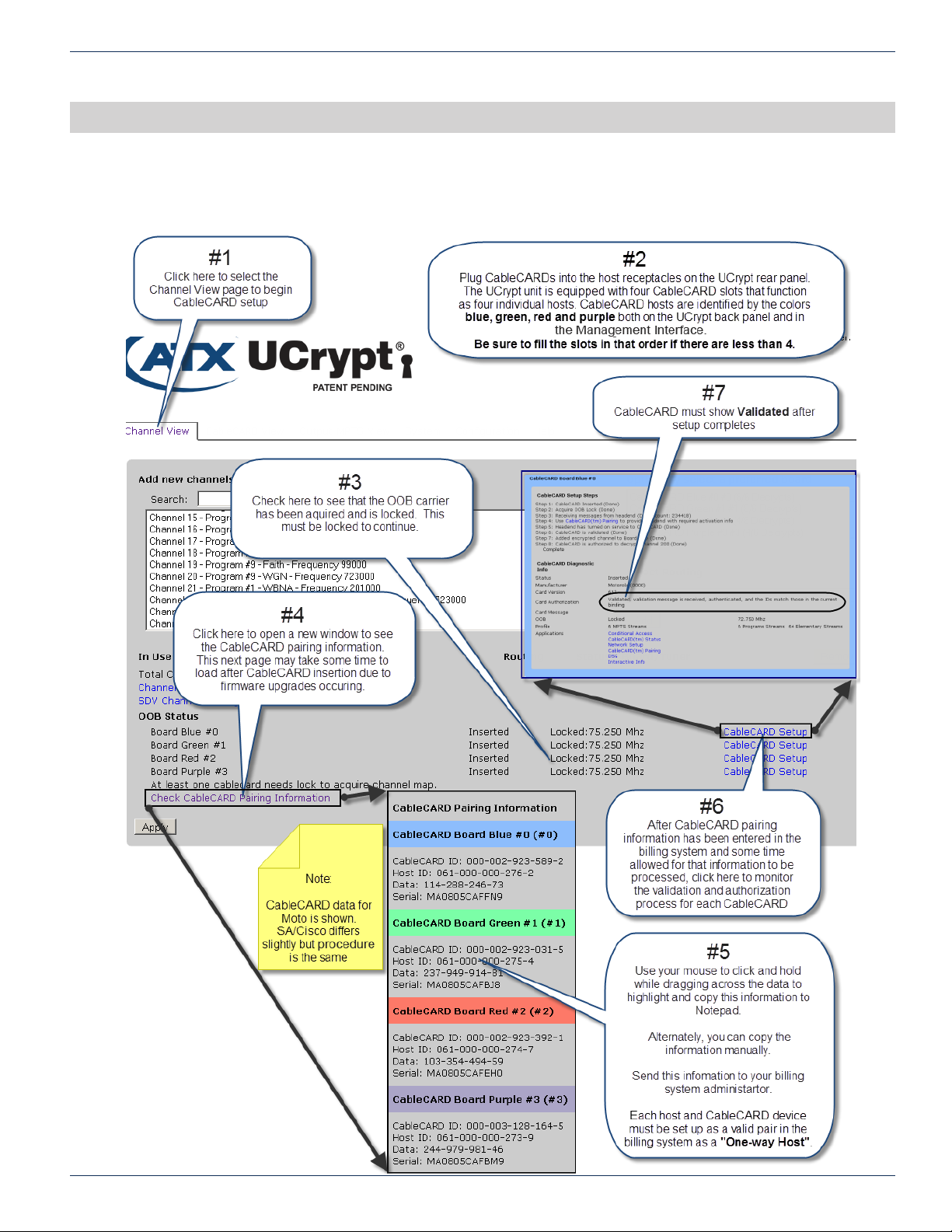

2.6 Pair the CableCARD™ with its Host

You will need to pair each CableCARD module with its host, that is, the Host Slot receptacle on the UCrypt device. If this

CableCARD is not a permanent CableCARD to be installed in this unit, pairing will need to be done again with the exact permanent CableCARD and host slot.

The process of pairing is required for security so the CableCARD may not be moved from the host that it is originally paired with and plugged in somewhere else. If it is moved, it will require the pairing operation to be done again with the new host and it will not decrypt any services until that is done.

The pairing information will be obtained from the Management Interface after you log in and will need to be passed to your Billing System Administrator who will setup an account and enter the pairing information.

Refer to “Quick Start Guide – READ ME FIRST” on page 2-1 for more details about the pairing process.

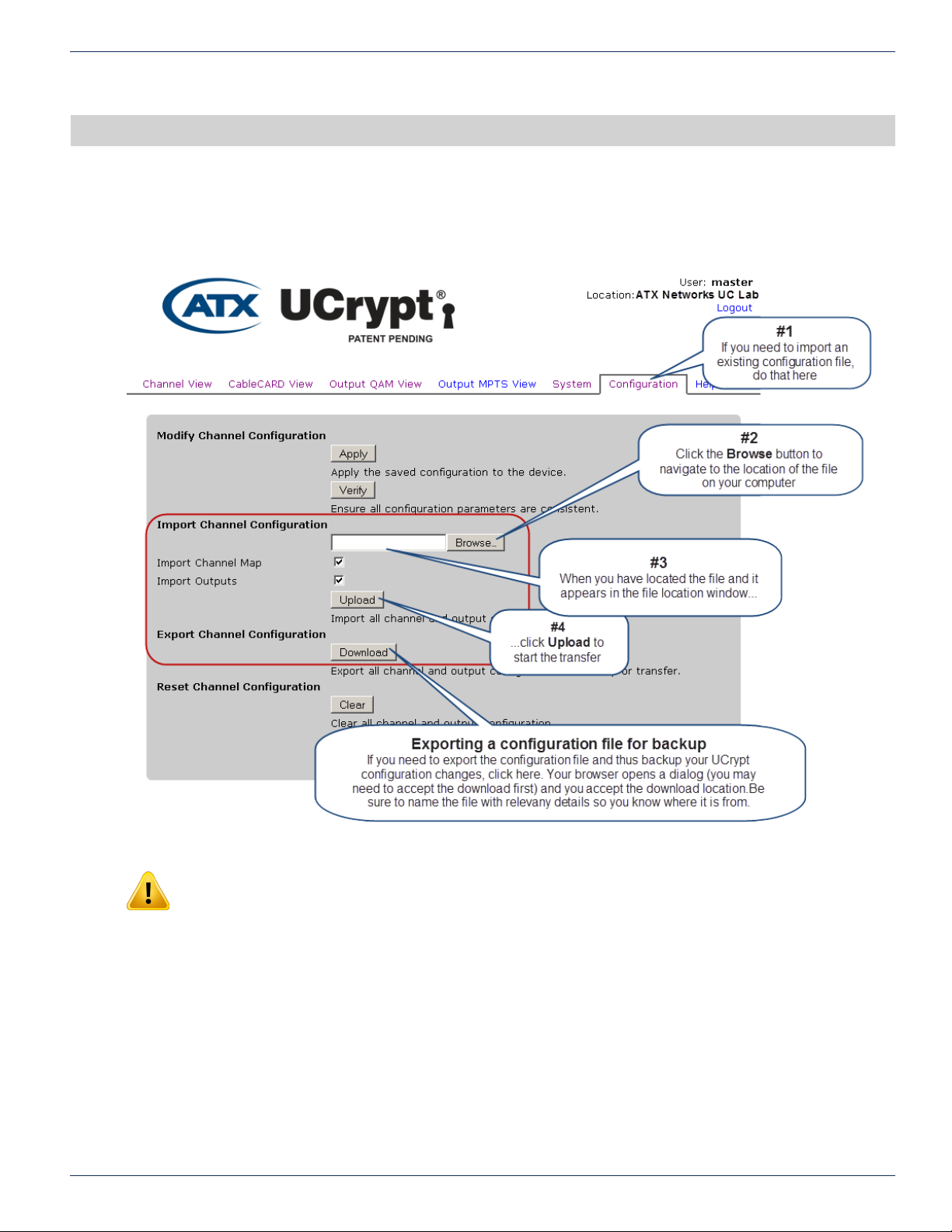

2.7 Optionally Import an Existing Conguration File

UCrypt supports mass deployment with an importable/exportable conguration le. If you have a previously exported conguration le to import see “Quick Start Guide – READ ME FIRST” on page 2-1.

If you have no le to import skip to Step 2.1 below.

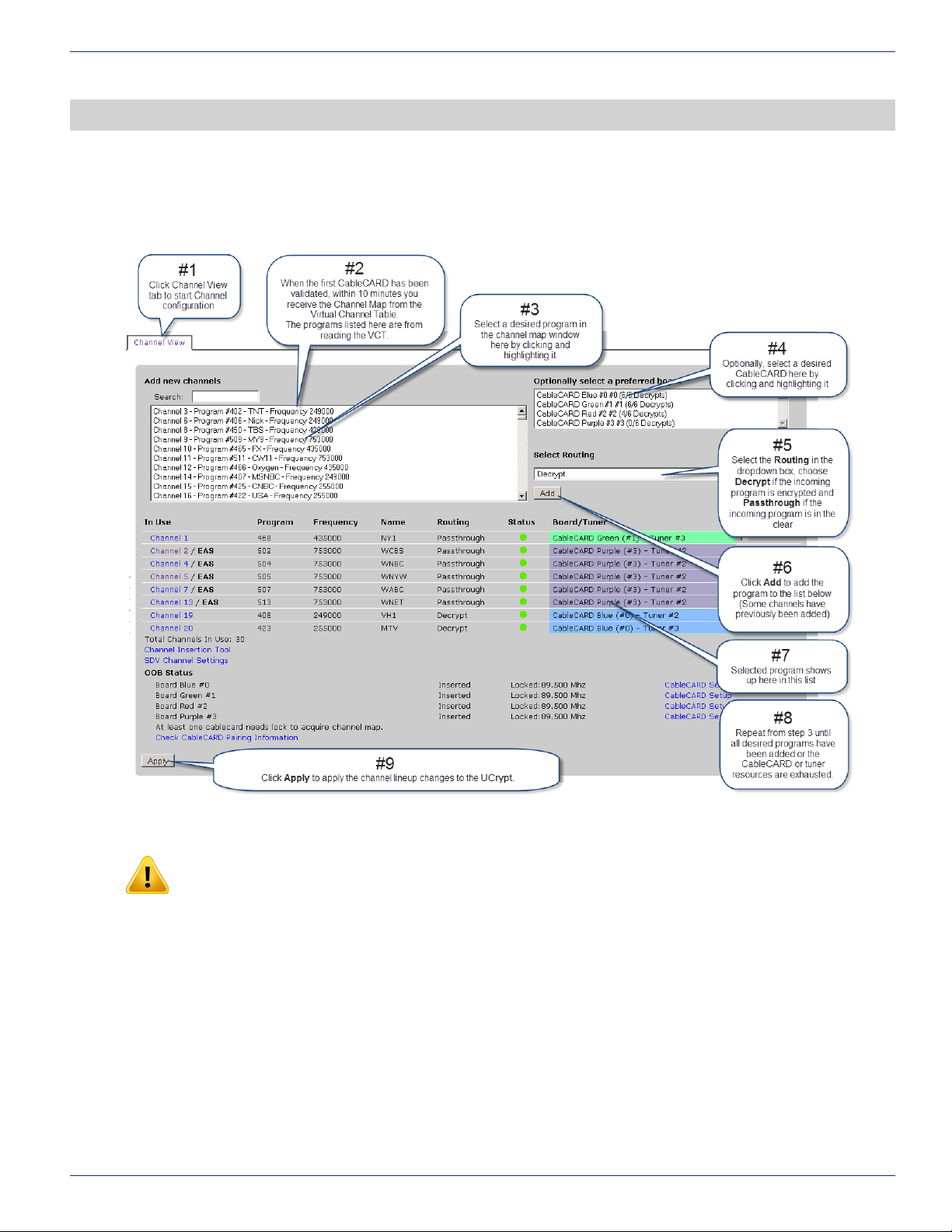

2.8 Select Programs for Decryption

After you have paired available CableCARD modules with the host receptacle slots, the UCrypt device will receive a Channel

Map by reading the Cable System VCT (Virtual Channel Table) and display available programs in a window. You should

now select channels for decryption to test CableCARD module validation and authorization. After each installed CableCARD

module is veried to be working with at least one program, continue selecting programs that will be needed for the nal

output lineup. Encrypted programs may be selected for decryption and programs that are in the clear may also be selected to passthrough to the output.

Refer to “Quick Start Guide – READ ME FIRST” on page 2-1

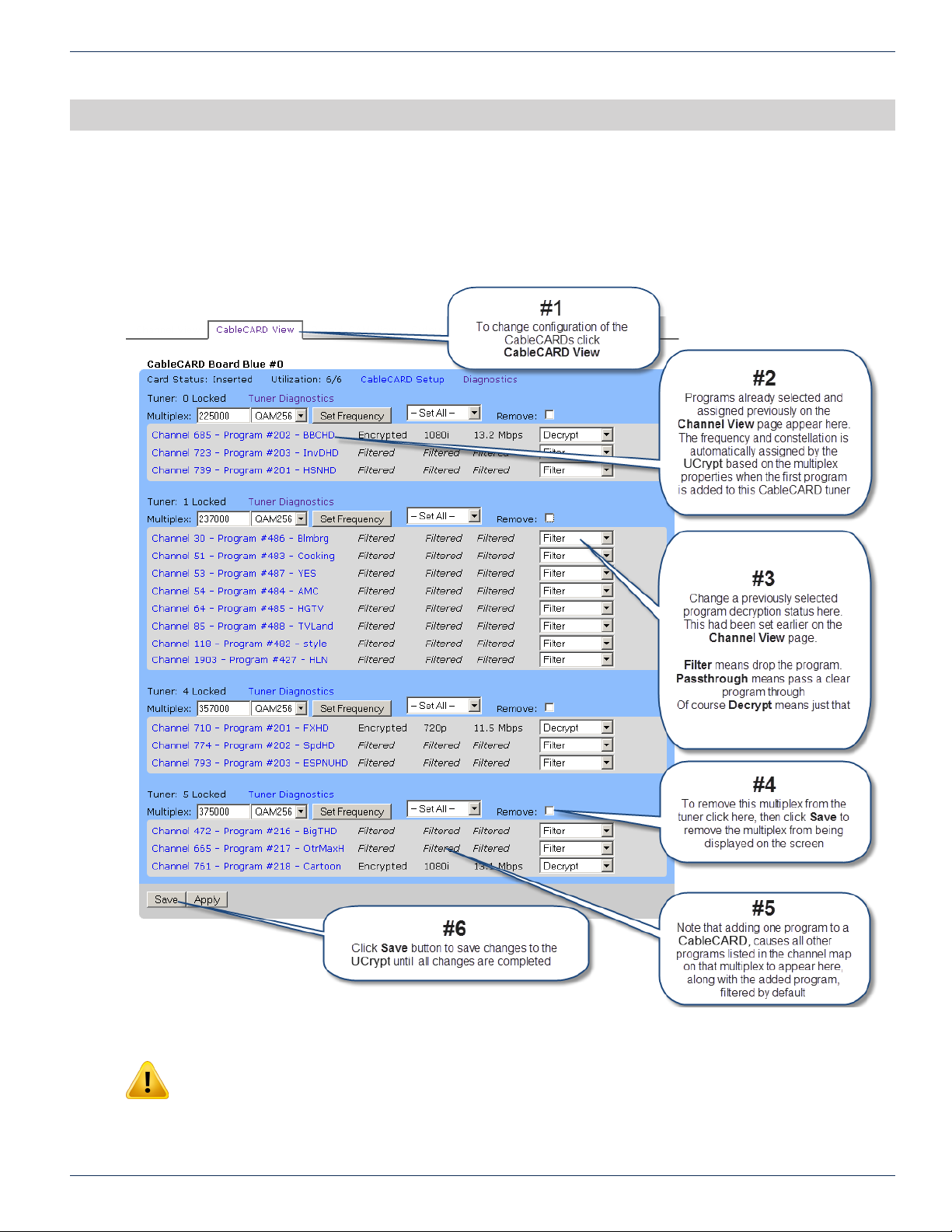

2.9 Review or Change CableCARD™ Conguration

After having selected programs for decryption, you may need to change settings or remove a program.

Refer to “Quick Start Guide – READ ME FIRST” on page 2-1 for details.

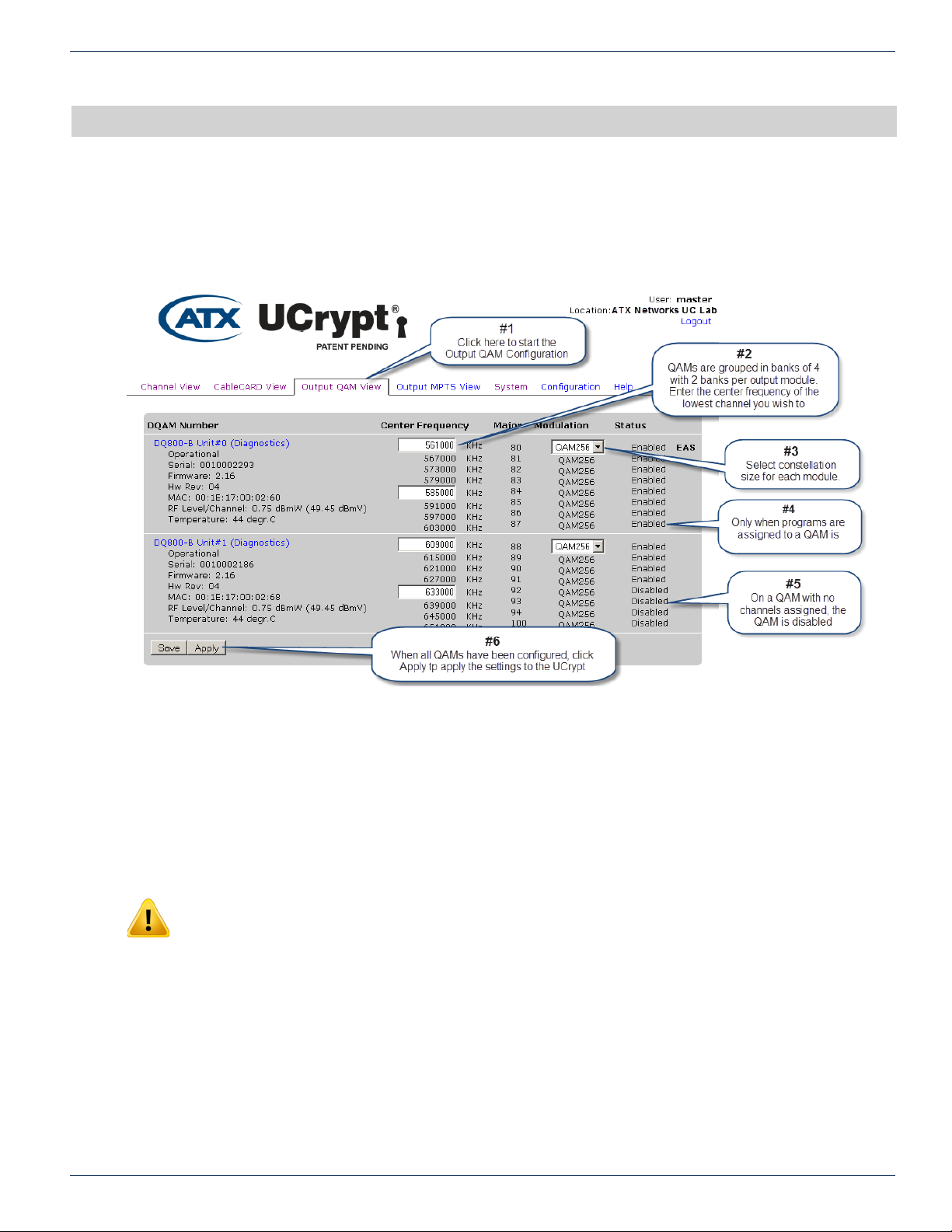

2.10 Congure Output QAM Carriers

You need to specify the QAM output frequencies and Constellation size.

Refer to “Quick Start Guide – READ ME FIRST” on page 2-1 for details.

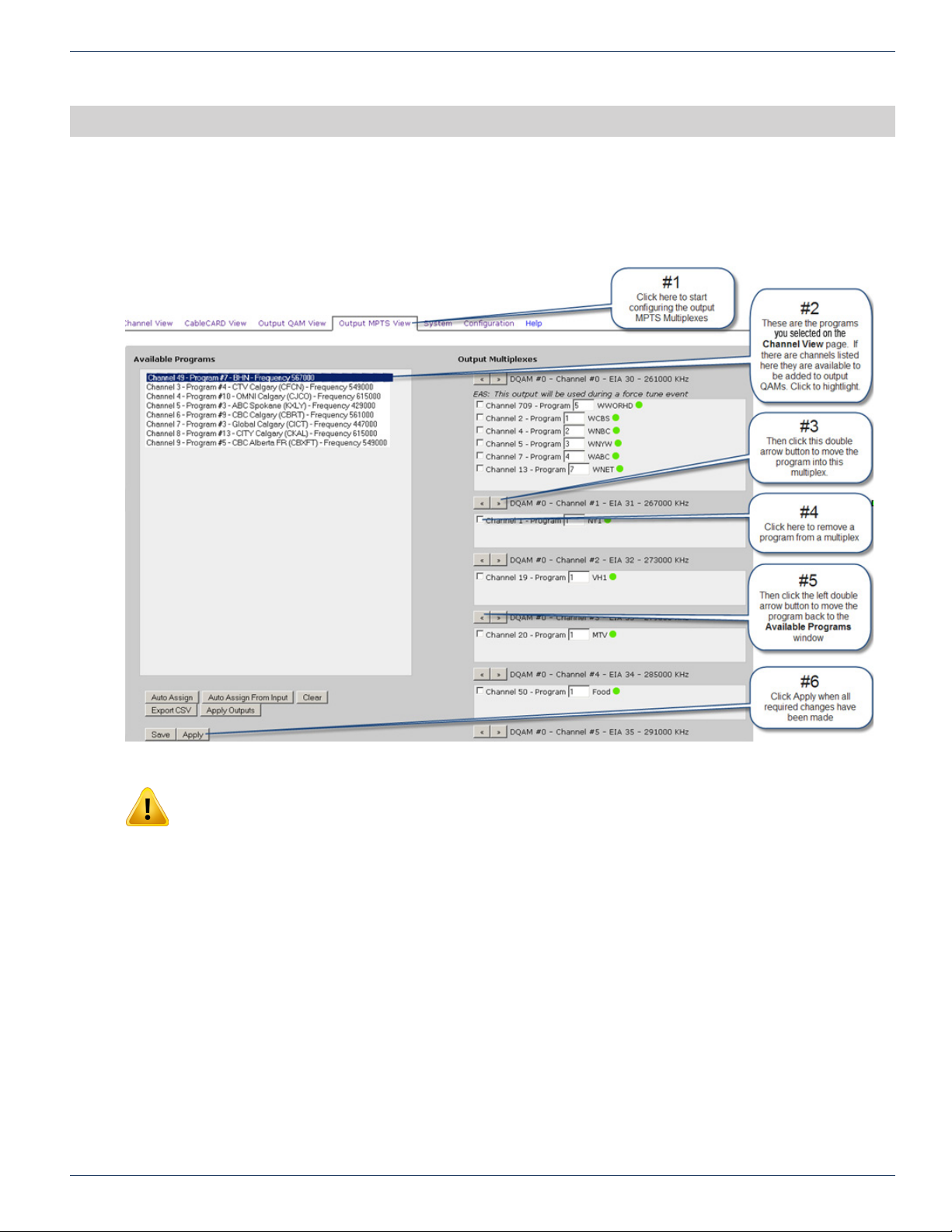

2.11 Assign Programs to Output QAM Carriers

Finally, the programs selected for decryption or passthrough need to be assigned to output QAM carriers.

Refer to “Quick Start Guide – READ ME FIRST” on page 2-1 for details.

That’s it, you’re done

If you followed all the directions, you should have programs on the QAM output channels that you congured.

Use an appropriate Digital TV to view programs that are in the clear.

Use an appropriate Pro:Idiom® compatible TV or STB with built-in Pro:Idiom to view Pro:Idiom encrypted programs.

Download the full Installation & Operation Manual from the ATX website (atxnetworks.com) in the Resources & Support section, User Documents sub-section for more details than are presented here. Click the Help tab to download it to your Management Computer.

2-2 MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 9

CHAPTER 3:

IMPORTANT CONFIGURATION INFORMATION

3. Important Conguration Information

3.1 Support for Two Simultaneous Congurations

As work on conguration progresses, changes will need to be made to multiple pages in the Management Interface. As work is completed on each page, the changes must be saved and there is a Save button conveniently located on every conguration page where conguration changes can be made. If changes are made and you navigate away from the page without saving,

the changes may be discarded.

When you are satised that all conguration changes on the UCrypt device are complete and correct, click the Apply button located by the save buttons on any page, they all do the same thing. There is no need to apply the conguration as you complete work on each page. You may Save your work as you go and Apply the conguration when completed.

3.1.1 Saved Conguration

This can be thought of as a work in progress and any changes can be made in the conguration without affecting how the

UCrypt device is currently working and providing services.

This saved conguration can be discarded at any time without affecting the working UCrypt device conguration or can be Applied to the UCrypt device, to make it the new working conguration. To discard your conguration changes browse to the

Conguration tab and click the Revert button. The Revert action is not service affecting.

IMPORTANT CONFIGURATION INFORMATION

3.1.2 Applied Conguration

This is the working conguration that the UCrypt device is currently using to provide the desired services to the output and

regardless of the changes made in the Management Interface as discussed above, changes do not take effect until the Apply

button is clicked and the conguration is applied.

During conguration, while changes are being made, the saved conguration and the applied conguration differ by the changes that have been made and saved since last clicking Apply. After the Apply button is clicked, the saved conguration and the applied conguration are identical.

NOTE: Clicking the Apply button will cause a service interruption while the UCrypt device re-

provisions itself with the new working conguration. It is best to make all changes necessary on all conguration pages and apply the changes when completed.

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 3-1

Page 10

CHAPTER 3:

IMPORTANT CONFIGURATION INFORMATION

This page intentionally left blank

3-2 MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 11

INSTALLATION SUMMARY

4. Installation Summary

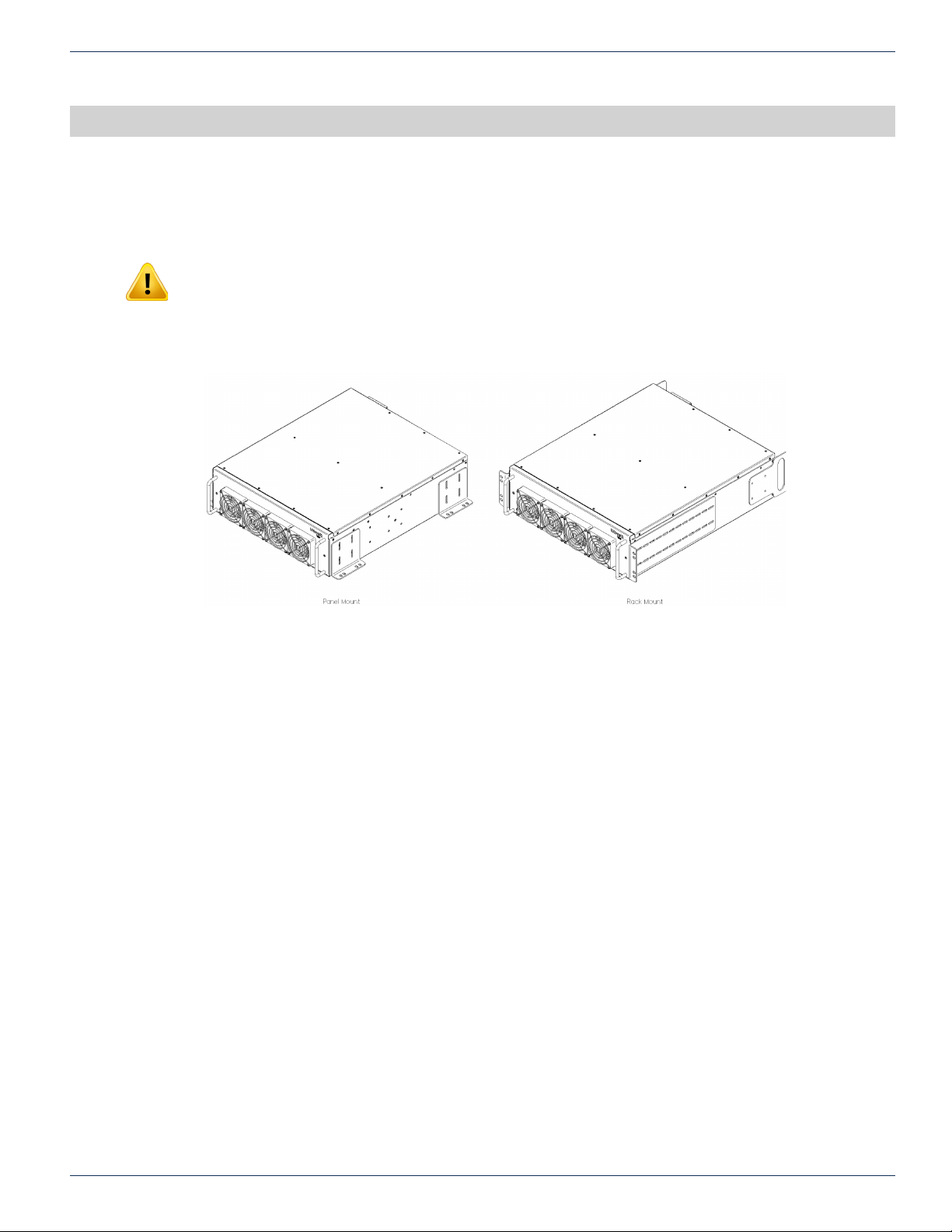

4.1 Mounting

NOTE: If the UCrypt unit is to be mounted in a rack, it is essential to attach the rear mounting ears of the unit to rear mounting rails to provide support or alternately install the equipment on a well supported shelf

Rack mount brackets for front and rear are provided with the UCrypt device for mounting in a standard EIA 19” rack. Brackets are also provided for mounting the UCrypt device to a vertical backboard for sites where no rack mounting facilities exist.

CHAPTER 4:

INSTALLATION SUMMARY

4.2 Equipment Safety Grounding

It is imperative that the UCrypt device housing be connected to a permanent building ground in a manner that will ensure that the exposed metal parts are constantly connected to ground even when the power cord may be disconnected temporarily. A grounding lug is provided on the rear panel to conveniently effect such a connection. The following guidelines are provided to clarify the requirements for the installation to meet UL, CUL and CB standards. The use of the words “Ground” and “Earth” as well as “Grounding” and “Earthing” may be used interchangeably and in this context, have the same meaning.

1. The supplementary equipment grounding conductor is to be installed between the UCrypt device rear panel ground connector and earth, that is, in addition to the equipment ground conductor in the power supply cord.

2. The supplementary equipment grounding conductor may not be smaller in size than the branch-circuit supply conductors or a minimum #14 AWG. The supplementary equipment grounding conductor is to be connected at the rear panel terminal provided, and connected to earth in a manner that will retain the earth connection when the power supply cord is unplugged. The connection to earth of the supplementary grounding conductor shall be in compliance

with the appropriate rules for terminating bonding jumpers in Part V of Article 250 of the National Electrical Code, ANSI/NFPA 70, and Section 10 of Part I of the Canadian Electrical Code, Part I, CSA C22.1.

3. Termination of the supplementary equipment grounding conductor may be made to building steel, to a metal electrical raceway system, or to any grounded item that is permanently and reliably connected to the electrical service equipment earth.

4. Bare, covered or insulated grounding conductors are acceptable. A covered or insulated grounding conductor shall

have a continuous outer nish that is either green, or green with one or more yellow stripes.

4.3 Ambient Environment

The UCrypt device is designed to operate to specication in an ambient room temperature of 0°C to +50°C (+32°F to +122°F)

however it is recommended that it is installed in an environment that approximates normal room temperature to ensure proper long term operation.

4.4 Power Requirements

The UCrypt device is designed with an autosensing switching type power supply which can operate on a wide range of input

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 4-1

Page 12

CHAPTER 4:

INSTALLATION SUMMARY

voltages from 115 VAC to 230 VAC. There is no need to congure the power supply to operate on any voltage in this range. The power cord provided with the UCrypt device is a North American conguration with a NEMA 5-15 grounded plug for 115

VAC. If it is necessary to operate the UCrypt device on 230 VAC, the installer must obtain an IEC cord with a NEMA 6-15 grounded plug for use in North America.

4-2 MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 13

CABLING CONNECTION

5. Cabling Connection

The input signal level presented to the UCrypt device must be in the range of +5 to +10 dBmV per digital carrier as measured at the RF input port. The output RF level is +38 dBmV +/- 2 dB at the RF output port. Adjacent QAM carriers should be equal

in level.

A crossover Ethernet Cable is provided with the UCrypt device for connecting directly to the Management Computer.

Feed to MDU or

Distribution Network

+38 +/-2 dBmV

Digital Cable

TV Field

Meter

Cable System Input

Feed +5 to +10 dBmV

per Digital Channel

CHAPTER 5:

CABLING CONNECTION

CableCARD Host

Receptacles

UCrypt® QAM to QAM Rear Panel Connections

Crossover

Ethernet

Cable

Provided

with UCrypt

Management

Computer

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 5-1

Page 14

CHAPTER 5:

CABLING CONNECTION

This page intentionally left blank

5-2 MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 15

POWERING UP

6. Powering Up

NOTE: The factory default conguration is that all QAM outputs are disabled so no unintended

output into the distribution network is possible.

If the UCrypt device has been pre-provisioned elsewhere, before powering up, ensure that the network output cables are disconnected from the distribution network to avoid unintentional service outages if there are overlaps between the QAM output frequencies of the UCrypt device and existing services on the network.

Apply power and turn on the rear panel switch below the power receptacle. Boot-up will take approximately 90 seconds.

CHAPTER 6:

POWERING UP

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 6-1

Page 16

CHAPTER 6:

POWERING UP

This page intentionally left blank

6-2 MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 17

MANAGEMENT INTERFACE

7. Management Interface

7.1 Connect to the Management Interface

Minimum Management Computer Requirements

• Computer running Windows® or other OS

• Ethernet Network port available

• Web browser such as Internet Explorer®, Firefox® or similar

• Adobe Reader for reading this manual

• Notepad or text editor for capturing text and logs

7.2 Congure the Management Computer Network Port

Set-up of the UCrypt unit requires a laptop or desktop PC running Microsoft® Windows or other operating system with an available Ethernet network port and web browser software(called the “Management Computer” in the following procedures)

The Management Computer network port must be assigned an IP address in the same subnet as the UCrypt device for access to the UCrypt Management Interface. The following procedures are for Microsoft Windows XP and a factory default IP address setting on the UCrypt device of 192.168.0.23 subnet 255.255.255.0

• Connect the Management Computer’s Ethernet adapter to the UCrypt device’s Ethernet port using a Cat5e network cable (supplied with the unit). Link lights should illuminate indicating that the cable connection is correct and working.

CHAPTER 7:

MANAGEMENT INTERFACE

• Set the Management Computer’s Ethernet interface to a static IP address on the 192.168.0.x subnet, as described below:

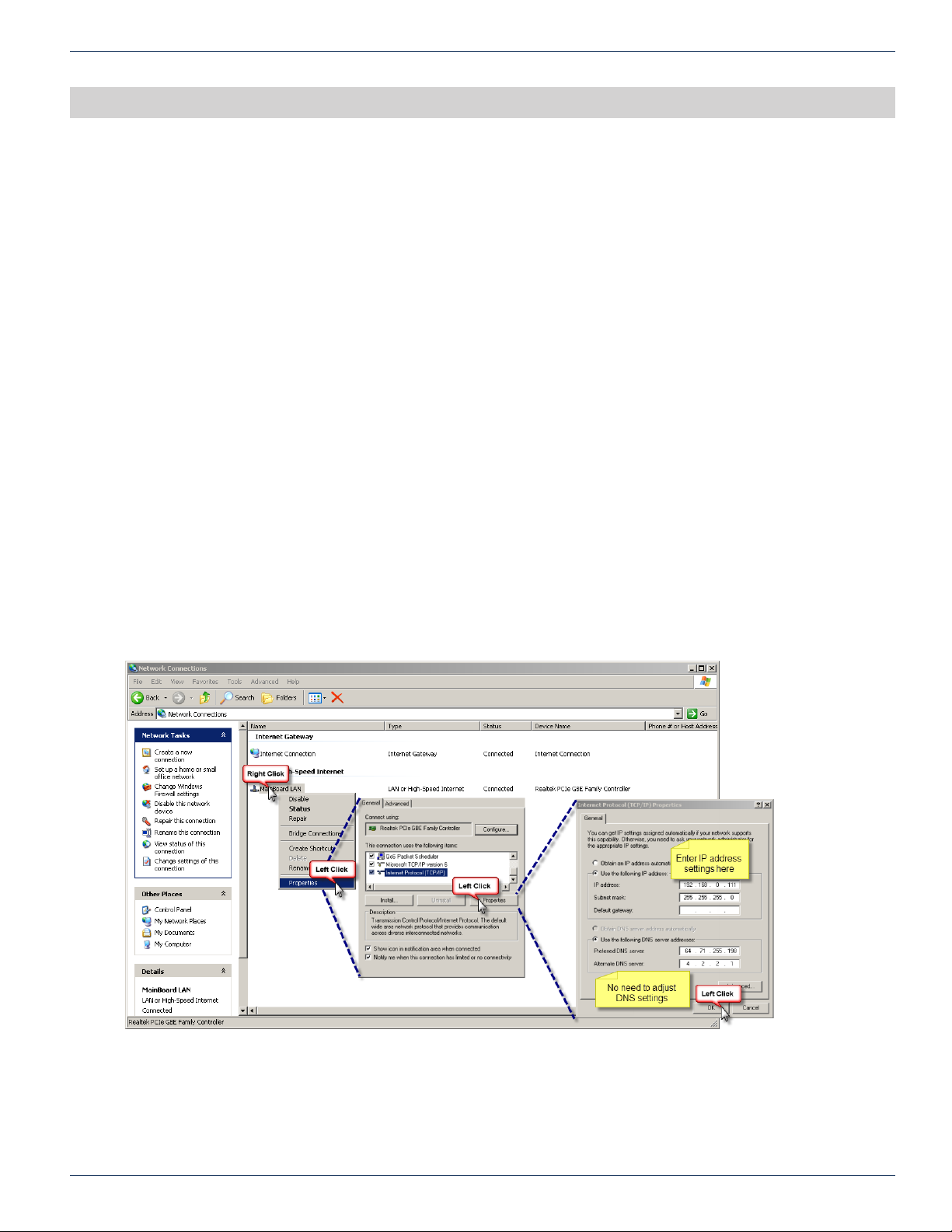

◦ From the Control Panel, open Network Connections and select the connection associated with the

Ethernet adapter to be used for connecting to the UCrypt device (e.g., Local Area Connection).

◦ Right click on the connection and select Properties.

◦ Select Internet Protocol (TCP/IP) and click Properties.

◦ Click the selection box beside Use the following IP address to enter a check mark in the box.

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 7-1

Page 18

CHAPTER 7:

MANAGEMENT INTERFACE

◦ In the IP address eld, enter 192.168.0.x (where x represents any number from 1-253 except 23).

◦ In the Subnet mask eld enter 255.255.255.0.

◦ Click OK and then OK again in the previous window.

7.3 Log in to the Management Interface

On the management computer, open a web browser and enter https://192.168.0.23 in the address eld.

If this is the rst time you have connected to this UCrypt device with this Management Computer, you may get a warning of a security violation or error. This is due to the UCrypt device having a self signed security certicate and is not a security threat but your browser identies it as such. Simply accept the security exception and proceed to the login screen as shown next.

Other browsers will typically respond in the same manner.

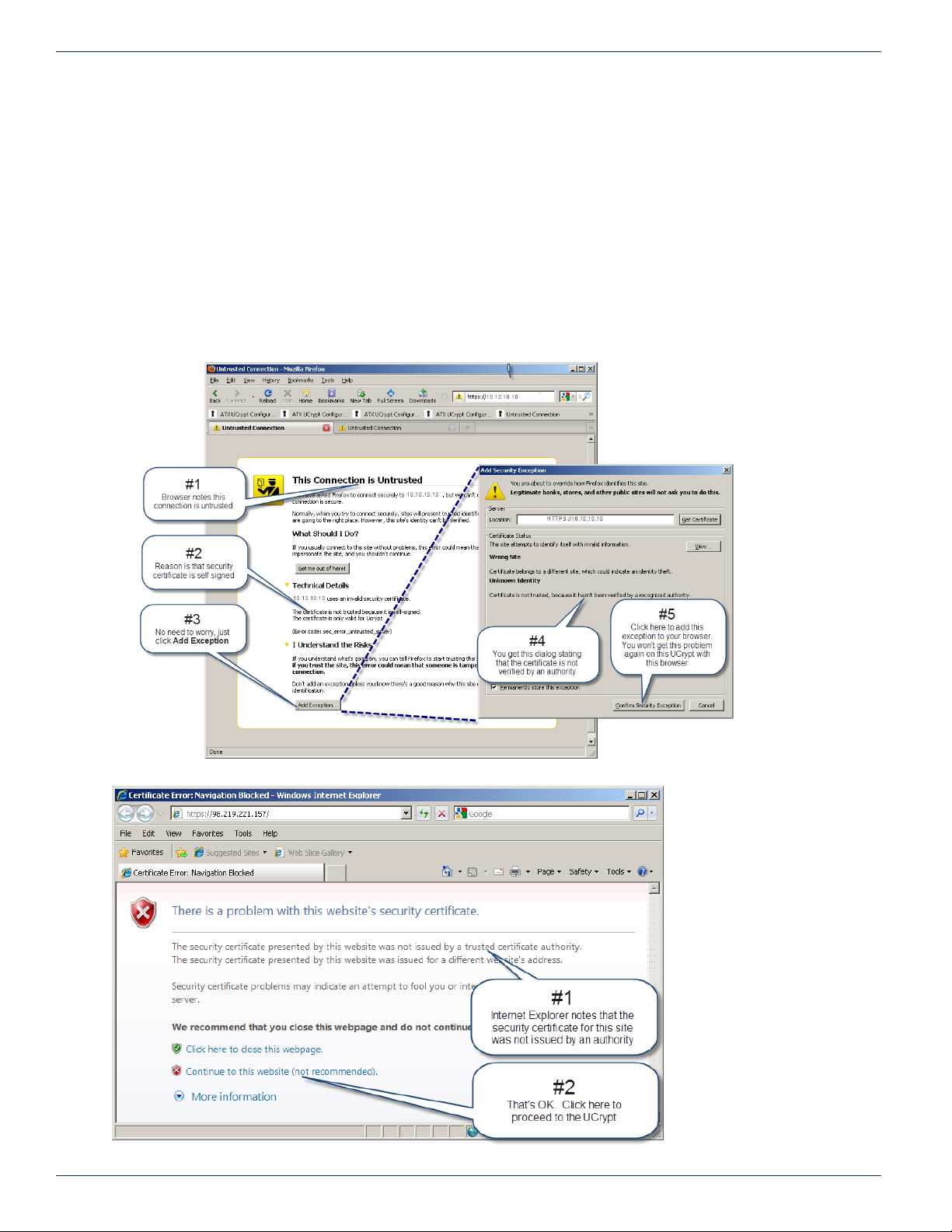

Warning For Firefox Browser:

Warning For Internet Explorer®:

7-2 MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 19

CHAPTER 7:

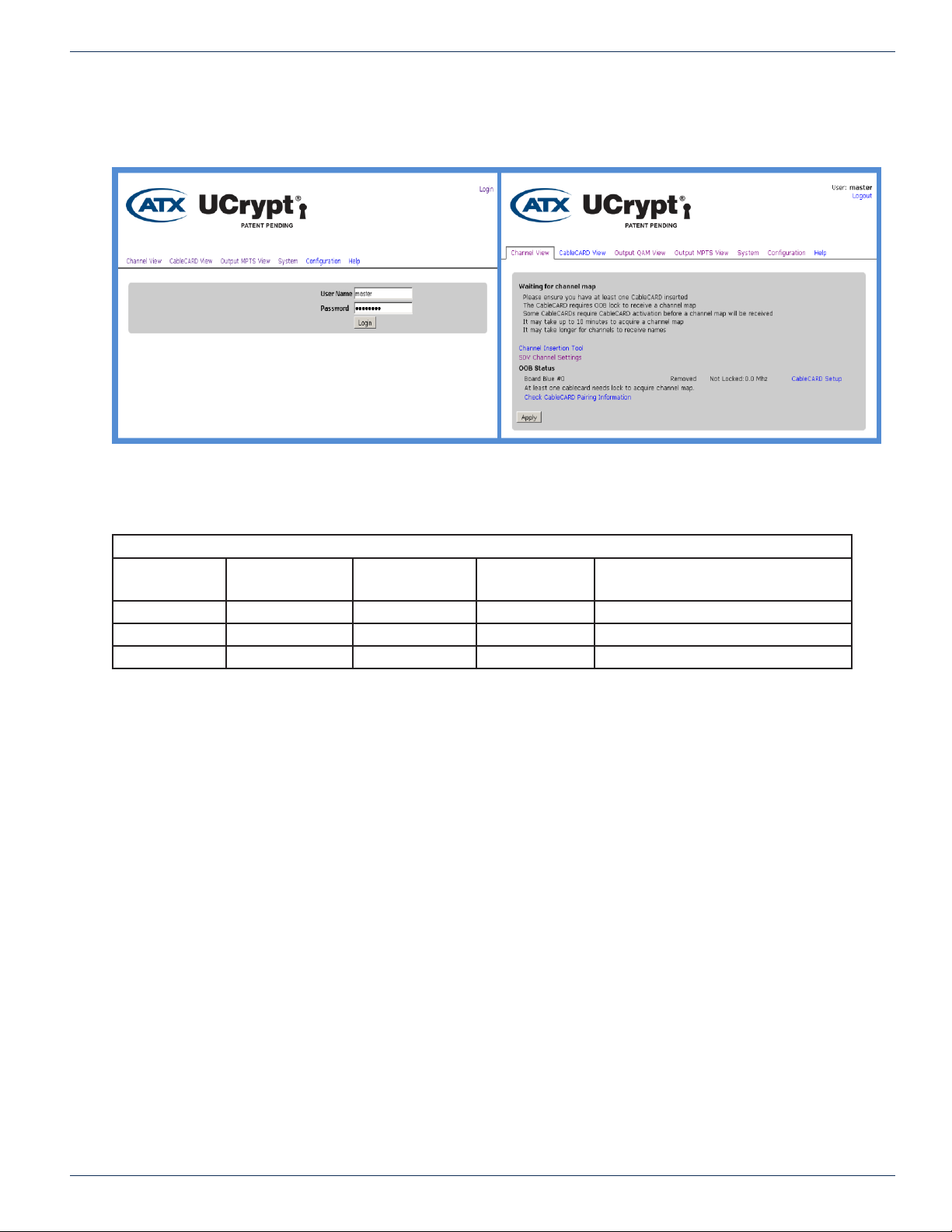

After navigating the security warnings, you should be presented with the following screen, on the left, displaying the login

window:

Enter the appropriate User Name and Password for the access level you require from the table below. The master user is the

only user that can perform conguration.

MANAGEMENT INTERFACE

Default User Names, Passwords and Privileges

Account User Modify UCrypt®

Settings

master Yes Yes Yes atx_ucrypt_master_password

admin Yes No No atx_ucrypt_admin_password

user No No No atx_ucrypt_user_password

When the login username and password are successfully entered, the screen on the right above will be presented.

Install Updates Set

Passwords

Default Password

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 7-3

Page 20

CHAPTER 7:

MANAGEMENT INTERFACE

This page intentionally left blank

7-4 MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 21

ACTIVATING CableCARD™ MODULES

8. Activating CableCARD™ Modules

Activate CableCARD Modules by pairing them with the UCrypt device host slots.

CHAPTER 8:

ACTIVATING CABLECARD™ MODULES

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 8-1

Page 22

CHAPTER 8:

ACTIVATING CABLECARD™ MODULES

8.1 CableCARD™ Module Authorization Best Practice

Each CableCARD module must be validated and authorized before it will decrypt. Validation means that the ID numbers for the CableCARD and host port match as entered in the billing system. Authorization means that the CableCARD has received

an entitlement to decrypt specic content.

When several CableCARD modules are inserted in the UCrypt device, it is best to rst route one program to each CableCARD to verify the validation and authorization of each. In step 4 of the illustration below, for the rst programs being added, select

a different CableCARD for each program until all CableCARD modules have at least one program routed to them. If all of

these programs decrypt, you can be sure of the authorization status and that they are working as they should. If no specic CableCARD is selected in step 4, then the programs are added to the rst CableCARD until full, then the second, and so on.

The last CableCARD, if it has no programs routed to it initially, is left in doubt as to its true authorization status while it may be validated.

8-2 MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 23

CHANNEL VIEW TAB - CONFIGURATION

9. CHANNEL View Tab - Conguration

Select programs from the system channel map for processing here:

CHAPTER 9:

CHANNEL VIEW TAB - CONFIGURATION

NOTE: Clicking the Apply button will cause a service interruption while the UCrypt device re-

provisions itself with the new working conguration. It is best to make all changes necessary on all conguration pages and apply the changes when completed.

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 9-1

Page 24

CHAPTER 9:

CHANNEL VIEW TAB - CONFIGURATION

This page intentionally left blank

9-2 MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 25

CHAPTER 10:

CableCARD™ VIEW TAB - CONFIGURATION

10. CableCARD™ VIEW Tab - Conguration

Review and change CableCARD program parameters here:

CABLECARD™ VIEW TAB - CONFIGURATION

NOTE: Clicking the Apply button will cause a service interruption while the UCrypt device re-

provisions itself with the new working conguration. It is best to make all changes necessary on all conguration pages and apply the changes when completed.

For detailed information on conguration of this page, go to the ATX website (atxnetworks.com) in the Resources & Support section, User Documents sub-section to download the Installation & Operation Manual.

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 10-1

Page 26

CHAPTER 10:

CABLECARD™ VIEW TAB - CONFIGURATION

This page intentionally left blank

10-2 MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 27

CHAPTER 11:

OUTPUT QAM VIEW TAB - CONFIGURATION

11. OUTPUT QAM VIEW Tab - Conguration

Congure Output QAM frequencies and constellation size here:

OUTPUT QAM VIEW TAB - CONFIGURATION

NOTE: Clicking the Apply button will cause a service interruption while the UCrypt device re-

provisions itself with the new working conguration. It is best to make all changes necessary on all conguration pages and apply the changes when completed.

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 11-1

Page 28

CHAPTER 11:

OUTPUT QAM VIEW TAB - CONFIGURATION

This page intentionally left blank

11-2 MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 29

CHAPTER 12:

OUTPUT MPTS VIEW TAB - CONFIGURATION

12. OUTPUT MPTS VIEW Tab - Conguration

Congure Output programs and multiplexes here:

OUTPUT MPTS VIEW TAB - CONFIGURATION

NOTE: Clicking the Apply button will cause a service interruption while the UCrypt device re-

provisions itself with the new working conguration. It is best to make all changes necessary on all conguration pages and apply the changes when completed.

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 12-1

Page 30

CHAPTER 12:

OUTPUT MPTS VIEW TAB - CONFIGURATION

This page intentionally left blank

12-2 MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 31

SYSTEM TAB - CONFIGURATION

13. SYSTEM Tab - Conguration

Access system wide conguration properties here:

CHAPTER 13:

SYSTEM TAB - CONFIGURATION

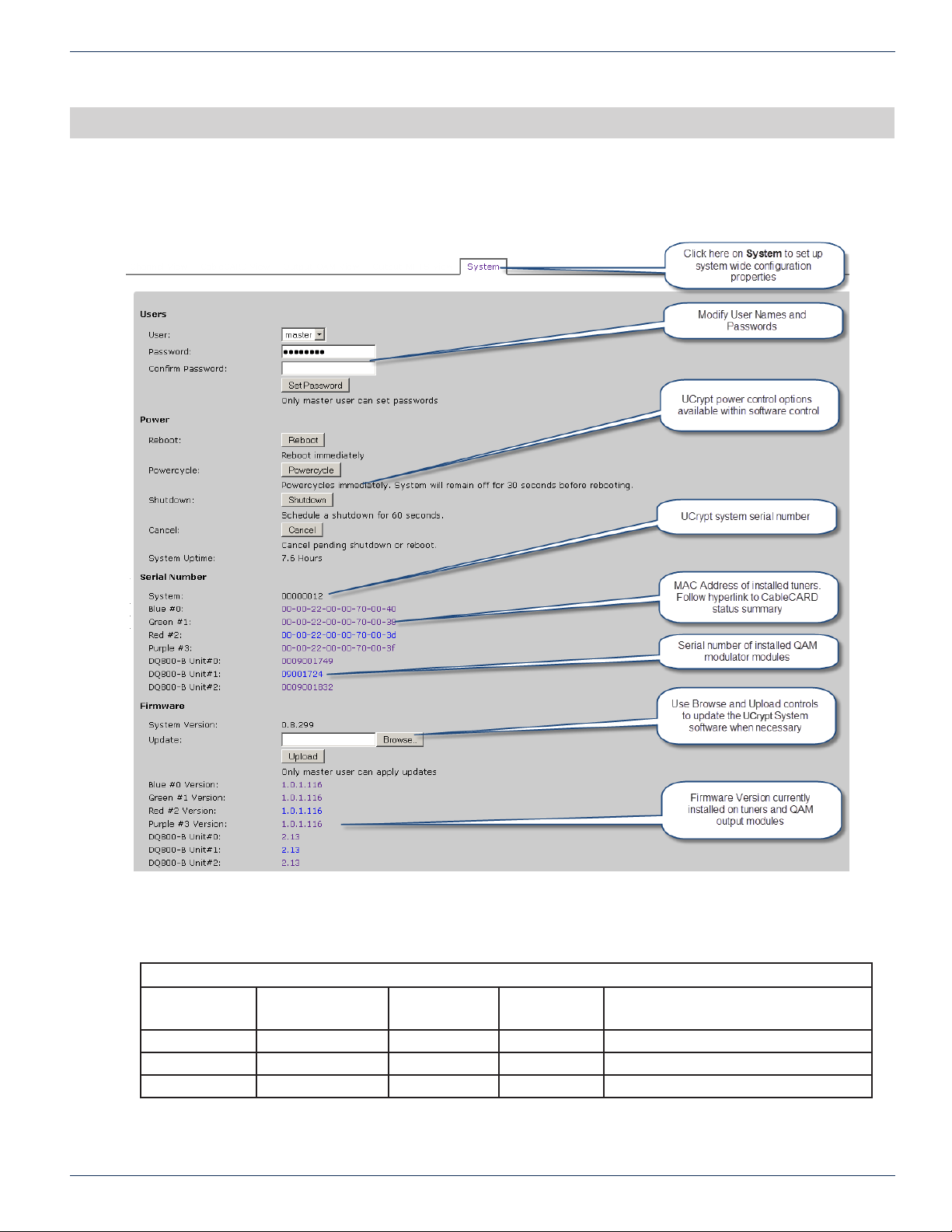

System Conguration Tab - Part 1

13.1 Default User Names and Passwords

Default Values

Account User Modify UCrypt®

Settings

master Yes Ye s Ye s atx_ucrypt_master_password

admin Yes No No atx_ucrypt_admin_password

user No No No atx_ucrypt_user_password

Install

Updates

Set

Passwords

Default Password

For detailed information on conguration of this page, go to the ATX website (atxnetworks.com) in the Resources & Sup-

port section, User Documents sub-section to download the Installation & Operation Manual.

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 13-1

Page 32

CHAPTER 13:

SYSTEM TAB - CONFIGURATION

System Conguration Tab - Part 2

13-2 MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 33

CONFIGURATION TAB - CONFIGURATION

14. CONFIGURATION Tab - Conguration

Access Mass Deployment and Backup le utilities here:

CHAPTER 14:

CONFIGURATION TAB - CONFIGURATION

NOTE: Clicking the Apply button will cause a service interruption while the UCrypt device re-

provisions itself with the new working conguration. It is best to make all changes necessary on all conguration pages and apply the changes when completed.

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 14-1

Page 34

CHAPTER 14:

CONFIGURATION TAB - CONFIGURATION

This page intentionally left blank

14-2 MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide

Page 35

SERVICE & SUPPORT

15. Service & Support

15.1 Contact ATX Networks

Please contact ATX Technical Support for assistance with any ATX products. Please contact ATX Customer Service to obtain a valid RMA number for any ATX products that require service and are in or out-of-warranty before returning a failed module to the factory.

Digital Video Products

(DVIS, DigiVu, UCrypt, VersAtivePro)

TECHNICAL SUPPORT

Tel: (905) 428-6068 – press *3 then press 1

Toll Free: (800) 565-7488 – press *3 then press 1 (USA & Canada only) Email: [email protected]

CHAPTER 15:

SERVICE & SUPPORT

CUSTOMER SERVICE

ATX Networks 1-501 Clements Road West

Ajax, ON L1S 7H4 Canada

Tel: (905) 428-6068 – press *1 Toll Free: (800) 565-7488 – press *1 (USA & Canada only) Fax: (905) 427-1964 Toll Free Fax: (866) 427-1964 (USA & Canada only) Email: [email protected] Web: www.atxnetworks.com

15.2 Warranty Information

All of ATX Networks’ products have a 1-year warranty that covers manufacturer’s defects or failures.

MDU Solutions® – UCrypt® QAM to QAM – Quick Start Guide 15-1

Page 36

1-501 Clements Road West, Ajax, ON L1S 7H4 Canada Tel +1 (905) 428-6068 Toll Free +1 (800) 565-7488 Fax +1 (905) 427-1964 Toll Free Fax +1 (866) 427-1964

www.atxnetworks.com [email protected]

Printed in Canada Rev. 10/17 (ANW0836)
