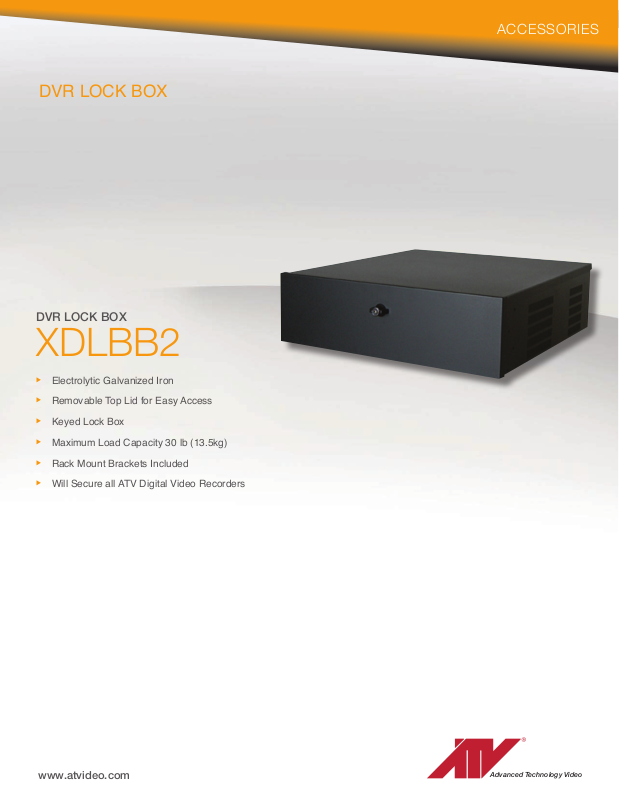

ATV XDLBB2 Specsheet

DVR LOCK BOX

DVR LOCK BOX

ACCESSORIES

XDLBB2

u

Electrolytic Galvanized Iron

u

Removable Top Lid for Easy Access

u

Keyed Lock Box

u

Maximum Load Capacity 30 lb (13.5kg)

u

Rack Mount Brackets Included

u

Will Secure all ATV Digital Video Recorders

www.atvideo.com

Advanced Technology Video

DVR LOCK BOX

XDLBB2

SPECIFICATIONS

MODEL

g

Material EGI (EGI, Electrolytic Galvanized Iron)

E

Max. Load Capacity 30 lb (13.5kg)

n

Finish Double spray coating (Color: Black)

E

Dimension Refer to Figure

R

Weight Unit 15.2 lb (6.9kg)

A

Shipping 19.6 lb (8.9kg)

L

ITEMS INCLUDED (QUANTITY)

Rack mount bracket (2)
Flat washer (4)
Screw, M4x6L (8)
Rubber foot (4)
Screw, M5x20L (4)
Screw, M3x12L (4)
Lock key (2)
Support Bracket “L” (2)
Support Bracket “R” (2)
Screw, M3X5 (8)

XDLBB2 ~ DVR Lock Box

ACCESSORIES

DIMENSIONS

ACCESSORIES

HLB500-KEYS Keys for DVR Lockbox (Quantity 2)
HLB500-LOCK Lock for DVR Lockbox

Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax [phone]

©2011 ATV All rights reserved. Specifications and Design are subject to change without notice.

ATV2110608-05
