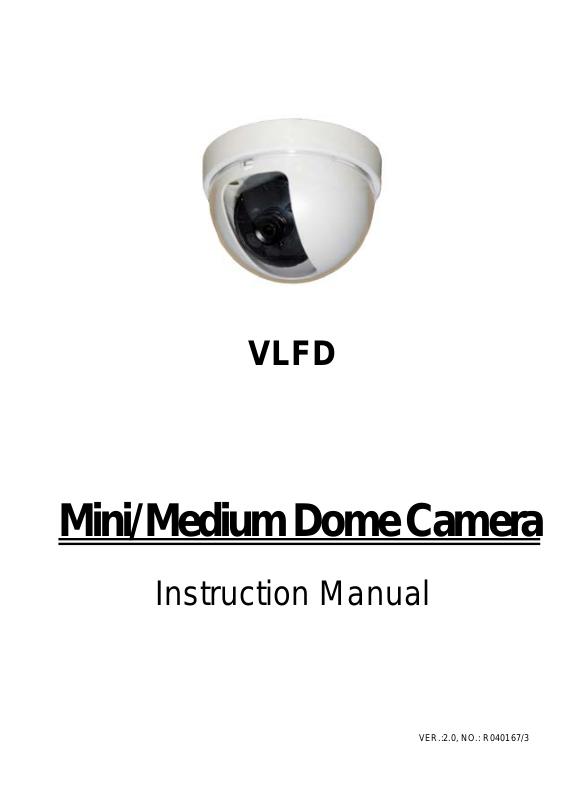

Page 1
VLFD
Mini/ Medium Dome Camera
Instruction Manual
VER.:2.0, NO.: R040167/3
Page 2
V
V
Thank you very much for purchasing our product. Before operating this
product, please read this instruction manual carefully to ensure proper use.
1. Safety Precautions
CAUTION
RISK O FELECTRI C
SHOCK.DO NOT OPEN!
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK,DO NOTOPEN COVERS.
NO USER SER
SER
Disposal of Old Electrical & Electronic Equipment (Applicable in
the European Union and other European countries with separate
collection systems).
Please do not directly touch the sensor element. If necessary, use
a soft cloth moistened with alcohol to wipe off any dust.
Please be extra careful not to shake the camera.
Please avoid places where there is direct sunlight.
When using this camera in places where the lighting differs greatly,
please use the auto iris lens with ND filter.
Please avoid places where temperatures exceed 50
high humidity or where direct rain drops hit, frequent vibrations, or
shocks occur.
During the night, if a minimum brightness of 0.1 Lux can not be
achieved, install appropriate light fixtures.
When the camera is not in use, keep the lens or the lens cap
attached to protect the sensor.
ICEABLE PARTS INSIDE. REFER SERVICINGTO QUALIFIED
ICE PERSONNEL.
℃ or more,
2. Description
The camera uses Sony high sensitive super HAD interline transfer
image sensor, and employs digital signal processor (DSP) chip-set for
image control, and all integrated state circuitry which provide
extremely long life and high reliability. This camera offers excellent
image quality with low lag and high burn resistance, and is not subject
to distortions from magnetic fields.
Highly resistance to shock and vibration, easy to install, this
camera is a very good choice for your color CCTV system.
2
Page 3
3. Feature
Camera with Sony Super HAD CCD sensor.
Employs Digital Signal Processor (DSP) IC for image control.
Pixel number: NTSC=380K/ PAL=440K (EIA=380K/ CCIR=440K) for
high resolution models, and NTSC=250K/ PAL=290K (EIA=250K/
CCIR=290K) for normal resolution models.
High sensitivity,
Powerful functions: Auto Electronic Shutter (AES), Auto Iris (AI),
Auto Gain Control (AGC), Auto White Balance (AWB), and Back
Light Compensation (BLC).
3-Axis mechanism for free lens rotation.
low smear, high anti-blooming and high S/N ratio.
4. Content
Item
1 Instruction Manual 1
2 Dome Camera 1
3 Appurtenance Bag 1
A Fix retaining screw for bracket 4
12
Name of Part Quantity
3
A
3
Page 4
5. Installation & Operation
1. Remove the dome cover from the mounting base by rotating the
dome cover clockwise.
2.
Adjust the camera viewing angle by first tilt then rotate the camera
module, and then turn the horizontal adjustment ring to correct the
image and achieve proper orientation.
Top
p
o
T
t
l
i
T
Top
Rotate
Camera
Module
3. Once the installation is complete, replace the dome cover over the
camera and tighten it by turning counterclockwise.
4. Connect the video output to the monitor or other video device
through a 75 Ohms type coaxial cable and the DC-Jack or AC/
DC-Terminator to the power source.
Horizontal
Adjustment
Ring
Note: Power adapter is sold separately.
4
Page 5
6. Specification
According to the camera purchased, select and refer to the appropriate specification below:
Color Camera
Image Device
Picture Elements
Resolution 380 TVL 420 TVL 470 TVL 540 TVL 550 TVL 380 TVL
Min Illumination 0.2Lux/ F2.0 0.3Lux/ F2.0 0.4Lux/ F2.0 0.3Lux/ F2.0
1/3” Color CCD
(Sony Chipset)
NTSC: 510x492
PAL: 500x 582
1/3” Hi-Res.
Color CCD
(Sony Chipset)
NTSC: 768x494
PAL: 752x 582
1/3” Hi-Res.
CCD
1/3” Ultra Hi- Res.
Color CCD
(Sony Chipset)
1/4” Color CCD
(Sony Chipset)
NTSC: 510x492
PAL: 500x582
S/N Ratio
Electronic Shutter
Gamma 0.45
Lens Furnished Board Lens
White Balance Auto
Gain Control Auto
Sync. System Internal
Video Output 1Vp-p/ 75 Ohms
Power Supply DC 12V±10％
Power
Consumption
120mA max. 75mA max. 120mA max. 75mA max. 150mA max. 75mA max.
NTSC: 1/60S~1/100,000S; PAL: 1/50S~1/110,000S
More than 48dB
