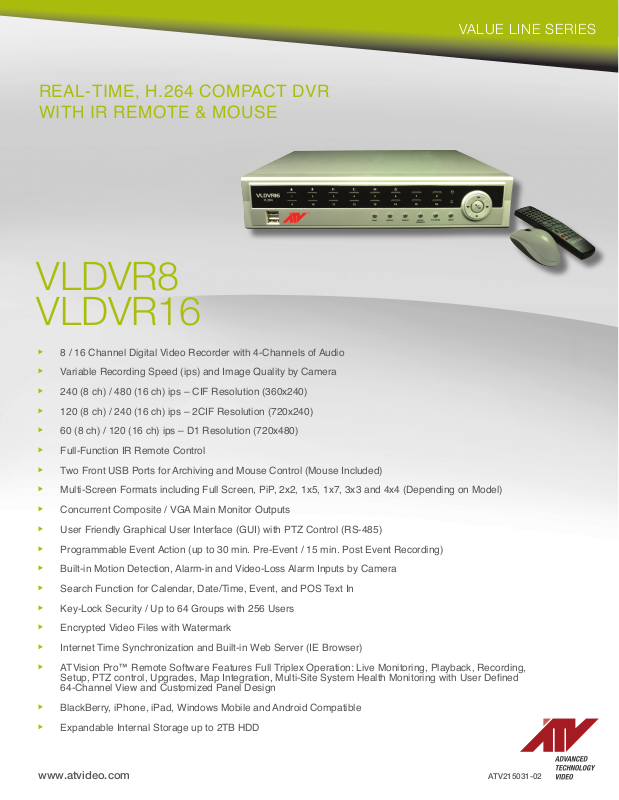

ATV VLDVR8-1TB, VLDVR8-2TB, VLDVR8-500, VLDVR16-1TB, VLDVR16-2TB Specsheet
REAL-TIME, H.264 COMPACT DVR
WITH IR REMOTE & MOUSE
VLDVR8
VLDVR16
VALUE LINE SERIES
u
8 / 16 Channel Digital Video Recorder with 4-Channels of Audio
u
Variable Recording Speed (ips) and Image Quality by Camera
u
240 (8 ch) / 480 (16 ch) ips – CIF Resolution (360x240)
u
120 (8 ch) / 240 (16 ch) ips – 2CIF Resolution (720x240)
u
60 (8 ch) / 120 (16 ch) ips – D1 Resolution (720x480)
u
Full-Function IR Remote Control
u
Two Front USB Ports for Archiving and Mouse Control (Mouse Included)
u
Multi-Screen Formats including Full Screen, PiP, 2x2, 1x5, 1x7, 3x3 and 4x4 (Depending on Model)
u
Concurrent Composite / VGA Main Monitor Outputs
u
User Friendly Graphical User Interface (GUI) with PTZ Control (RS-485)
u
Programmable Event Action (up to 30 min. Pre-Event / 15 min. Post Event Recording)
u
Built-in Motion Detection, Alarm-in and Video-Loss Alarm Inputs by Camera
u
Search Function for Calendar, Date/Time, Event, and POS Text In
u
Key-Lock Security / Up to 64 Groups with 256 Users
u
Encrypted Video Files with Watermark
u
Internet Time Synchronization and Built-in Web Server (IE Browser)
u
ATVision Pro™ Remote Software Features Full Triplex Operation: Live Monitoring, Playback, Recording,
Setup,PTZcontrol,Upgrades,MapIntegration,Multi-SiteSystemHealthMonitoringwithUserDened
64-Channel View and Customized Panel Design
u
BlackBerry, iPhone, iPad, Windows Mobile and Android Compatible
u
Expandable Internal Storage up to 2TB HDD
www.atvideo.com
ATV215031-02
REAL-TIME, H.264 COMPACT DVR WITH IR REMOTE & MOUSE
VLDVR8 / VLDVR16
SPECIFICATIONS
MODEL 8-Ch DVR, VLDVR8- 500, -1TB, - 2TB HDD
MODEL 16-Ch DVR, VLDVR16-1TB, -2TB HDD
Signal Format NTSC or PAL (auto sensing)
Video Input Composite: 8, 16 inputs (depending on model) (non looping)
Monitor Outputs Composite: One (BNC) Main Video, 1Vp-p, 75-ohms
RGB: VGA (DB-15)
Display Resolution Composite: 720x480 (NTSC)
VGA: 800x600,1024x768, 1280x1024 @60hz
V
Record Resolution 360x240, 720x240, 720x480 (NTSC)
I
Playback/Record Speed (ips) 360x240 (CIF) 720x240 (2CIF) 720x480 (D1)
D
480 ips 240 ips 120 ips (16 ch)
E
240 ips 120 ips 60 ips (8 ch)
O
Display Divisions Full, PiP, 2x2, 1x5, 1x7, 3x3, 4x4 (depending on model)
Zoom 2X
Quality 4 levels (Basic, Standard, High, Very High)
Record Mode Manual, Schedule, Event (Motion, Sensor, Video Loss)
Codec H.264
I
N
Alarm Input Up to 16 external sensor, (depending on model)
P
Terminal Block
U
T
Alarm Output 1 relay output, terminal block, NC&NO
S
Internal Buzzer Yes (80db @ 10cm)
/
O
Network Connectivity 10/100 Base Ethernet
U
Audio Input 4 line level
T
P
Audio Output 1 line level
U
Text Input POS interface, ATM interface
T
S
Video Input Composite: 75Ω Termination: BNC
Video Output Non-looping
C
Monitor Output Composite: 1 BNC
O
VGA: 1 15-pin D-sub
N
Audio Input 4 RCA
N
E
Audio Output 1 RCA
C
Alarm Input Up to 16 external sensor, Terminal Block
T
Alarm Output 1 Relay, Terminal Block
O
Ethernet Port RJ-45
R
RS-485 Serial Port Terminal Block
S
USB Port 2 front panel-v2.0
IR Port 1 front panel, remote control
Primary Storage 1 HDD, 500GB, 1TB, 2TB
Backup Storage USB (HDD, CD-RW, Flash Drive)
Dimensions (W x H x D) 10.4” x 2.0” x 7.5” (265mm x 52mm x 191mm) (8 channel)
G
11.8” x 2.4” x 9.1” (300mm x 62mm x 232mm) (16 channel)
E
Unit Weight 3.7 lbs (1.7kg) (8 channel)
N
5.5 lbs (2.5kg) (16 channel)
E
Shipping Weight 7.3 lbs (3.3 kg) (8 channel)
R
8.5 lbs (3.85kg) (16 channel)
A
Operating Temperature 41˚F - 104˚F (5˚C - 40˚C)
L
Operating Humidity 0% to 90% Non-Condensing
Power 12VDC 1.2amp (8 channel)
12VDC 1.9amp (16 channel)
Conformity Certifications DVR: FCC, CE, RoHS
Power Adapter: UL, CE, FCC, RoHS
VALUE LINE SERIES
STORAGE DURATION
The VLDVR series records up to 480-ips at CIF (30-ips per
channel). The tables illustrate a typical recording duration
for CIF, 2CIF and D1 record resolutions with a single video
input, with continuous video recording and no audio for the
recorder. The actual storage duration will vary depending on
the number of cameras recorded, image quality selected,
recording speed, recording schedule, motion content of the
images and the number of stored events.
500-GB HDD
CIF Basic Standard High Very High
(ips) Days Days Days Days
30 96.5 48.2 32.2 24.1
20 144.7 72.3 48.2 36.2
15 192.9 96.5 64.3 48.2
5 578.7 289.4 192.9 144.7
1 2893.5 1446.8 964.5 723.4
500-GB HDD
2CIF Basic Standard High Very High
(ips) Days Days Days Days
20 72.3 36.2 24.1 18.1
15 96.5 48.2 32.2 24.1
10 144.7 72.3 48.2 36.2
5 289.4 144.7 96.5 72.3
1 1446.8 723.4 482.3 361.7
500-GB HDD
D1 Basic Standard High Very High
(ips) Days Days Days Days
20 36.2 18.1 12.1 9
10 72.36 36.2 24.1 18.1
5 144.7 72.3 48.2 36.2
1 723.4 361.7 241.1 180.8
Storage is for one input; divide by number of cameras used.
MODELS AVAILABLE
VLDVR8-500 8 Channel, 500GB HDD
VLDVR8-1TB 8 Channel, 1TB HDD
VLDVR8-2TB 8 Channel, 2TB HDD
VLDVR16-1TB 16 Channel, 1TB HDD
VLDVR16-2TB 16 Channel, 2TB HDD
ACCESSORIES
XDLBB2 DVR Lock Box, Black (VLDVR16)
LB3S DVR Lock Box, Black (VLDVR8)
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2012ATVAllrightsreserved.SpecicationsandDesignaresubjecttochangewithoutnotice.
ATV215031-02
