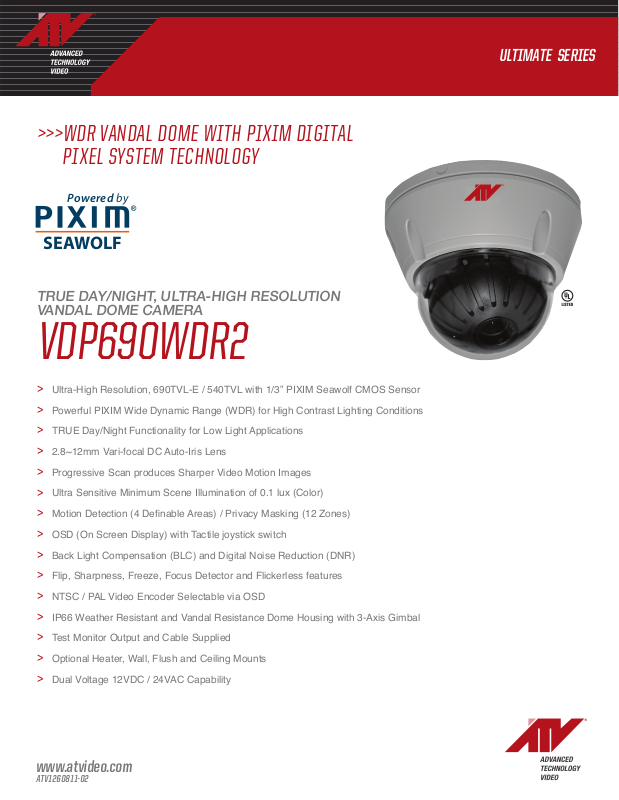

>>>WDR VANDAL DOME WITH PIXIM DIGITAL
PIXEL SYSTEM TECHNOLOGY
SEAWOLF
TRUE DAY/NIGHT, ULTRA-HIGH RESOLUTION
VANDAL DOME CAMERA
ULTIMATE SERIES
VDP690WDR2
Ultra-High Resolution, 690TVL-E / 540TVL with 1/3” PIXIM Seawolf CMOS Sensor
>
Powerful PIXIM Wide Dynamic Range (WDR) for High Contrast Lighting Conditions
>
TRUE Day/Night Functionality for Low Light Applications
>
2.8~12mm Vari-focal DC Auto-Iris Lens
>
Progressive Scan produces Sharper Video Motion Images
>
Ultra Sensitive Minimum Scene Illumination of 0.1 lux (Color)
>
Motion Detection (4 Denable Areas) / Privacy Masking (12 Zones)
>
OSD (On Screen Display) with Tactile joystick switch
>
Back Light Compensation (BLC) and Digital Noise Reduction (DNR)
>
Flip, Sharpness, Freeze, Focus Detector and Flickerless features
>
NTSC / PAL Video Encoder Selectable via OSD
>
IP66 Weather Resistant and Vandal Resistance Dome Housing with 3-Axis Gimbal
>
Test Monitor Output and Cable Supplied
>
Optional Heater, Wall, Flush and Ceiling Mounts
>
Dual Voltage 12VDC / 24VAC Capability
>
www.atvideo.com
ATV1260811-02
TRUE DAY/NIGHT, ULTRA-HIGH RESOLUTION VANDAL DOME CAMERA
VDP690WDR2
SPECIFICATIONS
MODEL VDP690WDR2
P
O
Power Source DC 12V / AC 24V (+/- 10%)
W
Power Consumption
E
(with optional heater)
R
G
Image Sensor 1/3” Pixim CMOS (Seawolf DPS)
E
Total Pixels 768 (H) x 548 (V)
N
E
Scanning System Progressive / 2:1 Interlace
R
Scanning Frequency 15.73KHz(H) x 59.94Hz(V) NTSC; 15.625KHz(H) x 50Hz(V) PAL
A
L
Sync. System Internal / Line Lock
V
Resolution 690HTVL-E / 540TVL
I
Min. Illumination 0.1 Lux @ F1.2, 50IRE (color)
D
Video Output 1.0Vp-p (75ohm Termination)
E
S/N Ratio More than 50db (AGC Off)
O
Camera Control OSD (Tactile Joystick Switch)
Day/Night Auto / Color /BW (BW or BW+Burst) (Filter Delay 05 ~ 20s) True ICR
White Balance ATW/Push AWB/Indoor/Outdoor/Manual (WB Bias, Red, Blue)
Auto Exposure 60i (50i) / 30p (25p) (Default / Indoor / Outdoor
AGC Control Off / Low / Middle / High
f
Shutter Speed 1/25 ~ 1/30,720 sec
u
BLC Off / On
N
Camera Title Off / On (Edit, Position)
c
Video Standard NTSC / PAL
t
Privacy Zone Off / On (12 Zones, Polygonal Mosaic) Mask Color (White / Black / Red)
I
Effects Flip / Freeze / Focus Detector / Flickerless / Sharpness
O
Motion Detection Off / On (Set Alarm Zone, Activity Thr.)
N
WDR Low / Normal / Middle / High (Max 120dB)
Digital-Zoom PTZ Zoom (x1 ~ x4), Pan (-100~+100), Tilt (-100~+100)
Frame Control Off / FFF/EFR (AI Thresh -48 ~ +60)
DNR Off / Low / Middle / High
Power Input 2-Pin Wire
m
E
Video Output BNC Connector
c
Lens 2.8~12mm F1.2, Vari-focal DC Auto Iris
h
Operating Temperature
A
N
w/ optional heaters
I
Dimensions (Dia. X H) 5.76” x 4.48” (146.3mm x 113.7mm)
c
A
Weight 1.54 lb (0.7kg)
L
Environment IP66
Conformity Certifications FCC, CE, RoHS, UL
Max 3.0 Watts / 0.25A
20W (24VAC)
14°F ~ 122°F (-10ºC ~ +50°C)
HT202VF: -22ºF (-30ºC); HT202S5: -58°F (-50°C)
ULTIMATE SERIES
DIMENSIONS
SEAWOLF
Mounting hole sized
for 3/4” conduit
connector
ACCESSORIES
A-CM150 Corner mount adapter for VDMWC
A-CM151 Pole mount adapter for VDMWC
BTCV5 Tinted Bubble
CV-FLUSHMT Flush Mount
DB243W2 Wall Mount
FDCAP Back shell of VDMWC only
HT202VF Heater kit; rated -22°F (-30°C)
HT202S5 Heater kit; rated -58°F (-50°C)
PDA5W Indoor Pendant Mount
VDMWC Outdoor Wall / Ceiling Mount
VDSMR Surface mount ring
A-CM150
CV-FLUSHMT
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2012 ATV All rights reserved. Specifications and Design are subject to change without notice.
ATV1260811-02
A-CM151
DB243W2
PDA5W
VDSMR
VDMWC
