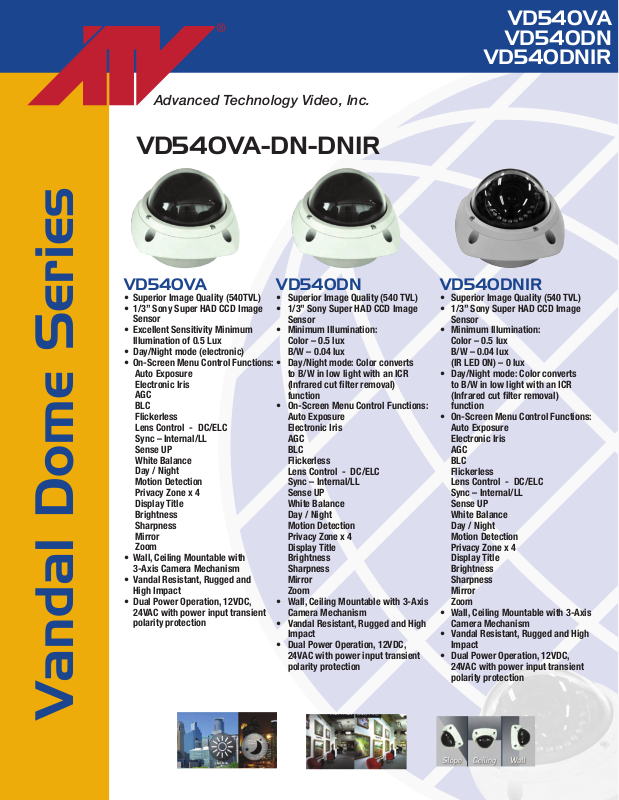

ATV VD540VA Specsheet
Advanced Technology Video, Inc.
VD540VA-DN-DNIR
VD54OVA
VD54ODN
VD54ODNIR
VD540VA
• Superior Image Quality (540TVL)
• 1/3” Sony Super HAD CCD Image
Sensor
• Excellent Sensitivity Minimum
Illumination of 0.5 Lux
• Day/Night mode (electronic)
• On-Screen Menu Control Functions:
Auto Exposure
Electronic Iris
AGC
BLC
Flickerless
Lens Control - DC/ELC
Sync – Internal/LL
Sense UP
White Balance
Day / Night
Motion Detection
Privacy Zone x 4
Display Title
Brightness
Sharpness
Mirror
Zoom
• Wall, Ceiling Mountable with
3-Axis Camera Mechanism
• Vandal Resistant, Rugged and
High Impact
• Dual Power Operation, 12VDC,
24VAC with power input transient
polarity protection
VD540DN
• Superior Image Quality (540 TVL)
• 1/3” Sony Super HAD CCD Image
Sensor
• Minimum Illumination:
Color – 0.5 lux
B/W – 0.04 lux
• Day/Night mode: Color converts
to B/W in low light with an ICR
(Infrared cut filter removal)
function
• On-Screen Menu Control Functions:
Auto Exposure
Electronic Iris
AGC
BLC
Flickerless
Lens Control - DC/ELC
Sync – Internal/LL
Sense UP
White Balance
Day / Night
Motion Detection
Privacy Zone x 4
Display Title
Brightness
Sharpness
Mirror
Zoom
• Wall, Ceiling Mountable with 3-Axis
Camera Mechanism
• Vandal Resistant, Rugged and High
Impact
• Dual Power Operation, 12VDC,
24VAC with power input transient
polarity protection
VD540DNIR
• Superior Image Quality (540 TVL)
• 1/3” Sony Super HAD CCD Image
Sensor
• Minimum Illumination:
Color – 0.5 lux
B/W – 0.04 lux
(IR LED ON) – 0 lux
• Day/Night mode: Color converts
to B/W in low light with an ICR
(Infrared cut filter removal)
function
• On-Screen Menu Control Functions:
Auto Exposure
Electronic Iris
AGC
BLC
Flickerless
Lens Control - DC/ELC
Sync – Internal/LL
Sense UP
White Balance
Day / Night
Motion Detection
Privacy Zone x 4
Display Title
Brightness
Sharpness
Mirror
Zoom
• Wall, Ceiling Mountable with 3-Axis
Camera Mechanism
• Vandal Resistant, Rugged and High
Impact
• Dual Power Operation, 12VDC,
24VAC with power input transient
polarity protection
Vandal Dome Series
VD54OVA / VD54ODN / VD54ODNIR SPECIFICATIONS
SPECIFICATIONS
Model VD54OVA VD54ODN VD54ODNIR
General
Image Sensor 1/3” Sony Super HAD CCD 1/3” Sony Super HAD CCD 1/3” Sony Super HAD CCD
Total Pixels 811(H) x 508(V) (NTSC) 811(H) x 508(V) (NTSC) 811(H) x 508(V)
Scanning System 2:1 Interlace 2:1 interlace 2:1 interlace
Scanning Frequency 15.734KHz(H) 15.734KHz(H) 15.734KHz(H)
59.94Hz(V) 59.94Hz(V) 59.94Hz(V)
Sync. System Internal Internal / Line Lock Internal / Line Lock
Electronic Shutter 1/60-1/100.000 sec 1/60-1/100.000 sec 1/60-1/120.000 sec
Resolution 540 TV Lines 540 TV Lines 540 TV Lines
Min. Illumination 0.5 lux @ F1.2, 50 IRE 0.5 lux (Color), 0.5 lux (Color), 0.04 lux (B/W), 0
0.04 lux (B/W) lux (IR LED ON) @F1.2, 50 IRE
Video Output 1.0 Vp-p (75ohm, Composite) 1.0 Vp-p (75ohm, Composite) 1.0 Vp-p (75ohm, Composite)
S/N Ratio More than 50dB (AGC off) More than 50dB (AGC off) More than 50dB (AGC off)
Camera Control OSD (Tact Switch) OSD (Tact Switch) OSD (Tact Switch)
DNR Function ON ON ON
Function
Auto Exposure 1/50 (1/60) / Flickerless / Manual 1/50 (1/60) / Flickerless / Manual 1/50 (1/60) / Flickerless / Manual
Shutter (1/50 (1/60), FLC, 1/250, Shutter (1/50 (1/60), FLC, 1/250, Shutter (1/50 (1/60), FLC, 1/250,
1/500, 1/1000, 1/2000, 1/4000, 1/10000) 1/500, 1/1000, 1/2000, 1/4000, 1/10000) 1/500, 1/1000, 1/2000, 1/4000, 1/10000)
E/I Off / On Off / On Off / On
Lens (Auto Iris Control) DC/ELC DC/ELC DC/ELC
Flickerless Off / On Off / On Off / On
BLC Off / On Off / On Off / On
AGC Off / Low / Middle / High Off / Low / Middle / High Off / Low / Middle / High
Sense Up Off / x2 / x4 / x8 / x16 / x32 Off / x2 / x4 / x8 / x16 / x32 Off / x2 / x4 / x8 / x16 / x32
White Balance ATW/AWC/Manual ATW/AWC/Manual ATW/AWC/Manual
Day / Night Auto / Day / Night Auto / Day / Night / Ext Auto / Day / Night / Ext
(IR Camera default setting: EXT) (IR Camera default setting: EXT)
Motion Detection Off / On (Sensitivity & Alarm time Selective) Off / On (Sensitivity & Alarm time Selective) Off / On (Sensitivity & Alarm time Selective)
Privacy Zone Off / On (4 point) Off / On (4 point) Off / On (4 point)
Display Title Off / On Off / On Off / On
Video Picture POSI / NEGA POSI / NEGA POSI / NEGA
Brightness 0 ~ 60 0 ~ 60 0 ~ 60
Sharpness 0 ~ 15 0 ~ 15 0 ~ 15
Sync INT / LL INT / LL INT / LL
IR
IR LED 23 pcs high brightness IR LED
IR Wavelength 850 nm
IR distance range 25m ~ 30m (from object of view
reflected infrared)
IR project angle 40 degree
IR ON/OFF Light Sensor Control
Power
Power Source 24VAC/12VDC +/- 10% 24VAC/12VDC +/- 10% 24VAC/12VDC +/- 10%
Power Consumption 2.5 Watts 3.5 Watts maxx (IR on) 3.0W max/6.0 W (IR on)
24 Watts with IR and heater option on 26 Watts with IR and heater option on
Connector & ETC
Power Input 2-Pin Wire 2-Pin Wire 2-Pin Wire
Video Output BNC Connector BNC Connector BNC Connector
Lens Mount Fixed Mount Fixed Mount Fixed Mount
Lens 4~9mm, F1.6~2.4 4~9mm, F1.6~2.4 4~9mm, F1.6~2.4
Varifocal DC/AI Varifocal DC/AI Varifocal DC/AI
Operating Temperature 14°F ~ 104°F 14°F ~ 104°F 14°F ~ 104°F
(-10°C ~ +40°C) (-10°C ~ +40°C) (-10°C ~ +40°C)
with optional heater on -18°F (-28°C) -18°F (-28°C)
Operating Humidity 0 ~ 96% (Non-Condensing) 0 ~ 96% (Non-Condensing 0 ~ 96% (Non-Condensing)
External Dimension 5.12” (Square) x 3.94” (deep) 5.12” (Square) x 3.94” (deep) 5.12” (Square) x 3.94” (deep)
(Bubble Diameter 3.5”) (Bubble Diameter 3.5”) (Bubble Diameter 3.5”)
130mm (Square) x 100mm (deep) 130mm (Square) x 100mm (deep) 130mm (Square) x 100mm (deep)
(Bubble Diameter 0.88mm) (Bubble Diameter 0.88mm) (Bubble Diameter 0.88mm)
Weight 1.3 lbs (600g) 1.5 lbs (700g) 1.75 lbs (800g)
DIAGRAM
VS1 TYPE
Advanced Technology Video, Inc.
850 Freeport Pkwy., Ste. 100, Coppell, TX 75019
Toll Free 888/288-7644 Main 972/459-8645 Fax 972/459-8661
www.atvideo.com
ATV1091008-03
