ATV TC2812W, TC0650W User Manual
Operating Manual
TC2812W / TC0650W
USER'S INSTRUCTIONS
High Resolution
DNR Day/Night
Color Camera
USER’S MANUAL
Contents
◑ General Features
◑ Installing & Adjusting
◑ Dimension & Specication
◑ OSD Control Button
◑ Camera Menu Set Up
1. Menu Set Up
2. Lens Setting

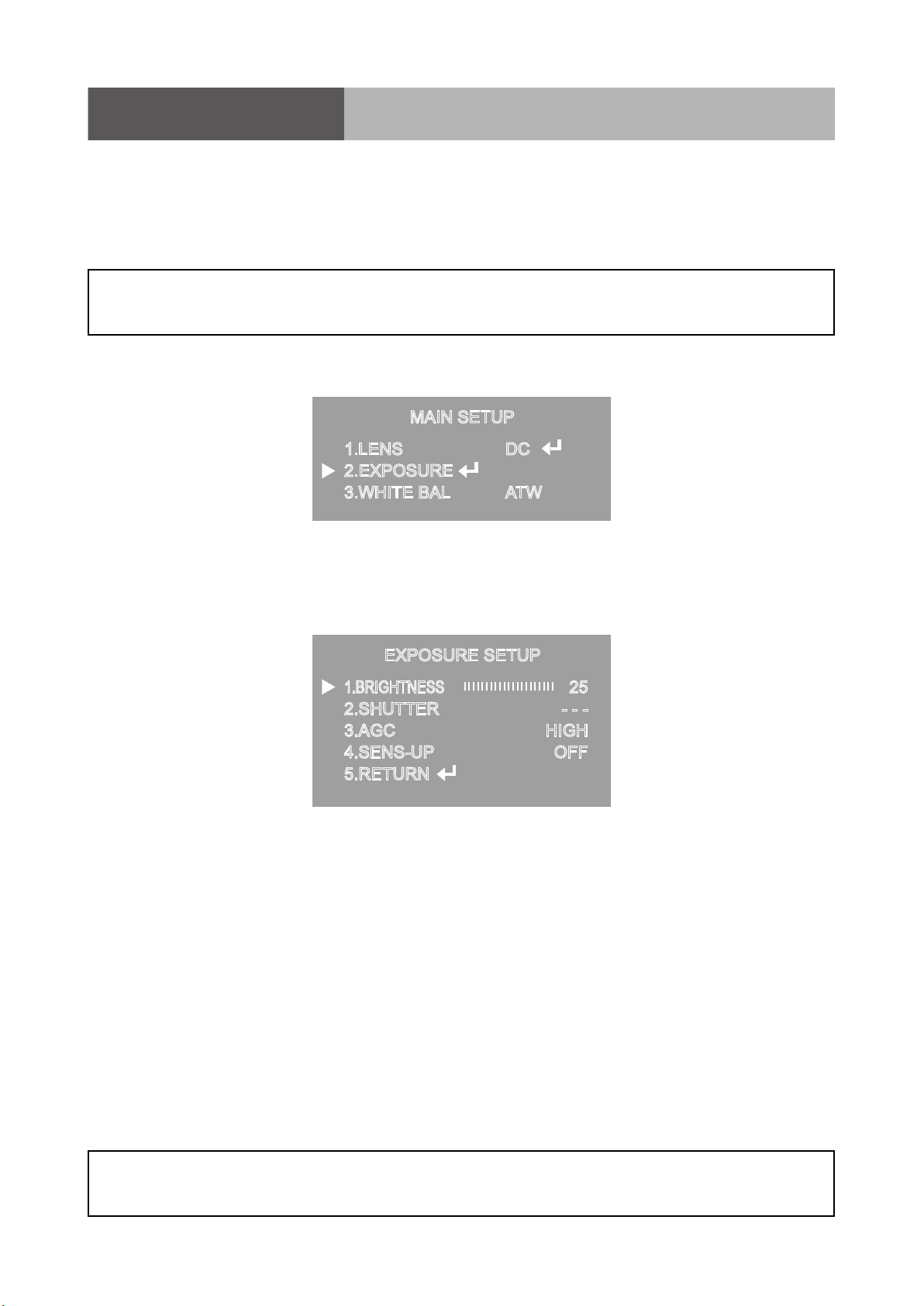

3. Exposure Setting

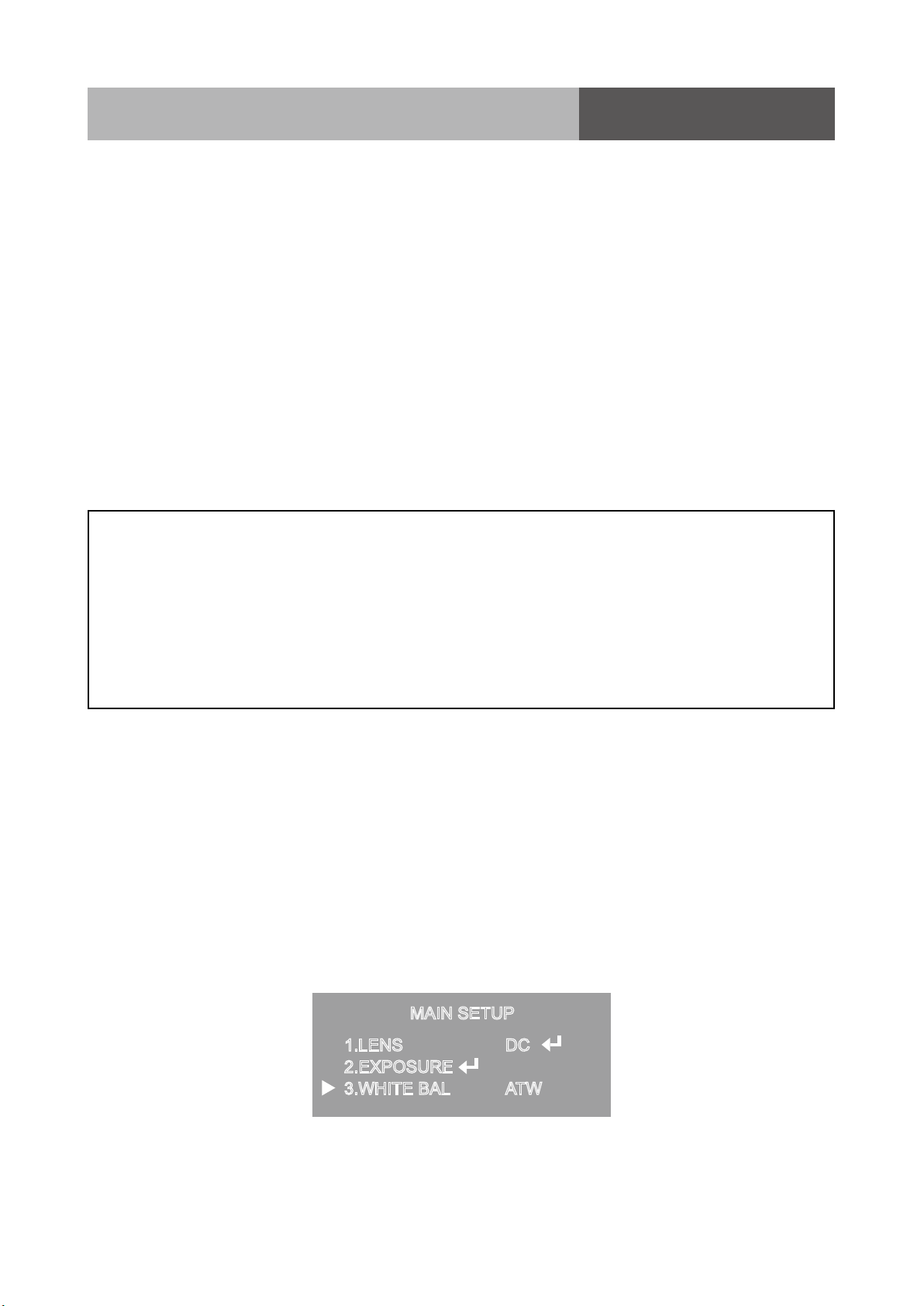

4. White Balance Setting

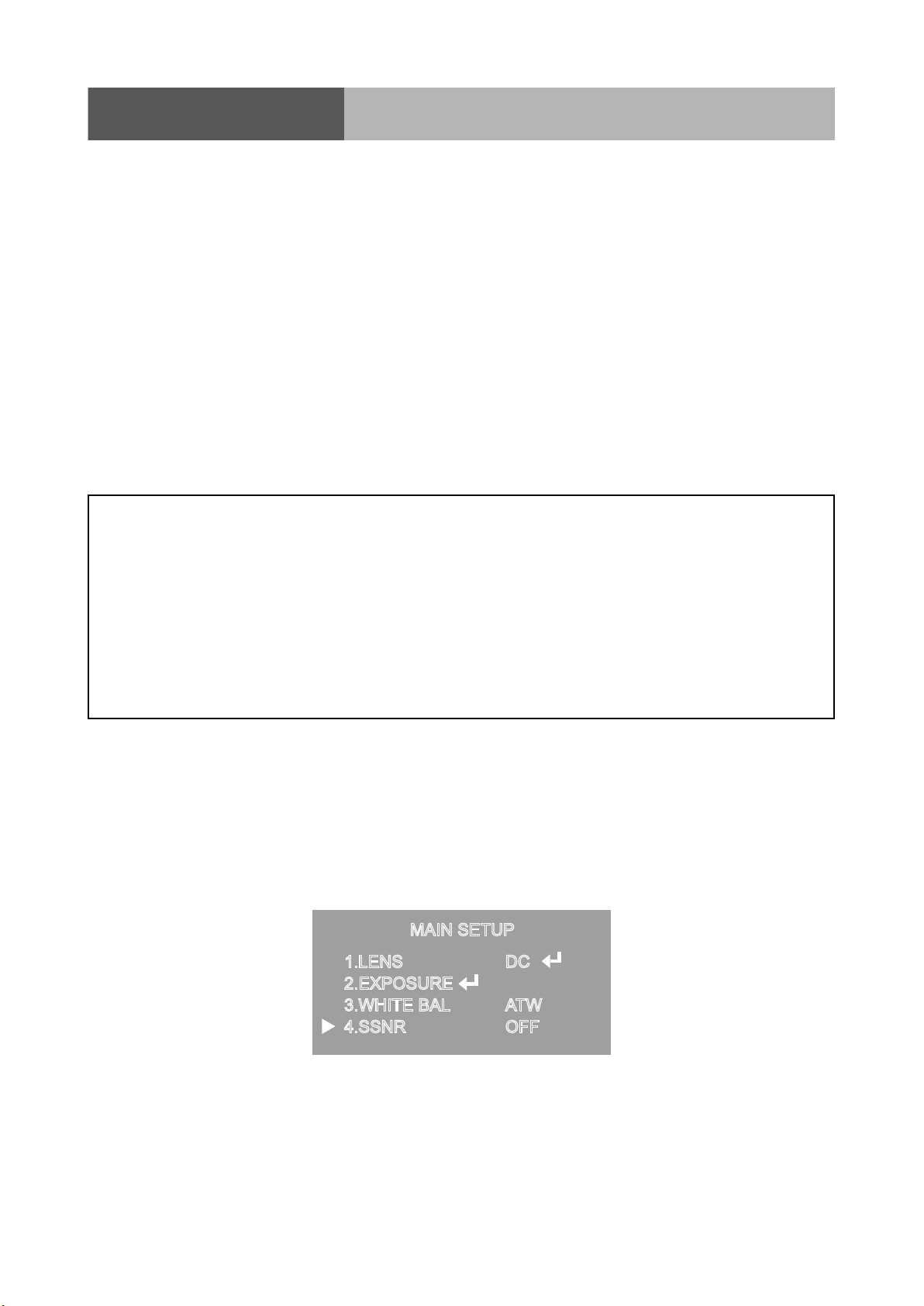

5. SSNR Setting

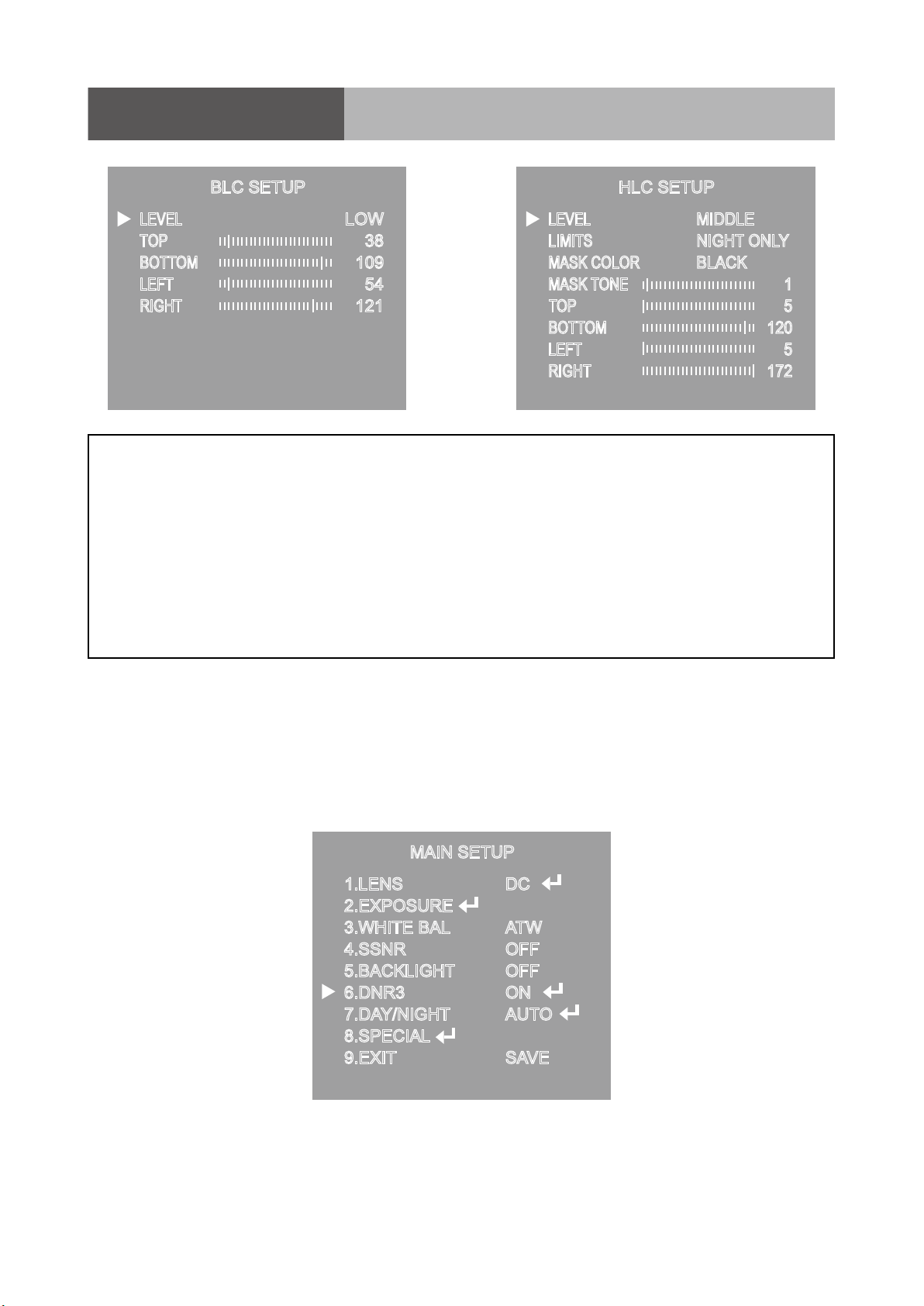

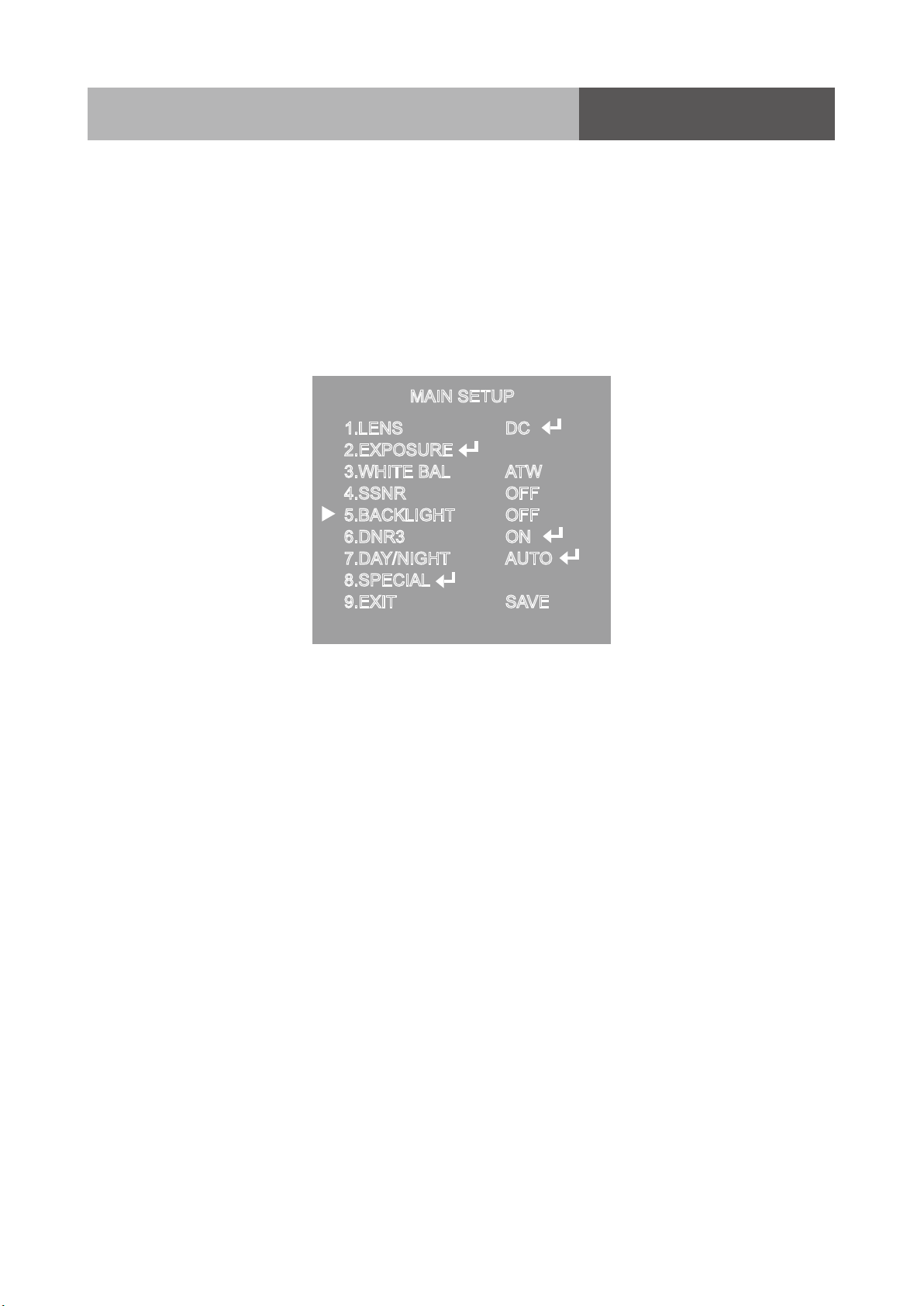

6. Backlight Setting
3
4
5
6
7
7
8
9
10
11
7. DNR3 Setting

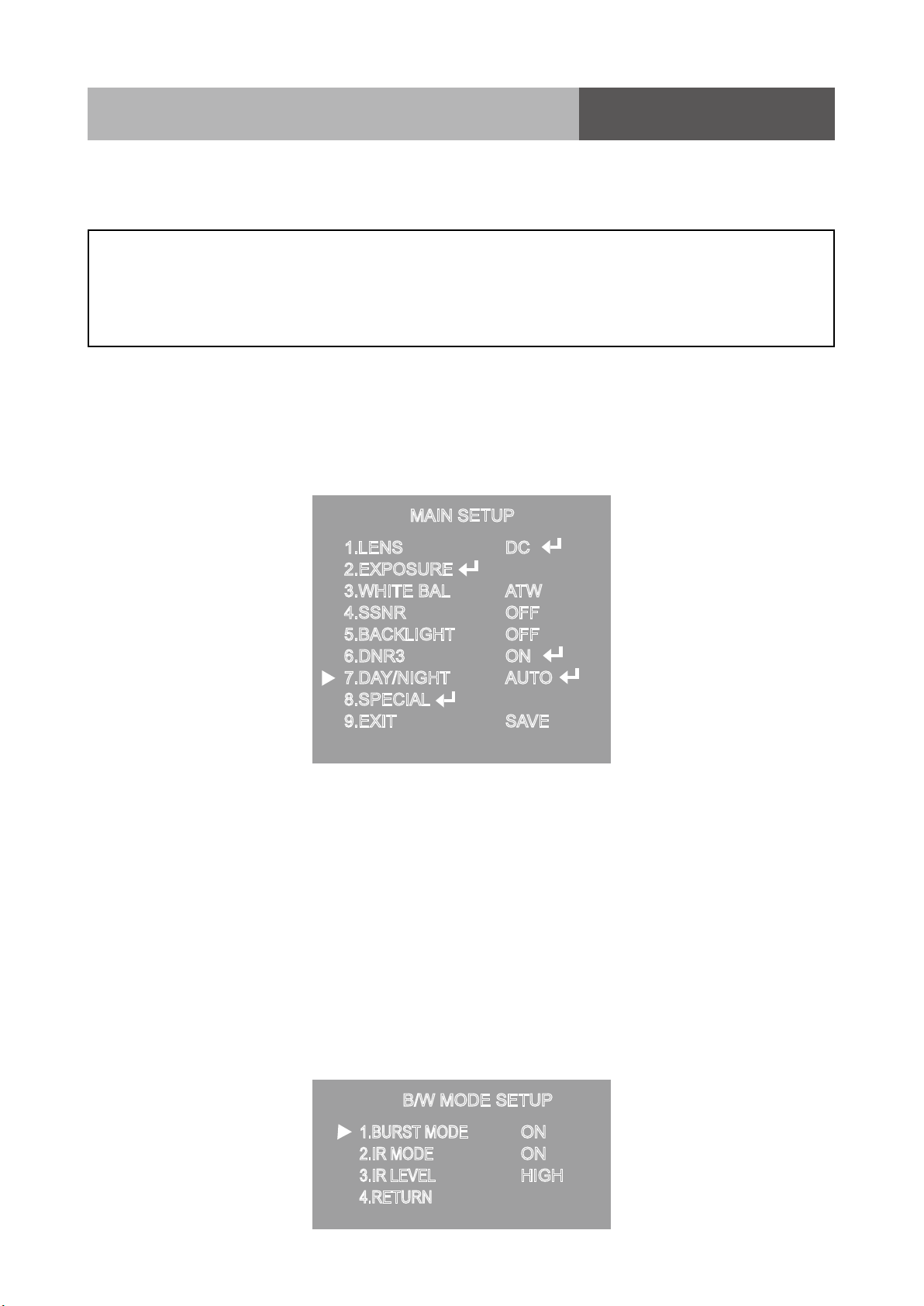

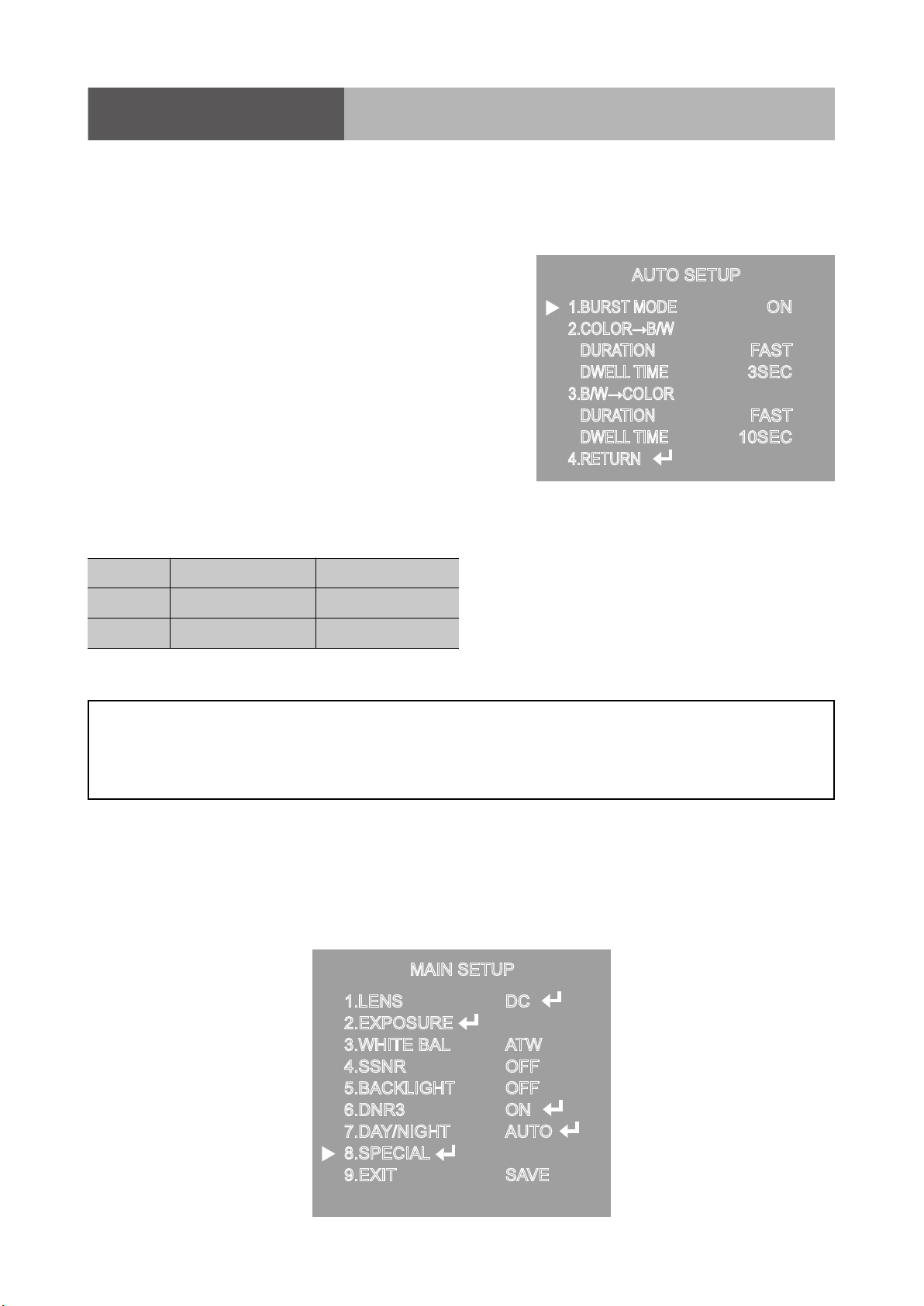

8. Day/Night Setting

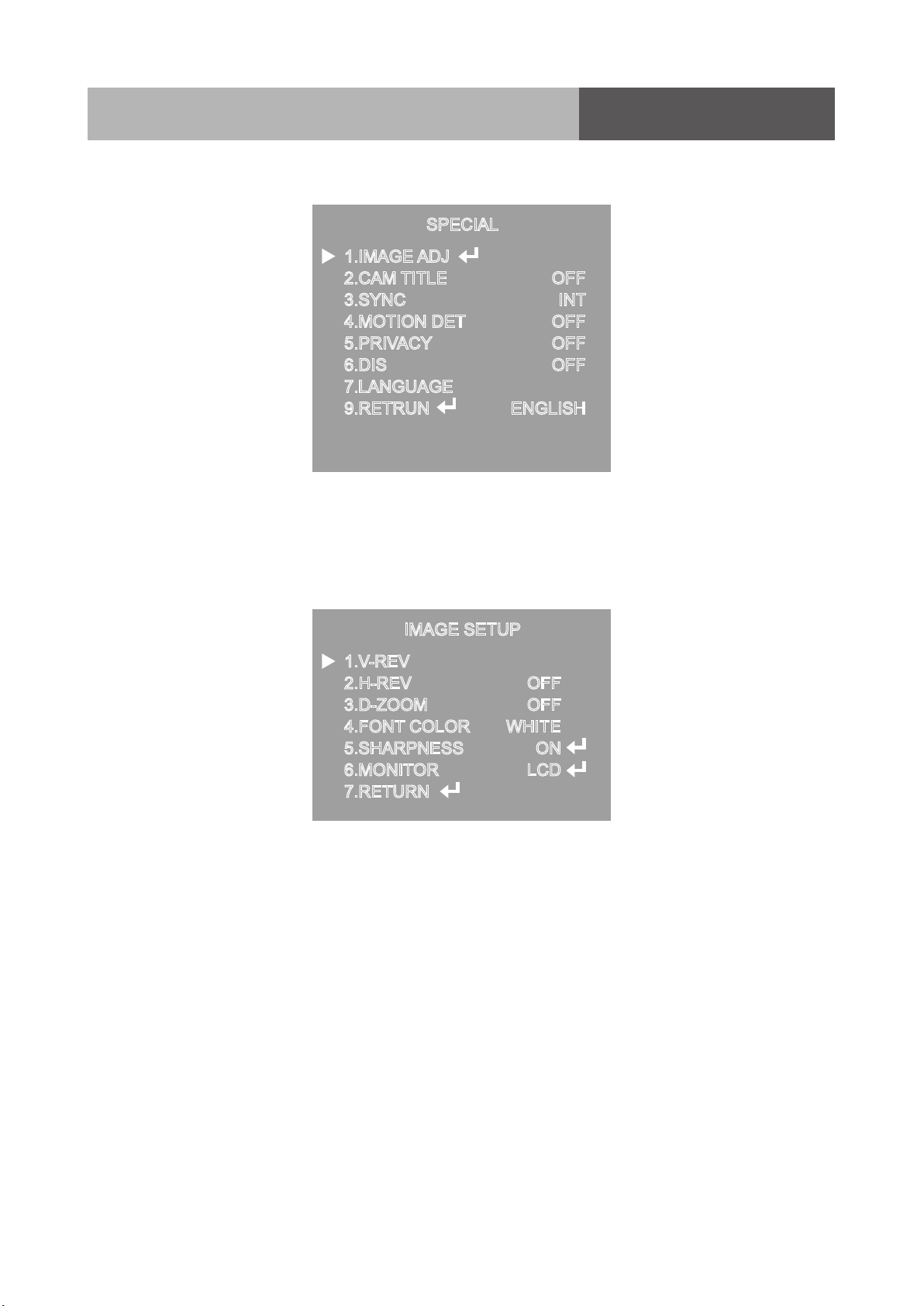

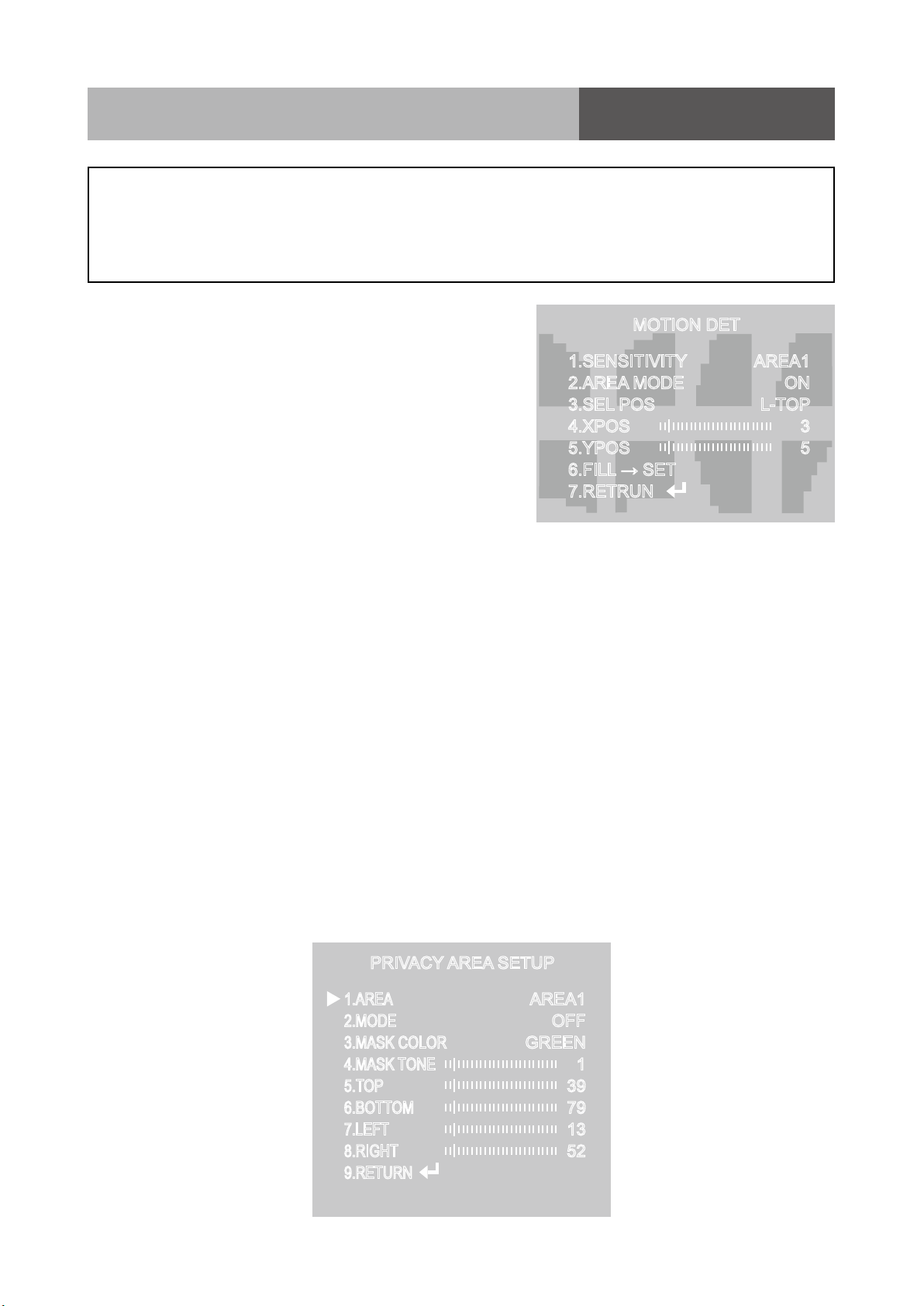

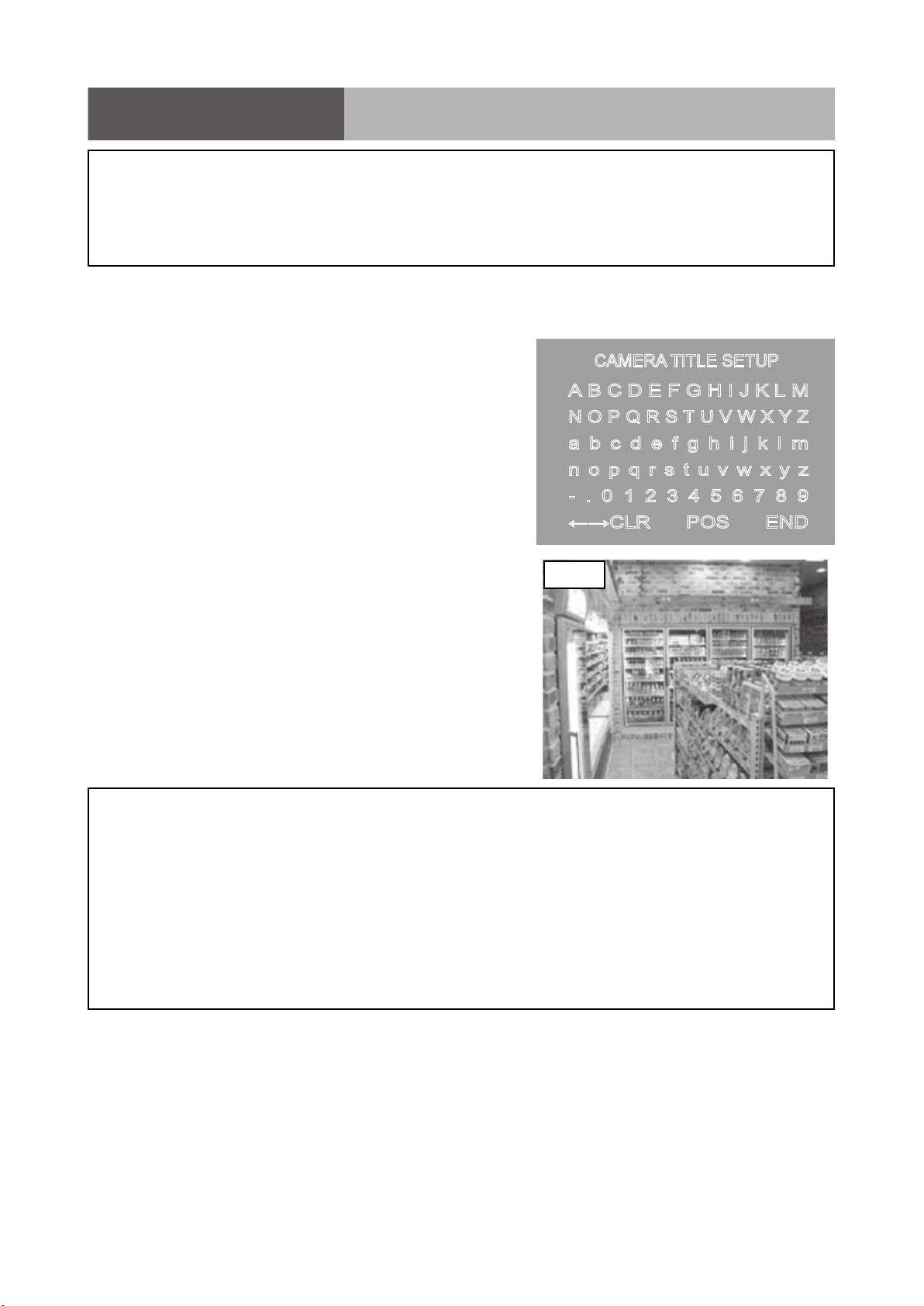

9. Special Setting
10. Exit Setting
◑ Trouble Shooting
12
13
14
18
19
2
USER’S MANUAL
General Features
◑
Ultra High Sensitivity
-
The built-in high sensitivity COLOR CCD produces a clear image even in 0Lux(B/W,
or lower illumination.
◑
600TV Lines
-
By adopting a diagonal 6mm(1/3") 410,000 (NTSC) pixel, 470,000(PAL) pixel SONY CCD,
the camera produces clear picture quality with a horizontal resolution of 600 TV lines for
color and a horizontal resolution of 700TV lines for BW mode.
◑
DNR3
IR-LED ON)
- The high-performance W-V DSP chip effectively removes low-light gain noise and
provide clear images even in dark environments.
◑
Day & Night
-
This camera has a function that automatically selects the mode that is appropriate for
daytime or night-time conditions. The COLOR mode operates in daytime conditions to
provide optimum colors, and BW mode operates in night-time conditions to enhance the
definition of the image.
◑
SSNR
-
For images with high contrast between bright and dark Areas from difficult lighting
such as backlighting, this camera selectively illuminates darker Areas while retaining the same
light level for brighter Areas to even out the overall brightness.
◑
Miscellaneous Functions
- HLC(High Light Compensation), SENS-UP, FLIP(H/V-REV), D-ZOOM, SHARPNESS, MOTION
ghosting to
conditions
DETECTION and PRIVACY functions are provided.
◑
Disk Saving Effects
- Up-most and advanced DNR technology camera picture quality has a disk saving effects due
Image sizes are smaller than standard CCTV camera image.
◑
Controlled by OSD Menu
- The camera can be controlled by selecting the menu text displayed on the monitor screen.
to
3
USER’S MANUAL
INSTALLING & ADJUSTING
1. Installation
- Place the mounting plate on a at installation surface
and mount with the provided screws.
-
Feed the cable through the center of the mounting
- Place the camera body in the mounting plate socket
and hold.
- Then place the outer plate over the camera body &
mounting plate and tighten side screws to lock the
camera into place.
plate.
- Loosen side screws to adjust camera angle as
then tighten the side screws to lock into place.
2. Focus/Zoom Screw
-
To widen the viewing angle turn the Zoom
to "W"(Wide) to obtain a closer view turn it to
screw
needed,
"T"(Tele)
-
Turn the Focus screw to "N"(Near) or "∞"
(Far) untill the sharpest Focus is made
4
.
DIMENSION & SPECIFICATION
1. Dimension & Connection
Dimension Connection
USER’S MANUAL
2. Specication
Image Pick-Up Device
TV System
Total Pixels
Effective Pixels
Scanning Frequency
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
Video Output
Electronic Shutter Speed
OSD
SSDR
BLC
Day & Night
Gain Control
White Balance
SENS-UP
Motion Detection
Privacy Masking
SSNR III (Digital Noise Reduction)
Digital Zoom
DIS (Digital Image Stabilizadion)
Sharpness
Filp / Mirror
Power Supply
Power Consumption
Lens
Operational Temp.
Storage Temp.
Dimension
Weight
1/3” Sony Super HAD CCD
NTSC
811(H) * 508(V)
768(H) * 494(V)
15.734KHz(H) & 59.94Hz(V )
2:1 Interlace
Internal / Line-Lock
600TV Lines
IR LED OFF: 0.15 Lux, IR LED ON: 0 Lux
More than 52dB
CVBS: 1.0Vp-p / 75Ω
NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)
Available
On / Off (Level adjustable)
BLC / HLC / OFF
Color / BW / AUTO
Low / High / Off
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Auto / Off (Selectable x2 ~ x512)
On / Off (8 Programmable Zones)
On / Off (12 Programmable Zones)
On / Off (Level adjustable)
On / Off (x1 ~ x16)
On / Off
On / Off (Level adjustable)
On / Off
DC 12V / AC 24V Dual Voltage
IR LED OFF 120mA(DC), IR LED OFF 70mA(AC) / IR LED ON 670mA(DC), IR LED ON 240mA(AC)
DC Auto Iris Varifocal Lens
~10 ~ +50 Deg C. RH95% MAX.
~20 ~ +60 Deg C. RH95% MAX.
140mm(W) * 111mm(H) * 180mm(D)
1800g
5
USER’S MANUAL
OSD Control Button
1. OSD button could be used when it needs to OSD control.
▲ Up button: Moves the cursor upwards. Use this button to select an item
or adjust the parameters.
▼ Down button: Moves the cursor downwards. Use this button to select an
item or adjust the parameters.
◀ Left button: Moves the cursor to the left. Use this button to select or
adjust the parameters of the selected item. The parameter changes
each time this button is pressed.
▶ Right button: Moves the cursor to the right. Use this button to select or
adjust the parameters of the selected item. The parameter changes each
time this button is pressed.
◎ Set button: Executes selections and displays a submenu for an item with
the mark.
6
●
Menu Setup
1. Press the Function Setup switch.
- Main setup menu is displayed on the monitor screen.
MAIN SETUP
USER’S MANUAL
1.LENS
2.EXPOSURE
3.WHITE BAL
4.SSNR
5.BACKLIGHT
6.DNR3
7.DAY/NIGHT
8.SPECIAL
9.EXIT
DC
ATW
OFF
OFF
ON
AUTO
SAVE
2. Select a desired function using the Function Setup switch.
- Place the cursor over a desired item.
3. Set up a selected item by using the Function Setup switch.
4.
To nish the setting, select 'EXIT' and press the Function Setup switch.
NOTE
☞
An item with the
■
with the icon and press the Function Setup switch.
An item with the - - - icon is unavailable due to function settings.
■
icon also has sub menus. To select a sub menu, select an item
◀
●
Lens Setting
Using this function, you can control the screen brightness.
1. When the SETUP menu screen is displayed, select 'LENS' by using
the Function Setup switch so that the arrow indicates 'LENS'.
2. DC : You can adjust the minimum shutter and maximum value of ESC
shutter mode.
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
DC
ATW
3. THE Lens mode has sub menu items as listed below.
- BRIGHTNESS : Adjusts the video brightness.
7
