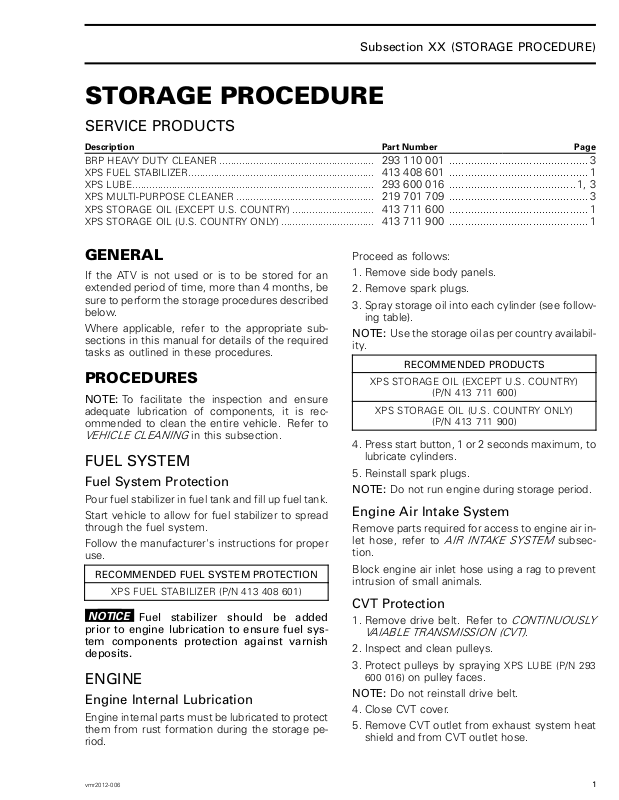

Page 1
Subsection XX (STORAGE PROCEDURE)
STORAGE PROCEDURE
SERVICE PRODUCTS
Description Part Number Page
BRP HEAVY DUTY CLEANER ......................... .............................. 293 110 001 ............................................. 3
XPS FUEL STABILIZER.................................................................. 413 408 601 ............................................. 1
XPS LUBE...................................................................................... 293 600 016 ......................................... 1, 3
XPS MULTI-PURPOSE CLEANER ....... ....................................... ... 219 701 709 ............................................. 3
XPS STORAGE OIL ( EXCEPT U.S. COUN TRY) ............................. 413 711 600 ............................................. 1
XPS STORAGE OIL ( U .S. COUNTRY ONLY) ................................. 413 711 900 ............................................. 1
GENERAL
IftheATVisnotusedoristobestoredforan
extended period of time, more than 4 months, be
sure to perform the storage procedures described
below.
Where applicable, refer to the appropriate subsections in this manual for details of the required
tasks as outlined in these procedures.
PROCEDURES
NOTE: To facilitate the inspection and ensure
adequate lubrication of components, it is recommended to clean the entire vehicle. Refer to
VEHICLE CLEANING
in this subsection.
FUEL SYSTEM
Fuel System Protection
Pour fuel stabilizer in fuel tank and fill up fuel tank.
Start vehicle to allow for fuel stabilizer to spread
through the fuel system.
Follow the manufacturer's instructions for proper
use.
RECOMMENDED FUEL SYSTEM PROTECTION
XPS FUEL STABILI
NOTICE
prior to engine lubrication to ensure fuel s ystem components protection against varnish
deposits.
Fuel stabilizer should be added
ZER (P/N 413 408 601)
ENGINE
Engine Intern
Engine internal parts must be lubricated to protect
them from rust formation during the storage period.
al Lubrication
Proceed as follows:
1. Remove side body panels.
2. Remove spark plugs.
3. Spray storage oil into each cylinder (see following table).
NOTE: Use the storage oil as per country availability.
RECOMMENDED PRODUCTS
XPS STORAGE OIL (EXCEPT U.S. COUNTRY)
(P/N 413 711 600)
XPS STORAGE OIL (U.S . COUNTRY ONLY)
(P/N 413 711 900)
4. Press start but
lubricate cyli
5. Reinstall spark plugs.
NOTE: Do not run engine during storage period.
ton, 1 or 2 seconds maximum, to
nders.
Engine Air Intake System
Remove parts required for access to engine air inlet hose, refer to
tion.
Block engine ai
intrusion of s
r inlet hose using a rag to prevent
mall animals.
AIR INTAKE SYSTEM
subsec-
CVT Protection
1. Remove drive b
VAIABLE TRANS
2. Inspect and clean pulleys.
3. Protect pulleys by spraying
600 016)
NOTE: Do not r
4. Close CVT cover.
5. Remove CVT outlet from exhaust system heat
shield and from CVT outlet hose.
on pulley faces.
elt. Refer to
MISSION (CVT)
einstall drive belt.
CONTINUOUSLY
.
XPS LUBE (P/N 293
vmr2012-006 1
Page 2
Subsection XX (STORAGE PROCEDURE)

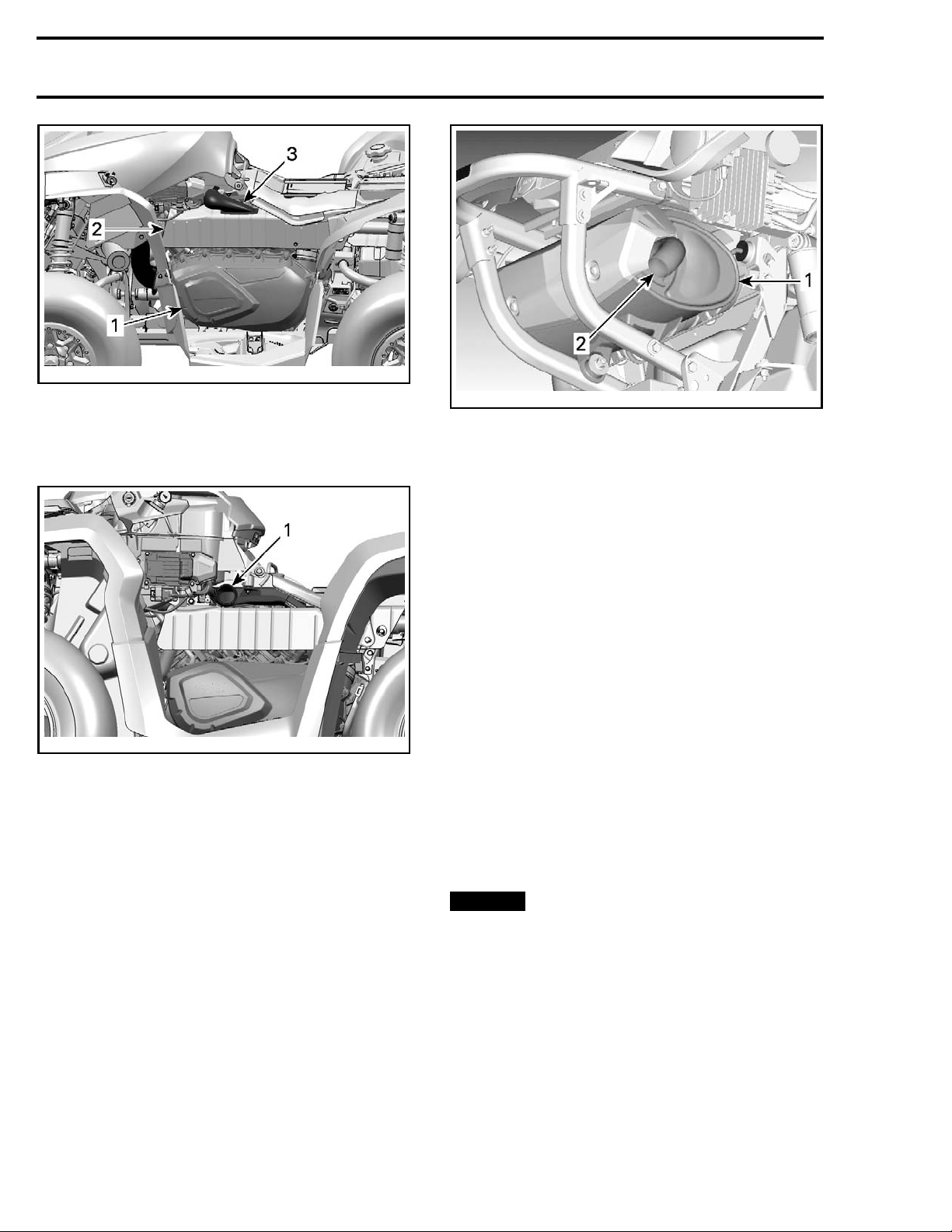

vmr2012-007-001_a
TYPICAL
1. CVT cover
2. Exhaust syste m heat shield
3. CVT outlet
6. Block CVT outlet hose using a rag.
vmr2012-011-007_c
TYPICAL - RENEGAD E MODEL ILLUSTRATED
1. Muffler
2. Block with rag here
ELECTRICAL SYSTEM
Battery Removal
Remove battery from ATV.
Store and charge battery as per battery manufac-
turer's recommendations.
2-007-002_a
vmr201
TYPICAL
1. CVT outlet hose
Exhaus
tSystem
Block muffler outlet using a rag to avoid intrusion
of small animals.
DRIVE S YSTEM
Lubricate rear propeller shaft U-joints.
CHASSIS
Lubrication
Lubricate front and rear suspension.
Tire Pressure
Inflate tires to recommended pressure.
Vehic le Clean ing
Wash and dry the vehicle.
NOTICE
clean the vehicle. USE LOW PRESSURE ONLY
(such as a garden hose). The high pressure can
cause electrical or mechanical damages.
Remove any dirt or rust.
To clean plastic parts, use only flannel cloths and
XPS ATV Wash (P/N 219 701 702) or soapy water.
To clean vinyl parts, use only flannel cloths and a
mild non abrasive multipurpose cleaner.
Never use a high pressure washer to
2 vmr2012-006
Page 3
Subsection XX (STORAGE PROCEDURE)
RECOMMENDED PR
NOTICE
It is necessary to use flann el cloths
ODUCT FOR PLASTIC PARTS
XPS ATV Wash
(P/N 219 70 1 702
Soapy water
)
on plastic parts to avoid damaging surfaces.
Never clean plastic parts with strong detergent, degreasing agent, paint thinner, acetone,
products containing chlorine, etc. To avoid
damaging the glossy finish on Polypropylene
body parts, never use:
– Petroleum based cleaning products
– XP-S ATV Fin
ishing Spray (P/N 219 701 704)
– XP-S ATV Cleaning Kit (P/N 219 701 713).
RECOMMENDED PRODUCT FOR VINYL PARTS
XPS MULTI-PURPOSE CLEANER (P/N 219 701 709)
To clean heavily soiled parts of the vehicle, including metallic parts use the following.
RECOMMENDED PRODUCT FOR HEAVILY
SOILED PARTS
BRP HEAVY DUTY CLEANER (P/N 293 110 001)
Inspect the vehicle and repair any damage. Touch
up all m etal spots where paint has been scratched
off.
Spray all metal parts with an appropriate lubricant
for rust protection.
RECOMMENDED RUST PROTECTION
XPSLUBE(P/N293600016)
Vehicle Protection
Protect the vehicle with a cover to prevent dust
accumulation during storage.
NOTICE
and dry place, and covered with an opaque
tarpaulin. This will prevent sun rays and grime
from affecting plastic components and vehicle
finish.
The vehicle has to be stored in a cool
vmr2012-006 3
