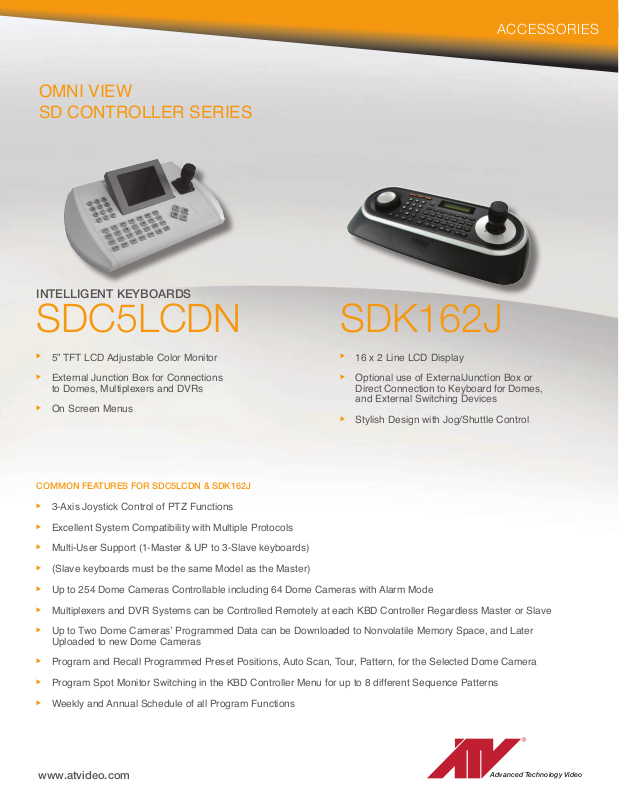

ATV SDC5LCDN Specsheet
OMNI VIEW
SD CONTROLLER SERIES
INTELLIGENT KEYBOARDS
ACCESSORIES
SDC5LCDN SDK162J
u
5” TFT LCD Adjustable Color Monitor
u
External Junction Box for Connections
to Domes, Multiplexers and DVRs
u
On Screen Menus
COMMON FEATURES FOR SDC5LCDN & SDK162J
u
3-Axis Joystick Control of PTZ Functions
u
Excellent System Compatibility with Multiple Protocols
u
Multi-User Support (1-Master & UP to 3-Slave keyboards)
u
(Slave keyboards must be the same Model as the Master)
u
Up to 254 Dome Cameras Controllable including 64 Dome Cameras with Alarm Mode
u
Multiplexers and DVR Systems can be Controlled Remotely at each KBD Controller Regardless Master or Slave
u
16 x 2 Line LCD Display
u
Optional use of ExternalJunction Box or
Direct Connection to Keyboard for Domes,
and External Switching Devices
u
Stylish Design with Jog/Shuttle Control
u
Up to Two Dome Cameras’ Programmed Data can be Downloaded to Nonvolatile Memory Space, and Later
Uploaded to new Dome Cameras
u
Program and Recall Programmed Preset Positions, Auto Scan, Tour, Pattern, for the Selected Dome Camera
u
Program Spot Monitor Switching in the KBD Controller Menu for up to 8 different Sequence Patterns
u
Weekly and Annual Schedule of all Program Functions
www.atvideo.com
Advanced Technology Video
INTELLIGENT KEYBOARDS
SDK162J / SDC5LCDN
SPECIFICATIONS
MODEL SDK162J SDC5LCDN
LCD 16 X 2 Line LCD 5” TFT LCD
PTZ Control Pan/tilt/zoom: Joystick Pan/tilt/zoom: Joystick
Zoom/Focus/Iris key switches Zoom/Focus/Iris key switches
E
Input Voltage 12 VDC 12VDC
L
Power Consumption 6W 15W
E
Communications RS-485/232 baud rate: RS-485/232 baud rate:
C
2400 ~38400 bps (default:9600bps) 2400 ~230k bps (default:9600bps)
T
Dome1 Port (RS-485) Up to 254 Dome Cameras Up to 254 Dome Cameas
R
I
including 64 Alarm Mode on including 64 Alarm Mode on
C
Dome2 Port (RS-485) Slave keyboard / DVR / Multiplexer Slave keyboard / DVR / Multiplexer
A
RS-232 DVR / UPGRADE DVR / UPGRADE
L
Multiplexer Remote Falcon Duplex / Triplex Falcon Duplex / Triplex
DVR Remote Will control all ATV DVRs Will control all ATV DVRs
ID Selectable 1 ~ 3999 address 1 ~ 3999 address
M
E
Dimension 15.9 X 6.9 X 4.2 (Unit-inch) 15.75 x 9.06 x 4.53 (Unit-inch)
C
405 x 176 x 107(Unit-mm) 400 x 230 x 115 (Unit-mm)
H
Unit Weight Approx 2.65lbs (1.2kg) Approx 4.0 lbs (1.8 kg)
A
N
Shipping Weight Approx 4.85lbs (2.2kg) Approx 8.4 lbs (3.8kg)
I
Shipping Size 19.7 x 9.1 x 6.3 (Unit-inch) 17.8 x 11.14 x 6.38 (Unit-inch)
C
500 x 230 x 160 (Unit-mm) 452 x 283 x 162 (Unit-mm)
A
L
E
N
V
Operating Temperature (32ºF to 122ºF) (32ºF to 122ºF)
I
0ºC to 50ºC 0ºC to 50ºC
R
O
Operating Humidity 0 to 90%RH 0 to 90%RH
N
(non-condensing) (non-condensing)
M
Storage Temperature ( -4ºF to 140ºF) (-4ºF to 140ºF)
E
N
-20ºC to 60ºC -20ºC to 60ºC
T
A
L
Conformity Certifications CE EMC, FCC CLASS A CE EMC, FCC Class A
ACCESSORIES
DIMENSIONS
SDK162J
Connectors
Dip Switch Settings
Termination and Master/Slave: Set the switches
according to your configuration.
SDC5LCDN
Configuration of Master and Slave Keyboards
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2011 ATV All rights reserved. Specifications and Design are subject to change without notice.
ATV9061008-03
