ATV LD72W User Manual

DNR Super High Resolution

INSTRUCTION MANUAL

Day & Night Color Camera

3-AXIS INDOOR DOME CAMERA

Please read this manual thoroughly before use, and keep it handy for future reference.

WARNING

The exclamation point within an equilateral triangle is intended to alert the user to the

Installation

y might

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE. DO NOT INSERT ANY MET ALLIC OBJECTS THROUGH THE
VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMEN T.

CAUTION

EXPLANATION OF GRAPHICAL SYMBOL

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of un-insulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.

presence of important operating and maintenance (servicing) instructions in the

literature accompanying the product.

PRECAUTIONS

Do not install the unit in an extremely hot or humid place or in a place subject to excessive dust,
mechanical vibration.

Cleaning

Clean the unit with a slightly damp soft cloth.
Use a mild household detergent. Never use strong solvents such as thinner or Benzene as the
damage the finish of the unit.

Retain the original carton and packing materials for safe transport of this unit in the future.

ii

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when
unused for long periods of time.

14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been moisture, does not operate normally, or has
been dropped.

15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE BY
QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF
ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER
THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS
UNLESS YOU QRE QUALIFIED TO DO SO.

16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power

source only.

iii

FCC COMPLIANCE STATEMENT

INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED

AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE,
PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED
TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL
INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL
ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE
RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO
CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE
REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED

BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S
AUTHORITY TO OPERATE THE EQUIPMENT.

THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.

CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME
NMB-003 DU CANADA.

CE COMPLIANCE STATEMENT

WARNING: This is a Class A product. In a domestic environment this product

may cause radio interference in which case the user may be required to take
adequate measures.

iv

TABLE OF CONTENTS

INTRODUCTION ----------------------------------------------------------------------------------------- 1

CAMERA CONNECTION ------------------------------------------------------------------------------ 2

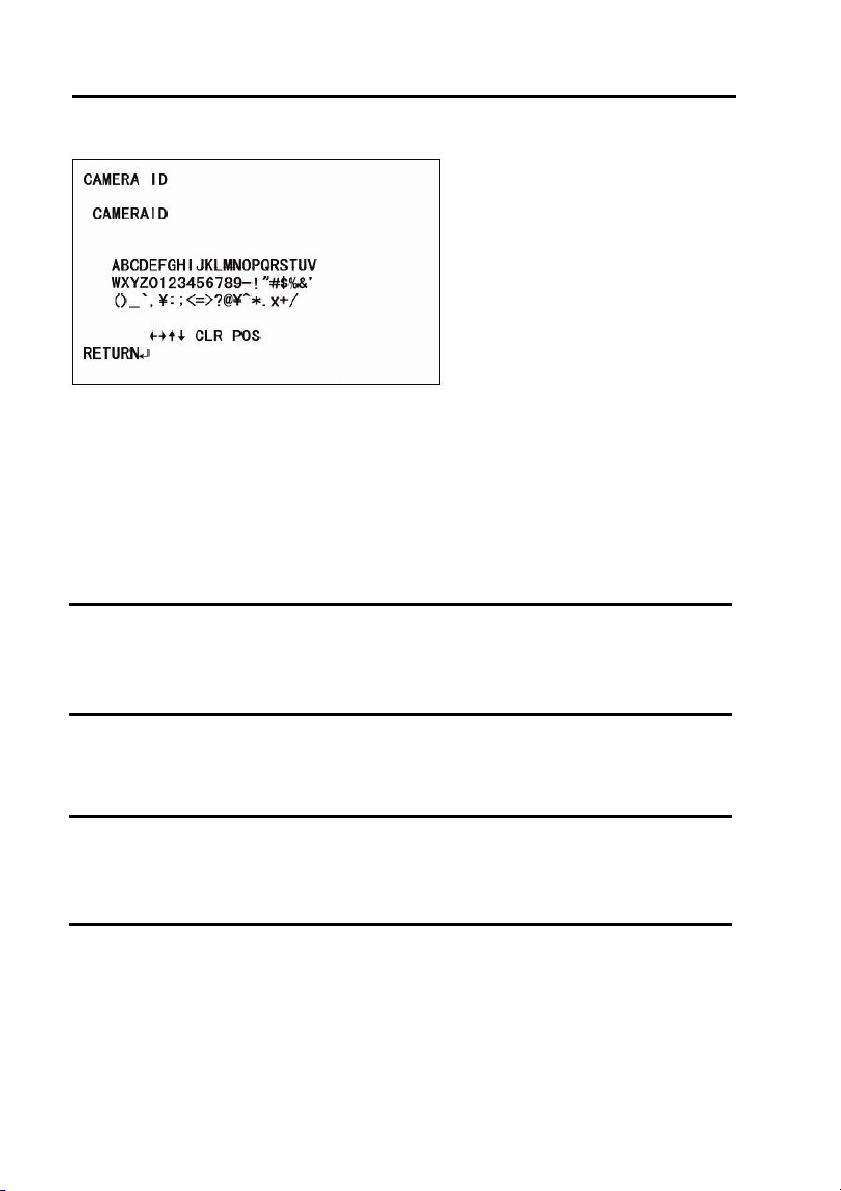

OSD MENU STRUCTURE ---------------------------------------------------------------------------- 6

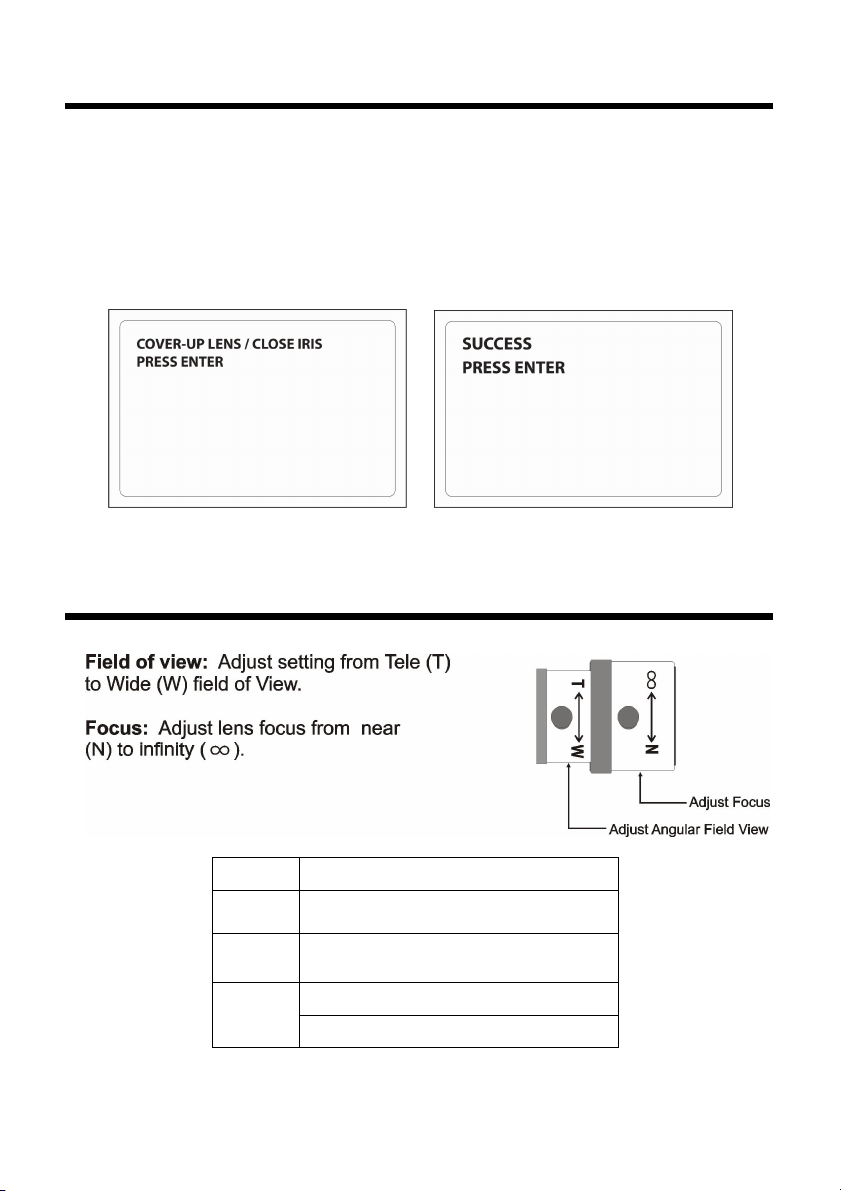

AUTO WHITE DEFECT & LENS ADJUSTMENT ---------------------------------------------- 13

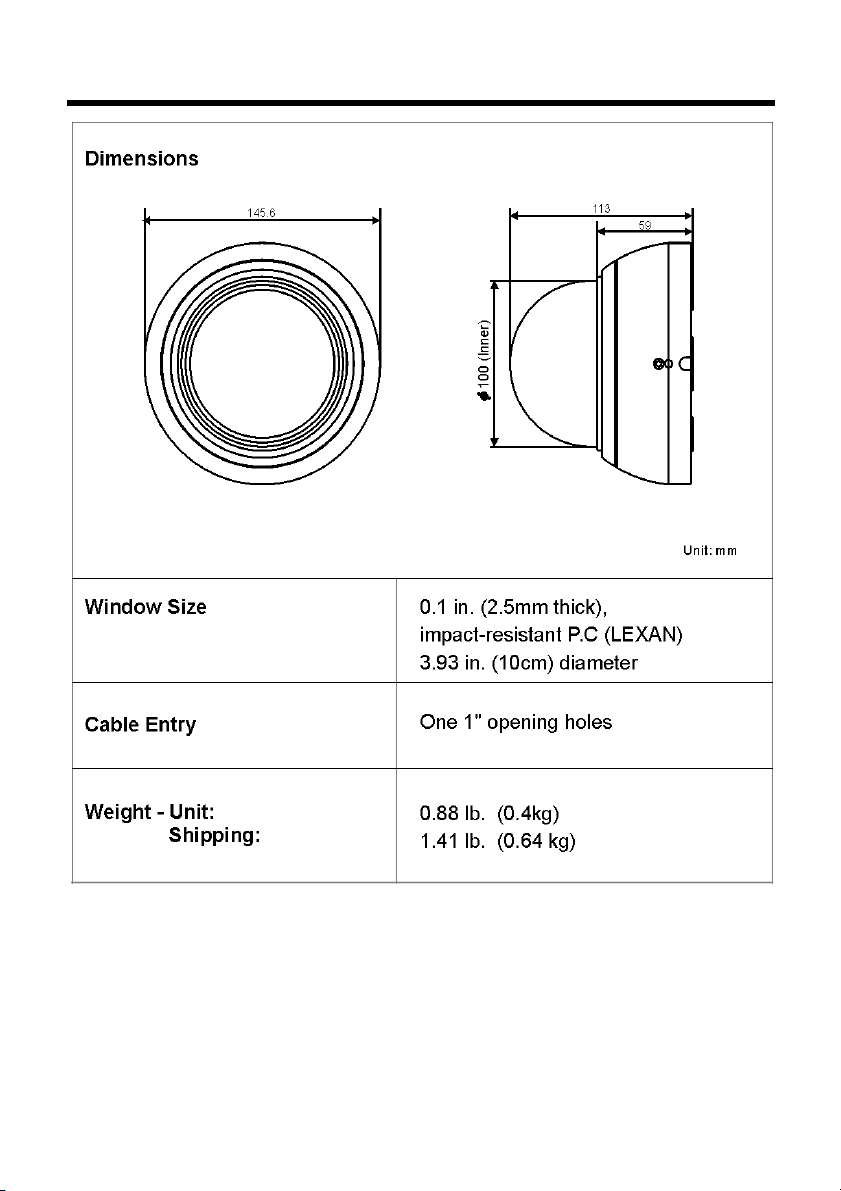

EXTERNAL DIMENSION ---------------------------------------------------------------------------- 14

SPECIFICATIONS ------------------------------------------------------------------------------------- 15

CONTENTS OF PACKAGE

Installation of the camera must be performed by qualified service personnel in
accordance with all local and national electrical and mechanical codes.

Carefully remove the color camera and its accessories from the carton
and verify that they were not damaged in shipment.

The contents of the package includes :

1. Camera in Housing _____________________1

2. Instruction Manual (This Document) ________1

3. Accessory Kit for Installing _______________ 1

4. Drilling guide label ____________________ _ 1

5. Test monitor cable____________________ _ 1

v

INTRODUCTION

IMPORTANT :

The user of this cam

era is responsible for

The camera provides high-quality images using SONY 1/3” CCD and digital
Signal process LSIs.

Features:

● 1/3" EXview HAD CCD Ⅱ for an image of high sensitivity

● 2.8~12 mm D/N Vari-focal(DC AI)

● Digital Wide Dynamic Range (Adaptive Tone Reproduction)

● Excellent picture quality

● 700 lines of resolution

● Minimum illumination

0.15 Lux (Color), 0.01 Lux (B/W) @ F1.2, 50IRE

0.15 Lux (Color), 0 Lux (B/W & IR ON) @ F1.2, 50IRE( IR CAMERA ONLY)

● Auto electronic shutter [1/60(1/50) ~ 1/10,000] and manual electronic
shutter modes

● OSD (On Screen Display)

● Auto and manual white balance modes

● Auto BLC and HLC, Day & Night (Auto)

● 2D-NR

● Smart IR

● Privacy Zone 4 point, Motion Detection 4 Point

● MIRROR, SHARPNESS, HUE, CONTRAST, GAIN

● AGC (Auto Gain Control)

● VIDEO OUT (BNC)

● Internal

● Operates in 12VDC or 24VAC
(If using DC 12V power adaptor, Please use a power supply capable of

supplying over 600mA.)

● Use Certified / Listed Class 2 power source only.

● Auto White Defect

checking and complying with local, state, and federal laws and
statutes concerning the recording and monitoring of audio
signals.

1

CAMERA CONNECTION

1. Lens : 2.8~12mm D/N Vari-focal(DC AI) for wide area monitoring

2. Power : power source from a DC 12V or AC 24V

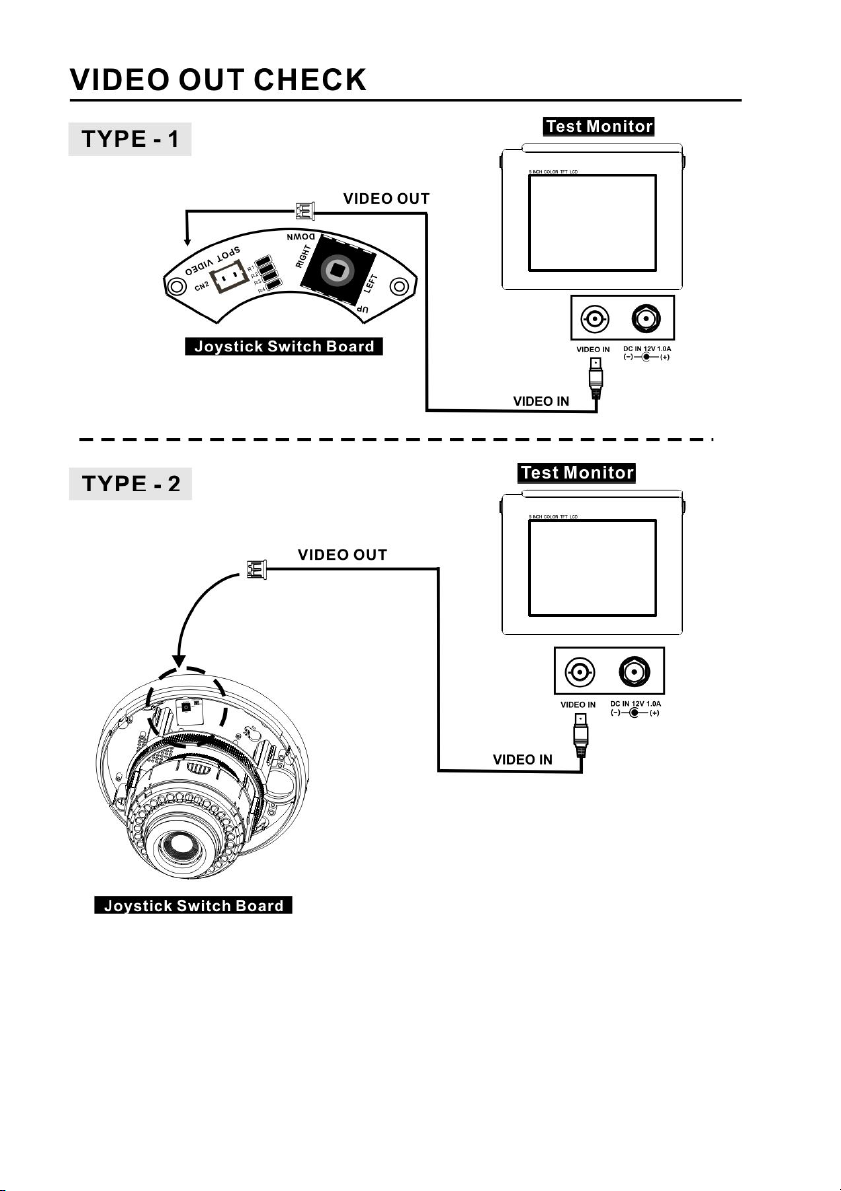

3. Video : BNC connector used to connect the camera to a monitor,
switcher.ect.

2
