ATV LD72B User Manual

DNR Super High Resolution

INSTRUCTION MANUAL

Day & Night Color Camera

3-AXIS INDOOR DOME CAMERA

Please read this manual thoroughly before use, and keep it handy for future reference.

WARNING

The exclamation point within an equilateral triangle is intended to alert the user to the

Installation

y might

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE. DO NOT INSERT ANY MET ALLIC OBJECTS THROUGH THE
VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMEN T.

CAUTION

EXPLANATION OF GRAPHICAL SYMBOL

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of un-insulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.

presence of important operating and maintenance (servicing) instructions in the

literature accompanying the product.

PRECAUTIONS

Do not install the unit in an extremely hot or humid place or in a place subject to excessive dust,
mechanical vibration.

Cleaning

Clean the unit with a slightly damp soft cloth.
Use a mild household detergent. Never use strong solvents such as thinner or Benzene as the
damage the finish of the unit.

Retain the original carton and packing materials for safe transport of this unit in the future.

ii

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when
unused for long periods of time.

14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been moisture, does not operate normally, or has
been dropped.

15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE BY
QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF
ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER
THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS
UNLESS YOU QRE QUALIFIED TO DO SO.

16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power

source only.

iii

FCC COMPLIANCE STATEMENT

INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED

AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE,
PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED
TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL
INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL
ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE
RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO
CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE
REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED

BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S
AUTHORITY TO OPERATE THE EQUIPMENT.

THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.

CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME
NMB-003 DU CANADA.

CE COMPLIANCE STATEMENT

WARNING: This is a Class A product. In a domestic environment this product

may cause radio interference in which case the user may be required to take
adequate measures.

iv

TABLE OF CONTENTS

INTRODUCTION ----------------------------------------------------------------------------------------- 1

CAMERA CONNECTION ------------------------------------------------------------------------------ 2

OSD MENU STRUCTURE ---------------------------------------------------------------------------- 6

AUTO WHITE DEFECT & LENS ADJUSTMENT ---------------------------------------------- 13

EXTERNAL DIMENSION ---------------------------------------------------------------------------- 14

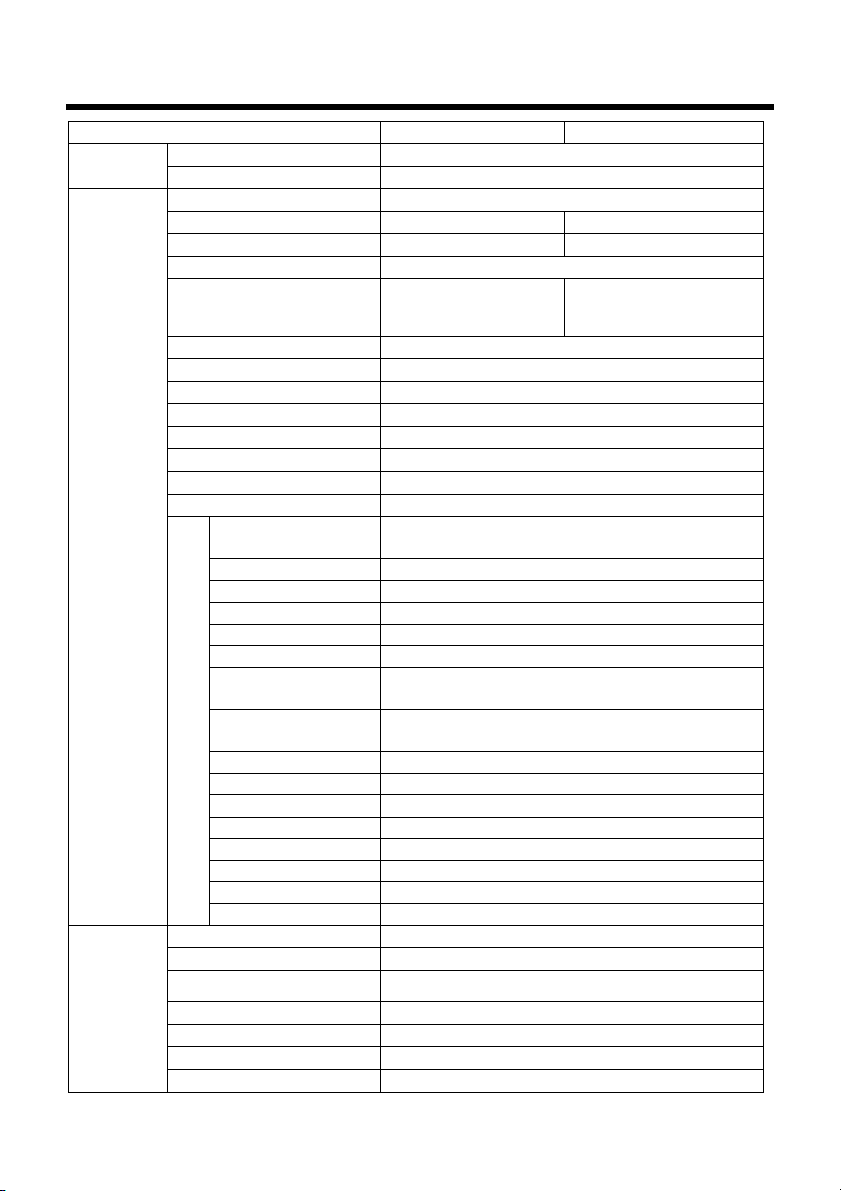

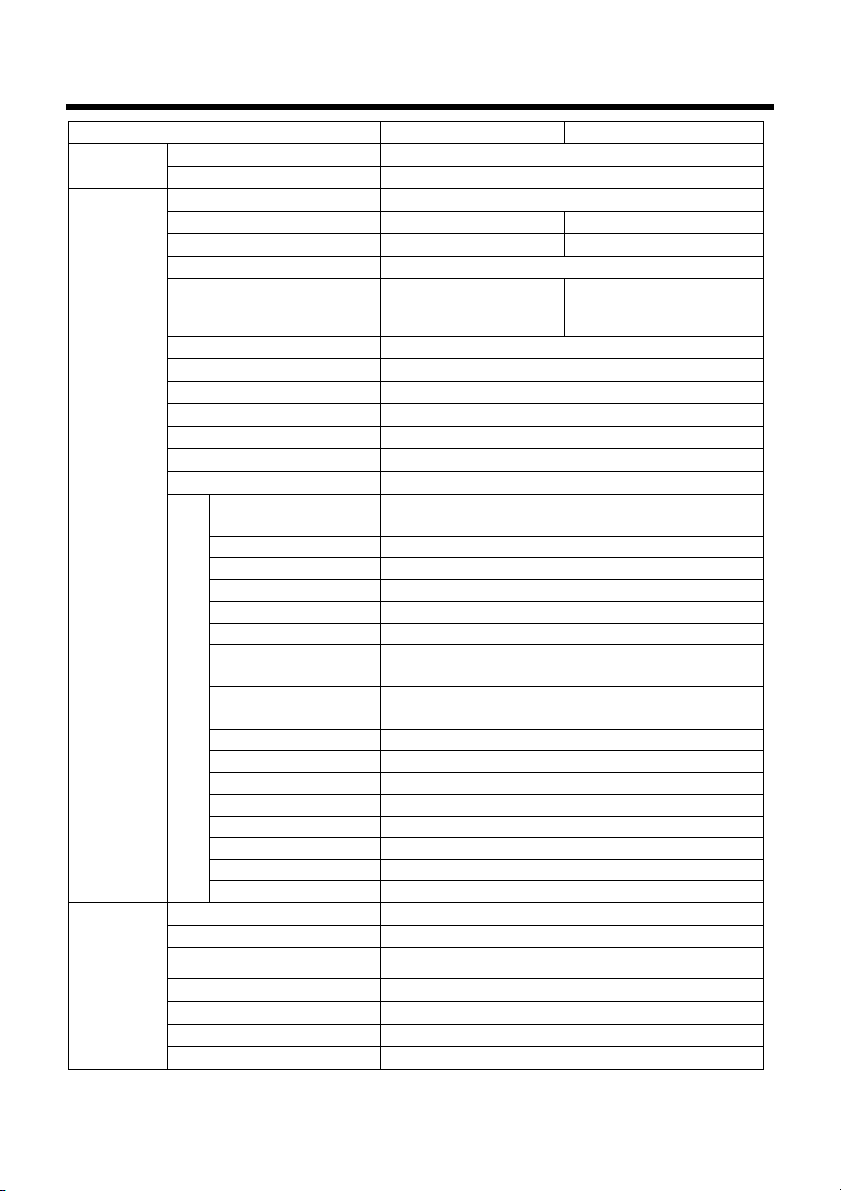

SPECIFICATIONS ------------------------------------------------------------------------------------- 15

CONTENTS OF PACKAGE

Installation of the camera must be performed by qualified service personnel in
accordance with all local and national electrical and mechanical codes.

Carefully remove the color camera and its accessories from the carton
and verify that they were not damaged in shipment.

The contents of the package includes :

1. Camera in Housing _____________________1

2. Instruction Manual (This Document) ________1

3. Accessory Kit for Installing _______________ 1

4. Drilling guide label ____________________ _ 1

5. Test monitor cable____________________ _ 1

v

INTRODUCTION

IMPORTANT :

The user of this cam

era is responsible for

The camera provides high-quality images using SONY 1/3” CCD and digital
Signal process LSIs.

Features:

● 1/3" EXview HAD CCD Ⅱ for an image of high sensitivity

● 2.8~12 mm D/N Vari-focal(DC AI)

● Digital Wide Dynamic Range (Adaptive Tone Reproduction)

● Excellent picture quality

● 700 lines of resolution

● Minimum illumination

0.15 Lux (Color), 0.01 Lux (B/W) @ F1.2, 50IRE

0.15 Lux (Color), 0 Lux (B/W & IR ON) @ F1.2, 50IRE( IR CAMERA ONLY)

● Auto electronic shutter [1/60(1/50) ~ 1/10,000] and manual electronic
shutter modes

● OSD (On Screen Display)

● Auto and manual white balance modes

● Auto BLC and HLC, Day & Night (Auto)

● 2D-NR

● Smart IR

● Privacy Zone 4 point, Motion Detection 4 Point

● MIRROR, SHARPNESS, HUE, CONTRAST, GAIN

● AGC (Auto Gain Control)

● VIDEO OUT (BNC)

● Internal

● Operates in 12VDC or 24VAC
(If using DC 12V power adaptor, Please use a power supply capable of

supplying over 600mA.)

● Use Certified / Listed Class 2 power source only.

● Auto White Defect

checking and complying with local, state, and federal laws and
statutes concerning the recording and monitoring of audio
signals.

1

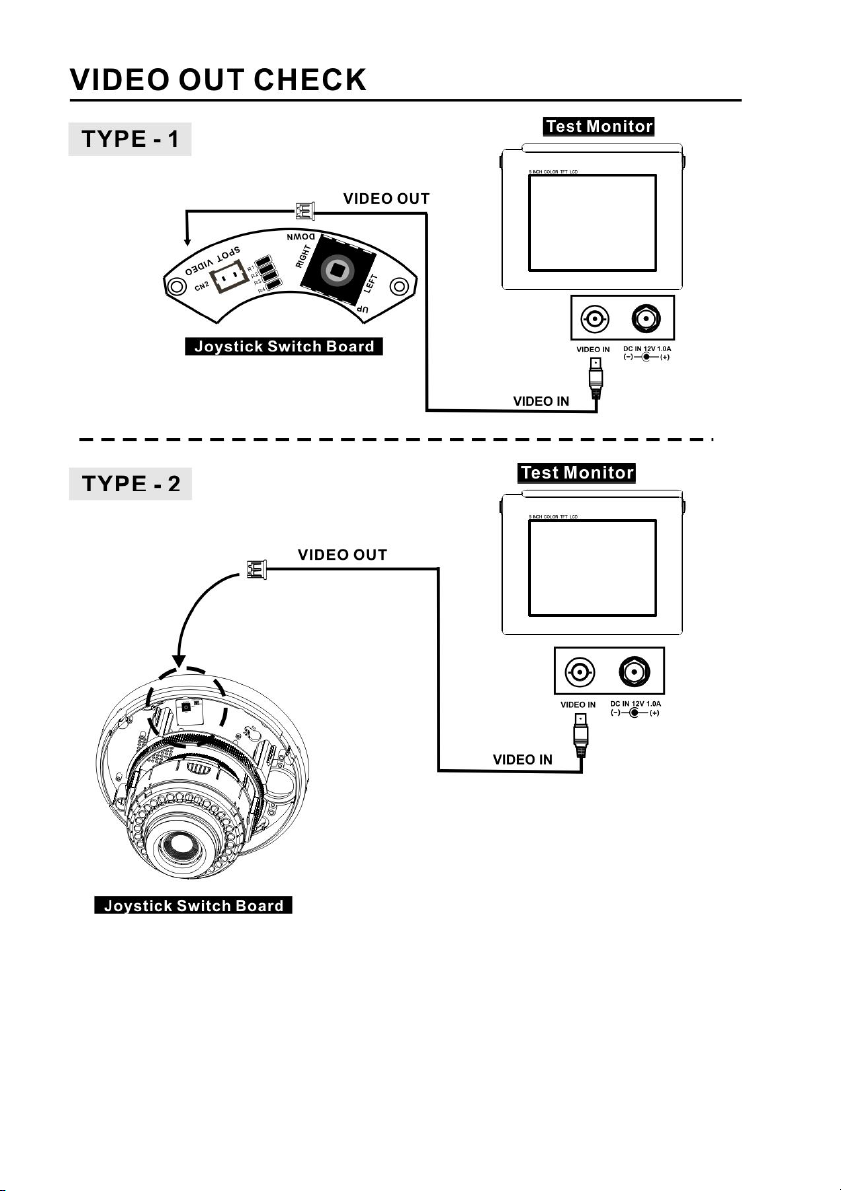

CAMERA CONNECTION

1. Lens : 2.8~12mm D/N Vari-focal(DC AI) for wide area monitoring

2. Power : power source from a DC 12V or AC 24V

3. Video : BNC connector used to connect the camera to a monitor,
switcher.ect.

2

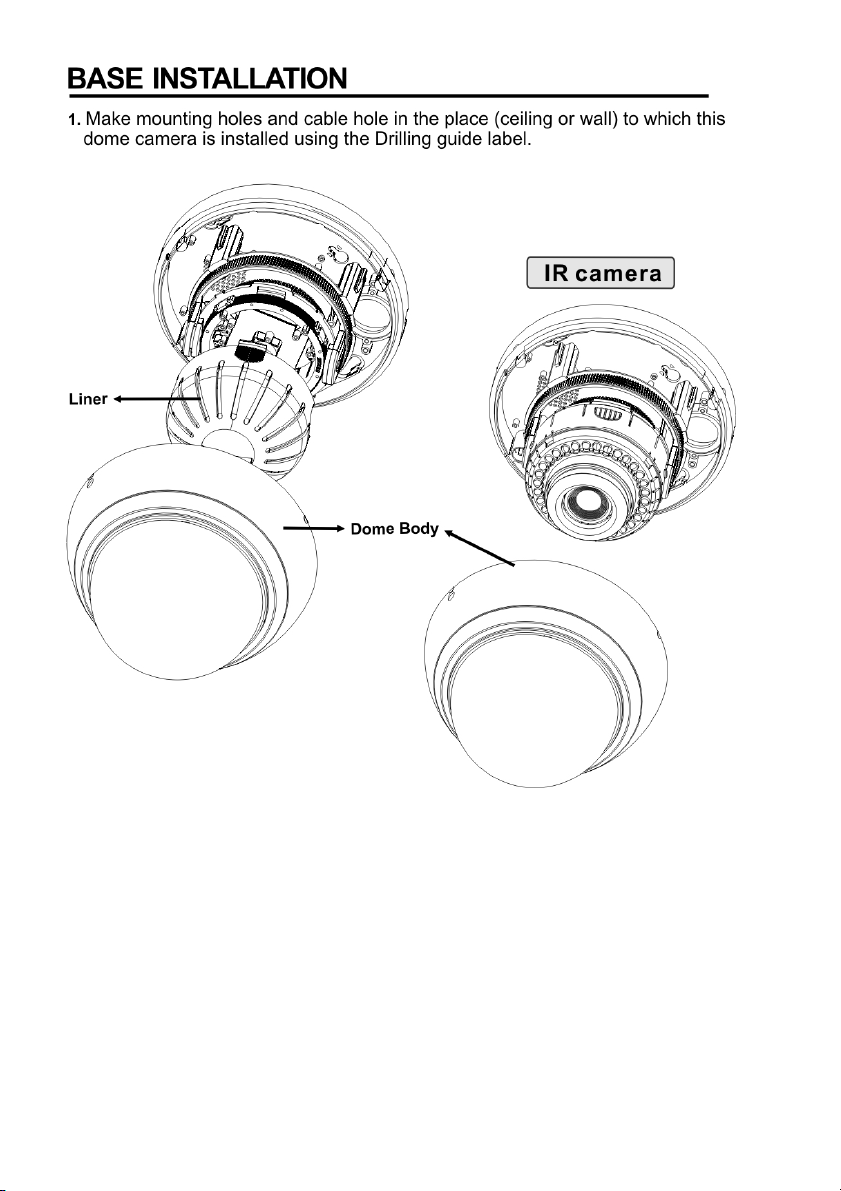

3

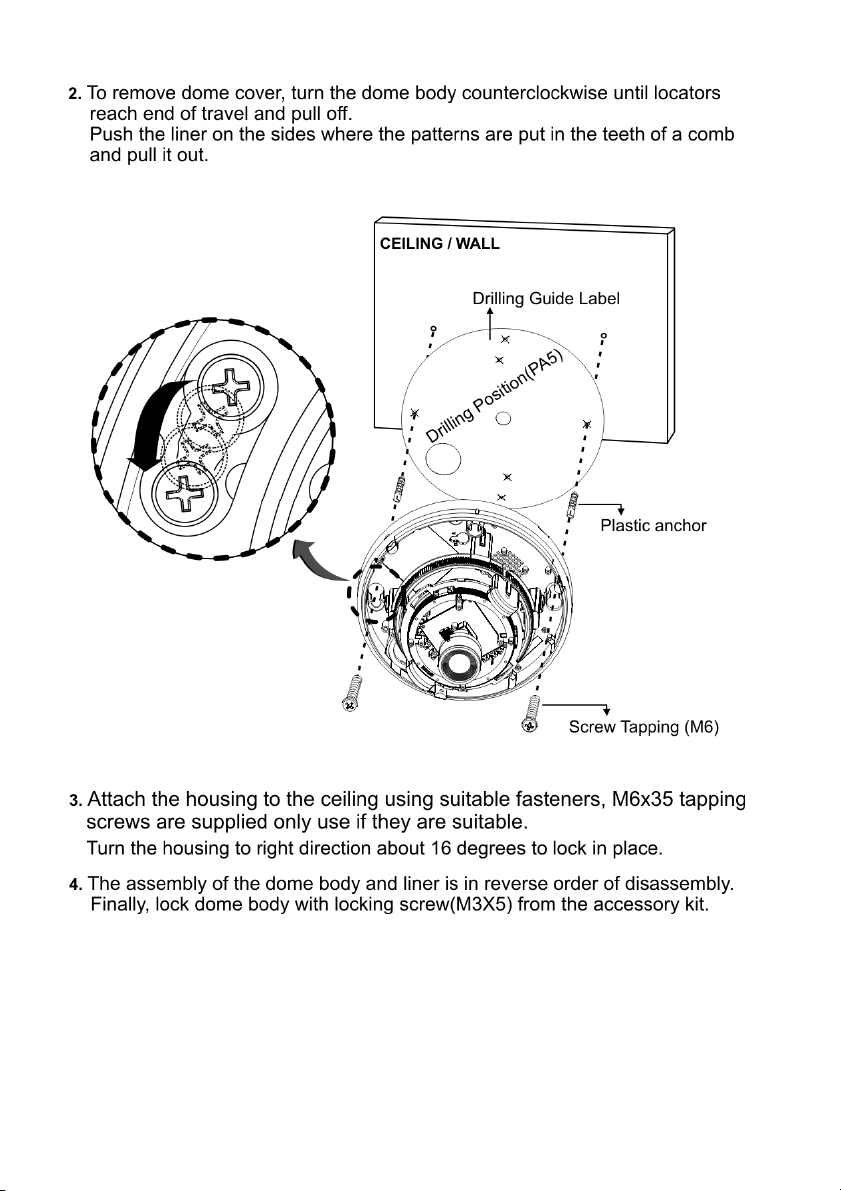

4

5

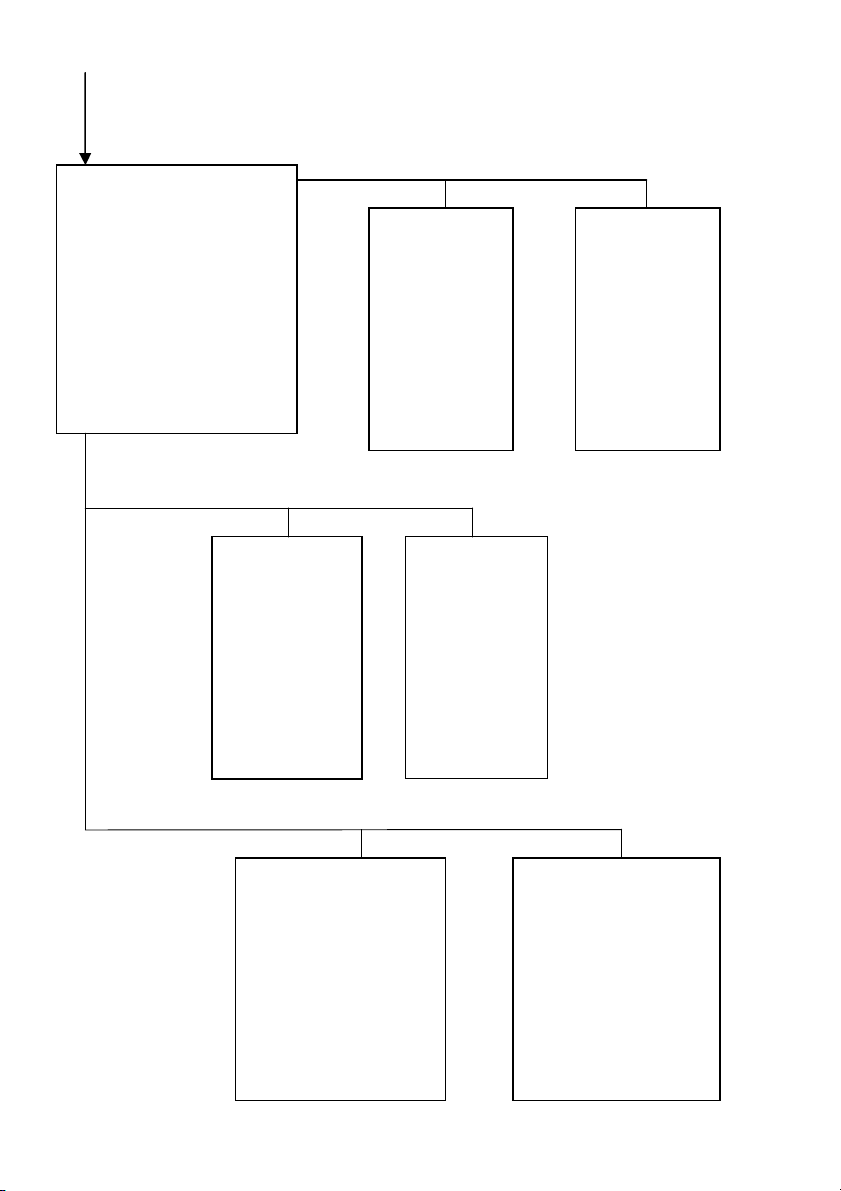

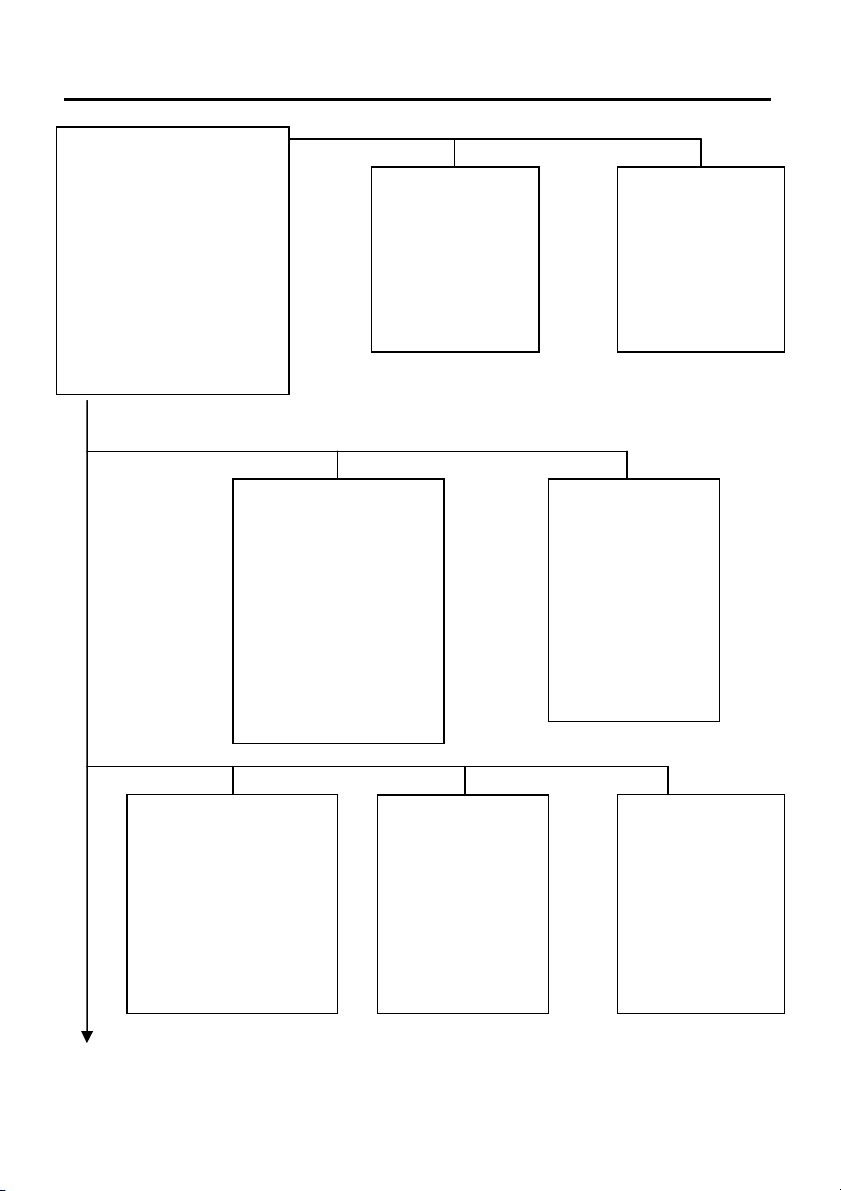

OSD MENU STRUCTURE

SETUP MENU (page 1)

LENS
SHUTTER/AGC
WHITE BAL
BACKLIGHT
PICT ADJUST
ATR
MOTION DET

NEXT (page2)
EXIT SAVE ALL

LENS

AUTO ↵
MANUAL

SHUTTER/AGC

AUTO↵
MANUAL↵

WHITE BALANCE

ATW ↵
PUSH
USER 1↵
USER 2↵
ANTI CR
MANUAL↵
PUSH LOCK

BACKLIGHT

OFF
BLC
HLC

PICTURE ADJUST↵

MIRROR
BRIGHTNESS
CONTRAST
SHARPNESS
HUE
GAIN

RETURN

ATR

OFF
ON↵

MOTION DET

OFF
ON↵

6

SETUP MENU (page 2)

PRIVACY
DAY/NIGHT
NR
CAMERA ID
LANGUAGE
CAMERA RESET

BACK (page 1)
EXIT SAVE ALL

NR↵

NR MODE
Y LEVEL
C LEVEL

RETURN

PRIVACY

OFF
ON↵

CAMERA ID

OFF
ON↵

DAY/NIGHT

COLOR
B/W↵

LANGUAGE

ENGLISH
日本語
DEUTSCH
FRANCAIS
PYCCKNN
PORTUGUES
ESPANOL

CAMERA RESET

(return the camera to
factory defaults)

7

LENS

AUTO
TYPE (DC / VIDEO)

Sets the type of mechanical iris
(Video lens is not supported)
MODE (AUTO / OPEN / CLOSE )
Sets the type of control to be applied over the mechanical iris.
SPEED (0 – 255)
Sets the convergence speed of the mechanical iris.

MANUAL

Manual lens only
. (Note Since Manual mode AUTO mode is changed SHUTTER/AGC to

SHUT+AUTO IRIS when MANUAL is changed to AUTO, AUTO MODE
should be changed to AUTO IRIS in SHUTTER/AGC)

SHUTTER/AGC

AUTO

HIGH LUMINANCE
MODE (SHUT+AUTO IRIS / AUTO IRIS)
(Note: only SHUT can be selected if LENS is in MANUAL mode

SHUT+AUTO IRIS is AE(Auto Exposure) for SHUTTER is 1/500(1/480) and
MIRIS)

BRIGHTNESS (0 ~ 255)

Adjusts the brightness

LOW LUMINANCE

MODE (AGC / OFF)

Auto Gain Control on or off

BRIGHTNESS (x0.25 / x0.50 / x0.75/ x1.00)
Amount of AGC applied in low lighting conditions

MANUAL

MODE (SHUT+ AGC)

Auto gain control

SHUTTER
Select the shutter speed (1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000,

1/10000)
AGC
Sets the AGC gain applied [dB] for ME (manual exposure)
(6, 12, 18, 24, 30, 36, 42, 44.8dB)

8

WHITE BAL

ATW (Auto Trace White balance)
SPEED (0~255)
Adjusts the pull-in speed of ATW.
DELAY CNT (0~255)
Sets the time-based hysteresis of ATW.
ATW FRAME (x0.5 / x1 / x1.5 / x2)
Sets the pull-in frame magnification.
ENVIROMENT (INDOOR / OUTDOOR)

Preset for either indoor or outdoor applications of the ATW

PUSH

Wide range Auto White Balance mode (AWB)

USER1 & 2

Both USER 1 & 2 can be individually set up for specific applications. The gain
values for the outdoor fixed mode are used as the adjustment items of USER1
on the internal OSD menu.
B-GAIN (0~255)
R-GAIN (0~255)

ANTI CR

Color rolling suppression

MANUAL

The B and R gain values for manual WB are set on this screen.

LEVEL (NTSC : 13 ~ 56) , (PAL : 16 ~ 78)

PUSH LOCK

PUSHLOCK is selected and the Enter input is active

BACKLIGHT

Sharpens subjects with backlight (OFF / BLC / HLC)

PICT ADJUST

MIRROR (OFF / ON) Horizontally inverts image.
BRIGHTNESS (0~255) Sets the screen brightness.
CONTRAST (0~255) Sets the screen contrast.
SHARPNESS (0~255) Sets the screen sharpness.
HUE (0~255) Adjusts the hue.
GAIN (0~255) Adjusts the gain.

9

ATR

RETURN

AREA SEL

ATR (Adaptive Tone Reproduction) allows adjustment of the image to assist
with widely contrasting scenes of view.

LUMINANCE (LOW / MID / HIGH)
Sets the extent of the luminance compression
CONTRAST (LOW / MIDLOW / MID / MIDHIGH / HIGH)
Sets the extent of the contrast enhancement

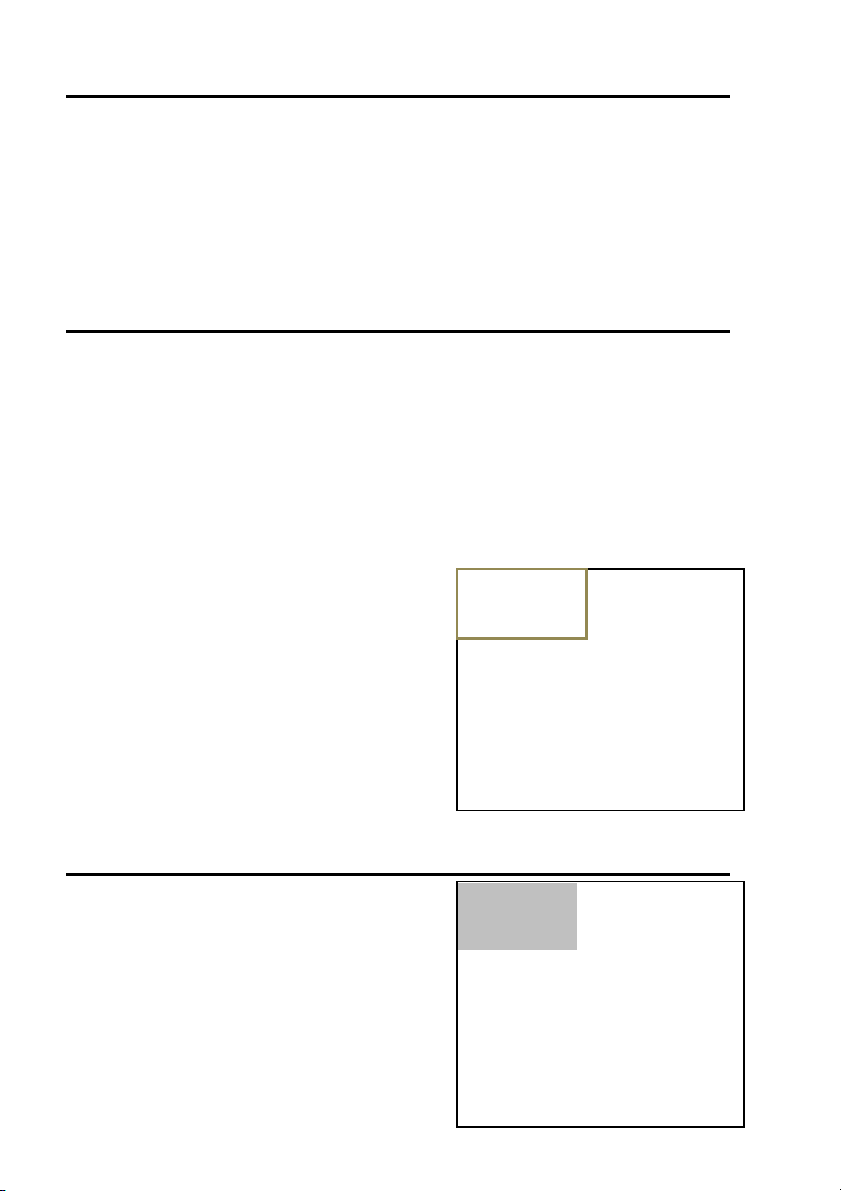

MOTION DET

DETECT SENSE (0~127)

Sets the motion detection sensitivity (0=low sensitivity, 127=high sensitivity)

BLOCK DISP (OFF / ON / ENABLE)

Applies a Motion block trace in the selected area. To define the area, select

Enable and push centrally on the joystick. Use the Joystick to navigate to the

blocks you want to Disable and not include in motion trace. To return to the
menu, push and hold central joystick for 2secs and release.

MOTION AREA (ON / OFF)
Enables/disables the motion detection
AREA SEL (1~4)

MOTION DET

Selects the motion detection area
(Note: Set the area sel it would be better
to move firstly BOTTOM and RIGHT)
TOP (NTSC:0~244 , PAL:0~288)
0 = top
BOTTOM (NTSC:0~244 , PAL:0~288)
244(288) = bottom
LEFT (NTSC:0~474 , PAL:0~468)
0 = left

DETECT SENSE IIIIIIIIIII 111
BLOCK DISP OFF
MONITOR AREA ON
AREA SEL 1/4

TOP IIIIIIIII 000
BOTTOM IIIIIIIII 076
LEFT IIIIIIIII 000
RIGHT IIIIIIIII 183

RIGHT (NTSC:0~474 , PAL:0~468)
474(468) = right

PRIVACY

AREA SEL (1~4)

Selects the motion detection area
(Note: Set the area sel it would be better
to move firstly BOTTOM and RIGHT)
TOP (NTSC:0~244 , PAL:0~288)
0 = top
BOTTOM (NTSC:0~244 , PAL:0~288)
244(288) = bottom

PRIVACY

PRIVACY

AREA SEL 1/4
TOP IIIIIIIIII000

BOTTOM IIIIIIIIII077
LEFT IIIIIIIIII000
RIGHT IIIIIIIIII187
COLOR 1
TRANSP 1.00
MOSAIC OFF

10

LEFT (NTSC:0~474 , PAL:0~468)
0 = left
RIGHT (NTSC:0~474 , PAL:0~468)
474(468) = right

COLOR (1~8)
Sets the colors of the privacy zones.

TRANSP (0.00 / 0.50 / 0.75 / 1.00)
Sets the transparency of the privacy zone area if color is selected.
MOSAIC (OFF / ON)

Sets the mosaic function as the privacy to ON or OFF.
(Note: when ON, transparency needs to be set at 0.00 and privacy zones
can only be 1 color OR mosaic and not mixed)

DAY / NIGHT

COLOR (color only operation)
B/W (monochrome only operation)
BURST (OFF / ON)
Allows the color burst signal in monochrome to be removed if required.

IR OPTIMIZER (OFF / ON)

Smart IR mode OFF or ON

MODE (ONLY IR OPTIMIZER ON, AUTO / CENTER)

Auto : Histogram integration mode

Center : Center priority mode

LEVEL (ONLY IR OPTIMIZER ON, 0~31)

NR (2D-DNR)

This is used to remove noise from the image in low light conditions when

AGC is applied.

NR MODE (OFF, Y, C, Y/C)
Sets the 2D NR filter mode.

Y LEVEL (0-15)

Sets the Y filter (Luminance) strength.

C LEVEL (0-15)

Sets the C filter (Chrominance) strength.

11

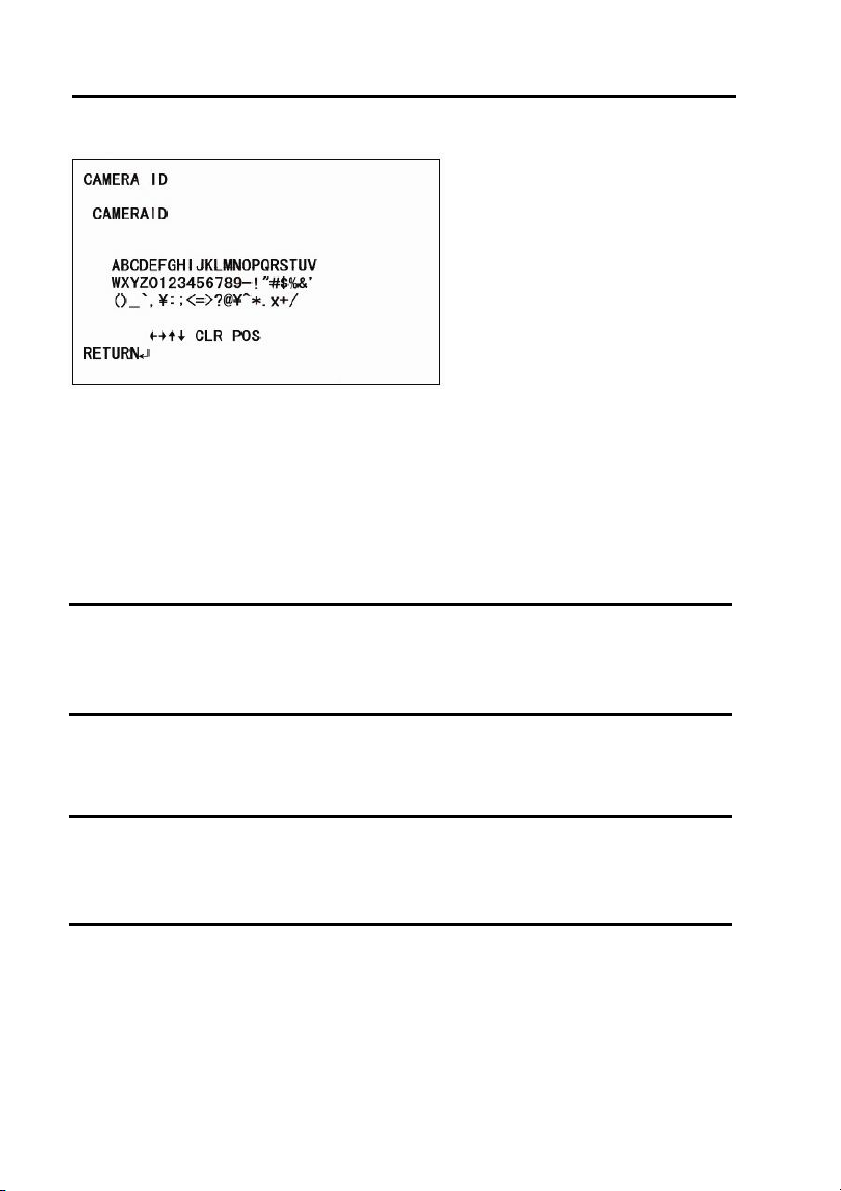

CAMERA ID

Sets the camera ID to ON or OFF. A title of 52 characters per line can be
applied.

Use the joystick to navigate
the cursor. Pushing centrally
on the joystick will allow
selection of that character.

The arrows at the bottom
allow you to move the cursor
without changing the
character.

CLR
Inserts a space
POS

Allows you adjust the location of the camera ID title display. (if you move too
much right side or down, it might lose ID on the screen)

LANGUAGE

LANGUAGE select between:

English, Japanese, German, French, Russian, Portuguese & Spanish.

CAMERA RESET

CAMERA RESET - Returns the camera to the factory default settings.

SAVE ALL

SAVE ALL - Saves all the changes made in the menu.

EXIT

EXIT – Exits the menu and does not save changes made.

12

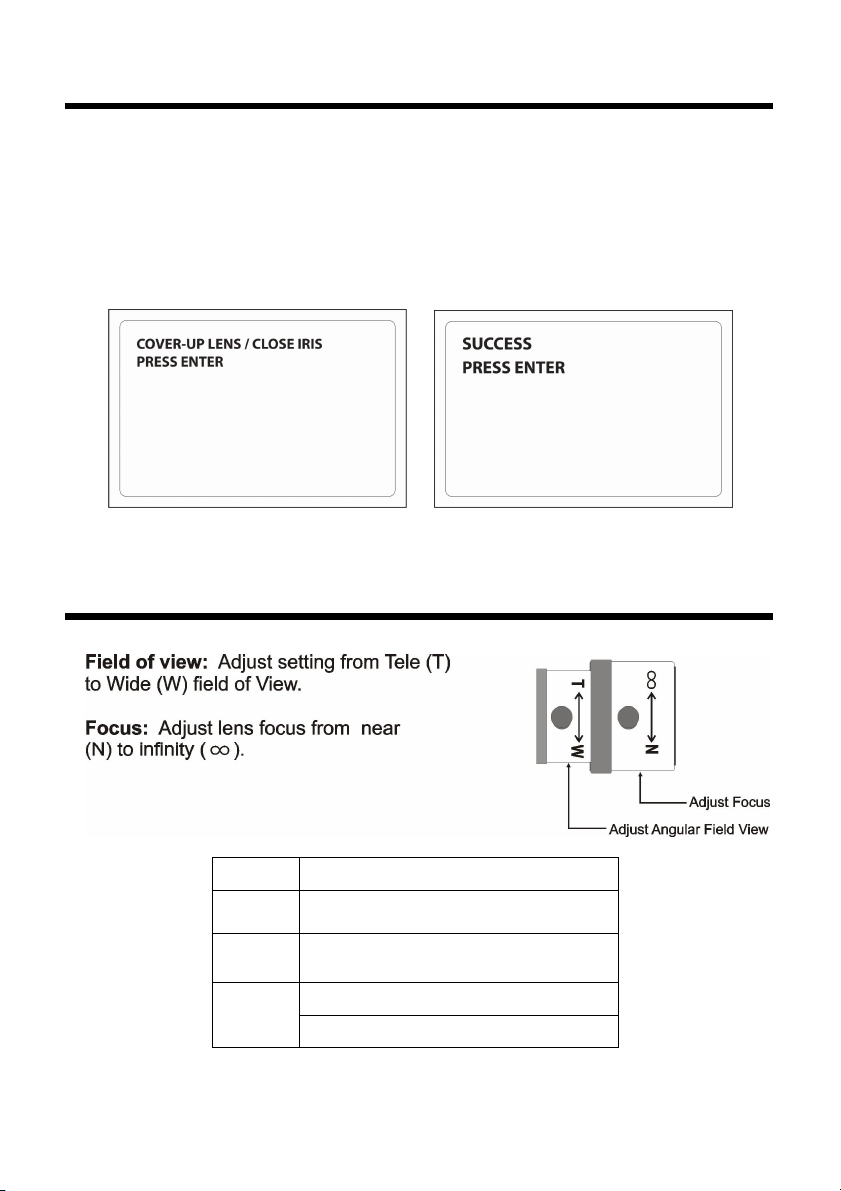

AUTO WHITE DEFECT

Push the left button for 5 seconds and enter Auto white defect menu.
Cover the lens and Enter for starting.

If white defects are over 65pcs, the camera is faulty and auto defect is
useless.

Over 70'C Auto white defect can't be activated.

LENS ADJUSTMENT (OPTIONAL VARIFOCAL LENS)

Lens 2.8 ~ 12 mm


Size

Focal

Length

Angular

Field of

View

1/3’’ CCD

2.8 ~ 12 mm 5%

HORIZONTAL

100.8 ° ~ 23.7 °

13

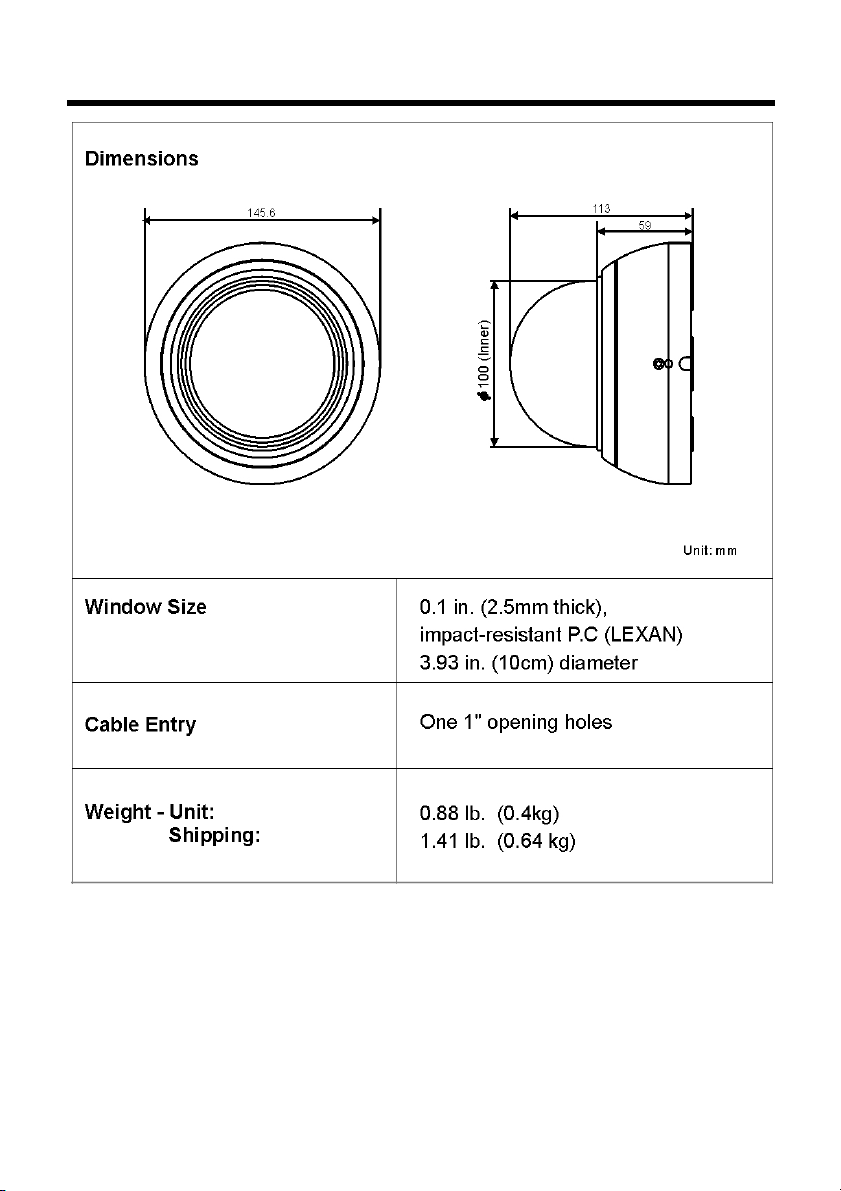

EXTERNAL DIMENSION

14

SPECCIFICATIONS

U N C T

N

Power

General

Connector

& etc

MODEL NTSC PAL

Power source DC 12V / AC 24V (±10%)

Power consumption 3.5 Watts (300mA)
Image sensor 1/3″ SONY EXview HAD CCD II
Total pixels 1020(H) x 508(V) 1020(H) x 596(V)
Effective pixels 976(H)x494(V) 976(H)x582(V)
Scanning system 2:1 Interlace

Scanning frequency

Sync. system Internal
Electronic Shutter 1/50 ~ 1/10,000 sec
Resolution 700TVL
Min. illumination 0.15 Lux (Color) / 0.01 Lux (B/W)
Video output 1.0Vp-p (75 ohm, composite)
S/N ratio 50 dB (AGC OFF)
Camera Control Internal OSD Key

ATR (Adaptive Tone
Reproduction)
Backlight OFF / BLC / HLC
Day & Night AUTO
Smart IR On / Off / Level

F

MD (Motion Detection)
PM (Privacy Masking)
WB (White Balance) ATW / PUSH / USER1 / USER2

AGC (Auto Gain
Control)

I

Exposure Auto Iris / Auto Iris + Electronic Shutter

O

Brightness 0 ~ 255 steps
Contrast 0 ~ 255 steps
Sharpness 0 ~ 255 steps
HUE 0 ~ 255 steps
Gain 0 ~ 255 steps
NR(Noise Reduction) OFF / Y / C / Y, C
Mirror ON / OFF

Power input 2-Pin Terminal block
Video output BNC connector / Spot out

Lens

Operating temperature -10ºC ~ +50 ºC
Operating humidity 0~96% (non-condensing)
External dimension 145.6 x 113 mm
Weight 400g

15.734KHz(H)
x 59.94Hz(V)

LUMINANCE(L/M/H), CONTRAST(L/LM/M/MH/H)

"On (4 areas) / Off Adjustable Size & Sensitivity"

0 ~ 4 zone

/ ANTI CR / MANUAL / PUSH LOCK

On / Off

2.8~12mm, 2.6~6mm, 4~9mm Vari-focal lens

15.625KHz(H)
x 50Hz(V)

15

SPECCIFICATIONS – IR CAMERA ONLY

U N C T

N

Power

General

Connector

& etc

MODEL NTSC PAL

Power source DC 12V / AC 24V (±10%)

Power consumption 5 Watts (450mA)
Image sensor 1/3″ SONY EXview HAD CCD II
Total pixels 1020(H) x 508(V) 1020(H) x 596(V)
Effective pixels 976(H)x494(V) 976(H)x582(V)
Scanning system 2:1 Interlace

Scanning frequency

Sync. system Internal
Electronic Shutter 1/50 ~ 1/10,000 sec
Resolution 700TVL
Min. illumination 0.15 Lux (Color) / 0 Lux (B/W & IR ON))
IR LED / Sensor IR LED 30EA(850nm) / 40 degree), Sensor 1EA
Video output 1.0Vp-p (75 ohm, composite)
S/N ratio 50 dB (AGC OFF)
Camera Control Internal OSD Key

ATR (Adaptive Tone
Reproduction)
Backlight OFF / BLC / HLC
Day & Night AUTO
Smart IR On / Off / Level

F

MD (Motion Detection)
PM (Privacy Masking)
WB (White Balance) ATW / PUSH / USER1 / USER2

AGC (Auto Gain
Control)

I

Exposure Auto Iris / Auto Iris + Electronic Shutter

O

Brightness 0 ~ 255 steps
Contrast 0 ~ 255 steps
Sharpness 0 ~ 255 steps
HUE 0 ~ 255 steps
Gain 0 ~ 255 steps
NR(Noise Reduction) OFF / Y / C / Y, C
Mirror ON / OFF

Power input 2-Pin Terminal block
Video output BNC connector / Spot out

Lens

Operating temperature -10ºC ~ +50 ºC
Operating humidity 0~96% (non-condensing)
External dimension 145.6 x 113 mm
Weight 400g

15.734KHz(H)
x 59.94Hz(V)

LUMINANCE(L/M/H), CONTRAST(L/LM/M/MH/H)

"On (4 areas) / Off Adjustable Size & Sensitivity"

0 ~ 4 zone

/ ANTI CR / MANUAL / PUSH LOCK

On / Off

2.8~12mm Vari-focal lens (True D/N)

15.625KHz(H)
x 50Hz(V)

1

16

50303457A
