ATV IPVD3TRWI User Manual
INSTRUCTION MANUAL
3MP Vandal Dome
Network Camera IPVD3TRWI
Please read this manual thoroughly before use, and ke ep it handy for future reference.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT
THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE
EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus.
CAUTION
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
2
FCC COMPLIANCE STATEMENT
INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO
COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC
RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL
INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS
EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT
INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE
EQUIPMENT.
THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME NMB-003 DU CANADA.
CE COMPLIANCE STATEMENT
WARNING: This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
3
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused
for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15. CAUTION – THESE SERVICING INSTRUCTIONS A RE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE T HE RISK OF ELECTRIC SHOCK DO
NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE
OPERATING INSTRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO.
16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2
power source only.
ITE is to be connected only to PoE networks without routing to the outside plant.
17.
4
Contents
1. Description ------------------------------------------------------------------6
1.1 Components - ------------------------------------------------------------------------------------------ 6
1.2 Key Features- ------------------------------------------------------------------------------------------ 7

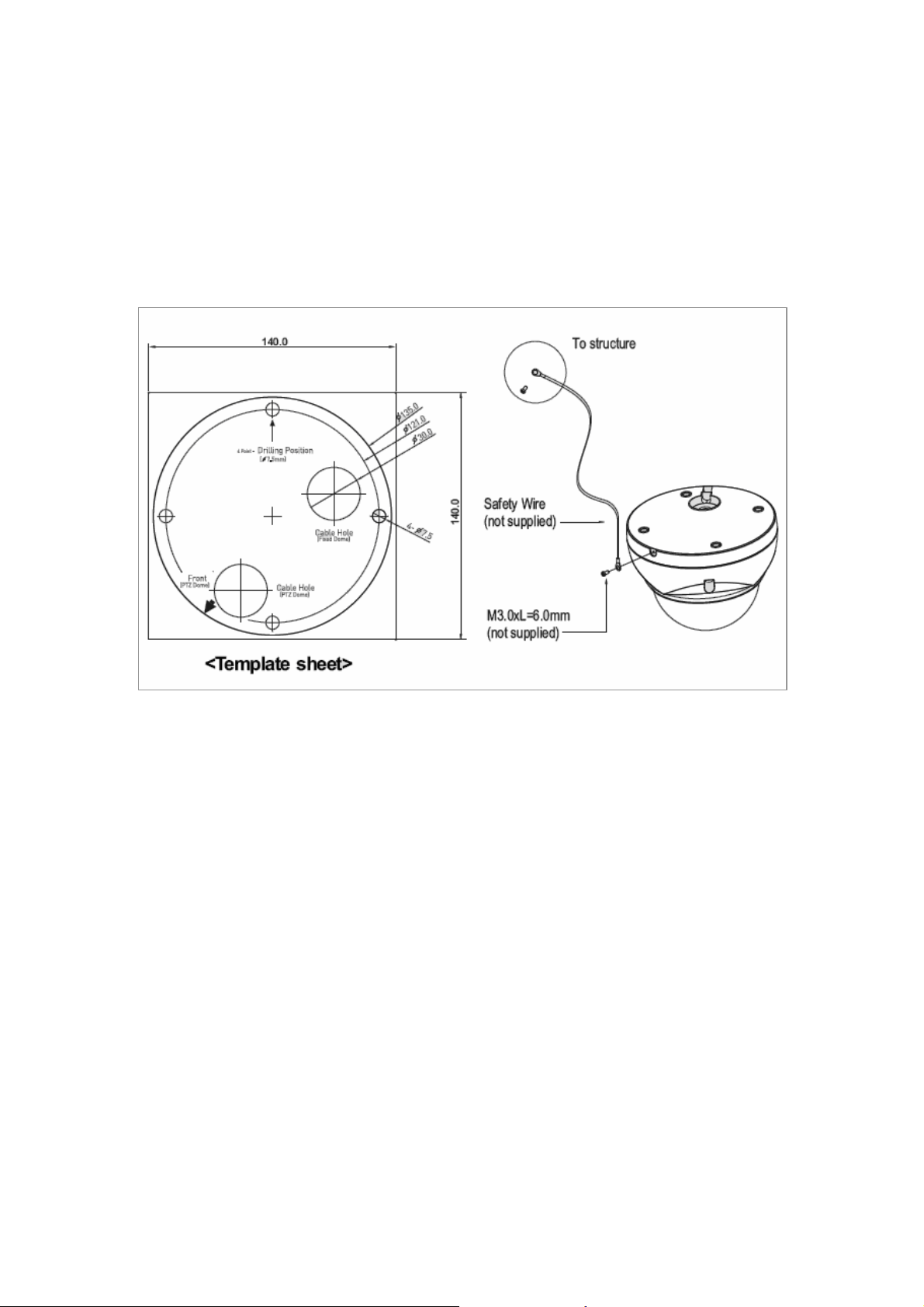

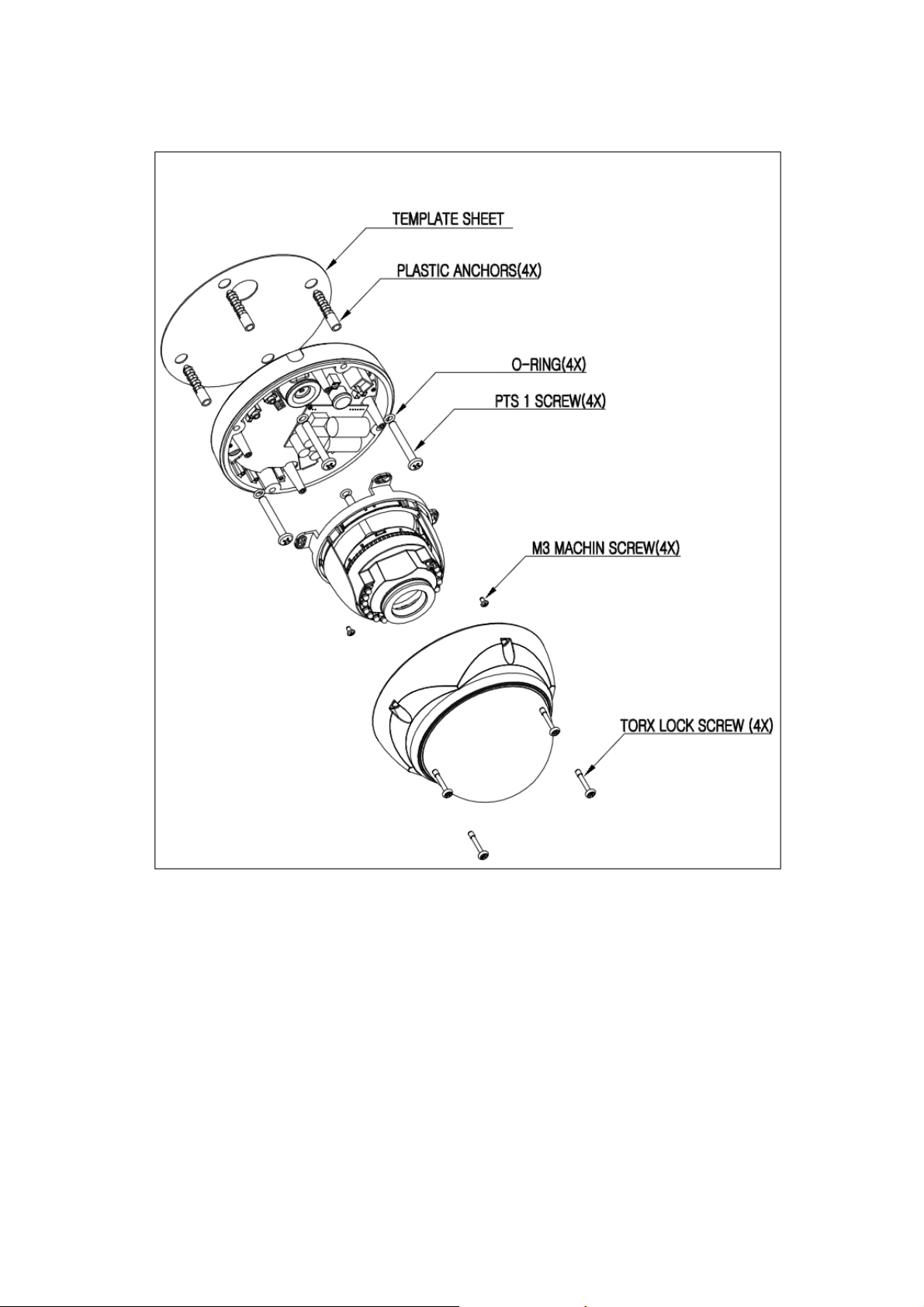

2. Installation ------------------------------------------------------------------- 8

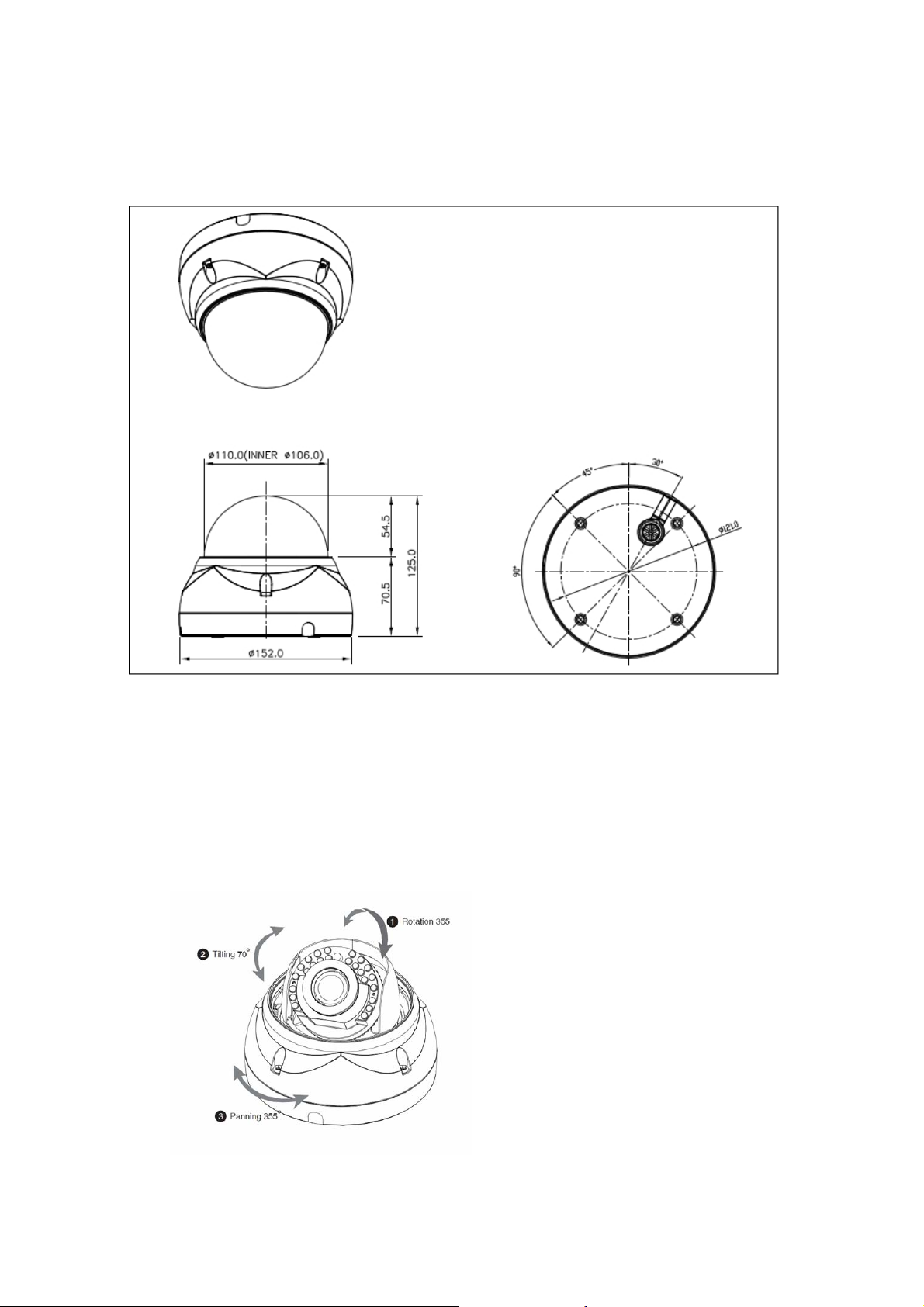

2.1 Overview----------------------------------------------------------------------------------------------------8
2.2 Connection------------------------------------------------------------------------------------------------12

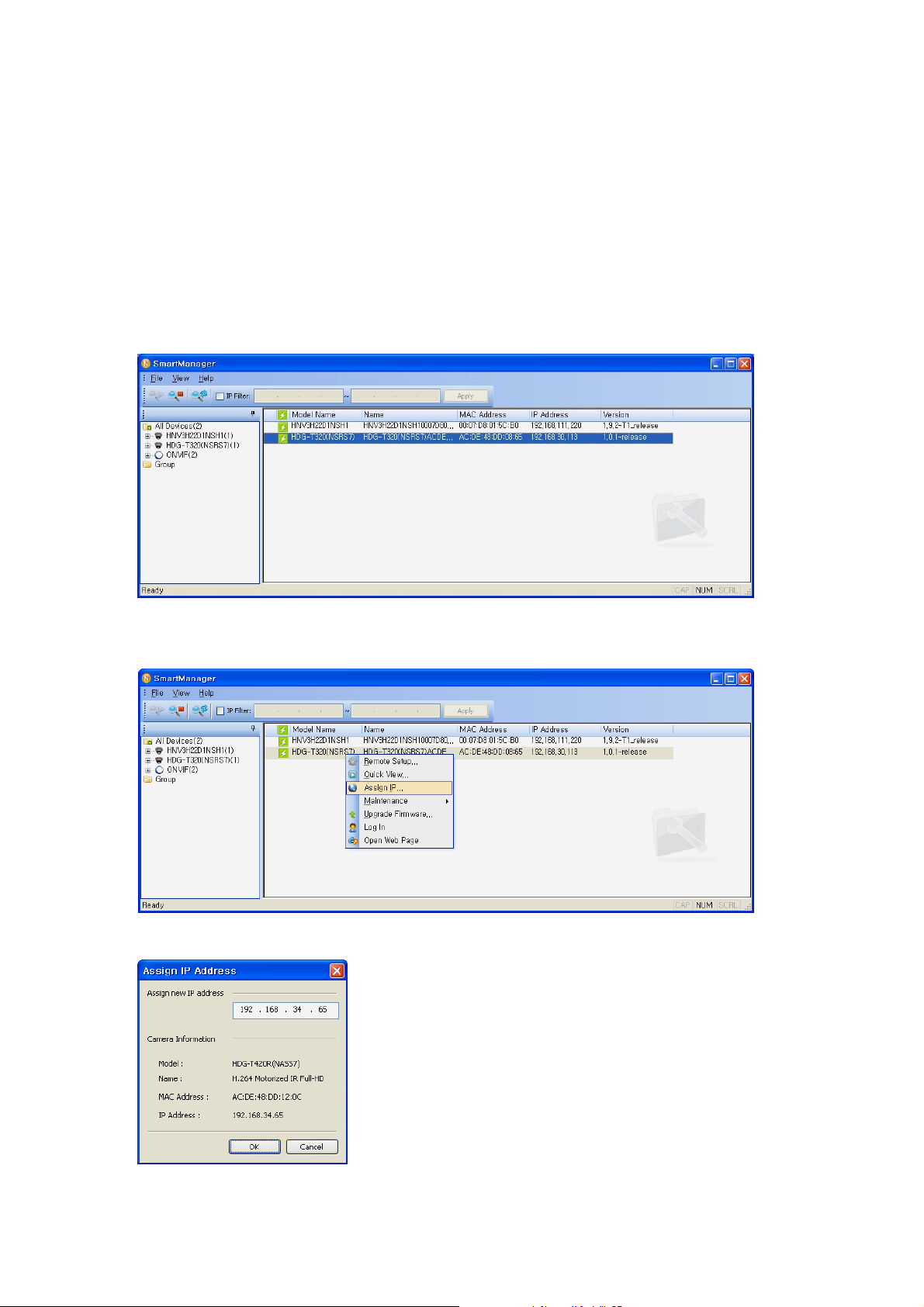

2.3 Network Connection and IP Assignment ----------------------------------------------------------17
3. Operation -------------------------------------------------------------------- 16
3.1 Access from a browser -------------------------------------------------------------------------------- 16
3.2 Access from the internet------------------------------------------------------------------------------17
3.3 Setting the admin password over a secure connection------------------------------------------- 17
3.4 Live View Page ----------------------------------------------------------------------------------------- 17
3.5 Network Camera Setup-------------------------------------------------------------------------------- 20
3.5.1 Basic Configuration ---------------------------------------------------------------------------- 20
1) Users------------------------------------------------------------------------------------------ 21
2) Network -------------------------------------------------------------------------------------- 21
3) Video & Image ------------------------------------------------------------------------------23
4) Audio-------------------------------------------------------------------------------------------25
5) Date & Time ---------------------------------------------------------------------------------27
3.5.2 Video & Image---------------------------------------------------------------------------------- 28
3.5.3 Audio---------------------------------------------------------------------------------------------- 34
3.5.4 Event--------------------------------------------------------------------------------------------- 35
1) Event-In--------------------------------------------------------------------------------------35
2) Event-Out----------------------------------------------------------------------------------- 40
3) Event Map----------------------------------------------------------------------------------- 48
3.5.5 System ------------------------------------------------------------------------------------------ 49
1) Information ----------------------------------------------------------------------------------49
2) Security--------------------------------------------------------------------------------------- 50
3) Date & Time --------------------------------------------------------------------------------- 53
4) Network -------------------------------------------------------------------------------------- 54
5) Language------------------------------------------------------------------------------------- 63
6) Maintenance --------------------------------------------------------------------------------- 64
7) Support---------------------------------------------------------------------------------------65
3.5.7 About---------------------------------------------------------------------------------------------- 65
3.6 Playback------------------------------------------------------------------------------------------------- 66
3.7 Help---- -------------------------------------------------------------------------------------------------- 68
3.8 Resetting to the factory default settings ------------------------------------------------------------- 69
4. Appendix -------------------------------------------------------------------- 70
4.1 Troubleshooting ----------------------------------------------------------------------------------------- 70
4.2 Alarm Connection --------------------------------------------------------------------------------------- 71
4.3 Preventive Maintenance -------------------------------------------------------------------------------- 71
4.4 Product Specification ----------------------------------------------------------------------------------- 72
5
1. Description
This manual applies to the IPVD3TRWI network camera.
The Network Camera supports the network service f or a sensor image with progressive scan, which
can be monitored on a real-time screen regardless of distances and locations. By using its dedicated
program, many users are able to ha ve an access to the Network Camera at once or a single user can
monitor various network camera s at the same time. It also enables users to play, store and retrieve a
monitoring image by using a PC. All the settings and real-time monitoring screens are also provided
through an access to the web.
The Network Camera is fully featured f or security surveillance and remote monitoring needs. It is
based on the DSP compression chip, and makes it available on the network as real-time, full frame
rate Motion JPEG and H.264 (or MPEG-4) video streams.
The alarm input and alarm output can be used to connect various third party devices, such as, door
sensors and alarm bells.

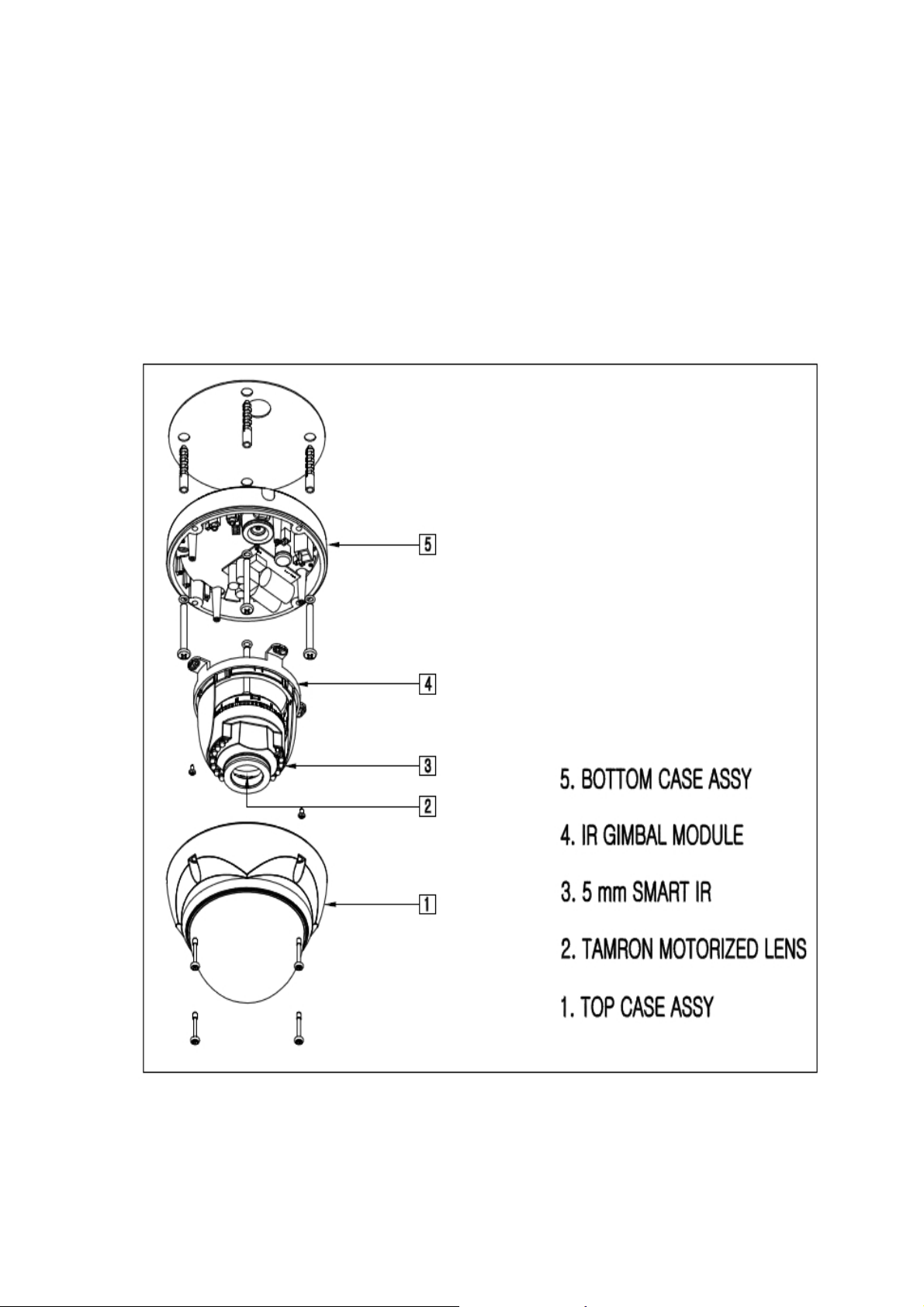

1.1 Components
The system comes with the following components:
Check your package to make sure that you received the complete system, including all components
shown above.
6
1.2 Key Features
• Brilliant video quality
The Network Camera offers the highly efficient H.264 video compression, which drastically reduces bandwidth
and storage requirements without compromising image quality. Motion JPEG is also supported for increased
flexibility.
• Wide Dynamic Range
The network camera provides WDR (Wide Dynamic Range) that improves video exposure quality in scenes with
high contrast between bright and dark areas in the video, for example a shady area and a sunny area in the same
scene.
• Dual or triple streams
The Network Camera can deliver dual or triple video streams simultaneously at full frame ra te in all resolutions up
to 3M (2048 x 1536p) using Motion JPEG and H.264 (or MPEG-4). This means that several video streams can be
configured with different compression formats, resolutions and frame rates for different needs.
• Image setting adjustment
The Network Camera also enables users to adjust image settings such as contrast, brightness and saturation to
improve images before encoding takes place.
• Intelligent video capabilities
The Network Camera includes intelligent capabilities such as enhanced video motion detection. The network
camera’s external inputs and outputs can be connected to devices such as sensors and relays, enabling the
system to react to alarms and activate lights or open/close doors.
• Easy Focus
Easy Focus will be activated once Day/Night mode switched, and the focus readjusted automatically.
• Focus & Zoom Control via Network
The Network Camera also enables users to adjust focus and zoom remotely via network.
• Resolution
3 Megapixel, Max. 20fps@2048x1536, 30fps@1920x1080
• Micro-SD Recording support
The Network Camera also supports a micro-SD memory slot for local recording with removable storage.
• Improved Security
The Network Camera logs all user access, and lists currently connected users. Also, its full frame rate video can
be provided over HTTPS.
• Power over Ethernet
Support for Power over Ethernet (IEEE802.3af) enables the unit, as well as the camera module that is connected
to it, to receive power through the same cable as for data transmission. This makes for easy installation since no
power outlet is needed.
• ONVIF
This is a global interface standard that makes it easier for end users, integrators, consultants, and manufacturers
to take advantage of the possibilities offered by network video technology. ONVIF enables interoperability
between different vendor products, increased flexibility, reduced cost, and future-proof systems.
7
