INSTRUCTION MANUAL
2MP VP Dome
Network Camera:
IPVD2TW
Please read this manual thoroughly before use, and ke ep it handy for future reference.
Page 2
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT
THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE
EQUIPMENT.
Apparatus shall not be exposed to dr ipping or splashing a nd tha t no objects fille d
with liquids, such as vases, shall be placed on the apparatus.
CAUTION
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product’s enclosure that may be of suff icient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important oper ating and maintenance (servicing)
instructions in the literature accompanying the appliance.
2
Page 3
FCC COMPLIANCE STATEMENT
INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO
COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC
RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL
INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS
EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT
INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE
EQUIPMENT.
THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME NMB-003 DU CANADA.
CE COMPLIANCE STATEMENT
WARNING: This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
3
Page 4
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not bloc k an y v entilation op enings. I nstall in accor dance with the manuf acturer’s
instructions.
8. Do no t in stall near any h eat sources such as r adiators, he at r egisters, s toves, or oth er
apparatus (including amplifiers) that produce heat.
9. Do not def eat the safety purpose of t he polarized or grounding-type plug. A polariz ed pl ug
has two blades with one wider than the other. A gr ounding type plug has two blades and a
third grounding prong. The wide bl ade or the thir d prong is pr ovided for your safety. If the
provided plug does n ot f it into y our outlet, consult an electrici an f or r eplacement of the
obsolete outlet.
10. Protect the power cor d f rom being walk ed on or pinched particularly at plugs, con venience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the c art, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the appar atus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this appar atus during lightning storms or wh en unused
for long periods of time.
14. Refer all servicing to qu alified se rvice personnel . Servicing is
required whe n the app aratus h as been damaged in any way,
such as power-supply cord or pl ug is damaged, liquid has been
spilled or objects hav e fallen into the apparatu s, the apparatu s has been exp osed to rain or
moisture, does not operate normally, or has been dropped.
15. CAUTION – THESE SERVICING INSTRUCTIONS A RE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE
OPERATING INSTRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO.
16. Use satisfies clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2
power sources only.
ITE is to be connected only to PoE networks without routing to the outside plant.
17.
4
Page 5
Contents
1. Description ------------------------------------------------------------------6
1.1 Components - ------------------------------------------------------------------------------------------ 6
1.2 Key Features - ------------------------------------------------------------------------------------------ 7
2. Installation ------------------------------------------------------------------- 8
2.1 Overview----------------------------------------------------------------------------------------------------8
2.2 Connection------------------------------------------------------------------------------------------------12
2.3 Network Connection and IP Assignment ---------------------------------------------------------- 14
3. Operation -------------------------------------------------------------------- 15
3.1 Access from a browser -------------------------------------------------------------------------------- 15
3.2 Access from the internet ------------------------------------------------------------------------------ 16
3.3 Setting the admin password over a secure connection------------------------------------------- 16
3.4 Live View Page ----------------------------------------------------------------------------------------- 16
3.5 Network Camera Setup-------------------------------------------------------------------------------- 19
3.5.1 Basic Configuration ---------------------------------------------------------------------------- 19
1) Users------------------------------------------------------------------------------------------ 20
2) Network -------------------------------------------------------------------------------------- 20
3) Video & Image ------------------------------------------------------------------------------ 22
4) Audio-------------------------------------------------------------------------------------------24
5) Date & Time --------------------------------------------------------------------------------- 26
3.5.2 Video & Image ---------------------------------------------------------------------------------- 27
3.5.3 Audio---------------------------------------------------------------------------------------------- 33
3.5.4 Event --------------------------------------------------------------------------------------------- 34
1) Event-In-------------------------------------------------------------------------------------- 34
2) Event-Out ----------------------------------------------------------------------------------- 39
3) Event Map----------------------------------------------------------------------------------- 47
3.5.5 System ------------------------------------------------------------------------------------------ 48
1) Information ---------------------------------------------------------------------------------- 48
2) Security--------------------------------------------------------------------------------------- 49
3) Date & Time --------------------------------------------------------------------------------- 52
4) Network -------------------------------------------------------------------------------------- 53
5) Language------------------------------------------------------------------------------------- 62
6) Maintenance --------------------------------------------------------------------------------- 63
7) Support --------------------------------------------------------------------------------------- 64
3.5.6 About --------------------------------------------------------------------------------------------- 64
3.6 Playback ------------------------------------------------------------------------------------------------- 65
3. 7 Help---- -------------------------------------------------------------------------------------------------- 67
3.8 Resetting to the factory default settings ------------------------------------------------------------- 68
4. Appendix -------------------------------------------------------------------- 69
4 .1 Troubleshooting ----------------------------------------------------------------------------------------- 69
4.2 Alarm Connection --------------------------------------------------------------------------------------- 70
4 .3 Preventive Maintenance -------------------------------------------------------------------------------- 70
4.4 Product Specification ----------------------------------------------------------------------------------- 71
5
Page 6
1. Description
This manual applies to the IPVD2TW network camera.
The Network Camera supports the network service for a sensor image with progressive scan, which
can be monitored on a real-time screen regardless of distances and locations. By using its dedicated
program, many users are able to have an access to the Network Camera at once or a single user can
monitor various network cameras at the same time. It also enables users to play, store and retrieve a
monitoring image by using a PC. All the settings and real-time monitoring screens are also provided
through an access to the web.
The Network Camera is fully featured for security surveillance and remote monitoring needs. It is
based on the DSP compression chip, and makes it available on the network as real-time, full frame
rate Motion JPEG and H.264 (or MPEG-4) video streams.
The alarm input and alarm output can be used to connect various third party devices, such as, door
sensors and alarm bells.
1.1 Components
The system comes with the following components:
Check your package to make sure that you received the complete system, including all components
shown above.
6
Page 7
1.2 Key Features
• Brilliant video quality
The Network Camera offers the highly efficient H.264 video compression, which drastically reduces bandwidth
and storage requirements without compromising image quality. Motion JPEG is also supported for increased
flexibility.
• Wide Dynamic Range
The network c amera provides WDR (Wide Dynamic Range) that improves video exposur e quality in s cenes with
high contrast between bright and dark areas in the video, for example a shady area and a sunny area in the same
scene.
• Dual or triple streams
The Network Camera can deliver dual or triple video streams simultaneously at full frame rate in all resolutions up
to Full HD using Motion JPEG and H.264 (or MPEG-4). This means that several video streams can be configured
with different compression formats, resolutions and frame rates for different needs.
• Image setting adjustment
The Network Camera also enables users to adjust image settings such as contrast, brightness and saturation to
improve images before encoding takes place.
• Intelligent video capabilities
The Network Camera includes intelligent capabilities such as enhanced video motion detection. The network
camera’s external inputs and outputs can be connected to devices such as sensors and relays, enabling the
system to react to alarms and activate lights or open/close doors.
• Easy Focus
Easy Focus will be activated once Day/Night mode switched, and the focus readjusted automatically.
• Focus & Zoom Control via Network
The Network Camera also enables users to adjust focus and zoom remotely via network.
• Resolution
2 Megapixel, 30f ps@1920x1080
• Micro-SD Recording support
The Network Camera also supports a micro-SD memory slot for local recording with removable storage.
• Improved Security
The Network Camera logs all user access, and lists currently connected users. Also, its full frame rate video can
be provided over HTTPS.
• Power over Ethernet
Support for Power over Ethernet (IEEE802.3af) enables the unit, as well as the camera module that is connected
to it, to receive power through the same cable as for data transmission. This makes for easy installation since no
power outlet is needed.
• ONVIF
This is a global interface standard that makes it easier for end users, integrators, consultants, and manufacturers
to take advantage of the possibilities offered by network video technology. ONVIF enables interoperability
between different vendor products, increased flexibility, reduced cost, and future-proof systems.
7
Page 8
2. Installation
For the operation of the Network Camera, it is necessary to connect a network cable for data
transmission, power connection from supplied power adapter. Depending on operation methods, it is
possible to connect an alarm cable additionally. For its fixation on different locations, please consult
with an installer.
2.1 Over View

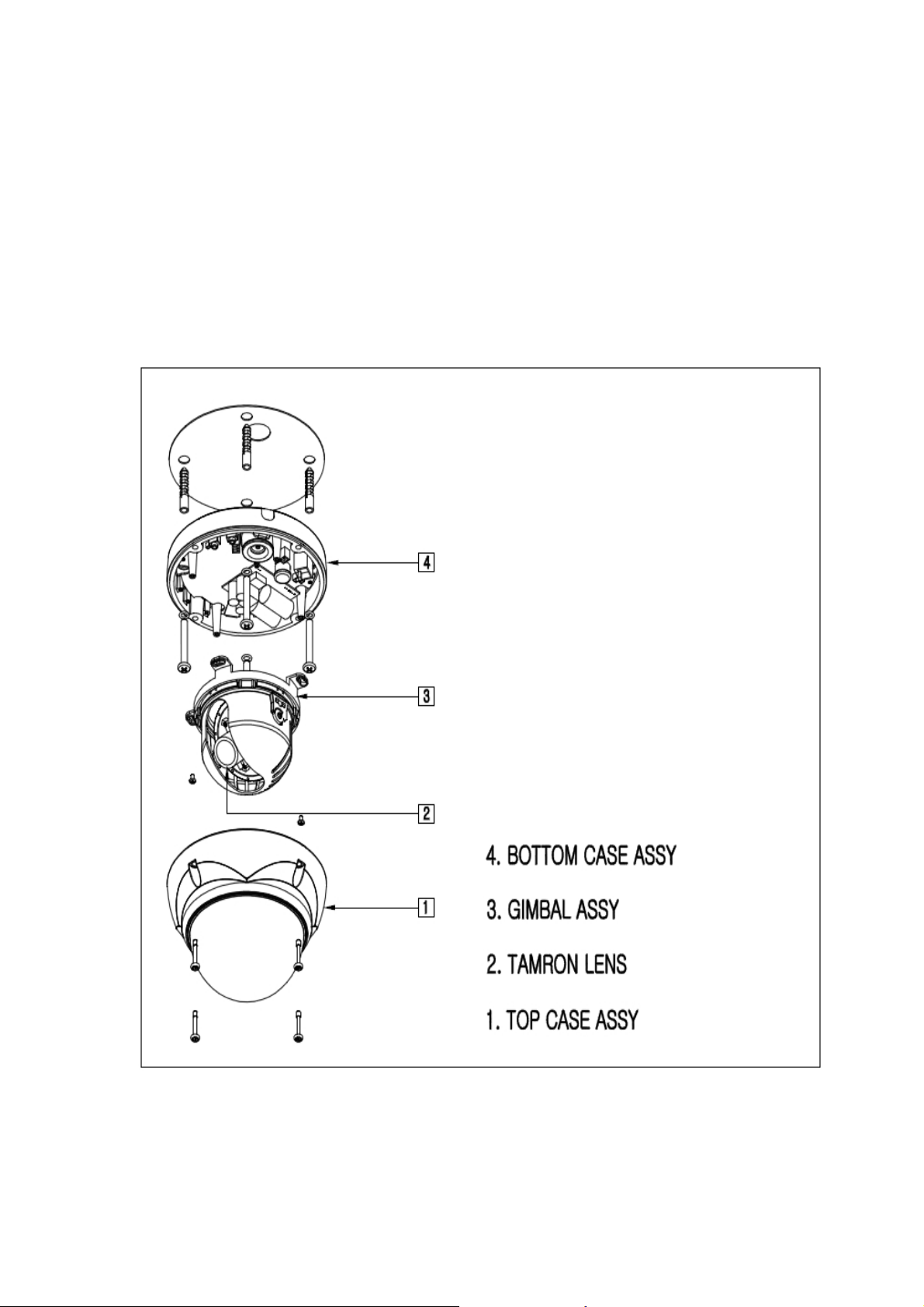

Parts and Description
8
Page 9
Camera Dimension

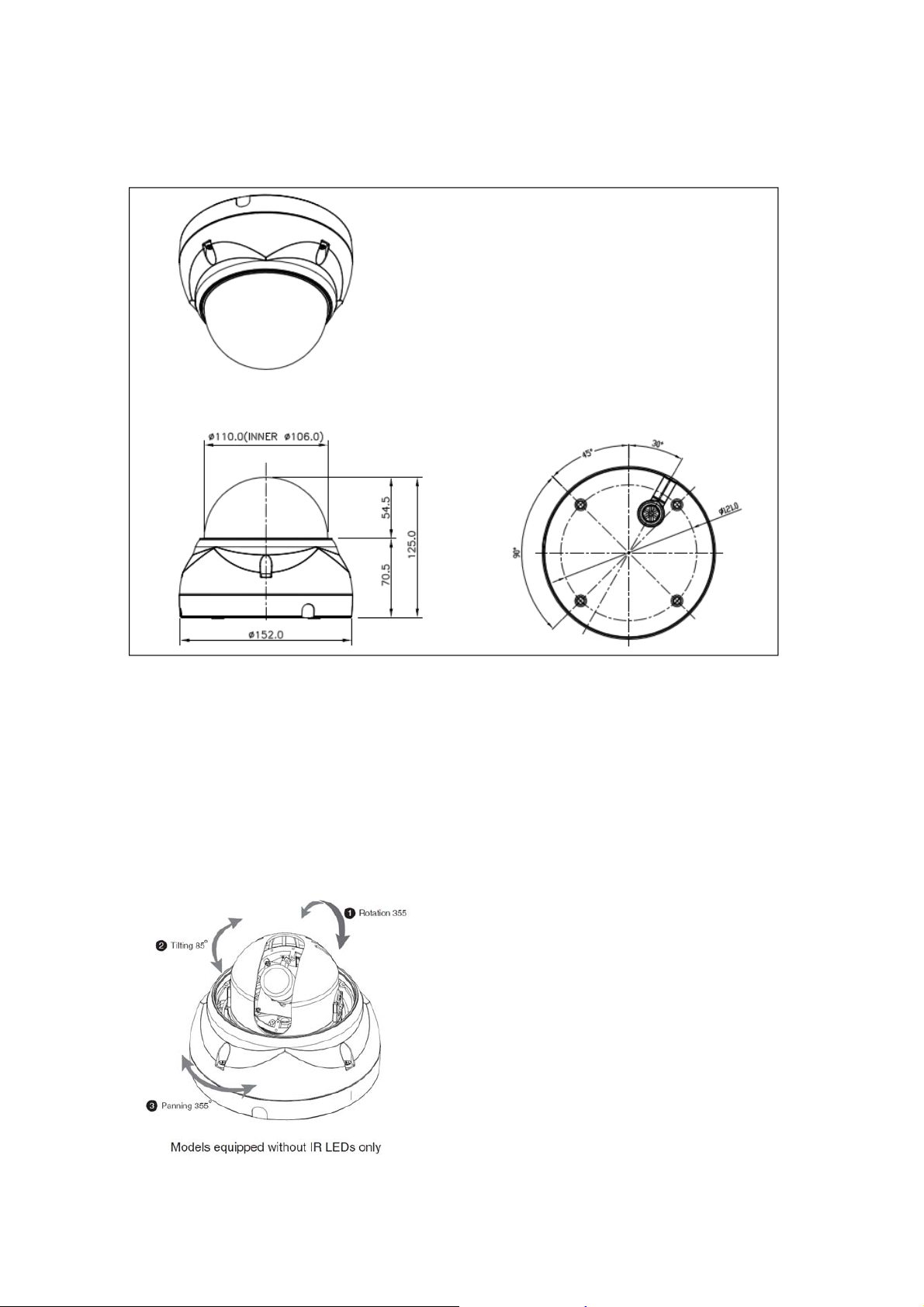

See the diagrams below for the exact dimension of the IPVD2TW vandal proof dome network cameras.
Dimensions Unit: mm
Adjusting the 3-Axis Gimbal
The Gimbal mechanism yields maximum rotation and placement as shown below.
• Z-Axis: Rotation 355°
• Y-Axis: Tilting 70°
• X-Axis: Panning 355°
9
Page 10

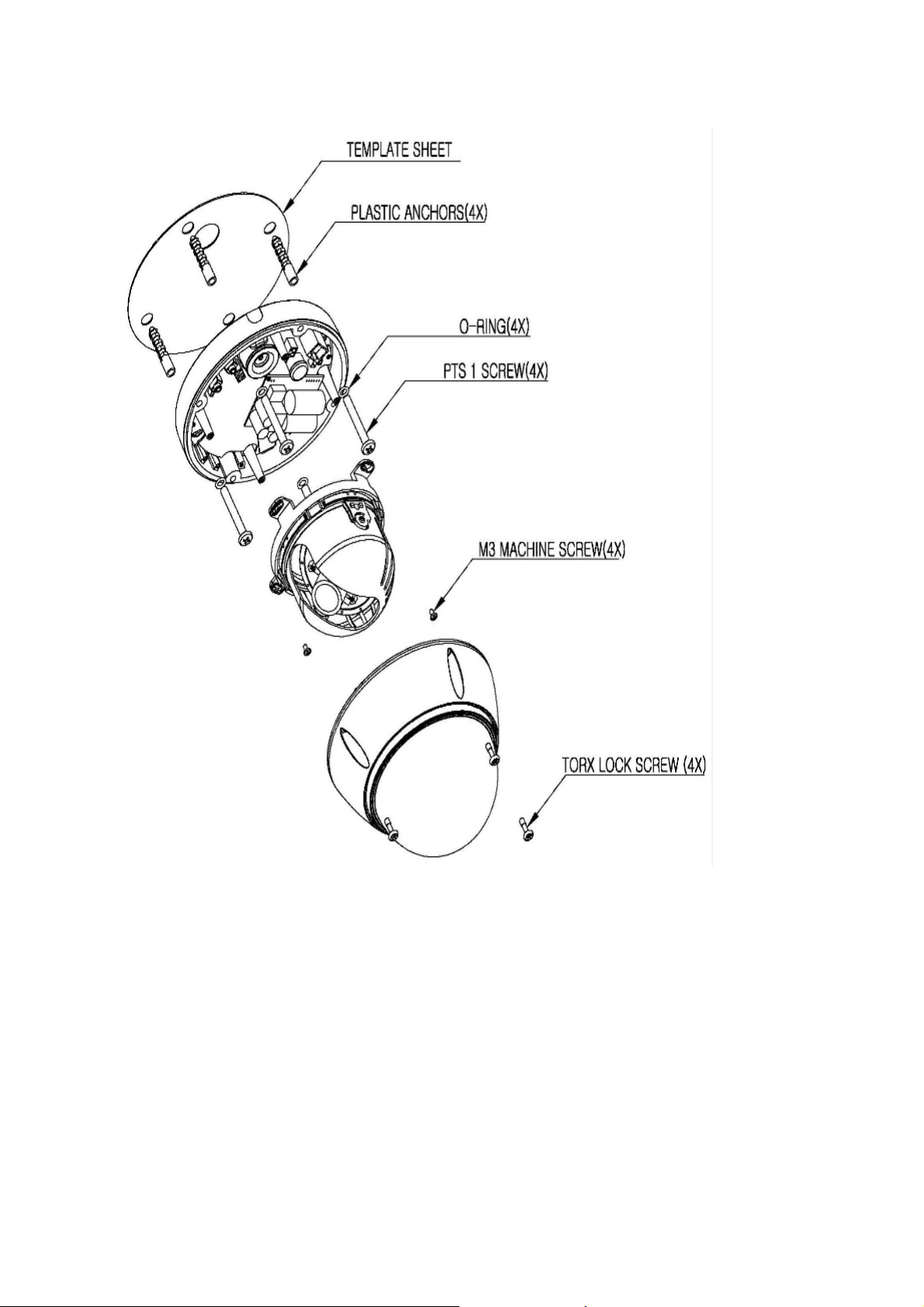

Base Installation

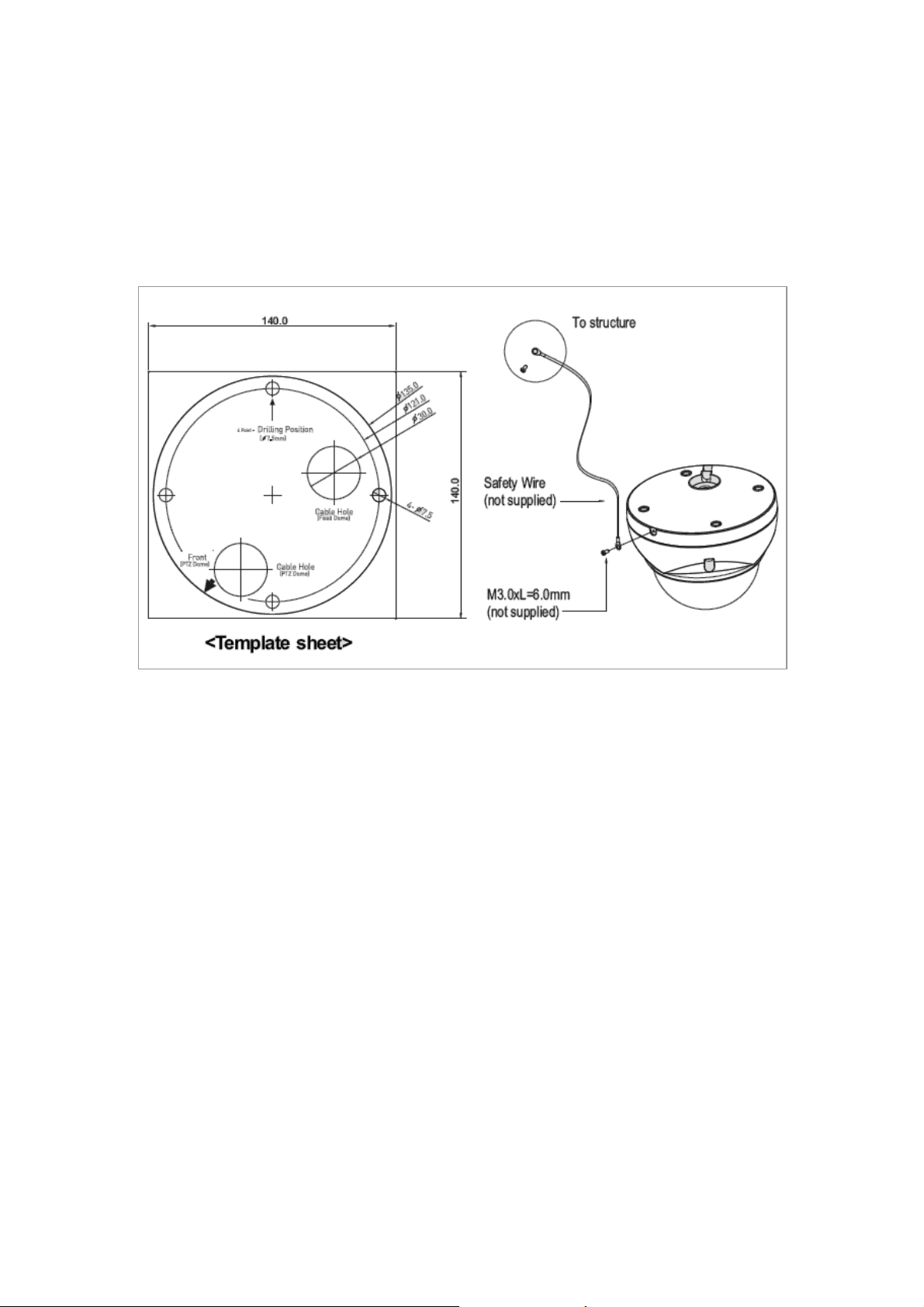

1. Make mounting holes and cable hole in the place (ceiling) to which this d ome camera is installed
using the supplied template sheet.
Warning: The total m ass of the main unit is appr ox 1.3kg. Check wheth er the ceiling to which
the Dome Camera is instal led is strong enough to hold t he unit mass. If no t, the Dome Camera
could fall, causing injury.
2. Attach the safety wire for securing the dome camera to ceiling or structure not to fall.
3. Extract each wire through the cable hole, connect BNC cable and communication lines.
4. Unlock tor x scr ews (4x) the dom e cover and f ix the dome case f irmly with supplied mounting
screws (4x), plastic anchors (4x), O-Rings (4x).
5. Adjust desired focus and scene by turning and moving the hemisphere by hand.
6. Lock the housing cover with torx screws (4x).
10
Page 11
11
Page 12
2.2 Connection

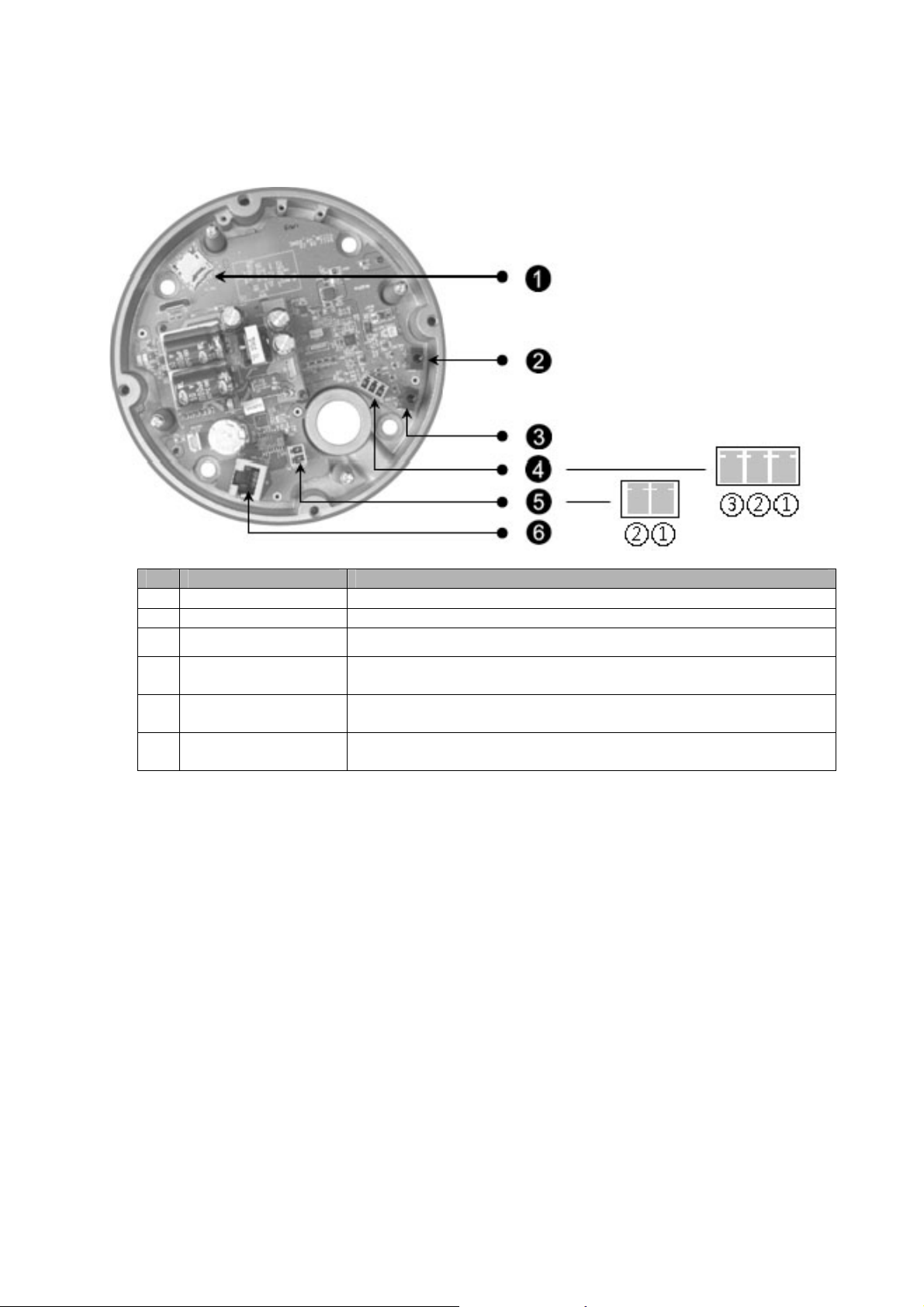

Connection Description
NO Connector Name Description
1 Micro-SD Slot Micro-SD memory slot
2 Service Monitor Port Service Monitor Port, Stereo Jack
3 Audio In & Out Port
4 Alarm In & Out Port
Main Power
5
6 RJ-45 Port
Micro SD memory slot on the Board
Card Slot for Micro SD memory: Socket “J15”
• Connecting to the RJ-45
Connect a standard RJ-45 cable to the network port of the network camera. Generally a
cross-over cable is used for directly connection to PC, while a direct cable is used for connection
to a hub.
You can also use a router featuring PoE (Power over Ethernet) to supply power to the camera.
• Connecting Alarms
AI(Alarm In) :
You can use external devices to signal the network camera to react on events. Mechanical or
electrical switches can be wired to the AI (Alarm In) and G (Ground) connectors.
G(Ground) :
Connect the ground side of the alarm input and/or alarm output to the G (Ground) connector.
Alarm Out :
The network camera can activate external devices such as buzzers or lights. Connect the device
to the AO (Alarm Out) and G (Ground) connectors.
Audio Input and Output, Stereo Jack.
Alarm Input and Output, 3pin terminal.
Pin1: Alarm In, Pin2: GND, Pin3: Alarm Out
Main Power, 2 pin terminal,
Pin 1: 12 VDC/24 VAC, Pin2: GND/24 VAC
Ethernet, RJ-45 port compatible with 10/100Mbps having PoE
functionality.
12
Page 13
• Connecting the Power
Connect the power of
the ‘+’ position and the negative (-) pole to the ‘-’ position for the DC power.
Be careful not to reverse the polarity when connecting the power cable.
A router featuring PoE (Power over Ethernet) can also be used to supply power to the
camera.
The heater will operate properly only by the power source of AC 24V.
For the power specifications, refer to the Appendix, Product Specification.
If PoE and 12 VDC are both applied, the camera will be supplied with power from PoE.

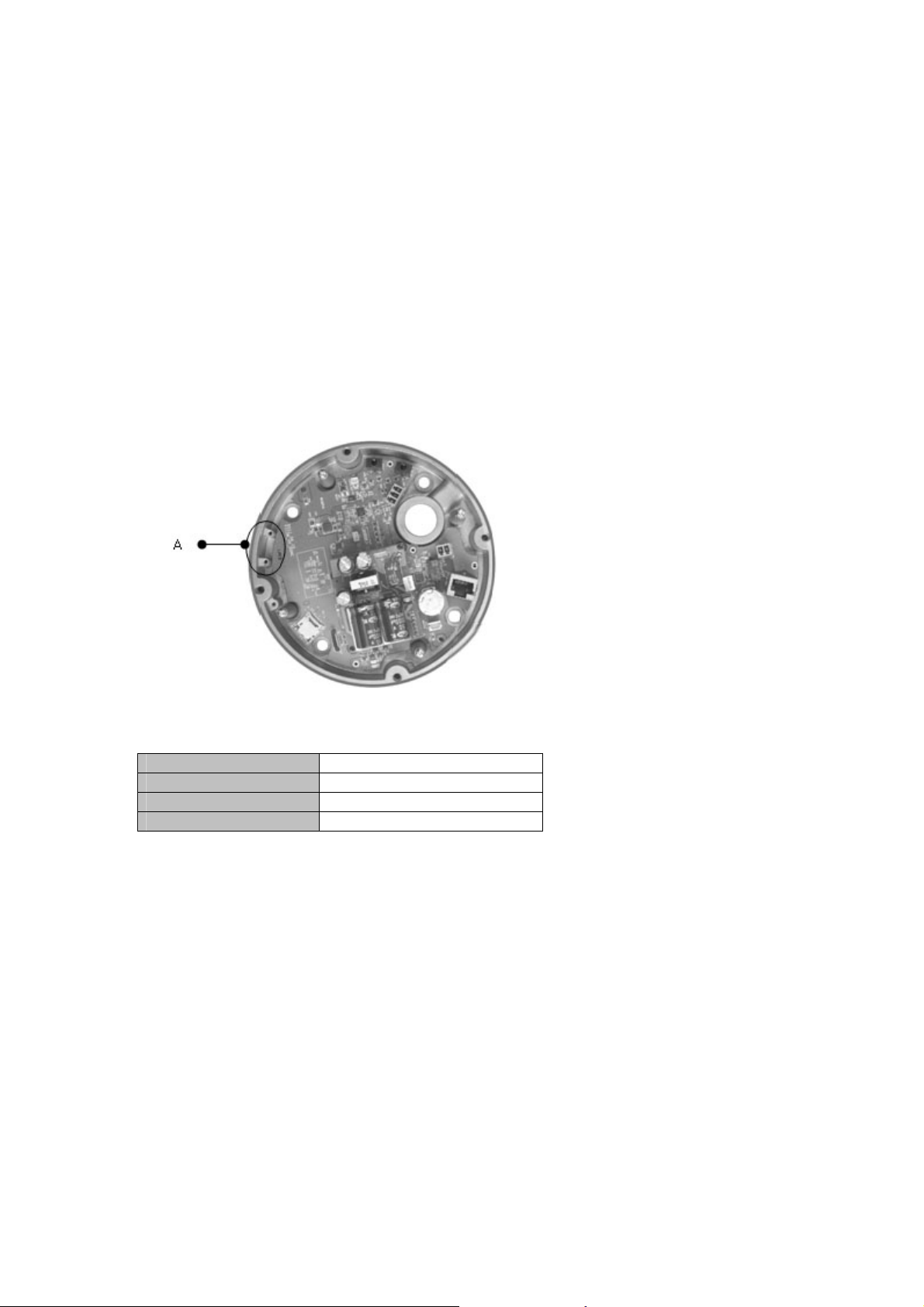

Heater Kit
This unit is equipped with a 24VAC heater.
• Heater has been placed in the above ‘A’ position.
12 VDC or 24 VAC for the network camera. Connect the positive (+) pole to
Power Supply 24VAC
Power Consumption 20Watt
Heater On at 41°F (5°C)
Heater Off at 59°F (15°C)
13
Page 14
2.3 Network Connection and IP assignment
The Network Camera supports the operation through the network. When a camera is first connected
to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the
“Smart Manager” utility on the CD. The factory default IP is “192.168.30.220”.
1. Connect the Network Camera / device to the network and power up.

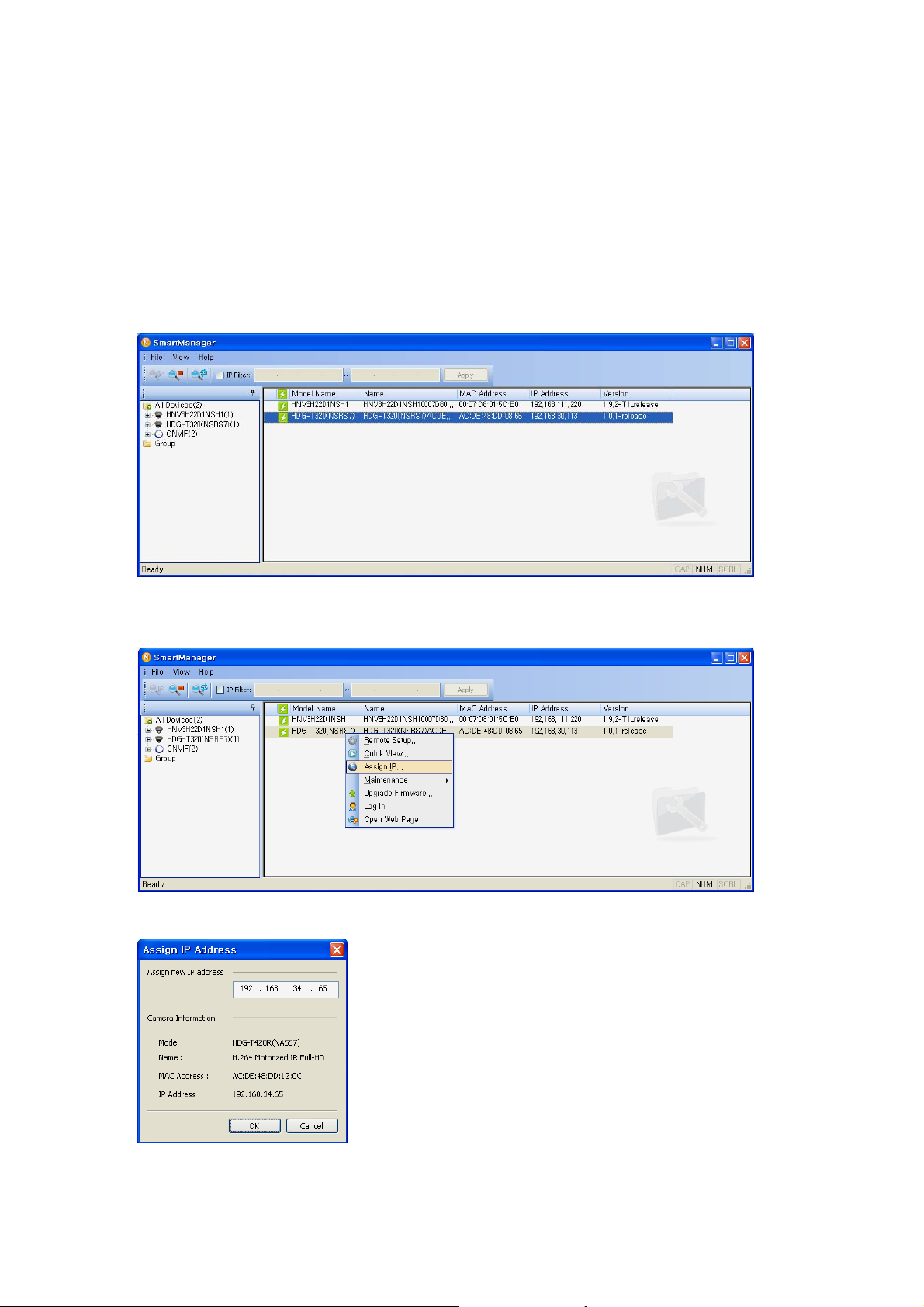

2. Start SmartManager utility (Start>All Programs>SmartManager>SmartManager), the main
window will be displayed, after a short while any network devices connected to the network will
be displayed in the list.
3. Select the camera on the list and click right button of the mouse. You can see the pop-up menu
below.
4. Select Assign IP. You cam see a Assign IP window. Enter the required IP address.
Note: For more information, refer to the Smart Manger User’s
Manual
14
Page 15
3. Operation
The Network Camera can be used with Windows operating system and browsers. The recommended
browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows.
Note: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX
controls.
3.1 Access from a browser
1. Start a browser (Internet Explorer).
2. Enter the IP address or host name of the Network Camera in the Location/Address field of your
browser.

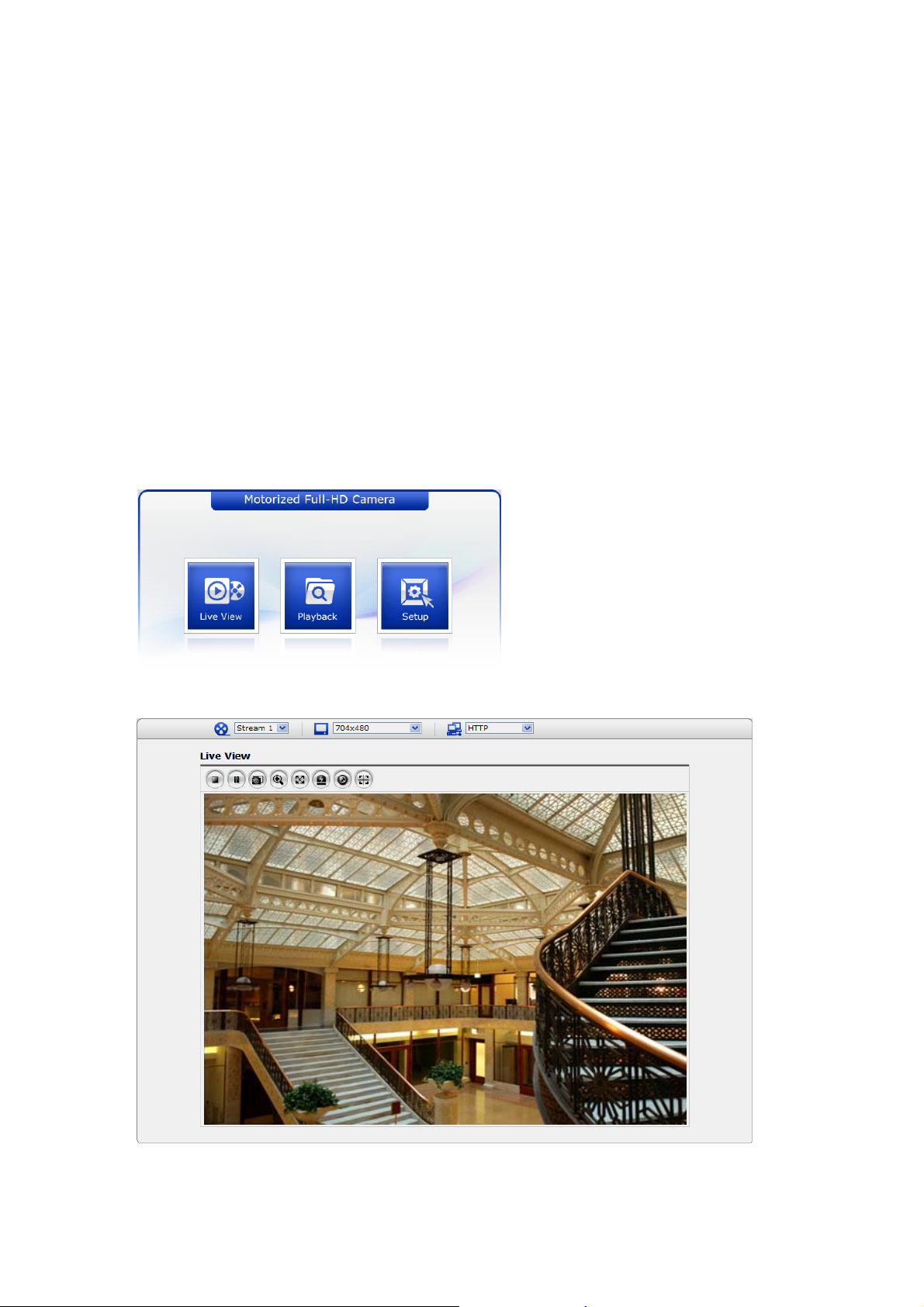

3. You can see a starting page. Click Live View, Playback or Setup to enter web page.
4. The network camera’s Live View page appears in your browser.
15
Page 16
3.2. Access from the internet
To g
t
g
f
g
gs”
T
j

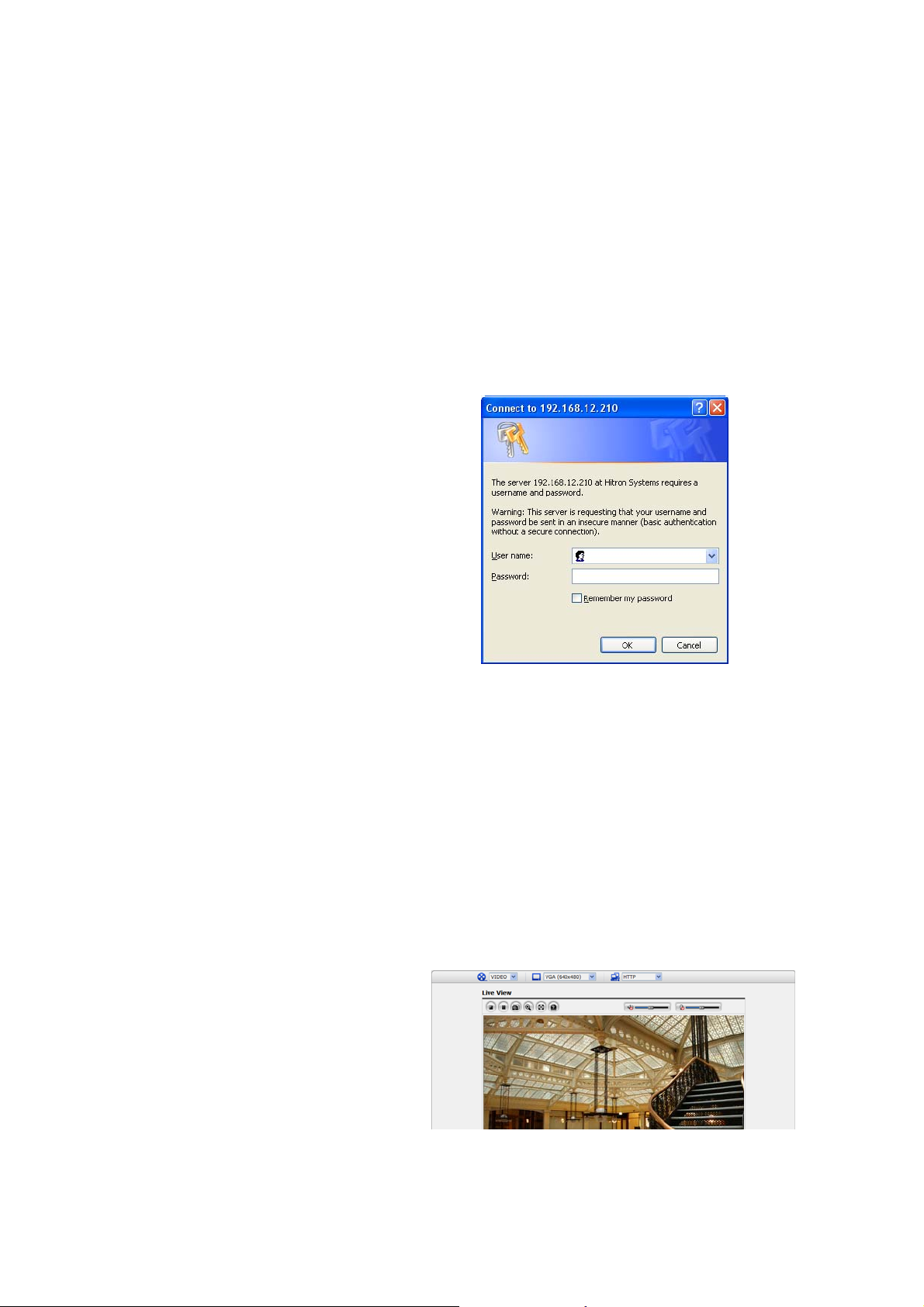

Access from the internet once connected, the Network Camera is accessible on your local network
(LAN). To access the network camera from the Internet you must configure your broadband router to
allow incoming data traffic to the network camera. To do this, enable the NAT-traversal feature, which
will attempt to automatically configure the router to allow access to the network camera. This is
enabled from Setup > System > Network > NAT.
For more information, please see “3.5.5 System>Network>NAT” of User’s Manual.
3.3 Setting the admin password over a secure connection
ain access to the product, the password for
he default administrator user must be set. Thi s
is done in the “Admin Password” dial o
displayed wh en the n etwork
or the setup at the first time. Enter your admin
name and password, set by the administrator.
Note: Th e def ault admini strator usern ame and
password is “admin”. If the password is lost, the
Network Camer a must be r eset to the f actory
default settin
Default Settin
s. See “3.8 Resetting to the Factory
for more details.
camera is acce ssed
, which is
To prevent network eavesdropping when setting the admin password, this can be done via an
encrypted HTTPS connection, which requires an HTTPS certificate (see note below).
To set the password via a standard HTTP connection, enter it directly in the first dialog shown below.
To set the password via an encrypted HTTPS connection, see “3.5.5 System > Security > HTTPS”.
Note: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt the traffic between
web browsers and servers. The HTTPS certificate controls the encrypted exchange of information.
3.4 Live View Page
he liv e view page comes in sev eral
screen m odes: 1920x1 080, 1280x102 4,
1280x720, 704x480(576), 640x480,
352x240(288), and 320x240. User s ar e
allowed to select the most suitable one
out of tho se modes. Ple ase, ad
mode in accor dance with y our PC
specifications and monitoring purposes.
ust th e
16
Page 17

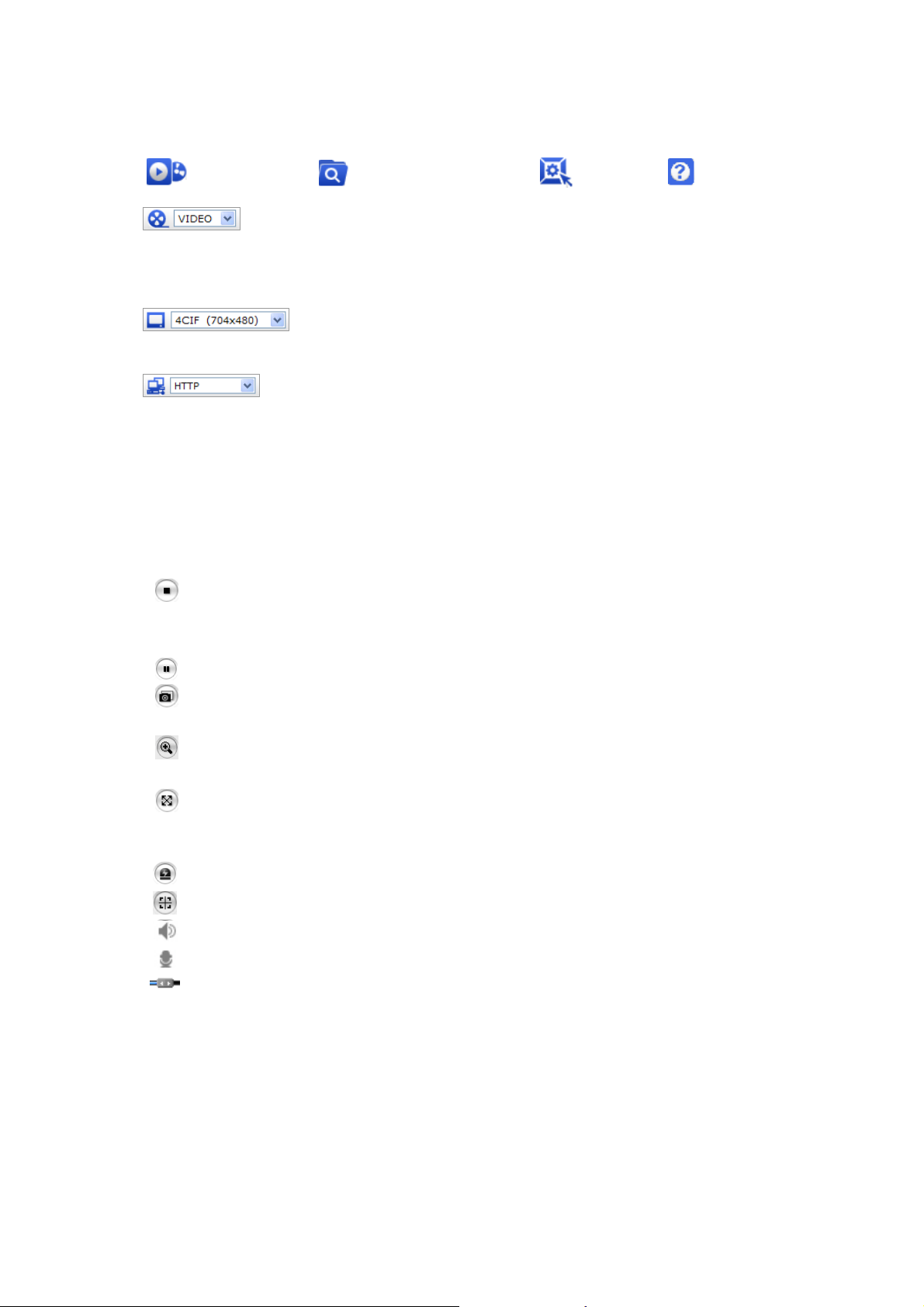

1) General controls
Live View Page Search & Playback Page Setup Page Help Page
The video drop-down list allows you to select a customized or pre-programmed
video stream on the live view page. Stream profiles are configured under Setup > Basic
Configuration > Video & Image. For more information, please see “3.5.1 Basic Configuration >
Video & Image” of User’s Manual.
The resolution drop-down list allows you to select the most suitable one
out of video resolutions to be displayed on live view page.
The protocol drop-down list allows you to select which combination of
protocols and methods to use depends on your viewing requirements, and on the properties of
your network.
2) Control toolbar
The live viewer toolbar is available in the web browser page only. It displays the following
buttons:
The Stop button stops the video stream being played. Pressing the key again toggles the
start and stop. The Start button connects to the network camera or start playing a
video stream.
The Pause button pause the video stream being played.
The Snapshot button takes a snapshot of the current image. The location where the
image is saved can be specified.
The digital zoom activates a zoom-in or zoom-out function for video image on the live
screen.
The Full Screen button causes the video image to fill the entire screen area. No other
windows will be visible. Press the 'Esc' button on the computer keyboard to cancel full
screen view.
The Manual Trigger button activates a pop-up window to manually start or stop the even
The Smart Focus button readjusts focus automatically.
Use this scale to control the volume of the speakers.
Use this scale to control the volume of the microphone.
Use this scale to control the volume of the speakers and microphones.
17
Page 18
3) Video Streams
The Network Camera provides several images and video stream formats. Your requirements and
the properties of your network will determine the type you use.
The Live View page in the Network Camera provides access to H.264, MPEG-4 and Motion JPEG
video streams, and to the list of available video streams. Other applications and clients can also
access these video streams/images directly, without going via the Live View page.

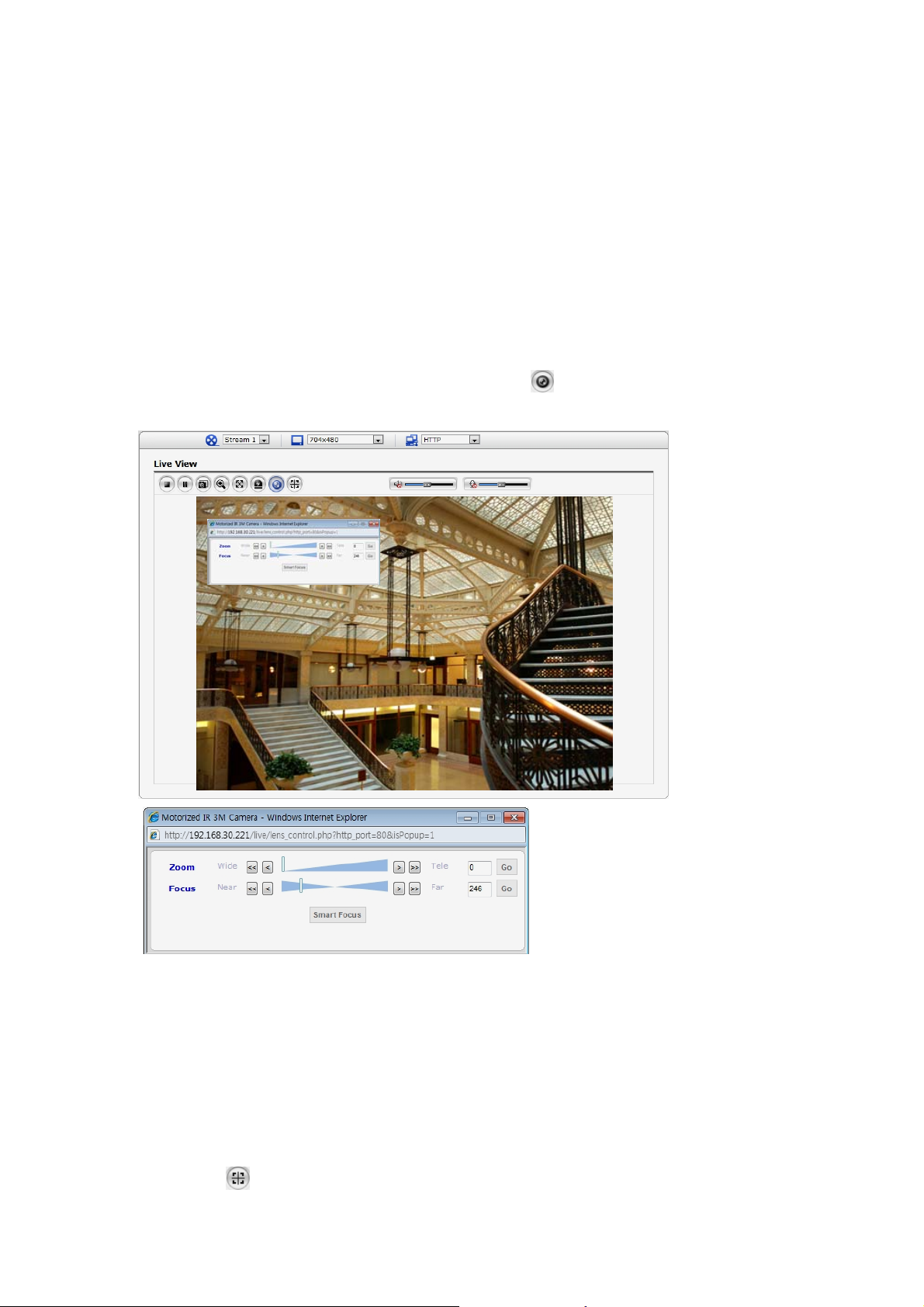

4) Focus and Zoom Control
You can control Zoom and Focus in the live screen. Press the button on the left top in the live
screen to activate the Zoom & Focus control panel.
• Adjusting Zoom:
Click “<” button to zoom out and click “>” button to zoom in. The focus is moved slightly after
adjusting zoom; adjust the focus again, as necessary.
• Adjusting Focus:
Click “>” button for far focus and click “<” button to near focus.
• Fine Focus:
Click “Fine Focus” to fine tune and readjust focus automatically.
Note: Click the button in the Live View screen to set the focus to the optimum position.
18
Page 19
3.5 Network Camera Setup
This section describes how to configure the network camera, and is intended for product
Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access
to the settings for Basic, Live View, Video & Image, Audio, Event, and System Configuration.
You can configure the network camera by clicking Setup in the top right-hand corner of the Live View
page. Click on this page to access the online help that explains the setup tools

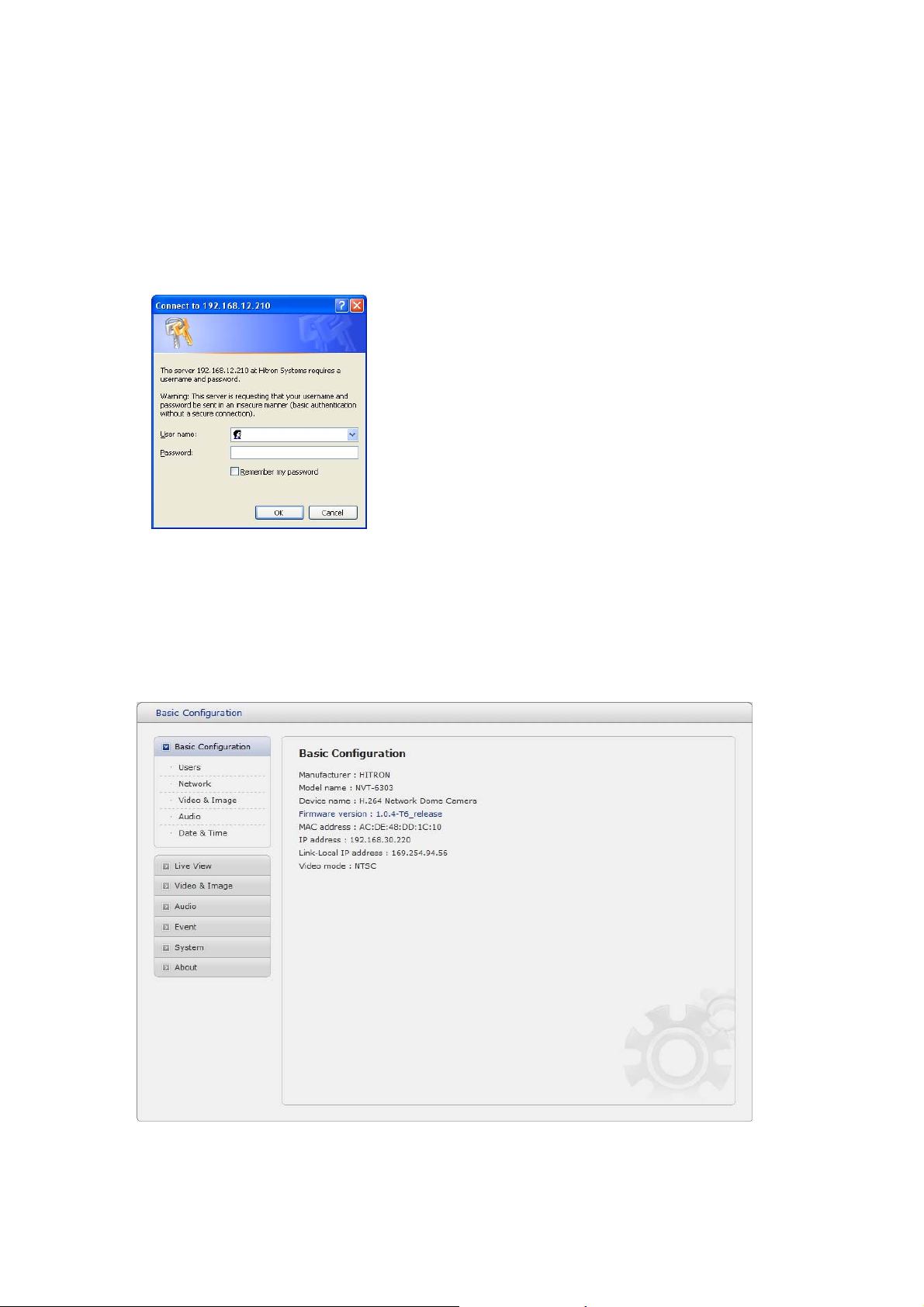

When accessing the Network Camera for the first
time, the “Admin Password” dialog appears. Enter
your admin name and password, set by the
administrator.
Note: If the password is lost, the Network Camera
must be reset to the factory default settings. See “3.8
Resetting to the Factory Default Settings”.
3.5.1 Basic Configuration
You can see the device information in this information page.
19
Page 20

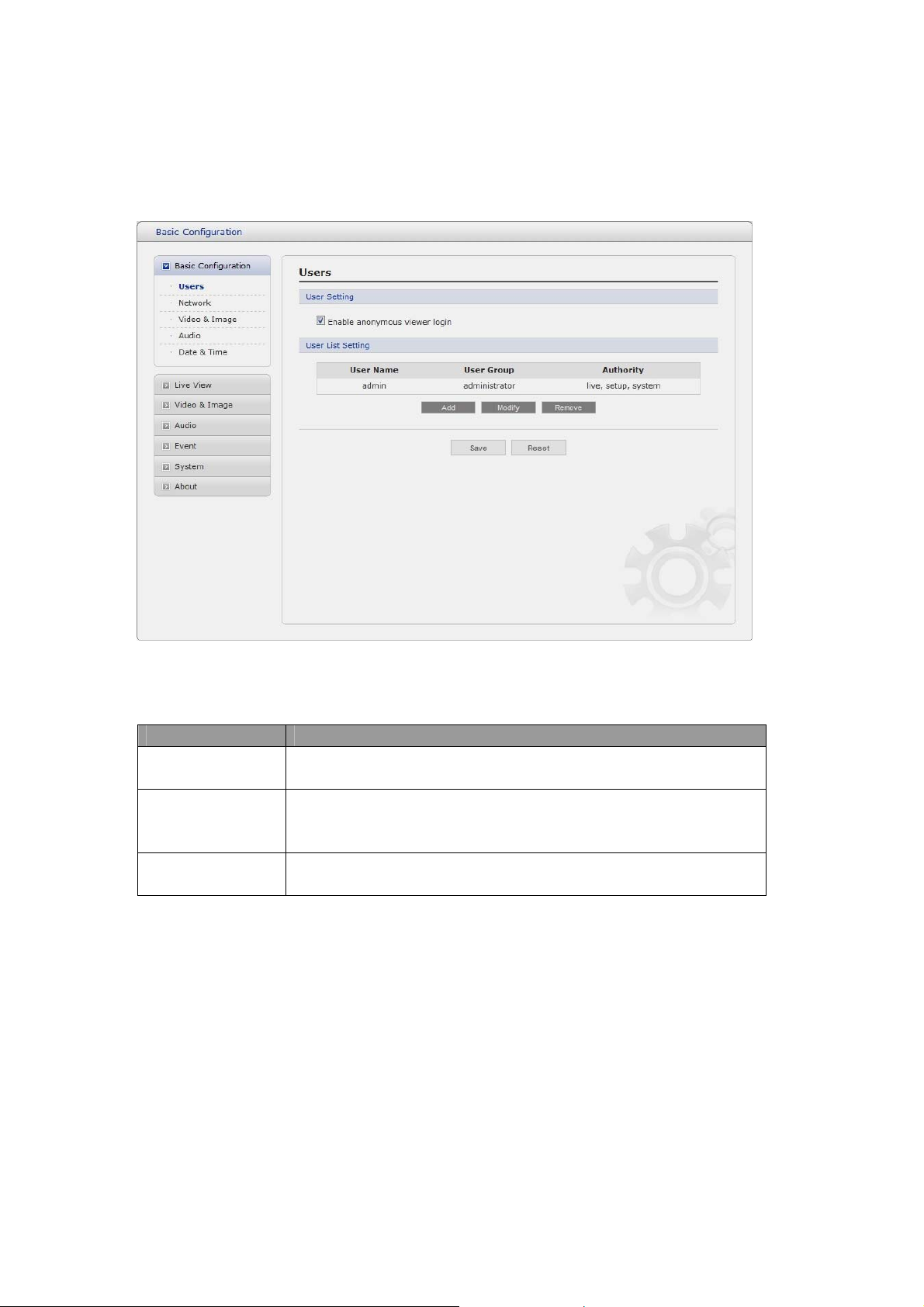

1) Users
User access control is enabled by default. An administrator can set up other users, by giving these
user names and passwords. It is also possible to allow anonymous viewer login, which means that
anybody may access the Live View page, as described below:
The user list displays the authorized users and user groups (levels):
User Group Authority
Guest
Provides the lowest level of access, which only allows access to the
Live View page.
An operator can view the Live View page, create and modify
Operator
events, and adjust certain other settings. Operators have no access
to System Options.
Administrator
An administrator has unrestricted access to the Setup tools and can
determine the registration of all other users.
Enable anonymous viewer login: Check the box to use the webcasting features. Refer to
“3.5.2 Video & Image” for more details.

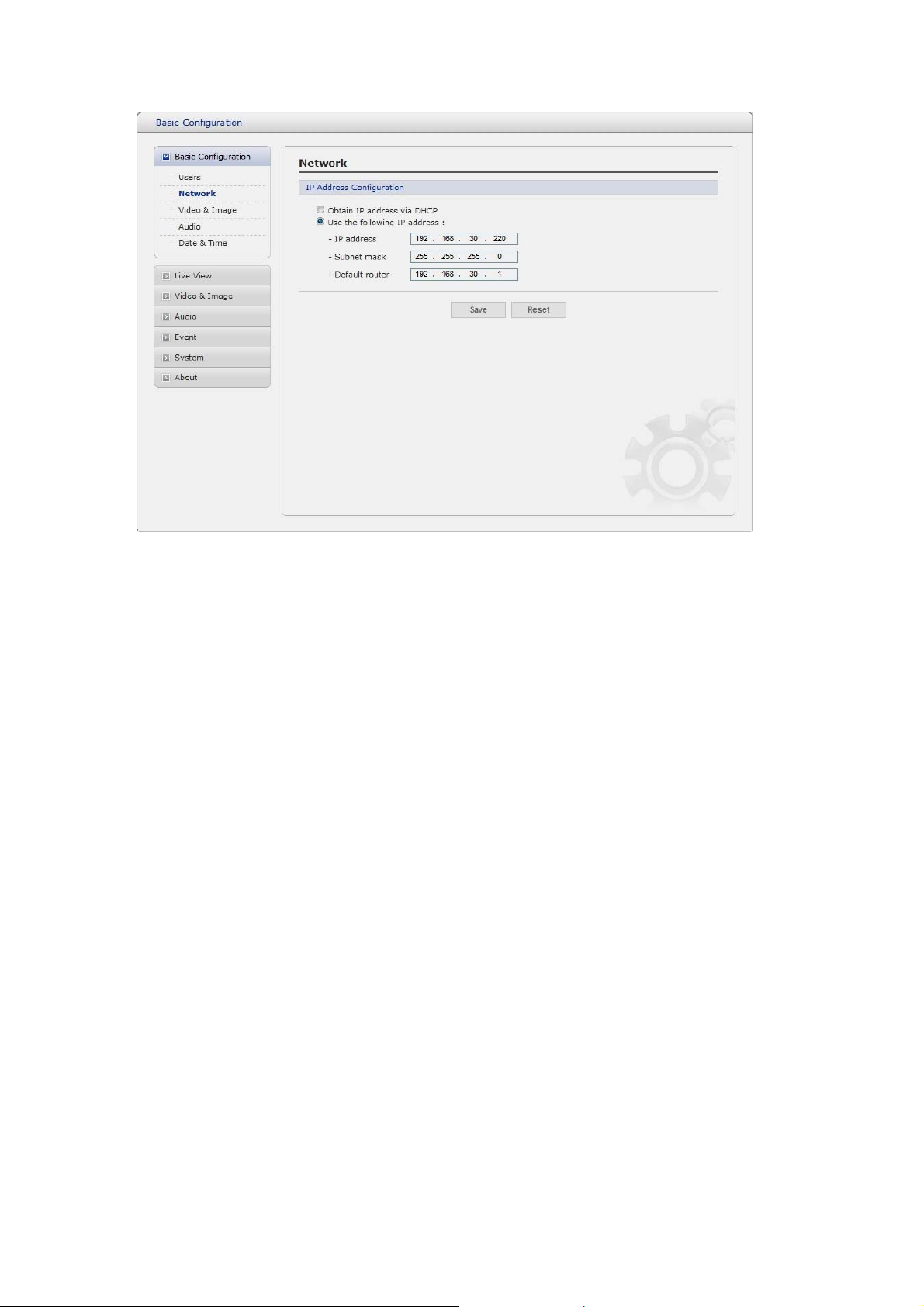

2) Network
The network camera supports both IP version 4 and IP version 6. Both versions may be enabled
simultaneously, and at least one version must always be enabled. When using IPv4, the IP address for
the network camera can be set automatically via DHCP, or a static IP address can be set manually.
If IPv6 is enabled, the network camera receives an IP address according to the configuration in the
network router. There is also the option of using the Internet Dynamic DNS Service. For more
information on setting the Network, please see Setup> System>Security>Network.
20
Page 21
• Obtain IP address via DHCP - Dynamic Host Configuration Protocol (DHCP) is a protocol
that lets network administrators centrally manage and automate the assignment of IP
addresses on a network. DHCP is enabled by default. Although a DHCP server is mostly
used to set an IP address dynamically, it is also possible to use it to set a static, known IP
address for a particular MAC address.
• Use the following IP address - To use a static IP address for the Network Camera,
check the radio button and then make the following settings:
- IP address: Specify a unique IP address for your Network Camera.
- Subnet mask: Specify the mask for the subnet the Network Camera is located on.
- Default router: Specify the IP address of the default router (gateway) used for
connecting devices attached to different networks and network segments.
Notes:
1. DHCP should only be enabled if using dynamic IP address notification, or if your DHCP server can
update a DNS server, which then allows you to access the Network Camera by name (host name).
If DHCP is enabled and you cannot access the unit, you may have to reset it to the factory
default settings and then perform the installation again.
2. The ARP/Ping service is automatically disabled two minutes after the unit is started, or
as soon as an IP address is set.
3. Pinging the unit is still possible when this service is disabled.
21
Page 22

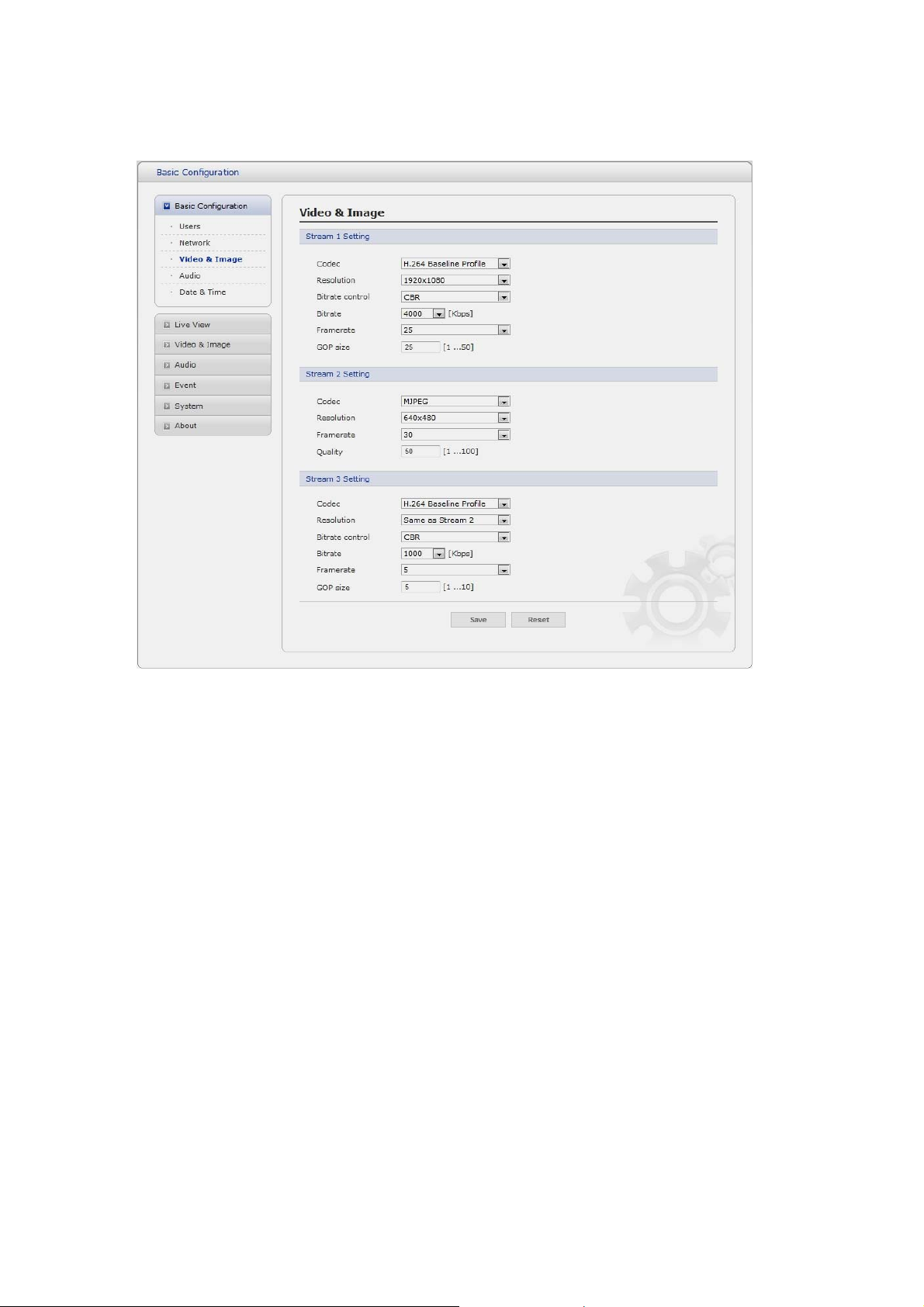

3) Video & Image
• Stream1 Setting
- Codec:
The codec settings are separated into MPEG4 and H.264.
H.264 is also known as MPEG-4 Part 10. This is the new generation compression standard
for digital video. This function offers higher video resolution than Motion JPEG or MPEG-4 at
the same bit rate and bandwidth, or the same quality video at a lower bit rate.
There are 4 pre-programmed stream profiles available for quick set-up. Choose the form of
video encoding you wish to use from the drop-down list:
* H.264 HP(High Profile): The primary profile for broadcast and disc storage applications,
particularly for high-definition television applications (for example, this is the profile adopted
by the Blu-ray Disc storage format and the DVB HDTV broadcast service).
* H.264 MP(Main Profile):
Primarily f
used rarely in videoconferencing and mobile applications, it does add additional error
resilience tools to the Constrained Baseline Profile. The importance of this profile is fading
after the Constrained Baseline Profile has been defined.
* H.264 BP(Baseline Profile):
Originally intended as the mainstream consumer profile for broadcast and storage
applications, the importance of this profile faded when the High profile was developed for
those applications.
o
r low-cost applications that requires additional error robustness, this profile is
22
Loading...
