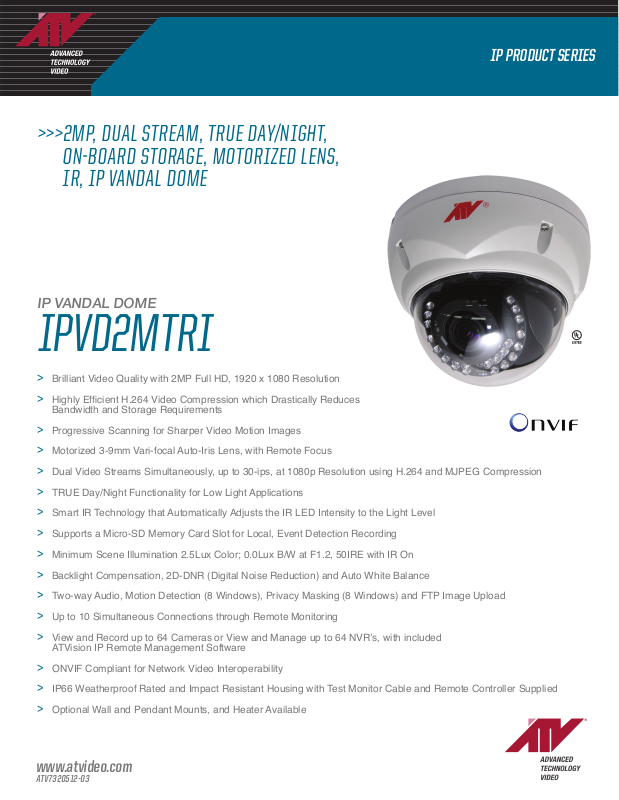

ATV IPVD2MTRI Specsheet
>>>2MP, DUAL STREAM, TRUE DAY/NIGHT,
ON-BOARD STORAGE, MOTORIZED LENS,
IR, IP VANDAL DOME
IP VANDAL DOME
IPVD2MTRI
IP PRODUCT SERIES
Brilliant Video Quality with 2MP Full HD, 1920 x 1080 Resolution
>
Highly Efcient H.264 Video Compression which Drastically Reduces
>
Bandwidth and Storage Requirements
Progressive Scanning for Sharper Video Motion Images
>
Motorized 3-9mm Vari-focal Auto-Iris Lens, with Remote Focus
>
Dual Video Streams Simultaneously, up to 30-ips, at 1080p Resolution using H.264 and MJPEG Compression
>
TRUE Day/Night Functionality for Low Light Applications
>
Smart IR Technology that Automatically Adjusts the IR LED Intensity to the Light Level
>
Supports a Micro-SD Memory Card Slot for Local, Event Detection Recording
>
Minimum Scene Illumination 2.5Lux Color; 0.0Lux B/W at F1.2, 50IRE with IR On
>
Backlight Compensation, 2D-DNR (Digital Noise Reduction) and Auto White Balance
>
Two-way Audio, Motion Detection (8 Windows), Privacy Masking (8 Windows) and FTP Image Upload
>
Up to 10 Simultaneous Connections through Remote Monitoring
>
View and Record up to 64 Cameras or View and Manage up to 64 NVR’s, with included
>
ATVision IP Remote Management Software
ONVIF Compliant for Network Video Interoperability
>
IP66 Weatherproof Rated and Impact Resistant Housing with Test Monitor Cable and Remote Controller Supplied
>
Optional Wall and Pendant Mounts, and Heater Available
>
www.atvideo.com
ATV7320512-03
IP VANDAL DOME
IPVD2MTRI
SPECIFICATIONS
MODEL IPVD2MTRI
Image sensor 1/2.8” Progressive scan RGB CMOS
C
Active Array 1920(H) x 1080(V)
A
Lens Motorized Varifocal 3.0mm ~ 9.0mm, F1.2 DC IRIS
M
Angle of View 3.0mm – 93°(H) / 9.0mm – 31.7°(H)
E
Camera Angle Adjustment Pan: 360°, Tilt: 180°, Rotation: 360°
Min. illumination Color: 2.5Lux, B/W: 0.0Lux(1.2, 50IRE with IR On)
R
Shutter Speed 1/20,000 ~ 1/30
A
IR LED 24 lights; 65ft (20M) range
Video Compression Motion JPEG, MPEG-4 Part2, H.264 (MPEG-4 Part 10)
Video Resolutions 320x 240 ~ 1920x1080
Frame Rate 30fps @ all resolutions
Video Streaming Simultaneously H.264(or MPEG-4) and MJPEG, Controllable
Audio Compression G.711 ADPCM 40kbps-16kbps
Audio Streaming 2-way
Protocol TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, SNMP, uPnP,
N
Security Multi-user authority, HTTPS, IP Filtering, Privacy Zone
E
Remote Access ATVision IP Remote Management Software, Web Browser
T
Max. Connection 10
W
Compatible 3rd Party VMS See link on www.atvideo.com
O
Alarm Triggers Motion Detection, External Input, Manual Trigger
R
Alarm Events File upload via FTP and HTTP, Notification via E-mail, HTTP and
K
Video Buffering Pre and Post Alarm
Motion Detection Yes, max. 8 programmable windows
Network Time Synchronization Yes
Micro-SD Card Recording Yes, Event
Software Reset Yes
Factory Reset Yes, Button/Web browser
Auto Recovery Yes
Installation Tool Yes, SmartManager (included utility software)
Upgrade Yes, Web browser/SmartManager (included utility software)
Alarm Input Terminal, 1 TTL input
Alarm Output Terminal, 1 open collector(max. 24V DC, max. 100mA)
Audio In / Out 1 / 1 Stereo Jack
G
Video Output 1.0Vp-p @ 75ohm (CVBS)
E
Micro-SD Card Micro-SDHC class 6 or above recommended
N
Ethernet RJ-45 10BASE-T/100BASE-TX
E
Operating Temperature 32º - 122ºF (0º - 50ºC); with optional heater -40ºF (-40ºC)
R
Operation Humidity 0~90% (non-condensing)
A
Power Consumption AC24/DC12V max.3.0watt, Power over Ethernet IEEE 802.3af Class2/3
L
W/ Optional Heater External 24VAC Power only, 20W
Environmental Rating IP66
External Dimension (Dia x H) 5.9 x 4.9in (154 x 120mm)
Unit Weight 2.1lbs (.98kg)
Conformity Certifications FCC, CE, UL, MIC
Minimum System Requirements for ATVision IP Software
· Operating System: Microsoft Windows 7 (or 8) Professional/Enterprise/Ultimate
· CPU: Intel Core i7; RAM: 4GB; Ethernet Connection: 1Gbps
· Graphics Card: Gaming Rated, with 1GB at 1080p for Single Monitor; 2GB at 1080p for
Multiple Monitors
· HDD’s: 7200RPM and 64MB cache; 1 separate HDD for Operating System and Software;
and 1 (2TB) HDD for Recording (refer to IP storage calculator)
Profiles: H.264 MP and BP, MPEG-4 ASP and SP
Frame Rate and Bandwidth VBR/CBR H.264 and MPEG-4
RTP, RTSP, RTCP, DHCP, ARP. Zeroconf, Bonjour
TCP, External Output activation, Audio alert activation
IP PRODUCT SERIES
DIMENSIONS
ATVision IP Remote Management Software
ACCESSORIES
DB243W2 Wall Mount
A-PEXM Ceiling Mount Bracket
A-PPDM Ceiling Pipe Mount Adapter
VDMWC2 Wall and Ceiling Mount
PFMS7 Flush Mount
HT503V Heater
Test Monitor Cable and
Remote Controller (Included)
VDMWC2
A-PPDM
DB243W2
A-PEXM
PFMS7
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2014 ATV All rights reserved. Specifications and Design are subject to change without notice.
ATV7320512-03
