Page 1
USER’S MANUAL
2M, 12x Full HD Mini-PTZ Network Camera:
IPSDV12XW
Please read this manual thoroughly before use and keep it handy for future reference.
Page 2
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY
METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER
OPENNINGS ON THE EQUIPMENT.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of dangerous voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock
to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the product.
2
Page 3
FCC COMPLIANCE STATEMENT
FCC INFORMATION: This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference
at their own expense.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the users authority to operate the
equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numrique de la classe A est conforme la norme NMB-003 du
Canada.
CE COMPLIANCE STATEMENT
WARNING
This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
3
Page 4
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturers in-
structions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug, A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong are provided for your safety, If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart is used.
Use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. CAUTION − THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO.
16. Use satisfies clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power
source only.
17. ITE is to be connected only to PoE networks without routing to the outside plant.
4
Page 5
Contents
1 Introduction 6
1.1 Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Installation 8
2.1 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1.1 Locking Dome Camera . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1.2 Heater Kit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2 Basic Configuration of Camera System . . . . . . . . . . . . . . . . . . . . . 11

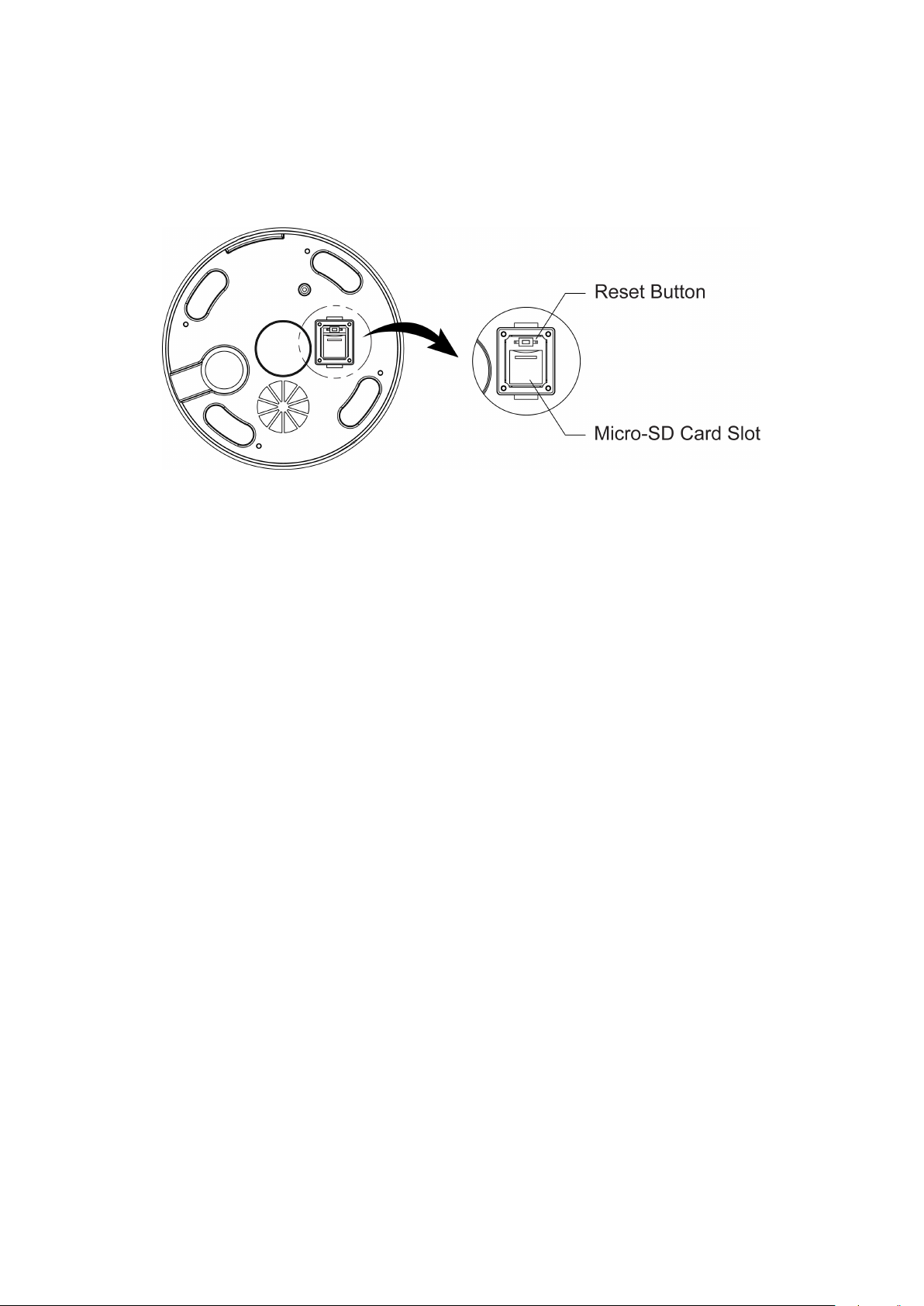

2.3 Micro-SD Card Insertion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.4 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.4.1 Network Connection & IP assignment . . . . . . . . . . . . . . . . . . 14
3 Operation 15
3.1 Access from a browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.2 Access from the internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.3 Setting the admin password over a secure connection . . . . . . . . . . . . . 16
3.4 Live View Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.5 Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.6 Network Camera Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.6.1 Basic Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.6.2 Live View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.6.3 Video & Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.6.4 Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

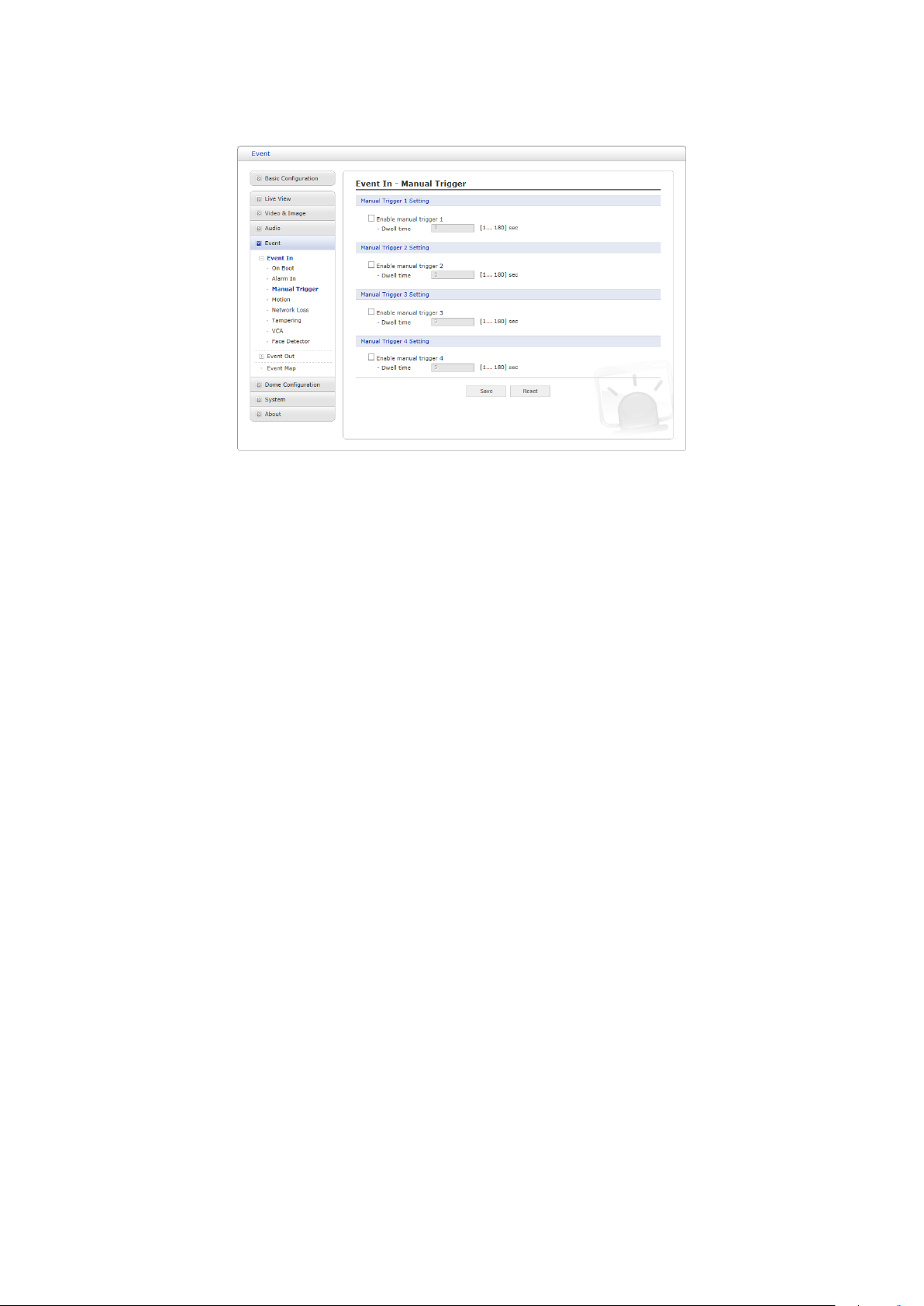

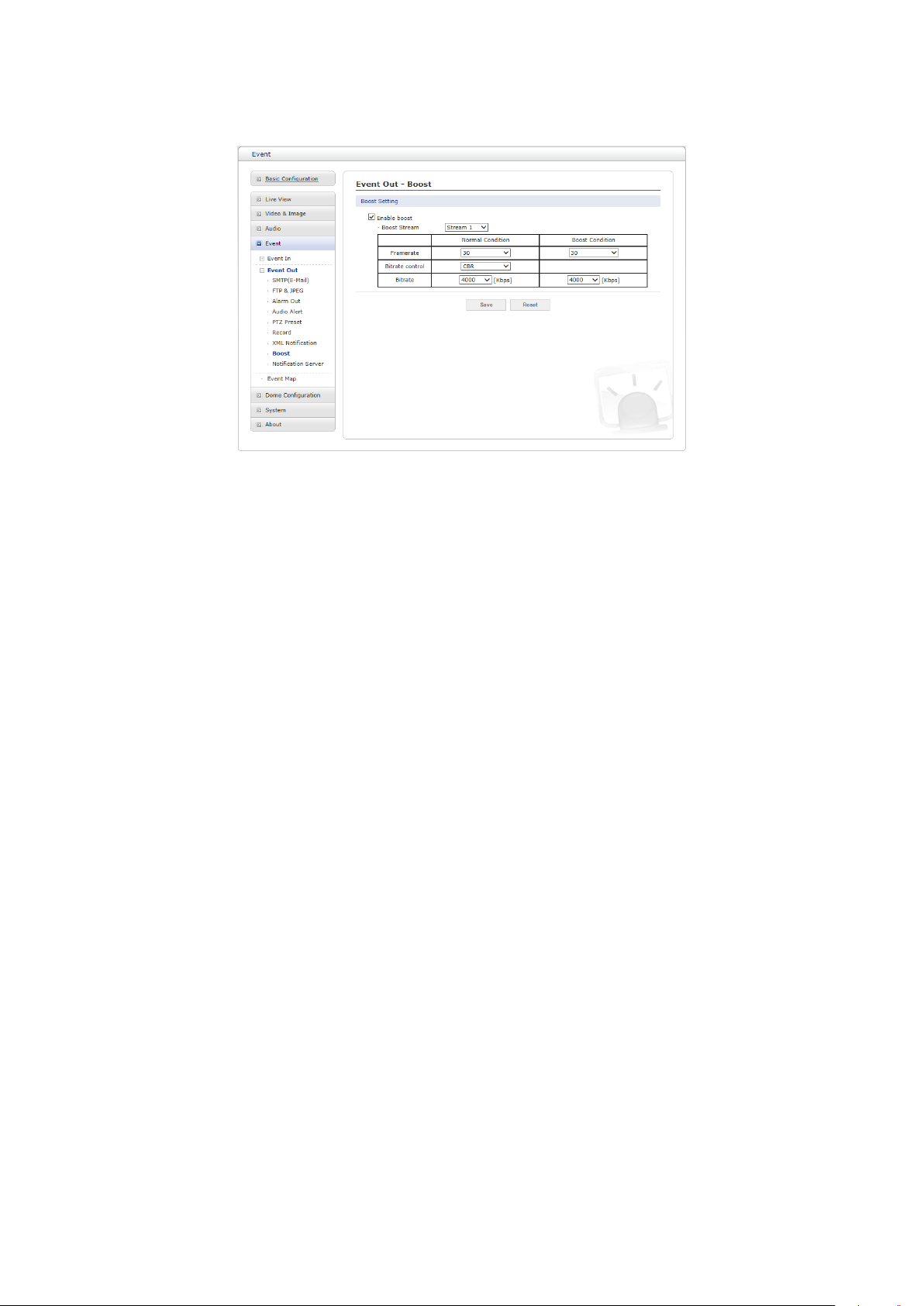

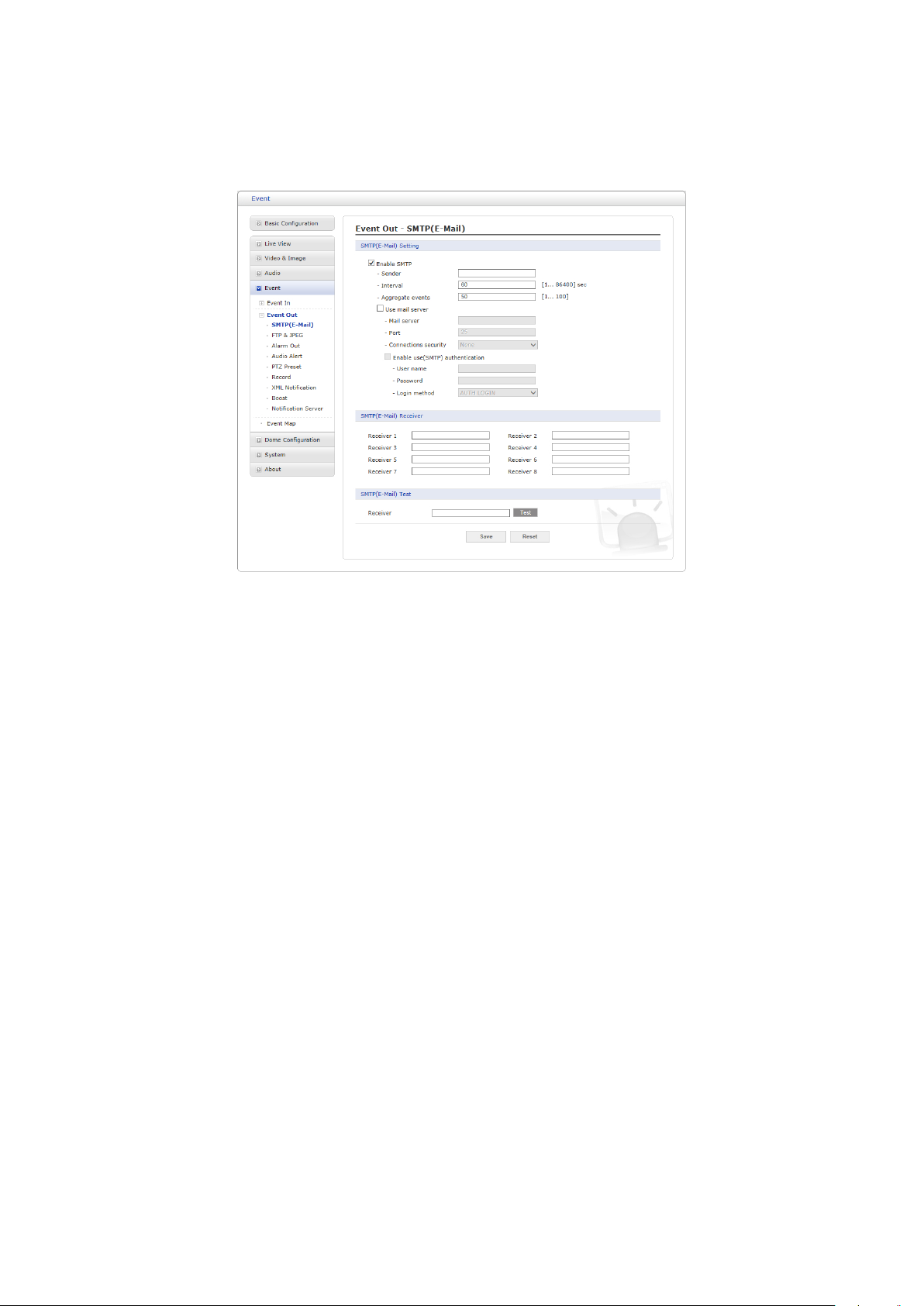

3.6.5 Event . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

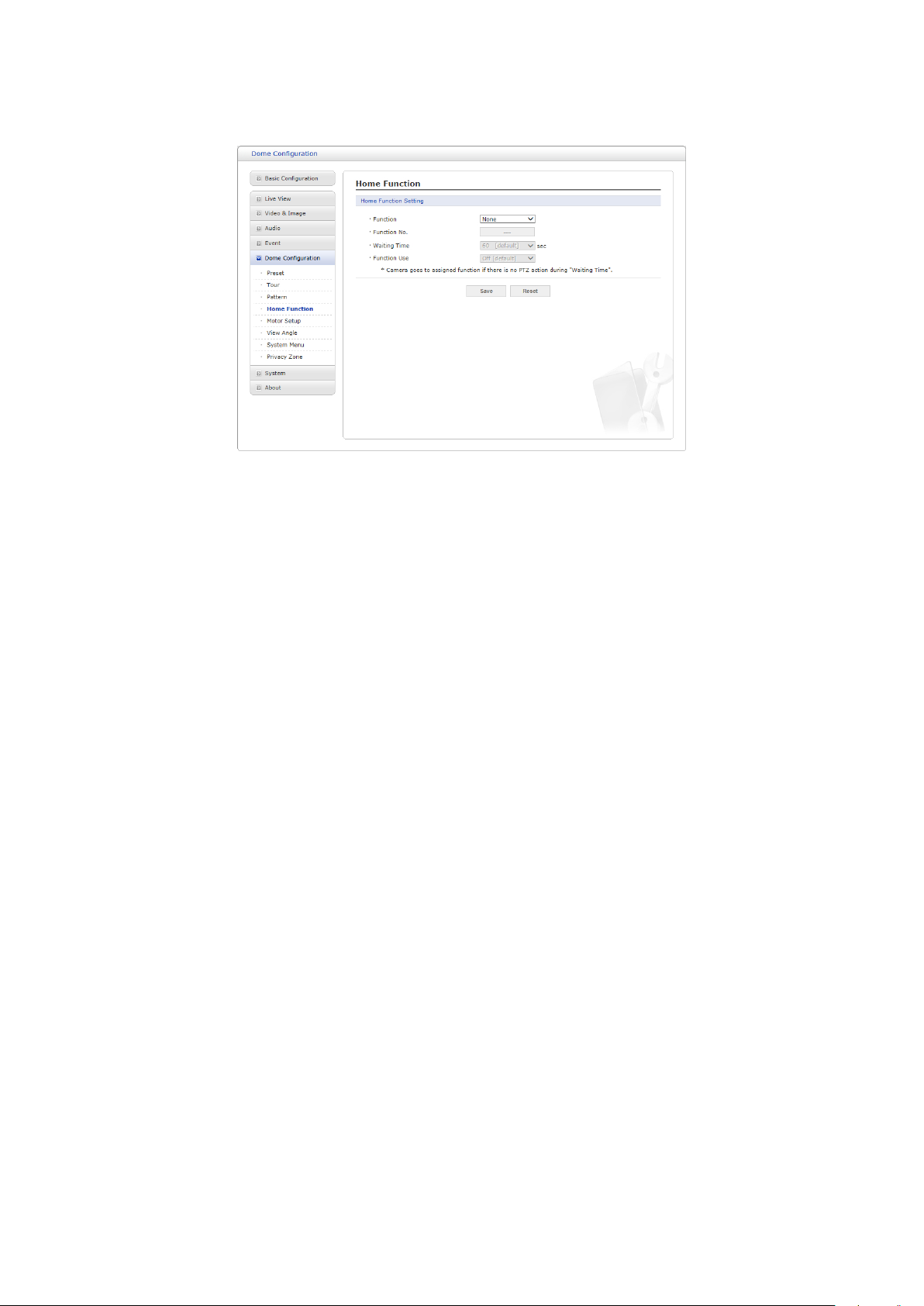

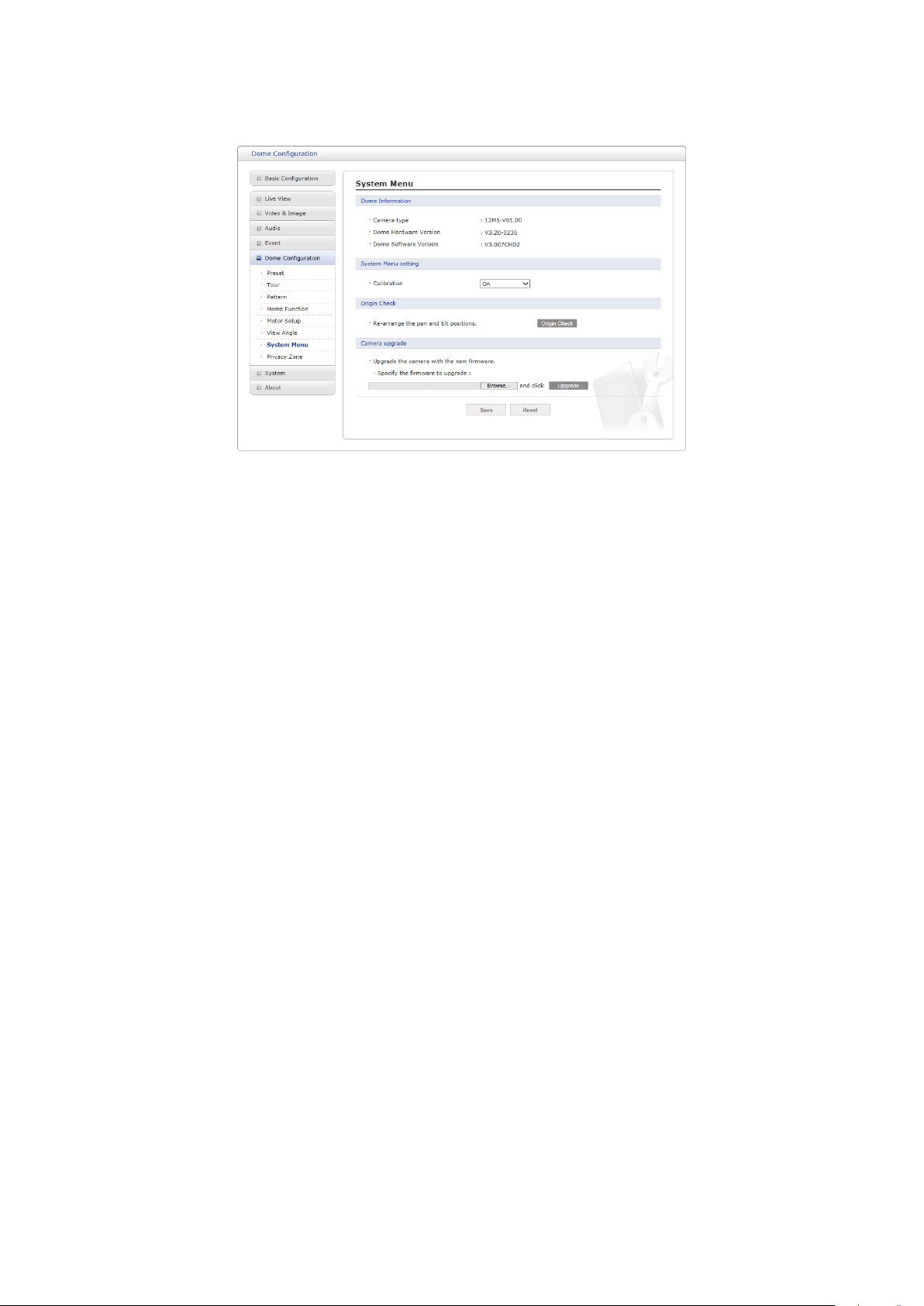

3.6.6 Dome Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
3.6.7 System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
3.7 Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
3.8 Resetting to the factory default settings . . . . . . . . . . . . . . . . . . . . . 90
A Appendix 91
A.1 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
A.2 Alarm Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
A.3 Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

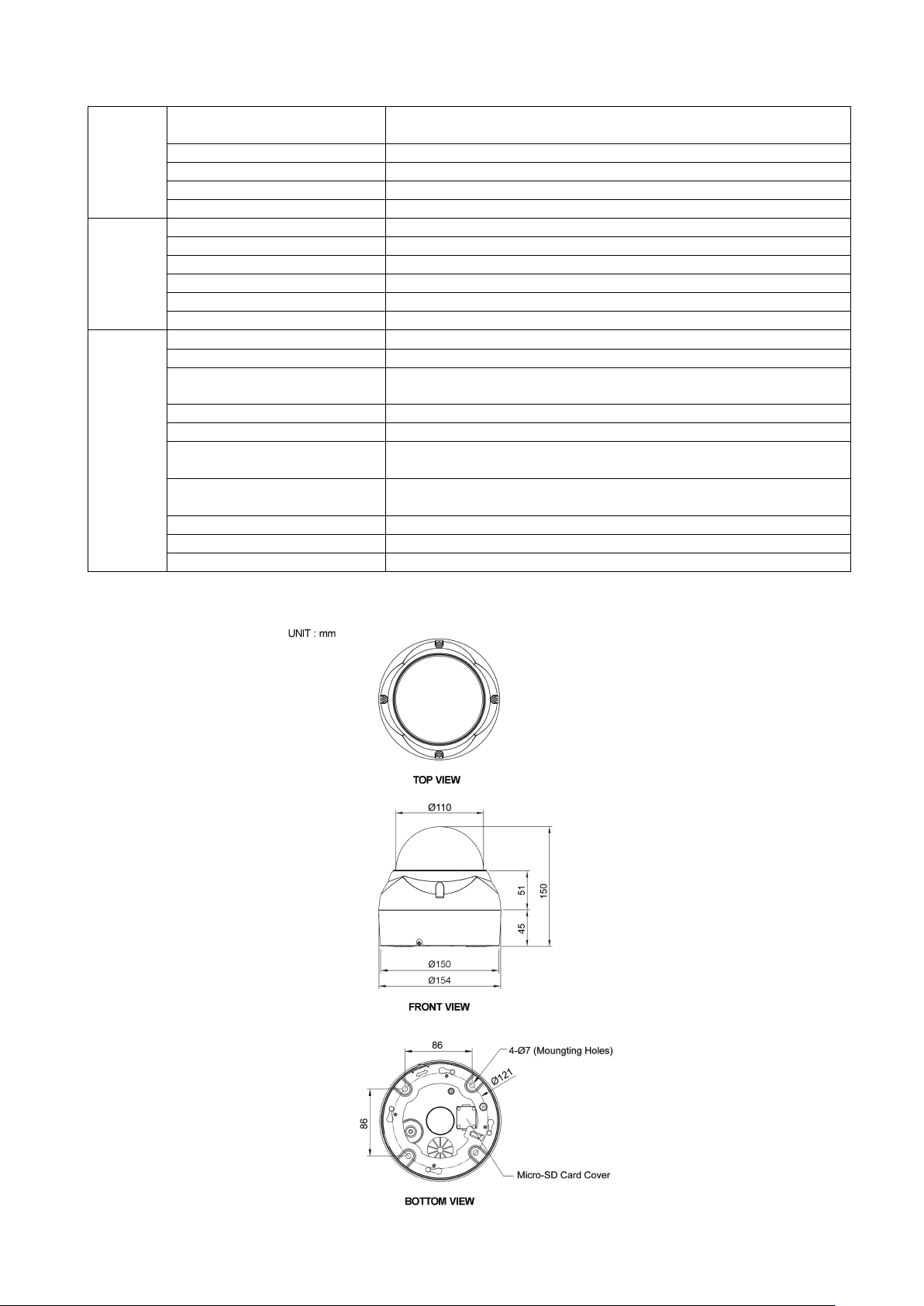

A.4 Product Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
A.5 System Requirement for Web Browser . . . . . . . . . . . . . . . . . . . . . . 95
A.6 Minimum System Requirements for ATVision IP Software . . . . . . . . . . . 95
A.7 General Performance Considerations . . . . . . . . . . . . . . . . . . . . . . 95
5
Page 6
1 Introduction
The network camera supports the network service for a sensor image with progressive scan,
which can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the network camera
at once or a single user can monitor various network cameras at the same time. It also
enables users to play, store and retrieve a monitoring image by using a PC. All the settings
and real-time monitoring screens are also provided through an access to the web.
The network camera is fully featured for security surveillance and remote monitoring needs.
It is based on the DSP compression chip, and makes it available on the network as real-time,
full frame rate Motion JPEG and H.264 video streams.
1.1 Components
The camera is designed with compact, small size, hard dome camera housing. The housing
is constructed of aluminum, steel and plastic. The housing is designed to be mounted on
a wall or a ceiling. The housing meets the Protection Classification IP66 standards for dust
and moisture resistance.
Dome Camera · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
Installation Guide/CD · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
Template Sheet · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
Mounting Bracket · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
Safety Lanyard · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
Accessory Kit · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
1) Mounting screws (PH6 x 35.0) · · · · · · · · · · · · · · · · · · (4)
2) Plastic anchors · · · · · · · · · · · · · · · · · · (4)
3) O-Rings · · · · · · · · · · · · · · · · · · (4)
4) Torx wrench · · · · · · · · · · · · · · · · · · (1)
Accessory Connector · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
1) 3-pin terminal block · · · · · · · · · · · · · · · · · · (1)
2) 6-pin terminal block · · · · · · · · · · · · · · · · · · (1)
6
Page 7
1.2 Key Features
• Brilliant video quality
The network camera offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility.
• Dual or Triple Streams
The network camera can deliver dual or triple video streams simultaneously at full
frame rate in all resolutions up to Full-HD (1920 x 1080p) using Motion H.264 and
JPEG. This means that several video streams can be configured with different compression formats, resolutions and frame rates for different needs.
• Image setting adjustment
The network camera also enables users to adjust image settings such as contrast,
brightness and saturation to improve images before encoding takes place.
• Intelligent video capabilities

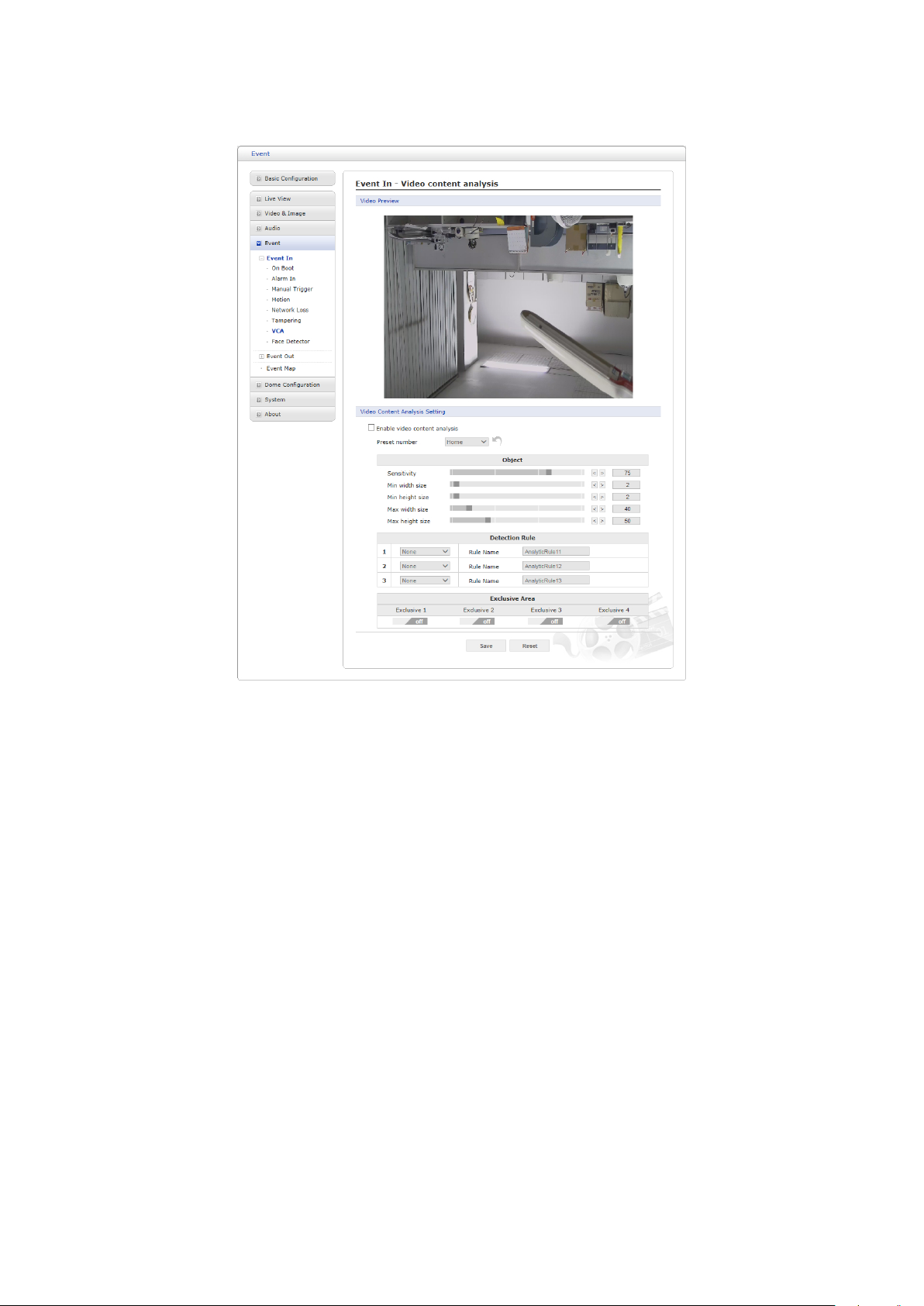

The network camera includes intelligent capabilities such as VCA(Video Content Analysis). The network camera’s external inputs and outputs can be connected to devices
such as sensors and relays, enabling the system to react to alarms and activate lights
or open/close doors.
• Improved Security
The network camera logs all user access, and lists currently connected users. Also, its
full frame rate video can be provided over HTTPS.
• PoE (Power over Ethernet)
This network camera can be powered through PoE, which simplifies installation since
only one cable is needed for carrying power, as well as video controls.
• ONVIF Certificate
This is a global interface standard that makes it easier for end users, integrators, consultants, and manufacturers to take advantage of the possibilities offered by network
video technology. ONVIF enables interoperability between different vendor products,
increased flexibility, reduced cost, and future-proof systems.
• Micro-SD Recording support
The network camera also supports a Micro-SD memory slot for local recording with
removable storage.
• Audio support
The network camera also supports two-way audio.
7
Page 8
2 Installation
2.1 Installation
The dome camera is for use in surface or pendent mounting applications, and the mounting
member must be capable of supporting loads of up to 10 lb (4.5 kg). (Pendent mounting
must use pendent mount accessory.)
The dome cameras mounting bracket should be attached to a structural object, such as hard
wood, wall stud or ceiling rafter that supports the weight of the dome camera.
CAUTION: A silicone rubber sealant must be applied to seal the housing to secure water-
proofing.
2.1.1 Locking Dome Camera
1. Make screw holes on the ceiling using the supplied mounting Template Sheet (Figure A).
2. Fix the Mounting Bracket to the ceiling using supplied Anchors (4x) and Mounting Screws (4x)
(Figure B).
3. Hook up the Safety Lanyard to the Safety Lanyard Hook of the Mounting Bracket (Figure C).
4. Align the locking tab on the bracket and the locking slot on the base of the dome (Figure D).
5. Turn the dome to the counterclockwise about 10 degree to the locked position (Figure E).
8
Page 9
CAUTION: Before installing mounting bracket to surface pre-adjust the four mounting
screws ”A” on the base of the dome camera to best match the mounting bracket
locked position. Unscrew the locking screw on the side of the dome’s base and
fit the tab of the mounting bracket into the locking slot. Screws ”A” should not
be too tight or too loose when the dome is in the locked position. After setting
the proper positions of screws ”A” remove the mounting bracket and install it
to the proper surface. If it is too difficult to lock the dome in position after the
mounting bracket has been installed readjust the screws ”A” by unscrewing
them a small amount and try to install dome camera again.
9
Page 10
2.1.2 Heater Kit Installation
• HEATER
Power Supply 24VAC
Heater Power Consumption 10W
Heater ON at 59oF (15oC)
Heater OFF at 77oF (25oC)
• POWER
Use satisfies clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power
source only.
10
Page 11
2.2 Basic Configuration of Camera System
No. Connector Wire Color Description
1 3-pin terminal block
2 6-pin terminal block
3 RJ-45 BLACK
4 STEREO GRAY AUDIO OUTPUT
5 STEREO BLACK AUDIO INPUT
The camera must be installed by qualified service personnel in accordance with all local and
federal electrical and building codes.
RED 24VAC or 12VDC+
WHITE 24VAC or 12VDC-
PINK ALARM INPUT 1
GRAY ALARM INPUT 2
GREEN ALARM INPUT 3
BLUE ALARM INPUT 4
BROWN GND
YELLOW ALARM OUTPUT
Ethernet, RJ-45 port compatible with
10/100Mbps having PoE functionality.
11
Page 12
2.3 Micro-SD Card Insertion
User can install and change Micro-SD card as shown in the following picture.
1. Open the Micro-SD card cover.
2. Install or change Micro-SD card.
3. Tightly close the Micro-SD card cover to ensure waterproofness.
12
Page 13
2.4 Connections
• Connecting the Network
Connect a standard RJ-45 cable to the network port of the camera. Generally a crossover cable is used for directly connection to PC, while a direct cable is used for connection to a hub.
• Connecting Alarms
– A1,A2,A3,A4 (Alarm Input 1,2,3,4)
You can use external devices to signal the camera to react on events. Mechanical
or electrical switches can be wired to the A1,A2,A3,A4 (Alarm Input 1,2,3,4) and
G (Ground) connectors.
– G (Ground)
NOTE: All the connectors marked G or GND are common.
Connect the ground side of the alarm input and/or alarm output to the G (Ground)
connector.
– AO (Alarm Output)
The camera can activate external devices such as buzzers or lights. Connect the
device to the AO (Alarm Output) and G (Ground) connectors.
• Connecting the Power
Connect power of 12VDC or 24VAC for the camera.
When using a 12VDC adapter, connect the positive (+) pole to the ’ + ’ position and the
negative (-) pole to the ’ - ’ position.
Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power
source only.
– Be careful not to reverse the polarity when you connect the power cable.
– You can also use a router featuring PoE (Power over Ethernet) to supply power to
the camera.
– 24VAC is recommended to use for the camera power for stable operation with
heater kit. If using PoE, the heater will not operate at all.
13
Page 14
2.4.1 Network Connection & IP assignment
The camera supports the operation through the network. When a camera is first connected
to the network, it is necessary to allocate an IP address to the device with the SmartManager
utility on the CD. (Default IP 192.168.30.220)
1) Connect the network camera/device to the network and power up.
2) Start SmartManager utility (Start > All programs > SmartManager > SmartManager).
The main window will display, and after a short while any network devices connected to the
network will be displayed in the list.
3) Select the camera on the list and click right button of the mouse. You can see the pop-up
menu as below.
4) Select Assign IP Address. The Assign IP window will display. Enter the required IP address.
NOTE: For more information, refer to the SmartManager Users Manual.
14
Page 15
3 Operation
The network camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with
Windows.
NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow
ActiveX controls.
3.1 Access from a browser
1. Start a browser (Internet Explorer).
2. Enter the IP address or host name of the network camera in the Location/Address field
of your browser.
3. You can see a starting page. Click Live View, Playback, or Setup to enter web page.
4. The network cameras Live View page appears in your browser.
15
Page 16

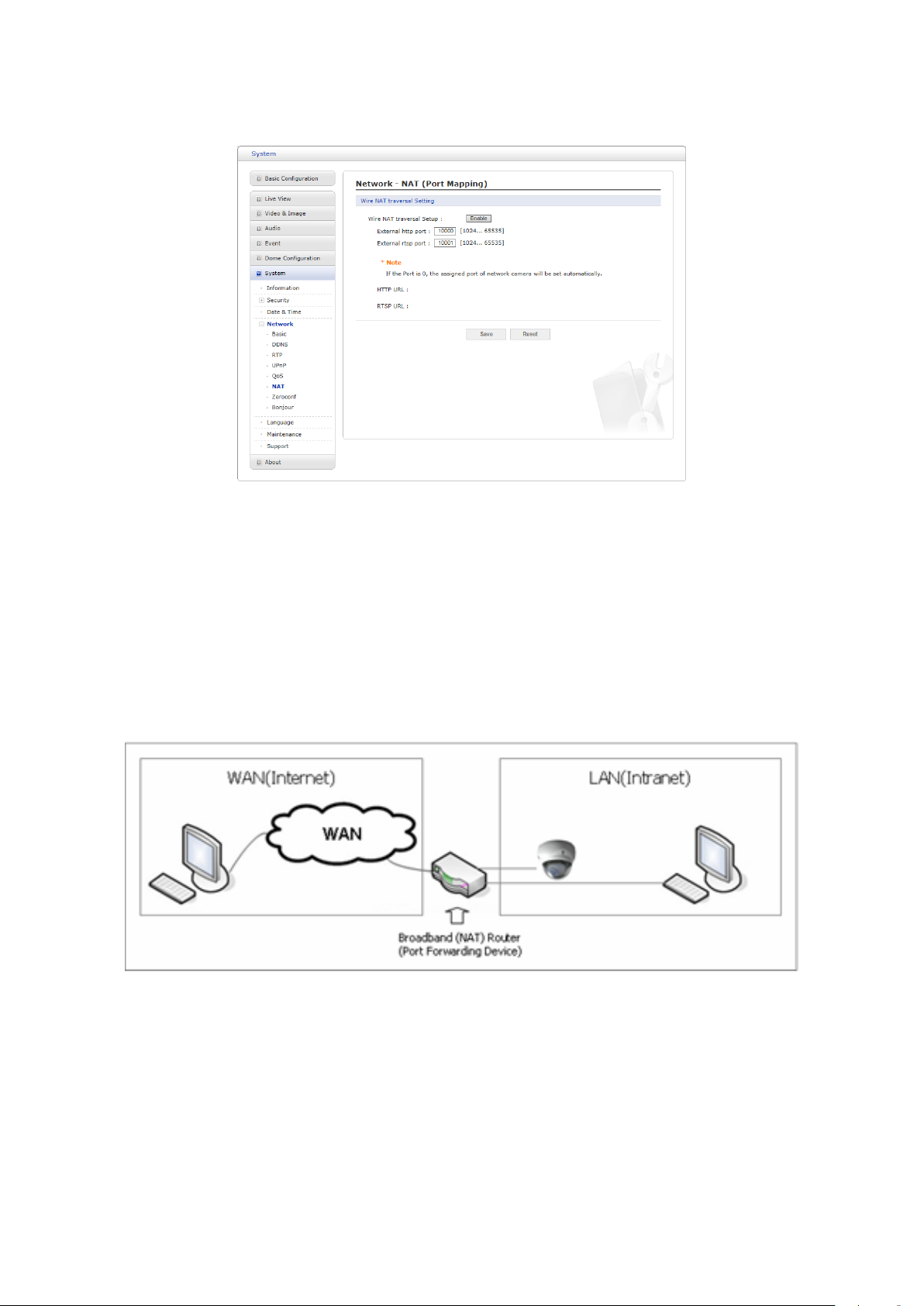

3.2 Access from the internet
Once connected, the network camera is accessible on your local network (LAN). To access
the network camera from the Internet you must configure your broadband router to allow
incoming data traffic to the network camera. To do this, enable the NAT traversal feature,
which will attempt to automatically configure the router to allow access to the network camera. This is enabled from Setup > System > Network > NAT. For more information, please
see ”System > Network > NAT” of User’s Manual.
3.3 Setting the admin password over a secure connection
To gain access to the product, the password for the default administrator user must be set.
This is done in the Admin Password dialog, which is displayed when the network camera is
accessed for the setup at the first time. Enter your admin name and password, set by the
administrator.
NOTE: The default administrator user name and password is admin. If the password is lost,
the network camera must be reset to the factory default settings. Please see Resetting to
the factory default settings.

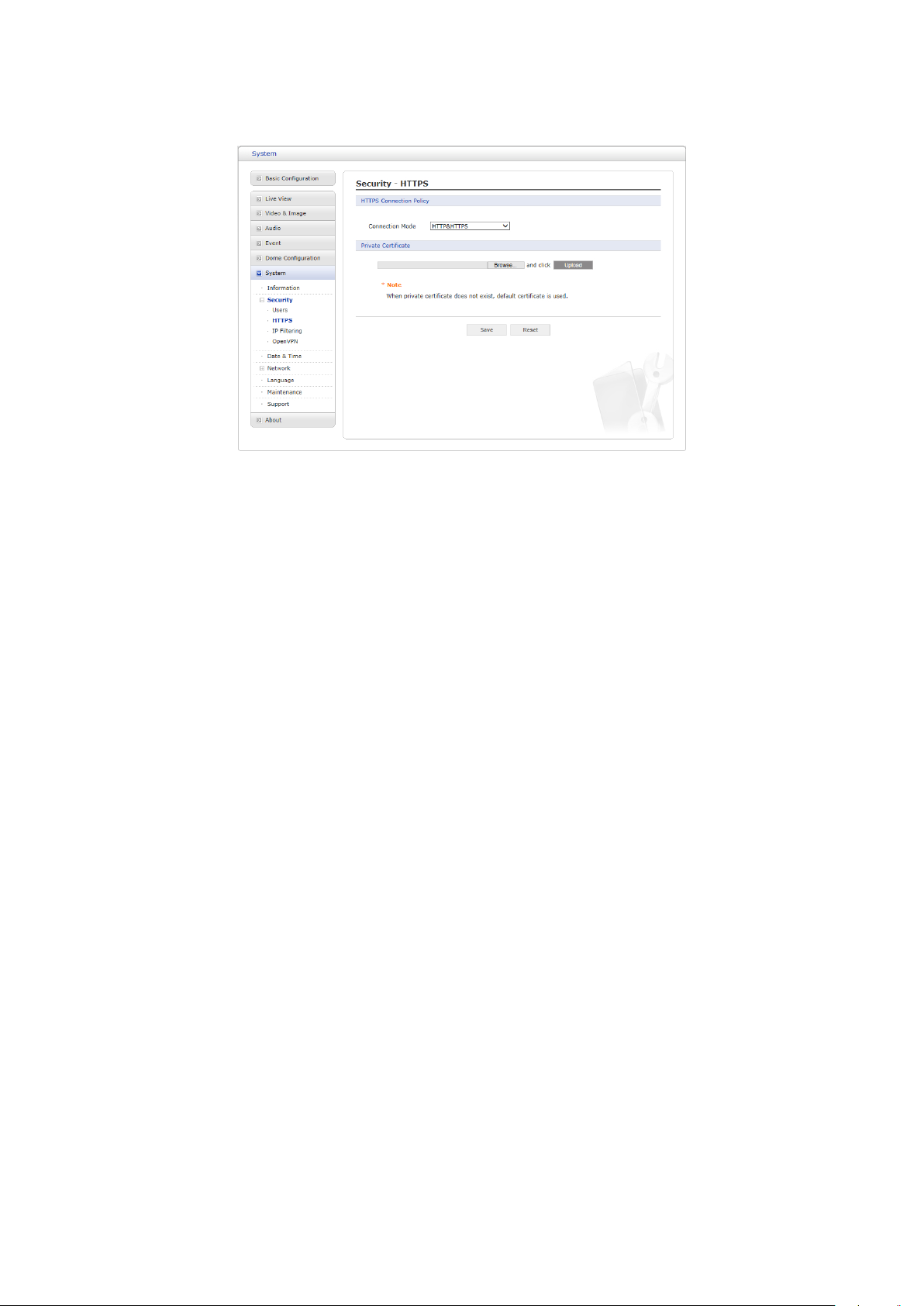

To prevent network eavesdropping when setting the admin password, this can be done via
an encrypted HTTPS connection, which requires an HTTPS certificate (see NOTE below).
To set the password via a standard HTTP connection, enter it directly in the first dialog shown
below. To set the password via an encrypted HTTPS connection, please see ”System > Security > HTTPS” of User’s Manual.
NOTE: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt the
traffic between web browsers and servers. The HTTPS certificate controls the encrypted
exchange of information.
16
Page 17
3.4 Live View Page
The Live View page comes in several screen modes: 1920x1080, 1280x1024, 1280x720(960),
1024x768, 704x480(576), 640x480(360) and 320x240. Users are allowed to select the most
suitable one out of those modes. Adjust the mode in accordance with your PC specifications
and monitoring purposes.
1) General controls
Live View Page Playback Page Setup Page Help Page
The video drop-down list allows you to select a customized or preprogrammed video stream on the Live View page. Stream profiles are configured under Setup > Basic Configuration > Video & Image. For more
information, please see ”Basic Configuration > Video & Image” of Users
Manual.
The resolution drop-down list allows you to select the most suitable one
out of video resolutions to be displayed on Live View page.
The protocol drop-down list allows you to select which combination of protocols and methods to use depending on your viewing requirements, and
on the properties of your network.
The preset drop-down list allows you to select the preset number for the
PTZ camera being used. This icon is inactivated if the PTZ settings are
not set.
2) Control toolbar
The live viewer toolbar is available in the web browser page only. It displays the following
buttons:
The Stop button stops the video stream being played. Pressing the key again toggles
the start and stop. The Start button connects to the network camera or starts playing
a video stream.
The Pause button pauses the video stream being played.
The Snapshot button takes a snapshot of the current image. The location where the
image is saved can be specified.
The Digital Zoom button activates a zoom-in or zoom-out function for video image on
the live screen.
17
Page 18
The Full Screen button causes the video image to fill the entire screen area. No other
windows will be visible. Press the ’Esc’ button on the computer keyboard to cancel full
screen view.
The Manual Trigger button activates a pop-up window to manually start or stop the
event.
The PTZ button activates a pop-up window for Pan, Tilt and Zoom control.
The VCA button shows/hides VCA rule setting and detected objects.
The Face Detection button shows/hides detected faces.
The Speaker button activates/deactivates external speaker.
The Mic button activates/deactivates microphone input.
Use this scale to control the volume of the speakers and microphones.
NOTE: VCA and Face Detection works exclusively to each other.
3) Video Streams
The network camera provides several images and video stream formats. Your requirements and the properties of your network will determine the type you use.
The Live View page in the network camera provides access to H.264 and Motion JPEG
video streams, and to the list of available video streams. Other applications and clients
can also access these video streams/images directly, without going via the Live View
page.
18
Page 19
3.5 Playback
The Playback window contains a list of recordings made to the memory card. It shows each
recording’s start time, length, the event type used to start the recording, calendar and time
slice bar indicates if the recording is existed or not.
The description of playback window follows.
(1) Video Screen
You can see the video screen when playing the video clip in the Micro SD memory.
(2) Playback Buttons
To view a recording data in the SD local storage, select it from the list and click the
Playback buttons.
Go to the first: go to the beginning of the video clip.
Fast backward play: fast play backward of the video clip.
Backward play: play backward of the video clip.
Step backward play: go back one frame of the video clip.
Pause: pause playback of the video clip.
Step forward play: go forward one frame of the video clip.
Forward Play: play forward the video clip.
Fast forward play: play fast forward of the video clip.
Go to the last: go to the end of the video clip.
Clip copy: copy the video clip.
Zoom In: zoom in the video clip.
Full Screen: display full screen of the video.
19
Page 20
(3) Time Chart
Display an hour-based search screen for the chosen date. If there is recording data, a
blue section will be displayed on a 24-hour basis. If you select a particular hour in the
chart, a yellow square on the hour will be displayed.
(4) Speaker Control Bar
Use this scale to control the volume of the speakers.
(5) Search Calendar
Search results from the SD local storage in the network camera connected are displayed
monthly. If there is a recorded data for a particular date, a blue square on the date will be
displayed. If you select a particular date in the calendar, a yellow square on the date will
be displayed.
(6) Play Time
Displays time of the video playing.
(7) Event Search Window
Select a search option in the drop-down list and click GO button. You can also enter
the time period for searching. If you click Start Date or End Date zone, displays Search
Calendar.
(8) Event List Window
Event List displays the event(s) that were recorded in the SD local storage. Select a list
and click the play button. The video clip will be played.
20
Page 21
3.6 Network Camera Setup
This section describes how to configure the network camera.
Administrator has unrestricted access to all the Setup tools, whereas Operators have access
to the settings of Basic Configuration, which are Live View, Video & Image, Audio, Event,
Dome Configuration, and System.
You can configure the network camera by clicking Setup either in the first connection page
or the top second-right button of the Live View page. Accessing the network camera from a
computer for the first time opens the Admin Password dialog box. Enter your administrator
or operator id and password to get into setup page.
NOTE: If the password is lost, the network camera must be reset to the factory default
settings. Please see ”Resetting to the Factory Default Setting”.
3.6.1 Basic Configuration
You can see the device information in this information page.
21
Page 22

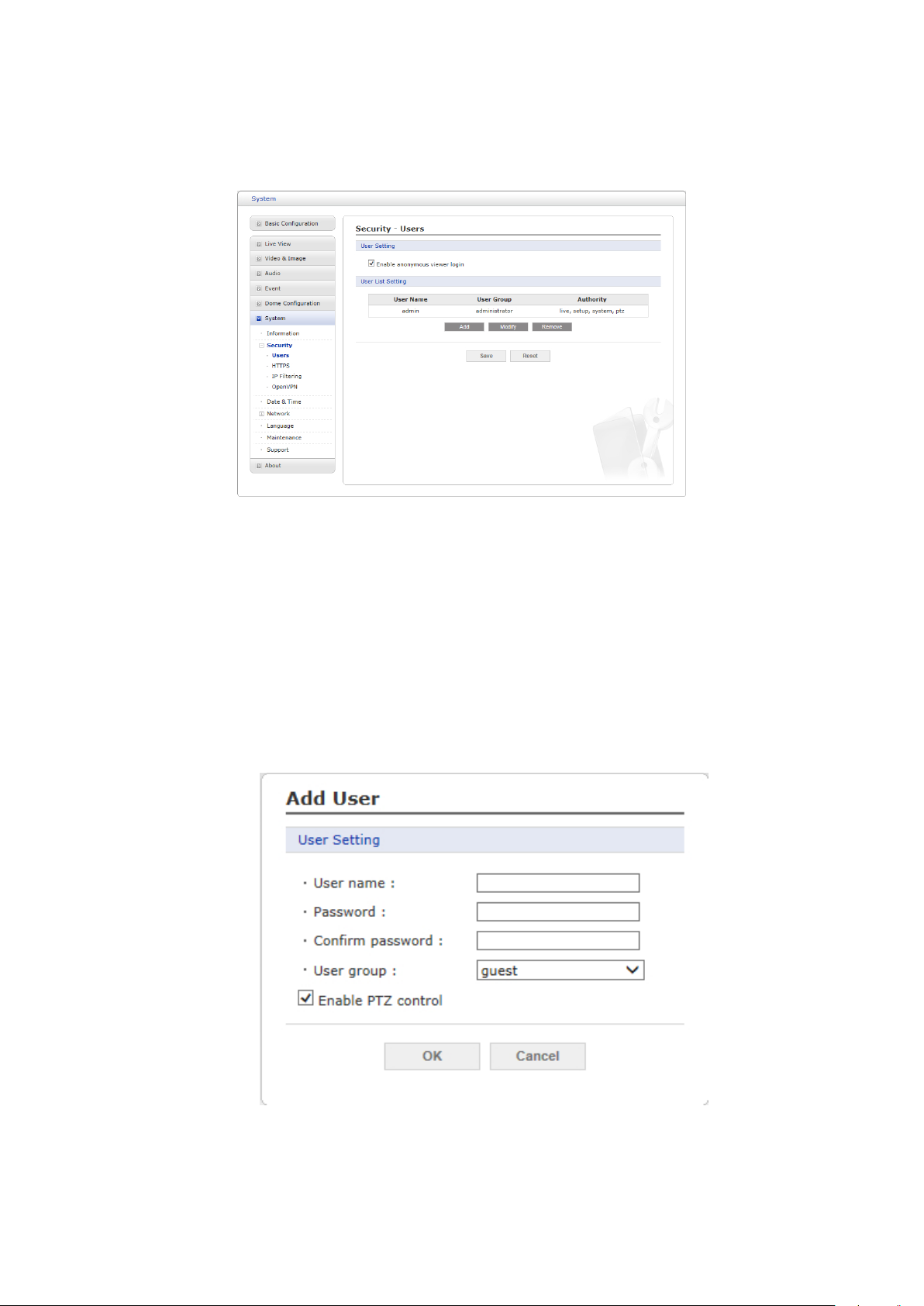

1) Users
User access control is enabled by default. The administrator can set up other users, by
giving user names and passwords. It is also possible to allow anonymous viewer login,
which means that anybody may access the Live View page, as described below:
The user list displays the authorized users and user groups (levels):
User Group Authority
Guest
Provides the lowest level of access, which only allows access
to the Live View page.
An operator can view the Live View page, create and modify
Operator
events, and adjust certain other settings. Operators have no
access to System Options.
Administrator
An administrator has unrestricted access to the Setup tools
and can determine the registration of all other users.
• Enable anonymous viewer login: Check the box to use the webcasting features. Re-
fer to ”Video & Image > Webcasting” for more details.
Please refer to ”System > Security > Users” for more details about User setup.
22
Page 23

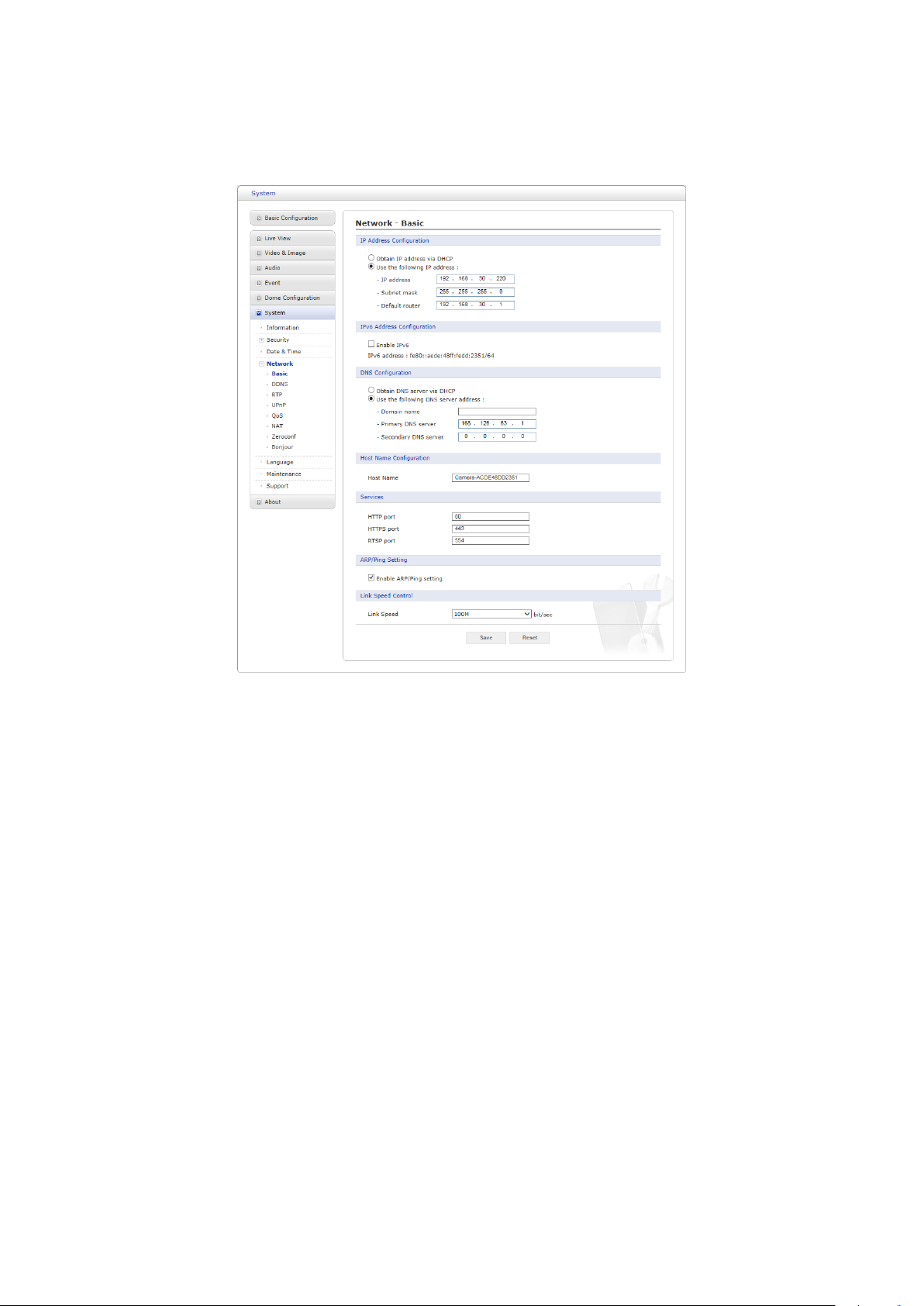

2) Network
The network camera supports both IP version 4 and IP version 6. Both versions may be
enabled simultaneously, and at least one version must always be enabled. When using
IPv4, the IP address for the network camera can be set automatically via DHCP, or a static
IP address can be set manually. If IPv6 is enabled, the network camera receives an IP address according to the configuration in the network router. There is also an option of using
the Internet Dynamic DNS Service. For more information on setting the network, please see
”System > Network > Basic”.
• Obtain IP address via DHCP: Dynamic Host Configuration Protocol (DHCP) is a pro-
tocol that lets network administrators centrally manage and automate the assignment
of IP addresses on a network. DHCP is enabled by default. Although a DHCP server
is mostly used to set an IP address dynamically, it is also possible to use it to set a
static, known IP address for a particular MAC address.
• Use the following IP address: To use a static IP address for the network camera,
check the radio button and then make the following settings:
– IP address: Specify a unique IP address for your network camera.
– Subnet mask: Specify the mask for the subnet the network camera is located on.
– Default router: Specify the IP address of the default router (gateway) used for
connecting devices attached to different networks and network segments.
NOTES:
1. DHCP should only be enabled if using dynamic IP address notification, or if your DHCP
server can update a DNS server, which then allows you to access the network camera
by name (host name). If DHCP is enabled and you cannot access the unit, you may
have to reset it to the factory default settings and then perform the installation again.
2. The ARP/Ping service is automatically disabled two minutes after the unit is started, or
as soon as an IP address is set.
3. Pinging the unit is still possible when this service is disabled.
Please refer to ”System > Network > Basic” for more details about Network setup.
23
Page 24
3) Video & Image
User can setup and change setting of individual video stream in this page.
Please refer to ”Video & Image > Basic” for more details about Video & Image setup.
4) Audio
The network camera can transmit audio to other clients using an external microphone and
can play audio received from other clients by attaching a speaker. User can setup and
change setting of Audio in this page.
Please refer to ”Audio” for more details about Audio setup.
24
Page 25

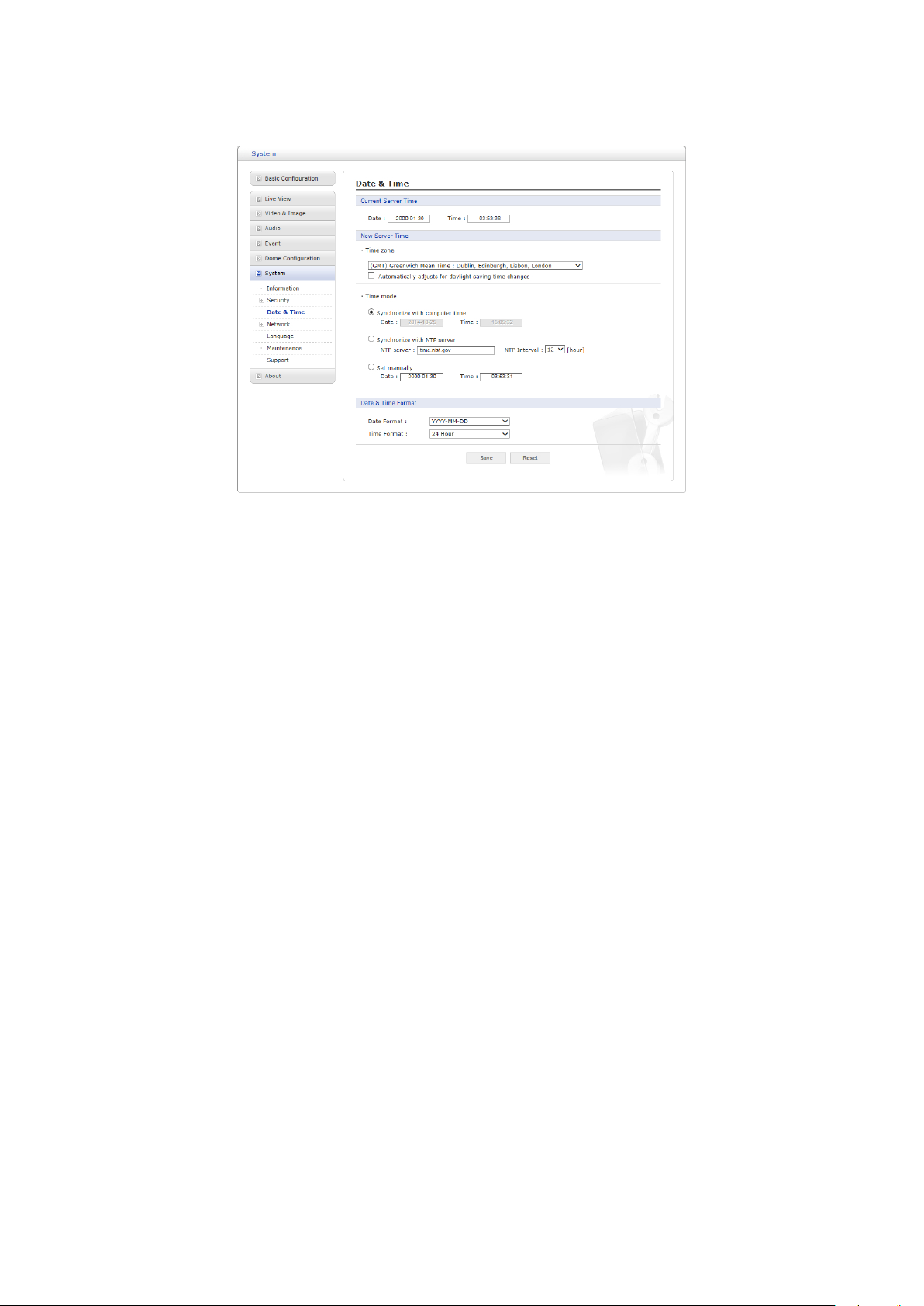

5) Date & Time
User can set time directly or assign time server to get the current time, as well as determine
Date & Time format in this page.
Please refer to ”System > Date & Time” for more details about Date & Time setup.
3.6.2 Live View
• Video Input Mode:
– Video Mode: Choose Video Mode you wish to use from the drop-down list: NTSC
or PAL
NOTE: This function may not be applicable, depending on the model.
25
Page 26
3.6.3 Video & Image
1) Basic
• Sensor Setting:
– Capture mode:
User can select sensor capture mode between 30 fps and 60 fps in full-HD resolution. If 60fps is selected, Stream 3 is disabled and hidden from the window. In
other words, the camera provides triple stream at 30 fps and dual stream at 60
fps.
• Stream 1 Setting:
– Codec: The codec supported in Stream 1 is H.264.
There are 3 pre-programmed stream profiles available for quick set-up. Choose
the form of video encoding you wish to use from the drop-down list:
∗ H.264 HP (High Profile):
Primary profile for broadcast and disc storage applications, particularly for
high-definition television applications (for example, this is the profile adopted
by the Blu-ray Disc storage format and the DVB HDTV broadcast service).
∗ H.264 MP (Main Profile):
Primary profile for low-cost applications that require additional error robustness, this profile is used rarely in videoconferencing and mobile applications;
it does add additional error resilience tools to the Constrained Baseline Profile. The importance of this profile is fading after the Constrained Baseline
Profile has been defined.
∗ H.264 BP (Baseline Profile):
Originally intended as the mainstream consumer profile for broadcast and
storage applications, the importance of this profile faded when the High Profile
was developed for those applications.
26
Page 27
– Resolution:
This enables users to determine a basic screen size when having an access
through the Web Browser or PC program. The screen size control comes in seven
modes like 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 704x576,
704x480, 640x480, 640x360 and 320x240. Users can change the selected screen
size anytime while monitoring the screen on a real-time basis.
– Bitrate control:
The bit rate can be set as Variable Bit Rate (VBR) or Constrained Variable Bit
Rate (CVBR). VBR adjusts the bit rate according to the image complexity, using
up bandwidth for increased activity in the image, and less for lower activity in
the monitored area. Limiting the maximum bit rate helps control the bandwidth
used by the H.264 video stream. Leaving the Maximum bit rate as unlimited
maintains consistently good image quality but increases bandwidth usage when
there is more activity in the image. Limiting the bit rate to a defined value prevents
excessive bandwidth usage, but images are degraded when the limit is exceeded.
∗ VBR: unlimited maximum bitrate.
∗ CVBR: VBR with maximum bitrate which is set in Bitrate .
– Bitrate: Maximum bitrate for CVBR in the range of 100kbps ∼ 8Mbps.
This is disabled if Bitrate control is set to VBR.
– Frame rate:
Upon the real-time play, users should select a frame refresh rate per second. If
the rate is high, the image will become smooth. On the other hand, if the rate is
low, the image will not be natural but it can reduce a network load.
– GOP size:
Select the GOP (Group of Picture) size. If users want to have a high quality of
fast image one by one, please decrease the value. For the purpose of general
monitoring, please do not change a basic value. Such act may cause a problem
to the system performance. For the details of GOP setting, please contact the
service center.
• Stream 2 Setting:
Sometimes the image size is large due to low light or complex scenery. Adjusting the
frame rate and quality helps to control the bandwidth and storage used by the Motion
JPEG video stream in these situations. Limiting the frame rate and quality optimizes
bandwidth and storage usage, but may give poor image quality. To prevent increased
bandwidth and storage usage, the Resolution, Frame rate, and Frame Quality should
be set to an optimal value.
– MJPEG Resolution: Same as the stream 1 settings.
– MJPEG Frame rate: Same as the stream 1 settings.
– MJPEG Quality: Select the picture quality. If users want to have a high quality
of fast image one by one, please decrease the value. For the purpose of general
monitoring, please do not change a basic value. Such act may cause a problem
to the system performance.
• Stream 3 Setting: Same as the Stream 1 Setting.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
27
Page 28
2) Auto Focus
• Mode: Determines focus operation method.
– Auto: Auto Focus is always active.
– Manual: User can manually focus the camera when camera is not moving. Auto
Focus becomes active when camera moves and about 5 seconds after movement
stops.
– One Push: Basically the same as Manual mode except that Auto Focus is acti-
vated only after the camera movement stops and lasts for about 5 seconds.
• Focus Limit: Minimum distance for Auto Focus operation. Object nearer than this limit
may not be clearly focused.
• Speed: Focus speed can be adjusted in the range of 1 - 8.
NOTE: Avoid continuous, 24-hour use of the auto focus. This will shorten the lifespan of the
lens.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
28
Page 29
3) Webcasting
The live video of the camera can be streamed to a website. User can copy and paste the
HTML code generated on the screen to the website page code, where user wants to display
live video.
NOTE: To use webcasting service, the Enable Anonymous viewer login option must be
checked.
29
Page 30

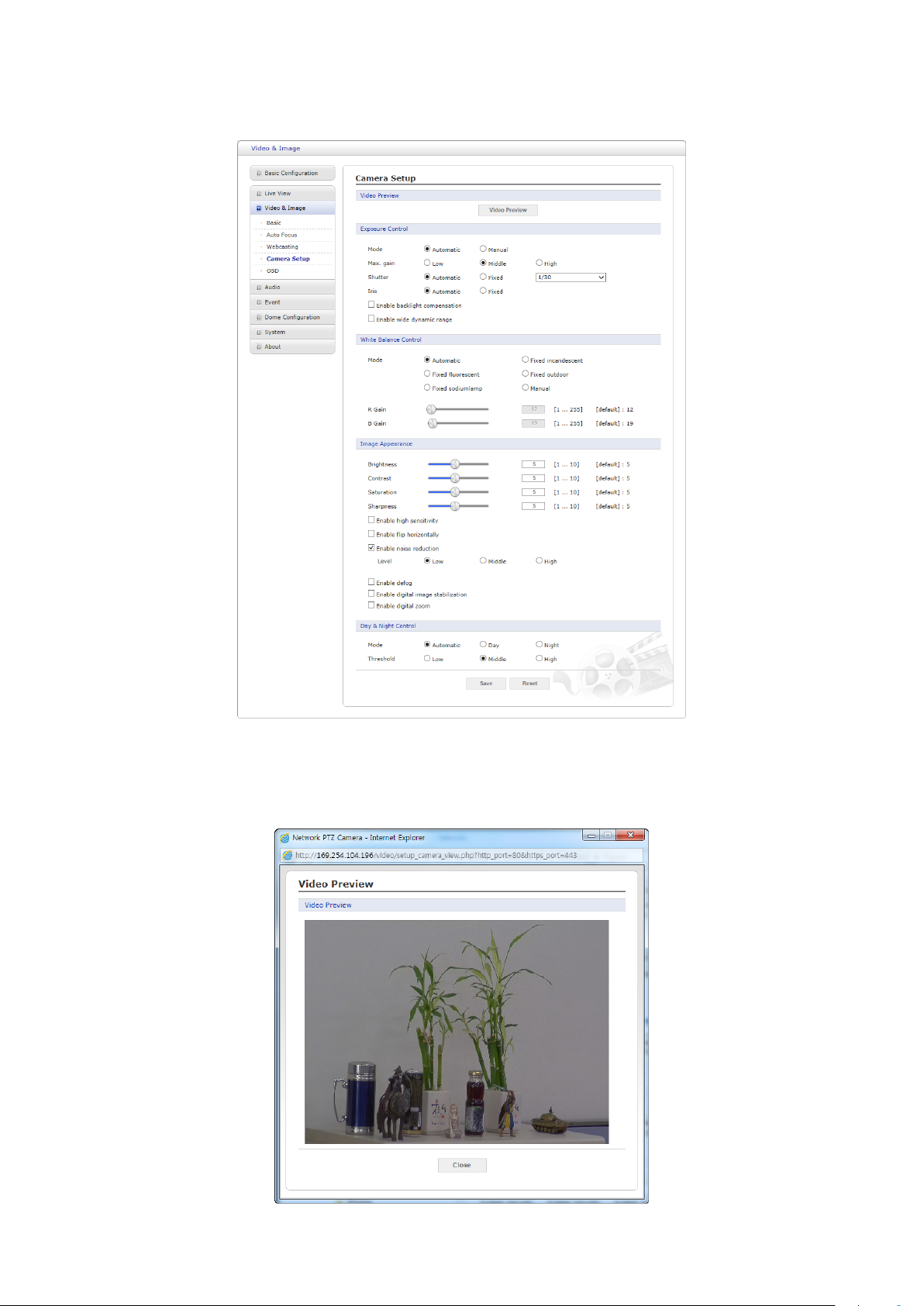

4) Camera Setup
In this page, user can setup Exposure Control, White Balance Control, Image Appearance,
and Day & Night control.
• Video Preview: User can check the setting via video preview pop-up window
30
Page 31

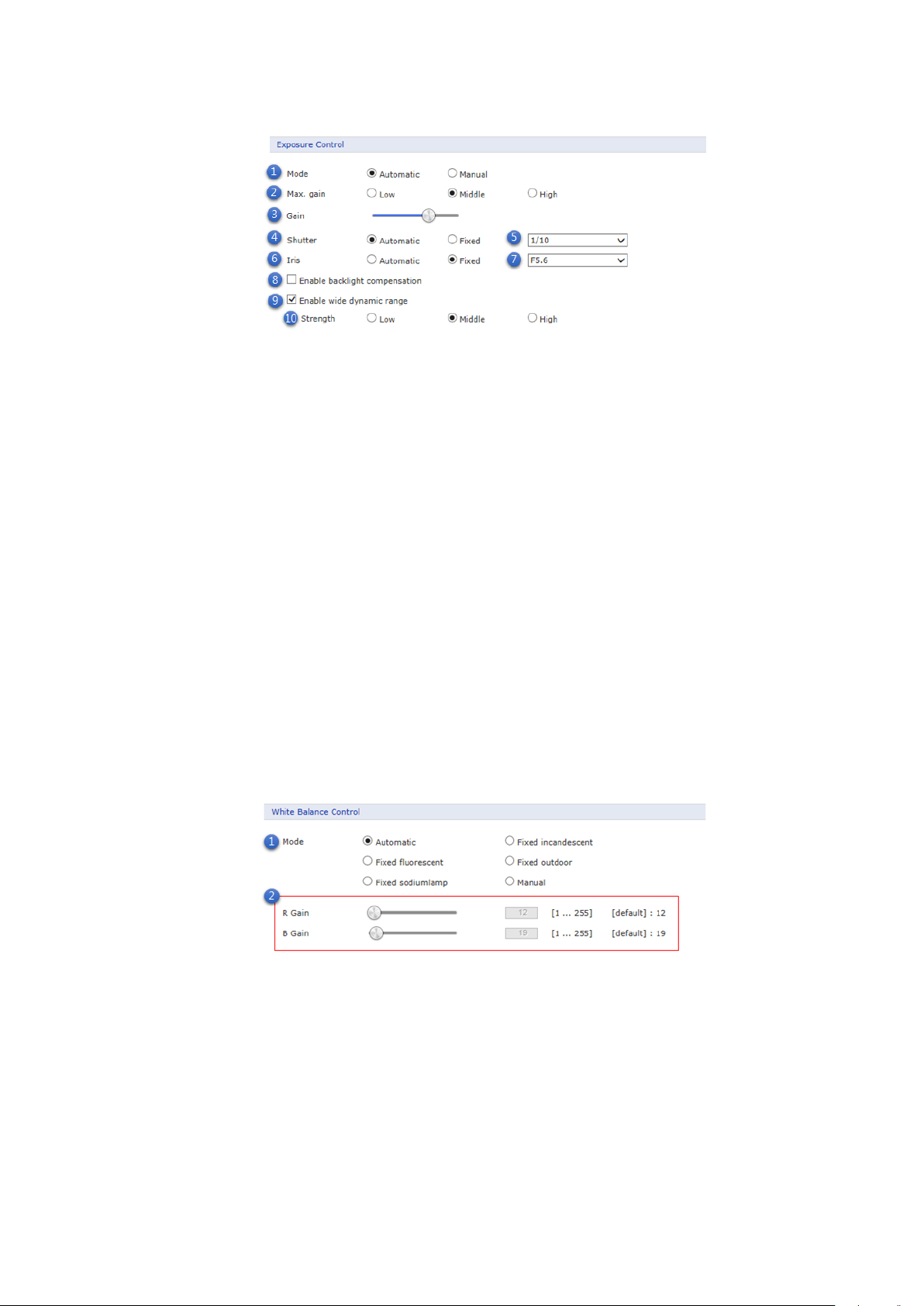

• Exposure Control
1. Mode: Determines exposure mode between automatic and manual. For automatic mode, at least one of Shutter and Iris should be set to automatic. For
manual mode, both Shutter and Iris become fixed.
2. Max. gain: Sets maximum gain if Mode is automatic.
3. Gain: Sets gain id dB using slidebar if Mode is manual.
4. Shutter: Determines shutter mode between automatic and fixed.
5. Shutter speed: Select shutter speed if Shutter is in fixed mode.
6. Iris: Determines Iris mode between automatic and fixed.
7. Iris F number: Select Iris F number if Iris is in fixed mode.
8. Enable backlight compensation: Activates BLC function which cannot be used
with WDR.
9. Enable wide dynamic range: Activates WDR which cannot be used with BLC or
Defog function.
10. Strength: Determines WDR strength.
• White Balance Control
1. Mode: Select one of six white balance mode which fits camera installation location environment.
2. User can separately set R Gain and B Gain in manual mode.
– R Gain: red color gain in the range of 1-255 with default value 12.
– B Gain: blue color gain in the range of 1-255 with default value 19.
31
Page 32

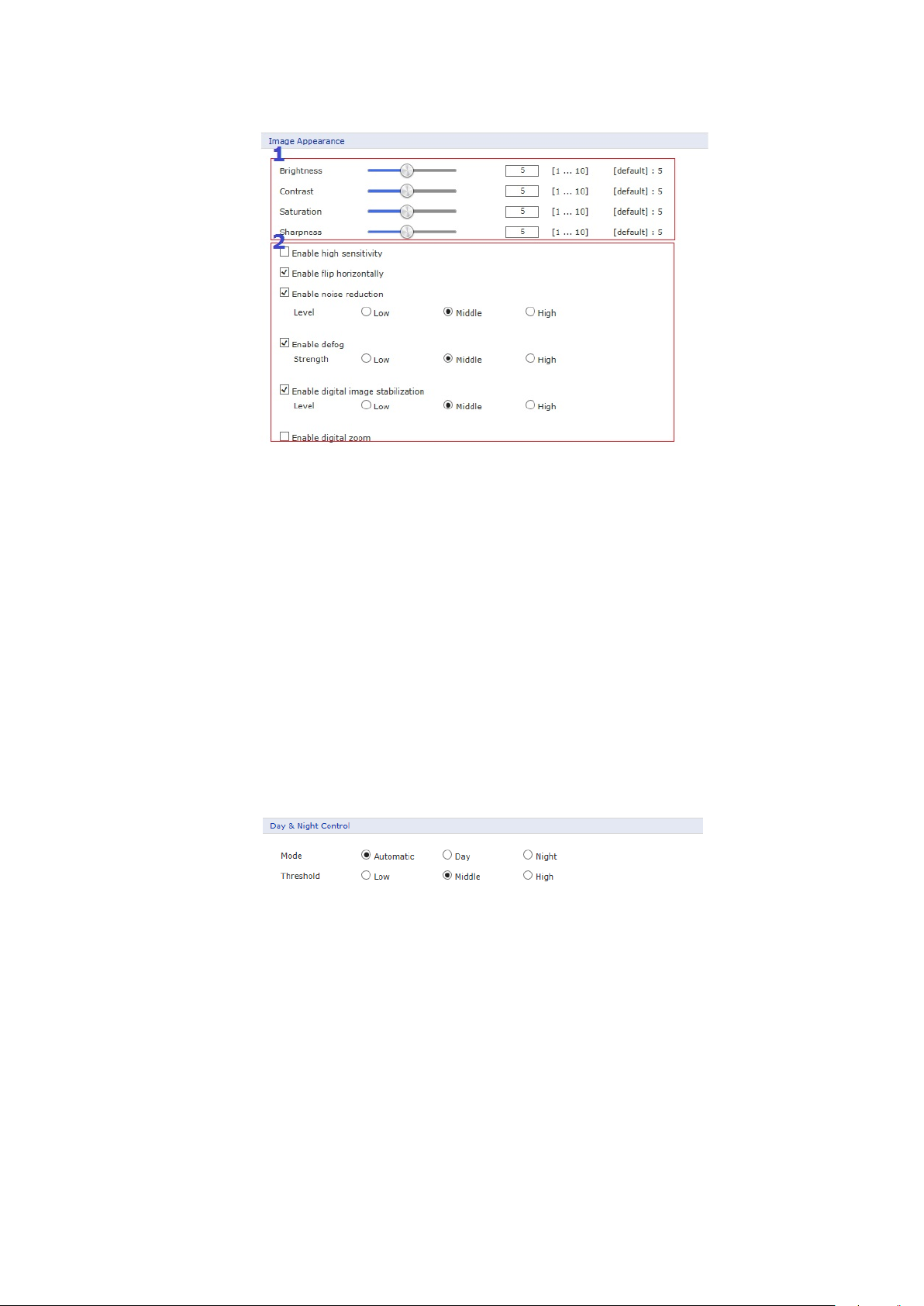

• Image Appearance
User can setup image related controls.
1. User can either use slide bar or type in number for items in 1.
2. User can select individual function and level.
– Defog: an electronic process that compensates for certain weather conditions
such as fog, drizzle, smoke or smog, which adversely affect the quality of the
video image.
– DIS(Digital Image Stabilization): an electronic process that compensates for
vibration or movement of the camera due to machinery or wind, which causes the
video image to be blurry.
NOTE: Defog function cannot be used in conjunction with WDR.
• Day & Night Control
User can setup Day & Night operation mode among Automatic, Day, and Night.
– Mode:
∗ Automatic: Normally displays color image, and switches automatically to
black & white image after the ambient light level reaches a pre-defined threshold.
∗ Day: Always displays color image.
∗ Night: Always displays black & white image.
– DN Threshold: Adjusts the level of light which the camera automatically switches
between color and black & white image.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
32
Page 33

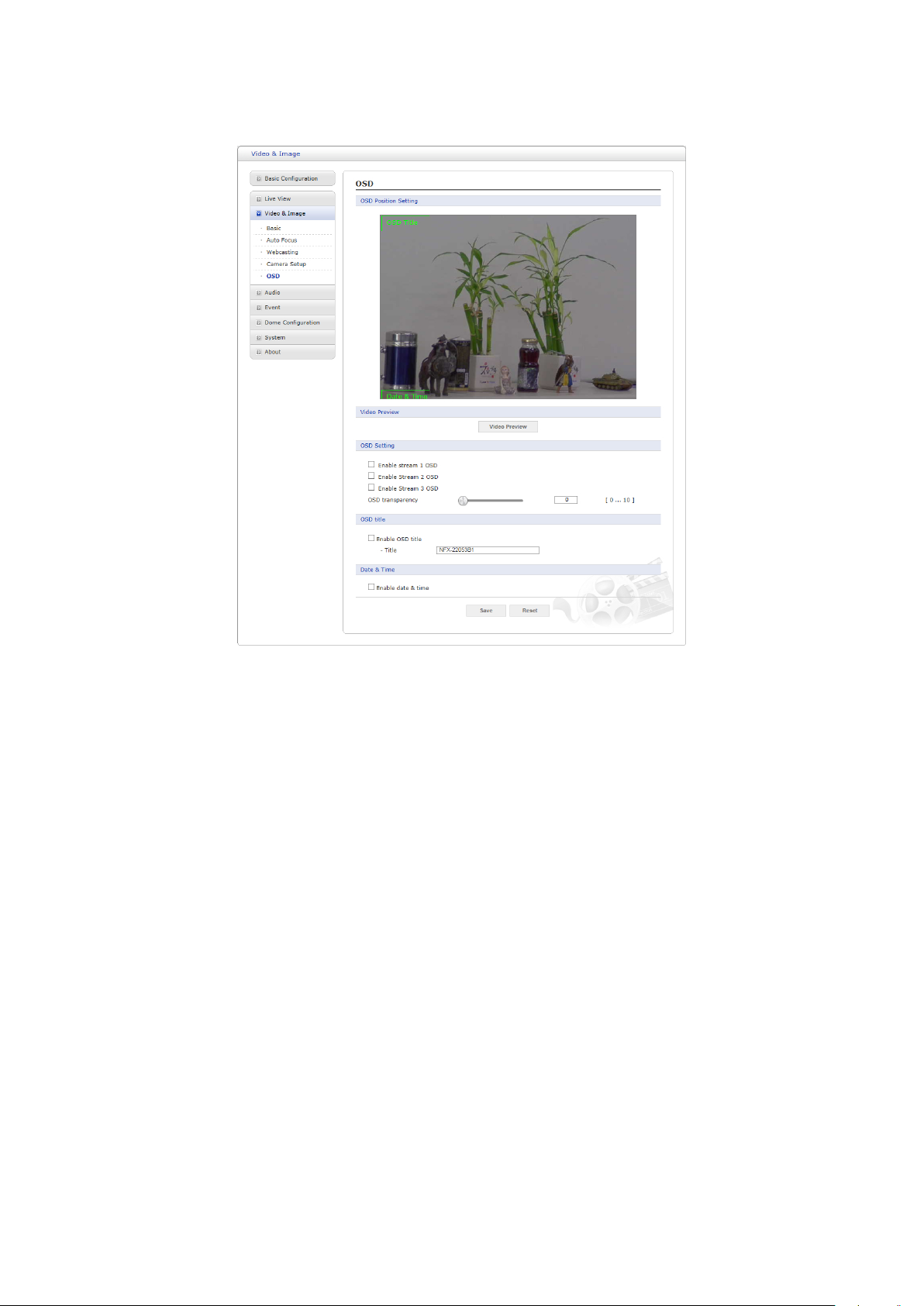

5) OSD
This camera provides two OSD’s (on screen display) on each stream, title and date & time.
User can drag green ”OSD Title” and ”Date & Time” to the desired position and check at
preview window.
• Video Preview: User can check the position of OSD on actual video via preview pop-
up window.
• OSD Setting: User can determine show or hide OSD for each stream. Also user can
set the transparency level of OSD by slide bar or type in number.
• OSD title: User can show or hide OSD title, and can change OSD title by type in. The
default is the model name of the camera.
• Date & Time: User can show or hide date & time on OSD.
NOTE: The change in this page immediately affects video stream.
33
Page 34

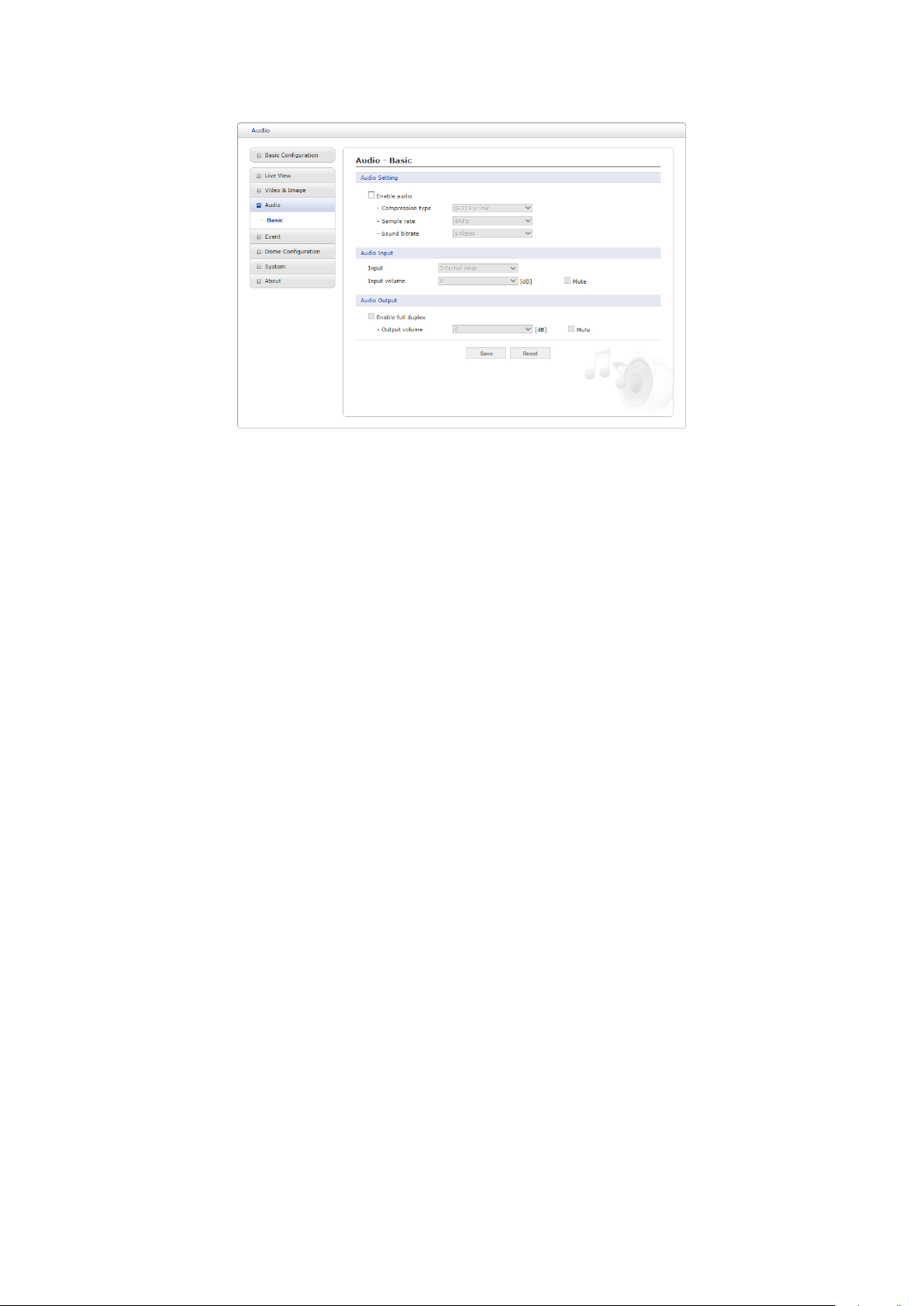

3.6.4 Audio
The network camera can transmit audio to other clients using an external microphone and
can play audio received from other clients by attaching a speaker. The Setup page has an
additional menu item called Audio, which allows different audio configurations, such as full
duplex and simplex.
• Audio Setting:
– Enable audio: Check the box to enable audio in the video stream.
– Compression type: Select the desired audio Compression format between G.711
µ-law or G.711 a-law.
– Sample rate: Select the required Sample rate (number of times per second the
sound is sampled). The higher the sample rate, the better the audio quality and
the greater the bandwidth required.
– Sound bit rate: Depending on the selected encoding, set the desired audio qual-
ity (bit rate). The settings affect the available bandwidth and the required audio
quality.
• Audio Input: Audio from an external line source can be connected to the STEREO
Jack I/O of the network camera.
– Input: User can select amplifier between Internal Amp or External Amp.
– Input volume: If there are problems with the sound input being too low or high,
it is possible to adjust the input gain for the microphone attached to the network
camera.
• Audio Output:
– Enable full duplex: Check the box to enable Full Duplex mode. This means
that you can transmit and receive audio (talk and listen) at the same time, without
having to use any of the controls. This is just like having a telephone conversation.
This mode requires that the client PC has a sound card with support for full-duplex
audio.
Uncheck the box enable Simplex mode. The simplex mode only transmits audio
from the network camera to any web client. It does not receive audio from other
web clients.
34
Page 35
– Output volume: If the sound from the speaker is too low or high it is possible to
adjust the output gain for the active speaker attached to the network camera.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
35
Page 36
3.6.5 Event
1) Event In

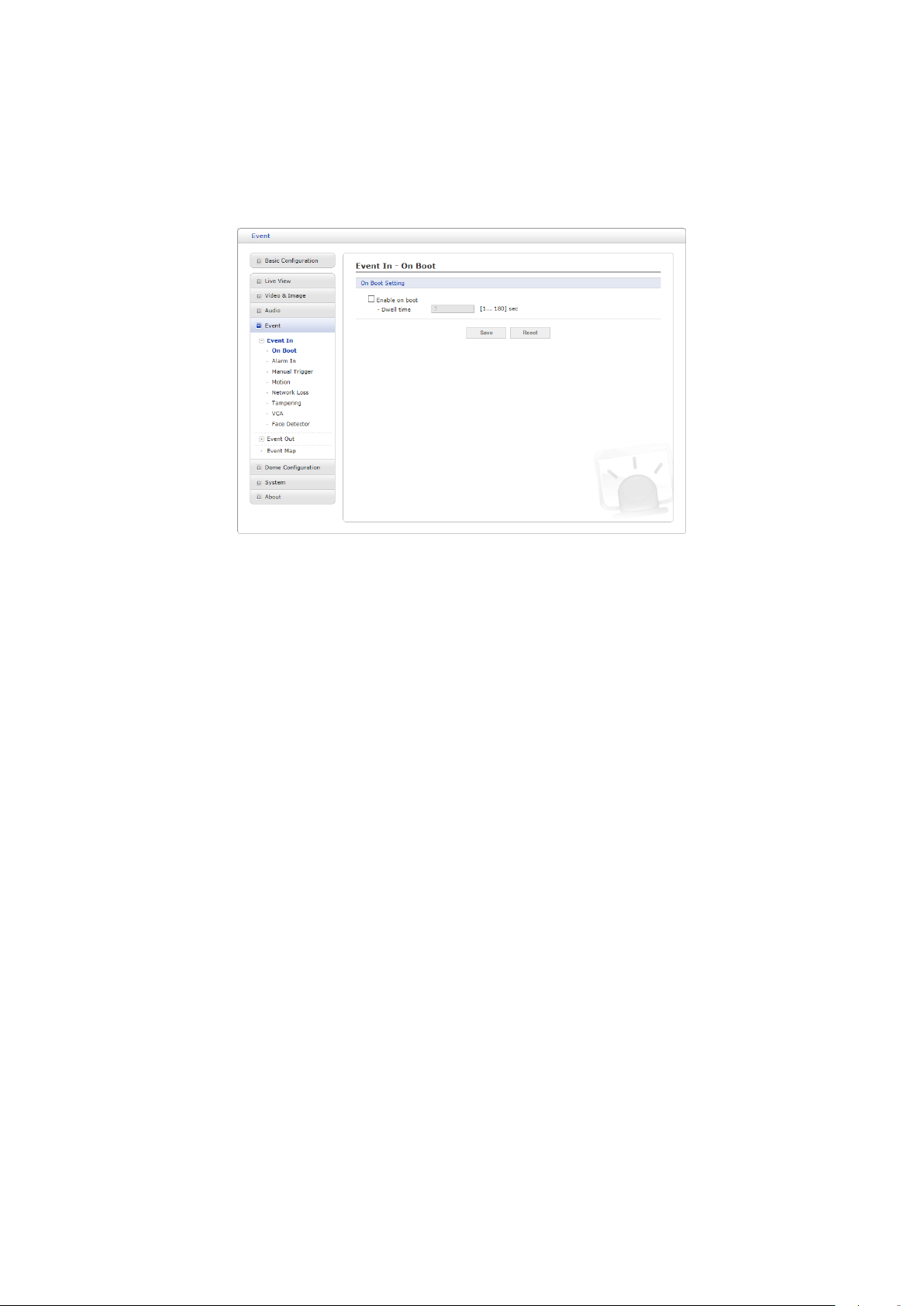

∇ On Boot
This is used to trigger an event every time the network camera is started. Select ”Enable on
boot” to activate the On Boot event.
Enter the Dwell time the event lasts from the point of detection, 1-180 seconds.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
36
Page 37

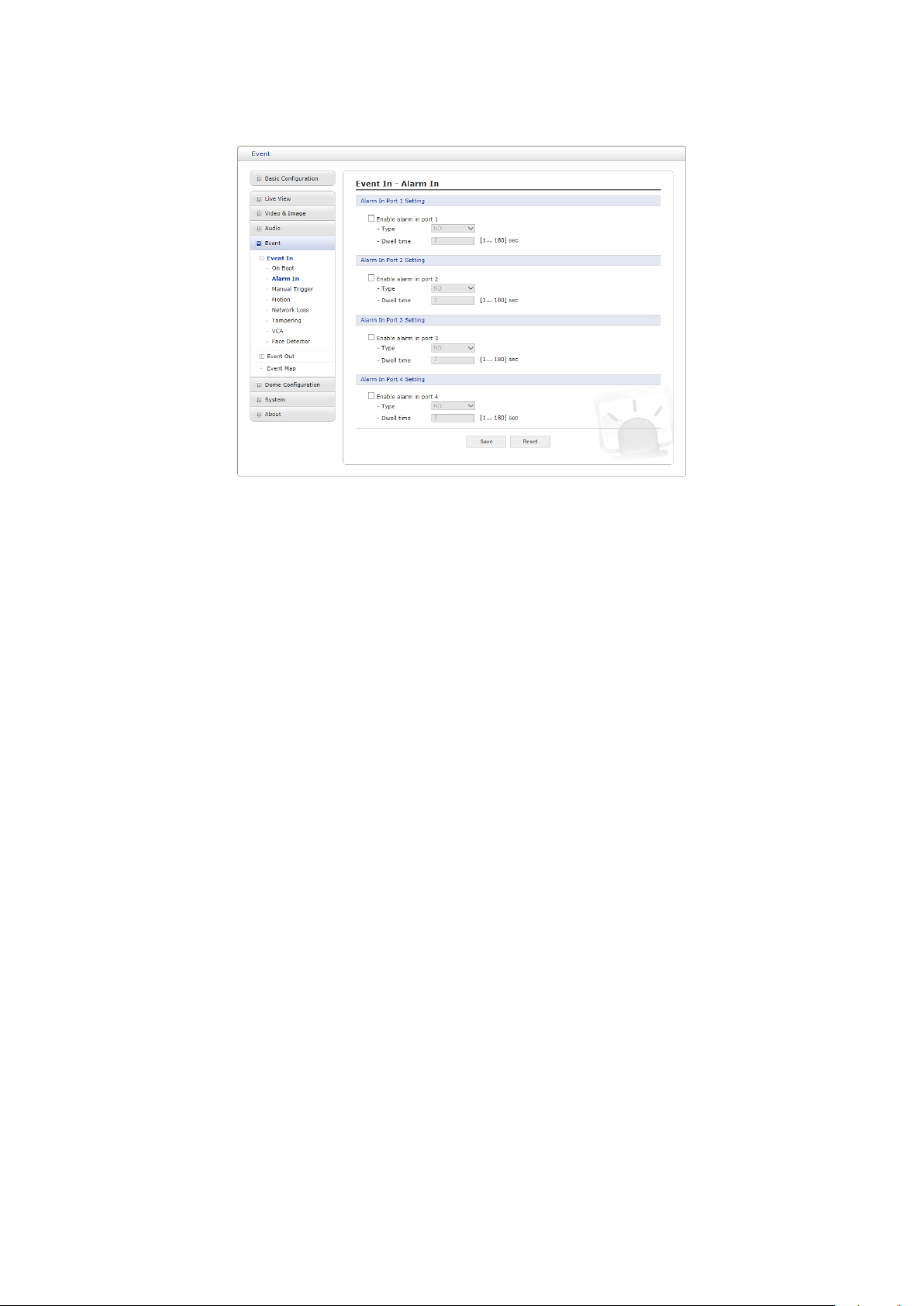

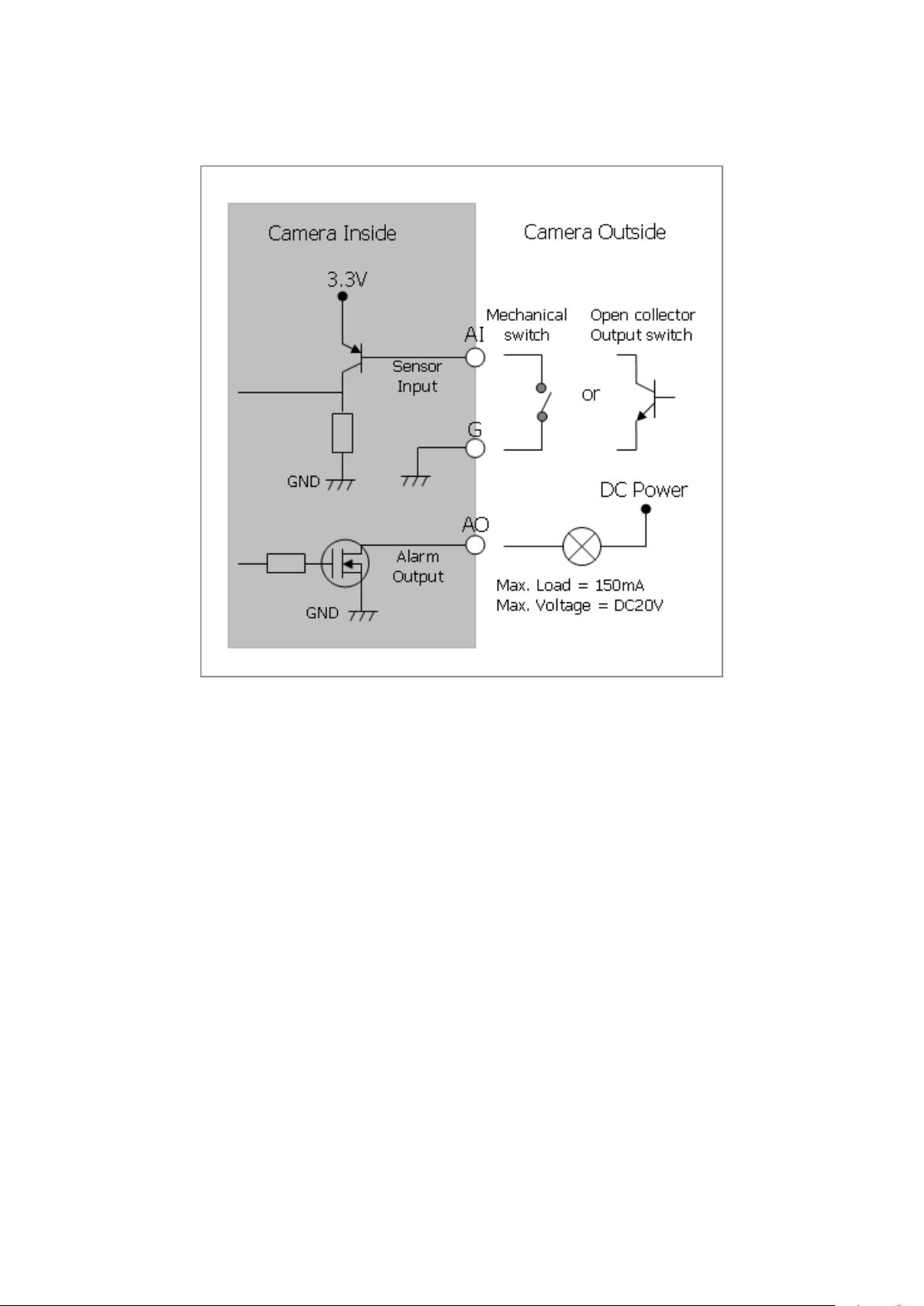

∇ Alarm In
This camera provides 4 Alarm In ports and user can set each ports individually. Each Port
can be given as Normally Open or Normally Close state, and their Normal state can be
configured. In order to use an alarm port, check the desired ”Enable alarm port #” first.
• Type: Choose the type of alarm to use from the drop-down list, NO (Normally Open)
or NC (Normally Closed).
• Dwell Time: Set the dwell time an event lasts from the point of detection of an alarm
input.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
37
Page 38
∇ Manual Trigger
This option makes use of the manual trigger button provided on the Live View page, which
is used to start or stop the event type manually. Alternatively, the event can be triggered via
the product’s API (Application Programming Interface).
Select ”Enable manual trigger” to activate the manual trigger (for up to 4 manual triggers).
Set the dwell time the trigger lasts.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
38
Page 39

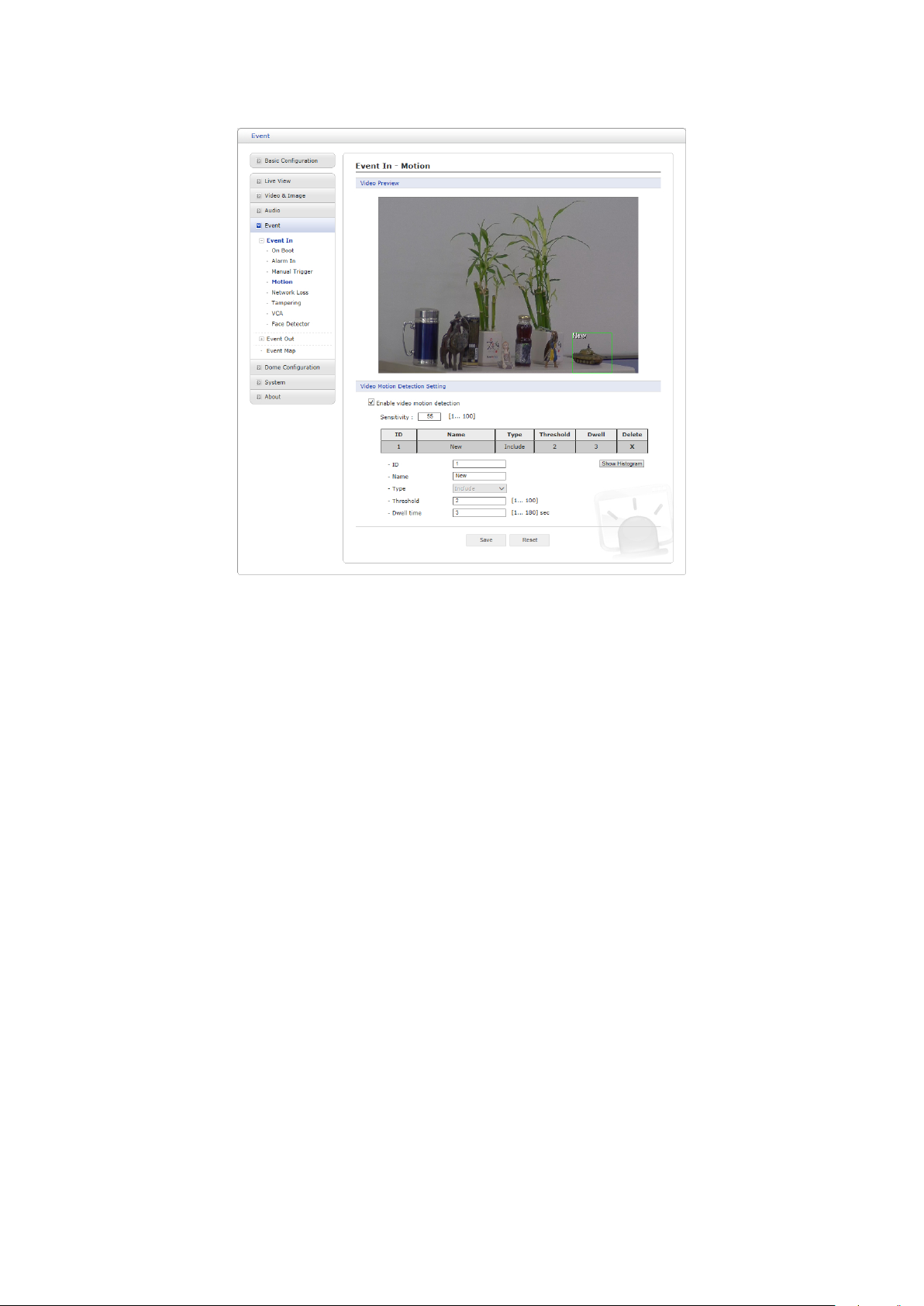

∇ Motion
This option makes use of the motion detection function with 16 programmable areas, 8
Include and Exclude zones each.
Click right mouse button on thte preview window shows selection pop-up of New Motion,
New Mask, Select, Delete, and Freeze.
Select New Motion and click&drag generates an Include box of green color.
Select New Mask and click&drag generates an Exclude box of orange color.
Drag corner or line resizes and drag inside moves the box.
Select ”Enable video motion detection” to activate motion detection.
• Sensitivity: User can change sensitivity of this function, where large value sets more
sensitive detection.
• Zone List
– ID: Order of generation, Include 1∼8, Exclude 9∼16.
– Name: User definable zone name.
– Type: shows zone type and cannot be changed.
– Threshold: Determines how large the motion in the zone can trigger event in
percentage.
– Dwell time: Determines how long the triggered event holds from the last trigger-
ing.
User can select any box by clicking name on the preview window or click on the list. User
can delete selected zone via right mouse click selection for a selected box, or click any one
of X button in the zone list.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
39
Page 40
∇ Network Loss
This is used to trigger an event every time the network connection is failed. Select ”Enable
network loss” to activate the Network Loss event. Select a dwell time for how long the event
will last from the point of detection.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
40
Page 41

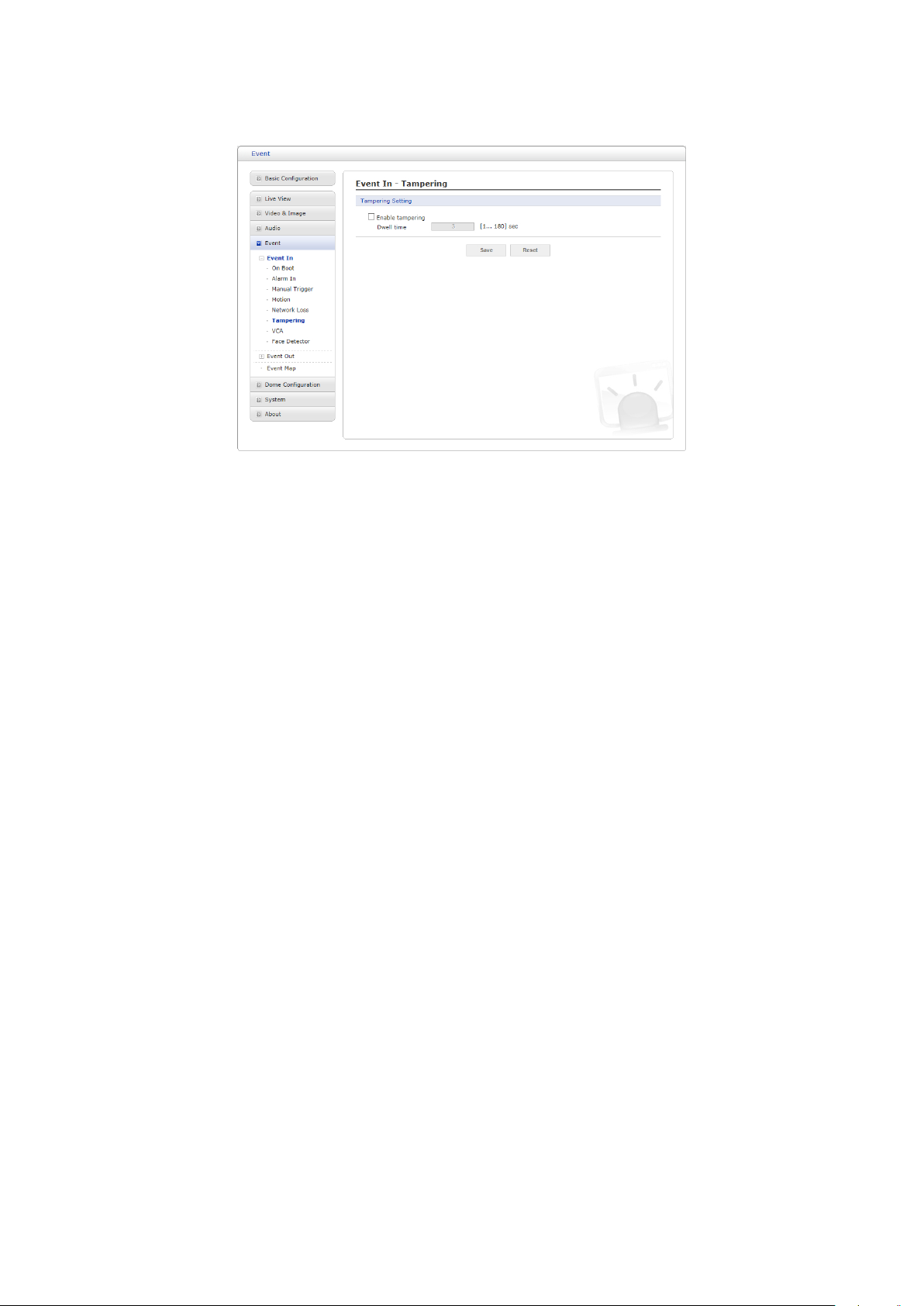

∇ Tampering
This is used to trigger an event when camera tampering occurs, for example, obstruct the
camera with foreign material or move camera direction using external force. Select ”Enable
tampering” to activate the Tampering event.
• Dwell time: Determine how long the event will last from the point of detection.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
41
Page 42
∇ VCA
The network cameras provide VCA(Video Content Analysis) functions of ”Line Detector” and
”Field Detector.”
• Video Content Analysis Setting
Check Enable video content analysis box to use a VCA function. In order to setup
VCA function, at least one preset position must exist, and otherwise Enable video
content analysis may not be activated.
– Preset number: User can assign different rules for each preset position. Select
the preset position to set the VCA rules.
– Object: Determines detection sensitivity.
∗ Sensitivity: As the value becomes bigger, the detection sensitivity increases.
∗ Min width size: Minimum horizontal pixel size for detections in a 1920x1080
format.
∗ Min height size: fMinimum vertical pixel size for detections in a 1920x1080
format.
∗ Max width size: Maximum horizontal pixel size for detections in a 1920x1080
format.
∗ Max height size: Maximum vertical pixel size for detections in a 1920x1080
format.
42
Page 43
– Detection Rule: User can assign up to 3 different rules for each preset position.
∗ Line Detector
Once selected, a red line appears on the video preview window. Drag and
drop the line at the desired position. User can change the length and the
slope by dragging each end of the line.
· Rule Name: User can type in the rule name.
· Direction: This detector can detect line crossing events and also count up
number of the event; the direction of the event appears as a solid triangle
shape at the center of the line.
· Base: The reference point of the object detection.
· Counter: User can choose between Counter and Detector.
∗ Field Detector
Once selected, a blue line appears on the video preview window. Drag and
drop the box at the desired position. User can change the shape of the box
by dragging each corner to any shape of a quadrilateral.
· Rule Name: User can type in the rule name.
· Base: The reference point of the object detection.
· Mode: Currently Enter rule only.
– Exclusive Area
The area where the rules are not applied. Once selected, a purple line appears
on the video preview window. Drag and drop the box at the desired position.
User can change the shape of the box by dragging each corner to any form of a
quadrilateral.
NOTE: Video Content Analysis function cannot be used in conjunction with Motion Detection
function. If you choose Enable video content analysis, motion detection function
is automatically turned off.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
43
Page 44
∇ Face Detector
This is used to detect a human face in the scene and makes a bounding box for the detected
face. Select ”Enable face detector” to activate the Face Detector. Set threshold for detectio
sensitivity.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
44
Page 45
2) Event Out
∇ SMTP(E-Mail)
The network camera can be configured to send event and error email messages via SMTP
(Simple Mail Transfer Protocol).
• SMTP (E-Mail) Setting: Select ”Enable” to activate the SMTP operation.
– Sender: Enter an email address to be used as the sender for all messages sent
by the network camera.
– Interval: Represents the time interval of the email notification when events occur
several times.
– Aggregate events: Shows the maximum number of emails sent within each in-
terval.
– Use Mail Server: Check the box is you are using a mail server to receive event
notification and image email.
∗ Mail Server: Enter the host names (or IP addresses) for your mail server.
∗ Port: Enter the port number for your mail server. enable the sending of noti-
fications and image email messages from the network camera to predefined
addresses via SMTP.
– Enable use(SMTP) authentification: Check the box if your mail server requires
authentication.
∗ User name/Password: Enter the User name and Password as provided by
your network administrator or ISP (Internet Service Provider).
∗ Login method: Choose a log-in method in the drop-down list: AUTH LOGIN
/ AUTH PLAIN
• SMTP (E-Mail) Receiver: User can assign up to 8 receivers
– Receiver #: Enter an email address.
45
Page 46
• SMTP (E-Mail) Test: User can check the SMTP setting via a sample email.
– Receiver: Enter an email address and click the Test button to test that the mail
servers are functioning and that the email address is valid.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
46
Page 47

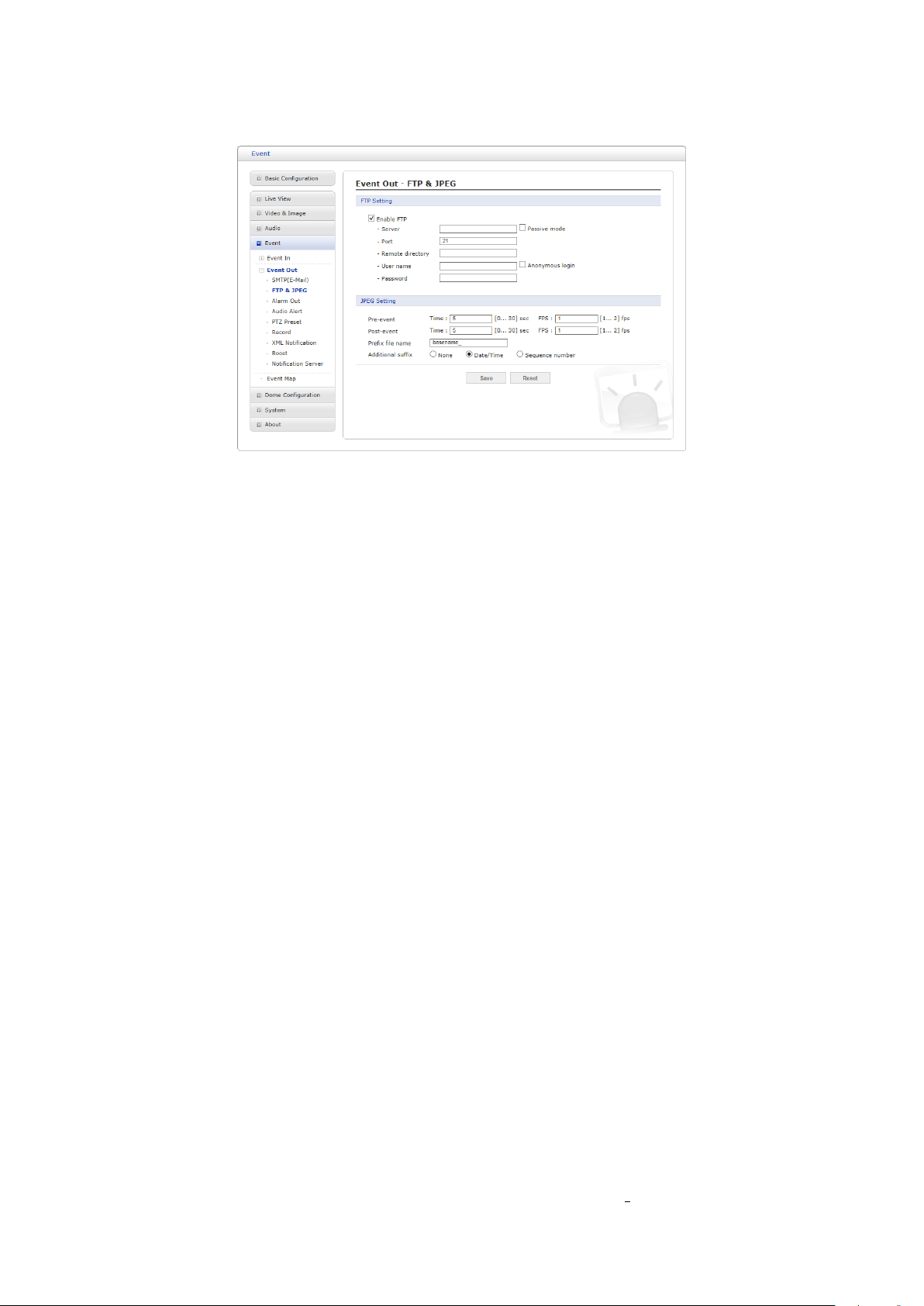

∇ FTP & JPEG
When the network camera detects an event, it can record and save images to an FTP server.
Images can be sent as e-mail attachments. Check the ”Enable FTP” box to enable the
service.
• FTP Setting
– Server: Enter the server’s IP address or host name. Note that a DNS server must
be specified in the TCP/IP network settings if using a host name.
– Port: Enter the port number used by the FTP server. The default is 21.
– Passive mode: Under normal circumstances the network camera simply re-
quests the target FTP server to open the data connection. Checking this box
issues a PASV command to the FTP server and establishes a passive FTP connection, whereby the network camera actively initiates both the FTP control and
data connections to the target server. This is normally desirable if there is a firewall between the camera and the target FTP server.
– Remote directory: Specify the path to the directory where the uploaded images
will be stored. If this directory does not already exist on the FTP server, there will
be an error message when uploading.
– User name/Password: Provide your log-in information.
• JPEG Setting
– Pre-event: A pre-event buffer contains images from the time immediately preced-
ing the event trigger. These are stored internally in the server. This buffer can
be very useful when checking to see what happened to cause the event trigger.
Check the box to enable the pre-trigger buffer, enter the desired total length in
seconds, minutes or hours, and specify the required image frequency.
– Post-event: This function is the counterpart to the pre-trigger buffer described
above and contains images from the time immediately after the trigger. Configure
as for pre-event.
– Prefix file name: This name will be used for all the image files saved. If suffixes
are also used, the file name will take the form <prefix> <suffix>.<extension>.
47
Page 48
– Additional suffix: Add either a date/time suffix or a sequence number, with or
without a maximum value.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
48
Page 49
∇ Alarm Out
When the network camera detects an event, it can control external equipment connected to
its alarm output port.
• Enable alarm out: If selected, the output becomes activated for as long as the event
is active.
• Type: Select a type of NO (Normally Open) or NC (Normally Closed).
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
49
Page 50

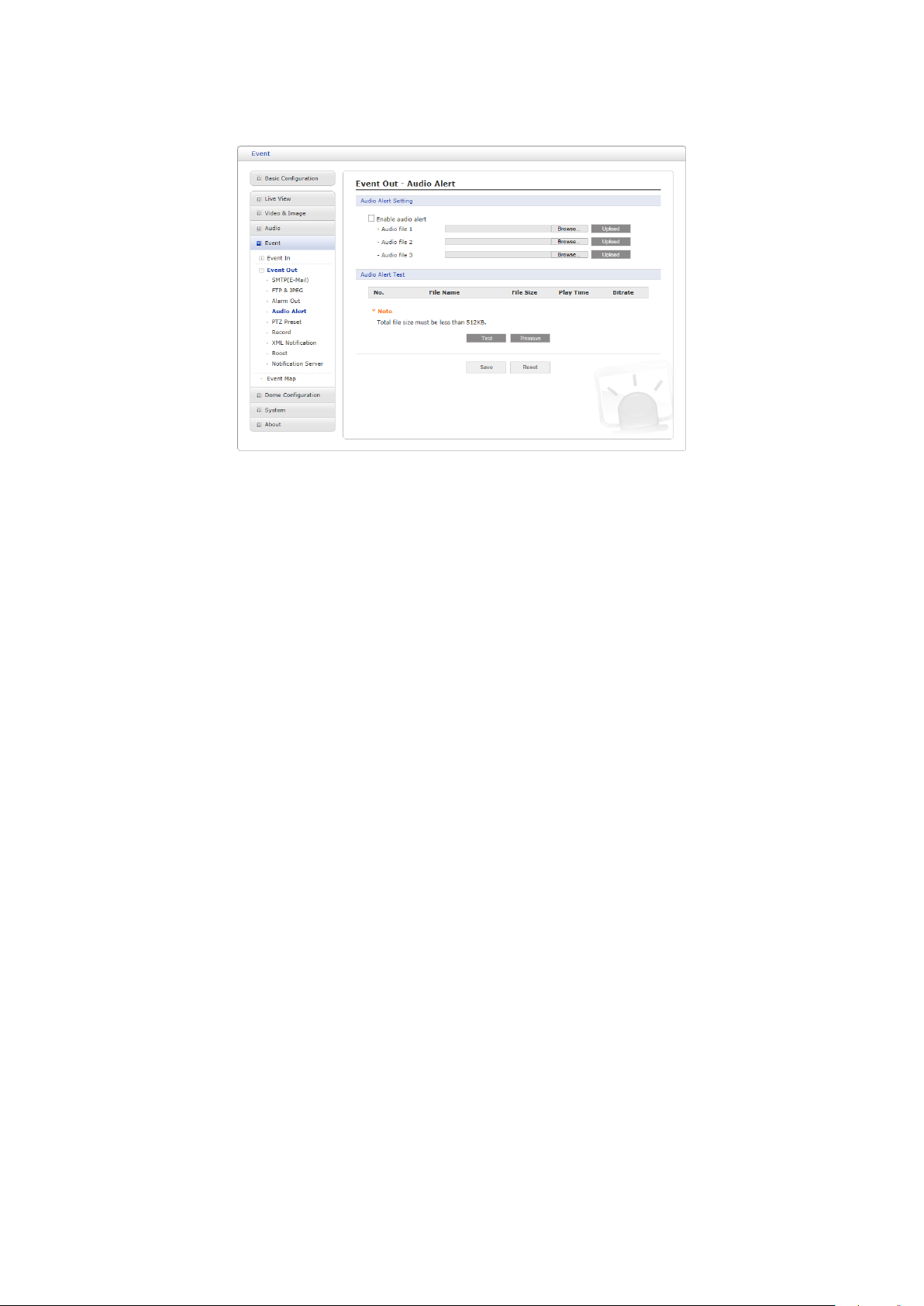

∇ Audio Alert
When the network camera detects an event, it can output a predefined audio data to external
speaker. Check the ”Enable audio alert” box to enable the service.
• Audio Alert Setting
To use the audio alert with the network camera, an audio data file made by user must
be uploaded from your PC. Provide the path to the file directly, or use the Browse
button to locate it. Then click the Upload button. Up to 3 audio files are available. The
total file size must be less than 512 KB.
• Audio Alert Test
When the setup is complete, the audio output can be tested by clicking the Test button.
To remove an audio file, select the file and click the Remove button.
NOTE: For a proper operation of Audio Alert, full duplex must be enabled in the Audio settings page.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
50
Page 51
∇ PTZ Preset
When the camera detects an event, you can move the camera to a predefined preset position. Check the box to enable the service and return to the Home position once the event
has ended.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
51
Page 52

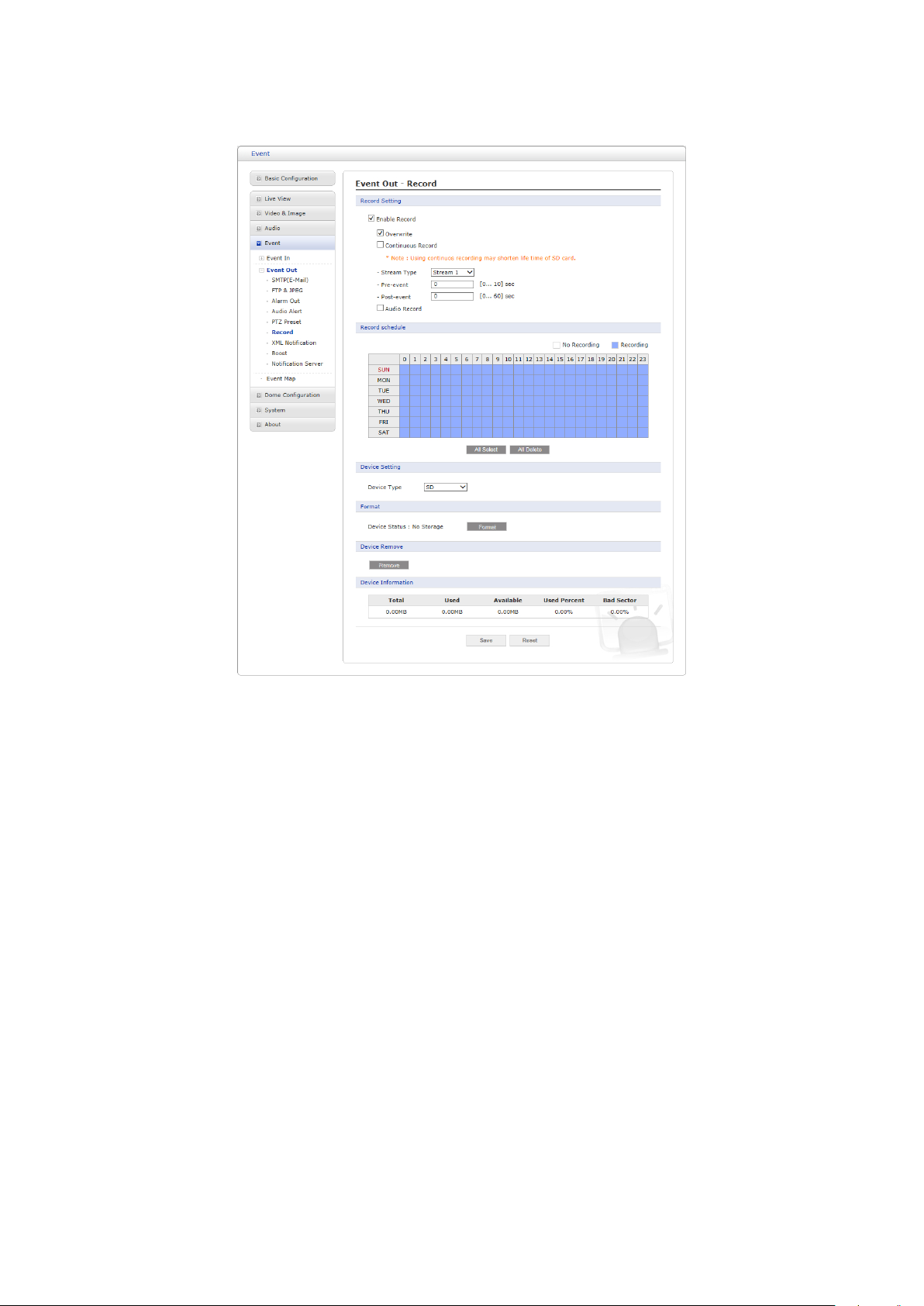

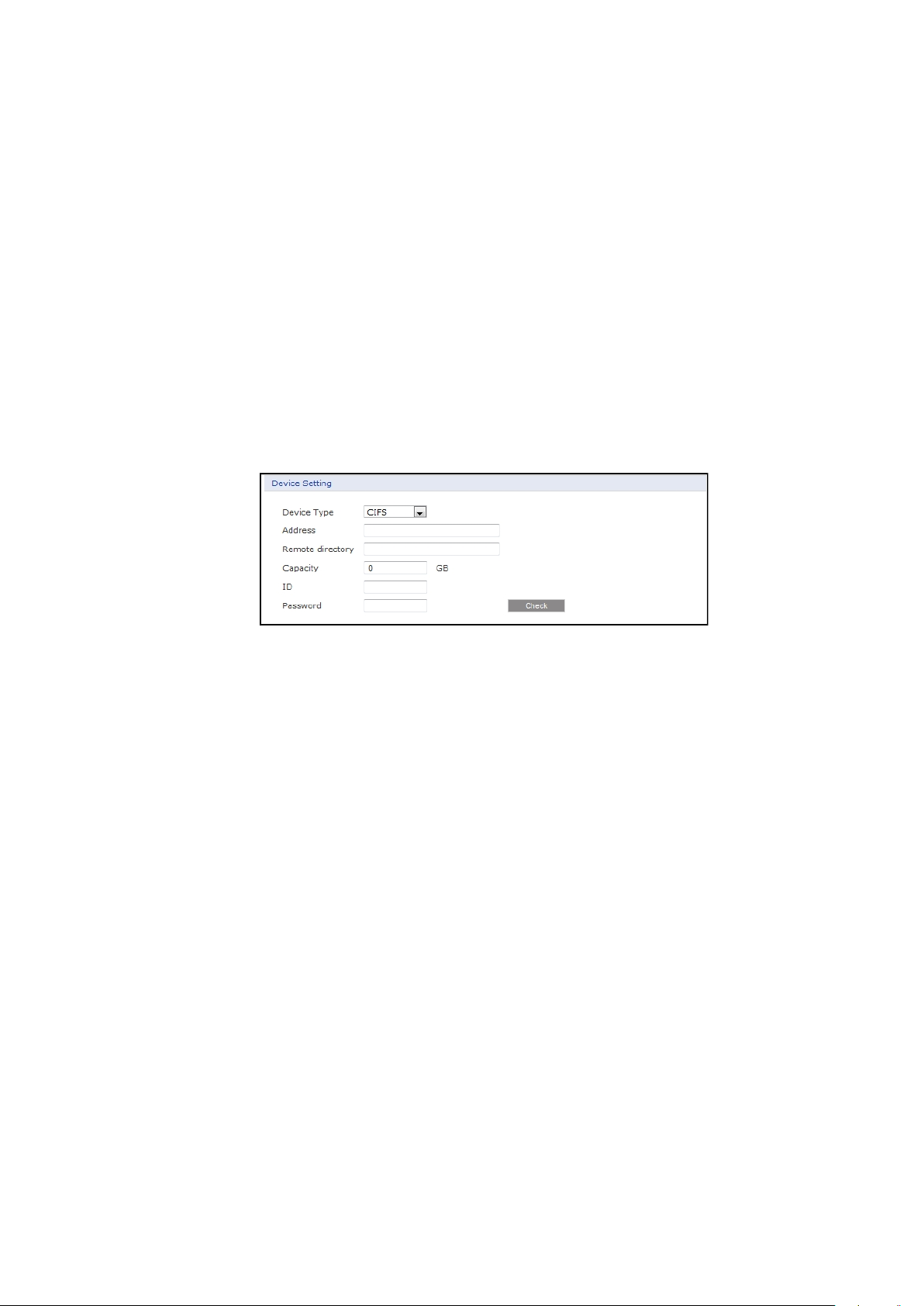

∇ Record
When the network camera detects an event, it can record the video stream onto the Micro
SD Memory (not supplied) or NAS (Network Attached Device) as a storage device. Check
the ”Enable Record” box to enable the service.
• Record Setting
– Overwrite: Click checkbox to overwrite the storage device; Continuous Record is
available when not using an SD card.
– Stream Type: You can select Stream 1, Stream 2, or Stream 3.
∗ Stream1: H.264 or MPEG-4 data
∗ Stream2: MJPEG data
∗ Stream3: H.264 or MPEG-4 data
– Pre-event: Enter pre-event time value for the storage device pre-recording.
– Post-event: Enter post-event time value for the storage device pre-recording.
• Record Schedule
You can set the weekly recording schedule for each day. Drag or click area by a box
unit at first. Clicking the block toggles the recording between on and off. Click the All
Select button to set a schedule for the entire week or a whole day, respectively.
• Device Setting
Select the device type to be recorded in the drop-down list. The screen changes
according to selection.
52
Page 53
– SD: Mounted SD card.
– CIFS: A file format for a NAS device.
– NFS: A file format for a NAS device.
NOTE 1: Common Internet File System (CIFS) is a remote file access protocol that
forms the basis for Windows file sharing, network printing, and various other network
services. CIFS requires a large number of request/response transactions and its performance degrades significantly over high-latency WAN links such as the Internet.
NOTE 2: Network File System (NFS) is a network file system protocol, allowing a user
on a client computer to access files over a network in a manner similar to how local
storage is accessed. NFS, like many other protocols, builds on the Open Network
Computing Remote Procedure Call (ONC RPC) system.
The CIFS screen displays as below.
– Address: Enter IP address for NAS device.
– Remote Directory: Enter directory or folder location to be recorded in the NAS
device.
– Capacity: Enter the capacity of storage to be used. This must be less than the
total storage capacity.
– ID/Password: Enter ID and Password. The network camera will ask for these
whenever you access NAS device.
– Check: Press the Check button to check the validity of Device Setting data.
• Format: Click the Format button to format SD card.
• Device Information: Show current SD card information.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
53
Page 54
∇ XML Notification
When the network camera detects an event, Notification server is used to receive notification
messages as a type of XML data format. Check the box to enable the service.
• XML Notification Setting:
– Notification server URL: The network address to the server and the script that
will handle the request.
– Notification server port: The port number of the notification server.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
54
Page 55
∇ Boost
The Boost feature is used in conjunction with event detection. When this feature is turned
ON, the Frame rate and Bit rate in the boost condition can be set to a different value than
the ones in the normal condition field. When an event is detected, the camera will boost the
Frame rate and Bit rate from the normal condition to this boosted level for the duration of the
event.
Check the box to enable the service.
• Boost Setting: You can set the condition in Normal and Boost mode.
– Boot Stream: Select a video stream for each condition in the drop-down list.
– Frame rate: Select a frame refresh rate per second for each condition in the
drop-down list.
– Bit rate control: Select VBR or CBR in the drop-down list in Normal Condition.
You cant change it in Boost Condition.
– Bit rate: Select a value for each condition in the drop-down list.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
55
Page 56

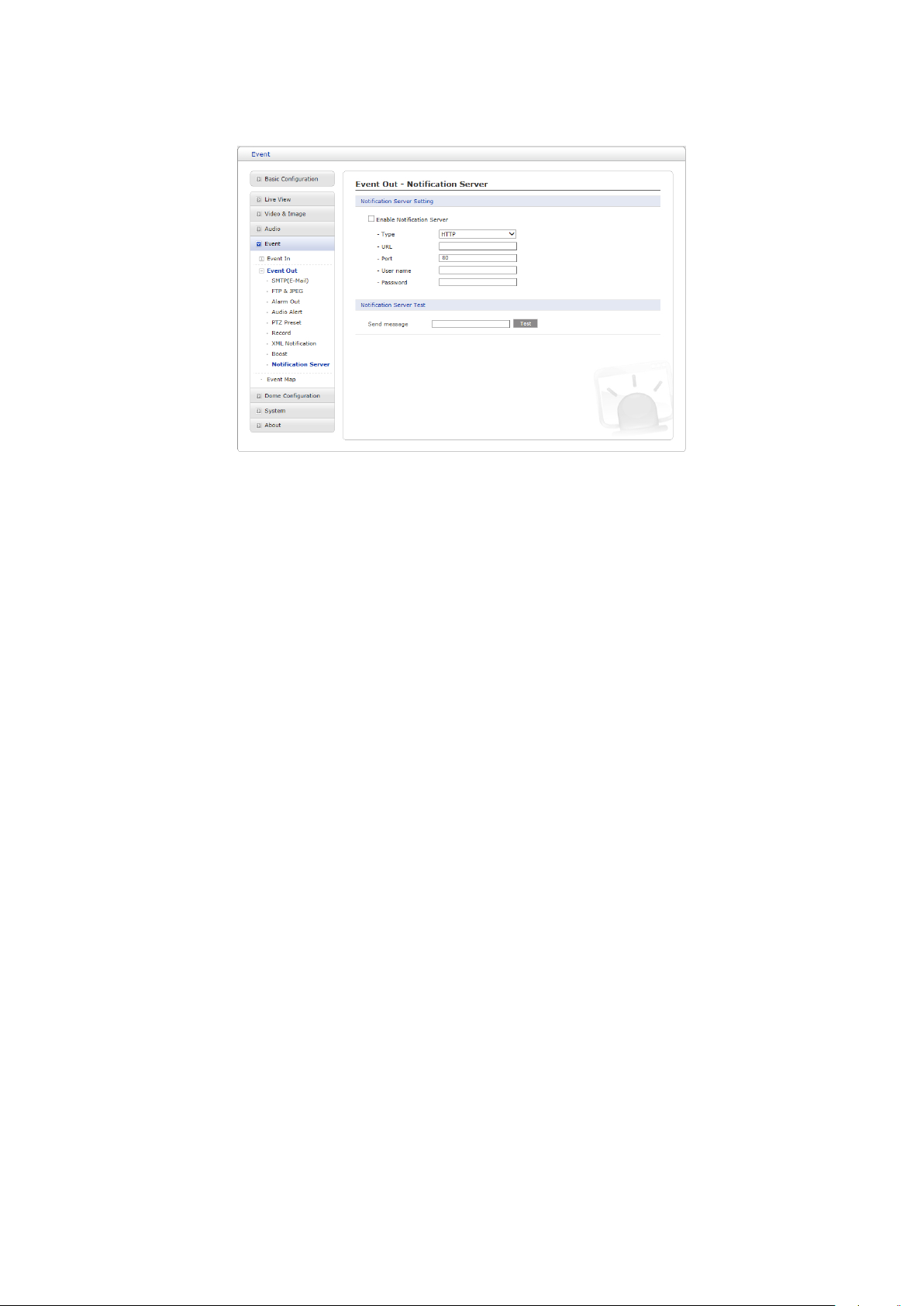

∇ Notification Server
When the network camera detects an event, the Notification Server is used to receive uploaded image files and/or notification messages. Check the box to enable the service.
• Notification Server Setting:
– Type: User can select message transmission type among HTTP, HTTPS, TCP,
and UTP.
– URL: The network address to the server and the script that will handle the request.
For example: http://192.168.12.244/cgi-bin/upload.cgi
– Port: The port number of the server.
– User name/Password: Provide your log-in information.
• Notification Server Test: When the setup is complete, the connection can be tested
by clicking the Test button using the contents in ”Send message” box.
56
Page 57

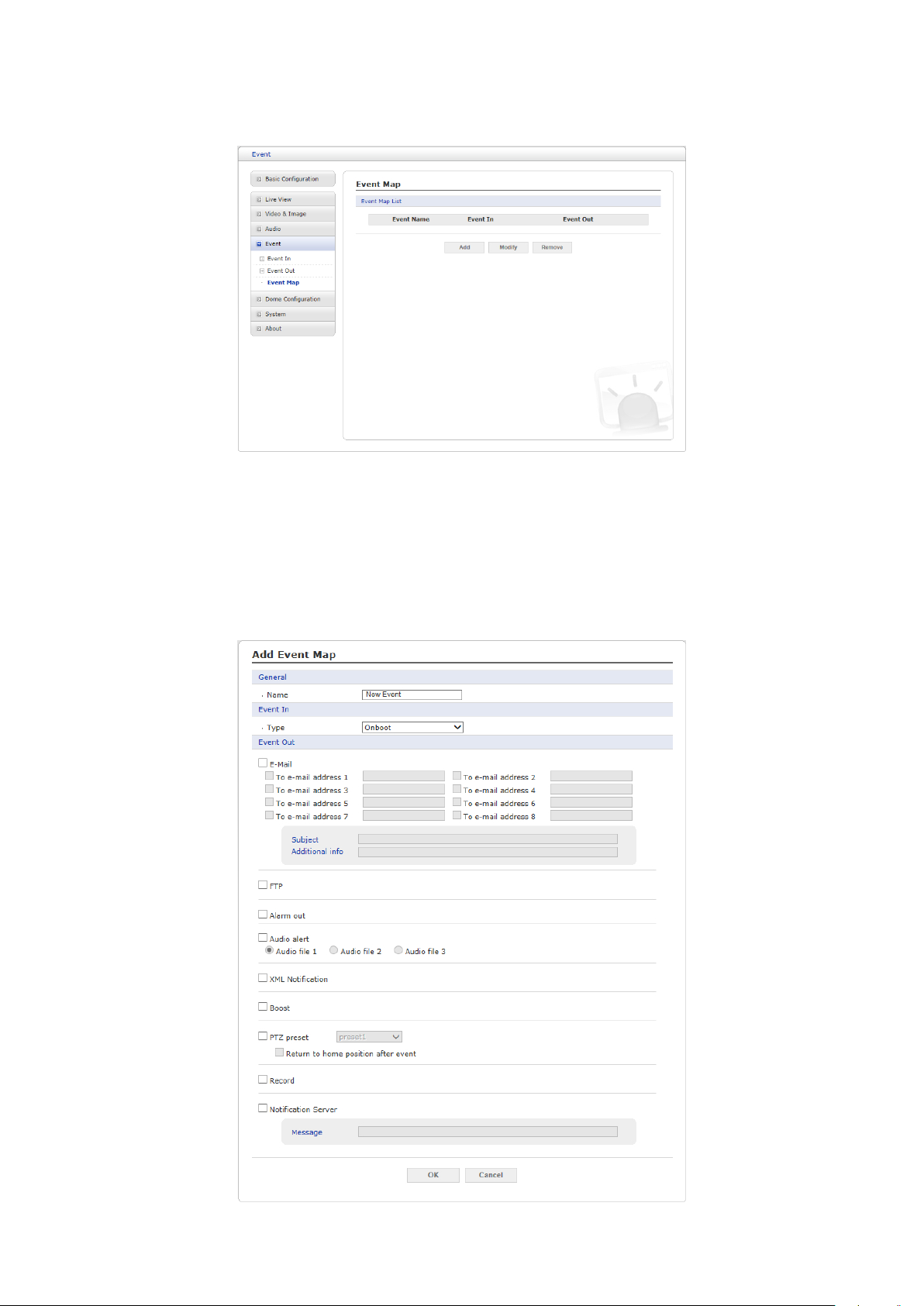

3) Event Map
The event map allows you to change the settings and establish a schedule for each event
trigger from the network camera; up to a max. 15 events can be registered.
Click the Add button to make a new event map; a popup window displays as below. To
change an existing event, select that event and click the Modify button; this same window
will display and the information can be changed as required. Selecting an event and clicking
Remove deletes the event.
57
Page 58
• General: Enter the name for a new event map.
• Event In: Select an event type in the drop-down list.
• Event Out:
– E-mail: Select the email addresses you want to notify via email that an event has
occurred.
– FTP: Select checkbox beside FTP to record and save images to an FTP server
when an event has occurred.
– Alarm out: Check this box to enable the alarm out.
– Audio Alert: Select an Audio Alert file as the Network Transmitter output when
audio alert event triggered. The Audio Alert file must first be configured on the
Event In page.
– XML Notification: It sends XML messages to an Notification server that listens
for these. The destination server must first be configured on the Event In page.
– Boost: When an event has occurred, the camera will boost the Frame rate and Bit
rate from the normal condition to this boosted level for the duration of the event.
Check the box to enable the Function.
– PTZ preset: Select the preset position you want to move at event. If you want to
move back to home position after the event, which is pre-defined in the Alarm Out
- PTZ Preset page, check ”Return to home position after event” box
– Record: Record video stream when an event has occurred. The Record option
must first be configured on the Event Out page.
– Notification Server: It sends notification messages to the notification server that
listens for these. The destination server must first be configured on the Event In
page. Enter a message you want to send.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
58
Page 59
3.6.6 Dome Configuration

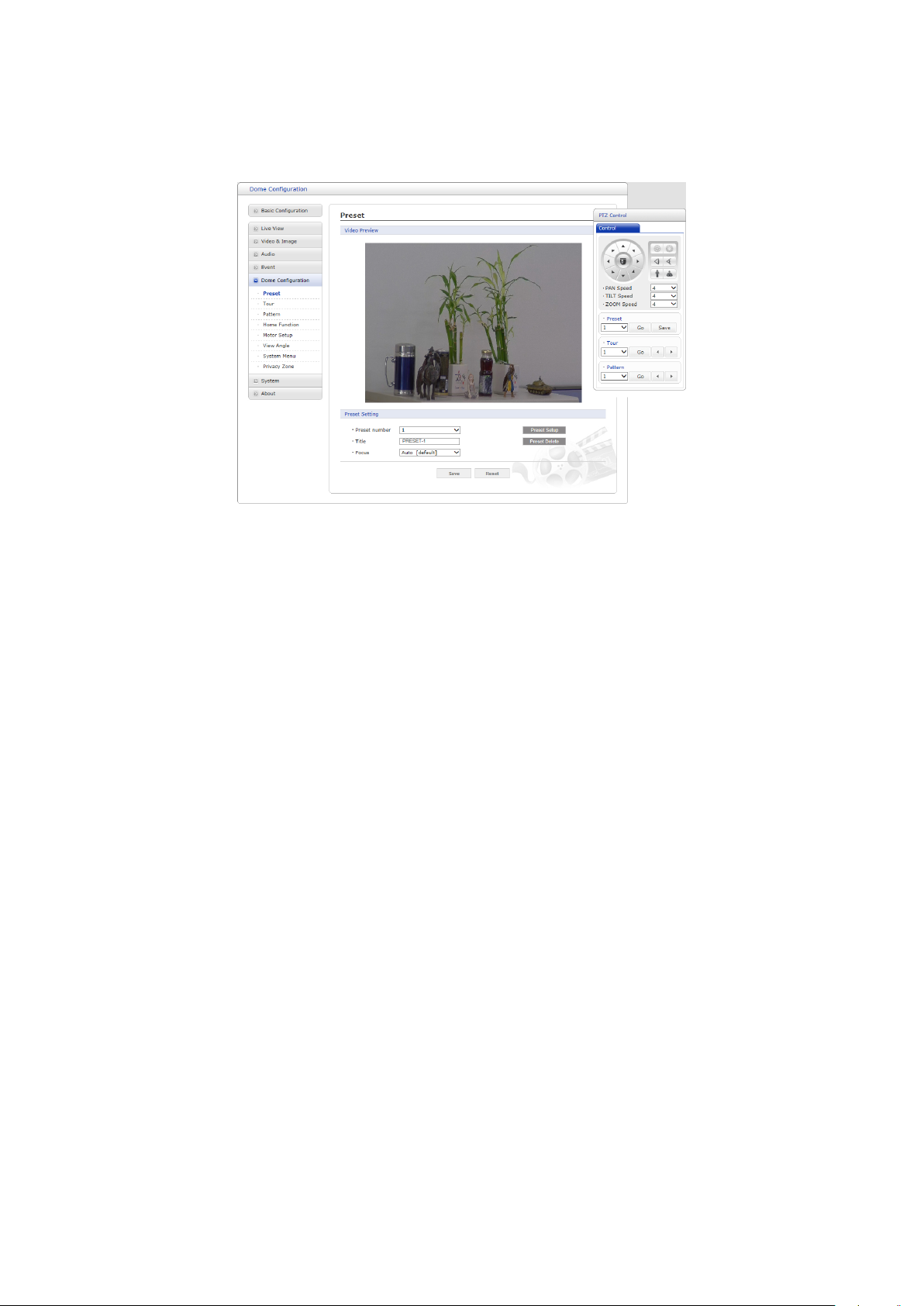

1) Preset
If you need to view specific places routinely, you should program Presets. A Preset is a programmed video scene with automatic pan, tilt, zoom and focus settings. Once programmed,
clicking the Preset number or clicking the Go button in the PTZ Control Panel calls up that
Preset automatically.
• Preset Setting:
– Preset number: The Preset number can be selected in the range 1 - 256.
– Title: Up to 12 characters (Alphanumeric characters and space)
– Focus:
∗ Auto: Auto Focus is always active.
∗ Manual: Auto Focus is inactive.
– Preset Setup: Activate the PTZ Control Panel.
– Preset Delete: Delete selected Preset number.
Follow steps below to store the Preset positions:
1. Click the Preset Setup button, then shows the PTZ Control Panel.
2. Choose the desired Preset number from the Preset drop-down list:
3. After aiming the camera (view direction and lens control) by using the Arrow and Zoom
button in PTZ Control Panel, click the Save button.
4. Repeat step 2 through 3 for each additional Preset position.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
59
Page 60

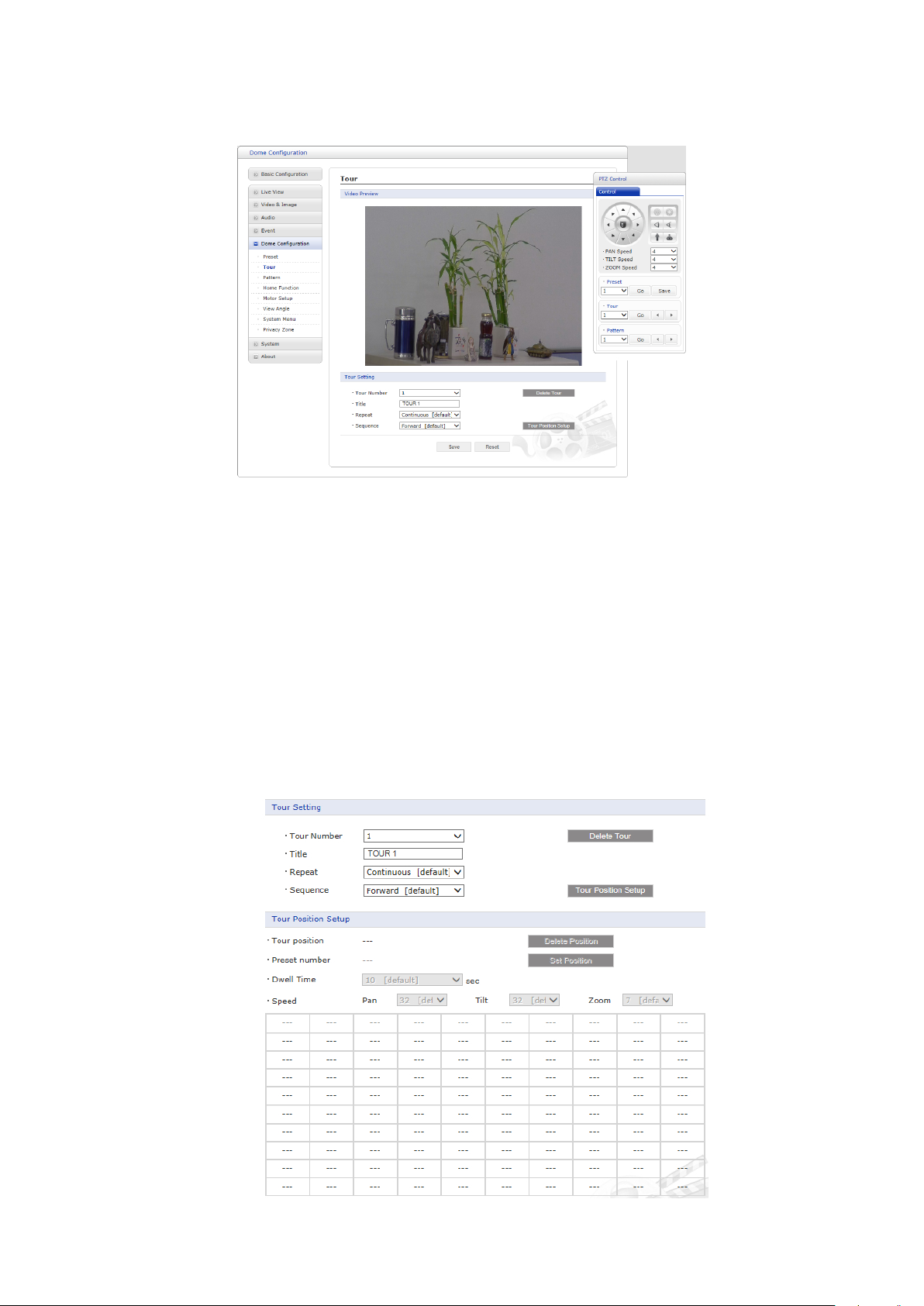

2) Tour
There are 8 programmable Tours. Each Tour consists of up to 100 Presets.
• Tour Setting:
– Tour Number: The Tour number can be selected in the range 1 - 8.
– Title: Up to 12 characters (Alphanumeric characters and space)
– Repeat: Select number of repetition from Continuous to 90. The default is Con-
tinuous.
– Sequence: Select either forward or backward sequence in the Tour position list.
– Delete Tour: Delete the stored Tour Position Setup list of Tour number.
– Tour Position Setup: Open or close the Tour Position Setup as below.
60
Page 61
• Tour Position Setup:
– Tour position: The Tour position can be selected in the range 1 - 100.
– Preset number: Show the selected Preset number.
– Dwell Time: Select the Dwell Time from 0 to 99 seconds. The default is 10
seconds.
– Speed: Adjust Pan/Tilt/Zoom Speed if you want to a slow movement. The defaults
are maximum Speed.
– Delete Position: If you want to remove Tour position from Tour Position Setup
list, select the desired Tour Position, and click the Delete Position button.
– Set Position: Click the Set Position button, then show the stored Presets on
drop-down list.
Follow steps below to program the Tours:
1. Click the desired Tour position of Tour Position Setup list, and click Set Position button,
then show the saved Presets on drop-down list. Click a Preset.
2. Repeat step 1 for each desired position.
3. Click the Save button to save the settings, or click the Reset button to clear all of the
information you entered without saving it.
61
Page 62

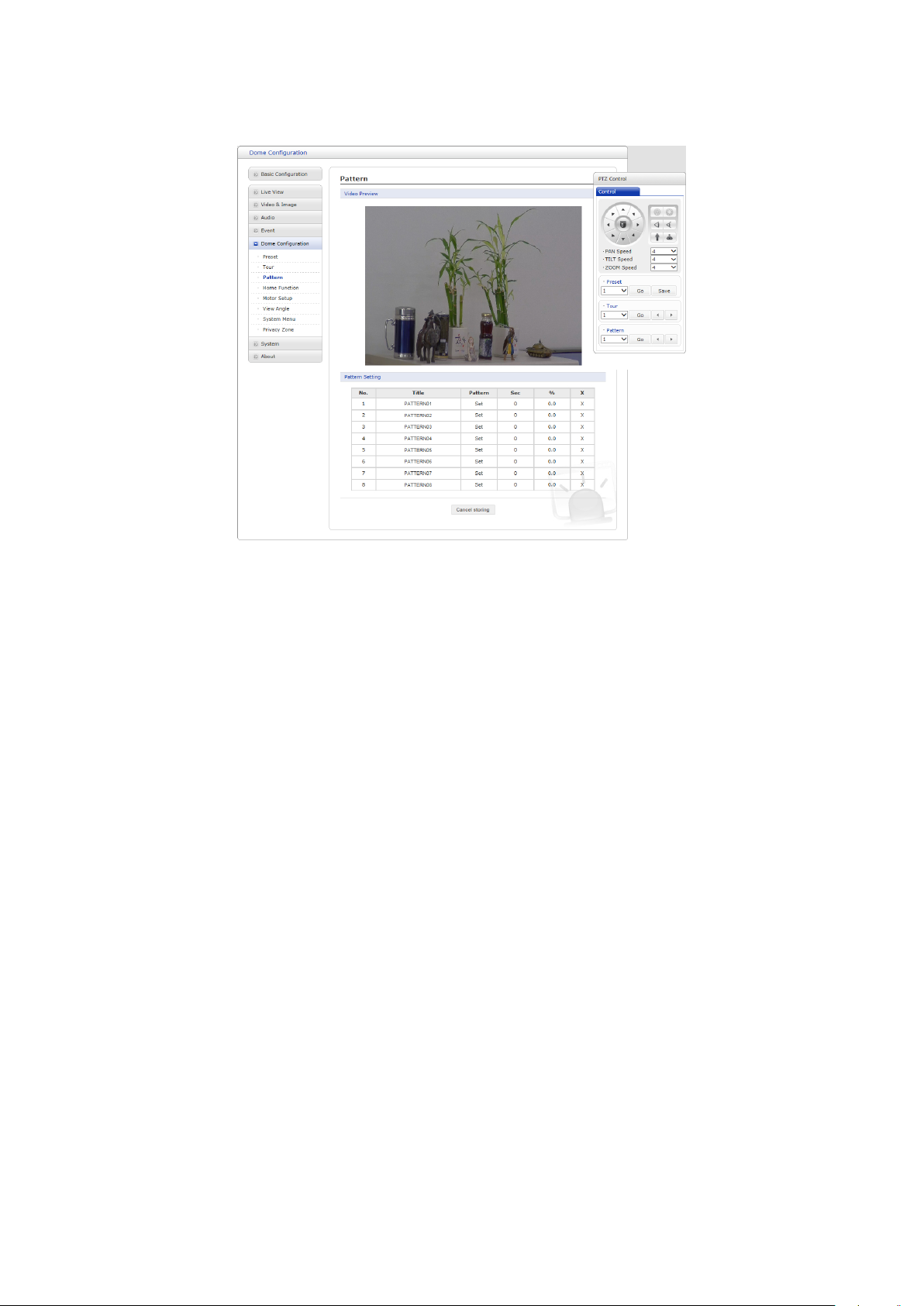

3) Pattern
Pattern is a series of pan, tilt, and zoom movements programmed by administrator or operator. Up to 8 patterns may be programmed for the dome camera. Follow steps below to
program the Patterns:
1. Click the Set button of desired Pattern number of Pattern Setting list, and move pan,
tilt, and zoom using Control box. The movement history is automatically recorded.
2. Click Done button after you completed the camera movement program.
3. Repeat step 1 for each desired Pattern number.
4. If you are not satisfied with the programed pattern, click X button to clear the patternt.
5. You can edit title of each pattern number for easier recognition.
NOTE 1: Each Pattern can store up to 500 seconds of movements.
NOTE 2: The percentage total of 8 Patterns cannot exceed 100.
62
Page 63
4) Home Function
Camera goes to assigned function if there is no PTZ action during ”Waiting Time”. User can
assign pre-programed Preset or Tour for function.
• Function: None / Preset / Tour
• Function No.: Select Preset or Tour number for Home Function.
• Waiting Time: 10 ∼ 600 Seconds
• Function Use: Off / On
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
63
Page 64
5) Motor Setup
Motor Setup menu provides the pan and tilt speed of a camera.
• Motor Setting:
– Proportional P/T: Select On or Off.
– Max. Pan Speed: The maximum pan speed can be adjusted in the range 1 - 38.
– Max. Tilt Speed: The maximum tilt speed can be adjusted in the range 1 - 30.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
64
Page 65
6) View Angle
• View Angle Setting:
– Tilt angle limit: This option is designed to limit the view angle as there is some
obstruction in zooming out on specific areas of the tilt angle.
– Flip:
∗ Off: The dome camera moves until 90overtically.
∗ Auto: When the camera reaches the floor directly above the moving object,
it will stop. At that time, release instantly and pull it down again to run the
auto-flip function. When you use the panning range, it is recommended to
use the flip mode to Auto.
∗ 90, 100, 110, 120: Allows the image to flip digitally when the camera moves
over the setting angle vertically.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
65
Page 66
7) System Menu
• Dome Information: The system information provides essential information about the
dome if service is required. The information cannot be modified.
• System Menu setting: User can set the camera in auto-calibration mode
• Origin Check: If you find the dome in the wrong position during operation, execute
this origin check by clicking Origin Check button and the dome camera will return to
the right position after the origin check operation.
• Camera upgrade: User can upgrade AF module firmware remotely.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
66
Page 67

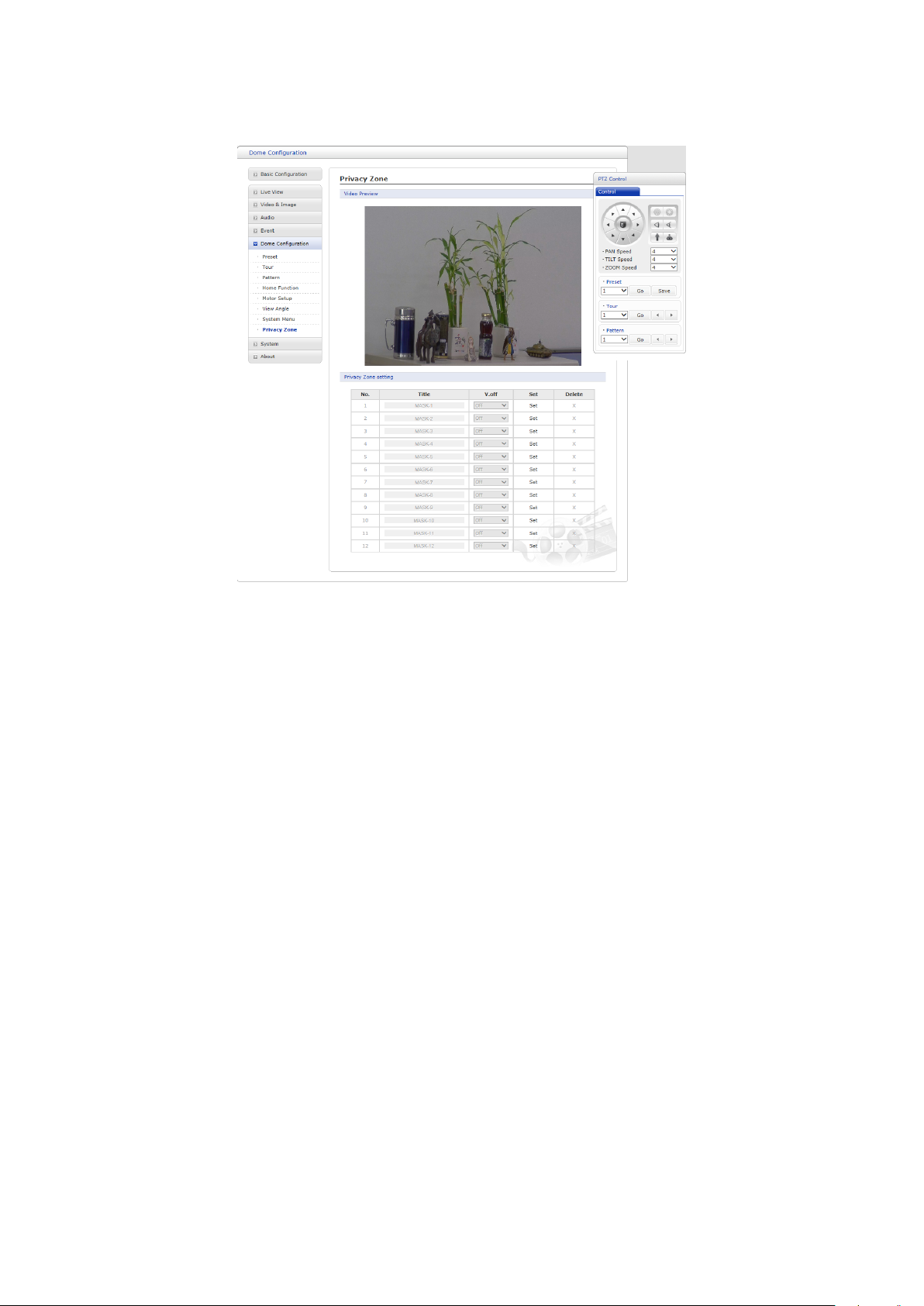

8) Privacy Zone
Using privacy zones (masks), you can hide up to 12 unwanted scenes in a camera. The
color of privacy zones is gray.
• Privacy Zone Setting: Following steps below to configure the privacy zones;
1. After aiming the camera (view direction and lens control) by using the Arrow and
Zoom button in PTZ Control Panel, click Set cell of Set column at any inactive
row to create privacy zone.
2. You can change the Title up to 12 alphanumeric characters.
3. In order to hide or display the privacy zone, choose On or Off in V.off column.
4. Click X at Delete column to delete privacy zone.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
67
Page 68
3.6.7 System

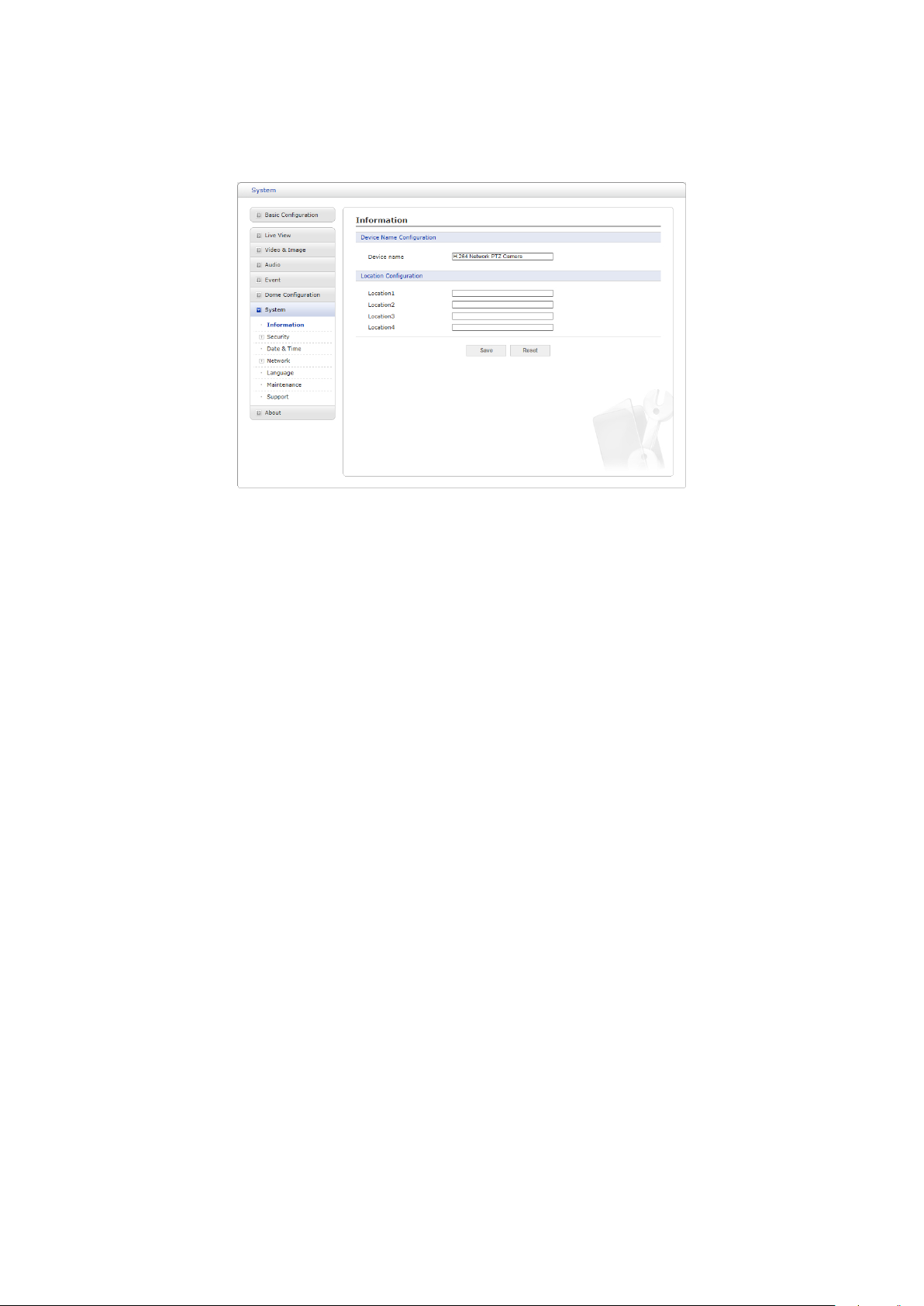

1) Information
You can enter the system information. This page is very useful when you require device
information after installation.
• Device Name Configuration: Enter the device name.
• Location Configuration: Enter the location information. You can enter up to four
locations.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
68
Page 69
2) Security
∇ Users
User access control is enabled by default when the administrator sets the root password on
first access. New users are authorized with user names and passwords, or the administrator
can choose to allow anonymous viewer login to the Live View page, as described below:
• User Setting: Check the box to enable anonymous viewer login to the network camera
without a user account. When using the user account, users have to log-in at every
access.
• User List Setting: This section shows how to register a user account. Enter a user
name and password to be added, and register them by pressing the Add button. You
will see the pop-up window as below.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
69
Page 70
∇ HTTPS
For greater security, the network camera can be configured to use HTTPS (Hypertext Transfer Protocol over SSL (Secure Socket Layer)). Then all communication that would otherwise
go via HTTP will instead go via an encrypted HTTPS connection.
• HTTPS Connection Policy: Choose the form of connection you wish to use from the
drop-down list for the administrator, Operator and Viewer to enable HTTPS connection
(set to HTTP by default).
– HTTP
– HTTPS
– HTTP & HTTPS
• Upload Certificate: To use HTTPS for communication with the network camera, an
official certificate issued by a CA (Certificate Authority) must be uploaded from your
PC. Provide the path to the certificate directly, or use the Browse button to locate it.
Then click the Upload button.
Please refer to the home page of your preferred CA for information on where to send the
request. For more information, please see the online help.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
70
Page 71

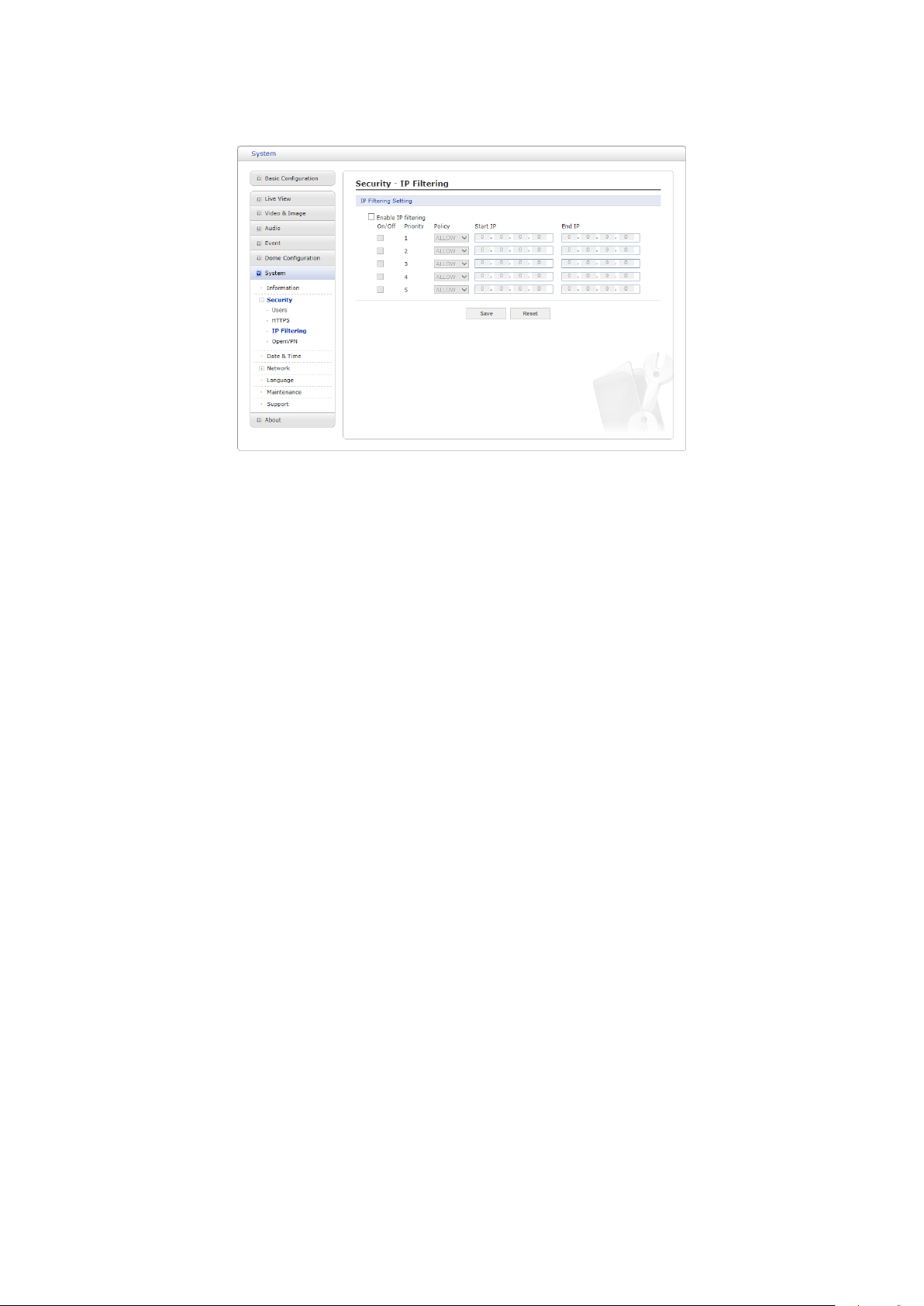

∇ IP Filtering
Checking the Enable IP address filtering box enables the IP address filtering function.
Up to 256 IP address entries may be specified (a single entry can contain multiple IP addresses). Click the Add button to add new filtered addresses.
When the IP address filter is enabled, addresses added to the list are set as allowed or denied addresses. All other IP addresses not in this list will then be allowed or denied access
accordingly, that is, if the addresses in the list are allowed, then all others are denied access,
and vice versa. Also see the online help for more information.
NOTE: Users from IP addresses that will be allowed must also be registered with the appropriate access rights. This is done from Setup > System > Security > Users.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
71
Page 72

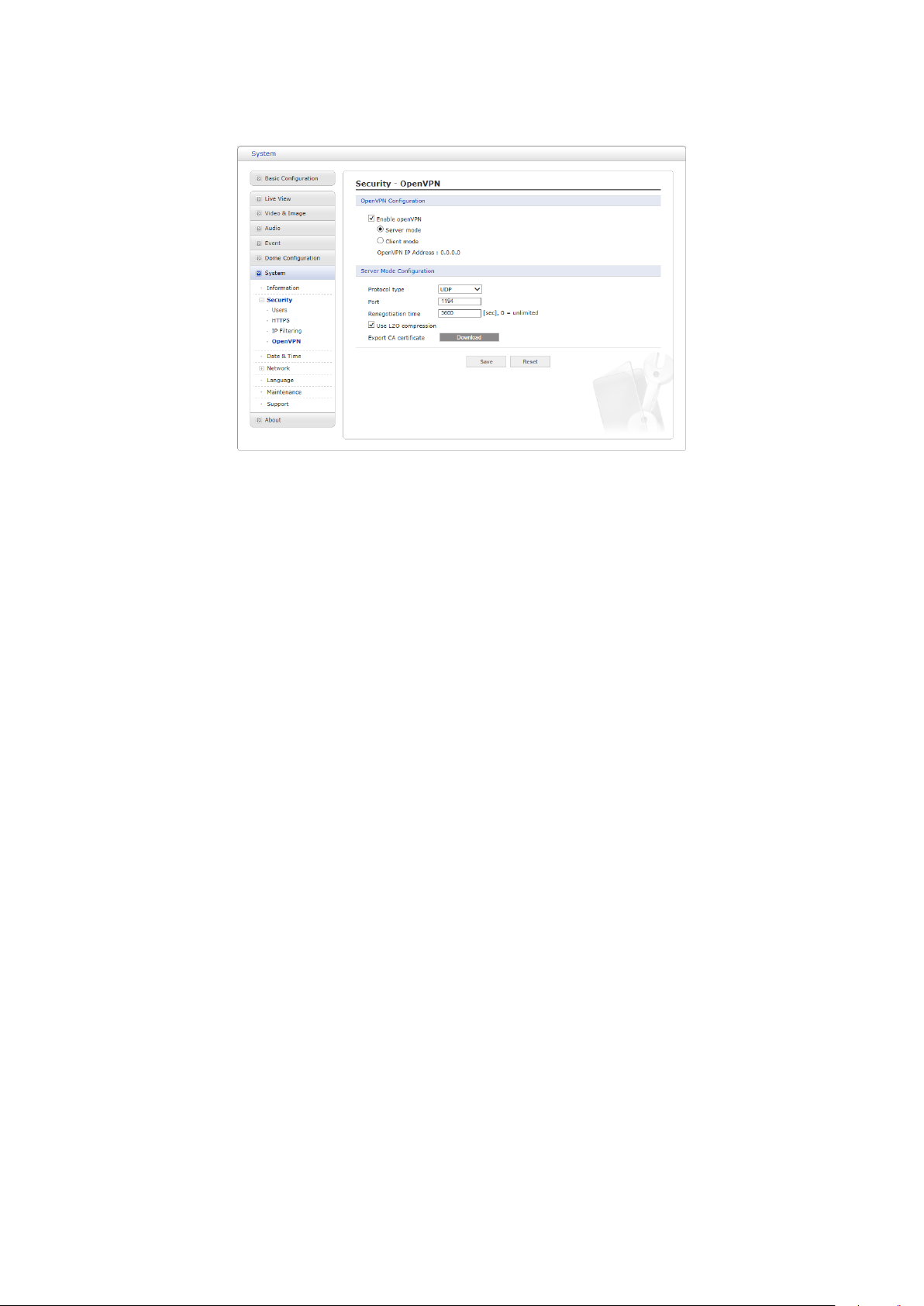

∇ OpenVPN
OpenVPN is a Virtual Private Network using OpenSSL authentication. User can set the
camera in either Server mode or Client mode.
• OpenVPN Server Mode
1. Select Enable openVPN activates mode selection buttons. Choose Server mode,
then Server Mode Configuration appears where you can configure Server Mode
Settings.
2. In Server Mode Configuration, you can setup Protocol type, Port number, LZO
compression usage, and Renegotiation time, as well as download Server certificate file.
– Choose Protocol type between UDP and TCP, UDP is preferred. Type in Port
number you want to use, default is 1194.
– Default Renegotiation time is 3600 seconds, and 0 means no verification.
– ”Use LZO compression” determines whether to use cypher compression in
connection or not.
– CA certificate is the certification file issued by Server for Client setup.
3. After finishing setup, click Save button and then the camera operates as an OpenVPN Server.
72
Page 73

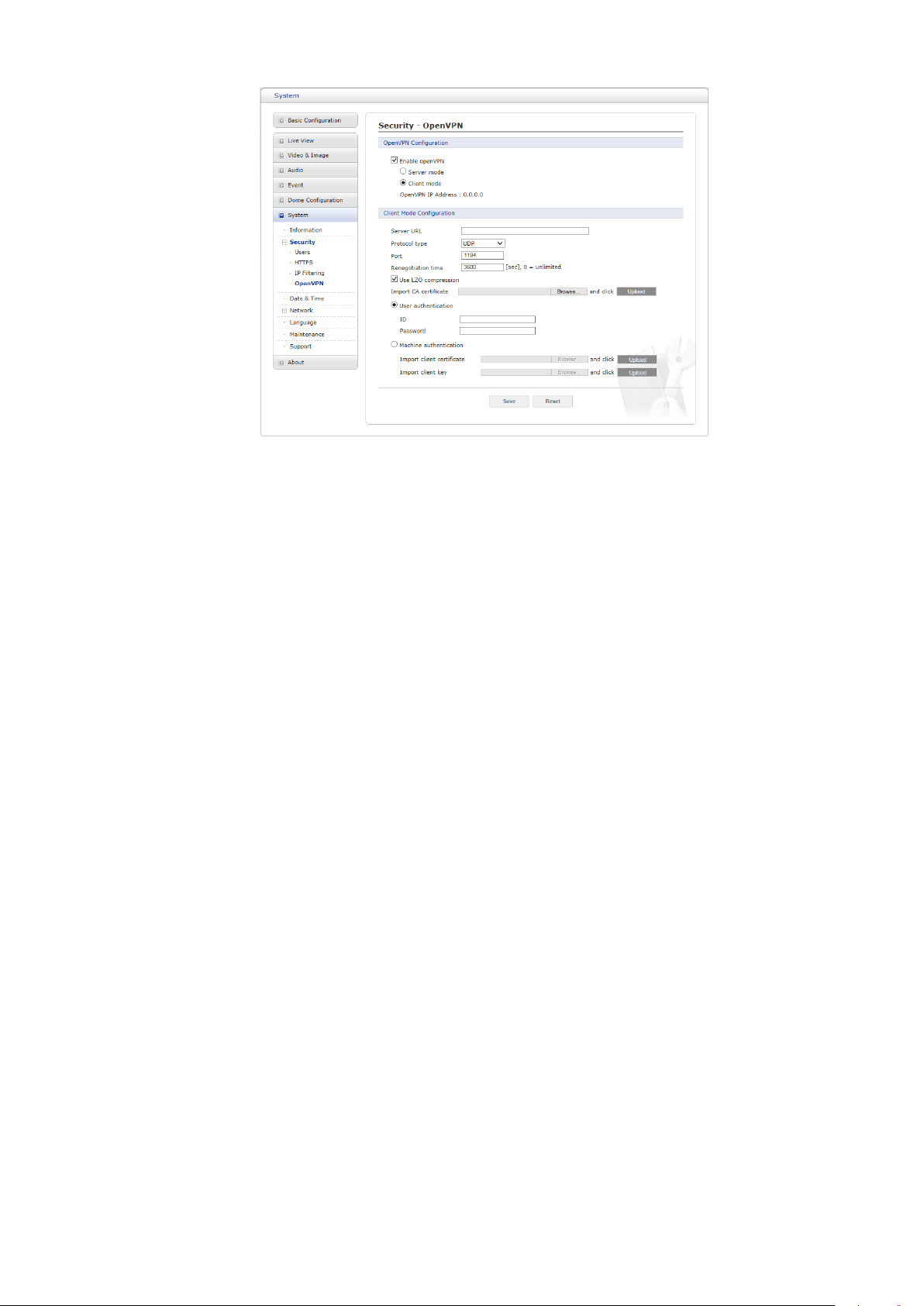

• OpenVPN Client Mode
1. Select Enable openVPN activates mode selection buttons. Choose Client mode,
then Client Mode Configuration appears where you can configure Client Mode
Settings.
2. In Client Mode Configuration, you can setup Server URL, Protocol type, Port number, LZO usage, and Renegotiation time.
– Server URL sets OpenVPN IP address.
– Protocol type, Port number, and LZO setting must match Server setting.
– Default Renegotiation time is 3600 seconds, and 0 means no verification.
– Upload CA certificate issued by Server.
3. Select authentication method between User authentication and Machine authentication.
– For Machine authentication, upload client certificate and client key provided
by Server.
– For User authentication, type in registered ID and Password.
4. After finishing setup, click Save button and then the camera operates as an OpenVPN Client.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
73
Page 74
3) Date & Time
• Current Server Time
This displays the current date and time (24h clock). The time can be displayed in 12h
clock format (see below).
• New Server Time
– Time zone
Select your time zone from the drop-down list. If you want the server clock to
automatically adjust for daylight savings time, check the box ”Automatically adjust
for daylight saving time changes”.
– Time mode: Select the preferred method to use for setting the time:
∗ Synchronize with computer time: Sets the time from the clock on your
computer.
∗ Synchronize with NTP Server: The network camera will obtain the time from
an NTP server every 60 minutes.
∗ Set manually:Allows you to manually set the time and date.
• Date & Time Format
Specify the formats for the date and time (12h or 24h) displayed in the video streams.
Select Date & Time format from the drop-down list.
– Date Format: Specify the date format. YYYY: Year, MM: Month, DD: Day
– Time Format: Specify the date format. 24 Hours or 12 Hours
NOTE: If using a host name for the NTP server, a DNS server must be configured under
TCP/IP settings.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
74
Page 75
4) Network
∇ Basic
• IP Address Configuration:
– Obtain IP address via DHCP: Dynamic Host Configuration Protocol (DHCP) is
a protocol that lets network administrators centrally manage and automate the
assignment of IP addresses on a network. DHCP is enabled by default. Although
a DHCP server is mostly used to set an IP address dynamically, it is also possible
to use it to set a static, known IP address for a particular MAC address. To obtain
IP address via DHCP, check the radio button.
– Use the following IP address: To use a static IP address for the network camera,
check the radio button and then make the following settings:
∗ IP address: Specify a unique IP address for your network camera.
∗ Subnet mask: Specify the mask for the subnet the network camera is located
on.
∗ Default router: Specify the IP address of the default router (gateway) used
for connecting devices attached to different networks and network segments.
• IPv6 Address Configuration
Check this ”Enable IPv6” box to enable IPv6. Other settings for IPv6 are configured in
the network router.
• DNS Configuration
DNS (Domain Name Service) provides the translation of host names to IP addresses
on your network. Check the radio button to obtain DNS server via DHCP or set the
DNS server.
75
Page 76
– Obtain DNS Server via DHCP: Automatically use the DNS server settings pro-
vided by the DHCP server.
– Use the following DNS server address to enter the desired DNS server by spec-
ifying the following:
∗ Domain name: Enter the domain(s) to search for the host name used by
the network camera. Multiple domains can be separated by semicolons (;).
The host name is always the first part of a Fully Qualified Domain Name,
for example, myserver is the host name in the Fully Qualified Domain Name
myserver.mycompany.com where mycompany.com is the Domain name.
∗ DNS servers: Enter the IP addresses of the primary and secondary DNS
servers.
• Host Name Configuration
– Host Name: Enter the host name to be used as device information in the client
software or SmartManager.
• Services
– HTTP port: Enter a port to receive a service through the HTTP. Default port
number is ”80”.
– HTTPS port: Enter a port to receive a service through the HTTPS. Default port
number is ”443”.
– RTSP port: Enter a port to receive a service through the RTSP. Default port
number is ”554”.
• ARP/Ping Setting
– Enable ARP/Ping setting: The IP address can be set using the ARP/Ping method,
which associates the unit’s MAC address with an IP address. Check this box to
enable the service. Leave disabled to prevent unintentional resetting of the IP
address.
• Link Speed Control
– Link Speed: User can select either 10Mbps or 100Mbps.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
76
Page 77

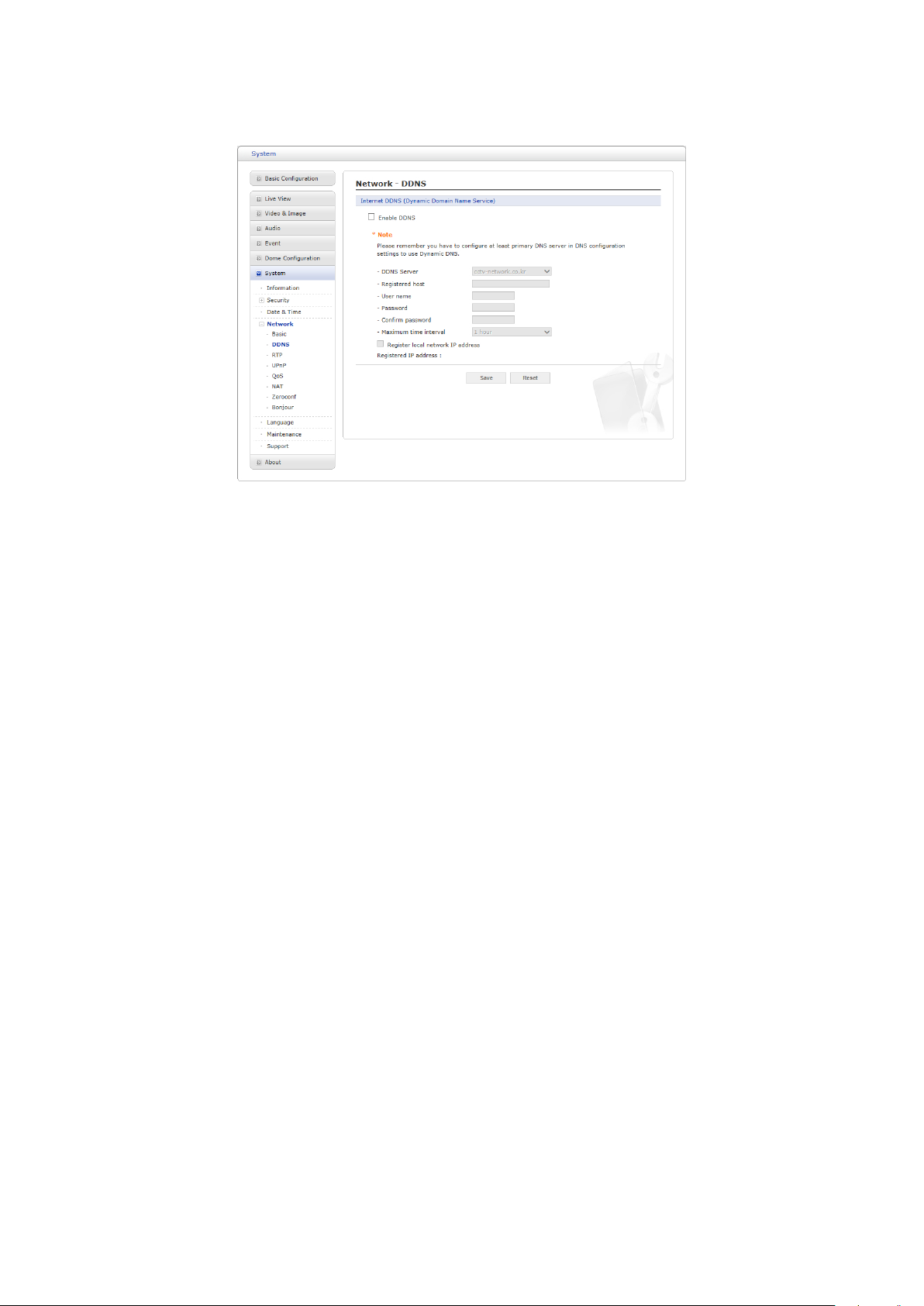

∇ DDNS
• Internet DDNS (Dynamic Domain Name Service)
When using the high-speed Internet with the telephone or cable network, users can
operate the network camera on the floating IP environment in which IPs are changed
at every access. Users should receive an account and password by visiting a DDNS
service like http://www.dyndns.com/.
– Enable DDNS: Check to have DDNS service available.
∗ DDNS Server: Select the DDNS server.
∗ Registered host: Enter an address of the DDNS server.
∗ Username: Enter an ID to access to the DDNS server.
∗ Password: Enter a password to be used for accessing the DDNS server.
∗ Confirm: Enter the password again to confirm it.
∗ Maximum time interval: Set a time interval to synchronize with the DDNS
server. Select the time interval from the drop-down list.
∗ Register local network IP address: Register a Network Video Server IP
address to the DDNS server by checking the box and enter the Registered IP
address.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
77
Page 78

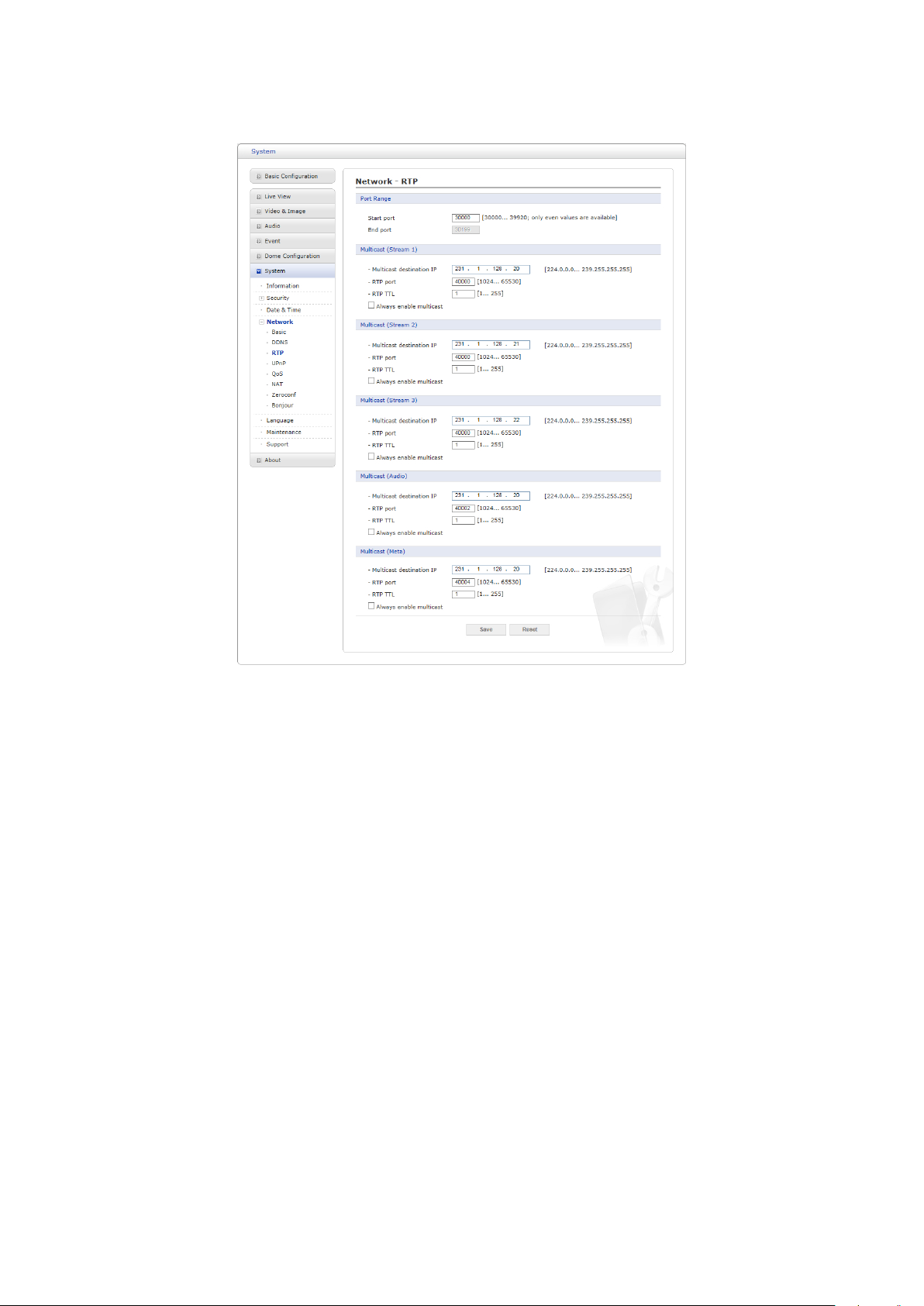

∇ RTP
Create a setting for sending and receiving an audio or video on a real-time basis. These
settings are the IP address, port number, and Time-To-Live value (TTL) to use for the media
stream(s) in multicast H.264 format. Only certain IP addresses and port numbers should be
used for multicast streams.
• Port Range
– Start/End port: Enter a value between 1024 and 65532
• Multicast (Stream1/Stream2/Stream3/Audio/Meta)
This function is for sending Video, Audio, and Meta Data to Multicast group.
– Enable Multicast: Check the box to enable multicast operation.
– Multicast destination IP: Enter an IP between 224.0.0.0 and 239.255.255.255.
– RTP port: Enter a value between 1024 and 65532.
– RTP TTL: Enter a value between 1 and 255. If a network status is smooth, enter
a lower value. However, if a network status is poor, enter a higher value. When
there are many network cameras or users, a higher value may cause a heavy load
to the network. Consult with a network manager for detailed information.
– Always enable multicast: Check the box to start multicast streaming without
opening an RTSP session.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
78
Page 79

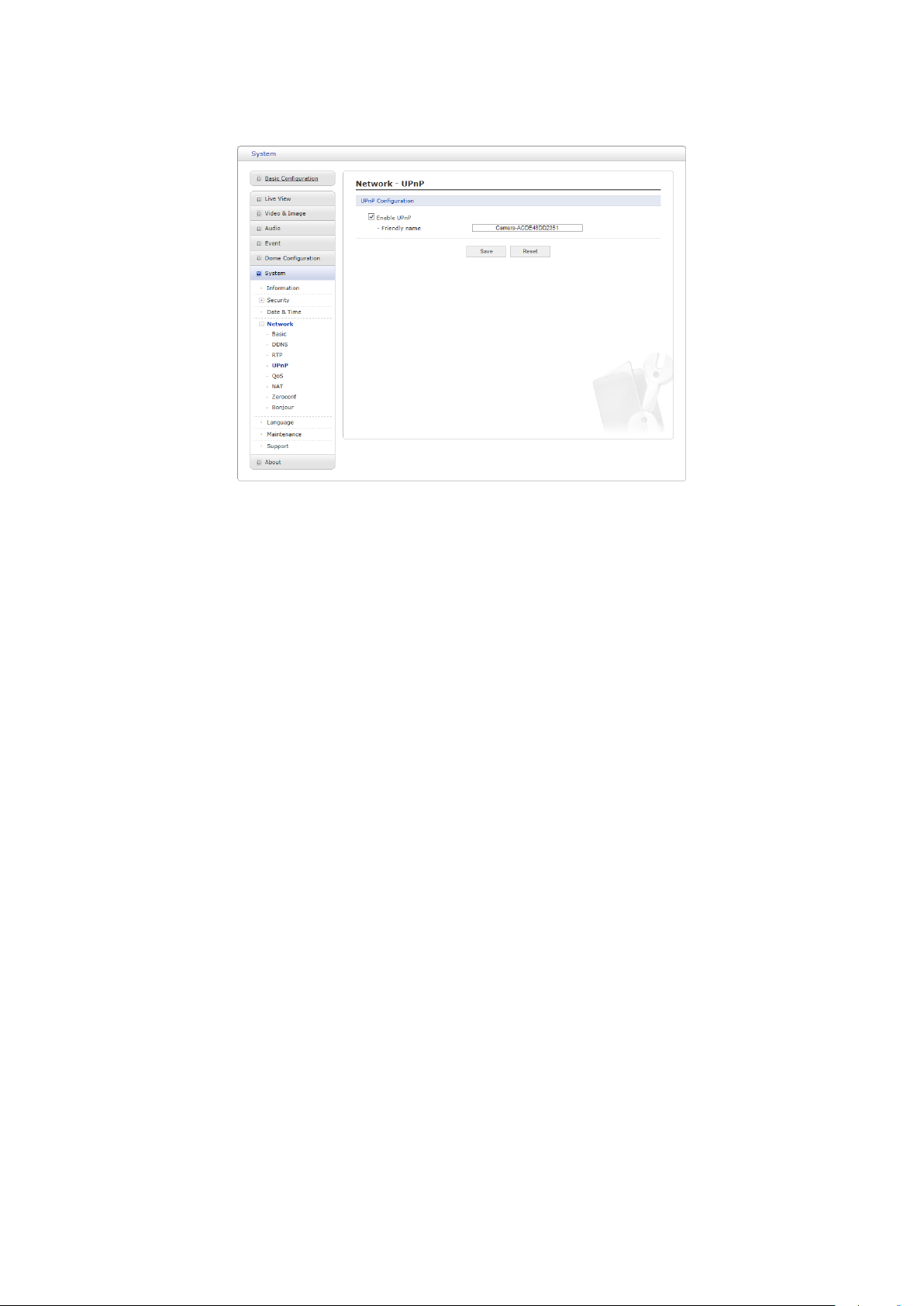

∇ UPnP
The network camera includes support for UPnP. UPnP is enabled by default, so the network
camera is automatically detected by operating systems and clients that support this protocol.
Enter a name in the Friendly name field.
NOTE: UPnP must be installed on your workstation if running Windows XP. To do this,
open the Control Panel from the Start Menu and select Add/Remove Programs. Select
Add/Remove Windows Components and open the Networking Services section. Click Details and then select UPnP as the service to add.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
79
Page 80

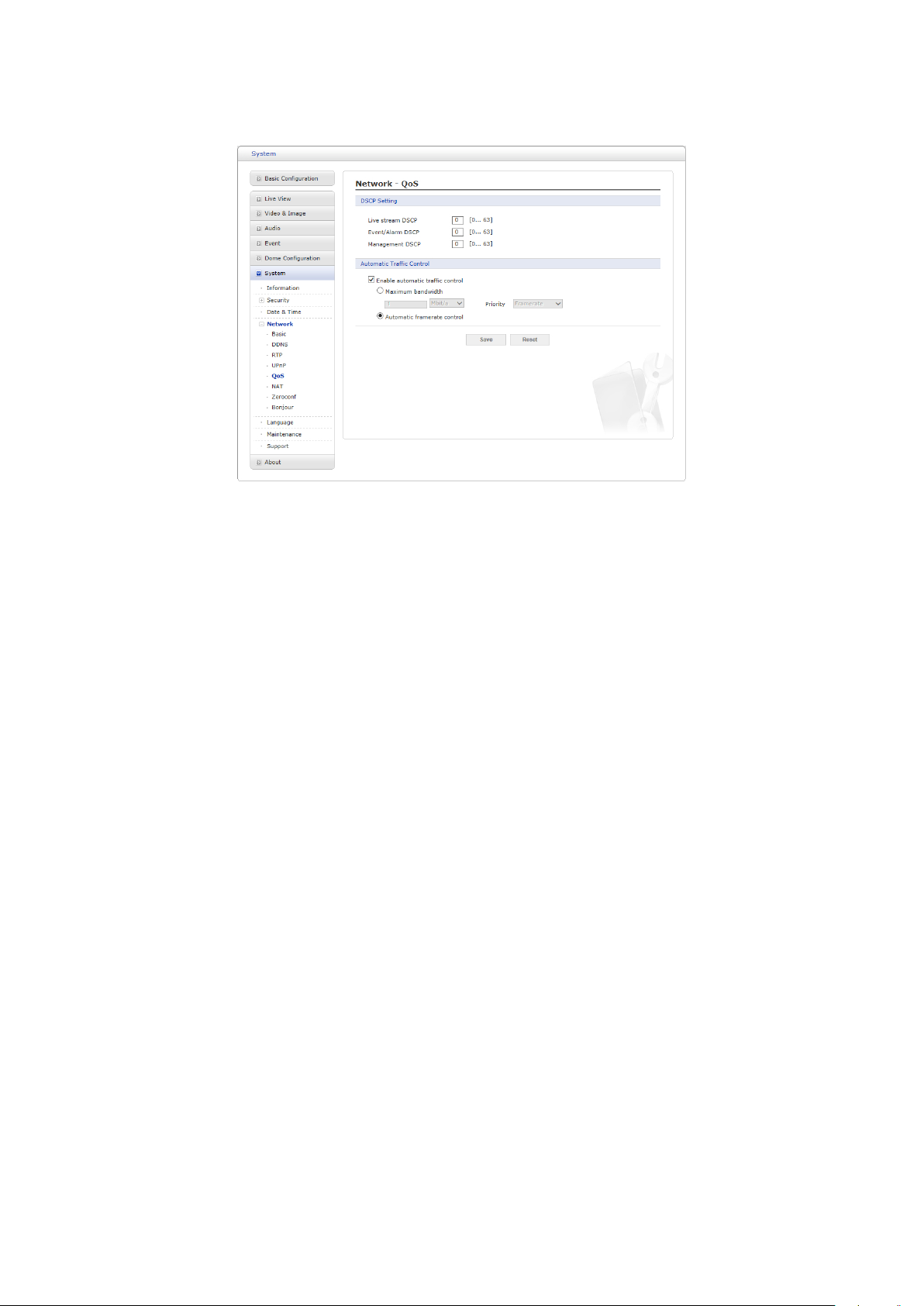

∇ QoS
Quality of Service (QoS) provides the means to guarantee a certain level of a specified resource to selected traffic on a network. Quality can be defined as a maintained level of
bandwidth, low latency, and no packet losses.
The main benefits of a QoS-aware network are:
1. The ability to prioritize traffic and thus allow critical flows to be served before flows with
lesser priority.
2. Greater reliability in the network, due to the control of the amount of bandwidth an
application may use, and thus control over bandwidth races between applications.
• DSCP Settings
For each type of network traffic supported by your network video product, enter a DSCP
(Differentiated Services Code Point) value. This value is used to mark the traffics IP
header. When the marked traffic reaches a network router or switch, the DSCP value
in the IP header tells the router or switch which type of treatment to apply to this type
of traffic, for example, how much bandwidth to reserve for it. Note that DSCP values
can be entered in decimal or hex form, but saved values are always shown in decimal.
The following types of traffic are marked; enter a value for each type of traffic used:
– Live Stream DSCP
– Event/Alarm DSCP
– Management DSCP
• Automatic Traffic Control
Check the box to enable automatic traffic control. Set a limitation on user network
resources by designating the maximum bandwidth. Select either the Maximum bandwidth or Automatic framerate radio button.
– Maximum bandwidth: When sharing other network programs or equipment, it
is possible to set a limitation on the maximum bandwidth in the unit of Mbit/s or
kbit/s.
80
Page 81
– Automatic frame rate: Selected if not influenced by a network-related program
or equipment without a limitation on the network bandwidth.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
81
Page 82
∇ NAT (Port Mapping)
A broadband router allows devices on a private network (LAN) to share a single connection
to the Internet. This is done by forwarding network traffic from the private network to the
outside, that is, the Internet. Security on the private network (LAN) is increased since most
broadband routers are pre-configured to stop attempts to access the private network (LAN)
from the public network/Internet.
Use NAT traversal when your network cameras are located on an intranet (LAN) and you
wish to make it available from the other (WAN) side of a NAT router. With NAT traversal
properly configured, all HTTP traffic to an external HTTP port in the NAT router is forwarded
to the network camera.
NOTES:
• For NAT (port mapping) to work, this must be supported by the broadband router.
• The broadband router has many different names: ”NAT router,” ”Network router,” ”Inter-
net Gateway,” ”Broadband sharing device” or ”Home firewall,” but the essential purpose
of the device is the same.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
82
Page 83

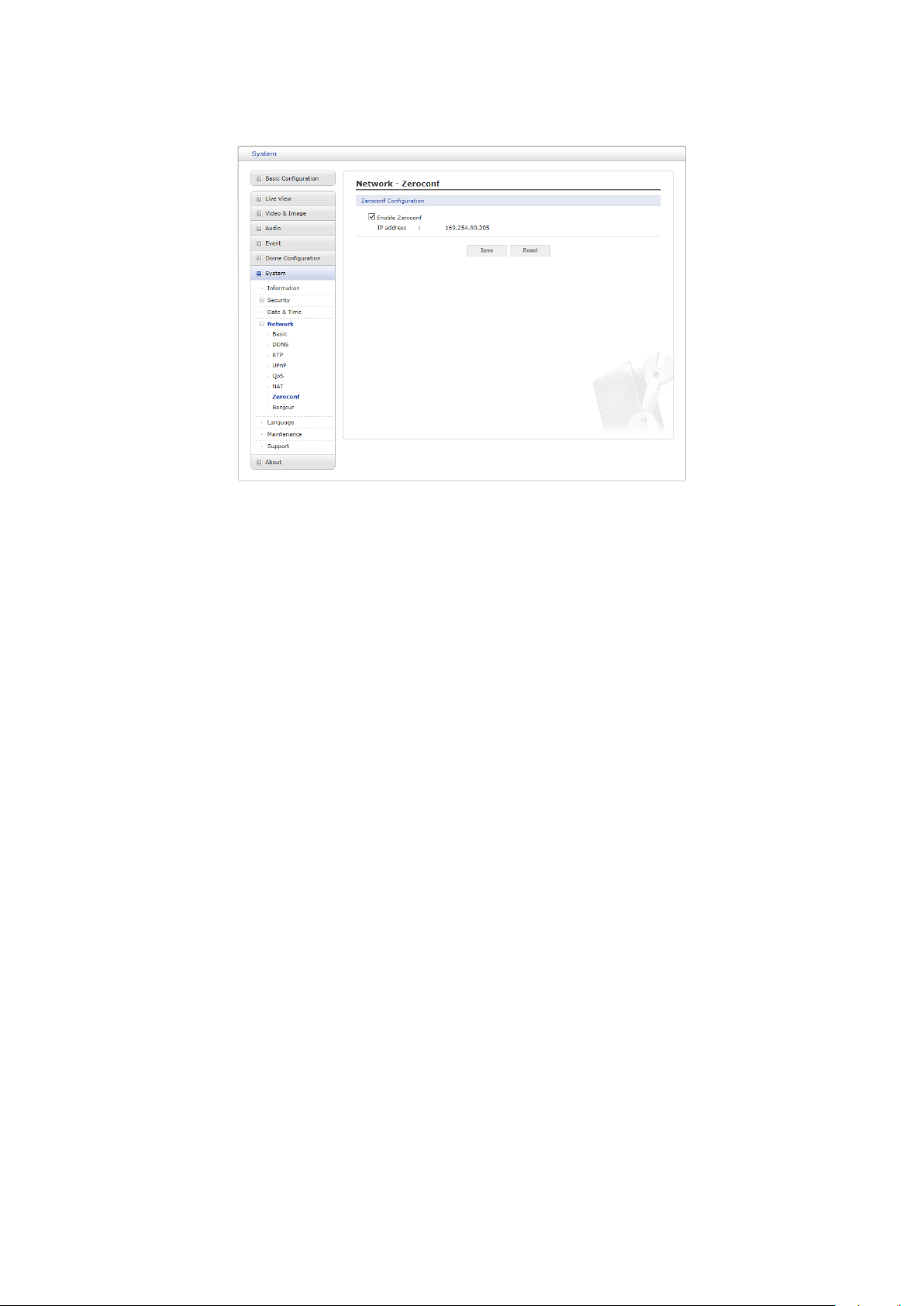

∇ Zeroconf
Zero configuration networking (zeroconf) is a set of techniques that automatically creates a
usable Internet Protocol (IP) network without manual operator intervention or special configuration servers.
Zero configuration networking allows devices such as computers and printers to connect to
a network automatically. Without zeroconf, a network administrator must set up services,
such as Dynamic Host Configuration Protocol (DHCP) and Domain Name System (DNS),
or configure each computer’s network settings manually, which may be difficult and timeconsuming.
Zeroconf is built on three core technologies:
• Assignment of numeric network addresses for networked devices (link-local address
auto configuration)
• Automatic resolution and distribution of computer hostnames (multicast DNS)
• Automatic location of network services, such as printing devices through DNS service
discovery.
Click the checkbox to enable Zeroconf.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
83
Page 84
∇ Bonjour
The network camera includes support for Bonjour. When enabled, the network camera is
automatically detected by operating systems and clients that support this protocol.
Click the check box to enable Bonjour. Enter a name in the Friendly name field.
NOTE: Also known as zero-configuration networking, Bonjour enables devices to automatically discover each other on a network, without having to enter IP addresses or configure
DNS servers. (Bonjour is a trademark of Apple Computer, Inc.)
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
84
Page 85
5) Language
Select a user language. The language choices are English, Korean, French, Russian and
Chinese.
When the settings are complete, click Save button to save the settings, or click Reset button
to clear all of the information you entered without saving it.
85
Page 86

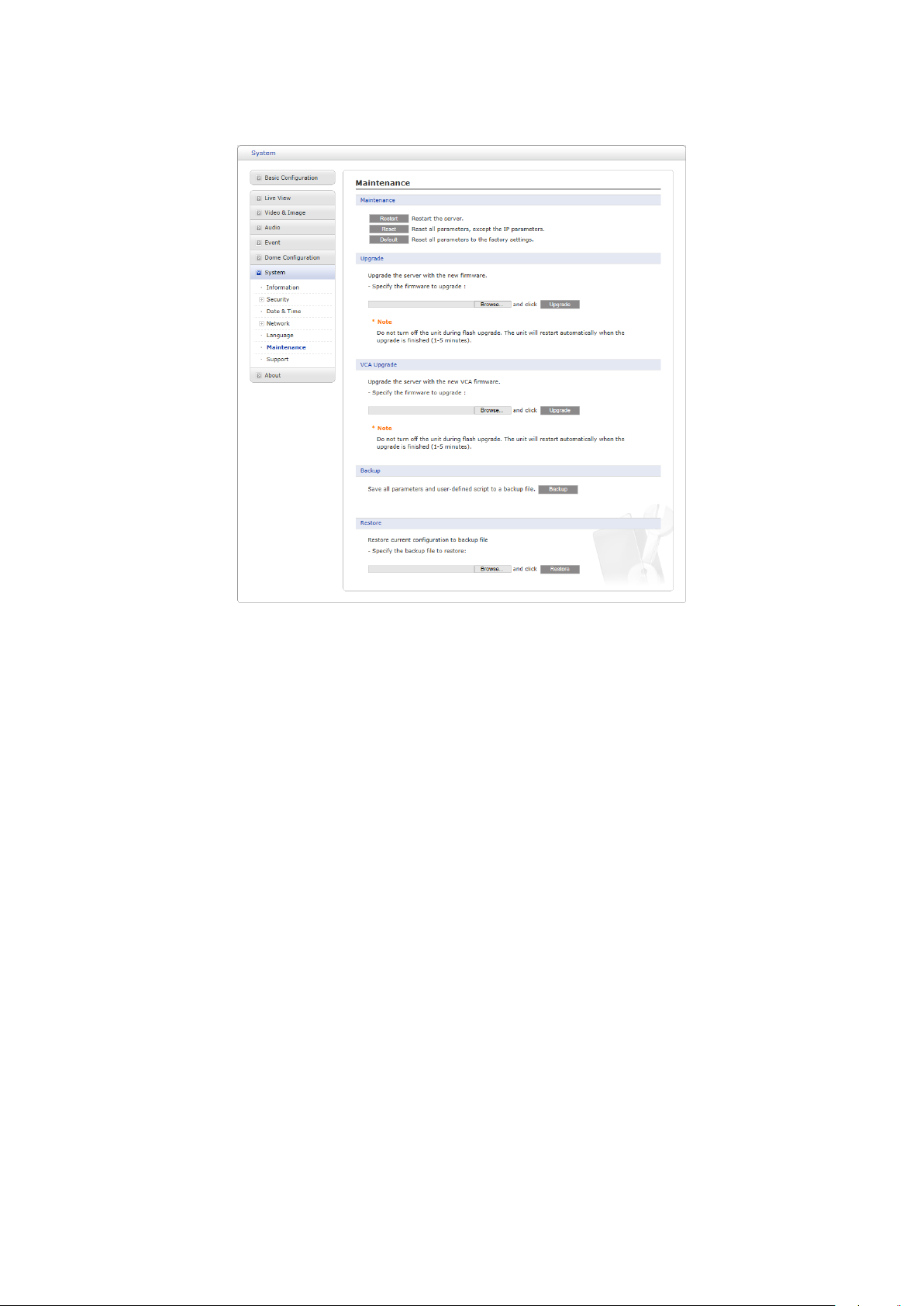

6) Maintenance
• Maintenance:
– Restart: The unit is restarted without changing any of the settings. Use this
method if the unit is not behaving as expected.
– Reset: The unit is restarted and most current settings are reset to factory default
values. The settings that are not affected are:
∗ the boot protocol (DHCP or static)
∗ the static IP address
∗ the default router
∗ the subnet mask
∗ the system time
– Default: The Default button should be used with caution. Pressing this will return
all of the network camera’s settings to the factory default values (including the IP
address).
• Update: Upgrade your camera by importing an upgrade file and pressing the Upgrade
button. During the upgrade, do not turn off the power of the network camera. Wait at
least five minutes and then try to access the camera again.
• Backup: Save the setting values that users have entered to the network camera to a
user PC.
• Restore: Import and apply a setting value previously saved to a user PC.
NOTE: Backup and Restore can only be used on the same unit running the same firmware.
This feature is not intended for multi-configurations or for firmware upgrades.
86
Page 87

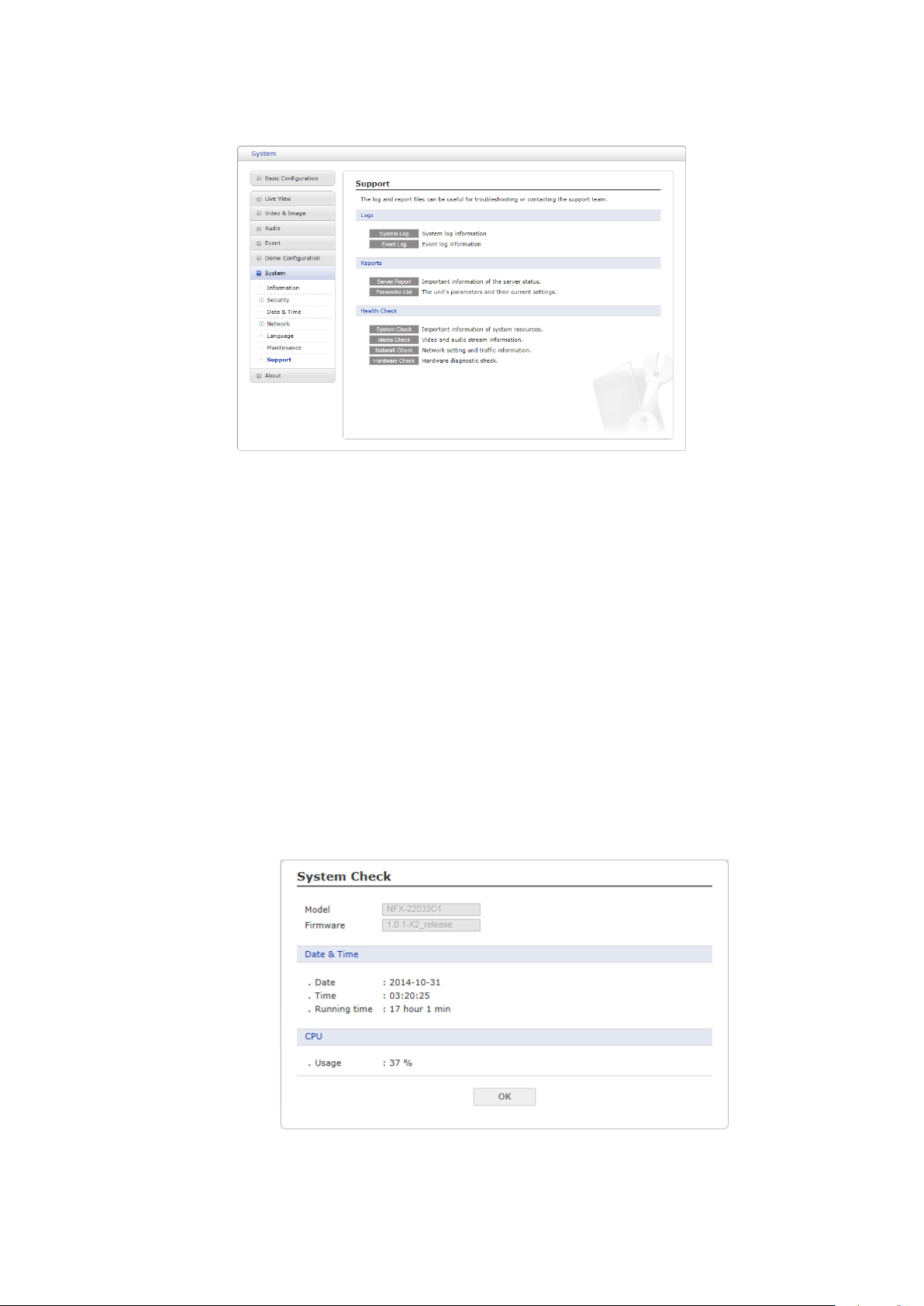

7) Support
The support page provides valuable information on troubleshooting and contact information,
should you require technical assistance.
• Logs: The network camera supports system and event log information. Click the Sys-
tem Log button to get the system log data or the Event Log button to get information
on events.
• Reports:
– Server Report: Click the Server Report button to get the important information
about the servers status; this should always be included when requesting support.
– Parameter List: Click the Parameter List button to see the units parameters and
their current settings.
• Health Check:
– System Check: Click the System Check button to get the important information
about the cameras system resources. You can see the pop-up window below.
– Media Check: Click the Media Check button to get the information about the
cameras video and audio stream. You can see the pop-up window below.
87
Page 88

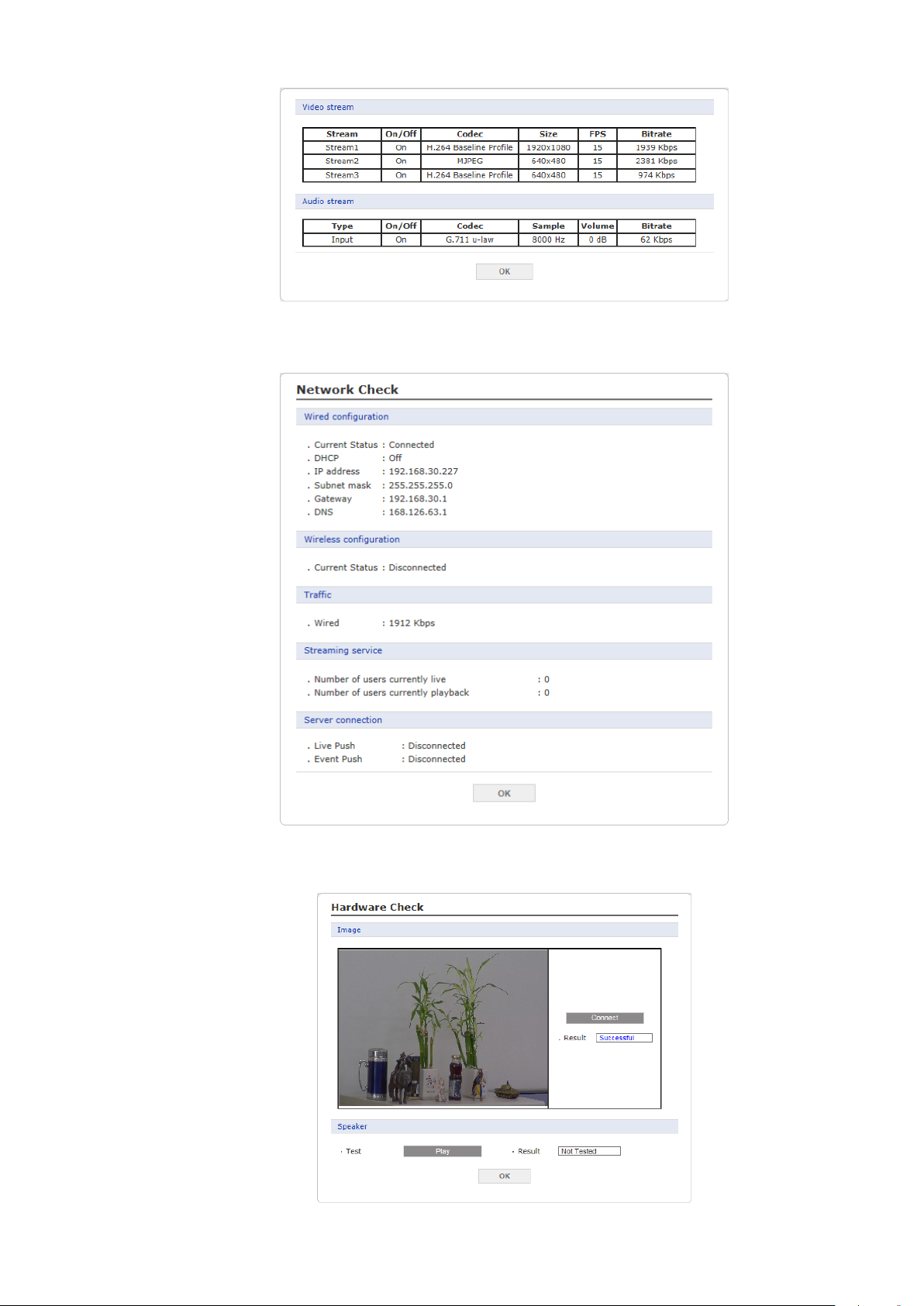

– Networks Check: Click the Network Check button to get the information about
the cameras network setting and traffic. You can see the pop-up window below.
– Hardware Check: Click the Hardware Check button to diagnose the cameras
hardware like video.
88
Page 89

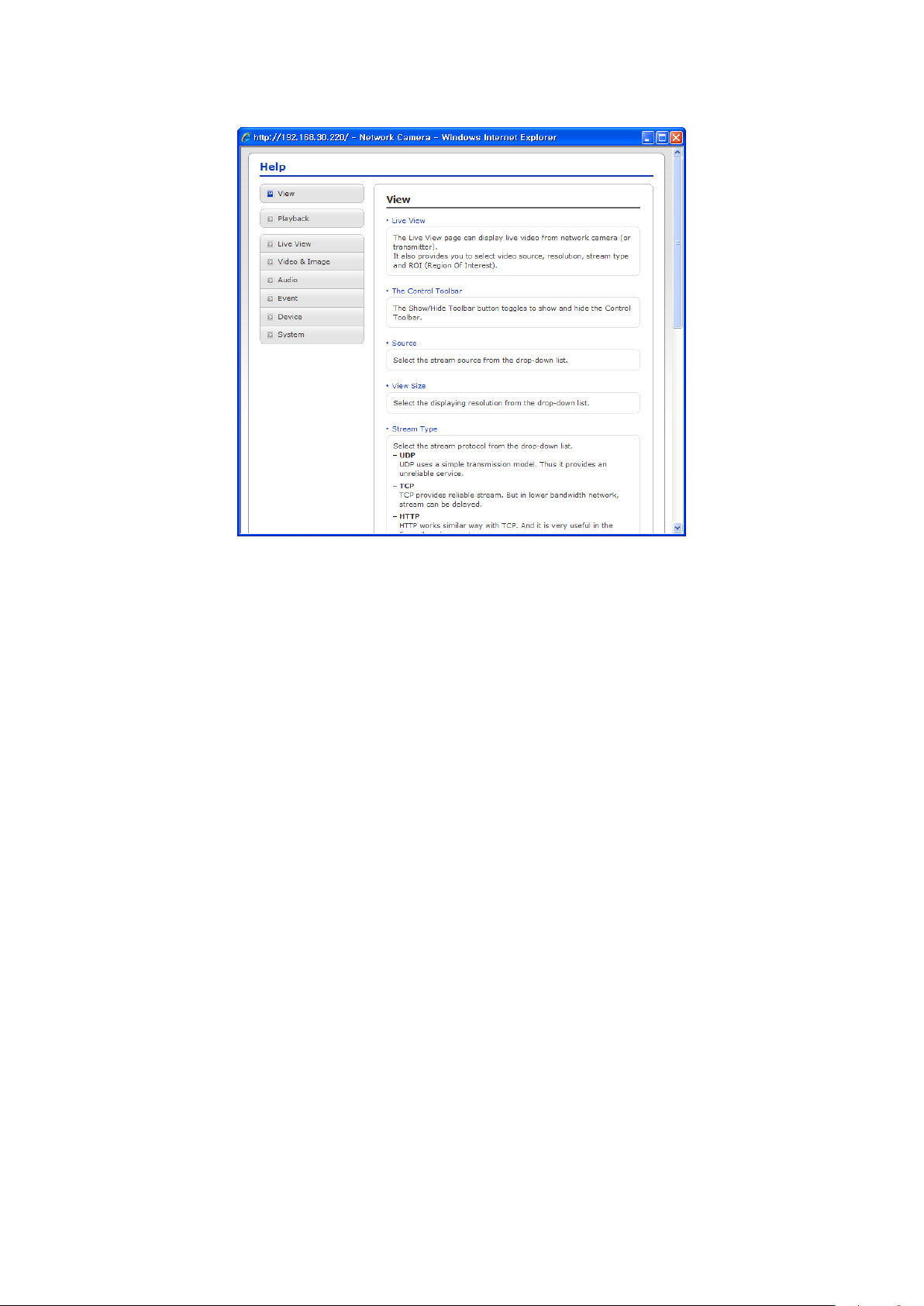

3.7 Help
The Help information window will be provided as a popup window so that users can open
and read it without needing to log-in. It will offer a description of the setting and Help page
so that users can manipulate the network camera without a reference to the manual.
89
Page 90
3.8 Resetting to the factory default settings
To reset the network camera to the original factory settings, go to the Setup > System >
Maintenance web page (described in ”System > Maintenance” of Users Manual) or use the
Reset button on the network camera, as described below:
• Using the Reset button:
Follow the instructions below to reset the network camera to the factory default settings using
the Reset button.
1. Switch off the network camera by disconnecting the power adapter.
2. Open the Micro-SD card cover.
3. Press and hold the Reset button (SW1) on the board with your finger while reconnecting the power.
4. Keep the Reset button (SW1) pressed for about 2 seconds.
5. Release the Reset button (SW1).
6. The network camera resets to factory defaults and restarts after completing the factory
reset.
7. Tightly close the Micro-SD card cover to ensure waterproofness.
CAUTION: When performing a Factory Reset, you will lose any settings that have been
saved. (Default IP 192.168.30.220)
90
Page 91
A Appendix
A.1 Troubleshooting
Troubleshooting if problems occur, verify the installation of the network camera with the
instructions in this manual and with other operating equipment. Isolate the problem to the
specific piece of equipment in the system and refer to the equipment manual for further
information.
Problems/Symptoms Possible Causes or Corrective Actions
The camera cannot be accessed by some clients.
The camera works locally,
but not externally.
Poor or intermittent network
connection.
The camera cannot be accessed via a host name.
Not possible to log in. When HTTPS is enabled, ensure that the correct protocol
No image using Refresh
and/or slow updating of images.
Images only shown in black
& white.
Blurred images. Refocus the camera.
Poor image quality. Increased lighting can often improve image quality. Check
Rolling dark bands or flickering in image.
H.264 not displayed in the
client.
Multicast H.264 not displayed in the client.
Multicast H.264 only accessible by local clients.
Color saturation is different
in H.264 and Motion JPEG.
Video cannot be recorded. Check that the Micro-SD card is inserted properly.
If using a proxy server, try disabling the proxy setting in your
browser. Check all cabling and connectors.
Check if there are firewall settings that need to be adjusted.
Check if there are router settings that need to be configured.
If using a network switch, check that the port on that device uses the same setting for the network connection type
(speed/duplex).
Check that the host name and DNS server settings are correct.
(HTTP or HTTPS) is used. When attempting to log in, you
may need to manually type in http or https in the browser’s
address bar.
If images are very complex, try limiting the number of clients
accessing the camera.
Check the Video & Image setting.
that there is sufficient lighting at the monitored location.
Check all image and lighting settings.
Try adjusting the Exposure Control setting under AE and
AWB part.
Check that the correct network interface is selected in the
Video & Image/Stream.
Check with your network administrator that the multicast
addresses used by the camera are valid for your network.
Check that the Enable multicast checkbox are enabled in
the System/Network/RTP tab. Checks with your network
administrator to see if there is a firewall preventing viewing.
Check if your router supports multicasting, or if the router
settings between the client and the server need to be configured. The TTL value may need to be increased.
Modify the settings for your graphics adapter. Please see
the adapter’s documentation for more information.
Check that the Micro-SD card is formatted properly.
91
Page 92
A.2 Alarm Connection
The following connection diagram gives an example of how to connect a network camera.
A.3 Preventive Maintenance
Preventive maintenance allows detection and correction of minor that faults before they become serious and cause equipment failure.
Every three-month, perform the following maintenance.
1. Inspect all connection cables for deterioration or other damage.
2. Clean components with a clean damp cloth.
3. Verify that all the mounting hardware is secure.
92
Page 93
A.4 Product Specification
12x Full-HD VCA NETWORK Mini-PTZ CAMERA
Model Network Camera
Lens
Angle of View 64.2o(H) ∼ 5.9o(H)
Image Sensor
Min. Illumination
Scanning Mode Progressive Scan
Video/
Audio 25/30fps (Triple Stream : H.264 x 2, MJPEG x 1)
PTZ Tilt Speed Max. 380o/sec (Preset)
Function Auto Calibration 0.1o∼ 6
System
Wide Dynamic Range 80 dB
Day and Night Mode True D/N (Auto, Day, Night)
Noise Reduction 2DNR
Digital Zoom 12x
Exposure Control Auto, Manual, Shutter Priority, Iris Priority
White Balance Control Auto, Fluorescent, Sodium Lamp, Incandescent, Outdoor, Manual
Back Light Compensation Yes
Image Effect Flip(Digital), DIS, Defog
Shutter Speed Auto (1/10,000 ∼ 1/5 sec.), Manual
Video Compression H.264 (Baseline, Main, High Profile), MJPEG
Video Resolution
Video Frame Rate Max. 50fps/60fps
Video Streaming
Composite Out Audio Compression G.711
Audio Streaming 2 Way
Pan Range 360oEndless
Pan Speed Max. 380o/sec (Preset)
Tilt Range 0o∼ 180
Preset 256
Tour 8
Pattern 8
Home Function Yes
Video Contents Analysis Line Detector, Field Detector
Motion Detection Area 16 Programmable Area (Include Area 8, Exclude Area 8)
Privacy Mask 12 Programmable Zones
FTP Uploading MJPEG
Event Notification
Audio Alert User-Defined 3 Audio files
Login Authority Administrator, Operator, Guest
Event Buffering
Manual Trigger 4 Programmable Triggers
Security Multi User Authority, IP Filtering, HTTPS, SSL
Network Time Sync NTP Server, Synchronize Computer, Manual
Software Reset Restart, Reset, Factory Default
Hardware Factory Reset Yes
Auto Recovery Backup, Restore
Remote Upgrade Web Browsing, SmartManager, ATVision IP
SD Recording Mode Event / Continuous
Type 1/2.8” Sony Exmor CMOS
Pixels 1,952(H) x 1,236(V)
1920x1080, 1280x1024, 1280x720/960,
704x480/576, 640x360/480, 320x240
50/60fps (Dual Stream : H.264 x 1, MJPEG x 1)
E-mail, FTP, Notification Server,
XML Notification, Audio Alert, AIHM
FTP Pre : 30sec, Post : 30sec
SD Record Pre : 10sec, Post : 60sec
4.8mm ∼ 57.6mm
Color: 0.5 Lux @ 50 IRE
B/W: 0.1Lux @ 50 IRE
12x
o
o
93
Page 94
Protocols
Network
External Ethernet RJ-45 (10/100Base-T)
In/Out µ-SD Card SDHC(Max. 32GB)
ETC
Client Software Web, SmartManager, ATVision IP
Max. User Connection Live : 10 Users, Playback : 3 Users
API Support Open API, ONVIF Compliance
Mobile Support Android, i-OS
Video Composite Out Audio 1 Input, 1 Output (3.5mm Stereo Jack)
Alarm 4 Inputs, 1 Output (Terminal Block)
RS485 Operating Humidity 0 ∼ 90% RH (Non-condensing)
Operating Temperature -10oC ∼ +50oC
Operating Temperature
(with Heater)
Power Supply PoE(IEEE802.3af compliance, Class0), 12VDC, 24VAC
Power Supply(with Heater) 24VAC
Power Consumption
Power Consumption
(with Heater)
Dimensions 154mm(φ) x 110mm(H)
Net Weight Approx. 1.6kg
Ingress Protection IP66
TCP/IP, UDP, IPv4/IPv6, HTTP, HTTPS, QoS, FTP,
UPnP, RTP, RTSP,RTCP, DHCP, ARP, Zeroconf, Bonjour
-30oC ∼ +50oC
250mA (12.0W) @ PoE,
1.0A (12.0W) @ 12VDC or 24VAC
1.5A (22.0W) @ 24VAC
? Specifications are subject to change without notice.
94
Page 95
A.5 System Requirement for Web Browser
• Operating System: Microsoft Windows OS Series
• CPU: Intel Core 2 Duo 2Ghz or higher, 1GB RAM or more, 10GB free disk or higher
• VGA: AGP, Video RAM 32MB or higher (1024x768, 24bpp or higher)
A.6 Minimum System Requirements for ATVision IP Software
• Operating System: Microsoft Windows 7 (or 8) Professional/Enterprise/Ultimate
• CPU: Intel Core i7; RAM: 4GB; Ethernet connection: 1Gbps
• Graphics Card: Gaming rated, with 1GB at 1080p for Single Monitor; 2GB at 1080p
for Multiple Monitors
• HDDs: 7200RPM and 64MB cache; 1 separate HDD for Operating System and Soft-
ware; and 1 (2TB) HDD for Recording (refer to IP storage calculator)
A.7 General Performance Considerations
When setting up your system, it is important to consider how various settings and situations
will affect performance. Some factors affect the amount of bandwidth (the bit rate) required,
others can affect the frame rate, and some affect both. If the load on the CPU reaches its
maximum, this will also affect the frame rate.
The following factors are among the most important to consider:
• High image resolutions and/or lower compression levels (or high bitrates) result in
larger images. Frame rate and Bandwidth affected.
• Accessing both Motion JPEG and H.264 video streams simultaneously. Frame rate
and bandwidth affected.
• Heavy network utilization due to poor infrastructure. Frame rate and Bandwidth affected.
• Heavy network utilization via wireless router due to poor infrastructure. Frame rate and
bandwidth affected.
• Viewing on poorly performing client PCs lowers perceived performance. Frame rate
affected.
95
Page 96
2M, 12x Full HD Mini-PTZ Network Camera: IPSDV12XW
Rev.A
Loading...
