ATV IPMB2FI User Manual
INSTRUCTION MANUAL
IR Bullet
Network Camera
Please read this manual thoroughly before use, and keep it handy for future reference.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT
THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE
EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus.
CAUTION
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
2
FCC COMPLIANCE STATEMENT
INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO
COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC
RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL
INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS
EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT
INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE
EQUIPMENT.
THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME NMB-003 DU CANADA.
CE COMPLIANCE STATEMENT
WARNING: This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
RISK OF EXPLOSION IF BA TTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BA TTERIES ACCORDING TO THE INSTRUCTIONS
CAUTION
3
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused
for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRI C SHOCK DO
NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE
OPERATI NG INSTRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO.
16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2
power source only.
ITE is to be connected only to PoE networks without routing to the outside plant.
17.
4
Contents
1. Description ------------------------------------------------------------------ 6
1.1 Components - ------------------------------------------------------------------------------------------ 6
1.2 Key Features - ------------------------------------------------------------------------------------------ 7
1.3 Layout ---- ------------------------------------------------------------------------------------------ 8
2. Installation ----------------------------------------------------------------- 9
2.1 Camera Installation ---- ------------------------------------------------------------------------------- 9
2.2 Network Connection and IP Assignment ---------------------------------------------------------- 10
3. Operation -------------------------------------------------------------------- 11
3.1 Access from a browser -------------------------------------------------------------------------------- 11
3.2 Access from the internet ------------------------------------------------------------------------------ 12
3.3 Setting the admin password over a secure connection ------------------------------------------- 12
3.4 Live View Page ----------------------------------------------------------------------------------------- 13
3.5 Network Camera Setup -------------------------------------------------------------------------------- 15
3.5.1 Basic Configuration ---------------------------------------------------------------------------- 15
1) Users ------------------------------------------------------------------------------------------ 16
2) Network -------------------------------------------------------------------------------------- 19
3) Video & Image ------------------------------------------------------------------------------ 17
4) Date & Time --------------------------------------------------------------------------------- 21
3.5.2 Live View --------------------------------------------------------------------------------------- 22
3.5.4 Video & Image ---------------------------------------------------------------------------------- 23
3.5.5 Event ---------------------------------------------------------------------------------- 30
1) Event-In -------------------------------------------------------------------------------------- 30
1) Event-Out ------------------------------------------------------------------------------------ 35
2) Event Map ------------------------------------------------------------------------------------ 42
3.5.5 System ------------------------------------------------------------------------------------------ 44
1) Information ---------------------------------------------------------------------------------- 44
2) Security --------------------------------------------------------------------------------------- 45
3) Date & Time --------------------------------------------------------------------------------- 48
4) Network -------------------------------------------------------------------------------------- 49
5) Language ------------------------------------------------------------------------------------- 58
6) Maintenance --------------------------------------------------------------------------------- 58
7) Support --------------------------------------------------------------------------------------- 59
3.5.6 About ------------------------------------------------------------------------------------------ 62
3.6 Playback----------------------------------------------------------------------------------------------------62
3.7 Help ------------------------------------------------------------------------------------------------------ 64
3.8 Resetting to the factory default settings ------------------------------------------------------------- 65
4. Appendix -------------------------------------------------------------------- 66
4.1 Troubleshooting ----------------------------------------------------------------------------------------- 66
4.2 Preventive Maintenance -------------------------------------------------------------------------------- 67
4.3 Product Specification ------------------------------------------------------------------------------------ 68
5
1. Description
The Network Camera supports the network service for a image sensor with progressive scan, which
can be monitored on a real-time screen regardless of distances and locations. By using its dedicated
program, many users are able to have an access to the Network Camera at once or a single user can
monitor various network cameras at the same time. It also enables users to store, retrieve and play
an image by using a PC. All the settings and real-time monitoring screens are also provided through
an access to the web.
The Network Camera is fully featured for security surveillance and remote monitoring needs. It is
based on the DSP compression chip, and makes it available on the network as real-time, full frame
rate Motion JPEG and H.264 (or MPEG-4) video streams.
1.1 Components
The system comes with the following components:
Mini Camera Installation CD Installation Guide Accessory Kit
Notes:
1. Check your package to make sure that you received the complete system, including all
components shown above.
2. Adapter for DC 12V is not supplied.
6
1.2 Key Features
• Brilliant video quality
The Network Camera offers the highly efficient H.264 video compression, which drastically
reduces bandwidth and storage requirements without compromising image quality. Motion JPEG
is also supported for increased flexibility.
• Triple streams
The Network Camera can deliver triple video streams simultaneously at full frame rate in all
resolutions up to 1920 x 1080 using Motion JPEG and H.264 (or MPEG-4). This mean s that
several video streams can be configured with different compression formats, resolutions and
frame rates for different needs.
• Image setting adjustment
The Network Camera also enables users to adju st image settings such as contrast, brightness
and saturation to improve images before encoding takes place.
• Micro-SD Recording support
The Network Camera also supports a micro-SD memory slot for loc al recording with removable
storage.
• Improved Security
The Network Camera logs all user access, and lists currently connected users. Also, its full frame
rate video can be provided over HTTPS.
• Megapixel Resolution
Max 30fps@1920x1080
• PoE
This network camera can be powered through PoE, which simplifies installation since only one
cable is needed for carrying power, as well as video and controls.
• ONVIF
This is a global interface standard that makes it easier for end users, in tegrators, consultants,
and manufacturers to take advantage of the possibilities offered by network video technology.
ONVIF enables interoperability between different vendor products, increased flexibility, reduced
cost, and future-proof systems.
7
1.3 Layout
• Connection Cable
NO Name Description
1 Power Cable
2 Ethernet Cable
z Camera Dimension
See the diagrams below for the exact dimension
Dimensions Unit: mm
Cable for Power source (DC 12V)
Cable for Ethernet (POE)
8
2. Installation
2.1 Connection
z Base Installation(Cable through the wall or ceiling with the mount base)
Secure the camera to the wall or ceiling by the camera stand (individual purchase).
Ceiling Mount Wall Mount
• Connecting to the RJ-45
Connect a standard RJ-45 cable to the network port of the network camera. Generally a
cross-over cable is used for directly connection to PC, while a direct cable is used for connection
to a hub or switch.

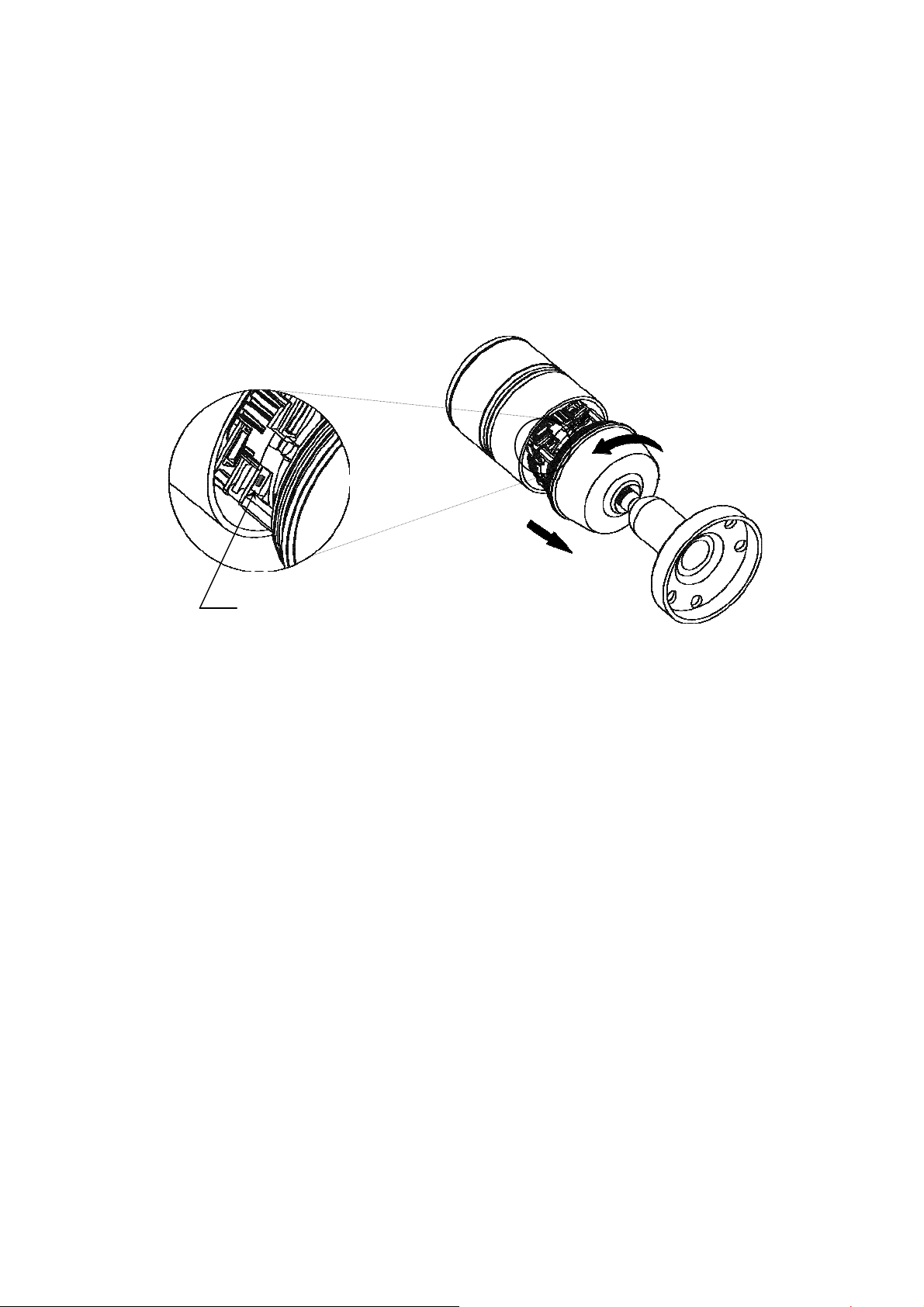

z Micro SD memory slot
Remove the front cap of the camera to insert the SD memory card.
SD memory card slot
Remove the front cap
• Connecting the Power
Connect the DC 12V power adaptor to the camera.
(This connection is not used if using PoE power)
9
2.2 Network Connection and IP assignment
The Network Camera supports the operation through the network. When a camera is first connected
to the network it has no no assigned IP address. So, it is necessary to allocate an IP address to the
device with the “Smart Manager” utility found on the supplied CD. (Default IP 192.168.30.220)
1. Connect the Network Camera / device to the network and power up.
2. Start SmartManager utility (Start>All programs>SmartManager>SmartManager), the main
window will be displayed, after a short while any network devices connected to the network will
be displayed in the list.
3. Select the camera on the list and click right button of the mouse. You can see the pop-up menu
below.
4. Select Assign IP. You will see the "Assign IP Address" window. Enter the required IP address.
Note: For more information, refer to the Smart Manger User’s Manual.
10
3. Operation
The Network Camera can be used with Windows operating system and browsers. The recommended
browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows.
Note: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX
controls.
3.1 Access from a browser
1. Start a browser. (Internet Explorer will be used in this example.)
2. Enter the IP address or host name of the Network Camera in the Location/Address field of your
browser.
3. You can see a starting page. Click Live View or Setup to enter web page.
4. The network camera’s Live View page appears in your browser.
11
3.2. Access from the internet
To g
t
f
f
gs”

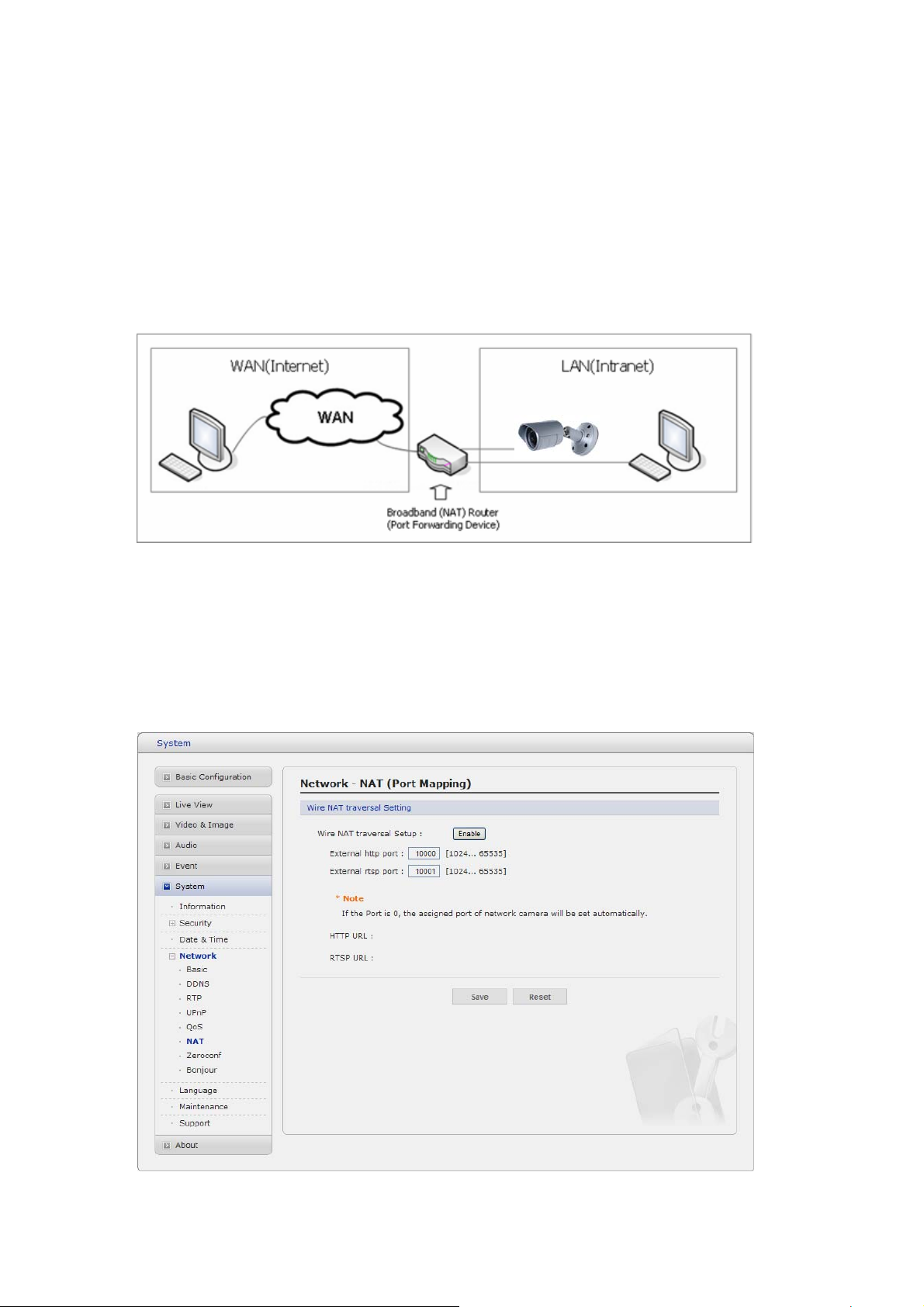

Access from the internet once connected, the Network Camera is accessible on your local network
(LAN). To access the network camera from the Internet you must configure your broadband router to
allow incoming data traffic to the network camera. To do this, enable the NAT-traversal feature, which
will attempt to automatically configure the router to allow access to the network camera. This is
enabled from Setup > System > Network > NAT.
For more information, please see “3.5.6 System>Network>NAT” of User’s Manual.
3.3 Setting the admin password over a secure connection
ain access to the product, the password for
he default administrator user must be set. This
is done in the “Admin Password” dialog, which is
displayed when the network camera
or the setup at the first time. Enter your admin
name and password, set by the administrator.
is accessed
Note: The default administrator username is
admin and password is admin. If the password is
lost, the Network Camera must be reset to the
actory default settings. See “3.8 Resetting to the
Factory Default Settin
To prevent network eavesdropping when setting the admin password, use an encrypted HTTPS
connection, which requires an HTTPS certificate (see note below).
To set the password via a standard HTTP connection, enter it directly in the first dialog box.
To set the password via an encrypted HTTPS connection, see “3.5.6 System >Security>HTTPS”.
Note: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encry p t the traffic between
web browsers and servers. The HTTPS certificate controls the encrypted exchange of information.
.
12
3.4 Live View Page
T
j
g
he live view page comes in several screen
modes: 1920x1080, 1280x1024, 1280x720,
800x600, 704x480(576), 640x480,
352x240(288) and 320x240. Users are
allowed to select the most suitable one out
of those modes. Please, ad
accordance with your PC specifications and
monitorin
1) General controls
Live View Page Search & Playback Page Setup Page Help Page
2) Control toolbar
start and stop. The Start button connects to the network camera or start playing a
video stream.
purposes.
The video drop-down list allows you to select a customized or pre-programmed
video stream on the live view page. Stream profiles are configured under Setup > Basic
Configuration > Video & Image. For more information, please see “3.5.1 Basic Configuration >
Video & Image” of User’s Manual
The resolution drop-down list allows you to select the most suitable one
out of video resolutions to be displayed on live view page.
The protocol drop-down list allows you to select which combination of
protocols and methods to use depends on your viewing requirements, and on the properties of
your network.
The live viewer toolbar is available in the web browser page only. It displays the following
buttons:
The Stop button stops the video stream being played. Pressing the key again toggles the
ust the mode in
The Pause button pause the video stream being played.
The Snapshot button takes a snapshot of the current image. The location where the
image is saved can be specified.
The digital zoom activates a zoom-in or zoom-out function for video image on the live
screen.
The Full Screen button causes the video image to fill the entire screen area. No other
windows will be visible. Press the 'Esc' button on the computer keyboard to cancel full
screen view.
The Manual Trigger button activates a pop-up window to manually start or stop the event.
13
3) Video Streams
The network camera provides several images and video stream formats. Your requirement s and
the properties of your network will determine the type you use.
The Live View page in network camera provides access to H.264, MPEG-4 and Motion JPEG video
streams, and to the list of available video streams. Other applications and clients can also access
these video streams/images directly, without going via the Live View page.
14
3.5 Network Camera Setup
This section describes how to configure the network camera, and is intended for product
Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access
to the settings for Basic, Live View, Video & Image and System Configuration.
You can configure the network camera by clicking Setup in the top right -hand corner of the Live View
page. Click on this page to access the online help that explains the setup tools
When accessing the Network Camera for the first time,
the “Admin Password” dialog appears. Enter your
admin name and password, set by the administrator.
Note: If the password is lost, the Network Camera
must be reset to the factory default settings. See “3.8
Resetting to the Factory Default Settings”.
3.5.1 Basic Configuration
You can see the device information in this information page.
15
1) Users

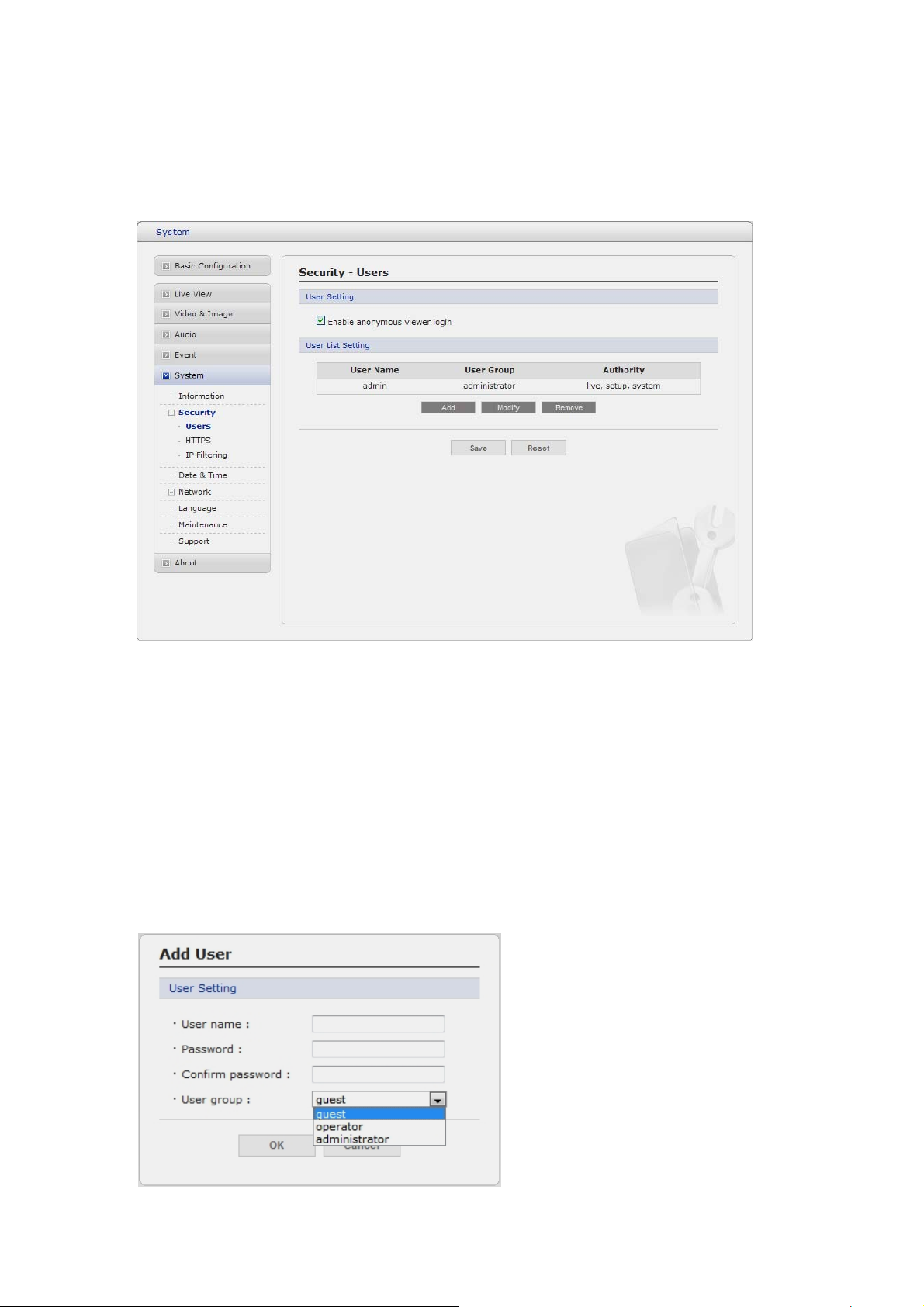

User access control is enabled by default. An administrator can set up other users, by giving these
user names and passwords. It is also possible to allow anonymous viewer login, which means that
anybody may access the Live View page, as described below:
The user list displays the authorized users and user groups (levels):
User Group Authority
Guest
Provides the lowest level of access, which only allows access to the
Live View page.
An operator can view the Live View page, create and modify
Operator
events, and adjust certain other settings. Operators have no access
to System Options.
Administrator
An administrator has unrestricted access to the Setup tools and can
determine the registration of all other users.
• Enable anonymous viewer login: Check the box to use the webcasting features. Refer to
“3.5.2 Video & Image” for more details.
16

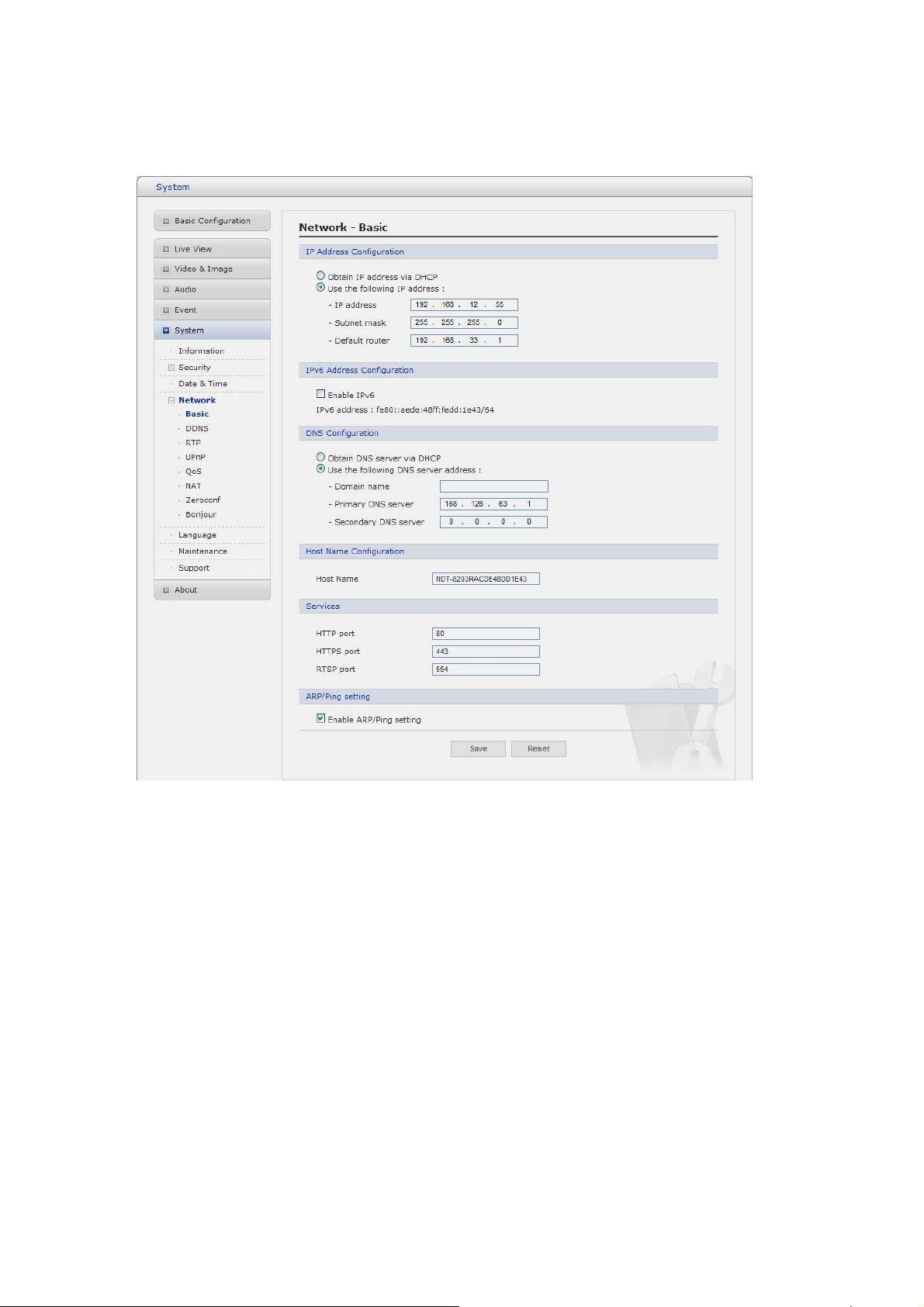

2) Network
The network camera supports both IP version 4 and IP version 6. Both versions may be enabled
simultaneously, and at least one version must always be enabled. When using IPv4, the IP address for
the network camera can be set automatically via DHCP, or a static IP address can be set manually.
If IPv6 is enabled, the network camera receive an IP address according to the configuration in the

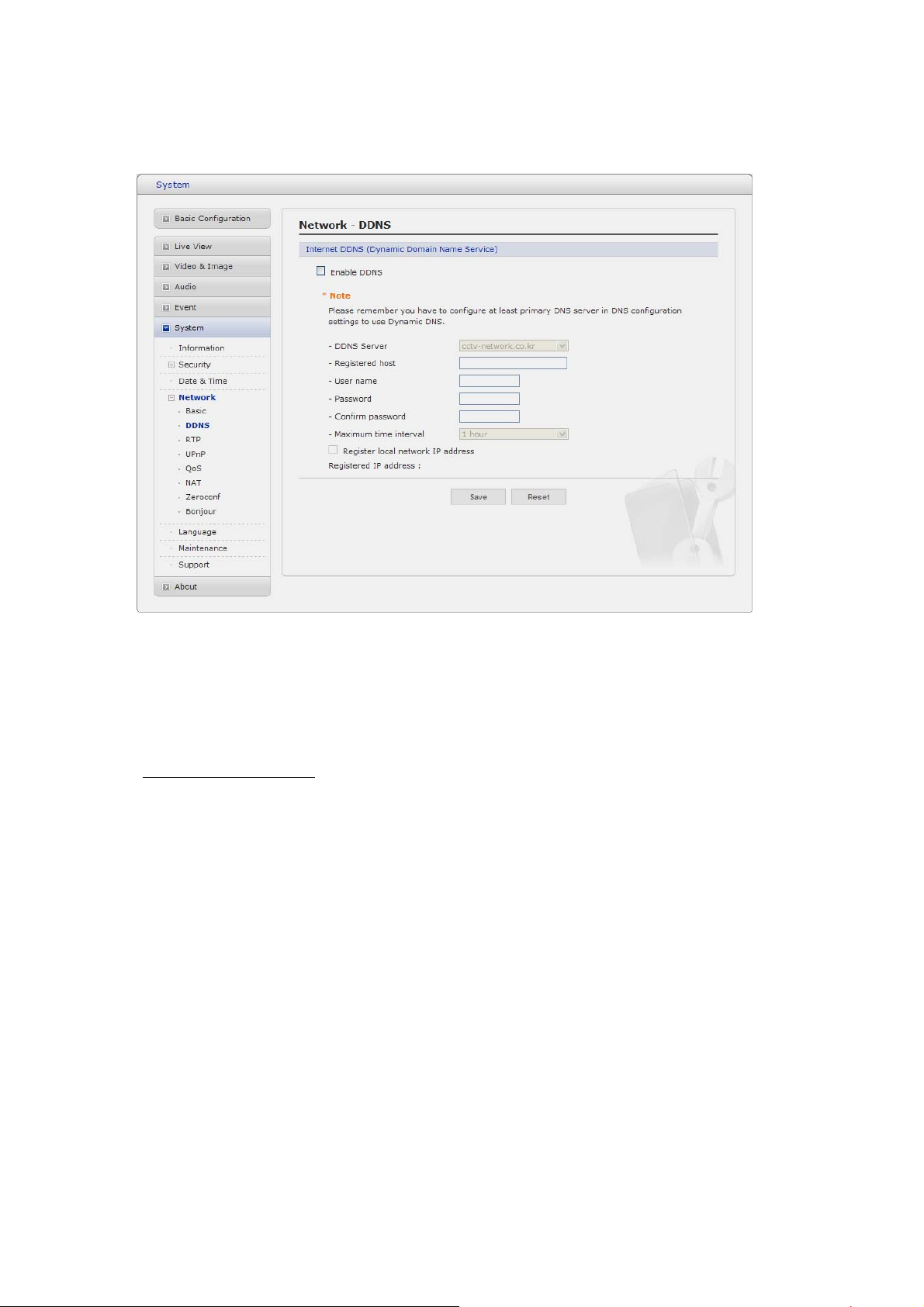

network router. There is also the option of using the Internet Dynamic DNS Service. For more
information on setting the Network, please see Setup> System>Security>Network.
• Obtain IP address via DHCP - Dynamic Host Configuration Protocol (DHCP) is a protocol
that lets network administrators centrally manage and automate the assignment of IP
addresses on a network. DHCP is enabled by default. Although a DHCP server is mostly
used to set an IP address dynamically, it is also possible to use it to set a static, known IP
address for a particular MAC address.
• Use the following IP address - To use a static IP address for th e Network Camera,
check the radio button and then make the following settings:
- IP address - Specify a unique IP address for your Network Camera.
- Subnet mask - Specify the mask for the subnet the Network Camera is located on.
- Default router - Specify the IP address of the default router (gateway) used for
connecting devices attached to different networks and network segments.
Notes:
1. DHCP should only be enabled if using dynamic IP address notification, or if your DHCP server can
update a DNS server, which then allows you to access the Network Camera by name (host name).
If DHCP is enabled and you cannot access the unit, you may have to reset it to the factory
default settings and then perform the installation again.
2. The ARP/Ping service is automatically disabled two minutes after the unit is started, or
as soon as an IP address is set.
3. Pinging the unit is still possible when this service is disabled.
17

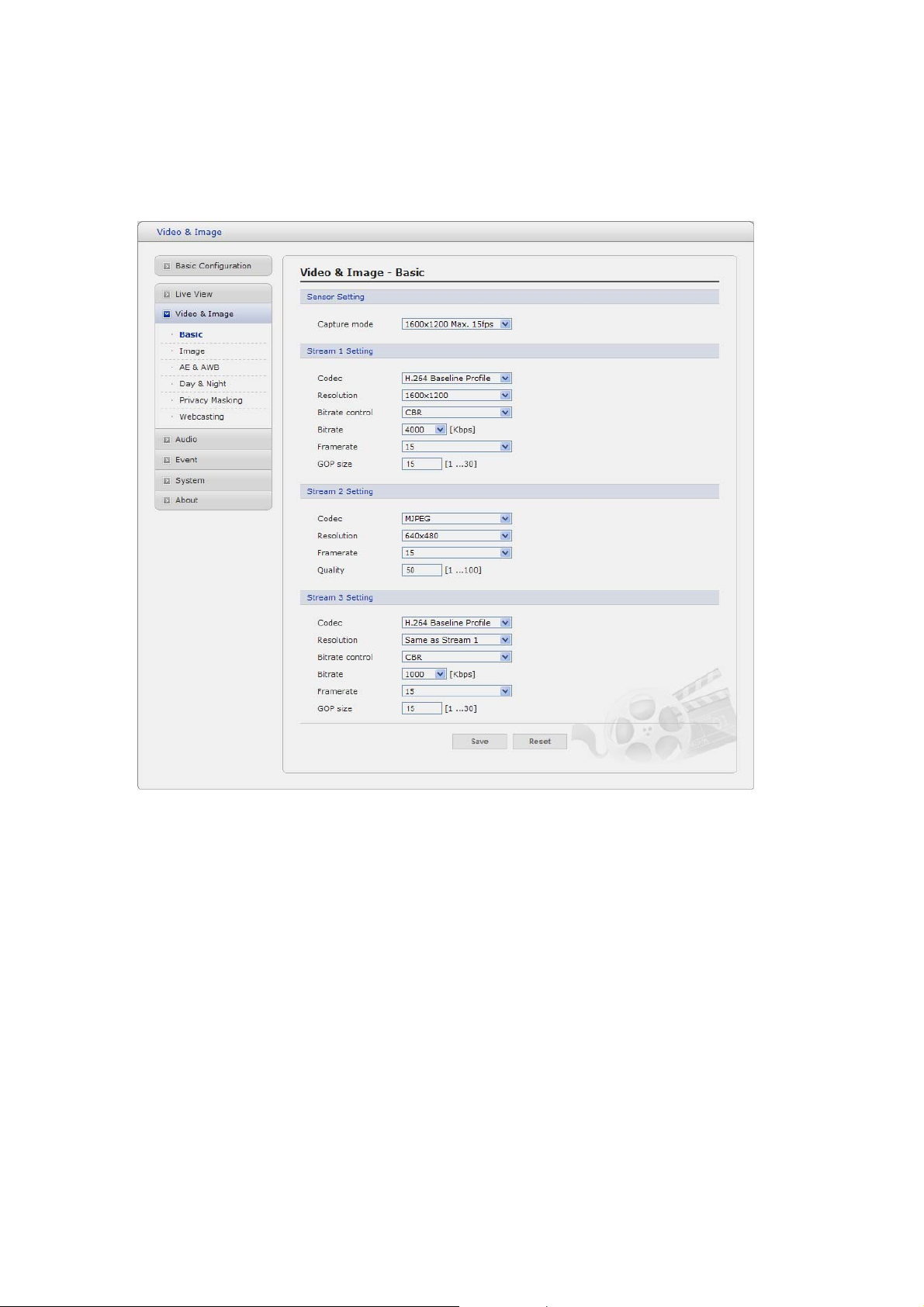

3) Video & Image
• Stream1 Setting
- Codec:
The codec settings are separated into MPEG4 and H.264.
H.264 is also known as MPEG-4 Part 10. This is the new generation compression standard
for digital video. This function offers higher video resolution than Motion JPEG or MPEG-4 at
the same bit rate and bandwidth, or the same quality video at a lower bit rate.
- Profile:
There are 4 pre-programmed stream profiles available for quick set-up.
Choose the form of video encoding you wish to use from the drop-down list:
* H.264 HP(High Profile): The primary profile for broadcast and disc storage applications,
particularly for high-definition television applications (for example, this is the profile
adopted by the Blu-ray Disc storage format and the DVB HDTV broadcast service).
* H.264 MP(Main Profile):
Primarily for low-cost applications that requires additional err or robustness, this profile is
used rarely in videoconferencing and mobile applications, it does add additional error
resilience tools to the Constrained Baseline Profile. The importance of this profile is fading
after the Constrained Baseline Profile has been defined.
18
* H.264 BP(Baseline Profile):
Originally intended as the mainstream consumer profile for broadcast and storage
applications, the importance of this profile faded when the High profile was developed for
those applications.
* MPEG4 SP(Simple Profile):
Mostly aimed for use in situations where low bit rate and low resolution are mandated by
other conditions of the applications, like network bandwidth, device size etc.
- Resolution:
It enables users to determine a basic screen size when having an access through the Web
Browser or PC program. The screen size control comes in seven modes like 1920x1080,
1280x720, 640x480, 352x240, and 320x240. Users can reset the selected screen size
anytime while monitoring the screen on a real-time basis.
- Bitrate control:
Limiting the bit rate helps control the bandwidth used by the H.264 or MPEG-4 video stream.
Leaving the Maximum bit rate as 8000Kbps maintains consistently good image quality but
increases bandwidth usage when there is more activity in the image. Limiting the bit rate to
a defined value prevents excessive bandwidth usage, but images are lost when the limit is
exceeded.
Note that the bit rate control can be used for constant bit rates only.
The bit rate can be set as Variable Bit Rate (VBR) or Constant Bit Rate (CBR). VBR adjusts
the bit rate according to the image complexity, using up bandwidth for increased activity in
the image, and less for lower activity in the monitored area.
CBR allows you to set a fixed target bitrate that consumes a predictable amoun t of
bandwidth. As the bit rate would usually need to increase for increased image activity, but in
this case cannot, the frame rate and image quality are affected negatively. To partly
compensate for this, it is possible to prioritize either the frame rate or the image quality
whenever the bit rate needs to be increased. Not setting a priority means the frame rat e and
image quality are equally affected.
- Frame rate:
Select a frame rate (images per second-ips) approprate for the application. A frame rate of
30ips will produce real-time playback and will also use more bandwidth than an lower frame
rate of 10 or 20ips. In many cases a setting of 7ips is used for general surveillance.
- GOP size:
Select the GOP(Group of Picture) size. If users want to hav e a high quality of fast image one
by one, please decrease the value. For the purpose of general monitoring, please do not
change a basic value. Such act may cause a problem to the system performance. For the
details of GOP setting, please contact the service center.
• Stream2 Setting
Sometimes the image size is large due to low light or complex scenery. Adjusting the frame rate
and quality helps to control the bandwidth and storage used by the Motion JPEG video stream in
these situations. Limiting the frame rate and quality optimizes bandwidth and storage usage, but
19
may give poor image quality. To prevent increased bandwidth and storage usage, the Resolution,
Frame rate, and Frame Quality should be set to an optimal value.
- JPEG resolution: Same as the Stream1 Setting.
- JPEG frame rate: Same as the Stream1 Setting.
- JPEG quality:
Select the picture quality. Increasing the quality will increase the file size and bandwidth
usage.For the purpose of general monitoring, please do not change a basic value.
• Stream3 Setting
- Codec: Same as the Stream1 Setting.
- Resolution: Select the Stream1 resolution or the Stream2 resolution.
- Bitrate control: Same as the Stream1 Setting.
- Frame rate: Same as the Stream1 Setting.
- GOP size: Same as the Stream1 Setting.
When satisfied with the settings, click Save, or click Reset to revert to previously saved settings.

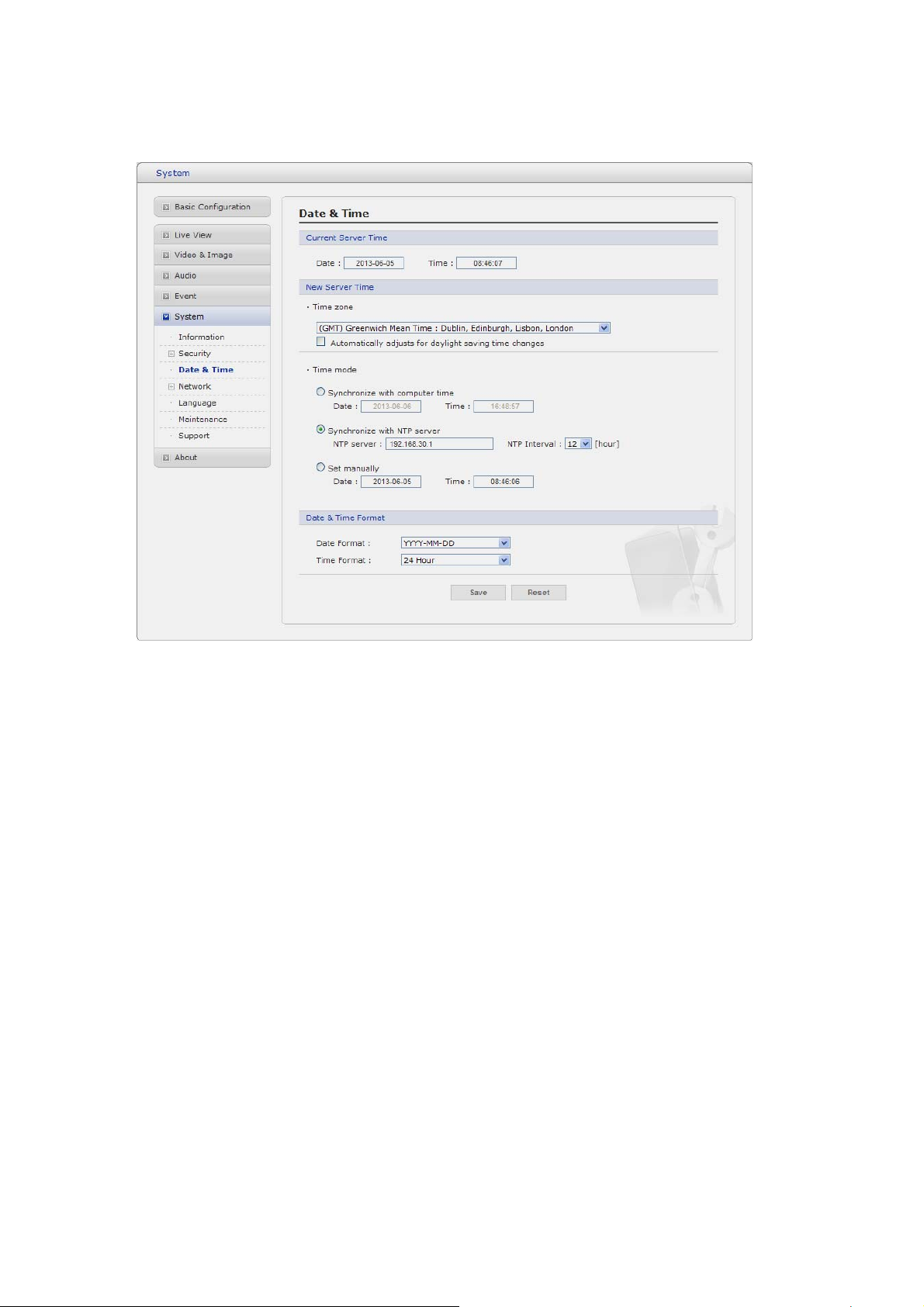

4) Date & Time
• Current Server Time
It displays the current date and time (24h clock). The time can be displayed in 12h clock format
in the overlay (see below).
• New Server Time
20
Select your time zone from the drop-down list. If you want the server clock to automatically
adjust for daylight savings time, select the “Automatically adjustment for daylight saving time
changes”.
From the Time Mode section, select the preferred method to use for setting the time:
- Synchronize with computer time: sets the time from the clock on your computer.
- Synchronize with NTP Server: the network camera will obtain the time from an NTP
server every 60 minutes.
- Set manually: this option allows you to manually set the time and date.
• Date & Time Format
Specify the formats for the date and time (12h or 24h) displayed in the video streams.
Select Date & Time format from the drop-down list.
- Date Format: Specify the date format. YYYY: Year, MM: Month, DD: Day
- Time Format: Specify the date format. 24Hours or 12 Hours
3.5.2 Live View
T Source
• Video Input Mode
- Video Mode:
Choose Video Mode you wish to use from the drop-down list: NTSC or PAL
21
Loading...
