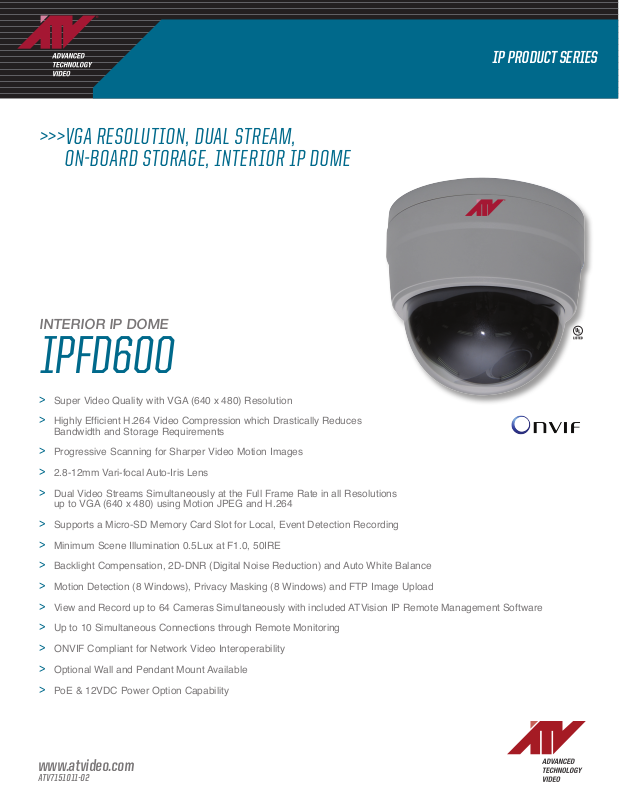

ATV IPFD600 Specsheet
>>>VGA RESOLUTION, DUAL STREAM,
ON-BOARD STORAGE, INTERIOR IP DOME
INTERIOR IP DOME
IP PRODUCT SERIES
IPFD600
Super Video Quality with VGA (640 x 480) Resolution
>
Highly Efcient H.264 Video Compression which Drastically Reduces
>
Bandwidth and Storage Requirements
Progressive Scanning for Sharper Video Motion Images
>
2.8-12mm Vari-focal Auto-Iris Lens
>
Dual Video Streams Simultaneously at the Full Frame Rate in all Resolutions
>
up to VGA (640 x 480) using Motion JPEG and H.264
Supports a Micro-SD Memory Card Slot for Local, Event Detection Recording
>
Minimum Scene Illumination 0.5Lux at F1.0, 50IRE
>
Backlight Compensation, 2D-DNR (Digital Noise Reduction) and Auto White Balance
>
Motion Detection (8 Windows), Privacy Masking (8 Windows) and FTP Image Upload
>
View and Record up to 64 Cameras Simultaneously with included ATVision IP Remote Management Software
>
Up to 10 Simultaneous Connections through Remote Monitoring
>
ONVIF Compliant for Network Video Interoperability
>
Optional Wall and Pendant Mount Available
>
PoE & 12VDC Power Option Capability
>
www.atvideo.com
ATV7151011-02
INTERIOR IP DOME
IPFD600
SPECIFICATIONS
MODEL IPFD600
Image sensor 1/4” Progressive scan RGB VGA CMOS
C
Active Array 640(H) x 480(V)
A
Lens Varifocal 2.8mm ~ 12mm, F1.4, DC IRIS
M
Angle of View 2.8mm – 73.6°(H) / 12mm – 17.8°(H)
E
Camera Angle Adjustment Pan: 360°, Tilt: 180°, Rotation: 360°
R
Min. illumination 0.5Lux @ F1.0
A
Shutter Speed 1/20,000 ~ 1/30
Video Compression Motion JPEG, MPEG-4 Part2, H.264 (MPEG-4 Part 10)
Video Resolutions 160x120 ~ 640x480
Frame Rate 30fps @ all resolutions
Video Streaming Simultaneously H.264(or MPEG-4) and MJPEG, Controllable
Protocol TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, SNMP, uPnP,
Security Multi-user authority, HTTPS, IP Filtering, Privacy Zone
N
Remote Access ATVision IP Remote Management Software, Web Browser
Max. Connection 10
E
Compatible 3rd Party VMS See link on www.atvideo.com
T
Alarm Triggers Motion Detection, External Input, Manual Trigger
W
Alarm Events File upload via FTP and HTTP, Notification via E-mail, HTTP and
O
R
Video Buffering Pre and Post Alarm
K
Motion Detection Yes, max. 8 programmable windows
Network Time Synchronization Yes
Micro-SD Card Recording Yes, Event
Software Reset Yes
Factory Reset Yes, Button/Web browser
Auto Recovery Yes
Installation Tool Yes, SmartManager (included utility software)
Upgrade Yes, Web browser/SmartManager (included utility software)
Alarm Input Terminal, 1 TTL input
G
Alarm Output Terminal, 1 open collector
E
Micro-SD Card Micro-SDHC class 6 or above recommended
N
Ethernet RJ-45 10BASE-T/100BASE-TX
E
Operating Temperature 32º - 122ºF (0º - 50ºC)
R
Operation Humidity 0~90% (non-condensing)
A
Power Consumption DC12V 200mA, Power over Ethernet IEEE 802.3af Class2/3, 50mA
L
External Dimension (Dia x H) 4.6 x 4.1in (119 x 104mm)
Unit Weight 0.67lbs (.305kg)
Conformity Certifications FCC, CE, UL
Profiles: H.264 MP and BP, MPEG-4 ASP and SP
Frame Rate and Bandwidth VBR/CBR H.264 and MPEG-4
RTP, RTSP, RTCP, DHCP, ARP
TCP, External Output activation, Audio alert activation
IP PRODUCT SERIES
DIMENSIONS
ATVision IP Remote Management Software
Minimum System Requirements for ATVision IP Software
· Operating System: Microsoft Windows 7 (or 8) Professional/Enterprise/Ultimate
· CPU: Intel Core i7; RAM: 4GB; Ethernet Connection: 1Gbps
· Graphics Card: Gaming Rated, with 1GB at 1080p for Single Monitor; 2GB at 1080p for Multiple Monitors
· HDD’s: 7200RPM and 64MB cache; 1 separate HDD for Operating System and Software; and 1
(2TB) HDD for Recording (refer to IP storage calculator)
ACCESSORIES
A-CD4-M2W Wall Mount
A-CD4-P2W Pendant Mount
A-CD4-P2W
A-CD4-M2W
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2014 ATV All rights reserved. Specifications and Design are subject to change without notice.
ATV7151011-02
