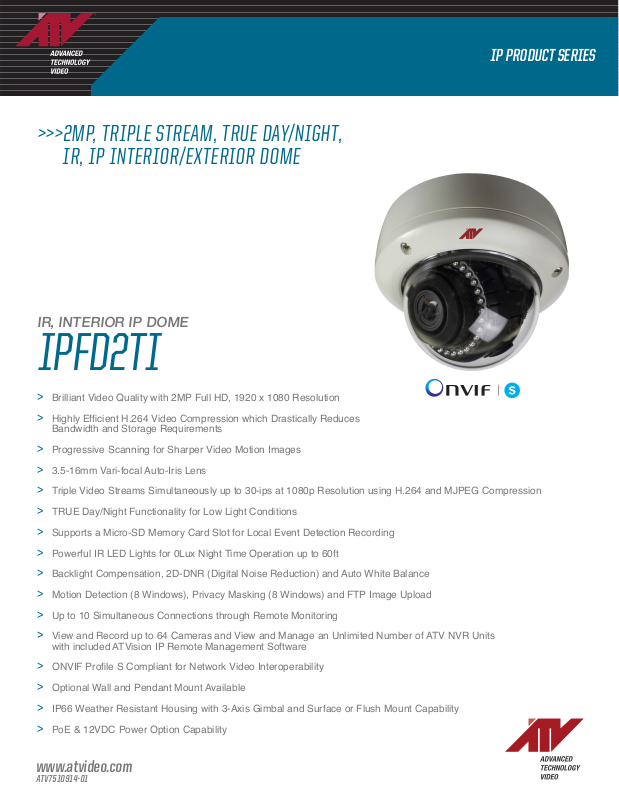

ATV IPFD2TI Specsheet
>>>2MP, TRIPLE STREAM, TRUE DAY/NIGHT,
IR, IP INTERIOR/EXTERIOR DOME
IR, INTERIOR IP DOME
IP PRODUCT SERIES
IPFD2TI
Brilliant Video Quality with 2MP Full HD, 1920 x 1080 Resolution
>
Highly Efcient H.264 Video Compression which Drastically Reduces
>
Bandwidth and Storage Requirements
Progressive Scanning for Sharper Video Motion Images
>
3.5-16mm Vari-focal Auto-Iris Lens
>
Triple Video Streams Simultaneously up to 30-ips at 1080p Resolution using H.264 and MJPEG Compression
>
TRUE Day/Night Functionality for Low Light Conditions
>
Supports a Micro-SD Memory Card Slot for Local Event Detection Recording
>
Powerful IR LED Lights for 0Lux Night Time Operation up to 60ft
>
Backlight Compensation, 2D-DNR (Digital Noise Reduction) and Auto White Balance
>
Motion Detection (8 Windows), Privacy Masking (8 Windows) and FTP Image Upload
>
Up to 10 Simultaneous Connections through Remote Monitoring
>
View and Record up to 64 Cameras and View and Manage an Unlimited Number of ATV NVR Units
>
with included ATVision IP Remote Management Software
ONVIF Prole S Compliant for Network Video Interoperability
>
Optional Wall and Pendant Mount Available
>
IP66 Weather Resistant Housing with 3-Axis Gimbal and Surface or Flush Mount Capability
>
PoE & 12VDC Power Option Capability
>
www.atvideo.com
ATV7510914-01
IR, IP INTERIOR/EXTERIOR DOME
IPFD2TI
SPECIFICATIONS
MODEL IPFD2TI
Image sensor 1/2.8” Progressive Scan Sony CMOS Sensor
C
Active Array 1920(H) x 1080(V)
A
Lens Varifocal 3.5mm ~ 16mm, F1.2 DC IRIS
M
Angle of View 90.0°(H) x 50.0°(V)
E
Min. illumination Color: 0.2Lux, B/W: 0.0Lux(1.2, 50IRE with IR On)
R
IR Distance 60ft (20M) with 30 LED Lights
A
Shutter Speed 1/20,000 ~ 1/4
Video Compression Motion JPEG, MPEG-4 Part2, H.264 (MPEG-4 Part 10)
Video Resolutions 320x240 ~1920x1080
Frame Rate 30fps @ all resolutions
Video Streaming Simultaneously H.264(or MPEG-4) and MJPEG, Controllable
Protocol TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, SNMP, uPnP,
Security Multi-user authority, HTTPS, IP Filtering, Privacy Zone
N
Remote Access ATVision IP Remote Management Software, Web Browser
E
Max. Connection 10
T
Compatible 3rd Party VMS See link on www.atvideo.com
W
Alarm Events File upload via FTP and HTTP,
O
R
Video Buffering Pre and Post Alarm
K
Motion Detection Yes, max. 8 programmable windows
Network Time Synchronization Yes
Micro-SD Card Recording Yes, Continuous/Event
Software Reset Yes
Factory Reset Yes, Button/Web browser
Auto Recovery Yes
Installation Tool Yes, SmartManager (included utility software)
Upgrade Yes, Web browser/SmartManager (included utility software)
Micro-SD Card Micro-SDHC class 6 or above recommended (Max 32Gb)
G
Ethernet RJ-45 10BASE-T/100BASE-TX
E
Operating Temperature -22º - 113ºF (-30º - 45ºC)
N
Operation Humidity 0~90% (non-condensing)
E
Power Consumption 12VDC 600mA, 7.0W; PoE 130mA, 6.5W (With IR On), Power over
R
A
Environmental Rating IP66
L
External Dimension (Dia x H) 5.6 x 4.5in (143.4 x 113.9mm)
Unit Weight 1.5lbs (.75kg)
Conformity Certifications FCC, CE
Profiles: H.264 MP and BP, MPEG-4 ASP and SP
Frame Rate and Bandwidth VBR/CBR H.264 and MPEG-4
RTP, RTSP, RTCP, DHCP, ARP. Zeroconf, Bonjour
Notification via E-mail, HTTP and TCP
Ethernet IEEE 802.3af Class2/3
IP PRODUCT SERIES
DIMENSIONS
ATVision IP Remote Management Software
Minimum System Requirements for ATVision IP Software
· Operating System: Microsoft Windows 7 (or 8) Professional/Enterprise/Ultimate
· CPU: Intel Core i7; RAM: 4GB; Ethernet Connection: 1Gbps
· Graphics Card: Gaming Rated, with 1GB at 1080p for Single Monitor; 2GB at 1080p for Multiple Monitors
· HDD’s: 7200RPM and 64MB cache; 1 separate HDD for Operating System and Software; and 1
(2TB) HDD for Recording (refer to IP storage calculator)
Mounting hole sized
for 3/4” conduit
ACCESSORIES
DB243W2 Wall Mount
PDA7W Pendant Mount
BTCG6 Tinted Bubble
PDA7W
DB243W2
connector
BTCG6
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2015 ATV All rights reserved. Specifications and Design are subject to change without notice.
ATV7510914-01
SURFACE / FLUSH MOUNT DESIGN
