ATV IPFD2MT User Manual

www.hitron.co.kr

Please read this manual thoroughly before use, and keep it handy for future reference.

INSTRUCTION MANUAL

Full-HD Plastic

DOME CAMERA

WARNING

Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by the qualified personnel before operating it any further.

Unplug the unit from the wall outlet if it is not going to be used for several days or more. To disconnect the cord, pull it out by the plug. Never pull the cord itself.

Allow adequate air circulation to prevent internal heat build-up. Do not place the unit on surfaces (rugs, blankets, etc.) or near materials(curtains, draperies) that may block the ventilation holes.

Height and vertical linearity controls located at the rear panel are for special adjustments by qualified personnel only.

Do not install the unit in an extremely hot or humid place or in a place subject to excessive dust, mechanical vibration.

The unit is not designed to be waterproof. Exposure to rain or water may damage the unit.

Cleaning ---------------------------------

Clean the unit with a slightly damp soft cloth. Use a mild household detergent. Never use strong solvents such as thinner or benzene as they might damage the finish of the unit.

Retain the original carton and packing materials for safe transport of this unit in the future.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT.

CAUTION

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

PRECAUTIONS Safety -------------------------------------- Installation -------------------------------

FCC COMPLIANCE STATEMENT

INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO

COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY

RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003. CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME NMB-003 DU CANADA.

WARNING: This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

CE COMPLIANCE STATEMENT

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified

by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been moisture, does not operate normally, or has been dropped.

15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO.

16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source only.

17. ITE is to be connected only to PoE networks without routing to the outside plant.

Contents

1. Description ------------------------------------------------------------------ 6

1.1 Components -- ------------------------------------------------------------------------------------------- 6

1.2 Key Features - ------------------------------------------------------------------------------------------- 7

2. Installation ------------------------------------------------------------------- 8

2.1 Overview----------------------------------------------------------------------------------------------------8

2.2 Connection------------------------------------------------------------------------------------------------14

2.3 Network Connection and IP Assignment ----------------------------------------------------------- 14

3. Operation -------------------------------------------------------------------- 16

3.1 Access from a browser --------------------------------------------------------------------------------- 16

3.2 Access from the internet ------------------------------------------------------------------------------- 17

3.3 Setting the admin password over a secure connection ------------------------------------------- 17

3.4 Live View Page ------------------------------------------------------------------------------------------- 18

3.5 Network Camera Setup --------------------------------------------------------------------------------- 20

3.5.1 Basic Configuration ----------------------------------------------------------------------------- 21

1) Users ------------------------------------------------------------------------------------------- 21

2) Network --------------------------------------------------------------------------------------- 22

3) Video & Image ------------------------------------------------------------------------------- 23

4) Date & Time ---------------------------------------------------------------------------------- 25

3.5.2 Video & Image ----------------------------------------------------------------------------------- 26

3.5.3 Event ----------------------------------------------------------------------------------------------- 32

1) Event-In --------------------------------------------------------------------------------------- 32

2) Event-Out ------------------------------------------------------------------------------------- 37

3) Event Map ------------------------------------------------------------------------------------- 43

3.5.4 System ------------------------------------------------------------------------------------------- 44

1) Information ----------------------------------------------------------------------------------- 44

2) Security ---------------------------------------------------------------------------------------- 45

3) Date & Time ---------------------------------------------------------------------------------- 48

4) Network --------------------------------------------------------------------------------------- 49

5) Language -------------------------------------------------------------------------------------- 58

6) Maintenance ---------------------------------------------------------------------------------- 59

7) Support ---------------------------------------------------------------------------------------- 60

3.5.5 About ----------------------------------------------------------------------------------------------- 60

3.6 Playback -------------------------------------------------------------------------------------------------- 61

3.7 Help---- --------------------------------------------------------------------------------------------------- 63

3.8 Resetting to the factory default settings -------------------------------------------------------------- 64

4. Appendix -------------------------------------------------------------------- 65

4.1 Troubleshooting ------------------------------------------------------------------------------------------- 65

4.2 Alarm Connection ----------------------------------------------------------------------------------------- 66

4.3 Preventive Maintenance --------------------------------------------------------------------------------- 66

4.3 Product Specification ------------------------------------------------------------------------------------ 67

1. Description

This manual applies to the HDG-T3x2 series network camera.

The Network Camera supports the network service for a sensor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the Network Camera at once or a single user can monitor various network cameras at the same time. It also enables users to play, store and retrieve a monitoring image by using a PC. All the settings and real-time monitoring screens are also provided through an access to the web.

The Network Camera is fully featured for security surveillance and remote monitoring needs. It is based on the DSP compression chip, and makes it available on the network as real-time, full frame rate Motion JPEG and H.264 (or MPEG-4) video streams.

The alarm input and alarm output can be used to connect various third party devices, such as, door sensors and alarm bells.

1.1 Components

The system comes with the following components:

Camera unit Installation CD Installation Guide Template Sheet Accessory Kit

Note: Check your package to make sure that you received the complete system, including all components shown above.

1.2 Key Features

• Brilliant video quality

The Network Camera offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility.

• Dual streams

The Network Camera can deliver dual video streams simultaneously at full frame rate in all resolutions up to VGA (640 x 480) using Motion JPEG and H.264 (or MPEG-4). This means that several video streams can be configured with different compression formats, resolutions and frame rates for different needs.

• Image setting adjustment

The Network Camera also enables users to adjust image settings such as contrast, brightness and saturation to improve images before encoding takes place.

• Intelligent video capabilities

The Network Camera includes intelligent capabilities such as enhanced video motion detection.

The encoder’s external inputs and outputs can be connected to devices such as sensors and

relays, enabling the system to react to alarms and activate lights or open/close doors.

• Resolution

The Network Camera supports three kinds of resolutions according to the model name.

HDG-T302, HDG-T3x2 Series, 1 Megapixel, 30fps@1280x720 HDG-T312, HDG-T3x2 Series, 1.3 Megapixel, 30fps@1280x1024 HDG-T322, HDG-T3x2 Series, 2 Megapixel, 30fps@1920x1080

• Micro-SD Recording support The Network Camera also supports a micro-SD memory slot for local recording with removable storage.

• Improved Security

The Network Camera logs all user access, and lists currently connected users. Also, its full frame rate video can be provided over HTTPS.

• Power over Ethernet

Support for Power over Ethernet (IEEE802.3af) enables the unit, as well as the camera module that is connected to it, to receive power through the same cable as for data transmission. This makes for easy installation since no power outlet is needed.

• ONVIF

This is a global interface standard that makes it easier for end users, integrators, consultants, and manufacturers to take advantage of the possibilities offered by network video technology. ONVIF enables interoperability between different vendor products, increased flexibility, reduced cost, and future-proof systems.

2. Installation

Name

Description

Lens

Allows wide area to be monitored

Extension Cable

26pin camera extension cable

Name

Description

Micro SD Slot

Micro SD slot for local recording

Alarm IO Terminal

AI: Alarm Input, G: Ground, AO: Alarm Output

For the operation of the Network Camera, it is necessary to connect a network cable for data transmission, power connection from supplied power adapter. Depending on operation methods, it is possible to connect an alarm cable additionally. For its fixation on different locations, please consult with an installer.

2.1 Over View

• Front View

• Side View • Bottom View

• Extension Cable

Wire Color

Description

Red: DC12V White: GND

Main Power, 2pin terminal, DC12V, max. 4.0W

Black

Ethernet, RJ-45 port compatible with 10/100Mbps PoE. Modular Jack

• Installing & Adjusting Camera Module

To mount the board camera on the camera mount bracket, place the four board camera supports on the four slot holes near the front and the rear of the camera mount bracket.

Note : Arrow mark indicates the top of the camera image.

Use the following drawings to install the camera module to the housing.

• Base Installation

Make mounting holes and cable hole in the place (ceiling) to which this dome. Camera is installed

using the Template sheet.

To remove dome cover, turn the dome cover counterclockwise until locators reach end of travel

and pull off. Push the liner in the direction of the arrow (three ‘OPEN’ marks) and pull it out.

Fasten Mounting screws(2X) and align the dome camera with it like above picture. Turn the dome camera to left direction about 16 degree.

The assembly of the dome window cover and liner is in reverse order of disassembly Finally, lock dome window cover with locking screw(M2X4) from the accessory kit.

• Using the Quick install Adaptor (option)

Use the optional Quick install Adaptor on wall or ceiling application

1. Install the Adaptor into the mounting surface and use the screws to adjust the position of the

two locking arms on the Quick Install Adaptor

2. Push the cables through the opening and 1/2” hole grommet

3. Make sure the grommet is property installed on the adaptor to prevent dust ingress

2.2 Connection

• Connecting to the RJ-45

Connect a standard RJ-45 cable to the network port of the network dome camera. Generally a

cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub.

• Connecting Alarms

AI(Alarm In) : You can use external devices to signal the dome camera to react on events. Mechanical or

electrical switches can be wired to the AI (Alarm In) and G (Ground) connectors. G(Ground) : Connect the ground side of the alarm input and/or alarm output to the G (Ground) connector. AO(Alarm Out) : The dome camera can activate external devices such as buzzers or lights. Connect the device to the AO (Alarm Out) and G (Ground) connectors.

• Connecting Video Output

Video Output is used for an easy zoom and focus control when installing lens. Set Video Switch (SW2 on the board) to On position to output the video signal. Video Output is restricted to VGA(640x480) resolution. Connect your Video cable unit to J5 on the board.

Caution: After lens installation, you must set Video Switch to Off position to provide the best performance of the Network Camera.

• Connecting the Power

Connect the power of DC12V 0.35A for the dome camera. Connect the positive(+) pole to the ‘+’ position and the negative(-) pole to the ‘-‘ position.

Use certified / Listed Class 2 power source only.

2.3 Network Connection and IP assignment

The Network Camera supports the operation through the network. When a camera is first connected to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the

“Smart Manager” utility on the CD.

1. Connect the Network Camera / device to the network and power up.

2. Start SmartManager utility ( All programs > NautilusClient16 > SmartManager), the main window will be displayed, after a short while any network devices connected to the network will be displayed in the list.

3. Select the camera on the list and click right button of the mouse. You can see the pop-up menu as below.

4. Select Assign IP. You cam see a Assign IP window.

Enter the required IP address.

Note: For more information, refer to the Smart Manger User’s Manual.

3. Operation

The Network Camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows.

Note: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls.

3.1 Access from a browser

1. Start a browser (Internet Explorer).

2. Enter the IP address or host name of the Network Camera in the Location/Address field of your browser.

3. You can see a starting page. Click Live View, Playback or Setup to enter web page.

4. The encoder’s Live View page appears in your browser.

3.2. Access from the internet

Access from the internet once connected, the Network Camera is accessible on your local network (LAN). To access the video encoder from the Internet you must configure your broadband router to allow incoming data traffic to the video encoder. To do this, enable the NAT-traversal feature, which will attempt to automatically configure the router to allow access to the video encoder. This is enabled from Setup > System > Network > NAT.

For more information, please see “3.5.4 System>Network>NAT” of User’s Manual.

3.3 Setting the admin password over a secure connection

To gain access to the product, the password for the default administrator user must be set. This is done in the “Admin Password” dialog, which is displayed when the network camera is accessed for the setup at the first time. Enter your admin name and password, set by the administrator.

Note: The default administrator username and password is “admin”. If the password is lost, the Network Camera must be reset to the factory default settings. See “3.8 Resetting to the Factory Default Settings” for more details.

To prevent network eavesdropping when setting the admin password, this can be done via an encrypted HTTPS connection, which requires an HTTPS certificate (see note below).

To set the password via a standard HTTP connection, enter it directly in the first dialog shown below. To set the password via an encrypted HTTPS connection, see “3.5.4 System > Security > HTTPS”.

Note: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt the traffic between web browsers and servers. The HTTPS certificate controls the encrypted exchange of information.

3.4 Live View Page

The live view page comes in eight screen modes like 1920x1080, 1280x1024, 1280x720, 704x480(576), 640x480, 352x240(288), and 320x240. Users are allowed to select the most suitable one out of those modes. Please, adjust the mode in accordance with your PC specifications and monitoring purposes.

1) General controls

Live View Page Search & Playback Page Setup Page Help Page

The video drop-down list allows you to select a customized or pre-programmed video stream on the live view page. Stream profiles are configured under Setup > Basic Configuration > Video & Image. For more information, please see “3.5.1 Basic Configuration > Video & Image” of User’s Manual.

The resolution drop-down list allows you to select the most suitable one out of video resolutions to be displayed on live view page.

The protocol drop-down list allows you to select which combination of protocols and methods to use depends on your viewing requirements, and on the properties of your network.

2) Control toolbar

The live viewer toolbar is available in the web browser page only. It displays the following buttons:

The Stop button stops the video stream being played. Pressing the key again toggles the

start and stop. The Start button connects to the network camera or start playing a

video stream.

The Pause button pause the video stream being played.

The Snapshot button takes a snapshot of the current image. The location where the

image is saved can be specified.

The digital zoom activates a zoom-in or zoom-out function for video image on the live

screen.

The Full Screen button causes the video image to fill the entire screen area. No other

windows will be visible. Press the 'Esc' button on the computer keyboard to cancel full

screen view.

The Manual Trigger button activates a pop-up window to manually start or stop the event.

Use this scale to control the volume of the speakers.

Use this scale to control the volume of the microphone.

Use this scale to control the volume of the speakers and microphones.

3) Video Streams

The Network Camera provides several images and video stream formats. Your requirements and the properties of your network will determine the type you use.

The Live View page in the Network Camera provides access to H.264, MPEG-4 and Motion JPEG video streams, and to the list of available video streams. Other applications and clients can also access these video streams/images directly, without going via the Live View page.

3.5 Network Camera Setup

This section describes how to configure the network camera, and is intended for product Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access to the settings for Basic, Live View, Video & Image, Audio, Event, and System Configuration.

You can configure the network camera by clicking Setup in the top right-hand corner of the Live View page. Click on this page to access the online help that explains the setup tools

When accessing the Network Camera for the

first time, the “Admin Password” dialog

appears. Enter your admin name and password, set by the administrator.

Note: If the password is lost, the Network Camera must be reset to the factory default settings. See “3.8 Resetting to the Factory Default Settings”

3.5.1 Basic Configuration

User Group

Authority

Guest

Provides the lowest level of access, which only allows access to the Live View page.

Operator

An operator can view the Live View page, create and modify events, and adjust certain other settings. Operators have no access to System Options.

Administrator

An administrator has unrestricted access to the Setup tools and can determine the registration of all other users.

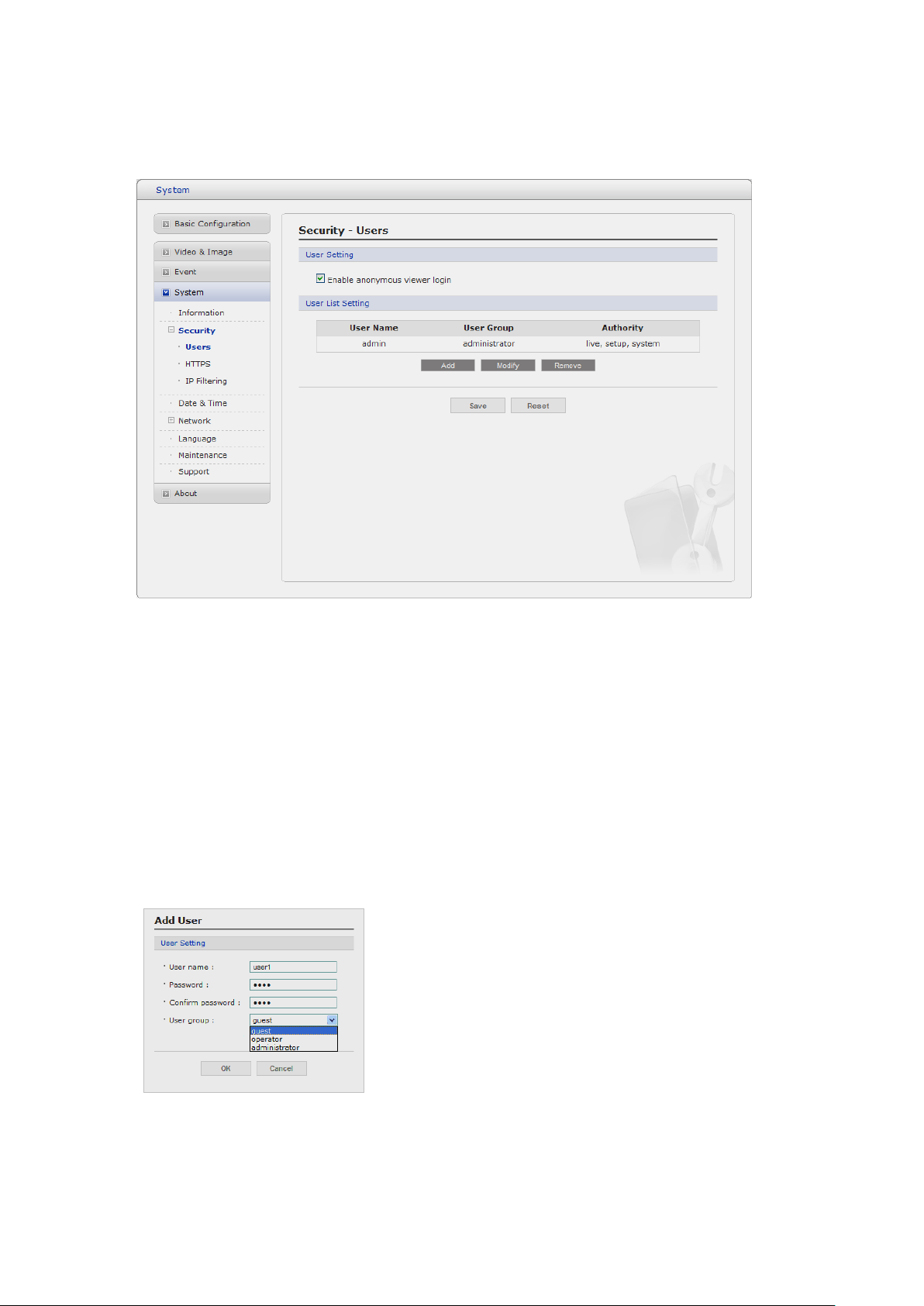

1) Users

User access control is enabled by default. An administrator can set up other users, by giving these user names and passwords. It is also possible to allow anonymous viewer login, which means that anybody may access the Live View page, as described below:

The user list displays the authorized users and user groups (levels):

 Enable anonymous viewer login: Check the box to use the webcasting features. Refer to

“3.5.2 Video & Image” for more details.

2) Network

+ 48 hidden pages
