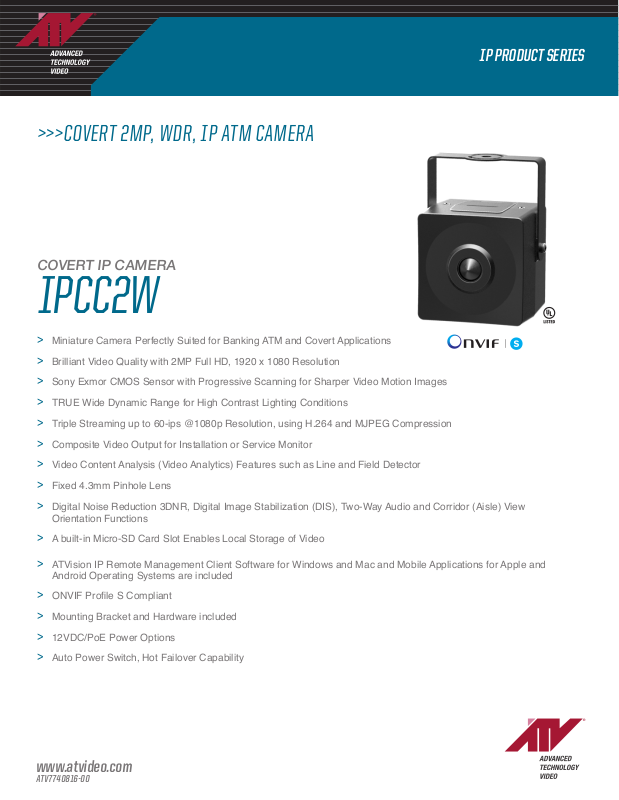

ATV IPCC2W Specsheet
>>>COVERT 2MP, WDR, IP ATM CAMERA
COVERT IP CAMERA
IPCC2W
Miniature Camera Perfectly Suited for Banking ATM and Covert Applications
>
IP PRODUCT SERIES
Brilliant Video Quality with 2MP Full HD, 1920 x 1080 Resolution
>
Sony Exmor CMOS Sensor with Progressive Scanning for Sharper Video Motion Images
>
TRUE Wide Dynamic Range for High Contrast Lighting Conditions
>
Triple Streaming up to 60-ips @1080p Resolution, using H.264 and MJPEG Compression
>
Composite Video Output for Installation or Service Monitor
>
Video Content Analysis (Video Analytics) Features such as Line and Field Detector
>
Fixed 4.3mm Pinhole Lens
>
Digital Noise Reduction 3DNR, Digital Image Stabilization (DIS), Two-Way Audio and Corridor (Aisle) View
>
Orientation Functions
A built-in Micro-SD Card Slot Enables Local Storage of Video
>
ATVision IP Remote Management Client Software for Windows and Mac and Mobile Applications for Apple and
>
Android Operating Systems are included
ONVIF Prole S Compliant
>
Mounting Bracket and Hardware included
>
12VDC/PoE Power Options
>
Auto Power Switch, Hot Failover Capability
>
www.atvideo.com
ATV7740816-00
COVERT IP CAMERA
IPCC2W
IP PRODUCT SERIES
SPECIFICATIONS
MODEL IPCC2W
Lens Fixed Pin Hole 4.3mm F2.0
Angle of View 75º (H)
Image Sensor 1/2.8” Sony Exmor CMOS; Pixels 2000 (H) x 1241 (V)
C
Min. Illumination Color: 0.5Lux (F2.0, 50IRE)
A
Scanning Mode Progressive Scan
Wide Dynamic Range True (120dB)
M
Digital Noise Reduction 2DNR, 3DNR
E
Exposure Mode Auto
R
White Balance Mode Automatic/Incandescent/Fluorescent/Outdoor
A
Digital Zoom Yes (ROI)
Back Light Compensation Enable/Disable Selectable
Image Effect Flip, Mirror, Corridor (Aisle), DIS, Defog
Shutter Speed Auto (1/10,000 to 1 sec), Manual
Video Compression H.264(High, Main, Baseline Profile), MJPEG
Video Resolution 1920x1080 ~ 320x240
Video Frame Rate Maximum 60fps
Video Streaming 60/50fps (Dual Stream: H.264 x 1, MJPEG x 1)
Audio 2 Way, G.711 Compression
N
Video Content Analysis Line Detector, Field Detector
E
Protocols TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP,
T
W
FTP Uploading MJPEG Still Image
Privacy Mask 8 Masks
O
Motion Detection 16 Programmable Zone
R
Event Buffering FTP: Pre : 30sec, Post : 30sec;
K
Security Multi User Authority, IP Filtering, HTTPS, SSL
Network Time Sync NTP Server, Synchronized Computer, Manual
Software Web, SmartManager, ATVision IP Client and Mobile
Micro SD Card Recording Continuous / Event
Compatible 3rd Party VMS See link on www.atvideo.com
Video Composite Output Terminal Block
Audio 1 Input/Output - Terminal Block
G
Alarm 1 Input/Output - Terminal Block
E
Ethernet RJ-45(10/100Base-T)
N
Micro-SD Card Micro-SDHC, Class 6 or above Rec’d; (Max. 32GB)
Operating Humidity 0 ~ 90% (non-condensing)
E
Operating Temperature 14º F - 122º F (-10ºC - +50ºC)
R
Power Source PoE(IEEE802.3af compliant, Class0), DC12V
A
Power Consumption DC12V - 5W POE - 5.5W
L
Dimensions (W x D x H) 2.1 x 2.1 x 1.9in (54x55x49.7mm)
Weight .5lbs (0.2kg)
Conformity Certifications FCC, CE, UL
Minimum System Requirements for ATVision IP Software
· Operating System: Microsoft Windows 7 (or 8) Professional/Enterprise/Ultimate
· CPU: Intel Core i7; RAM: 4GB; Ethernet Connection: 1Gbps
· Graphics Card: Gaming Rated, with 1GB at 1080p for Single Monitor; 2GB at 1080p for
Multiple Monitors
· HDD’s: 7200RPM and 64MB cache; 1 separate HDD for Operating System and Software; and 1
(2TB) HDD for Recording (refer to IP storage calculator)
30/25fps (Triple Stream: H.264 x 2, MJPEG x 1)
RTCP, DHCP, ARP, Zeroconf, Bonjour
SD Record: Pre : 1Osec, Post : 60sec
1.9”
ATVision IP Remote Management Software
DIMENSIONS
2.1”
2.1”
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2016 ATV All rights reserved. Specifications and Design are subject to change without notice.
ATV7740816-00
