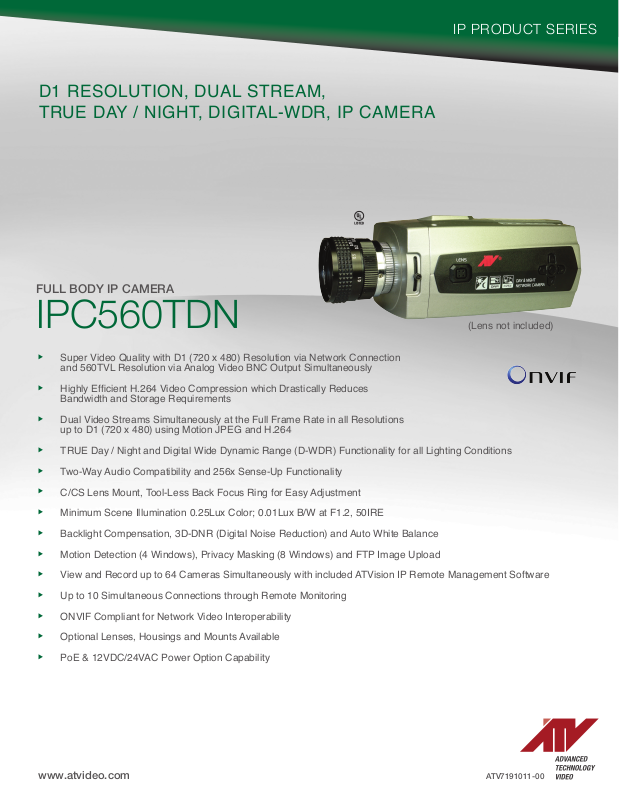

ATV IPC560TDN Specsheet
D1 RESOLUTION, DUAL STREAM,
TRUE DAY / NIGHT, DIGITAL-WDR, IP CAMERA
FULL BODY IP CAMERA
IP PRODUCT SERIES
IPC560TDN
u
Super Video Quality with D1 (720 x 480) Resolution via Network Connection
(Lens not included)
and 560TVL Resolution via Analog Video BNC Output Simultaneously
u
Highly Efcient H.264 Video Compression which Drastically Reduces
Bandwidth and Storage Requirements
u
Dual Video Streams Simultaneously at the Full Frame Rate in all Resolutions
up to D1 (720 x 480) using Motion JPEG and H.264
u
TRUE Day / Night and Digital Wide Dynamic Range (D-WDR) Functionality for all Lighting Conditions
u
Two-Way Audio Compatibility and 256x Sense-Up Functionality
u
C/CS Lens Mount, Tool-Less Back Focus Ring for Easy Adjustment
u
Minimum Scene Illumination 0.25Lux Color; 0.01Lux B/W at F1.2, 50IRE
u
Backlight Compensation, 3D-DNR (Digital Noise Reduction) and Auto White Balance
u
Motion Detection (4 Windows), Privacy Masking (8 Windows) and FTP Image Upload
u
View and Record up to 64 Cameras Simultaneously with included ATVision IP Remote Management Software
u
Up to 10 Simultaneous Connections through Remote Monitoring
u
ONVIF Compliant for Network Video Interoperability
u
Optional Lenses, Housings and Mounts Available
u
PoE & 12VDC/24VAC Power Option Capability
www.atvideo.com
ATV7191011-00
FULL BODY IP CAMERA
IPC560TDN
SPECIFICATIONS
C
A
M
E
R
A
N
E
T
W
O
R
K
G
E
N
E
R
A
L
MODEL IPC560TDN
Image Sensor 1/3” SONY Super HAD CCD
Total Pixels 811(H)x508(V)
Scanning System 2:1 interlace
Scanning Frequency 15.734Khz(H)x59.9.94Hz(V)
Sync. System Internal / Line lock
Resolution 560TVL
Min. Illumination Color: 0.25Lux, B/W: 0.01Lux (Sense-Up: Off)
S/N Ratio 50dB (AGC Off)
Video Compression Motion JPEG, MPEG-4 Part2, H.264 (MPEG-4 Part 10)
Video Resolutions 160x120 ~ 720x480
Frame Rate Up to 30fps @ all resolutions
Video Streaming Simultaneously H.264 (or MPEG-4) and MJPEG Controllable Frame Rate
Audio Compression G.726 ADPCM 40kbps~16kbps
Audio Streaming 2 Way
Protocol TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, SNMP, uPnP, RTP, RTSP, RTCP, DHCP, ARP
Security Multi-user authority, HTTPS, IP Filtering, Privacy Zone
Remote Access ATVision IP Remote Management Software, Web Browser
Max. Connection 10
Compatible 3rd Party VMS See link on www.atvideo.com
Alarm Triggers Motion Detection, External Input, Manual Trigger
Alarm Events File Image Upload; Notification Email; Ext. Output; Audio Alert
Video Buffering Pre and Post Alarm
Motion Detection Yes, max. 8 programmable windows
Time Sync. Yes
Software Reset Yes
Factory Reset Yes, Button/Web browser
Auto Recovery Yes
Installation Tool Yes, SmartManager (included utility software)
Upgrade Yes, Web browser/SmartManager (included utility software)
Alarm Input/Output Terminal, 1 TTL input / 1 open connector output (max 24VAC, 100mA)
Ethernet RJ-45 10BASE-T/100BASE-TX PoE
Video Output BNC, 1.0 Vp-p (75ohm, composite)
Audio In/Out Terminal, 1 line input / 1 line output
Auxiliary Terminal, RS485 Tx+TxOSD Buttons Side: Up/Down/Left/Right/Enter, Rear: Factory Reset
Auto IRIS Output 4-pin mini Din jack (Standard connections)
Lens Mount C/CS mount (Selected through back focus)
Operating Temperature 32º - 113ºF (0º - 45ºC)
Operation Humidity 0~90% (non-condensing)
Power Consumption AC24/DC12V max. 6.5watt, Power over Ethernet IEEE, 802.3af Class2/3
Dimension (WxHxD) 3.1”x2.52”x4.66” (78.8mmx64mmx 118.4mm)
Unit Weight .77lbs (.35kg)
Conformity Certifications FCC, CE, UL, MIC
IP PRODUCT SERIES
DIMENSIONS
Front View
Rear View
ATVision IP Remote Management Software
System Requirements for ATVision IP Remote Management Software:
Operating System: Microsoft® Windows® XP Professional, Windows Vista™ Enterprise/Ultimate,
Windows 7 Professional/Enterprise/Ultimate (Windows 7 recommended)
CPU: Intel® Core™2 Quad processors or higher (Core™ i7 processor recommended)
RAM: Minimum 1 GB (4 GB or more recommended)
ACCESSORIES
Lenses:
A-LTV2Z3314GCS 3.3~8mm Varifocal DC Auto-Iris Lens
SCV55014DC 5~50mm Varifocal DC Auto-Iris Lens
SCV2812ASIR 2.8~12mm Varifocal DC Auto-Iris Lens
Mounts:
CM-TBAR Camera Mount for Drop Ceiling “T-bar”
CMD16W Camera Wall Mount (White)
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2012 ATV All rights reserved. Specications and Design are subject to change without notice.
Environmental Housing:
HT1203N Camera Housing w/Heater-Blower
Housing Mounts:
HMW13 Medium Duty Wall Mount
A-CM150 Corner Mount Bracket for HMW13
A-CM151 Pole Mount Bracket for HMW13
A-CS164A Pipe/Pole Mount Arm for HT1203N
