ATV IPB3TWI User Manual
INSTRUCTION MANUAL
3MP IR Bullet
Network Camera IPB3TWI
Please read this manual thoroughly before use, and ke ep it handy for future reference.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT
THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE
EQUIPMENT.
Apparatus shall not be exposed to dr ipping or splashing a nd tha t no objects fille d
with liquids, such as vases, shall be placed on the apparatus.
CAUTION
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product’s enclosure that may be of suff icient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important oper ating and maintenance (servicing)
instructions in the literature accompanying the appliance.
2
FCC COMPLIANCE STATEMENT
INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO
COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC
RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL
INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS
EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT
INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE
EQUIPMENT.
THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME NMB-003 DU CANADA.
CE COMPLIANCE STATEMENT
WARNING: This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
3
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not bloc k an y v entilation op enings. I nstall in accor dance with the manuf acturer’s
instructions.
8. Do no t in stall near any h eat sources such as r adiators, he at r egisters, s toves, or oth er
apparatus (including amplifiers) that produce heat.
9. Do not def eat the safety purpose of t he polarized or grounding-type plug. A polariz ed pl ug
has two blades with one wider than the other. A gr ounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does n ot f it into y our outlet, consult an electrici an f or r eplacement of the
obsolete outlet.
10. Protect the power cor d f rom being walk ed on or pinched particularly at plugs, con venience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the c art, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the appar atus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this appar atus during lightning storms or wh en unused
for long periods of time.
14. Refer all servicing to qu alified se rvice personnel . Servicing is
required whe n the app aratus h as been damaged in any way,
such as power-supply cord or pl ug is damaged, liquid has been
spilled or objects hav e fallen into the apparatu s, the apparatu s has been exp osed to rain or
moisture, does not operate normally, or has been dropped.
15. CAUTION – THESE SERVICING INSTRUCTIONS A RE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE
OPERATING INSTRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO.
16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2
power source only.
ITE is to be connected only to PoE networks without routing to the outside plant.
17.
4
Contents
1. Description ------------------------------------------------------------------6
1.1 Components - ------------------------------------------------------------------------------------------ 6
1.2 Key Features - ------------------------------------------------------------------------------------------ 7
1.3 Over View ---- ------------------------------------------------------------------------------------------ 8

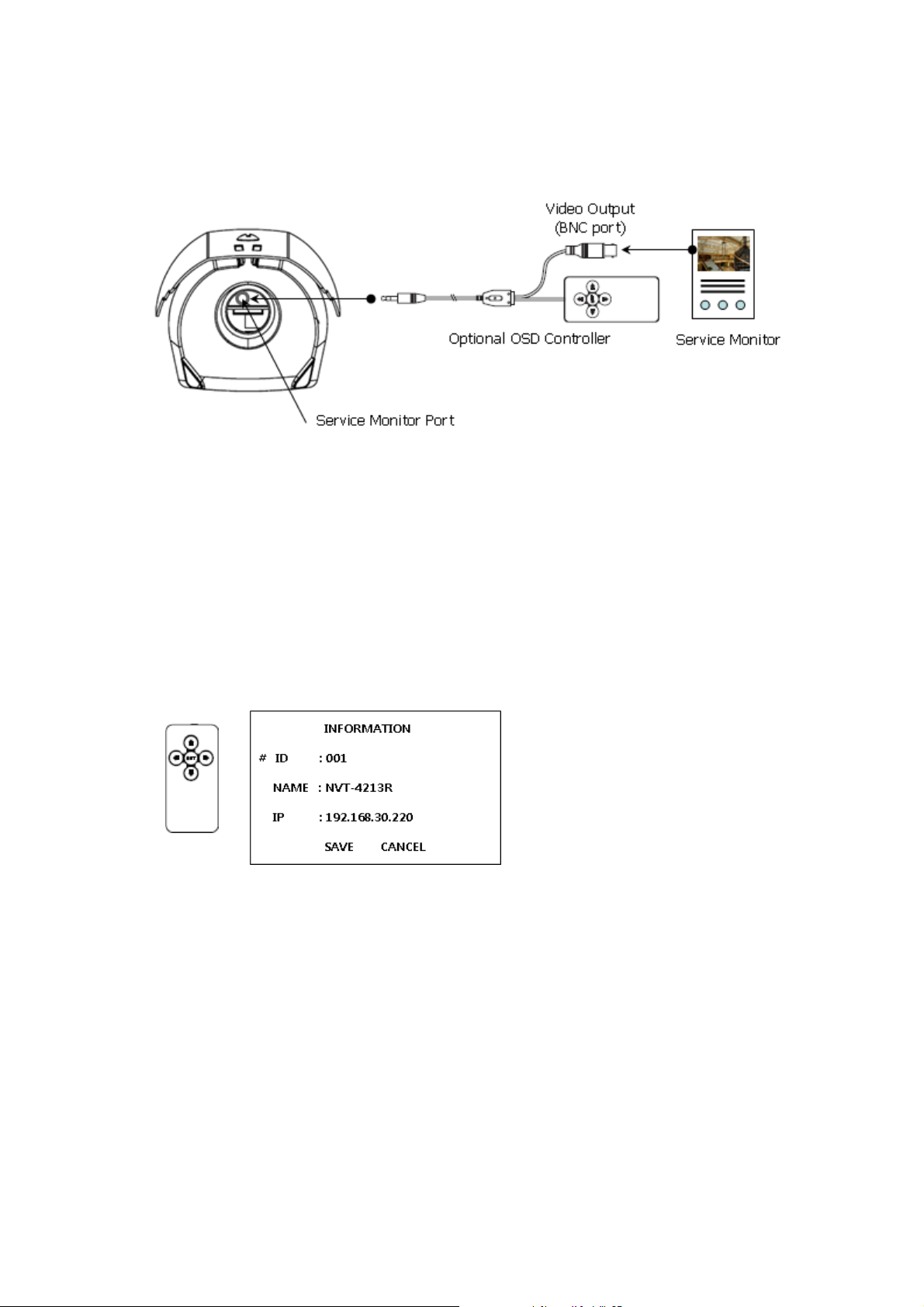

1.4 Camera Adjustment------------------------------------------------------------------------------------ 9
2. Installation ----------------------------------------------------------------- 11
2.1 Connection ------------------------------------------------------------------------------------------ 11
2.2 IP Assignment ----------------------------------------------------------------------------------------- 13

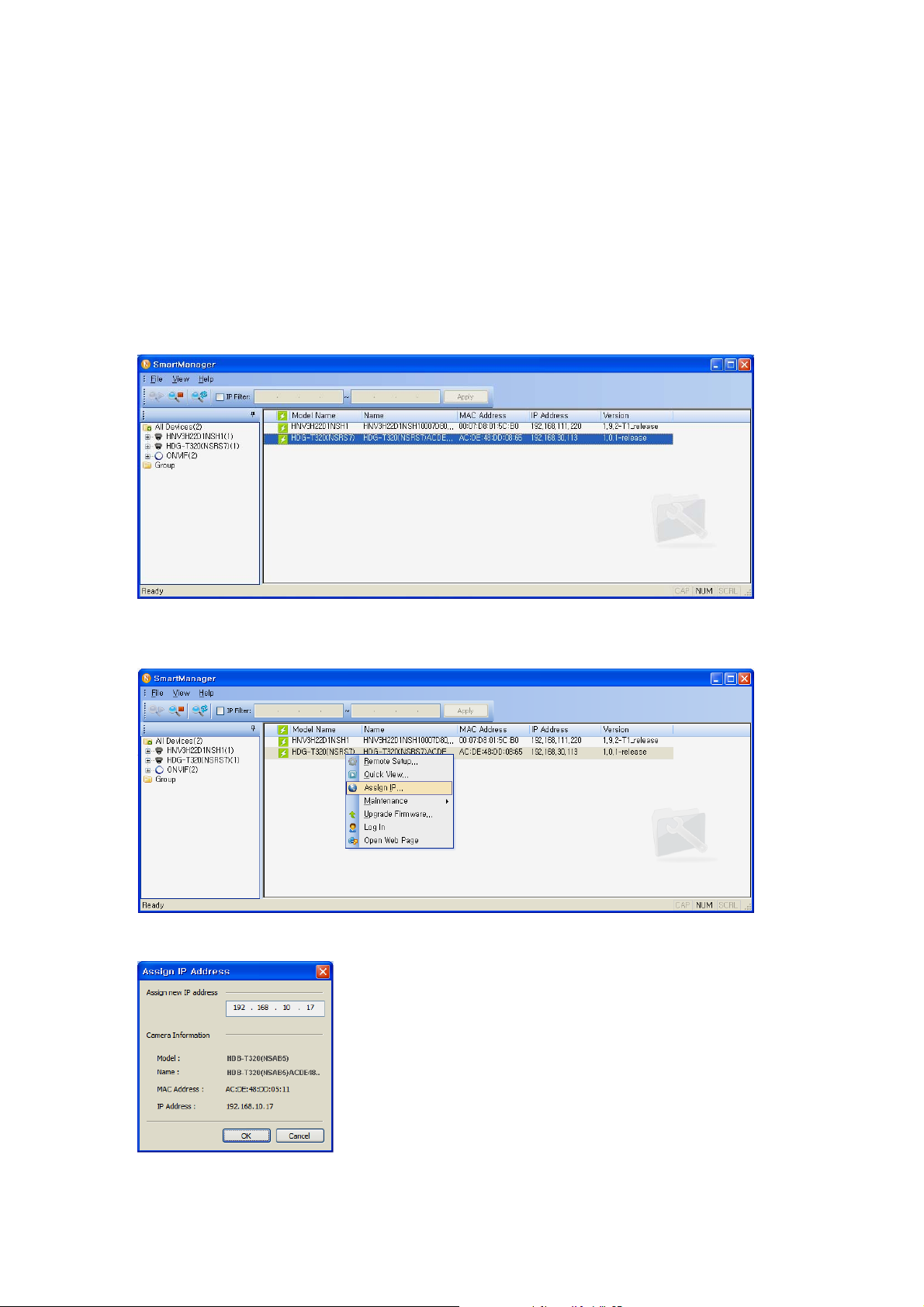

3. Operation -------------------------------------------------------------------- 14

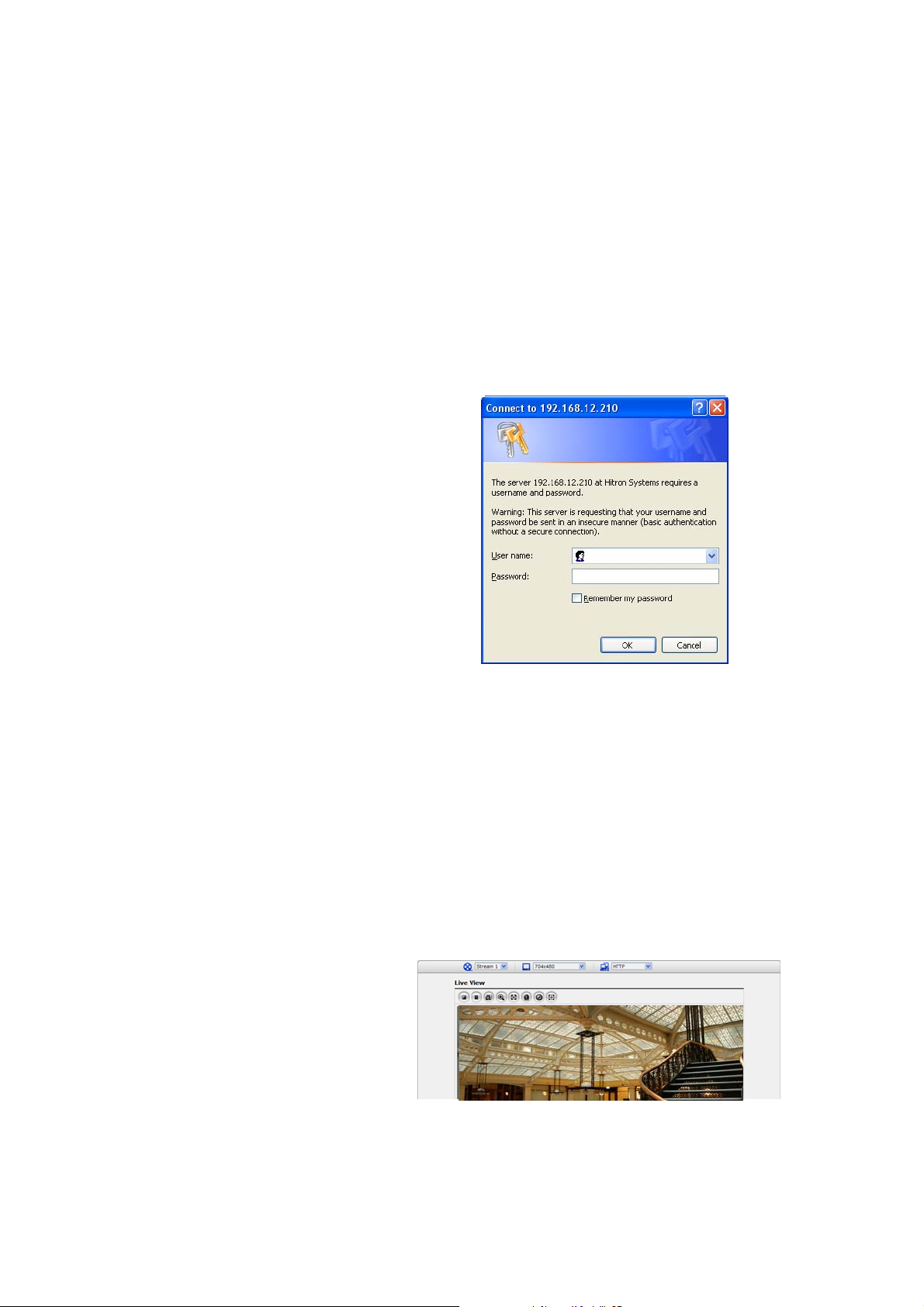

3.1 Access from a browser -------------------------------------------------------------------------------- 14
3.2 Access from the internet ------------------------------------------------------------------------------ 15
3.3 Setting the admin password over a secure connection------------------------------------------- 15

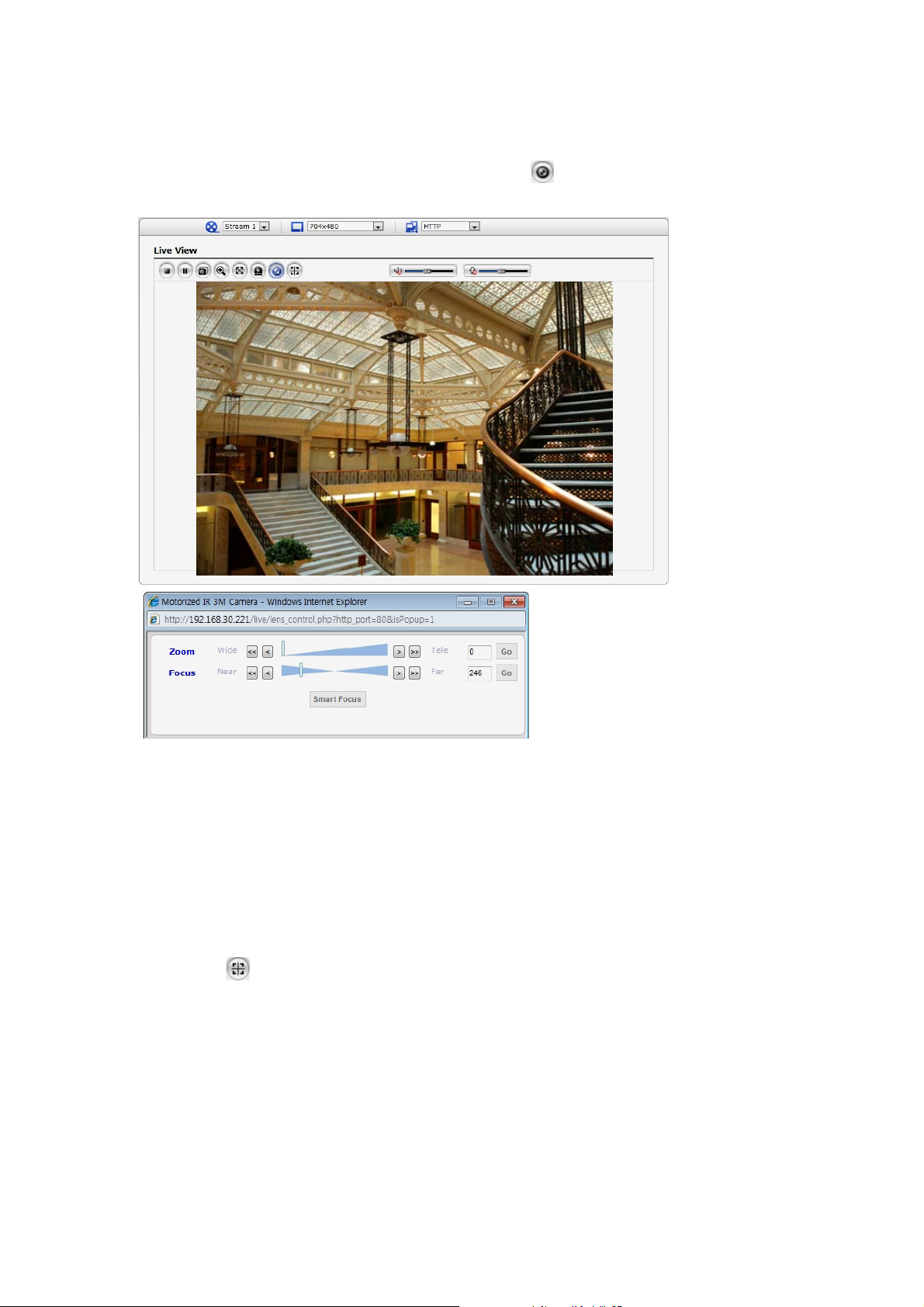

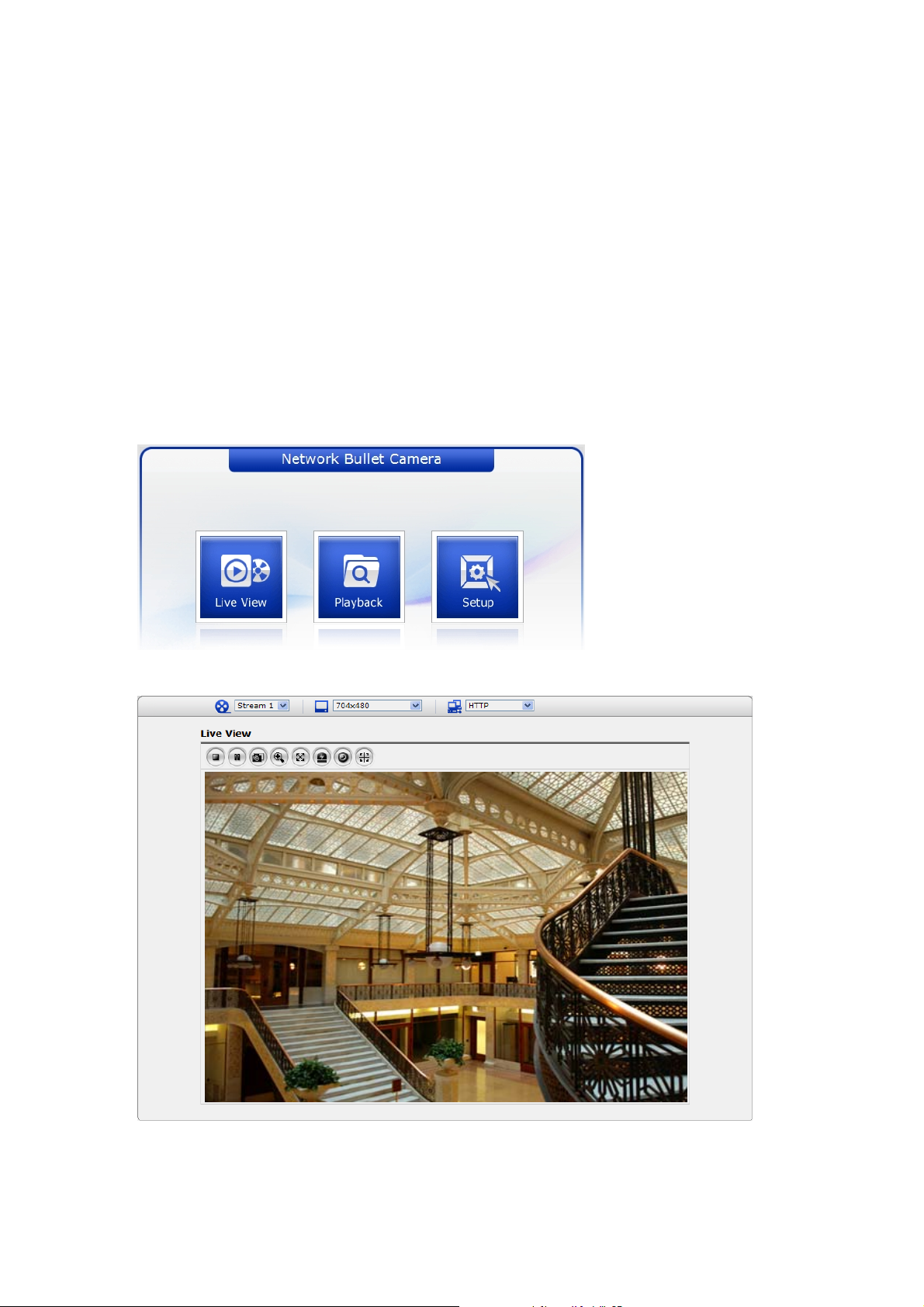

3.4 Live View Page ----------------------------------------------------------------------------------------- 15
3.5 Network Camera Setup-------------------------------------------------------------------------------- 18

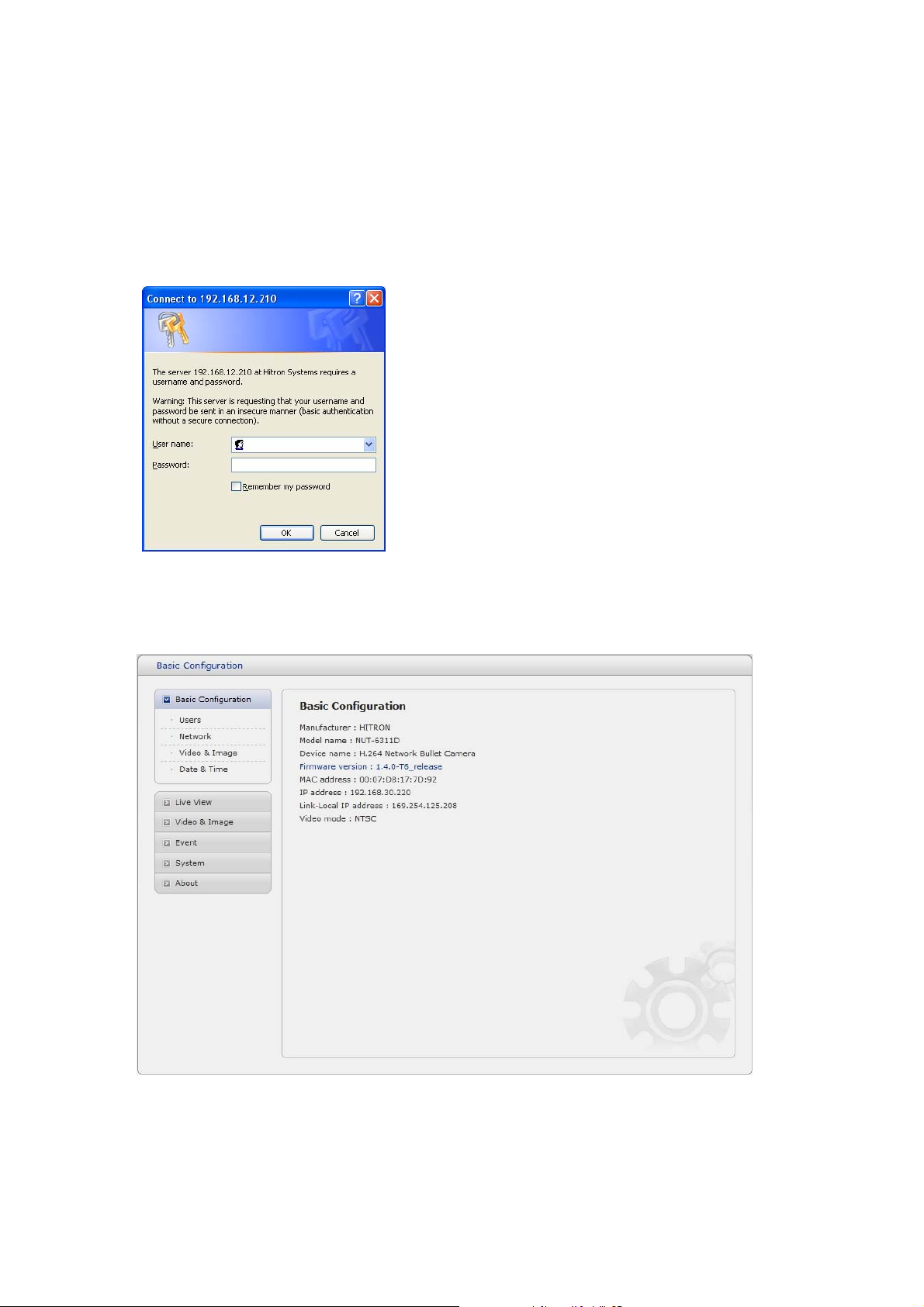

3.5.1 Basic Configuration ---------------------------------------------------------------------------- 18
1) Users------------------------------------------------------------------------------------------ 19

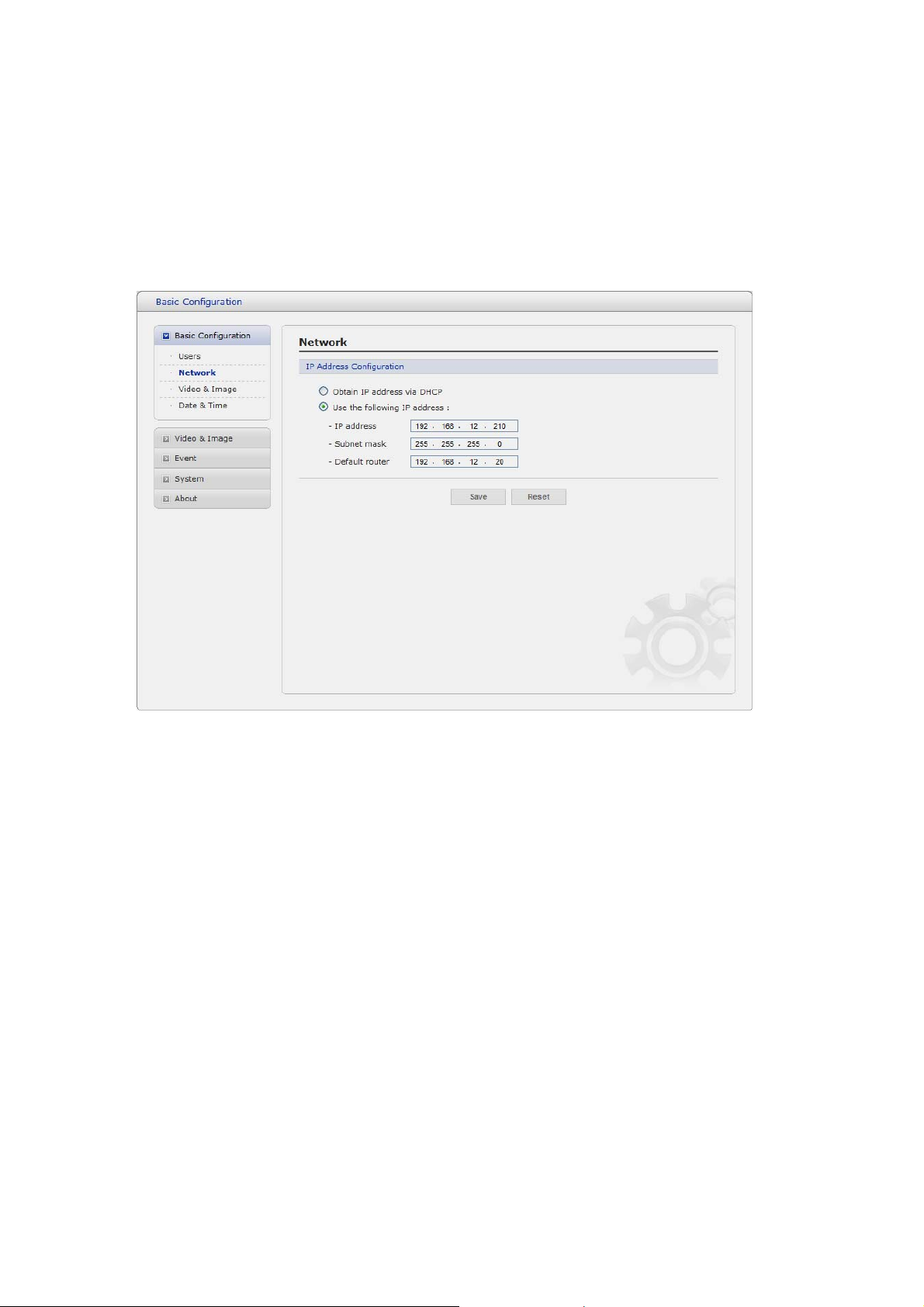

2) Network -------------------------------------------------------------------------------------- 20

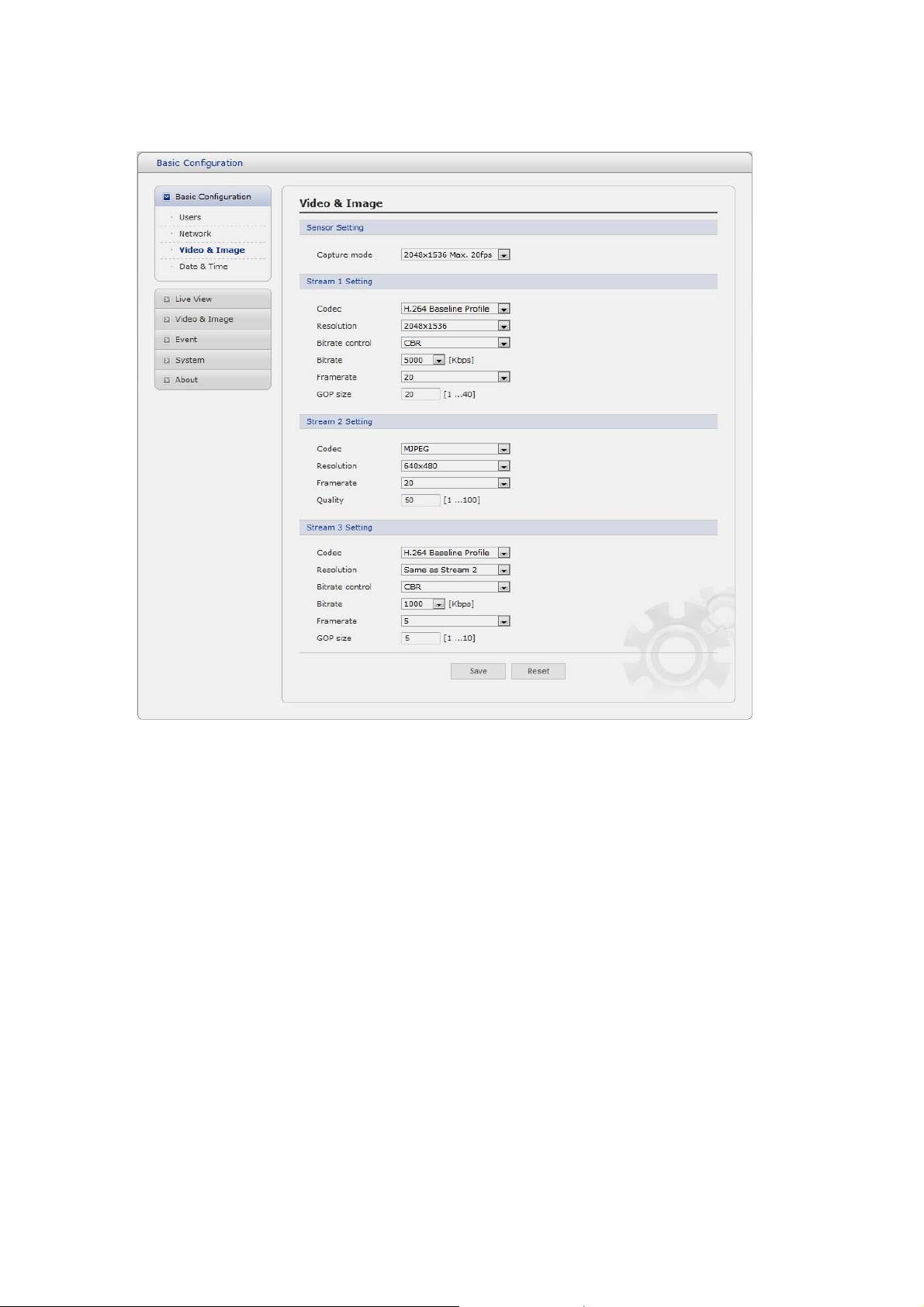

3) Video & Image ------------------------------------------------------------------------------ 21
4) Date & Time --------------------------------------------------------------------------------- 23
3.5.2 Video & Image---------------------------------------------------------------------------------- 24
3.5.3 Event---------------------------------------------------------------------------------------------- 30
1) Event-In -------------------------------------------------------------------------------------- 30
2) Event-Out ------------------------------------------------------------------------------------ 34
3) Event Map------------------------------------------------------------------------------------ 41
3.5.4 System ------------------------------------------------------------------------------------------ 42
1) Information ---------------------------------------------------------------------------------- 42
2) Security--------------------------------------------------------------------------------------- 43
3) Date & Time --------------------------------------------------------------------------------- 46
4) Network -------------------------------------------------------------------------------------- 47
5) Language------------------------------------------------------------------------------------- 56
6) Maintenance --------------------------------------------------------------------------------- 57
7) Support --------------------------------------------------------------------------------------- 58
3.5.7 About---------------------------------------------------------------------------------------------- 58
3.6 Playback----------------------------------------------------------------------------------------------------59
3. 7 Help ------------------------------------------------------------------------------------------------------ 61
3.8 Resetting to the factory default settings ------------------------------------------------------------- 62
4. Appendix -------------------------------------------------------------------- 63
4 .1 Troubleshooting ----------------------------------------------------------------------------------------- 63
4.2 Preventive Maintenance -------------------------------------------------------------------------------- 64
4.3 Product Specification ----------------------------------------------------------------------------------- 65
5
1. Description
This manual applies to the IPB3TWI network camera.
The Network Camera supports the network service for a sensor image with progressive scan, which
can be monitored on a real-time screen regardless of distances and locations. By using its dedicated
program, many users are able to have an access to the Network Camera at once or a single user can
monitor various network cameras at the same time. It also enables users to play, store and retrieve a
monitoring image by using a PC. All the settings and real-time monitoring screens are also provided
through an access to the web.
The Network Camera is fully featured for security surveillance and remote monitoring needs. It is
based on the DSP compression chip, and makes it available on the network as real-time, full frame
rate Motion JPEG and H.264 (or MPEG-4) video streams.
1.1 Components
The system comes with the following components:
Camera unit Installation CD Installation Guide Template Sheet Accessory Kit
NOTE: Check your package to make sure that you received the complete system, including all
components shown above.
6
1.2 Key Features
• Brilliant video quality
The Network Camera offers the highly efficient H.264 video compression, which drastically
reduces bandwidth and storage requirements without compromising image quality. Motion JPEG
is also supported for increased flexibility.
• Wide Dynamic Range
The network camera provides WDR (Wide Dynamic Range) that improves video exposure quality
in scenes with high contrast between bright and dark areas in the video, for example a shady
area and a sunny area in the same scene.
• Dual or triple streams
The Network Camera can deliver dual or triple video streams simultaneously at full frame rate in
all resolutions up to 3M (2048 x 1536p) using Motion JPEG and H.264 (or MPEG-4). This means
that several video streams can be configured with different compression formats, resolutions and
frame rates for different needs.
• Image setting adjustment
The Network Camera also enables users to adjust image settings such as contrast, brightness
and saturation to improve images before encoding takes place.
• Intelligent video capabilities
The Network Camera includes intelligent capabilities such as enhanced video motion detection.
• Easy Focus
Easy Focus will be activated once Day/Night mode switched, and the focus readjusted
automatically.
• Focus & Zoom Control via Network
The Network Camera also enables users to adjust focus and zoom remotely via network.
• Resolution
3 Megapixel, Max. 20fps@2048x1536, 30fps@1920x1080

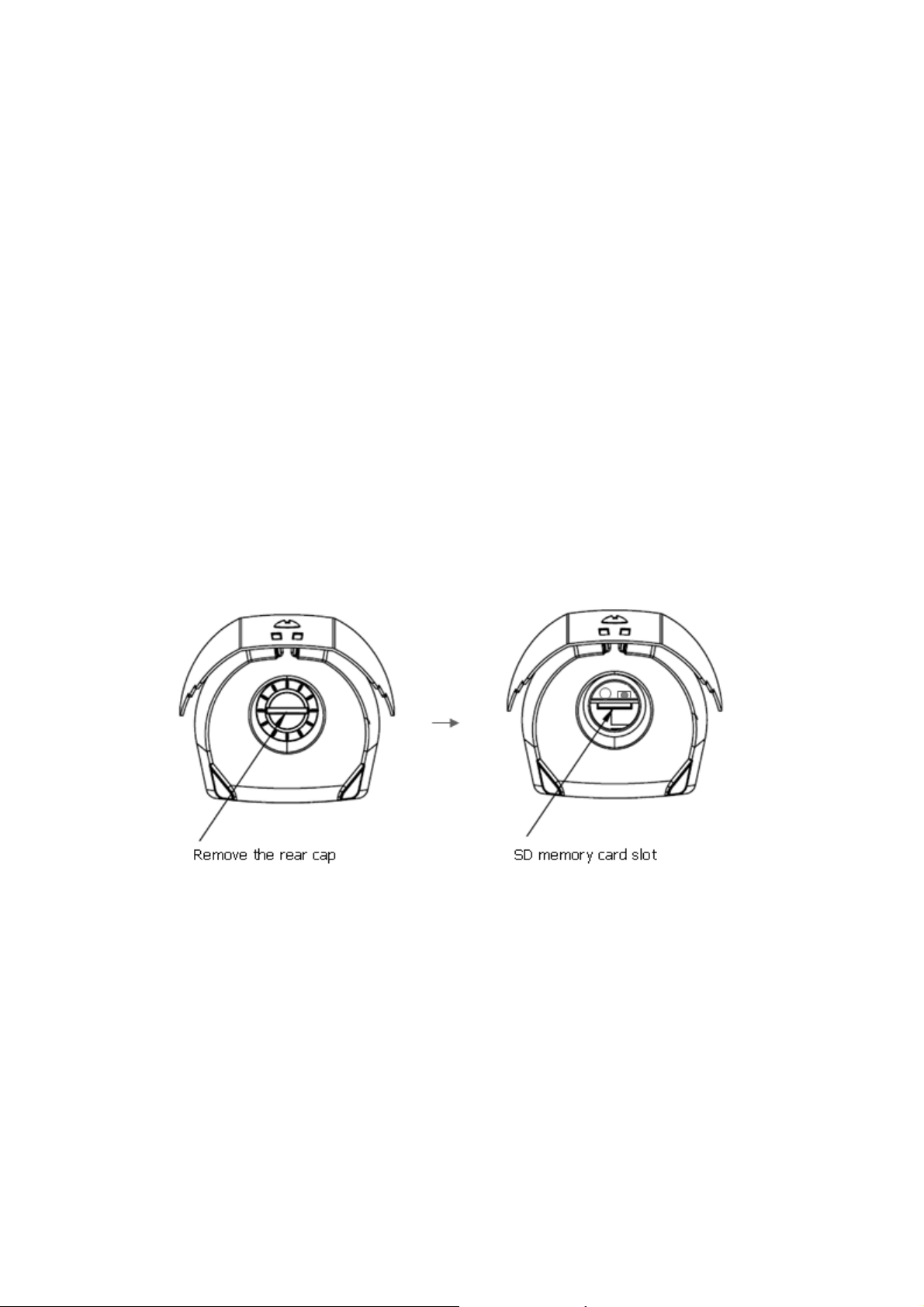

• Micro-SD Recording support
The Network Camera also supports a micro-SD memory slot for local recording with removable
stor age.
• Improved Security
The Network Camera logs all user access, and lists currently connected users. Also, its full frame
rate video can be provided over HTTPS.
• ONVIF
This is a global interface standard that makes it easier for end users, integrators, consultants,
and manufacturers to take advantage of the possibilities offered by network video technology.
ONVIF enables interoperability between different vendor products, increased flexibility, reduced
cost, and future-proof systems.
7
