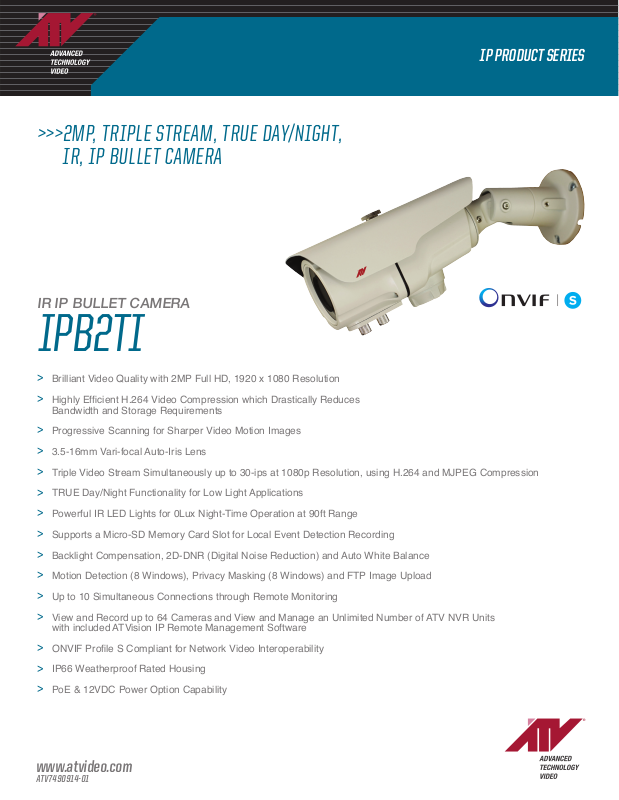

ATV IPB2TI Specsheet
>>>2MP, TRIPLE STREAM, TRUE DAY/NIGHT,
IR, IP BULLET CAMERA
IR IP BULLET CAMERA
IPB2TI
IP PRODUCT SERIES
Brilliant Video Quality with 2MP Full HD, 1920 x 1080 Resolution
>
Highly Efcient H.264 Video Compression which Drastically Reduces
>
Bandwidth and Storage Requirements
Progressive Scanning for Sharper Video Motion Images
>
3.5-16mm Vari-focal Auto-Iris Lens
>
Triple Video Stream Simultaneously up to 30-ips at 1080p Resolution, using H.264 and MJPEG Compression
>
TRUE Day/Night Functionality for Low Light Applications
>
Powerful IR LED Lights for 0Lux Night-Time Operation at 90ft Range
>
Supports a Micro-SD Memory Card Slot for Local Event Detection Recording
>
Backlight Compensation, 2D-DNR (Digital Noise Reduction) and Auto White Balance
>
Motion Detection (8 Windows), Privacy Masking (8 Windows) and FTP Image Upload
>
Up to 10 Simultaneous Connections through Remote Monitoring
>
View and Record up to 64 Cameras and View and Manage an Unlimited Number of ATV NVR Units
>
with included ATVision IP Remote Management Software
ONVIF Prole S Compliant for Network Video Interoperability
>
IP66 Weatherproof Rated Housing
>
PoE & 12VDC Power Option Capability
>
www.atvideo.com
ATV7490914-01
IP BULLET CAMERA
IPB2TI
SPECIFICATIONS
MODEL IPB2TI
Image sensor 1/2.8” Progressive Scan Sony CMOS Sensor
C
Active Array 1920(H) x 1080(V)
A
Lens Varifocal 3.5mm ~ 16mm, F1.2 DC IRIS
M
Angle of View 3.5mm – 77.2°(H) / 16mm – 22.6°(H)
E
Min. illumination Color: 0.2Lux, B/W: 0.0Lux(F1.2, 50IRE with IR On)
R
Shutter Speed 1/20,000 ~ 1/4
A
IR LED’s 36 lights; 90ft (30M) range
Video Compression Motion JPEG, MPEG-4 Part2, H.264 (MPEG-4 Part 10)
Video Resolutions 320 x 240 ~ 1920 x 1080
Frame Rate 30fps@ all resolutions
Video Streaming Simultaneously H.264(or MPEG-4) and MJPEG, Controllable
Protocol TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, SNMP, uPnP,
Security Multi-user authority, HTTPS, IP Filtering, Privacy Zone
N
Remote Access ATVision IP Remote Management Software, Web Browser
E
Max. Connection 10
T
Compatible 3rd Party VMS See link on www.atvideo.com
W
Alarm Events File upload via FTP and HTTP
O
Video Buffering Pre and Post Alarm
R
Motion Detection Yes, max. 8 programmable windows
K
Network Time Synchronization Yes
Micro-SD Card Recording Yes, Continuous/Event
Software Reset Yes
Factory Reset Yes, Button/Web browser
Auto Recovery Yes
Installation Tool ATVision IP, SmartManager (included utility software)
Upgrade ATVision IP, Web browser/SmartManager (included utility software)
Micro-SD Card Micro-SDHC class 6 or above recommended (Max 32GB)
G
Ethernet RJ-45 10BASE-T/100BASE-TX
E
Operating Temperature -22º - 113ºF (-30º - 45ºC)
N
Operation Humidity 0~90% (non-condensing)
E
Power Consumption 12VDC 600mA(7W);
R
Environmental Rating IP66
A
L
External Dimension (W x H x D)
Unit Weight 2.4lbs (1.1kg)
Conformity Certifications FCC, CE
Profiles: H.264 MP and BP, MPEG-4 ASP and SP
Frame Rate and Bandwidth VBR/CBR H.264 and MPEG-4
RTP, RTSP, RTCP, DHCP, ARP. Zeroconf, Bonjour
Notification via E-mail, HTTP and TCP
PoE 130mA(6.5W) Power over Ethernet IEEE 802.3af Class0
11.8 x 3.4 x 3.9in (300 x 87 x 98.4)
IP PRODUCT SERIES
DIMENSIONS
ATVision IP Remote Management Software
Minimum System Requirements for ATVision IP Software
· Operating System: Microsoft Windows 7 (or 8) Professional/Enterprise/Ultimate
· CPU: Intel Core i7; RAM: 4GB; Ethernet Connection: 1Gbps
· Graphics Card: Gaming Rated, with 1GB at 1080p for Single Monitor; 2GB at 1080p for Multiple Monitors
· HDD’s: 7200RPM and 64MB cache; 1 separate HDD for Operating System and Software; and 1
(2TB) HDD for Recording (refer to IP storage calculator)
ACCESSORIES
A-CM150 Corner Mount
A-CM151 Pole Mount
A-CM150
A-CM151
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2015 ATV All rights reserved. Specifications and Design are subject to change without notice.
ATV7490914-01
