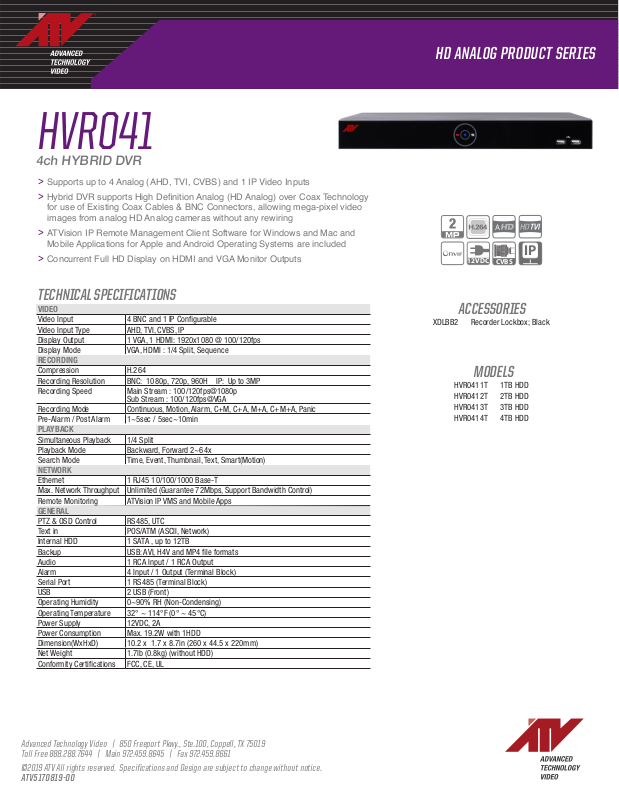

ATV HVR0414T, HVR0413T, HVR0412T, HVR0411T Specsheet
HVR041
A
12VDC
CVBS
IP
4ch HYBRID DVR
Supports up to 4 Analog (AHD, TVI, CVBS) and 1 IP Video Inputs
>
Hybrid DVR supports High Denition Analog (HD Analog) over Coax Technology
>
for use of Existing Coax Cables & BNC Connectors, allowing mega-pixel video
images from analog HD Analog cameras without any rewiring
ATVision IP Remote Management Client Software for Windows and Mac and
>
Mobile Applications for Apple and Android Operating Systems are included
Concurrent Full HD Display on HDMI and VGA Monitor Outputs
>
TECHNICAL SPECIFICATIONS
VIDEO
Video Input 4 BNC and 1 IP Configurable
Video Input Type AHD, TVI, CVBS, IP
Display Output 1 VGA, 1 HDMI: 1920x1080 @ 100/120fps
Display Mode VGA, HDMI : 1/4 Split, Sequence
RECORDING
Compression H.264
Recording Resolution BNC: 1080p, 720p, 960H IP: Up to 3MP
Recording Speed Main Stream : 100/120fps@1080p
Recording Mode Continuous, Motion, Alarm, C+M, C+A, M+A, C+M+A, Panic
Pre-Alarm / Post Alarm 1~5sec / 5sec~10min
PLAYBACK
Simultaneous Playback 1/4 Split
Playback Mode Backward, Forward 2~64x
Search Mode Time, Event, Thumbnail, Text, Smart(Motion)
NETWORK
Ethernet 1 RJ45 10/100/1000 Base-T
Max. Network Throughput Unlimited (Guarantee 72Mbps, Support Bandwidth Control)
Remote Monitoring ATVision IP VMS and Mobile Apps
GENERAL
PTZ & OSD Control RS485, UTC
Text in POS/ATM (ASCII, Network)
Internal HDD 1 SATA , up to 12TB
Backup USB: AVI, H4V and MP4 file formats
Audio 1 RCA Input / 1 RCA Output
Alarm 4 Input / 1 Output (Terminal Block)
Serial Port 1 RS485 (Terminal Block)
USB 2 USB (Front)
Operating Humidity 0~90% RH (Non-Condensing)
Operating Temperature 32° ~ 114°F (0° ~ 45°C)
Power Supply 12VDC, 2A
Power Consumption Max. 19.2W with 1HDD
Dimension(WxHxD) 10.2 x 1.7 x 8.7in (260 x 44.5 x 220mm)
Net Weight 1.7lb (0.8kg) (without HDD)
Conformity Certifications FCC, CE, UL
Sub Stream : 100/120fps@VGA
HD ANALOG PRODUCT SERIES
ACCESSORIES
XDLBB2 Recorder Lockbox; Black
MODELS
HVR0411T 1TB HDD
HVR0412T 2TB HDD
HVR0413T 3TB HDD
HVR0414T 4TB HDD
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2019 ATV All rights reserved. Specifications and Design are subject to change without notice.
ATV5170819-00
