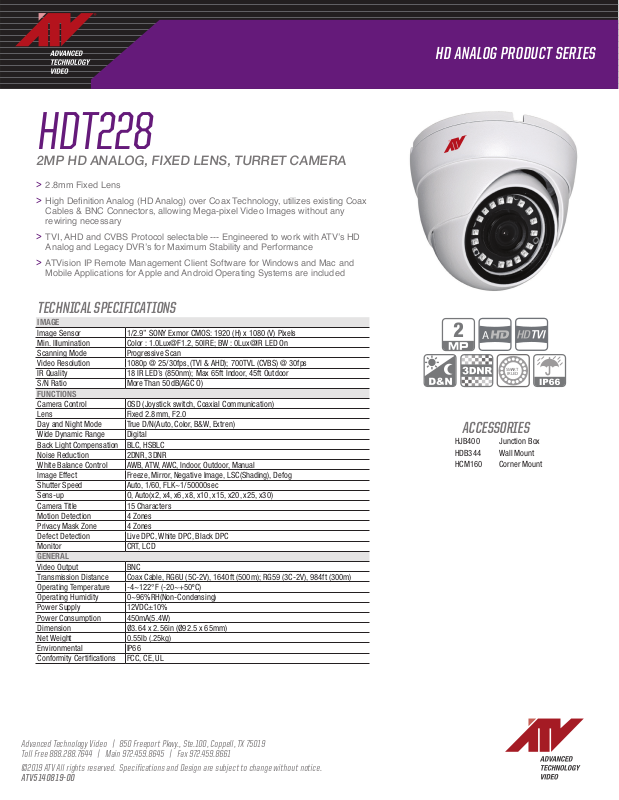

ATV HDT228 Specsheet
HDT228
2MP HD ANALOG, FIXED LENS, TURRET CAMERA
2.8mm Fixed Lens
>
High Denition Analog (HD Analog) over Coax Technology, utilizes existing Coax
>
Cables & BNC Connectors, allowing Mega-pixel Video Images without any
rewiring necessary
TVI, AHD and CVBS Protocol selectable --- Engineered to work with ATV’s HD
>
Analog and Legacy DVR’s for Maximum Stability and Performance
ATVision IP Remote Management Client Software for Windows and Mac and
>
Mobile Applications for Apple and Android Operating Systems are included
TECHNICAL SPECIFICATIONS
Image Sensor 1/2.9” SONY Exmor CMOS: 1920 (H) x 1080 (V) Pixels
Min. Illumination Color : 1.0Lux@F1.2, 50IRE; BW : 0Lux@IR LED On
Scanning Mode Progressive Scan
Video Resolution 1080p @ 25/30fps, (TVI & AHD); 700TVL (CVBS) @ 30fps
IR Quality 18 IR LED’s (850nm); Max 65ft Indoor, 45ft Outdoor
S/N Ratio More Than 50dB(AGC O)
FUNCTIONS
Camera Control OSD (Joystick switch, Coaxial Communication)
Lens Fixed 2.8mm, F2.0
Day and Night Mode True D/N(Auto, Color, B&W, Extren)
Wide Dynamic Range Digital
Back Light Compensation BLC, HSBLC
Noise Reduction 2DNR, 3DNR
White Balance Control AWB, ATW, AWC, Indoor, Outdoor, Manual
Image Effect Freeze, Mirror, Negative Image, LSC(Shading), Defog
Shutter Speed Auto, 1/60, FLK~1/50000sec
Sens-up O, Auto(x2, x4, x6, x8, x10, x15, x20, x25, x30)
Camera Title 15 Characters
Motion Detection 4 Zones
Privacy Mask Zone 4 Zones
Defect Detection Live DPC, White DPC, Black DPC
Monitor CRT, LCD
GENERAL
Video Output BNC
Transmission Distance Coax Cable, RG6U (5C-2V), 1640ft (500m); RG59 (3C-2V), 984ft (300m)
Operating Temperature -4~122°F (-20~+50ºC)
Operating Humidity 0~96%RH(Non-Condensing)
Power Supply 12VDC±10%
Power Consumption 450mA(5.4W)
Dimension Ø3.64 x 2.56in (Ø92.5 x 65mm)
Net Weight 0.55lb (.25kg)
Environmental IP66
Conformity Certifications FCC, CE, UL
HD ANALOG PRODUCT SERIES
A
SMART
IR LED
ACCESSORIES
HJB400 Junction Box
HDB344 Wall Mount
HCM160 Corner Mount
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2019 ATV All rights reserved. Specifications and Design are subject to change without notice.
ATV5140819-00
