ATV HCM160 User Manual

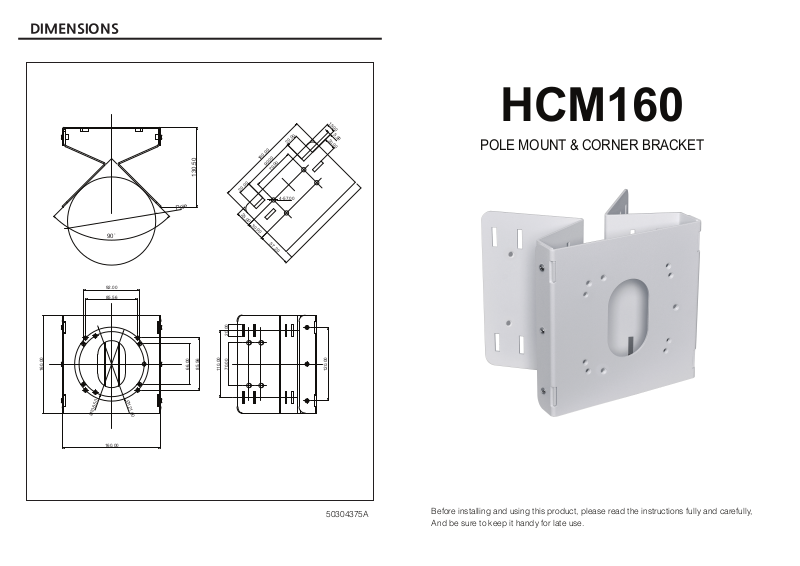

DIMENSIONS

160.00

90

92.00

85.56

Pole

66.00

130.50

85.56

110.00

20.00

70.00

20.00

25.00

30.00

160.00

90.00

57.20

70.00

4-57.00

20.00

15.00

5.00

20.00

120.00

HCM160

POLE MOUNT & CORNER BRACKET

Ø106.50

160.00

Ø121.00

50304375A

Before installing and using this product, please read the instructions fully and carefully,
And be sure to keep it handy for late use.

Prior to Use

Avoid installing the mount onto an unstable structure such as a gypsum wall panel.

Install the mount onto a strong structure such as a concrete wall, steel beam, etc.

Use concrete screws with plugs or other installation tools when installing the mount onto
a concrete structure, make sure that all the screw parts are metallic.
(Avoid screwing too close to the edge of a piece of wood when screwing into a wooden structure)

Composition

Using the pole & Mount as a template,
mark the locations of the six screw
holes where the mounting adaptor will go.
Install the plastic anchors(D6) at the
six pre-marked locations. Use the screws
with washers to affix the mount adaptor
to the corner of a building structure.

Plastic Anchor(D6)

Screw Tapping

BH 6x35L Stainless

Confirm that the following parts are included.

HCM160

POLE MOUNT & CORNER BRACKET

Before installing and using this product, please read the instructions fully and carefully,
And be sure to keep it handy for late use.

Pole Mount & Corner Bracket

4pcs

Plastic Anchor(D6)

Instruction Manual Stainless Hose Band(2pcs)

4pcs

Screw Tapping
BH 6x35L Stainless

Composition

Mounting to the poles or the corners of building structure.

Feed the hose bands through the vertical stills
located on the four corners of the mounting flaps
as shown below. Wrap the hose bands around
the pole like structure then use the driver to rotate
the screw that is attached at the end of the hose
bands clockwise. Rotating the screw shortens the
bands thereby fastening the around the structure.

4pcs

Screw Machine(SEMS)
PH M5x16L Stainless

Mounting the power box or wall mount to the pole & corner mount.

Using the appropriate screws and nuts
supplied, affix the power box base to the
pole & corner mount at the four corners
of the mounting surface.

HJB-200(M5 : 4EA)

HDB-442(M5 : 3EA)

HJB-400(M5 : 4EA)

A

B

C

A

Using the appropriate screws supplied,
affix the power box base to the pole &
corner mount at the four corners of the
mounting surface as shown the below.

Screw Machine(PH M5x20L : 4EA)

Using the appropriate screws and nuts supplied, affix the wall mount to the pole & corner
mount at the four corners of the mounting surface as shown the below.

B

C

Stainless Hose Band

D=260mm(10.24inch)

Screw Machine(PH M5x20L : 3EA)

Screw Machine(PH M5x20L : 4EA)
