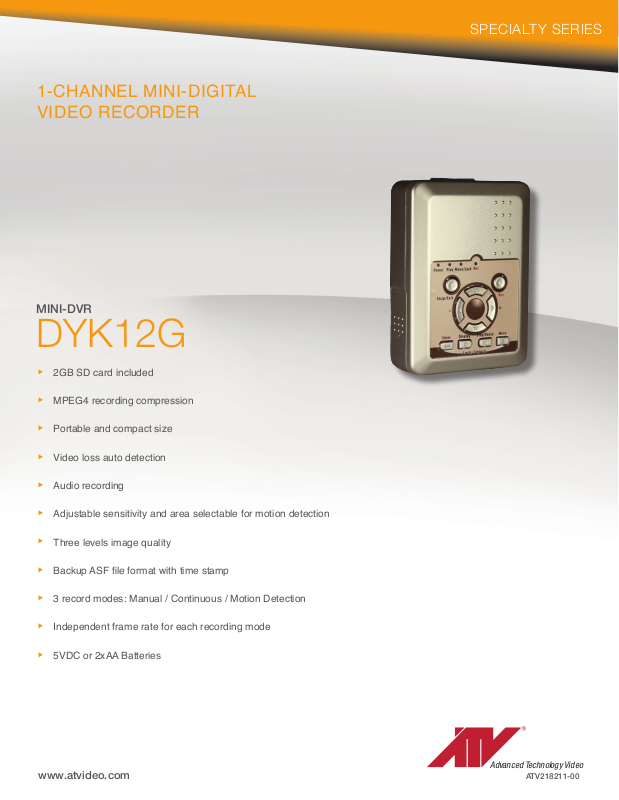

ATV DYK12G Specsheet
1-CHANNEL MINI-DIGITAL
VIDEO RECORDER
MINI-DVR
SPECIALTY SERIES
DYK12G
u
2GB SD card included
u
MPEG4 recording compression
u
Portable and compact size
u
Video loss auto detection
u
Audio recording
u
Adjustable sensitivity and area selectable for motion detection
u
Three levels image quality
u
Backup ASF le format with time stamp
u
3 record modes: Manual / Continuous / Motion Detection
u
Independent frame rate for each recording mode
u
5VDC or 2xAA Batteries
www.atvideo.com
Advanced Technology Video
ATV218211-00
MINI-DVR
DYK12G
SPECIFICATIONS
MODEL DYK12G
G
Video System NTSC / PAL auto detection
E
Video Input 1CH RCA Style jack
N
E
Video Output 1CH RCA Style jack
R
Audio Input 1CH RCA Style jack
A
Audio Output 1CH RCA Style jack
L
Audio Backup Yes
IR Remote Controller No
Storage Media Secure Digital 2GB card (Upgradable to 32GB Card)
Video Compression MPEG4
F
U
Audio Compression G.726 / 32 kbps
N
File Format ASF file
C
Resolution 704x480, 352x240 (NTSC) / 704x560, 352x280 (PAL)
T
Frame Rate 12, 30 (NTSC) / 10, 25 (PAL)
I
Quality High, Medium, Low
O
Record Mode Manual, Schedule, Event (motion detection)
N
Search Mode Time, Event
Motion Detection Multiple Blocks and Adjustable Sensitivity
Playback Speed Fast forward / backward 2X / 4X / 8X / 16X / 32X play / pause
Firmware Update SD card
C
O
Dimension (WxHxD) 2.5 x 3.5 x 1.1in (65mm x 90mm x 27mm)
N
Power Source AC100~240V 50/60Hz, DC5V1A or AAx2 Batteries
N
(rechargeable Ni-MH / alkaline battery / CR-V3 / RCR-V3)
E
C
Power Consumption Max. 2.5W
T
Operating Environment 30 ~ 80% RH, 5ºC ~ 40ºC (41ºF ~ 104ºF)
O
R
SPECIALTY SERIES
STORAGE CAPACITY
Quality Level 704x480@12ips 352x240@30ips
High 94 190
Medium 168 360
Low 252 520
Unit: Minutes
Approx. for recording motion movie with 2GB Card
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2011 ATV All rights reserved. Specications and Design are subject to change without notice.
ATV2181211-00
