ATV DB244 User Manual

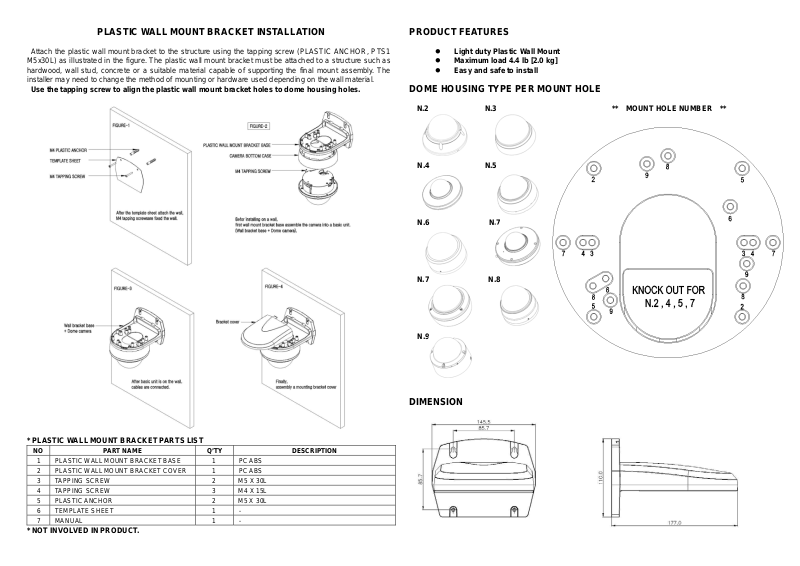

PLASTIC WALL MOUNT BRACKET INSTALLATION

Attach the plastic wall mount bracket to the structure using the tapping screw (PLASTIC ANCHOR, PTS1
M5x30L) as illustrated in the figure. The plastic wall mount bracket must be attached to a structure such as
hardwood, wall stud, concrete or a suitable material capable of supporting the final mount assembly. The
installer may need to change the method of mounting or hardware used depending on the wall material.

Use the tapping screw to align the plastic wall mount bracket holes to dome housing holes.

* PLASTIC WALL MOUNT BRACKET PARTS LIST

NO PART NAME Q’TY DESCRIPTION

1 PLASTIC WALL MOUNT BRACKET BASE 1 PC ABS
2 PLASTIC WALL MOUNT BRACKET COVER 1 PC ABS
3 TAPPING SCREW 2 M5 X 30L
4 TAPPING SCREW 3 M4 X 15L
5 PLASTIC ANCHOR 2 M5 X 30L
6 TEMPLATE SHEET 1 ­7 MANUAL 1 -

* NOT INVOLVED IN PRODUCT.

PRODUCT FEATURES

z Light duty Plastic Wall Mount
z Maximum load 4.4 lb [2.0 kg]
z Easy and safe to install

DOME HOUSING TYPE PER MOUNT HOLE

N.2 N.3 ** MOUNT HOLE NUMBER **

N.4 N.5

N.6 N.7

N.7 N.8

N.9

DIMENSION
