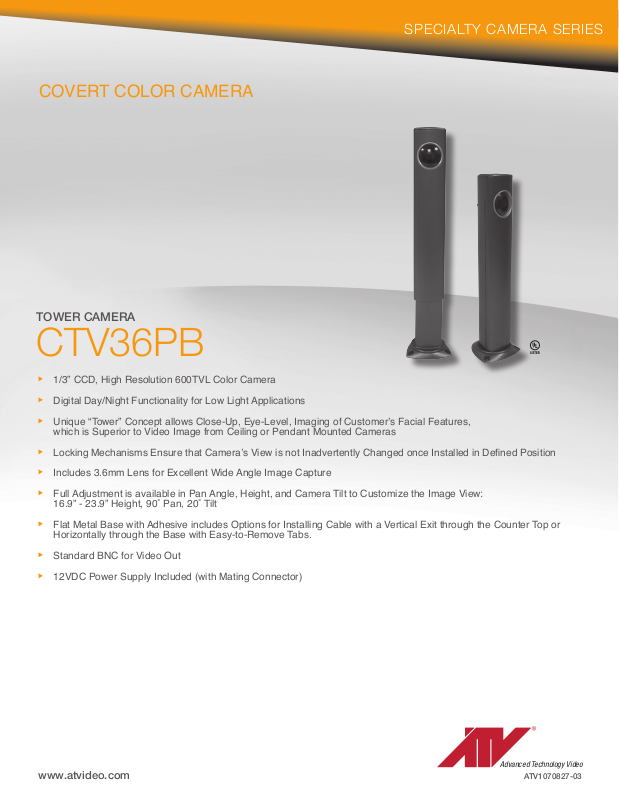

ATV CTV36PB Specsheet
COVERT COLOR CAMERA
TOWER CAMERA
SPECIALTY CAMERA SERIES
CTV36PB
u
1/3” CCD, High Resolution 600TVL Color Camera
u
Digital Day/Night Functionality for Low Light Applications
u
Unique “Tower” Concept allows Close-Up, Eye-Level, Imaging of Customer’s Facial Features,
which is Superior to Video Image from Ceiling or Pendant Mounted Cameras
u
Locking Mechanisms Ensure that Camera’s View is not Inadvertently Changed once Installed in Dened Position
u
Includes 3.6mm Lens for Excellent Wide Angle Image Capture
u
Full Adjustment is available in Pan Angle, Height, and Camera Tilt to Customize the Image View:
16.9” - 23.9” Height, 90˚ Pan, 20˚ Tilt
u
Flat Metal Base with Adhesive includes Options for Installing Cable with a Vertical Exit through the Counter Top or
Horizontally through the Base with Easy-to-Remove Tabs.
u
Standard BNC for Video Out
u
12VDC Power Supply Included (with Mating Connector)
www.atvideo.com
Advanced Technology Video
ATV1070827-03
TOWER CAMERA
TILT LEVER
(TILT ANGLE:-10° ~ +10°)
LOCK POINT FOR POSITIONING TOWER
(THE MOVABLE DISTANCE : 7” INCH)
(THE DISTANCE OF HOLES : 1” INCH APAR
T
KNOCKOUT FOR CABLE ENTRY (2PLCS)
20.0°
SIDE VIEW
Video Output BNC connector is used to
connect the camera to a monitor or digital
video recording system.
CTV36PB
SPECIFICATIONS
MODEL CTV36PB
P
O
Power Source 12~15VDC
W
Power Consumption Max 1.5 Watts
E
R
Image Sensor 1/3” CCD
Total Pixels 811(H) x 508(V)
G
Scanning System 2:1 interlace
E
Scanning Frequency 15.734KHz(H), 59.94Hz(V)
N
Sync. System Internal
E
Electronic Shutter 1/60 ~ 1/100,000 sec.
R
Resolution 600TVL
A
Min. Illumination 0.1Lux Color, 0.04Lux B/W @ F1.2, 50 IRE
L
Video Output 1.0 Vp-p (75 ohm, Composite)
S/N Ratio > 50dB (AGC off)
F
Auto Exposure ON
U
White Balance Auto (ATW)
N
C
Day/Night Auto
T
I
Gamma 0.45
O
2D-DNR ON
N
Power Input Terminal Block
C
Video Output BNC connector
O
Lens Mount Fixed mount
N
Lens 3.6mm
N
Operating Temperature 14º - 122ºF (-10º - 50ºC)
E
C
Operating Humidity 0 ~ 96% (non-condensing)
T
External Dimension (WxHxD) 2.9 x 19.3-26.3 x 2.9in (73.7 x 490.2 - 668 x 73.7mm);
O
Base 5.2 x 5.2in (132.1 x 132.1mm)
R
Weight 2.43 lbs (1.1kg)
Standards Compliance FCC, UL, CE, RoHs
MIN HEIGHT
=(19.3”) 490.2mm
(16.9”) 429.7mm
20.0°
SPECIALTY
CAMERA SERIES
DIMENSIONS
MAX HEIGHT
=(26.3”) 668.0mm
(23.9”) 607.5mm
FRONT VIEW
TILT LEVER
(TILT ANGLE:-10° ~ +10°)
LOCK POINT FOR POSITIONING TOWER
(THE MOVABLE DISTANCE : 7” INCH)
(THE DISTANCE OF HOLES : 1” INCH APART
Video Output BNC connector is used to
connect the camera to a monitor or digital
video recording system.
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2011 ATV All rights reserved. Specications and Design are subject to change without notice.
SIDE VIEW
KNOCKOUT FOR CABLE ENTRY (2PLCS)
BACK VIEW
