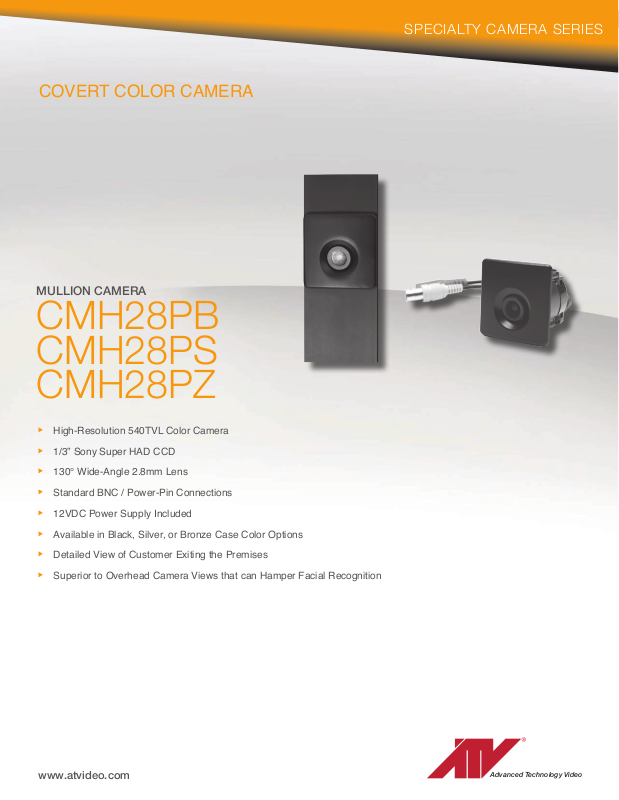

ATV CMH28PB, CMH28PS Specsheet
COVERT COLOR CAMERA
MULLION CAMERA
SPECIALTY CAMERA SERIES
CMH28PB
CMH28PS
CMH28PZ
u
High-Resolution 540TVL Color Camera
u
1/3” Sony Super HAD CCD
u
130° Wide-Angle 2.8mm Lens
u
Standard BNC / Power-Pin Connections
u
12VDC Power Supply Included
u
Available in Black, Silver, or Bronze Case Color Options
u
Detailed View of Customer Exiting the Premises
u
Superior to Overhead Camera Views that can Hamper Facial Recognition
www.atvideo.com
Advanced Technology Video
MULLION CAMERA
Fasten the mullion camera base to the surface of the mullion
using the double-sided tape and orient the camera in the
desired position.
Mullion Camera
Video Output BNC connector is used to connect
the camera to a monitor or digital video recording
system.
CMH28PB / CMH28PS / CMH28PZ
SPECIFICATIONS
MODEL CMH28PB ~ 540 TVL Color Camera, Black Case
MODEL CMH28PS ~ 540 TVL Color Camera, Silver Case
MODEL
P
o
Power Source 12VDC +/-10%
w
Power Consumption Max 1.5 Watts
E
R
Image Sensor 1/3” Sony Super HAD CCD
Total Pixels 811(H) x 507(V)
g
Scanning System NTSC
E
Scanning Frequency 15.734KHz(H), 59.94Hz(V)
n
Sync. System Internal
E
Electronic Shutter 1/60 ~ 1/100,000 sec.
R
Resolution 540TVL
A
Min. Illumination 0.25 lux @ F1.2, 50 IRE
L
Video Output 1.0 Vp-p (75-ohm, Composite)
S/N Ratio >50dB (AGC off)
f
Auto Exposure ON
u
White Balance ATW Fixed
n
C
Gain Control Auto
T
I
Gamma 0.45
o
BLC ON
n
Power Input DC JACK, 2.1mm
Video Output BNC connector
C
Lens Mount Fixed mount
o
Lens 2.8mm
n
n
Operating Temperature 14˚F ~ 104˚F (-10˚~ 40˚)
E
Operating Humidity 0 ~ 96% (non-condensing)
C
External Dimension 1.73 x 1.73 x 1.38 inches
T
o
(W x H x D) 44 x 44 x 35 mm
R
Weight 2.3oz, 65g
Shipping Weight 2 lbs (0.9kg)
Standards Compliance FCC, cULus, RoHs
CMH28PZ ~ 540 TVL Color Camera, Bronze Case
SPECIALTY
CAMERA SERIES
DIMENSIONS
Depth=approx. 31.0mm
Video Output BNC connector is used to connect
the camera to a monitor or digital video recording
system.
Accessories
P3DC12-8-10CB Power Supply, 8 channel, 12VDC, 10A Circuit Breaker
PS12V Power Supply, 12VDC, 300ma, 2.1mm power plug
