ATV CLP7550I User Manual

CLP7550I-001

High Contrast License Plate
Capture Camera

OPERATION MANUAL

Thank you for choosing our high quality camera.
Before attempting to connect operate this unit, please read and follow these instructions.

Contents

1. Cautions

2. Important Safety Instruction

3. Features

4. Components

5. Name and Function

6. Installation

7. Functions

8. Installation Guideline

9. Specification

10. Dimensions

CAUTION

These servicing instructions are for use by qualied service personnel only.
To reduce the risk of electric shock do not perform any servicing o ther than
that contained in the operating instructions unless you are qualied to do so.

Use Class 2 Power Supply Only

2

1. Cautions

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;

1. This device may not cause harmful interference.

2. This device must accept any interference received, including
interference that may cause undesired operation.

Note -

This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.”

WARNING -

This is a class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.

Caution -

Any changes or modifications in construction of this device which are
not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.

1. A regulated DC12V 3A power supply is recommended for use with this camera
for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera.

When unregulated power supply is applied, product warranty will be out of subject.

2. It is recommended that the camera is used with a monitor that has a CCTV

quality 75Ω video impedance level.

If yur monitor is switched to high impedance then please adjust accordingly.

3. Do not attempt to disassemble the camera to gain access to the internal components.

Refer servicing to your dealer.

4. Never face the camera towards the sun or any bright or reective light,

which may cause smear on the picture and possible damage to the Image Sensor.

5. Do not remove the serial sticker for the warranty service.

6. Do not expose the camera to rain or other types of liquid.

7. The apparatus must be connected to a mains socket-outlet with a protective earthing

connection.

3

1. Cautions

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with
separate collection systems)

This marking shown on the product or its literature, indicate that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.

This product should not be mixed with other commercial wastes purchased this

product, or their local government ofce, for details of where and how they can

take item for environmentally safe recycling.

Business users should contact their supplier and check the terms and
conditions of the purchase contract.
Household users should contact either the retailer where they for disposal.

4

2. Important Safety Instruction

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including ampliers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the

third prong are provided for your safety. If the provided plug does not t into

your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from the
apparatus.

11) Only use attachments/accessories specied by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specied by the

manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to
avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long
periods of time.

14) Refer all servicing to qualied service personnel. Servicing is required

when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.

5

3. Features

• 1/3" 960H SONY EXview HAD CCD

• High Resolution 700TV Lines

• Special filter and IR LED provides maximum readability

despite headlight glare

• Plate capture up to 75mph (120Km/H)

• 5.0 ~ 50.0mm Vari-focal lens captures license plate

from 16ft to 91ft (4.8M to 27M)

• IP66

• Cable through concealed bracket

• DC12V / AC24V Dual power with auto-polarity

Ⅱ

4. Components

LP Camera

Video Output

Test Cable

L-Wrench / Screws

Operation Manual

6

5. Name and Function

①

③

②

①

Sunshield

②

Cable Concealed

Thru Bracket

③

Body

• CONTROL FUNCTION

(OSD JOYSTICK)

LEFT

UP

RIGHT

MENU

DOWN

7

5. Name and Function

Built in heater protects the camera from low temperature.

(Operating temperature with Heater: -40℃)

Heater

External Zoom & Focus Adjustable

8

6. Installation

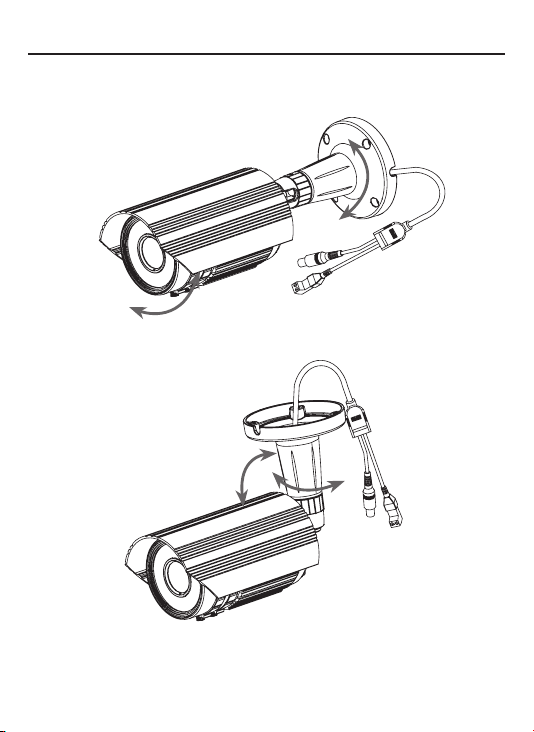

• MOUNTING POSITION

90˚TLIT

360˚PAN

90˚TLIT

360˚PAN

9

6. Installation

• Camera Installation

DUAL(DC12V/AC24V)

DC12V/AC24V

• Service Video Connector

When you install the camera, please seal up the end of cable to
keep it stable in order to protect the camera from the humidity problems.

DC 12V Power Supply or
AC 24V Power Supply

Video In

Video Display

Handheld Monitor

10

7. Functions

OSD Menu Structure

• MODE

- INSTALLATION

Installation Mode provides bright
video screen to adjust angle and focus.

- LICENSE-PLATE

License-plate Mode provides high contrast

and clear license plate image for license plate capture

SETUP

▶

MODE
SHUTTER
NEG. IMAGE
EXIT

LICENSE-PLATE

1/6000

OFF

• SHUTTER

1/250,1/500 ~ 1/10000

1/30K,1/50K, 1/70K, 1/90K, 1/100K.

- Adjusted when LICENSE-PLATE MODE is

performed(Initial value: 1/6000).

- Indecated “----“ when INSTALLATION MODE is set.

• NEGATIVE

User can select positive or negative image.

Negative OFF

(adjusted to 1/500sec measure),

Negative ON

• EXIT

Enable user to EXIT the OSD menu Setting
up using SELECT. If Installation Mode is

selected, user can see screen as below.

11

SETUP

MODE

LICENSE-PLATE

SHUTTER

▶

NEG. IMAGE
EXIT

SETUP

MODE

LICENSE-PLATE

SHUTTER

▶

NEG. IMAGE
EXIT

INSTALLATION MODE

FOCUS VALUE: 2↑

1/6000

OFF

1/6000

OFF

8. Installation Guideline

Camera Height

Must consider height in distance calculation.

•

Sharper angle will alter appearance of plate.

•

Camera Height (Ft) Horizontal Distance (Ft) Capture Distance(Ft)

10 10 14.14
11 20 22.83
12 30 32.31
13 40 42.06
14 50 51.92

12

8. Installation Guideline

Camera Angles

Vertical and horizontal angle must not exceed 40 degrees to

•

get optimal view of the license plate.

Capture Zone

Wider angle provide shorter capture distance.

•

Tele angle provide longer capture distance.

•

WIDE SETTING -66.5 @ f=5mm
TELE SETTING -7.4 @ f=50mm

WIDE END -66.5 @ f=5mm

TELE END -7.4 @ f=50mm

Optimized Capture
Range for S/W

o

o

License Plate can be
recongnizable with eyes

13

8. Installation Guideline

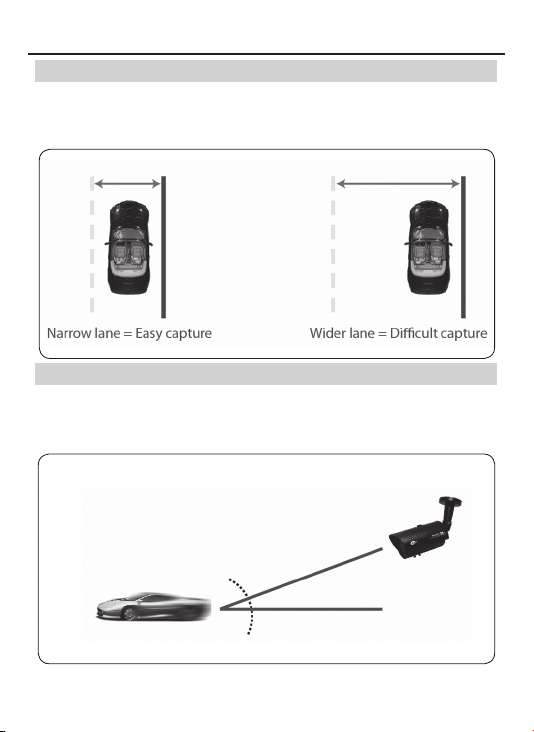

Lane Width

Narrow lanes = less variation in plate location.

•

Wider lanes = more variation in plate location.

•

Lens should cover entire width of the lane.

•

Ensure horizontal eld of view is wide enough.

•

Speed

Camera can capture moving vehicles up to 75mph.

•

Keep camera as low as possible.

•

Minimize horizontal angle.

•

Zoom in the lens as close as possible.

•

Up to 75 mph

14

8. Installation Guideline

DVR

Camera is fully compatible with industry standard DVRs.

•

Check compression settings.

•

Non-conditional refresh compression. (i.e. MJPEG or JPEG)

•

D1 (720x480) resolution.

•

30fps (each channel) for best results.

•

9. Specification

Signal Format NTSC PAL
Image Device 1/3" 960H SONY EXview HAD CCD II
Scanning System 2 : 1 Interlace
Total Pixels 1020(H) X 508(V) 1020(H) X 596(V)

Effective Pixels 976(H) X 494(V) 976(H) X 582(V)
Inter. H/V 15.734KHz(H), 59.94Hz(V) 15.625KHz(H), 50Hz(V)

H.Resolution 700TV Lines
Minimum Illumination 0 Lux (IR LED ON)
S/N Ratio More than 50dB (AGC Off)
Sync System Internal
Gamma

Video Output 1.0 Vp-p Composite(75Ω)

Negative Image On / Off
Function Focus Adjust MODE

Day & Night BW
Lens 5-50mm DC Drive Vari-focal lens
IR LED 850nm, Power LED, 10EA

License

Plate
Capture

Operating Temperature

Storage Temperature -4˚F~140˚F(-20˚C ~ +60˚C)

Power
Consumption

Weight Approx. 1.85Kg
Dinmension(inch) 4.2(W) x 3.8(H) x 6.1(D)
IP Rating IP66

Speed Rage Up to 75mph (120km/h)
Capture
Distance

Heater On: -40°F~122°F(-40°C~+50°C)

DC DC12V(±10%), Max 820mA (With Heater)

DUAL

AC AC24V(±10%), Max 18W (With Heater)

* Specications and designs are subject to change for improving

the functionality of this product without notice.

γ

= 0.45

16ft ~ 91ft (4.8m ~ 27m)

14°F~122°F(-10°C~+50°C) /

15

10. Dimensions

unit: inch

Power LED(10ea)

Ø4.2

Ø3.8

7.2

6.1

(12.4)

M15XP1.25

(2EA)

5.8

Ø4.3

16
