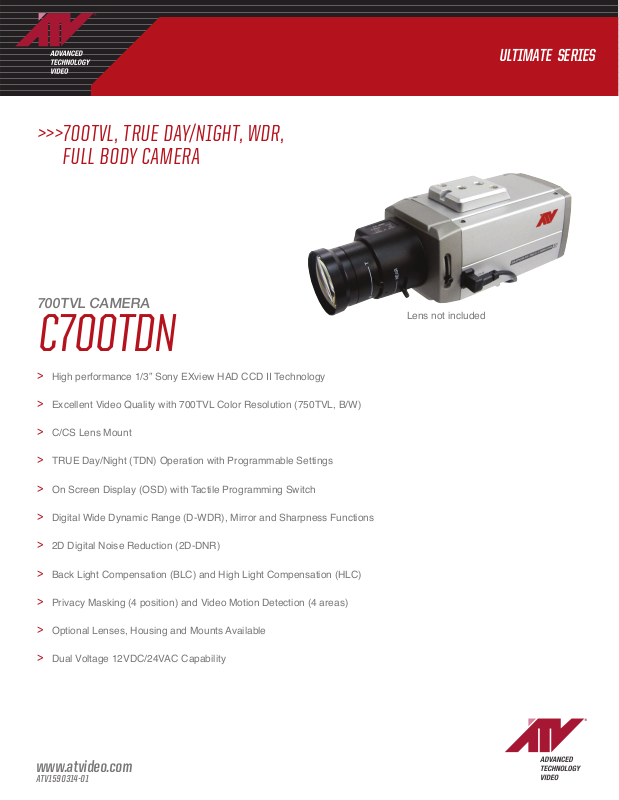

ATV C700TDN Specsheet
>>>700TVL, TRUE DAY/NIGHT, WDR,
FULL BODY CAMERA
700TVL CAMERA
C700TDN
ULTIMATE SERIES
Lens not included
High performance 1/3” Sony EXview HAD CCD II Technology
>
Excellent Video Quality with 700TVL Color Resolution (750TVL, B/W)
>
C/CS Lens Mount
>
TRUE Day/Night (TDN) Operation with Programmable Settings
>
On Screen Display (OSD) with Tactile Programming Switch
>
Digital Wide Dynamic Range (D-WDR), Mirror and Sharpness Functions
>
2D Digital Noise Reduction (2D-DNR)
>
Back Light Compensation (BLC) and High Light Compensation (HLC)
>
Privacy Masking (4 position) and Video Motion Detection (4 areas)
>
Optional Lenses, Housing and Mounts Available
>
Dual Voltage 12VDC/24VAC Capability
>
www.atvideo.com
ATV1590314-01
700TVL CAMERA
C700TDN
SPECIFICATIONS
P
MODEL
O
Voltage 12VDC/24VAC
W
Power 3.5W
E
R
CCD Image Sensor 1/3” SONY EXview HAD CCD II
Total Pixels 1020 (H) x 508(V)
Scanning System 2:1 Interlace
Scanning Frequency 15.734KHz (H), 59.94Hz (V)
V
Sync. System Internal
I
Electronic Shutter 1/60 ~ 1/10,000
D
E
Resolution 700TVL color; 750TVL B/W
O
Minimum Illumination 0.15 lux (color), 0.01 lux (B/W)
Video Output 1.0Vp-p (75-ohm, composite)
S/N Ratio > 50dB (AGC off
OSD Camera Control Tactile Switch
D-WDR (Adaptive Tone Reproduction) LUMINANCE(L/M/H), CONTRAST(L/LM/M/MH/H)
Backlight OFF / BLC / HLC
Day & Night AUTO
MD (Motion Detection) On (4 areas) / Off Adjustable Size & Sensitivity
PM (Privacy Masking) 0 ~ 4 zone
F
WB (White Balance) ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH LOCK
U
N
AGC (Auto Gain Control) On / Off
C
Exposure Auto Iris / Auto Iris + Electronic Shutter
T
Brightness 0 ~ 255 steps
I
Contrast 0 ~ 255 steps
O
Sharpness 0 ~ 255 steps
N
HUE 0 ~ 255 steps
Gain 0 ~ 255 steps
2D-DNR (Digital Noise Reduction) OFF / Y / C / Y, C
Mirror ON / OFF
Power Input 2-pin Terminal Block
G
Composite Video Output BNC
E
Lens Mount C/CS
N
Operating Temperature 14°F ~ 122°F (-10°C ~ 50°C)
E
R
Operating Humidity 0~96% (non-condensing)
A
Dimensions (W x H x D) 2.6 x 2.2 x 4.7in (66 x 63 x 120mm)
L
Weight 0.53lbs (0.24kg)
Conformity Certifications FCC, CE, RoHS
C700TDN
ULTIMATE SERIES
DIMENSIONS
A-CM150
EHWMHB Lenses
CMD16W
A-CM151
ACCESSORIES
A-CM150 Corner mount for EHWMHB
A-CM151 Pole mount for EHWMHB
EHWMHB Environmental Camera Housing
HT3016DIRSL 2.7-13.5mm Varifocal Lens, CS Mount
CM-TBAR Camera Mount for Drop Ceiling “T-bar”
CMD16W Camera Wall Mount (White)
Advanced Technology Video | 850 Freeport Pkwy., Ste.100, Coppell, TX 75019
Toll Free 888.288.7644 | Main 972.459.8645 | Fax 972.459.8661
©2018 ATV All rights reserved. Specifications and Design are subject to change without notice.
ATV1590314-01
