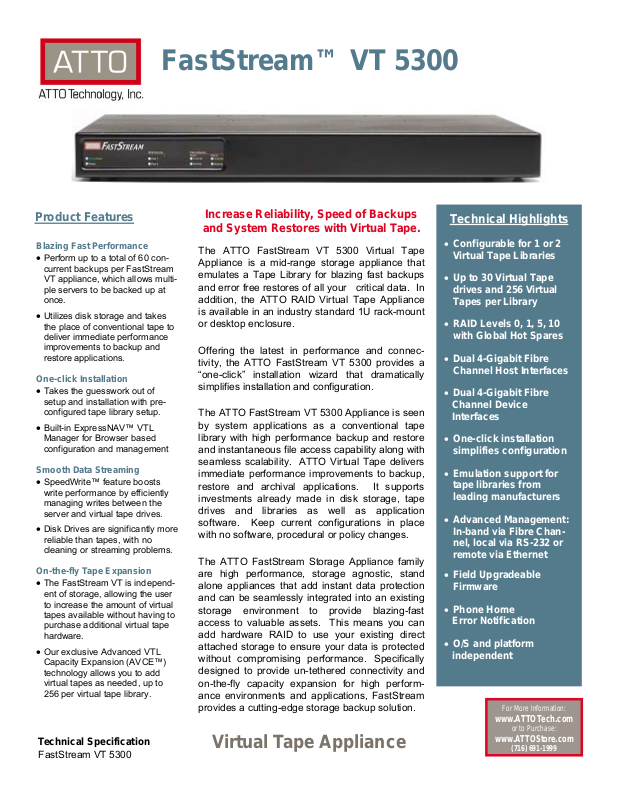

ATTO Technology VT 5300 User Manual
FastStream™ VT 5300
Product Features
Blazing Fast Performance
• Perform up to a total of 60 con-
current backups per FastStream
VT appliance, which allows multiple servers to be backed up at
once.
• Utilizes disk storage and takes
the place of conventional tape to
deliver immediate performance
improvements to backup and
restore applications.
One-click Installation
• Takes the guesswork out of
setup and installation with preconfigured tape library setup.
• Built-in ExpressNAV™ VTL
Manager for Browser based
configuration and management
Smooth Data Streaming
• SpeedWrite™ feature boosts
write performance by efficiently
managing writes between the
server and virtual tape drives.
• Disk Drives are significantly more
reliable than tapes, with no
cleaning or streaming problems.
On-the-fly Tape Expansion
• The FastStream VT is independ-
ent of storage, allowing the user
to increase the amount of virtual
tapes available without having to
purchase additional virtual tape
hardware.
• Our exclusive Advanced VTL
Capacity Expansion (AVCE™)
technology allows you to add
virtual tapes as needed, up to
256 per virtual tape library.
Technical Specification
FastStream VT 5300
Increase Reliability, Speed of Backups
and System Restores with Virtual Tape.
The ATTO FastStream VT 5300 Virtual Tape
Appliance is a mid-range storage appliance that
emulates a Tape Library for blazing fast backups
and error free restores of all your critical data. In
addition, the ATTO RAID Virtual Tape Appliance
is available in an industry standard 1U rack-mount
or desktop enclosure.
Offering the latest in performance and connectivity, the ATTO FastStream VT 5300 provides a
“one-click” installation wizard that dramatically
simplifies installation and configuration.
The ATTO FastStream VT 5300 Appliance is seen
by system applications as a conventional tape
library with high performance backup and restore
and instantaneous file access capability along with
seamless scalability. ATTO Virtual Tape delivers
immediate performance improvements to backup,
restore and archival applications. It supports
investments already made in disk storage, tape
drives and libraries as well as application
software. Keep current configurations in place
with no software, procedural or policy changes.
The ATTO FastStream Storage Appliance family
are high performance, storage agnostic, stand
alone appliances that add instant data protection
and can be seamlessly integrated into an existing
storage environment to provide blazing-fast
access to valuable assets. This means you can
add hardware RAID to use your existing direct
attached storage to ensure your data is protected
without compromising performance. Specifically
designed to provide un-tethered connectivity and
on-the-fly capacity expansion for high performance environments and applications, FastStream
provides a cutting-edge storage backup solution.
Virtual Tape Appliance
Technical Highlights
• Configurable for 1 or 2
Virtual Tape Libraries
• Up to 30 Virtual Tape
drives and 256 Virtual
Tapes per Library
• RAID Levels 0, 1, 5, 10
with Global Hot Spares
• Dual 4-Gigabit Fibre
Channel Host Interfaces
• Dual 4-Gigabit Fibre
Channel Device
Interfaces
• One-click installation
simplifies configuration
• Emulation support for
tape libraries from
leading manufacturers
• Advanced Management:
In-band via Fibre Channel, local via RS-232 or
remote via Ethernet
• Field Upgradeable
Firmware
• Phone Home
Error Notification
• O/S and platform
independent
For More Information:
www.ATTOTech.com
or to Purchase:
www.ATTOStore.com
(716) 691-1999
FastStream VT 5300
Virtual Tape Appliance
Technical Features
Virtual Tape Library
RAID Levels
Key Features
Hardware Specifications
Fibre Channel Interface
SCSI Interface
• Virtual Libraries Supported: 2
• Maximum Virtual Tape Drives per Library: 30
• Maximum Virtual Tapes per Library: 256
• SCSI-3 Support
• All required tape and media changer commands supported
• 0, 1, 5 and 10 (JBOD is also supported) with Global Hot Spares
• RAID Rebuild with Tunable Rebuild Priority
• Pre-configured Inquiry Strings for 15 Tape Libraries
• Advanced VTL Capacity Expansion (AVCE™) Technology
• Drive Initialization and Verification, Drive Performance Metrics
• Can be shared in heterogeneous environments
• SpeedWrite™ Performance-enhancing Technology
• Field Upgradeable Firmware
• O/S independent operation
• Battery Backed Event Log
• ECC Protected Memory
• 4 Gigabit, auto-negotiates to 2/1 Gigabit devices
• Two Optical SFP (Small Form Factor Pluggable) Fibre Channel ports
• Class 3 and Intermix ANSI Fibre Channel Specifications
• PLDA, public loop login (NL-ports) and fabric connect (N-port)
• Full-duplex transmissions
• Dual independent Ultra320 LVD/SE SCSI bus ports
• Dual stacked VHDCI SCSI connectors
• Backwards compatible with all single-ended SCSI devices
Management Interface
Management
Local and Network Management
Environmental & Physical Specifications
Dimensions
Operating Environment
Storage Environment
Power
Airflow
RoHS Compliant
Ordering Information
Model Number
Accessories
• RJ-45 connector for Ethernet management port
• RS-232 serial port
• ExpressNAV
• Local diagnostics and configuration supported via CLI, Telnet and FTP
• Command line ASCII text management access via the Ethernet port
• 1.579” (1U) H x 16.494” W x 10.000” L
• Temperature 5 - 40° C ● Humidity: 10 - 90% non-condensing
• Temperature 0 - 40° C ● Humidity: 20 - 80% non-condensing
• Input: 100-240VAC +/- 18%, 50/60 Hz
• 11 CFM recommended ● Ambient air not to exceed 40° C
• Yes
• FSVT-5300-0R0
• FC Cables: CBL-LCLC-R10 (10M LC-LC cables)
• SCSI Cables: CBL-V68E-R3X (1M VHDCI to HD68 cables)
Technical Specification
FastStream VT 5300
©2008 ATTO Technology, Inc. Specifications subject to change without notice.
TM
VTL manager browser-based user interface for remote
configuration, management and diagnostic capabilities
Power Behind the Storage
For More Information:
www.ATTOTech.com
or to Purchase:
www.ATTOStore.com
(716) 691-1999
Rev 2/08
